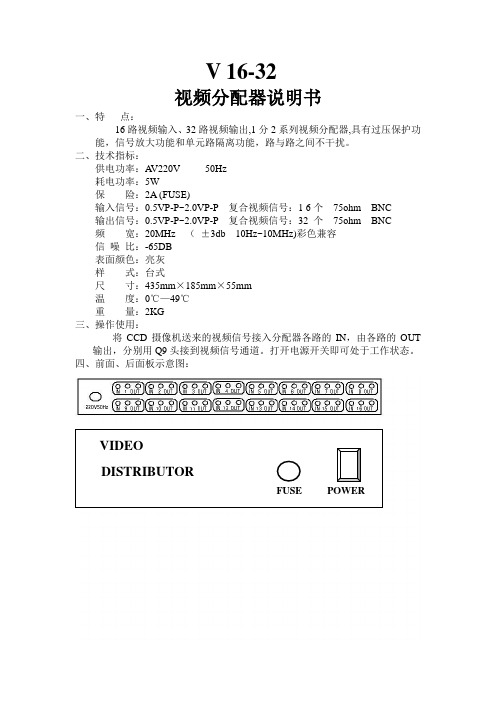

V 16-32
视频分配器说明书
一、特点：
16路视频输入、32路视频输出,1分2系列视频分配器,具有过压保护功能，信号放大功能和单元路隔离功能，路与路之间不干扰。
二、技术指标：
供电功率：A V220V 50Hz
耗电功率：5W
保险：2A (FUSE)
输入信号：0.5VP-P~2.0VP-P 复合视频信号：1 6个75ohm BNC
输出信号：0.5VP-P~2.0VP-P 复合视频信号：32 个75ohm BNC
频宽：20MHz （±3db 10Hz~10MHz)彩色兼容
信噪比：-65DB
表面颜色：亮灰
样式：台式
尺寸：435mm×185mm×55mm
温度：0℃—49℃
重量：2KG
三、操作使用：
将CCD摄像机送来的视频信号接入分配器各路的IN，由各路的OUT 输出，分别用Q9头接到视频信号通道。
打开电源开关即可处于工作状态。
四、前面、后面板示意图：
VIDEO
DISTRIBUTOR
FUSE POWER。

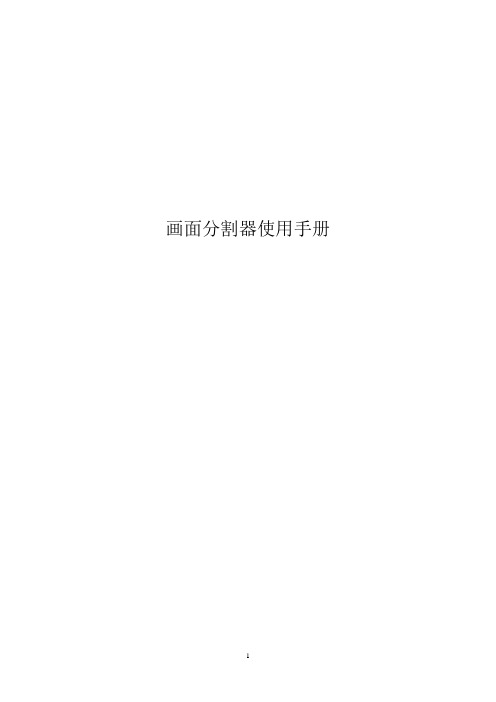

画面分割器使用手册目录一、安全注意事项二、画面分割处理器特性三、安装四、前面板按键操作使用五、后面板功能说明六、模式切换功能设置(四画面有效)七、模式切换功能设置(适用于9 16画面)八、电脑软件控制说明九、画面分割通信格式(一) 安全注意事项注意！手册中所列为出版之前时的信息，制造商保留更改和改进其他产品的权利，所有参数如有更改，恕不通知。
安装场所为了确保画面分割处理器使用安全并且获得满意的性能，在安装机器时，需要考虑下述情况：1.远离高温的热源和环境。
2.为了确保画面分割处理器的正常散热，应避开通风不良的场所切勿堵塞分割处理器的通风口。
此款分割处理器两侧有通风口，画面分割处理器安装时，其后部两侧应距离其他设备或墙壁5CM以上以利于散热。
3.分割处理器应水平安装，避免安装后会剧烈震动的场所。
4.避免在过冷、过热的场所间相互搬动机器，以免机器内部产生结露，影响机器的使用寿命。
5.切忌勿用湿手触摸电源和机器。
6.勿将液体溅落在画面分割处理器上，以免造成机器内部短路或失火。
7.勿将其它设备直接放置于本机上部。
8.在工程安装时请连接好地线，以免造成雷击主芯片损坏。
9.画面分割处理器有故障时，为了避免损坏，请勿自行拆开机壳，必须委托有资格的专业维修人员在指定的维修单位进行维修。
10.不要使用功率不匹配的电源变压器来作本机器的电源供应。
11.为了防止电击和失火，请勿将本机器放置到雨淋或潮湿的场所。
在使用前请阅读和研究此手册中的所有指示和注意事项！此手册和原有销售单据保留，以便将来必要的维修时之用。
拆开包装后，检查是否遗失或损坏如果发现任何遗失或损坏，请不要安装或操作此产品，应尽快同代理商联系。
二、画面分割处理器特性画面分割处理器特性1.彩色，黑白摄像机兼容，NTSC/PAL标准视频源，无需视频同步。
2.全实时、高画质画面分割器3.主监视器允许多画面或单画面输出。
4.屏幕显示，包括日期、时间、报警、视频丢失和各摄像机标题（10个字符）。

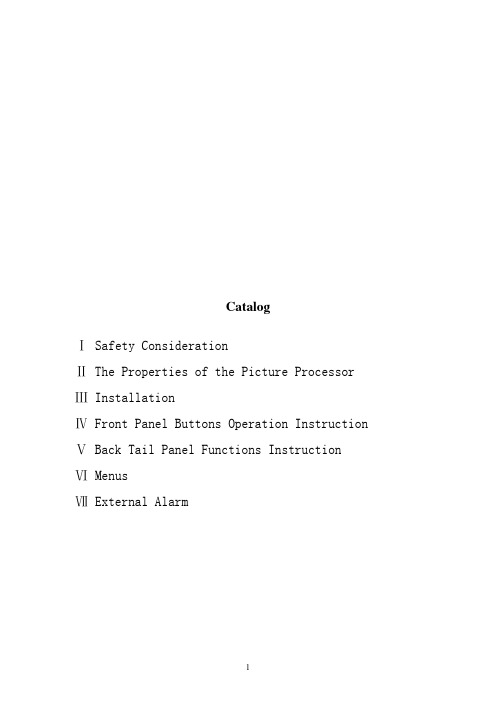

目录（一）安全注意事项 (2)（二）画面处理器特性 (2)（三）安装 (3)（四）前面板按键操作说明 (3)（五）后尾板功能说明 (4)（六）菜单 (4)（七）外接报警接口说明 (8)CatalogⅠ Safety Consideration (9)Ⅱ The Properties of the Picture Processor (9)Ⅲ Installation (10)Ⅳ Front Panel Buttons Operation Instruction (11)Ⅴ Back Tail Panel Functions Instruction (11)Ⅵ Menus (12)Ⅶ External Alarm (16)（一）安全注意事项注意！手册中所列为出版时的信息，制造商有保留更改和改进其产品的权利，所有参数如有更改，恕不通知。
