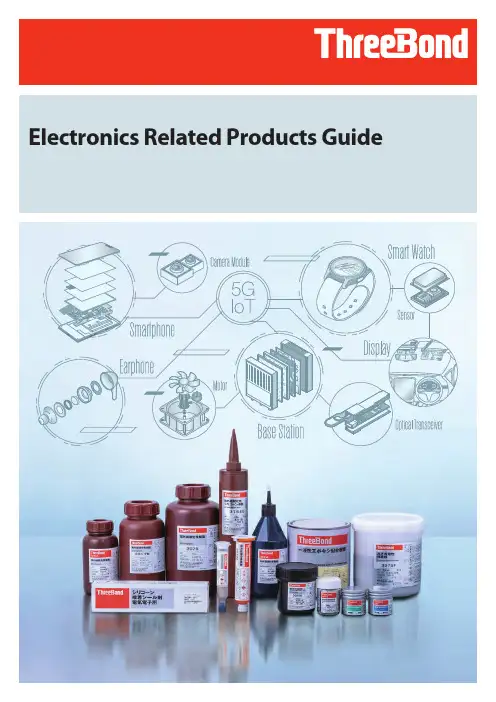

Electronics R elated Products GuideAs the need for automation and labor saving increases, the number of small motors, which are key to theirimplementation, is also expected to increase. For the cases that requires high reliability, such as for robots, we can make proposals that are optimized for the operating environment.Electronics SectorDC Motor & Induction MotorMotors consume 50% of the world’s electricity and increased miniaturization, rotation speed, and e ciency are progressing in response to demand for further increases in functionality. With these changes, the adhesives used require heat resistance and high strength.Electronics SectorBrushless-DC MotorSmart phones that are now essential goods for daily living are composed of alot of electronic components and modules and lots of glue.Attachment of a cover panel to a display panel with a UV-curable sheet-likeadhesive enables a screen to be easily watched, and use of a low-temperaturecurable/UV-curable sealant for a case can produce “waterproof and drip-proof”devices.In addition, ThreeBond's sealants and adhesives contribute to making smart phonesand their electronic components and modules thinner and more sophisticated. Electronics SectorSmartphoneby little due to downsizing.ThreeBond's sealants and adhesives can meet all needs.adhesives that cure fast at low temperature are needed to shorten theA lot of adhesives are used for the mechanical components of cameras including a single lens re ex camera. As the design of a camera has been smaller and thinner, UV-LED light source-curable adhesives are needed in order to bond a di erent type of material to another, to reduce the amount of heat applied to materials, and to reduce power consumption in camera manufacturing processes.ThreeBond develops and manufactures adhesives that are the most appropriate to a customer's manufacturing processes and provide such products on a global basis.Electronics SectorDigital CameraDigital CameraPentaprismGlass and resin lensStrobeAF sensorApplication Pentaprism xing Product ThreeBond 3030 SeriesCure conditionUV curingCharacteristics1. High adhesion to resin materials (PC, PPS, etc.)2. Flexible3. Adhesion to di erent materials Application Bonding of lenses Product ThreeBond 3017 Series ThreeBond 3020BCure conditionUV curingCharacteristics1. High strength of adhesion to materials di cult to bond (ole n-based)2. Good surface curability3. Less distortion (TB 3017 Series)Application AF sensor xing Product ThreeBond 1535 Series ThreeBond 3017 SeriesCure conditionMoisture curing / UV curingCharacteristics1. Good impact resistance2. Adhesion to di erent materials3. Shadow-zone curing possible (TB 1535 Series)Application Strobe periphery xing Product ThreeBond 1535 Series ThreeBond 3164DCure conditionMoisture curing / UV curingCharacteristics1. Good impact resistance2. Adhesion to di erent materials3. Shadow-zone curing possible Image sensorApplication Image sensor xing Product ThreeBond 3036 Series ThreeBond 3114 SeriesCure condition UV curing Characteristics1. Low cure shrinkage2. Low linear expansion coe cient3. High adhesive strength Case / Lens mountApplication Waterproof / Dustproof Product ThreeBond 3081 Series ThreeBond 3166Cure condition* CIPG (Cured In Place Gasket)UV curing (CIPG)Characteristics1. Low compression permanent distortion2. Flexibility3. Reworkable Application Heat dissipation Product ThreeBond 1225 Series ThreeBond 2955 SeriesCure conditionMoisture curingCharacteristics1. High thermal conductivity (1.59 to 4.8W/m•K)2. Low outgassing (TB 2955 Series)3. Low molecular weight cyclic siloxane reduced product Image stabilizer unitApplication Vibration absorption Product ThreeBond 3168ECure conditionUV curingCharacteristics1. High and low temperature resistance2. Soft gel3. Vibration absorbability * ThreeBond is abbreviated to TB.In recent years, increasing awareness of global security has been accompanied by spreading adoption of surveillance cameras as a deterrent to crime and terrorism.For many years, our UV-curable resin has contributed to security cameras, mainly to the adhesive application for optical parts.Increasing numbers of pixels in recent years have brought an increasing need for “thermal conductivity” as protection against overheating, and for “Sealants” as waterproo ng and protection from insects.Electronics SectorSurveillance Cameraconferences as telework becomes more prevalent, so production levels areincreasing signi cantly. Furthermore, as earphones become more expensive,consumers expect them to last longer, so adhesives must improve productivitythrough “fast curing” and high reliability with a focus on “impact resistance”.Wireless Earphone As automation advances as a substitute for the ve senses of humanbeings, adoption of these devices is expected to further increase. AtThreeBond, we propose the optimal products for sensors and MEMSdevices that require high reliability.Sensor / MEMS DeviceStations for 5G communication are starting to be set up everywhere, evenoutdoors, so adhesives must be incredibly reliable to ensure operationcontinues despite weather conditions. Our lineup includes case sealants,thermally conductive materials used to protect electronic substrates fromheat and more.Electronics Sector5G Base Station The spread of 5G communications has greatly increased the amountof data ying around the world. As for optical transceivers needed forhigh-speed communications, we have a wide range of products,mainly UV resins and heat-conducting materials for parts requiringprecision xation.Electronics SectorOptical TransceiverViscosity comparison[Cyanoacrylate Adhesives]Viscosity comparison[UV Curing Resins]Viscosity comparison[Epoxy resin] Electronics SectorProduct map by viscosity / hardnessWatch our video to see viscosity imagesElectronics SectorAdhesive selection table by materialApplication Equipmentas the equipment to apply and pressure feed them to maximize their performance.As a manufacturer with full knowledge of sealants and adhesives, ThreeBond enables to reduce cost and improve developing such equipment.To provide further added value for customers, ThreeBond has been making e orts to develop and sell the equipment that incorporates new application and pressure feeding technologies.Tank for 250g/1kg bottle or can (TG1-T)Dispense valve (HPNV-50)Pressure feed controller (coater S4)Small capacity precision type ofManual application cartridge pump (ACB-20)Pump for pails (PBIII)+Constant-velocity discharge head ( xed-quantity booster)Air gun for sealant- Lineup of products for improvement of productivity and workability - The RTM and RTM-H Series enable products that meet customer requirements to be designed and manufactured.- A lineup of devices that can handle small-amount and large-amount sealants and adhesives is available.- They are suitable for the bead application of solvent-volatilization-type and moisture-curable-type liquid gaskets.- Dispensers that can apply a xed quantity of a sealant and an adhesive without waste are available.- A unit that can reduce the amount of a remaining liquid agent in a pail is available as an option. (Some conditions must be met.)* ACB...Automatic Cartridge Booster * PCB...Power Cartridge Booster * RTM...Rotary Transfer Motor* RTA-H...Rotary Transfer Air-motor by HandApplicationTB1100, TB1300 seriesSingle-component xed-quantity booster ( xed-quantity booster) Application Equipment Sector- Lineup of products for improvement of productivity and workability - Applicators suitable to a wide range of adhesives, such as solvent-volatilization type, moisture-curable type, and aqueous pressure-sensitive type, can be selected.- Application of an instantaneous adhesive that is di cult to handle is automated, which enables a work environmentand application quality to be improved.* LVCT-AC...Low Viscosity Cartridge Tank - Automatic Connection * HPNV-50...Pressure Needle Valve - Type 50* DPB-40...Diaphragm Power Booster* TDV...Triple Diaphragm ValveApplicationTB1500 seriesCartridge-type tank (TC2)Dispensing valve (HPNV-50)Controller for pressure (coater S4)Desktop robot (RT7 Series) Application Equipment Sector- Lineup of products for improvement of productivity and workability - Applicators are available for each of the single-component type and the two-component type.- The two-component type can be set, according to a mixing ratio.* CIPG...Cured in Place GasketSingle-acting pump for pails (PBIII-45)This is a high-pressure feeding pump for automatic application. When it isApplication Equipment Sector- UV-curing type, anaerobic-curing type, and moisture-curing type Applicators for each of the above types are available.- Auxiliary equipment needed for the process from application to curing is available.- Equipment suitable for CIPG application (design of a special-purpose machine)Cartridge-type tank (TC2)Dispensing valve (HPNV-50)Controller for pressure (coater S4)Desktop robot (RT7 Series)Application Equipment SectorAK2022035 22 • 11 • SK。
