三洋波轮洗衣机说明书

合肥荣事达三洋电器股份有限公司洗衣机维修手册2003年11月17日洗衣机的故障诊断异常情况发生时，修理之前需要了解以下日常检查注意事项情况：全自动洗衣机症状日常检查注意事项不运转●保险丝是否损坏、保险丝盒是否接触不良？●电源线插头是否插好？●水龙头是否打开？不排水●排水软管是否放下？●排水软管是否堵塞？（如插到地漏底部堵塞？）●排水软管是否接好？不进水● 水龙头是否打开？● 水管是否冻结？● 进水管口/进水阀过滤网是否堵塞？不脱水● 洗涤衣物是否偏置？● 排水软管是否放下？● 洗涤上盖是否没有合上？维修更换部件原则：更换部件必须先从价值低的部件更换，以免进一步扩大维修损失。

全自动洗衣机故障诊断XQB45-428，XQB46-366，XQB45-438，XQB46-376，XQB45-448，XQB46-128，XQB48-628，XQB46-148，XQB48-648，XQB50-149，XQB50-356，XQB46-138，XQB48-668，XQB46-328，XQB50-68，XQB50-98，XQB50-218，XQB50-78，XQB50-168，XQB50-158，XQB50-238，XQB50-258，XQB52-338，XQB52-348，XQB55-118，XQB55-118A，XQB55-268S，XQB60-228S，XQB60-88，XQB60-88A，XQB65-888，XQB70-388，XQB80-8S，XQB80-8SA※1、XQB45-448，46-138，48-668XQB52-338，52-348，55-118XQB80-8S，80-8SA2、XQB50-78、XQB50-168、XQB60-88 3、XQB45-428，46-366，45-438XQB80-8S，XQB80-8SA※1、XQB45-448，46-138，48-668XQB52-338，52-348，55-118XQB80-8S，80-8SA2、XQB45-428，46-366，45-438XQB80-8S，XQB80-8SA※1、XQB45-448，46-138，48-668XQB52-338，52-348，55-118XQB80-8S，80-8SA2、XQB45-428，46-366，45-438XQB80-8S，XQB80-8SA1、进水异常：水位指示发光管表示：⑴XQB60-88、XQB60-88A、XQB65-888、XQB80-8S（全自动侧）：高、低、极少点亮⑵XQB45-448、XQB46-138、XQB48-668、XQB50-68、XQB50-78、XQB50-98、XQB50-218 、XQB50-158、XQB50-168、XQB50-238、XQB50-258、XQB55-118、XQB55-118A：高、低、少量点亮程序指示发光管表示：⑴XQB46-148、XQB48-648、XQB50-149、XQB50-356：快洗、浸泡、轻洗、毛毯点亮⑵XQB46-128、XQB48-628：快洗、轻洗、毛毯点亮⑶XQB45-428、XQB46-366、XQB45-438、XQB46-376：浸泡、轻洗、毛毯、快洗点亮分洗侧发光管表示：⑴XQB80-8S（分洗侧）：12、6、3+补给水或精漂、标准、节约+补给水点亮⑵XQB80-8SA（分洗侧）：12、6、3点亮数码管表示：⑴XQB46-328、XQB52-338、XQB52-348、XQB55-268S、XQB60-228S、XQB70-388、XQB80-8SA（全自动侧）：E1显示2、排水异常：水位指示发光管表示：⑴XQB60-88、XQB60-88A、XQB65-888、XQB80-8S（全自动侧）：高、中、极少点亮⑵XQB45-448、XQB46-138、XQB48-668、XQB50-68、XQB50-78、XQB50-98、XQB50-218 、XQB50-158、XQB50-168、XQB50-238、XQB50-258、XQB55-118、XQB55-118A：高、中、少量点亮⑶XQB45-428、XQB46-366、XQB45-438、XQB46-376：标准、轻洗、毛毯、快洗点亮程序指示发光管表示：⑴XQB46-148、XQB48-648、XQB50-149、XQB50-356：快洗、标准、轻洗、毛毯点亮⑵XQB46-128、XQB48-628：标准、轻洗、毛毯点亮分洗侧发光管表示：⑴XQB80-8S（分洗侧）：12、6、3+排水或精漂、标准、节约+排水点亮⑵XQB80-8SA（分洗侧）：精漂、标准、节约点亮数码管表示：⑴XQB46-328、XQB52-338、XQB52-348、XQB55-268S、XQB60-228S、XQB70-388、XQB80-8SA（全自动侧）：E2显示3、脱水异常：水位指示发光管表示：⑴XQB60-88、XQB60-88A、XQB65-888、XQB80-8S（全自动侧）：高、中、低点亮⑵XQB45-448、XQB46-138、XQB48-668、XQB50-68、XQB50-78、XQB50-98、XQB50-218 、XQB50-158、XQB50-168、XQB50-238、XQB50-258、XQB55-118、XQB55-118A：高、中、低点亮⑶XQB45-428、XQB46-366、XQB45-438、XQB46-376：标准、浸泡、毛毯、快洗点亮程序指示发光管表示：⑴XQB46-148、XQB48-648、XQB50-149、XQB50-356：快洗、标准、浸泡、毛毯点亮⑵XQB46-128、XQB48-628：标准、快洗、毛毯点亮数码管表示：⑴XQB46-328、XQB52-338、XQB52-348、XQB55-268S、XQB60-228S：U3显示——衣物偏置、机器不平？⑵XQB46-328、XQB52-338、XQB52-348、XQB55-268S、XQB60-228S、XQB70-388：U4显示——洗涤上盖打开？⑶XQB80-8SA（全自动侧）：E3显示——衣物偏置、机器不平？⑷XQB80-8SA（全自动侧）：E4显示——洗涤上盖打开？4、水位传感器异常：水位指示发光管表示：⑴XQB60-88、XQB60-88A、XQB65-888：中、低、极少点亮⑵XQB45-448、XQB46-138、XQB48-668、XQB50-68、XQB50-78、XQB50-98、XQB50-218 、XQB50-158、XQB50-168、XQB50-168、XQB50-238、XQB50-258、XQB55-118、XQB55-118A、XQB80-8S（全自动侧）：中、低、少量点亮数码管表示：⑴XQB46-328、XQB52-338、XQB52-348、XQB55-268S、XQB60-228S、XQB70-388、XQB80-8SA（全自动侧）：EA显示5、其它异常：程序指示发光管表示：⑴XQB46-148、XQB48-648、XQB50-149、XQB50-356：快洗、标准、浸泡、轻洗点亮——电脑板电源损坏？⑵XQB45-428、XQB46-366、XQB45-438、XQB46-376：标准、浸泡、轻洗、快洗点亮——洗涤中断？⑶XQB46-128、XQB48-628：标准、快洗、轻洗点亮——洗涤上盖打开？数码管表示：⑴XQB46-328、XQB52-338、XQB52-348、XQB55-268S、XQB60-228S、XQB70-388：EC显示——负载检测异常？数码管表示：⑴XQB46-328、XQB52-338、XQB52-348、XQB55-268S、XQB60-228S、XQB70-388：U5显示——儿童锁设置？1、后板的拆装方法：a.取下进水阀盖/烘干口塑贴/烘干口盖b.松开后板紧固螺钉，拆下后板。

MICROCOMPUTER CONTROLFULLY AUTOMATIC WASHING MACHINEASW-U94HTP Before operating this washing machine, please read these instructions carefully and completely.SPECIFICATIONSCODE NO.301-6-421S-751-40-A SANYO Electric Co.,Ltd.FOR WASHER WITH A 10 Amp. PLUG TOP 3 PINWARNING - This appliance must be earthed.580(W) x 556(D) x 980(H) mm(ASW-U94HT)35 kg52 litresAC Local voltageDimensionsweightPower SourceWater quantity (HIGH)Power ConsumptionRequired Water Pressure340 W0.03 Mpa ~ 0.8 MPa(0.3 kgf/cm ~ 8 kgf/cm )22IMPORTANT對於附有 13 安培三腳插頭的洗衣機警告一本电器必须接地。

重要事项電源線的電線是根據以下的顏色表示 :绿黄 :地線蓝 :中性線棕 :火線Green/yellow: Earth Blue: Neutral Brown: LiveThe wires in this mains lead are coloured in accordance with the following code: As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.The wire which is coloured green and yellow must be connected to the terminalin the plug which is marked with the letter E or by the earth symbol , or coloured green or green and yellow.需要水压电源消耗功率交流电,本地电压綠黃色電線應該連接至插頭上標明英文字母E或地線符號 或顏色是綠色或綠黃色的終端。

Your SANYO product is designed and manufacturedSet the picture settings for your “personal”preference.automatically.602button to enter the sub menu as follows., press the 1or 2button to enter.Menu Setupis used to select the preferred language. Use the :M[WT]\QWV @/)PC Power SaveOnCurrent Weekday Current Time Schedule Weekday Time ActionOn Program ActiveFriday 12:171Friday 12:03Power Off AV37Vused to automatically detect incoming signal, andH_SetsV_Setsis used to divide the horizonal picture into more than one12Using this function, you can enjoy a DVI or Network program and an image (AV1, AV2,AV3or PC input) at the same time.Press the ON/OFF button on the Remote Control repeatly to select PIP1, PIP2,POP or OFF mode.During the PIP/POP mode, press the Main/Sub Picture Swap but-ton will switch the location for main and sub picture.i Only the sound on the main picture is heard from the monitor speaker. The sound on the sub-picture cannot be heard.i The details for PIP/POP operation (eg,location for sub picture or input source for any picture,etc.), please refer to page 9.The left picture is main picture, the right picture is sub picture.PIP/POP OperationI PIP1 mode I PIP2 modeI OFF modeI POP mode13Teletext is only available via external sources.Teletext mode can be operated by the following buttons on the Remote Control.i Some buttons have dual functionsOPERA TION (IN TEXT MODE)GBGBTeletext OperationText RevealPress Text Reveal button to reveal hidden items on the text page.Some pages such as quiz pages have the answers hidden. The button may have to be held to keep the answer on the screen, or press again to remove the answer.In Reveal OFF, this indication is not given.Text Reveal button will only work whilst in text mode.Page Up and DownTo select the next or previous page.Text SubcodePress this button, “110/. . . .” will be displayed (e.g. the current page is 110).And press the NUMERIC buttons(0-9) to enter the sub page. For example, to select sub page 4, press NUMERIC buttons 0-0-0-4, and "110/0004" will be displayed.When finished, press the text subcode button to return to normal operation.Text IndexPress this button to select one of the teletext index pages in TEXT, MIX or CANCEL mode.Volume Up/DownTo adjust the sound volume level.Text RedUse to select the red topic or page number at the bottom of the text page.Text CancelPress the TEXT CANCEL button in TEXT or MIX mode, the TV picture appears on the screen.Press this button once again or press TXT/TV button, CANCEL mode will be cancelled.In CANCEL mode, "CAN" is always displayed on the upper left of the screen.TXT/TVPress TXT/TV button to select teletext. Press again will display: AV mode: AV/ TEXT mode/ MIX mode/ AV Note:MIX mode: AV (broadcast image) screen and the contents of TEXT (superimposed) are displayed simultaneously.CANCEL mode: TEXT/MIX MODE is cancelled temporarily and AV image is displayed.If the signal is removed or disconnected, the monitor will revert to a blue back-ground with “No signal” message on the screen.If the TXT/TV button is pressed during the CANCEL mode, the CANCEL mode will be cancelled, and full text will resume.Text SizePress Text Size button to enlarge the top half of the text page.Press Text Size button again to enlarge the bottom half of the text page.Press Text Size button again to return to the normal size page.(Normal/ top half enlargement/ bottom half enlargement/ normal) Note:During the top half or bottom half enlargement mode, if a page request is performed by [ 0-9 ] numeric buttons or the TEXT INDEX button, it will return to normal mode and a page will be requested.If HOLD ON / OFF is performed during the top half enlargement mode, it will hold the top half enlargement mode. (HOLD symbol will display)If HOLD ON / OFF is performed during the bottom half enlargement mode, it will hold the bottom half enlargement mode. (HOLD symbol will NOT display)Text HoldPress Text Hold button to stop page request and updating. HOLD ON:The Hold symbol will appear instead of the page number.Update of TELETEXT is forbidden. It holds on the current TEXT screen display now.HOLD OFF:The hold symbol is replaced with the page number.TELETEXT page data is updated.The present page is re-requested. (header roll) Text Hold button will only work whilst in TEXT Mode.Text GreenUse to select the green topic or page number at the bottom of the text page.Text YellowUse to select the yellow topic or page number at the bottom of the text page.Text BlueUse to select the blue topic or page number at the bottom of the text page.Part No. 1KA6P1P0423-C N5VV (1)Printed in U.K.。

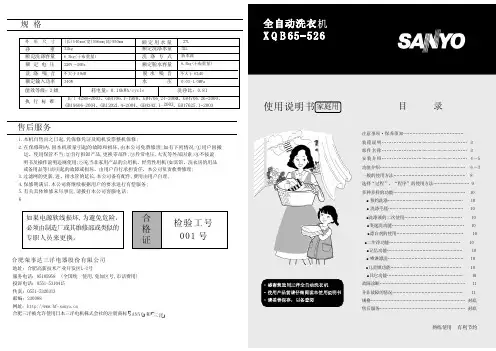

目 录使用说明书334～56～7家庭用注意事项·保养须知…………………………………装箱说明……………………………………………部件名称……………………………………………安装介绍……………………………………………功能介绍…………………………………………………一般的使用方法 (8)选择“过程”、“程序”的使用方法........................ 9 多种多样的功能 (10)● 预约洗涤 (10)● 洗涤毛毯 (10)●洗涤液的二次使用 (10)●变速洗功能 (10)●漂白剂的使用 (10)●二步净功能 (10)●记忆功能................................................... 10 ● 喷淋漂洗 (10)●儿童锁功能 (10)●其它功能................................................... 10故障诊断......................................................... 11 并非故障的情况 (11)规格……………………………………………………… 封底售后服务………………………………………………… 封底外形尺寸净重额定洗涤容量额定电压额定输入功率220V～50Hz 额定用水量额定洗涤水量额定脱水容量水压27L 新水流0.03-1.0MPa售后服务1.本机自售出之日起,凭保修凭证及购机发票整机保修;2.在保修期内,因本机质量引起的故障和损坏,由本公司免费修理;如有下列情况:①用户因搬 运、使用保管不当;②自行拆卸产品,更换零部件;③异常电压,火灾等外部因素;④不按说 明书及操作说明违规使用;⑤充当非家用产品的公用机、经营性用机(如宾馆、洗衣房的用品 或备用品等)而引起的故障或损坏，由用户自行承担责任，本公司负责收费修理;3.过滤网的更新,进、排水管的延长,本公司备有配件,费用由用户自理;4.保修期满后,本公司将继续根据用户的要求进行有偿服务;5.有关具体维修未尽事宜,请拨打本公司客服电话;6洗涤方式(长)540mm (宽)556mm (高)930mm 6.5kg(干布重量) 6.5kg(干布重量)规 格52L 32kg340W执行 标 准洗 涤 噪 音不大于58dB 脱水 噪 音不大于62dB B/T 4288--2003、GB4706.1-1998、GB4706.24-20000、GB4706.26--2000、GB19606-2004、G B12021.4--2004、GB4343.1-2003、GB17625.1-2003合肥荣事达三洋电器股份有限公司地址：合肥高新技术产业开发区L-2号服务电话：95105958 (全国统一使用,免加区号,市话费用)邮编：230088网址：合肥三洋被允许使用日本三洋电机株式会社的注册商标能效等级：2级 耗电量：0.10kWh/c yc l e 洗净比：0.81┏SANYO ┛┏三洋┛和故障诊断当下列的问题出现时，微电脑将对不正常状态进行检测，并发出报警提示声，数码窗将按下表所示状态闪烁。

DIQUA SANYO 使用说明书全自动洗衣机家庭用D753 D753自动洗衣机使用说明书：(1)插上电源插头，放下或接好排水管，打开自来水龙头，把要洗涤的衣物和洗衣粉及添加剂(软化剂、漂白剂等)故入洗衣机内，并将机盖关上。

(2)按下电源开关，根据所洗涤衣物的多少选择好水位，并根据洗涤衣物的脏行程度和质料等具体情况选择好程序。

(3)按下“起动/暂停”按钮，洗衣机开始工作。

(4)所选择的程序工作结束后，蜂鸣器会发出蜂鸣声。

(5)工作结束后，关上电源开关，并将电源插头从插座上拔出，把自来水龙头关上，然后打开机盖，取出洗涤衣物，把线屑过滤网袋清理干净，并将洗衣机擦干。

在使用过程中必须注意以下几点：(1)当选择“洗涤”或“漂洗”程序时，不到所选水位，波轮是不会运转的。

(2)在脱水程序时，必须将机盖关上，并且不宜时常打开盖，(3)绝不可用手接触洗涤脱水桶，以免将手卷入，发生危险。

(4)绝不可洗涤或脱水含有挥发性物质(溶剂、酒精等)的衣物，以免发生事故。

(5)在脱水不平衡时，电脑式全自动洗衣机能够进行脱水不平衡修正，若修正2次后还没解决不平衡问题时，将会停机并报警，此时，应打开机盖，把偏挤在一边的衣物放均匀，再关上机盖，按“起动/暂停”按钮即可。

(6)采用热水洗时，不能使用50℃以上的热水，并且注意，不能使水溅湿控制板，以免内部的电气件由于沾水而造成烧毁。

(7)洗涤前，应检查洗涤衣物中是否存有火柴棒、发夹或硬币等杂物，若有，应全部取出。

(8)当气温很低时，洗衣机容易产生冻结，此时，应用50℃以下的温水倒人浸泡一段时间，等解冻后再使用。

(9)在水温较低时，洗衣粉不易溶解，此时，需用少量温水(30℃左右)溶解后再倒入洗衣机使用。

三洋洗衣机操作方法
由于不同型号的三洋洗衣机操作方法可能有所不同，以下是一般的操作步骤：
1. 打开洗衣机，将衣物放入洗衣机中。

根据衣物的种类和数量，选择合适的洗涤程序和转速。

2. 加入洗衣液/洗衣粉/柔顺剂。

根据洗衣剂的种类和洗涤程序的要求，量取适量的洗涤剂加入洗衣机中。

3. 点击开始/启动按钮启动洗衣机，洗衣机开始工作。

4. 洗完后，取出洗好的衣物并放入晾衣架/烘干机中晾干/烘干。

5. 关闭洗衣机，将洗衣机内部保持清洁和干燥。

注意事项：
1. 在操作洗衣机前，务必认真阅读洗衣机的使用说明书，根据说明书的要求正确操作。

2. 尽量避免超载洗衣机，否则可能会影响洗衣效果和洗衣机寿命。

3. 在加入洗涤剂时，要按照洗衣剂的种类、用量和洗涤程序要求，避免浪费和
影响洗衣效果。

4. 使用洗衣机后，及时清理洗衣机内部和洗衣机外部的污渍和杂物，保持洗衣机的干净和卫生。
