Extract from the onlinecatalogMVSTBW 2,5/22-ST-5,08Order No.: 1792951The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1792951Plug component, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08 mm, no. of positions: 22, type of connection: Screw connectionhttp://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5.08 mmDimension a106.68 mmNumber of positions22Screw thread M 3Tightening torque, min0.5 NmTechnical dataInsulating material group IRated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/2)320 V Rated voltage (II/2)630 V Connection in acc. with standard EN-VDE Nominal current I N12 A Nominal voltage U N250 V Nominal cross section 2.5 mm2 Maximum load current12 A Insulating material PA Inflammability class acc. to UL 94V0 Internal cylindrical gage A3 Stripping length7 mmConnection dataConductor cross section solid min.0.2 mm2 Conductor cross section solid max. 2.5 mm2 Conductor cross section stranded min.0.2 mm2 Conductor cross section stranded max. 2.5 mm2 Conductor cross section stranded, with ferrule0.25 mm2 without plastic sleeve min.Conductor cross section stranded, with ferrule2.5 mm2 without plastic sleeve max.Conductor cross section stranded, with ferrule0.25 mm2 with plastic sleeve min.Conductor cross section stranded, with ferrule2.5 mm2 with plastic sleeve max.Conductor cross section AWG/kcmil min.24 Conductor cross section AWG/kcmil max122 conductors with same cross section, solid min.0.2 mm2 2 conductors with same cross section, solid max. 1 mm22 conductors with same cross section, stranded0.2 mm2 min.2 conductors with same cross section, strandedmax.1.5 mm22 conductors with same cross section, stranded,ferrules without plastic sleeve, min.0.25 mm22 conductors with same cross section, stranded,ferrules without plastic sleeve, max.1 mm22 conductors with same cross section, stranded,TWIN ferrules with plastic sleeve, min.0.5 mm22 conductors with same cross section, stranded,TWIN ferrules with plastic sleeve, max.1.5 mm2 Certificates / ApprovalsApproval logoCSANominal voltage U N300 VNominal current I N10 AAWG/kcmil28-12CULNominal voltage U N300 VNominal current I N10 AAWG/kcmil30-12ULNominal voltage U N300 VNominal current I N10 AAWG/kcmil30-12Certification CB, CSA, CUL, GOST, UL, VDE-PZIAccessoriesItem Designation DescriptionMarking1051993B-STIFT Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm0804293SK 5,08/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identicaldecades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for120 terminal blocks0805412SK 5,08/3,8:UNBEDRUCKT Marker cards, unprinted, with pitch divisions, self-adhesive, 10-section marker strips, 12 strips per card, can be labeled with theM-PENPlug/Adapter1734634CP-MSTB Coding profile, is inserted into the slot on the plug or invertedheader, red insulating material1734401CR-MSTB Coding section, inserted into the recess in the header or theinverted plug, red insulating materialTools1205053SZS 0,6X3,5Screwdriver, bladed, matches all screw terminal blocks up to 4.0mm² connection cross section, blade: 0.6 x 3.5 mm, without VDEapprovalAdditional productsItem Designation DescriptionGeneral1824049ICC 2,5/22-STZ-5,08Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.08 mm, no. of positions: 22, type of connection: Crimpconnection1770915MSTB 2,5/22-G-5,08-LA Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08mm, no. of positions: 22, mounting: Soldering1757446MSTBA 2,5/22-G-5,08Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08mm, no. of positions: 22, mounting: Soldering1788923MSTBVK 2,5/22-G-5,08Header, nominal current: 12 A, rated voltage: 320 V, pitch: 5.08mm, no. of positions: 22, mounting: Mounting rail1769667SMSTB 2,5/22-G-5,08Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08mm, no. of positions: 22, mounting: Soldering1767575SMSTBA 2,5/22-G-5,08Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08mm, no. of positions: 22, mounting: Soldering3002076UK 3-MVSTB-5,08Modular terminal blocks with plug entry, cross section: 0.2 - 2.5mm², AWG: 26 - 12, width: 5.1 mm, color: gray3002102UK 3-MVSTB-5,08-LA 24RD Modular terminal block with plug entry, nominal current: 12 A,rated voltage: 320 V, pitch: 5.08 mm, no. of positions: 1, mounting:mounting rail, with red light indicator, voltage light indicator: 24 VAC/DC, current light indicator: 3.3 mA3002063UK 3-MVSTB-5,08/EK Modular terminal blocks with plug entry, cross section: 0.2-2.5mm², AWG: 26-12, width: 5.1 mm, color: blue3002131UK 3D-MSTBV-5,08Modular terminal blocks with vertical plug entry, cross section: 0.2- 2.5 mm, AWG: 30 - 12, width: 5.1 mm, color: gray3002144UK 3D-MSTBV-5,08-LA 24RD Modular terminal block with vertical plug entry, color: Gray, withred light indicator, voltage light indicator: 24 V AC/DC, current lightindicator: 3.3 mA3002173UK 3D-MSTBV-5,08/EK Modular terminal blocks with plug entry, cross section: 0.2 - 2.5mm², AWG: 30 - 12, width: 5.1 mm, color: blue1788318UMSTBVK 2,5/22-G-5,08Header, nominal current: 12 A, rated voltage: 320 V, pitch: 5.08mm, no. of positions: 22, mounting: Mounting railDrawingsDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。

合集下载

947中文资料

947中文资料

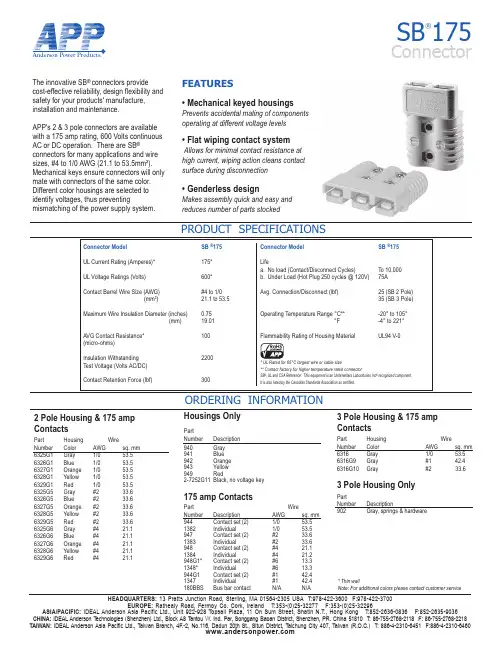

Anderson Power Products®HEADQUARTERS: 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700EUROPE: Rathealy Road, Fermoy Co. Cork, Ireland T:353-(0)25-32277 F:353-(0)25-32296ASIA/PACIFIC: IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:852-2636-0836 F:852-2635-9036CHINA: IDEAL Anderson T echnologies (Shenzhen) Ltd., Block A8 T antou W. Ind. Par, Songgang Baoan District, Shenzhen, PR. China 51810 T: 86-755-2768-2118 F: 86-755-2768-2218TAIWAN: IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: 886-4-2310-6451 F:886-4-2310-6460SB ®175ConnectorPRODUCT SPECIFICATIONSThe innovative SB ® connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.APP's 2 & 3 pole connectors are availablewith a 175 amp rating, 600 Volts continuousAC or DC operation. There are SB ®connectors for many applications and wire sizes, #4 to 1/0 AWG (21.1 to 53.5mm²). Mechanical keys ensure connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventingmismatching of the power supply system.11111111116325G6 Gray #4 21.16326G6 Blue #4 21.16327G6 Orange #4 21.16328G6 Yellow #4 21.16329G6 Red #4 21.1111382 Individual 1/0 53.5947 Contact set (2) #2 33.61383 Individual #2 33.6948 Contact set (2) #4 21.11384 Individual #4 21.2948G 1* Contact set (2) #6 13.31348* Individual #6 13.3944G 1Contact set (2) #142.41347 Individual #1 42.4180BBS Bus bar contact N/A N/AFEATURES• Mechanical keyed housingsPrevents accidental mating of componentsoperating at different voltage levels • Flat wiping contact systemAllows for minimal contact resistance at high current, wiping action cleans contact surface during disconnection• Genderless designMakes assembly quick and easy and reduces number of parts stocked11* Thin wallNote: For additional colors please contact customer serviceAnderson Power Products®HEADQUARTERS: 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700EUROPE: Rathealy Road, Fermoy Co. Cork, Ireland T:353-(0)25-32277 F:353-(0)25-32296ASIA/PACIFIC: IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:852-2636-0836 F:852-2635-9036CHINA: IDEAL Anderson Technologies (Shenzhen) Ltd., Block A8 T antou W. Ind. Par, Songgang Baoan District, Shenzhen, PR. China 51810 T : 86-755-2768-2118 F: 86-755-2768-2218TAIWAN: IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: 886-4-2310-6451 F:886-4-2310-6460SB ®175 ConnectorORDERING INFORMATION & DIMENSIONSTEMPERATURE RISE CHARTAccessoriesPartNumber Description 995G1 Handle, hardware & lock washers - Gray 995G3 Handle, hardware & lock washers - Red 923 Manual release, locking half with clamps and hardware 924 Manual release, mounting half with clamps and hardware110G56 Lock nut for use with Bus bar contact SB175-lockout Safety lockout 111197G1 Charger key 134G2 Dust cover945 Cable clamps 945G3 Cable clamps-2 single conductor with hardware. Use with "A" frame only.946G1 Cable clamps-1 twin conductor with hardware. Use with "A" frame only.BushingsPart WireNumber Description AWG sq. mm 5648 Use with 944 1/0 to #10 53.5 to 5.15663 Use with 944 1/0 to #6 53.5 to 13.35687 Use with 944 1/0 to #1 53.5 to 42.45690 Use with 944 1/0 to #2 53.5 to 33.65693Use with 944 1/0 to #4 53.5 to 21.2ToolingPartNumber Description 1368 Hand tool for 1/0 to #1 (53.5/42.4)1387G 1Pneumatic tool1388G3 - die for 1/0 to #1 (53.5/42.4)1388G5 - die for #41389G5 - locator for #41389G3 - locator for 1/0 to #1 (53.5/42.4)1303G4 - die for 1/0 to #4 (53.5/21.1)1304G4- locator for 1/0 to #4 (53.5/21.1)020*******800100012000.528321285122048SB175Pulse Current CapabilityDuration of Current (seconds)A m p e r e s01020304040801201602001/01 AWG 2 AWG 4 AWGSB175Temperature Rise at Constant CurrentAmperes AppliedT e m p e r a t u r e (°C)1/01 AWG 2 AWG 4 AWGContactsPart -A--B- -C- -D- Bus Bar LayoutPart - J - - K - - L- - M -Number mm in. mm in. mm in. mm in.180BBS26.8 1.05 26.8(min) 1.05(min) 9.53 0.375 3.43 0.135Mounting DimensionsHousingBus Bar Mounting TablePart - E - - F - Number mm in. mm in. 180BBS88.9 3.50 10.2 0.40Part - J -Number mm in.[53.1]2.09[25.4]1.0DS-SB175 REV05。

051-051-9501229中文资料

051-051-9501229中文资料


1.6 / 5.6
MECHANICAL Withdrawal force inner female contact Withdrawal force inner male contact Insertion force between jacks and plugs Withdrawal force between jacks and plugs Materials
元器件交易网
RF Coaxial Connectors
Introduction

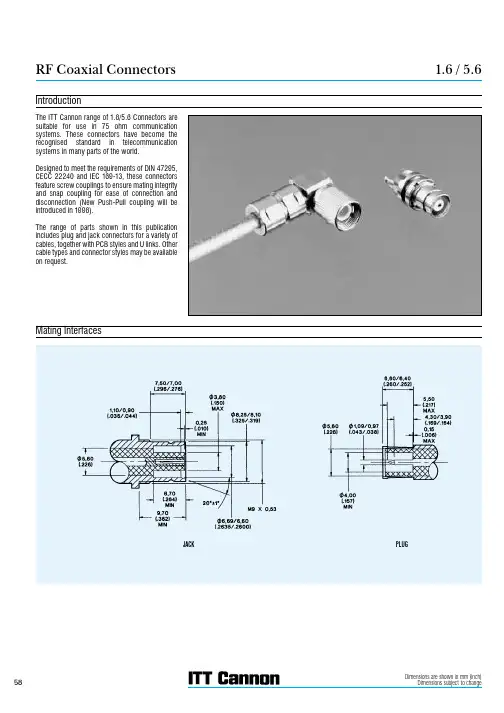

The ITT Cannon range of 1.6/5.6 Connectors are suitable for use in 75 ohm communication systems. These connectors have become the recognised standard in telecommunication systems in many parts of the world. Designed to meet the requirements of DIN 47295, CECC 22240 and IEC 169-13, these connectors feature screw couplings to ensure mating integrity and snap coupling for ease of connection and disconnection (New Push-Pull coupling will be introduced in 1996). The range of parts shown in this publication includes plug and jack connectors for a variety of cables, together with PCB styles and U links. Other cable types and connector styles may be available on request.
1955918资料

1955918资料

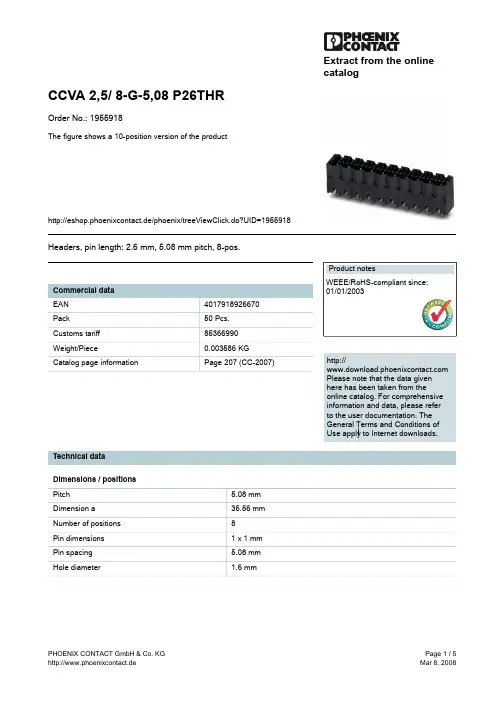

Extract from the onlinecatalogCCVA 2,5/ 8-G-5,08 P26THROrder No.: 1955918The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1955918Headers, pin length: 2.6 mm, 5.08 mm pitch, 8-pos.http://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5.08 mmDimension a35.56 mmNumber of positions8Pin dimensions 1 x 1 mmPin spacing 5.08 mmHole diameter 1.6 mmTechnical dataInsulating material group IIIaRated surge voltage (III/3) 4 kVRated surge voltage (III/2) 4 kVRated surge voltage (II/2) 4 kVRated voltage (III/2)320 VRated voltage (II/2)400 VConnection in acc. with standard EN-VDENominal current I N12 ANominal voltage U N250 VMaximum load current12 A (per position)Insulating material LCPInflammability class acc. to UL 94V0Certificates / ApprovalsApproval logoCULNominal voltage U N300 VNominal current I N10 AULNominal voltage U N300 VNominal current I N10 ACertification CUL, ULAccessoriesItem Designation DescriptionGeneral1954362CR-MSTB NAT HT HT coding section, is pushed into the recess on the header beforethe reflow process, made of highly temperature-resistant, beigeinsulating materialMarking1051993B-STIFT Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm0804293SK 5,08/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identicaldecades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for120 terminal blocks0805085SK 5,08/3,8:SO Marker card, special printing, self-adhesive, labeled acc. tocustomer requirements, 12 identical marker strips per card, max.25-position labeling per strip, color: white0805412SK 5,08/3,8:UNBEDRUCKT Marker cards, unprinted, with pitch divisions, self-adhesive, 10-section marker strips, 12 strips per card, can be labeled with theM-PENPlug/Adapter1734401CR-MSTB Coding section, inserted into the recess in the header or theinverted plug, red insulating materialDrawingsApplication drawingDrilling diagramDimensioned drawingBottom view, free space for solder paste, 0.55mm deepAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。
