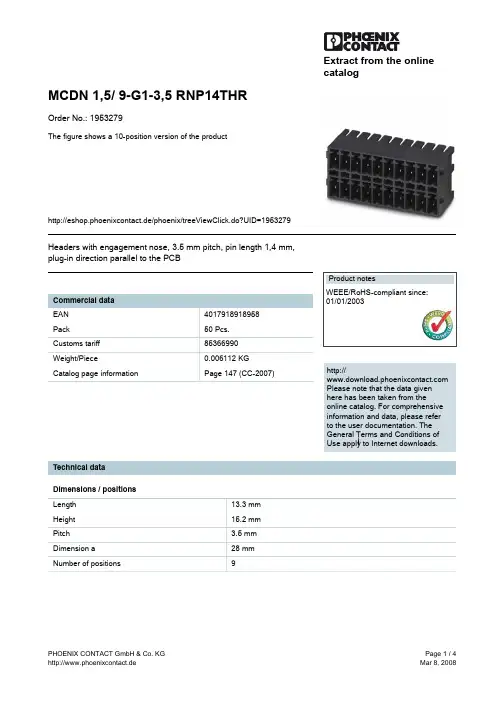

Extract from the onlinecatalogMCDN 1,5/ 9-G1-3,5 RNP14THROrder No.: 1953279The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1953279Headers with engagement nose, 3.5 mm pitch, pin length 1,4 mm, plug-in direction parallel to the PCBhttp://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsLength13.3 mmHeight15.2 mmPitch 3.5 mmDimension a28 mmNumber of positions9Pin dimensions0,8 x 0,8 mm Pin spacing 3.5 mmHole diameter 1.4 mmTechnical dataInsulating material group IIIaRated surge voltage (III/3) 2.5 kVRated surge voltage (III/2) 2.5 kVRated surge voltage (II/2) 2.5 kVRated voltage (III/2)160 VRated voltage (II/2)250 V Connection in acc. with standard EN-VDE Nominal current I N8 ANominal voltage U N160 V Maximum load current8 A (per position) Insulating material LCP Inflammability class acc. to UL 94V0Certificates / ApprovalsApproval logoCULNominal voltage U N150 VNominal current I N8 AULNominal voltage U N150 VNominal current I N8 A Certification CUL, ULAccessoriesItem Designation DescriptionMarking0805030SK 3,5/2,8:SO Marker card, special printing, self-adhesive, labeled acc. tocustomer requirements, 14 identical marker strips per card, max.25-position labeling per strip, color: White0804109SK 3,81/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section markerstrip, 14 identical decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for 140 terminal blocksPlug/Adapter1734634CP-MSTB Coding profile, is inserted into the slot on the plug or invertedheader, red insulating materialDrawingsDrilling diagram*) ≤ 8-pos. = 1.3 / > 8-pos. = 1.4Dimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。
45911, 45912 P ower andSignal45719, 45714 Power Only 45845, 45844 Signal OnlySPECIFICATIONS ORDERING INFORMATIONFeatures and Benefits n L ow-profile design allows high current transfer in narrow spaces n M ates to a 1.57mm (0.62”) PCB card edge or bus bar n R ated for current interruption hot-plugging requirements n R ugged power and signal contacts reduce the potential for stubbing or damageReference Information Packaging: Tray UL File No.: E29179 CSA File No.: LR19980 TUV: R 72042763Designed In: MillimetersElectricalVoltage: 250V max in standard contact loading (Higher voltages may be accommodated through special contact loading – contact Molex)Current (at 30°C Temperature rise): Power – 40.0A max. Signal – 3.0A max.Contact Resistance (per contact):Initial End of LifePower (milliohms) – 0.5 0.6 max change Signal (milliohms) – 6.24 15 max change Dielectric Withstanding Voltage: 1500V Insulation Resistance: 5000 Megohms min.Current interruption:Power – 40.0A and 50V DC n 2 isolated power contacts or 8 signal contacts per housing segment n A vailable in 2, 3, and 4 segment versions n P ress-fit or solder tail PCB mounting n E nd-to-end stackable to accommodate additional circuit counts on card edgeMechanicalMating Force (max per contact): Power Contacts – 8.87N (2.0 lb) Signal Contacts – 1.4N (0.31 lb)Un-mating Force (max per circuit): Power Contacts – 4.4N (1.0 lb) Signal Contacts – 0.14N (0.031 lb) Durability: 50 cycles Physical Housing: LCP Contact:Power Contacts - Copper Alloy Signal Contacts – Copper Alloy Plating:Contact Area — Select Gold Solder Tail Area — Tin Underplating — Nickel Flammability Rating: UL 94V-0DocumentsSales Drawings: SD-45714-XXXX, SD-45719-XXXX, SD-45844-XXXX, SD-45845-XXXX, SD-45911-XXXX, SD-45912-XXXXProduct Specs: PS-45719-001Connector Series DescriptionPress-Fit Series*Solder Tail Series*Number of SegmentsNumber of Contacts per SegmentSolder Tail Pin Lengths Power only 4571445719 2 to 42 3.19 and 4.33mm Signal only 4584545844 2 to 48 3.19 and 4.33mm Power and Signal45912459112 to 42 Power or 8 Signal3.19 and4.33mm*Complete part numbers can be found at /link/ext-power.htmlThe EXTreme PowerEdge™ Connector incorporates proven Molex design elements of high-performance terminal contacts with redundant interface points for optimum mating of double-sided card edge gold fingers. EXTreme PowerEdge™ offers 40.0A rating per contact, and 157.0 A per inch of PC board real estate. It is an excellent low profile power card edge interface for applications where rugged single piece mating to a cardedge or bus bar is needed and where space is at a premium. EXTreme PowerEdge™ is available in power only, signal only, and power/signal combinations for design flexibility.Current (Amps)706050403020100T -R i s e - (D e g °C )EXTreme PowerEdge™, Dual SidedT-Rise Current Chart1086420-2-4-6EXTreme PowerEdge™ Connector System, DurabilityCumulative Percentage (%)0 10 20 30 40 5060 70 80 90 100C h a n g e i n R e s i s t a n c e (D m V )/link/ext-power.htmlOrder No. 987650-3006USA/KC/2009.03© 2009, MolexFEATURES AND SPECIFICATIONSEXTreme Power ® ProductsEXTreme Power ® ProductsThe need for high-current power interconnect solutions in increasingly smaller space continues to rise rapidly. Solving this power equation on new architectures and system platforms has been a major focus for Molex product development teams. The new Molex EXTreme Power ® family of products is the direct result of listening intently to our customers’ electrical and mechanical design challenges. Since no two applications are the same, the Molex EXTreme Power ® offering is comprised of several product families that cover a wide range of current densities, mechanical envelopes, mating terminations and configuration choices that give system designers the ability to maximize their power interconnect needs.50.0 A / Contact 215.0 A / Sq. in.33.0 A / Sq. cm10.00mm16.0 A / Blade 618.0 A / Sq. in.96.0 A / Sq. cm4.00mm40.0 A / Blade 445.0 A / Sq. in.68.0 A / Sq. cm15.00mm30.0 A / Blade 203.0 A / Sq. in.31.0 A / Sq. cm14.58mm30.0 A / Blade 431.0 A / Sq. in.67.0 A / Sq. cm7.50mm60.0 A / Blade 705.0 A / Sq. in.109.0 A / Sq. cm10.00mm150.0 A / Blade 372.0 A / Sq. in.58.0 A / Sq. cm25.00mmEXTreme MicroPower™EXTreme MicroPower™EXTreme PowerEdge™EXTreme PowerPlus™ (SSI)EXTreme LPHPower™EXTreme Ten60Power™EXTreme PowerMass™。

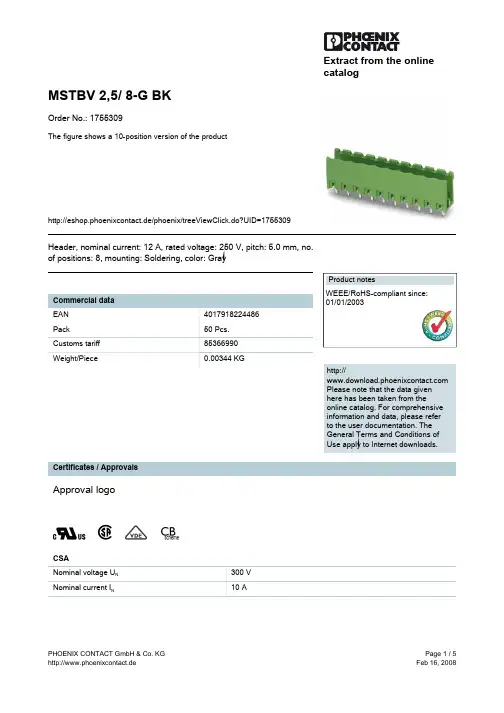

Extract from the onlinecatalogMSTBV 2,5/ 8-G BKOrder No.: 1755309The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1755309Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.0 mm, no. of positions: 8, mounting: Soldering, color: Grayhttp://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Certificates / ApprovalsApproval logoCSANominal voltage U N300 VNominal current I N10 ACULNominal voltage U N300 VNominal current I N10 AULNominal voltage U N300 VNominal current I N10 ACertification CB, CSA, CUL, UL, VDE-PZIAccessoriesItem Designation DescriptionAssembly1755477MSTB-BL Keying cap, for forming sections, plugs onto header pin, greeninsulating materialMarking1051993B-STIFT Marker pen, for manual labeling of unprinted Zack strips,smear-proof and waterproof, line thickness 0.5 mm0804183SK 5/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identicaldecades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for120 terminal blocks0805072SK 5/3,8:SO Marker card, special printing, self-adhesive, labeled acc. tocustomer requirements, 12 identical marker strips per card, max.25-position labeling per strip, color: white0805409SK 5/3,8:UNBEDRUCKT Marker cards, unprinted, with pitch divisions, self-adhesive,10-section marker strips, 12 strips per card, can be labeled withthe M-PENPlug/Adapter1734401CR-MSTB Coding section, inserted into the recess in the header or theinverted plug, red insulating materialAdditional productsItem Designation DescriptionAssembly1909278FKCT 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Spring-cageconnectionGeneral1910416FKC 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Spring-cageconnection1909773FKCVR 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Spring-cageconnection1910092FKCVW 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Spring-cageconnection1779479FRONT-MSTB 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Screwconnection1754562MSTB 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Screwconnection1758982MSTB 2,5/ 8-STZ Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Screwconnection1765836MSTBP 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Screwconnection1779893MSTBT 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Screwconnection1792074MVSTBR 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Screwconnection1792582MVSTBW 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: Screwconnection1768448SMSTB 2,5/ 8-ST Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.0 mm, no. of positions: 8, type of connection: ScrewconnectionDrawingsDrilling diagramDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。

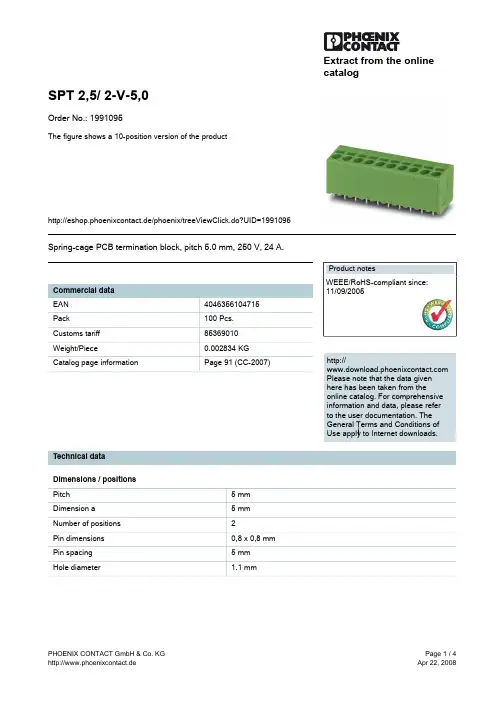

Extract from the onlinecatalogSPT 2,5/ 2-V-5,0Order No.: 1991095The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1991095Spring-cage PCB termination block, pitch 5.0 mm, 250 V, 24 A.http://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5 mmDimension a 5 mmNumber of positions2Pin dimensions0,8 x 0,8 mmPin spacing 5 mmHole diameter 1.1 mmTechnical dataInsulating material group IRated surge voltage (III/3) 4 kVRated surge voltage (III/2) 4 kVRated surge voltage (II/2) 4 kVRated voltage (III/2)400 VRated voltage (II/2)630 VConnection in acc. with standard EN-VDENominal current I N24 ANominal voltage U N250 VNominal cross section 2.5 mm2Maximum load current24 AInsulating material PAInflammability class acc. to UL 94V0Internal cylindrical gage A3Stripping length10 mmConnection dataConductor cross section solid min.0.2 mm2Conductor cross section solid max. 4 mm2Conductor cross section stranded min.0.2 mm2Conductor cross section stranded max. 2.5 mm2Conductor cross section stranded, with ferrule0.25 mm2 Stripping length 8 mm without plastic sleeve min.Conductor cross section stranded, with ferrule2.5 mm2 Stripping length 8 mm without plastic sleeve max.Conductor cross section stranded, with ferrule0.25 mm2 Stripping length 8 mm with plastic sleeve min.Conductor cross section stranded, with ferrule1.5 mm2 Stripping length 8 mm with plastic sleeve max.Conductor cross section AWG/kcmil min.24Conductor cross section AWG/kcmil max12Certificates / ApprovalsCULNominal voltage U N300 V Nominal current I N10 A AWG/kcmil24-12ULNominal voltage U N300 V Nominal current I N10 A AWG/kcmil24-12 Certification CUL, ULDrawingsDrilling diagramDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。
