蔡司电子水准仪使用说明书

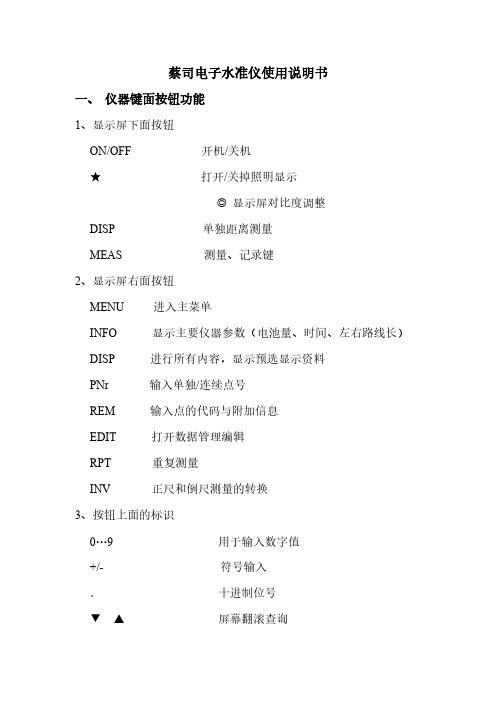

蔡司电子水准仪使用说明书一、仪器键面按钮功能1、显示屏下面按钮ON/OFF 开机/关机★打开/关掉照明显示◎显示屏对比度调整DISP 单独距离测量MEAS 测量、记录键2、显示屏右面按钮MENU 进入主菜单INFO 显示主要仪器参数（电池量、时间、左右路线长）DISP 进行所有内容，显示预选显示资料PNr 输入单独/连续点号REM 输入点的代码与附加信息EDIT 打开数据管理编辑RPT 重复测量INV 正尺和倒尺测量的转换3、按钮上面的标识0…9 用于输入数字值+/- 符号输入．十进制位号▼▲屏幕翻滚查询4、软按钮屏幕下面的一排按钮为软按钮，对应屏幕最下一行相应的功能。

二、预设置（MENU）1、INPUT（软按钮MOD的功能用于修改设置）1 Reff.coeff. 0.130 (折射系数：-1 — +1)2 Vt.offset 0.00000 (标尺偏距：0 — 5M)3 Data4 Time2、LIMITS/TESTS1 Max.dist. 100（最大测量距离：10 — 100M）2 Min.sight. 0.200003 Max.sight 2.800004 Max.diff. 0.004005 Test 30cm ON3、ADJUSTMENT4、DATA TRANSFER1 INTERFACE 11 DINI → PERIPHERY （DINI到外部设备）2 PERIPHERY → DINI3 SET PARAMETERS （参数设置）（1 FORMAT REC E2 PROTOC. XON-XOFF3 BAUD RATE 96004 PARITY NONE5 STOP BITS 16 TIME OUT 90 S7 LINE FEET YES8 NAME COMP1)2 INTERFACE 2 (参照INTERFACE 1)3 PC-DEMO OFF (电脑演示)4 UPDATE/SERVICE (升级/服务)1 FORMAT PC Card (PC卡格式化)2 UPDATE DINI （升级）5、SET REC.PARAM（记录设置）1 RECORDING OF DATA(记录数据)1 REMOTE CONTRL OFF(远程控制)2 RECORD PC Card(PC卡记录)3 ROD READINGS RMC(记录数据格式RMC)4 PNO INCREMENT 1(点号自动增加的步长)5 TIME OFF2 PARAMETER SETTING(参数设置)1 FORMAT REC E (格式)2 PROTOC REC500(协议)3 BAUD RATE 9600(波特率)4 PARITY NONE5 STOP BITS 16 TIME OUT OFF(超时)7 LINE FEED YES(换行)6、SET INSTR. PARAM.(仪器设置)1 HEIGHT UNIT M(高程单位)2 INPUT UNIT M(输入单位)3 DISPLAY R 0.0001M(最小显示)4 SHUT OFF 10 MIN(关机等待时间)5 SOUND ON(声音)6 LANGUAGE E_ _ 340(语言)7 DATE YY.MM.DD(日期)8 TIME 24H(时间)7、LINE ADJUSTMENT(路线平差)三、水准路线测量1、选择水准路线主键面→ Line软按钮→出现三种水准路线模式供选择（cont line of Project：从工程文件中进行选择；continue line：继续上次的水准路线；new line：建立新的水准路线）2、水准路线数据采集1）选择水准路线模式→ Input line number(输入线路名)→选择测量模式（如BBFF）→ Inp benchmark height(输入起始点高程) → Inp point number(输入起始点名称) →Input point code(输入点代码，不输入时直接按OK) →按MEAS键开始测量。

DNA03电子水准仪使用说明一、设备准备1.将DNA03电子水准仪放置在平稳的水平面上，确保仪器稳定并不会被振动或移动。

2.检查电子水准仪的电源电量，确保足够使用一段时间。

3.清理仪器的镜头和测量引导系统，确保没有灰尘或杂质影响测量结果。

二、测量操作1.打开电子水准仪的电源开关，等待仪器初始化完成。

2.设置仪器的水平线对准方式，可以通过仪器菜单进行设置，常用的有自动调平和手动调平两种方式。

-自动调平：仪器会自动通过内部调平器将仪器水平，适用于较为平整的场地。

-手动调平：需要使用调平螺丝和气泡水平管来调整仪器的水平状态，适用于复杂场地。

3.选择测量模式，DNA03电子水准仪提供了单次测量和连续测量两种模式。

-单次测量模式：适用于测量单个点的水平差，按下测量按钮即可进行一次测量。

-连续测量模式：适用于连续测量多个点的水平差，按下测量按钮后，仪器会自动测量并显示结果。

4.当仪器稳定后，将测量引导系统对准测量点，确保镜头准确瞄准。

5.按下测量按钮，待仪器完成测量后，读取并记录测量结果。

6.如果使用连续测量模式，将测量引导系统对准下一个测量点，重复步骤4-5三、维护保养1.使用完毕后，关闭电子水准仪的电源开关。

2.清理仪器表面和镜头，可以使用干净的布轻轻擦拭，不要用水或化学溶剂直接清洗。

3.检查仪器的调平系统，确保其调整螺丝和气泡水平管的状态良好。

5.充电电子水准仪的电池，确保电量充足。

四、注意事项1.在使用DNA03电子水准仪时，要注意避免长时间的暴露在高温或低温环境中，以防损坏仪器的内部元件。

2.使用过程中，应尽量避免仪器受到强烈的震动或撞击，如需要将仪器搬运，应采取适当的防护措施。

3.避免直接暴露在阳光下，以免影响测量结果，可以使用遮阳板进行防护。

4.在使用连续测量模式时，连续测量点的间隔时间要足够，以确保仪器有足够的时间进行测量和计算结果。

5.当电池电量较低时要及时充电，以免影响使用。

通过以上设备准备、测量操作和维护保养的具体步骤，可以帮助用户正确使用DNA03电子水准仪，并保证测量结果的准确性和可靠性。

数字水准仪CL04ELECTRONIC DIGITAL LEVEL丨操丨作丨手丨册丨第一版OPERATION MANUAL V1.2引言祝贺您购买本高精度数字水准仪。

本手册包括操作手册和重要的安全指南以及安置和操作仪器的说明，详细内容请参考“安全指南”。

请您在使用仪器前仔细阅读本手册。

产品编号在仪器的标签上，标有该仪器的型号和仪器的系列号。

请将你的仪器型号和系列号填在下面，以便你在需要的时候，与本仪器的生产厂家或经销商联系。

本手册使用下列符号的含义：※危险：它表示非常严重的危险情况，如不避免，将造成人身伤害甚至死亡。

※警告：它表示潜在的或意外操作所导致的危险情况，如不避免，将造成人身伤害甚至死亡。

※小心：如不避免，可能造成轻微的损坏或明显的设备、经济损失和环境损坏。

☞要正确、有效的使用仪器，必须注意的重要信息。

一般操作注意事项在使用本仪器之前，务必检查并确认该仪器各项功能运行正常。

●避免条码尺面和每节标尺联接处被弄脏或损伤在标尺存放或运输时条码尺面和联接处可能会受到碰撞和损伤，如果条码被弄脏或损伤就难以精确读数和测量，因为仪器需要读出标尺的黑白条形码作为电信号，仪器的测量精度也会由此而降低，有时甚至无法进行测量。

●三脚架水准仪应尽量使用木制三脚架，使用金属三脚架可能会产生晃动，从而影响测量精度，三脚架每根腿上的螺旋必须切实固紧。

●三角基座如果基座安装不正确，测量精度可能受到影响，经常检查基座上的校正螺丝，基座上的中心固定螺旋要旋紧。

●装箱及防止仪器受震作为精密测量仪器，在运输过程中，应尽可能减小震动或冲击，剧烈震动可能导致测量功能受损，仪器装箱时，务必关闭电源并取下电池。

●小心搬动仪器搬动仪器时必须握住提手，且把仪器从三脚架上取下。

●避免仪器直接受到日晒雨淋或受潮长时间将仪器放置在高温(+50℃)环境下，会对仪器的使用产生不良的影响，不要将仪器的物镜对准太阳光，否则会损坏仪器内部的部件。

●避免温度突变仪器温度突变会导致测程缩短，当仪器从很热的汽车中搬出时，要让仪器逐渐适应周围的温度后方可使用。

Features included in i-Solution DT-L/ DT/ DT-M iSolution DT-L is the program focused on core material science applications.iSolution DT has all features for various science and inspection applications.iSolution DT-M is the motorized stage control application version having all features of iSolution DT.It has many new developed functions alsoInclude:Live Measurement and Overlay SettingsUsers can perform measurements on the live preview image, using the crosshair or grid masks to center and count. The grid masks include calibration data. Calibration marker (scale bar) can be placed on the live preview image. The marker (scale bar) can also be burned on each captured image automatically. Anystandard file format image can be chosen to see it above live preview image.Calibration (Auto, Manual)All measurements start with an accurate calibration. Auto, Semi-Auto calibration functions allow the software to calculate the pixels-per-unit value automatically. Only setting the unit for the calibration scale and the distance between the scale marks is needed. This feature greatly improves the accuracy and repetition of measurements. Manual calibrations are easily added and saved for recall from a drop down menu. All calibrations can be saved as files, which let the calibration be retrieved by simply opening the saved files later.Calibration can be protected by password option. Two password options, one in calibration menu itself and the other in camera resolution option, protect calibration by unexpected change. A scale bar can be permanently added to each image. Scale bar properties for color, size and text are simple to optimize for any image background.Z-Axis Extended Focus Imaging (EFI), with displacement compensation for stereo microscopesSamples with curves or of varying heights are difficult to bring into focus under highly magnified conditions. And more a stereomicroscope takes images with tilting due to its own structural characteristics. Thus, each image is out of its supposed position when you move microscope to the Z-axis getting the right focus. Our displacement compensation function allows you to rearrange these images automatically and manually.Software can combine a stack of images sequentially captured at different levels of focus and combine them into a single in-focus image. You can count on our software not to leave any trace of the composites.3D Visualization. . . clearly view complex structuresA Three-dimensional picture can be created from any image. The 3-D presentation is based upon intensity values of the image and can be displayed as a normal or wire frame image. Z axis information can easily be adjusted to optimize the 3-D effect. To better visualize an image in 3-D, software offers full 360 degrees of rotation on X-Y-Z axis. A 3D image can then saved in JPG, TIF or BMP format.Image Stitching. . . create a mosaic of the “Big Picture”With our software, you can create auto and manual composites of continuously captured images in order to minimize the reduction in the field-of-view that typically comes with increased magnification. Combined images are automatically corrected for brightness without leaving any stitching mark. Live Image Comparison. . . for fast inspection and size verificationFor QA testing or quick go/no-go inspections any stored image can be used as a reference image onto which the live preview image is projected.Time Lapse Capture and Movie File Production. . . Import into Power PointSoftware features a Time Lapse Capture function that supports TIF, BMP and JPG file formats. The Time Lapse Capture function also includes an Auto Save feature byyyyy/mm/dd/hour/minute/second. You can save video movie recordings in AVI, MPG, MPEG, and MOV formats.Combine Image Planes - Fluorescence ImagingMerge and pseudo color monochrome images into a single RGB composite.Advanced - Fluorescence Image mergeFluorescence merging function allows several images to one composite image.There is rich list of pre-defined dyes already.One can choose desired emission wavelength in nanometers also and then correspondent color is calculated automaticallyExport Into Excel® - with one mouse clickA single mouse click exports the original image with measurement, calibration, annotation overlay, measurement data, statistics, and chart.Manual Measurement Tools - Including Various Perpendicular DistanceSoftware’s versatile manual measurement features include tools for measuring lengths, areas, and angles and can even auto detect an object's outline and then make specified measurements. The software is equipped with a wide choice of powerful measurement tools including 3-point circle functionality, Npoint circle measurement functionality, parallel line distance measurement, perpendicular distance measurement and object distance measurement. In addition, a zoom-in window can be used to determine the accurate measuring point of an object.Once you've measured a specimen you can easily export all of the images, measurement data and statistics to an Excel® file. With i-Solution DT, comprehensive statistics and data are just one effortless mouse click away.Line ProfilingSingle, multiple, parallel and polyline commands provide Gray/Red/Green/Blue intensity values for specific lines within an image. The profile data of each pixel on the line can be exported to MS Excel. Auto TraceUsing an automatic edge detection algorithm, our software will perform an auto trace measurement function around a closed object. This function greatly increases accuracy and saves time when makingmeasurements of complex shapes.Image ProcessingManual Brightness, Contrast, Gamma, Background Subtraction, Shading Correction, Histogram, Clone, Crop, AOI, Resize, Rotate, Split, Merge Monochrome series into RGB Color, Combine different exposure Images for highlight reduction, Image Mode Change, Grayscale, RGB, HSB, YUV Pseudo Color view, Full range of enhancement and morphology filters 8bit and 16bit per channel Manual MeasurementsPoint Count, Straight Line, Circle by radius, Circle by N points, Circle by diameter, Circle by 3 points, rectangle, polygon, polyline, splice lines from a common point, auto trace, angle parallel lines, perpendicular width, perpendicular from common line, angle between 2 lines, distance, perpendicular distance.Shading CorrectionThe edge parts of captured image by low magnification have background shading frequently, which can be removed by the shading correction function. The color of the original image remains the same though. A standard image is acquired from a blank space on the slide glass, or from an out of focus image in a metallurgical specimen. Such a standard image is used to correct the background shading of all other captured images.AnnotationLine, arrow, polyline, spline, rectangle, ellipse, textRegion of Interest- ROI. . . . with unique add/subtract capabilityRectangle, arbitrary rectangle, circle, arbitrary ellipse, polyline, spline, magic wand ROI itself can be saved to work with other images. The saved ROI can be placed on the exact same location of other images.View and Zoom ImageManual zoom In-Out, User Defined, Fit to Window, 1600% Zoom in Window for Accurate Edge Detect, sizeable context Window to view all open ImagesImage EditingUndo, Redo, Copy, Paste, Paste New, Delete, Delete All, Annotate, Image InformationSave OptionsTXT File Format, image and measurement data together in Proprietary .img File Format for future editing and data collectionSupported Image File Formatsjpg, jpeg, tif, tiff, bmp, gif, pcx, tga, mpg, mpeg, avi, mov, img, rpt, txt and etc.Report GeneratorCreate Report, Insert Image and Data, Insert other OLE ObjectsWindow ViewSplit Horizontal, Split Vertical, Cascade, Tile Horizontal, Tile Vertical, Arrange icons, Dynamic User Interface (UI), Classic, ModernTime Lapse Sequence ControlPlay Forward, Backward, Making Movie File (mpg, avi, mov) with Still Images, Split Single Image from Sequence FileAuto/Manual Thresholding for Count and SizeIntensity and color based thresholding tools for identifying, counting and categorizing objects.Ideal for automatic objects counting and percentage of area measurements.Objects Editing… enhanced measurement accuracy!Target threshold objects can be edited by all measurement parameters or with filters to clean, close, open, dilate, erode, automatic separate and fill holes.Densitometryi-Solution software automatically calculates Optical Density (OD) by absolute and relative figures, semi automatically, or manually based on user configuration. Images and OD figures can then be exported directly to an MS PowerPoint file.Perfect Focus Enhancementi-Solution implements a perfect function of focus compensation irrespective of the status of lights and specimen.Macro-Enabled RecordingCreate and save customized measurement settings and sequencesData CollectorSelect desired measurements then easily collect and tabulate data from multiple samples. Reflected Light Subtractioni-Solution creates clear, evenly illuminated images by removing the bright saturated light from a highly reflective sample.Automatic count for live and stained cellsConglomerated live and stained cells are separated automatically and counted.Particle AnalysisParticle data in many images is given by statistics and individual form. Each object is viewed with data together.Phase Analysis & Advanced Thresholdi-Solution conducts phase analysis on an entire image or within a specified Region of Interest (ROI) and it can allow to sort images using Gray Scale, RGB, HSB or YUV.Thickness Measurement (Layer Depth Measurement)Average thickness is measured automatically by defining box. The number of scan lines can be defined by users.Stereometry for BiovolumeThe 3D volume of an object is calculated by using 2D measuring parameters.67 selectable measurement parametersA complete menu of measurement types with a description of the parameter3D reconstructionA 3D rendering picture can be created from Z stacked images. A real 3D rendering picture is made by many Z stacked images. The 3-D presentation can be displayed as a normal or wire frame image. To better visualize an image in 3-D, software offers full 360 degrees of rotation on X-Y-Z axis. A 3D image can then saved in JPG, TIF or BMP format.Illuminator controlProgram controls illuminator shutter.Live cell countLive cells having irregular shape can be counted automatically, which can be hardly possible by ordinary thresholding method.Grain Size MeasurementiSolution DT provides the standard measurement environment in structure analysis of metal and materials according to ASTM E112 (2000). Both intercept lines and planimetric counting are available.Ferrite in Cast IronPercent Ferrite is calculated by excluding the graphite area. Graphite can be sorted for calculation including portions with the same gray intensity value of the background pearlite.Graphite Analysis in Nodular Cast IroniSolution DT may automatically generate measured data on the international standards regarding the cast iron. It provides graphite types and nodularity data according to the international standards such as ASTM A247-67 (1998), ISO 945 (1975), JIS G5502 (2001), KSD4302 (2002) with a single click. Chart NavigatorThe Chart Navigator permits direct comparison between the live or captured image and a series of reference images. The user-friendly interface makes you quickly find the image you need which matches or is similar to the live or captured image out of a large number of reference images. Both the live image and the reference image can be exported to MS Excel by simple mouse click. Synchronize zoom function makes it enable to see the same view size whatever zoom ratio the live or captured image has.Particle analysisIt gives particle analysis result with each object shape and statistic data.The below features are included in iSolution DT and DT-M only, not in DT-L Non-metallic Inclusion RatingThe functions in iSolution DT is intended to determine the inclusion content of steel according ASTM E45 (2002), ASTM E1122 (1996), DIN 50602 (1985), ISO 4967(1998), KSD 0204 (2002), JIS G0555 (2003). Two analysis approaches, Stereological measurements and JK inclusions ratings are implemented.Yarn filament analysisThe function is intended for processing a narrow class of special images with filament objects. There are four types of filament objects supported by the program: triangle, circles, FD circle, and polygon. Automatic Fruit Size AnalysisIt measures fruit size automatically.Volume fraction based on ASTM E562-05It gives the volume fraction of residual Austenite and Ferrite based on ASTM E562-05Rust Analysis based on ASTM D610-08 and JIS H 8681-2It gives the rust analysis result based on ASTM D610-08 and JIS H 8681-2Microindentation hardnessIt gives microindentation hardness test result based on Knoop and Vickers.The below features are included in iSolution DT-M onlyMotorized stage controliSolution DT-M controls motorized stage of Marzhauser, Ludl, Prior scientific, and ASIVirtual microscopeWith motorized control stage, it gives automatic image stitching for scanning whole slide area. While making a whole large area image, image stitching and microscope focus enhancement can be done at the same time. Even with stereomicroscope, such a function is available.Image analysis with automatic image stitchingImage analysis with data collector can be done having automatic image stitching at the same time. Image analysis data can be achieved while making a large stitched image by motorized control stage, which gives analysis data and whole picture at the same time.Automatic focus adjustmentWhile stage is moved, focus is adjusted automatically by software function alone, not with any other additional hardware device.Banding analysis based on ASTM E1268It gives banding analysis result based on ASTM E1268 standard.Adding customized modules by requestSystem Requirements• PC with a Pentium-class processor; Pentium 300MMX or higher recommended• Microsoft Windows Win7/Vista/WinXP/2000/ME/Win98SE operating system• 32 MB of RAM or more (128 MB recommended)• 15 MB or more hard-disk space (50 MB recommended)• CD-ROM drive• VGA or higher-resolution monitor; Super VGA recommended (1024 x 768 pixel and 24 bit and more color support video card is recommended)• Microsoft Mouse or compatible pointing device• USB- or LPT-port for hardware key (depends on delivery).Supported imaging devices1. TWAIN Driver2. DirectShow/ WDM (Windows driver mode) driver3. i-Link DevicesAll PixeLINK cameras.Optronics digital cameras- MicroFire- MacroFire- QuantiFire and QuantiFire XI- Microcast- All MPX series cameras- All QPX series camerasJenoptik ProgRes digital cameras- C3 (cooled and non-cooled)- C5 (cooled and non-cooled)- C14- ProgRes CF and CFScan (cooled, non-cooled, and scan)- ProgRes MF (cooled, non-cooled, and scan)-ProgRes all CMOS cameras.Nikon digital cameras- DS-U2 Fi1- DS 5M/2M-U2- DS 5M/2M-U1- DXM 1200C- DXF 1200FPixera digital camera- Penguin series all models- Pro series all modelsScion corporation digital camera-CFW series all modelsMatrix vision-mvBlueFox digital cameraArtray- ARTCAM-500MI- ARTCAM-300MI- ARTCAM-200MI- ARTCAM-130MI (color, mono, and NIR) - ARTCAM-036MI (color, mono, and TWIN) - ARTCAM-500P- ARTCAM-200SH- ARTCAM-150P-II (color and mono)- ARTCAM-098 (color and mono)- ARTCAM-34MCLumenera- Infinity 1 series all models- Infinity 2 series all models- Infinity 3 series all models- Infinity X and Infinity X-21XLi camera- M series cameras- DC series cameras- DX series camerasSpot digital camera- Insight- FlexQimaging digital cameras- MicroPublisher- RetigaAll Leica digital cameras by TWAINCarl Zeiss AxioCam by TWAINFlashBus frame grabber- Spectrim Lite- Spectrim Pro- MV LiteMatrox frame grabber- Meteor IIAvermedia frame grabber- EZMakerConsumer digital camerasIMT i-Solution Inc. 。

LeicaDNA03电子水准仪简要操作说明1 仪器的基本设置⑴仪器的基本介绍图1图11 聚焦：黑条表示该栏为活动栏2 符号3 软按键4 电源开关键5 圆水准器6 固定键（左边一列键）：具有固定功能的按键7 固定键第二功能：用[shift]加固定8 输入键：输入数字、键起动第二功能字母和特殊字符9 定位键：功能的变化与应用有关10 回车键设置测量模式键用户自定义键，功能菜单中的任意一项功能都可定义给它测量程序键数据管理器一步步退出测量程序、功能或修改模式，恢复原来的参数，取消/停止测量键开关第二功能键（SET OUT，INV，FNC，MENU，LIGHTING，PgUp，PgDn，<<back，ins），转换输入数字或字母。

< p="">删除字符或信息，取消或停止测量确认输入，继续下一栏测量翻转标尺（标尺0 刻度在上），只要INV 被激活，仪器显示“T”符号，再按INV 键恢复测量正常标尺状态。

反转标尺测量值为负。

系统信息，启动轴系检测（利用平行光管对DNA03 仪器进行视线倾斜检测）。

显示屏和圆水准器照明若显示内容含有多页，“Page Up”=翻到前一页。

若显示内容含有多页，“Page Down”=翻到下一页。

返回到上一次视线，例如，回到后视，反之亦然。

定位键有多种功能，执行何种功能，取决于使用定位键的模式：?聚焦控制?光标控制?通过选择定位选择及确定输入的参数输入数字，字母和特殊字符。

输入小数点和特殊字符触发正、负号输入；输入特殊字符在字母模式中快速连续按压激活下一个符号（字母/特殊字符/数字）。

静止0.5 秒钟接受输入的符号。

软按键是对一个已知情况附加的“软件键”，软按键可用定位键选取，按启动。

常用软按键：接受输入的参数或条件，继续确认安置确认输入的参数，继续结束测量程序/功能，输入的参数作废。

在MANU，PROG 和DATA中返回到选择菜单。

转到前一窗口记录: 把数据存入内存⑵基本设置①设置仪器设置在菜单中进行，MENU 打开菜单，窗口见图2图2Contrast:对比度 Earthcurv:地球曲率改正UserKey:用户自定义键Decimal :小数位图3放弃设置改变，退出，确认新的设置图41 系统设置Beep : 提示声 Data Out : 数据输出Auto OFF : 自动关机 User-key : 用户自定义键DSP-Heater: 液晶加热 Coll.err : i 角改正图5Data output：RS232数据通过RS232 接口外传（仅在测量和记录程序中有效）此功能再次不用。

电子水准仪操作规程
电子水准仪的使用包括：电子水准仪的安置、整平、瞄准、读数四个步骤。

⑴安置：
安置是将仪器安装在可以伸缩的三脚架上并置于两观测点之间。

首先打开三脚架并使高度适中，用目估架顶大致水平并检查脚架是否牢固，然后打开仪器箱，用连接螺旋将水准仪器连接在三脚架上。

⑵整平：
整平是使仪器的视线水平，利用脚螺旋置圆水准气泡居于圆指标圈之中。

调整圆水准气泡，气泡移动的方向与大姆指运动的方向一致，将水准仪整平。

⑶瞄准：
瞄准是用望远镜准确地瞄准目标。

首先是把望远镜对向远处明亮的背景，转动目镜调焦螺旋，使十字丝最清晰。

再松开固定螺旋，旋转望远镜，使照门和准星的连接对准水准尺，最后转动物镜调焦螺旋，使水准尺的清晰地落在十字丝平面上，消除视差，再转动微动螺旋，使水准尺的像靠于十字竖丝的一侧。

⑷读数：
用十字丝，截读水准尺上的读数。

电子水准仪是利用数字图像处理技术读数，读数精确至0.00001mm。

按电子水准仪进行观测，以往测奇数测站为例，一测站的操作程序如下：
⑴首先整平仪器，调节数字水准仪角螺旋，使圆气泡位于指标圆环中央，望远镜绕垂直轴旋转180度，圆气泡仍位于指标圆环中央；
⑵将望远镜照准后视水准标尺，用垂直丝照准条码中央，精确调焦至条码影像清晰，按测量键读数；
⑶显示读数后，旋转望远镜照准前视标尺，用垂直丝照准条码中央，精确调焦至条码影像清晰，按测量键读数；
⑷显示读数后，重新照准前视水准标尺条码中央，按测量键读数；
⑸显示读数后，旋转望远镜照准后视水准标尺条码中央，精确调焦至条码影像清晰，按测量键读数，显示测站成果，测站检核合格迁下一站。
