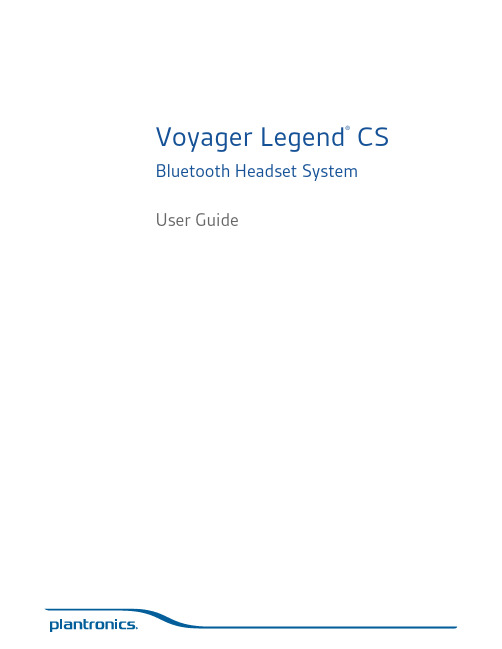

Voyager Legend® CS Bluetooth 耳機系統使用者指南歡迎使用恭喜您購買新的 Plantronics 產品。
此指南包含 Voyager Legend CS 無線耳機系統的設定與使用操作指示。
在安裝或使用本產品前，請參考另附的安全說明，以瞭解重要的產品安全資訊。
基座耳機電話介面纜線電源供應器耳塞部分機型可能會包含：HL10升降器USB 充電線包裝盒內容基座81通話/靜音 LED 燈6聽筒升降器/EHS 纜線插孔2電源開啟/配對 LED 燈7電話介面纜線3充電 LED 燈8收聽音量調節器*4配對按鈕9發話音量調節器*5電源插孔10設定開關**用於安裝設定耳機1音量 +/- 按鈕4通話按鈕2電源按鈕5靜音麥克風/語音命令按鈕3磁扣充電連線基座與耳機基本介紹另售。
2571可攜式充電盒2桌上型充電底座3AC 變壓器4USB 充電線*5車用充電變壓器6Micro USB 充電變壓器7耳塞套件(有 S、M、L 可供選擇)8HL10 升降器* 自動提起聽筒並使其返回底座。
您可使用耳機進行通話遙控。
9電子掛機開關纜線 (EHS 纜線) 自動電子化啟用桌上型電話聽筒。
您可使用耳機進行通話遙控。
*部分機型有隨附。
更換耳塞以貼合耳朵。
若要將耳機配戴在另一隻耳朵，請將吊桿向上旋轉並扭轉，使耳塞轉到另一邊，再將吊桿放下。
更換耳塞左耳或右耳佩戴將電源供應器的一端插入基座背面的電源插孔，並將另一端插入運作正常的電源插座。
電源開啟 LED燈將會持續亮白燈。
將耳機放在充電座中。
基座上的充電 LED 燈在充電時會呈藍色閃爍，耳機充飽電時則轉為持續亮藍燈。
第一次使用前，請至少先將耳機充電 20 分鐘。
完整充電需要 90分鐘。
=將 Voyager Legend CS 連接到桌上型電話時，有三種設定選項。
請選取下列其中一個方式並繼續。
•桌上型電話 (標準)•桌上型電話 + HL10 升降器 (另售)•桌上型電話 + EHS 纜線 (另售)附註如果您將使用標準桌上型電話設定，或桌上型電話搭配 HL10 升降器，請依下方指示繼續。
Voyager Legend® CS Bluetooth Headset SystemUser GuideWelcomeCongratulations on purchasing your new Plantronics product. This guide contains instructionsfor setting up and using your Voyager Legend CS Wireless Headset System.Please refer to the separate safety instructions for important product safety information priorto installation or use of the product.BaseHeadsetTelephone interface cablePower supplyEartipsSome models may also include:HL10 Lifter USB Charge cableWhat's in the BoxBase81Call/mute LED6Handset lifter/EHS cable jack2Power on/pairing LED7Telephone interface cable3Charging LED8Listening volume dial*4Pairing button9Speaking volume dial*5Power jack10Configuration switch**For installation set upHeadset1Volume +/- button4Call button2Power button5Mute microphone/voice command button3Snap fit magnetic charge connectionBase and Headset BasicsSold separately.2571Portable charge case 2Desktop charge stand 3AC charger 4USB charge cable*5Car charge adapter 6Micro USB charge adapter 7Eartip kit (available in S, M, L)8HL10 lifter* Automatically lifts handset and returns it to the cradle. Enables remote callcontrol with your headset.9Electronic hookswitch cable (EHS cable) Electronically and automatically takes your deskphone handset off hook. Enables remote call control with your headset.*Included with some models.AccessoriesChange the eartip for a better fit.To wear the headset on your other ear, rotate the boom upwards then twist it around so the eartip is on the other side before lowering the boom.FitChange the eartipWear on the left or rightPlug one end of the power supply into the power jack on the back of the base and the other endinto a working power outlet. The Power On LED will be solid white.Place the headset in the charge cradle. The charging LED on the base will flash blue whencharging and turn solid blue when the headset is fully charged. Charge for at least 20 minutesprior to the first use. A full charge takes 90 minutes.=There are three setup options for connecting the Voyager Legend CS to your desk phone.Select one of the following and continue.•Desk phone (standard)•Desk phone + HL10 Lifter (sold separately)•Desk phone + EHS cable (sold separately)Connect Your Desk PhoneConnect the powerCharge the headsetConnect and configureyour desk phoneNOTE If you will be using a standard desk phone set up or a desk phone with an HL10 lifter, continuebelow. If you will be using the desk phone with an EHS cable, refer to Desk phone plus EHS cable section in this guide. For further installation information refer to the EHS Getting Started guide that came with your EHS cable or at /accessories.1Connect one end of the telephone interface cable to the back of the base.2Disconnect the handset coil cord from the desk phone and re-connect it to the telephone interface cable junction box.3Connect the remaining end of the telephone interface cable into the open handset port on thedesk phone.NOTE Your desk phone handset will continue to work; it's just hooked up differently.NOTE If your phone has a built-in headset port, you should only use the headset port if you will not beusing the HL10 lifter. In this configuration, you must first press both the headset button on your phone and the call control button on the headset to answer or end calls.1If your desk phone has a volume control set it to mid range.2Look at the bottom of your base and make sure the default settings are correct. Set your desk phone's volume also.Set the listening volume dialand the speaking volume dial to 2.Set the configuration switch to A.Set the desk phone volume to mid-range.Desk phone (standard)Check configuration andmake a test call3Remove the handset from the desk phone cradle.4While wearing your headset, press the call button on the headset.5If you do not hear a dial tone, adjust the configuration switch (A-G) until you do.NOTE For most phones, these factory settings will sound best.6Dial a test call from the desk phone. If needed, fine tune the volume with the headset volume controls. You can also adjust the desk phone speaking and listening volumes on the bottom of the base.First follow the steps above for Desk phone (standard).1Firmly press the handset lifter power cord into the handset lifter jack.2While wearing your headset, slide the handset lifter arm under the handset until the lifter base touches the side of the phone.Desk phone plus HL103Slide the lifter up to where it nearly touches the handset earpiece.4Press the call button on your headset to activate the lifter.5If you hear a dial tone the lifter is set correctly and needs no adjustment.6Remove the protective strips from the 3 mounting tapes on the underside of the lifter.7Gently place the lifter on the desk phone in the pre-determined position.8Press firmly to adhere.Connect the end of the EHs cable to the base and the other end of the desk phone as described in the EHS Quick Start Guide.NOTE For further installation information refer to the EHS Quick Start Guide that came with your EHS cable or at /accessories.Desk phone plus EHScableThe minimum recommended separation between your desk phone and the base is 6 inches.The minimum recommended separation between the base and computer is 12 inches. Incorrectposition can cause noise and interference problems.Position your baseHeadset ControlsvoiceCall buttonVolume buttonHeadset LED (indicator light)Power buttonMagnetic charge portMute buttonVoice button(mobile phone use only)Play/Pause button(mobile phone use only)With a single full charge, the Voyager Legend CS will provide up to 7 hours of talk time and upto 11 days of standby time.Toggle the Volume button (show icon) up (+) or down (-) during a call to adjust the volume.While not on a call you can toggle the Volume button (show icon) to adjust the volume level forvoice prompts and notifications.The wireless range for the Voyager Legend headset is 10M from the desktop base or yourmobile phone. Audio quality can be expected to degrade past 10M and wireless connectivityeventually stop when range limits are exceeded.When you leave the operating range of the base or mobile phone, a voice prompt willannounce:•"Phone 1 Disconnected"; any audio is terminatedNOTE Note: If both desk phone and mobile phone are connected to the headset it will be announcedPhone 1 Disconnected" and "Phone 2 Disconnected" as connections are lost Headset OverviewTalk timeAdjust the volumeOut of range indicationsWhen you return to the operating range of the base or mobile phone, a voice prompt will announce:•"Phone 1 Connected"; audio restored if activeNOTE Note: If both desk phone and mobile phone are connected to the headset it will be announce "Phone 1 Connected" and "Phone 2 Connected" as connections restored.30 minutes of talk time remaining (this alert only occurs during an active call)Double high tone every 15minutes"Battery Low" repeats every 30minutes10 minutes of talk time remaining Triple high tone every 30seconds"Recharge Headset" every 3minutesLow battery warningsBase LEDs1 Call Status LED Idle = UnlitIncoming call = fast blue flashOn call = solid blueCall (headset mic) muted = slow blue flash2 Power On/Pairing LED Power off = unlitPowered = solid blue (headset paired/connected)Powered = solid red (headset not paired ordisconnected)In pairing mode = red/blue flashingPairing successful = solid blue3 Headset Battery LED (when docked)Full battery, charging stopped = solid blueHigh, charging = 3 blue flashes every 10 secondsMedium, charging = 2 blue flashes every 10secondsLow, charging = 2 red flashes every 10 secondsCritical, charging = 3 red flashes every 10 secondsThe headset and base that came in the box are already paired to each other. However, if you wish to use a new headset or need to restore subscription to your current headset, the units can be paired to each other by doing the following.1Press and hold the Bluetooth pairing button until the power LED (middle) flashes RED/BLUE.2Switch on your headset and do either of the following:•Tap the Voice Button and say "Pairing Mode"•Press and hold the call button until you hear "Pairing"The power LED will turn solid blue once paired.Pair your headset to your phone or another device, such as a tablet.1Switch on your headset then choose:•Tap the Voice button •2While the headset LEDs are flashing red and blue, activate Bluetooth ® on your phone and set itto search for new devices.3Select “PLT_Legend.”4If your phone asks for a passcode, enter four zeros (0000) for the passcode or accept the connection.Pairing your base to yourheadsetBluetooth pairing buttonPairing headsetPair phone or tablet5Once successfully paired, LEDs stop flashing red and blue. The LED remains solid blue and you hear “pairing successful.”NOTE To enable caller name announcement, allow access to your contacts if your phone prompts you.12Remove the handset from the cradle, you will hear dial tone.This step will be automatic if you install a handset lifer or EHS cable accessory. For a complete list of accessories, visit /accessories 3Dial the number using your desk phone.412If not wearing the headset, place the headset on your ear; the call will be answered automatically.3Remove the handset from the cradle, your call is now active.This step will be automatic if you install a handset lifer or EHS cable accessory. For a complete list of accessories, visit /accessoriesUse the Call Reject function on your desk phone, if supported.1MUTE ON: During a call press the Mute button , you will hear the "mute on" voice prompt which indicates the headset microphone is muted. The mute reminder is repeated every 15minutes alternating between the voice prompt and a tone.2MUTE OFF: During a call while muted, press the Mute button , you will hear "mute off", which unmutes the headset microphone.12Note: Your desk phone may also have second call management features which are better suited for specific second call management needs.Call Controls - Desk PhonePlace a callAnswer a CallReject a call (desk phone)End a call Mute a callAnswer a second incoming call12Dial the number using mobile phone.312If wearing the headset and prompted, "Incoming call, answer or Ignore", say "Answer", or 3If not wearing your headset, place the headset on your ear; the call will be answered automatically.12Say "Ignore" when prompted, or3Use the Call Reject function of your mobile phone, if supported.1MUTE ON: During a call press the Mute button , you will hear the "mute on" voice prompt which indicates the headset microphone is muted. The mute reminder is repeated every 15minutes alternating between the voice prompt and a tone.2MUTE OFF: During a call while muted, press the Mute button , you will hear "mute off", which unmutes the headset microphone.12call, then say "answer" when prompted to answer the second call.NOTE Your mobile phone may also have second call management features.Call Controls - Mobile PhonePlace a callAnswer a callReject a callEnd a call Mute a callAnswer a second incoming callCustomize Your HeadsetYour headset understands and speaks in English. You can change the language and othersettings online.MyHeadset™ Updater tool enables you to:•Receive firmware updates•Change language for voice alerts and commands (English U.K., French, German, and Spanish.Voice alerts are also available in Cantonese and Mandarin.)•Change regional phone number for Vocalyst service•Turn voice commands on/off•Turn Smart Sensors™on/off•Turn high quality audio (A2DP) streaming on/off•Turn "mute off" voice alert on/offYour Voyager Legend headset can play media files (music, podcasts, navigation, etc.) from any A2DP (Advanced Audio Distribution Profile for Bluetooth)-enabled mobile device.Your Voyager Legend Bluetooth headset has a 10 meter effective range. Voice prompts from your headset will alert you if you lose connection with your base or mobile phone.You can be on a call using a computer softphone application and receive a mobile phone call.The ringtone for the mobile phone call is heard in the headset. Tapping the call button on the headset will end the computer softphone call. Tapping the call button again will answer the mobile phone call.NOTE Answering the call on your mobile phone sends the audio to the mobile phone and leaves the computer softphone call active on the headset.You can be on a mobile phone and receive a call on your computer softphone. The ringtone for the computer softphone call is heard in headset during the call.Tapping the call button on the headset ends the mobile phone call. Tapping the call button again answers the computer softphone call.If you receive a computer softphone call and mobile call at the same time, tapping the call button will pick up the call that came in first.Your headset speaks English.•"Battery low/medium/high"•"Connection switched"•"Headset connected"•"Not connected"•"Mute on/off"•"Pairing"•"Pairing successful"•"Power on/off"•"Recharge headset"•"Redial"Tap the Voice button can I say?” tells you the full list of available commands. You can change the voice command language by visiting and downloading the MyHeadset ™ Updater tool. The available languages are English (US and UK), French, German, Italian, Japanese, Korean, Mandarin, Russian, Spanish and Swedish. Voice commands for Cantonese, Danish and Norwegian must be spoken in English.•"Am I connected?"•"Answer"•"Call information"•"Call Vocalyst"FeaturesListen to audio via A2DPTransmission rangeSimultaneous call handling behavior (PCMobile)Voice alerts Voice alerts listVoice commandsVoice commands list•"Cancel"•"Check battery"•"Ignore"•"Pair mode"•"Redial"•"What can I say"NOTEThe voice-dial feature is not a headset voice command and only works with supporting phones.To disable the “answer/ignore” voice commands:1Switch on the headset.2Press and hold the Voice button until you hear a double tone.3Repeat to reactivate the voice answer commands.Disable the answer/ignorevoice commandsTalk time performance is significantly degraded even after a full recharge.Battery is wearing out. Contact us at / support .I can’t hear a dial tone in the headset.Make sure your headset is charged.Make sure your headset is subscribed to base. See Subscription button.Press the call control button on your headset.If using a lifter, make sure the lifter is lifting the handset high enough to operate the hookswitch; set to a higher setting if necessary.Adjust the configuration switch on the base until a dial tone is heard. operate the hookswitch; set to a higher setting if necessary.Fine tune the listening volume on the headset.If the volume is still too low, adjust the Listening volume dial on the base.I hear static.Make sure there is at least 12 inches between your base and yourcomputer, and 6 inches between your base and your telephone.You may hear static as your headset is going out of range; movecloser to the base.The sound is distorted.Lower the Speaking volume dial or Listening volume dial on thebase. For most telephones the correct setting is position 2.If your desk phone has a volume control, lower until thedistortion disappears.If the distortion is still present, adjust the headset volume controlto lower the headset speaker volume. If the distortion persists,lower the Listening volume dial on the base.Make sure there is at least 12 inches between your base and yourcomputer, and at least 6 inches between your base and yourtelephone.I hear echo in the headset.Lower the Listening volume dial and Speaking volume dial on thebase. For most telephones, the correct setting is position 2.If the audio level is too low in this position, adjust the headsetvolume control to increase the headset speaker volume.If your speaking volume is too low for your listener in thisposition, adjust the position of the headset to make sure themicrophone is a finger’s width from the corner of your mouth.Adjust the Configuration switch. The most commonly usedposition is “A”.People I talk to can hear a buzz in the background.Move the base further away from your phone.If the base power supply is plugged into a power strip, plug it into the wall directly.The handset lifter is installed but does not lift the handset.Be sure the handset lifter power cord is firmly pushed into the handset lifter jack on the base.TroubleshootingHeadsetDesk phoneNEED MORE HELP?/support Plantronics, Inc.Plantronics BV345 Encinal Street Santa Cruz, CA 95060 United States South Point Building C Scorpius 1402132 LR Hoofddorp© 2013 © 2013 Plantronics, Inc. All rights reserved. Plantronics and Voyager Legend are trademarks or registered trademarks of Plantronics, Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Plantronics, Inc. is under license. All other trademarks are the property of their respective owners.Patents: US 8,208,673; D617,316; D681,003; 681,014; D681,002; D662,089; BR 3020120011493; CN ZL201230489876.9; ZL201230059196.3; EM 002109637-0001; 002109637-0002; 002109637-0003; 001315261-0001; IN 243252; TW D151481; Patents Pending201137-06 (09.13)。
Voyager Legend® CS Bluetooth Headset SystemUser guideWelcomeCongratulations on purchasing your new Plantronics product. This guide contains instructionsfor setting up and using your Voyager Legend CS Wireless Headset System.Please refer to the separate safety instructions for important product safety information priorto installation or use of the product.BaseHeadsetTelephone interface cablePower supplyEar tipsSome models may also include:HL10 lifter USB Charge cableWhat's in the boxBase81Call/mute LED6Handset lifter/EHS cable jack2Power on/pairing LED7Telephone interface cable3Charging LED8Listening volume dial*4Pairing button9Speaking volume dial*5Power jack10Configuration switch**For installation setupHeadset1Volume +/- button4Call button2Power button5Mute microphone/voice command button3Snap-fit magnetic charge connectionBase and headset basicsSold separately.2571Portable charge case 2Desktop charge stand 3AC charger 4USB charge cable*5Car charge adapter 6Micro USB charge adapter 7Ear tip kit (available in S, M, L)8HL10 lifter* Automatically lifts handset and returns it to the cradle. Enables remote callcontrol with your headset.9Electronic hookswitch cable (EHS cable) Electronically and automatically takes your deskphone handset off the hook. Enables remote call control with your headset.*Included with some models.AccessoriesReplace the ear tip for a better fit.To wear the headset on your other ear, rotate the boom upwards then twist it around so the ear tip is on the other side before lowering the boom.FitChange the ear tipWear on the left or rightPlug one end of the power supply into the power jack on the back of the base and the other endinto a working power outlet. The Power On LED will be solid white.Place the headset in the charging cradle. The charging LED on the base will flash blue whencharging and turn solid blue when the headset is fully charged. Charge for at least 20 minutesprior to the first use. A full charge takes 90 minutes.=There are three setup options for connecting the Voyager Legend CS to your desk phone.Select one of the following and continue.•Desk phone (standard)•Desk phone + HL10 Lifter (sold separately)•Desk phone + EHS cable (sold separately)Connect Your Desk PhoneConnect the powerCharge the headsetConnect and configureyour desk phoneNOTE If you will be using a standard desk phone setup or a desk phone with an HL10 lifter, see below.If you will be using the desk phone with an EHS cable, refer to Desk phone plus EHS cable section in this guide. For further installation information refer to the EHS Getting Started guide that came with your EHS cable or go to /accessories.1Connect one end of the telephone interface cable to the back of the base.2Disconnect the handset coil cord from the desk phone and re-connect it to the telephone interface cable junction box.3Connect the remaining end of the telephone interface cable into the open handset port on thedesk phone.NOTE Your desk phone handset will continue to work; it's just hooked up differently.NOTE If your phone has a built-in headset port, you should only use the headset port if you will not beusing the HL10 lifter. In this configuration, you must first press both the headset button on your phone and the call control button on the headset to answer or end calls.1If your desk phone has a volume control, set it to mid-range.2Look at the bottom of your base and make sure the default settings are correct. Set your desk phone's volume as well.Set the listening volume dialand the speaking volume dial to 2.Set the configuration switch to A.Set the desk phone volume to mid-range.Desk phone (standard)Check configuration andmake a test call3Remove the handset from the desk phone cradle.4While wearing your headset, press the call button on the headset.5If you do not hear a dial tone, adjust the configuration switch (A-G) until you do.NOTE For most phones, these factory settings will sound best.6Dial a test call from the desk phone. If needed, fine-tune the volume with the headset volume controls. You can also adjust the desk phone speaking and listening volumes on the bottom of the base.First follow the steps above for Desk phone (standard).1Firmly press the handset lifter power cord into the handset lifter jack.2While wearing your headset, slide the handset lifter arm under the handset until the lifter base touches the side of the phone.Desk phone plus HL103Slide the lifter up to where it nearly touches the handset earpiece.4Press the call button on your headset to activate the lifter.5If you hear a dial tone the lifter is set correctly and needs no adjustment.6Remove the protective strips from the 3 mounting tapes on the underside of the lifter.7Gently place the lifter on the desk phone in the pre-determined position.8Press firmly to adhere.Connect the end of the EHS cable to the base and the other end of the desk phone as described in the EHS Quick Start Guide.NOTE For further installation information refer to the EHS Quick Start Guide that came with your EHS cable or at /accessories.Desk phone plus EHScableThe minimum recommended separation between your desk phone and the base is 6 inches.The minimum recommended separation between the base and computer is 12 inches. Incorrectposition can cause noise and interference problems.Position your baseHeadset controlsvoiceCall buttonVolume buttonHeadset LED (indicator light)Power buttonMagnetic charge portMute buttonVoice button(mobile phone use only)Play/Pause button(mobile phone use only)With a single full charge, the Voyager Legend CS will provide up to 7 hours of talk time and upto 11 days of standby time.Toggle the Volume button (show icon) up (+) or down (-) during a call to adjust the volume.While not on a call you can toggle the Volume button (show icon) to adjust the volume level forvoice prompts and notifications.The wireless range for the Voyager Legend headset is 10 m from the desktop base or yourmobile phone. Audio quality can be expected to deteriorate after 10 m and wirelessconnectivity eventually stop when range limits are exceeded.When you leave the operating range of the base or mobile phone, a voice prompt willannounce:•"Phone 1 Disconnected"; any audio is terminatedNOTE Note: If both desk phone and mobile phone are connected to the headset, "Phone 1Disconnected" and "Phone 2 Disconnected" will be announced as connections are lost Headset OverviewTalk timeAdjust the volumeOut of range indicationsWhen you return to the operating range of the base or mobile phone, a voice prompt will announce:•"Phone 1 Connected"; audio restored if activeNOTE Note: If both desk phone and mobile phone are connected to the headset, "Phone 1 Connected" and "Phone 2 Connected" will be announced as connections are restored.30 minutes of talk time remaining (this alert only occurs during an active call)Double high tone every 15minutes"Battery Low" repeats every 30minutes10 minutes of talk time remaining Triple high tone every 30seconds"Recharge Headset" every 3minutesLow battery warningsBase LEDs1 Call Status LED Idle = UnlitIncoming call = fast blue flashOn call = solid blueCall (headset mic) muted = slow blue flash2 Power On/Pairing LED Power off = unlitPowered = solid blue (headset paired/connected)Powered = solid red (headset not paired ordisconnected)In pairing mode = red/blue flashingPairing successful = solid blue3 Headset Battery LED (when docked)Full battery, charging stopped = solid blueHigh, charging = 3 blue flashes every 10 secondsMedium, charging = 2 blue flashes every 10secondsLow, charging = 2 red flashes every 10 secondsCritical, charging = 3 red flashes every 10 secondsThe headset and base that came in the box are already paired to each other. However, if you wish to use a new headset or need to restore subscription to your current headset, the units can be paired to each other by doing the following.1Press and hold the Bluetooth pairing button until the power LED (middle) flashes RED/BLUE.2Switch on your headset and do either of the following:•Tap the Voice button and say "Pairing Mode"•Press and hold the call button until you hear "Pairing"The power LED will turn solid blue once paired.Pair your headset to your phone or another device, such as a tablet.1Switch on your headset then choose:•Tap the Voice button •2While the headset LEDs are flashing red and blue, activate Bluetooth ® on your phone and set itto search for new devices.3Select "PLT_Legend".4If your phone asks for a passcode, enter four zeros (0000) for the passcode or accept the connection.Pairing your base to yourheadsetBluetooth pairing buttonPairing headsetPair phone or tablet5Once successfully paired, LEDs stop flashing red and blue. The LED will remain solid blue and you will hear "pairing successful".NOTE To enable caller name announcement, allow access to your contacts if your phone prompts you.12Remove the handset from the cradle; you will hear the dial tone.This step will be automatic if you install a handset lifer or EHS cable accessory. For a complete list of accessories, visit /accessories 3Dial the number using your desk phone.412If not wearing the headset, place the headset on your ear; the call will be answered automatically.3Remove the handset from the cradle. Your call is now active.This step will be automatic if you install a handset lifer or EHS cable accessory. For a complete list of accessories, visit /accessoriesUse the Call Reject function on your desk phone, if supported.1MUTE ON: During a call, press the Mute button and you will hear the "mute on" voice prompt which indicates that the headset microphone is muted. The mute reminder is repeated every 15minutes alternating between the voice prompt and a tone.2MUTE OFF: During a call while muted, press the Mute button and you will hear "mute off",which unmutes the headset microphone.12Note: Your desk phone may also have second call management features which are better suited to specific second call management needs.Call Controls - Desk PhonePlace a callAnswer a callReject a call (desk phone)End a call Mute a callAnswer a second incoming call12Dial the number using mobile phone.312If wearing the headset and prompted, "Incoming call, answer or Ignore", say "Answer", or 3If not wearing your headset, place the headset on your ear; the call will be answered automatically.12Say "Ignore" when prompted, or3Use the Call Reject function of your mobile phone, if supported.1MUTE ON: During a call, press the Mute button and you will hear the "mute on" voice prompt which indicates that the headset microphone is muted. The mute reminder is repeated every 15minutes alternating between the voice prompt and a tone.2MUTE OFF: During a call while muted, press the Mute button and you will hear "mute off",which unmutes the headset microphone.12call, then say "answer" when prompted to answer the second call.NOTE Your mobile phone may also have second call management features.Call Controls - Mobile PhonePlace a callAnswer a callReject a callEnd a call Mute a callAnswer a second incoming callCustomise your headsetYour headset understands and speaks in English. You can change the language and othersettings online.MyHeadset™ Updater tool enables you to:•Receive firmware updates•Change language for voice alerts and commands (English U.K., French, German and Spanish.Voice alerts are also available in Cantonese and Mandarin.)•Change regional phone number for Vocalyst service•Turn voice commands on/off•Turn Smart Sensors™on/off•Turn high quality audio (A2DP) streaming on/off•Turn "mute off" voice alert on/offYour Voyager Legend headset can play media files (music, podcasts, navigation, etc.) from any A2DP (Advanced Audio Distribution Profile for Bluetooth)-enabled mobile device.Your Voyager Legend Bluetooth headset has a 10 meter effective range. Voice prompts from your headset will alert you if you lose connection with your base or mobile phone.You can be on a call using a computer softphone application and receive a mobile phone call.The ringtone for the mobile phone call is heard in the headset. Tapping the call button on the headset will end the computer softphone call. Tapping the call button again will answer the mobile phone call.NOTE Answering the call on your mobile phone sends the audio to the mobile phone and leaves the computer softphone call active on the headset.You can be on a mobile phone and receive a call on your computer softphone. The ringtone for the computer softphone call is heard in the headset during the call.Tapping the call button on the headset ends the mobile phone call. Tapping the call button again answers the computer softphone call.If you receive a computer softphone call and mobile call at the same time, tapping the call button will pick up the call that came in first.Your headset speaks English.•"Battery low/medium/high"•"Connection switched"•"Headset connected"•"Not connected"•"Mute on/off"•"Pairing"•"Pairing successful"•"Power on/off"•"Recharge headset"•"Redial"Tap the Voice button can I say?” tells you the full list of available commands. You can change the voice command language by visiting and downloading the MyHeadset ™ Updater tool. The available languages are English (US and UK), French, German, Italian, Japanese, Korean, Mandarin, Russian, Spanish and Swedish. Voice commands for Cantonese, Danish and Norwegian must be spoken in English.•"Am I connected?"•"Answer"•"Call information"•"Call Vocalyst"FeaturesListen to audio via A2DPTransmission rangeSimultaneous call handling behaviour (PCMobile)Voice alerts Voice alerts listVoice commandsVoice commands list•"Cancel"•"Check battery"•"Ignore"•"Pair mode"•"Redial"•"What can I say"NOTEThe voice-dial feature is not a headset voice command and only works with supporting phones.To disable the "answer/ignore" voice commands:1Switch on the headset.2Press and hold the Voice button until you hear a double tone.3Repeat to reactivate the voice answer commands.Disable the answer/ignorevoice commandsTalk time performance is significantly degraded even after a full recharge.Battery is wearing out. Contact us at / support .I can’t hear a dial tone in the headset.Make sure your headset is charged.Make sure your headset is subscribed to base. See Subscription button.Press the call control button on your headset.If using a lifter, make sure the lifter is lifting the handset high enough to operate the hookswitch; set to a higher setting if necessary.Adjust the configuration switch on the base until a dial tone is heard. operate the hookswitch; set to a higher setting if necessary.Fine-tune the listening volume on the headset.If the volume is still too low, adjust the listening volume dial on the base.I hear static.Make sure there are at least 12 inches between your base andyour computer, and 6 inches between your base and yourtelephone. You may hear static as your headset is going out ofrange; move closer to the base.The sound is distorted.Lower the speaking volume dial or listening volume dial on thebase. For most telephones, the correct setting is position 2.If your desk phone has a volume control, lower until thedistortion disappears.If the distortion is still present, adjust the headset volume controlto lower the headset speaker volume. If the distortion persists,lower the listening volume dial on the base.Make sure there is at least 12 inches between your base and yourcomputer, and at least 6 inches between your base and yourtelephone.I hear echo in the headset.Lower the listening volume dial and speaking volume dial on thebase. For most telephones, the correct setting is position 2.If the audio level is too low in this position, adjust the headsetvolume control to increase the headset speaker volume.If your speaking volume is too low for your listener in thisposition, adjust the position of the headset to make sure themicrophone is a finger’s width from the corner of your mouth.Adjust the configuration switch. The most commonly usedposition is “A”.People I talk to can hear a buzz in the background.Move the base further away from your phone.If the base power supply is plugged into a power strip, plug it into the wall directly.The handset lifter is installed but does not lift the handset.Ensure the handset lifter power cord is firmly pushed into the handset lifter jack on the base.TroubleshootingHeadsetDesk phoneNEED MORE HELP?/support Plantronics, Inc.Plantronics BV345 Encinal Street Santa Cruz, CA 95060 United States South Point Building C Scorpius 1402132 LR Hoofddorp© 2013 © 2013 Plantronics, Inc. All rights reserved. Plantronics and Voyager Legend are trademarks or registered trademarks of Plantronics, Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Plantronics, Inc. is under licence. All other trademarks are the property of their respective owners.Patents: US 8,208,673; D617,316; D681,003; 681,014; D681,002; D662,089; BR 3020120011493; CN ZL201230489876.9; ZL201230059196.3; EM 002109637-0001; 002109637-0002; 002109637-0003; 001315261-0001; IN 243252; TW D151481; Patents Pending201137-07 (09.13)。
BackBeat PRO/ BackBeat PRO+ User GuideContentsWhat's in the box3Headphone overview4Power on/off4Active Noise Canceling4Play/pause music4Volume4Track selection4OpenMic4Voice dial (phone feature)4Answer or end a call4Decline a call4Mute/unmute4Call back last call4Pairing mode4Be safe4Pair5Pair to mobile device5NFC pairing (Android)5Plug and play5Pair USB adapter again5Pair second device6Charge and fit7Charge7Adjust the fit7More Features8Use sensors8Reset Sensors8Flexible power8Advanced OpenMic8Customize8Specifications9Support10RLHeadphonesBallistic nylon travel caseCharging cable3.5mm cableBluetooth USB adapter*NOTE * BackBeat PRO+ onlyWhat's in the boxSlide the switch to power on or off.Slide the switch to activate or deactivate ANC to block out unwanted noise.Tap the Play/pause button on the left ear cup to play or pause music.Rotate the track wheel forwardor backward to control the track selection.Hear your surroundings by tapping the Mic button when not on a call.for phone prompt.While on an active call, choose:•Tap the Mic button•Take off/put on your headset while on an active call (requires active smart sensors)the LEDs flash red and blue.Please read the safety guide for important safety, charging, battery and regulatory information before using your new headset.Headphone overviewPower on/offActive Noise CancelingPlay/pause musicVolume Track selectionOpenMicVoice dial (phone feature)Answer or end a callDecline a call Mute/unmuteCall back last call Pairing modeBe safeR2For BackBeat PRO+LEDs flash red and blue.3Activate Bluetooth ® on your phone and set it to search for new devices.•iPhone Settings > Bluetooth > On*•Android Settings > Bluetooth: On > Scan for devices*NOTE *Menus may vary by device.4Select “PLT_BBTPRO.”Once successfully paired, you hear “pairing successful” and the headphone LEDs stop flashing.1Ensure NFC is on and your phone’s display is unlocked. (Phones may vary.)2Tap and hold the headphones to the phone’s NFC tag location until NFC pairing completes. If necessary, accept the connection.NOTE The headphone’s NFC tag is located on the outside of the left ear cup. (Phone tag locationsvary.)BackBeat PRO+ only The high-fidelity Bluetooth USB adapter comes pre-paired to your 12play music.1Insert the high-fidelity Bluetooth USB adapter into your laptop or computer and wait for your computer to recognize it.2Put your headphones in pair mode.3Put your USB adapter into pair mode by gently pressing and holding the recessed Pair button until the USB adapter flashes red and blue.PairNFC pairing (Android)Plug and playPair USB adapter againPairing is successful when you hear "pairing successful" and the USB adapter LED is solid blue. Pair second device2Activate Bluetooth on your second device and follow the last two steps of "Pair to mobile device."It takes up to 3 hours to fully charge your headphones. The LEDs turn off once charging is complete.TIP Headphones must be in idle state.Your headphones have up to 24 hours of listening time.Adjust the headphones for a comfortable fit.Lengthen or shorten the band until it fits comfortably. When not using your headphones, fold theear cushions in and against your body.Charge and fitChargeAdjust the fitSmart sensors respond when you put on or take off your headphones.With active sensors putting on the headset will:taking off the headset will:Incoming mobile call answer the callMusic/mediaresume music/media (if playing previous to taking off)*pause music/media (if playing)*Mute unmute if on an active callmute if on an active callNOTE *Functionality varies by application. Does not function with web-based apps.You may need to reset the sensors if they are not working as expected.To reset the headset sensors, connect it directly to your computer's USB port, and place it, with the ear cups up, on a flat, non-metallic surface for more than 10 seconds.When the battery is exhausted, use your headphones with the provided 3.5 mm e the cable to:•Adjust the volume with the (+) and (–) buttons•Play/pause music or answer/end a call with the center button = single tap •Track forward with the center button = double tap*•Track backward with the center button = triple tap*•Activate smartphone voice-enabled assistant with the center button = 3 second press*NOTE *Specific to BackBeat PRO+When listening to music, you will be able to hear your surroundings by activating OpenMic .backward (–). To cancel OpenMic, press the Mic button again.Your headphones speak in English. You can change the language and other settings using your PC/Mac, the updating tool, and the provided USB cable.The updating tool (/myheadset-updater) enables you to:•Change language •Receive firmware updates •Turn "mute off" voice alert on/off •Turn smart sensors on/offMore FeaturesUse sensors Reset Sensors Flexible power Advanced OpenMicCustomizeSpecificationsListening time Up to 24 hours wireless streaming*Standby time Up to 21 days*DeepSleep mode Up to 180 days*Operating distance (range)Up to 100 meters/330 feet from phone or tablet withClass 1 BluetoothHeadphones weight340 gramsAudio aptX® low latency codec2AAC codec2, 40mm dynamicdrivers, Frequency response 20-20kHzNoise canceling Controllable Active Noise Canceling (ANC) plus DigitalSignal Processing (DSP) and dual microphonesMultipoint Simultaneously connect two Bluetooth devices (2H2S)Status alerts Spoken alerts in 14 language options, which vary byregion (US and UK English, Cantonese, Danish, EU-French, German, Italian, Japanese, Korean, Mandarin,Norwegian, Russian, EU-Spanish and Swedish)Battery type Rechargeable, non-replaceable lithium-ionCharge time (maximum)Up to 3 hoursCables USB charging and angled 3.5mm with inline mic(compatible with Apple devices)Bluetooth v4.0 + EDR A2DP for audio streaming, AVRCP for music controls,Hands-free v1.6 for wideband, and Headset v1.2Operating and storage temperature32°F – 104°F (0 – 40°C)NOTE* Performance is dependent upon battery and may vary by device.ENTel: 0800 410014FITel: 0800 117095NOTel: 80011336ARTel: +44 (0)1793 842443*FRTel: 0800 945770PLTel: +44 (0)1793 842443*CSTel: +44 (0)1793 842443*GATel: 1800 551 896PTTel: 0800 84 45 17DATel: 80 88 46 10HETel: +44 (0)1793 842443*ROTel: +44 (0)1793 842443*DEDeutschland 0800 9323 400Österreich 0800 242 500 Schweiz 0800 932 340HUTel: +44 (0)1793 842443*RUTel: 8-800-100-64-14Tel: +44 (0)1793 842443*ELTel: +44 (0)1793 842443*ITTel: 800 950934SVTel: 0200 21 46 81ESTel: 900 803 666NLNL 0800 7526876BE 0800 39202LUX 800 24870TRTel: +44 (0)1793 842443**Support in EnglishFor warranty details, go to /warranty. SupportNEED MORE HELP?/supportPlantronics, Inc.Plantronics BV345 Encinal Street Santa Cruz, CA 95060 United States South Point Building C Scorpius 1402132 LR Hoofddorp, Netherlands© 2015 Plantronics, Inc. All Rights Reserved. Bluetooth is a registered trademark of Bluetooth SIG, Inc. and any use by Plantronics is under license. All other trademarks are the property of their respective owners.Patents: CN ZL201430495604.9; EM 002592337; patents pending.203024-06 (09.15)。
PLANTRONICS + POLYCOM.EncorePro 300 SeriesHeadset com fioGuia do usuárioSumárioVisão geral3Montagem4Carregar software4Ajuste5Ajuste a headband5Posicione o microfone5Ajuste do microfone5Procedimentos básicos6Fazer/atender/encerrar chamadas6Volume6Interromper som6Suporte7Entrada de chamadaFlash verde lento Chamada em esperaVerde constante Em uma chamadaBotão Aumentar volume Aumenta o volume de áudio Botão Diminuir volumeDiminui o volume de áudio Botão de interrupção do somVermelho constante A desativação do som está ativada NOTA:Os controles em linha podem variar de acordo com o headset conectado aos processadores de áudio DA70/DA80.Visão geralAtive o headset conectando-o ao computador.É possível conectar o headset em duas formas:•Com o conector USB •Com o processador de áudio DA70/DA80 com Quick Disconnect (QD)IMPORTANTE Alguns softphones requerem a instalação do Plantronics Hub para Windows ouMac para permitir a funcionalidade de controle de chamada do headset (atender/finalizar e interromper som).Para baixar o Plantronics Hub para Windows ou Mac, visite /software .Gerencie as configurações do headset no seu computador com o Plantronics Hub:•Controle de chamada para softphones•Atualizar firmware•Ativar ou desativar recursos•Exibir guia do usuárioMontagemCarregar softwareAumente ou diminua a alça até que ela se encaixe confortavelmente. As almofadas devem seencaixar confortavelmente na parte central do ouvido.O headset pode ser usado à direita ou à esquerda.Gire o microfone para alinhá-lo à boca.CUIDADO Para evitar que ele quebre, gire-o somente para cima e acima de 180°.Dobre a haste para dentro ou para fora com cuidado para que ela fique aproximadamente doisdedos distantes do canto da boca.AjusteAjuste a headbandPosicione o microfoneAjuste do microfoneencerre a chamada usando o aplicativo do softphone. Baixe o Plantronics Hub para Windows/Mac em /software .Atender ou encerrar uma chamada Toque no botão de chamada ou use seu softphone.Fazer uma chamada Disque usando o aplicativo do seu softphone.Em espera Pressione e segure o botão de chamada por dois segundos para colocar a chamada em espera.Volume de audição Pressione o botão Aumentar volume (+) ou Diminuir volume (–).Ajustar o volume do microfone do headset (softphone)Faça uma chamada de teste por softphone e ajuste o volume do softphone volume e do PC de acordo.Durante uma chamada, pressione o botão Mudo. Quando o mudo está ativo, o botão LED ficavermelho. Modifique suas configurações de mudo na Plantronics Hub para Windows ou Mac.Procedimentos básicosFazer/atender/encerrar chamadasVolumeInterromper somSuporteAINDA PRECISA DE AJUDA?/supportPlantronics, Inc.Plantronics B.V.345 Encinal Street Santa Cruz, CA 95060 United States Scorpius 171 2132 LR Hoofddorp Netherlands© 2019 Plantronics, Inc. Todos os direitos reservados. Poly, o design da hélice e o logotipo da Poly são marcas comerciais da Plantronics, Inc. Todas as outras marcas comerciais pertencem a seus respectivos proprietários.216045-23 10.19。
