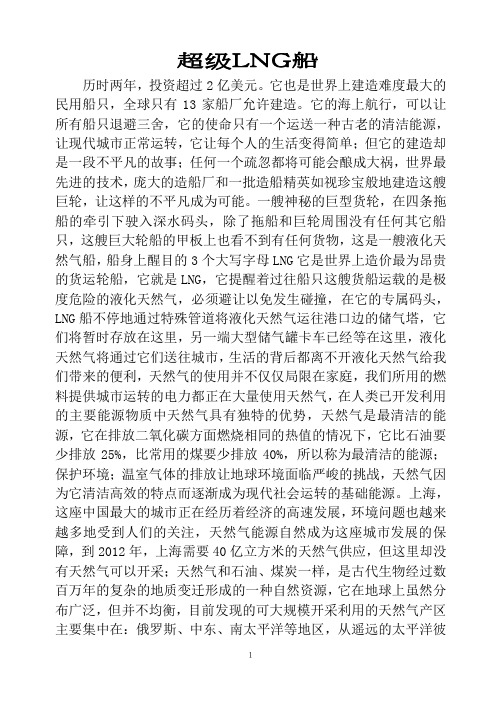

１历时两年，投资超过2亿美元。
它也是世界上建造难度最大的民用船只，全球只有13家船厂允许建造。
它的海上航行，可以让所有船只退避三舍，它的使命只有一个运送一种古老的清洁能源，让现代城市正常运转，它让每个人的生活变得简单；但它的建造却是一段不平凡的故事；任何一个疏忽都将可能会酿成大祸，世界最先进的技术，庞大的造船厂和一批造船精英如视珍宝般地建造这艘巨轮，让这样的不平凡成为可能。
一艘神秘的巨型货轮，在四条拖船的牵引下驶入深水码头，除了拖船和巨轮周围没有任何其它船只，这艘巨大轮船的甲板上也看不到有任何货物，这是一艘液化天然气船，船身上醒目的3个大写字母LNG 它是世界上造价最为昂贵的货运轮船，它就是LNG ，它提醒着过往船只这艘货船运载的是极度危险的液化天然气，必须避让以免发生碰撞，在它的专属码头，LNG 船不停地通过特殊管道将液化天然气运往港口边的储气塔，它们将暂时存放在这里，另一端大型储气罐卡车已经等在这里，液化天然气将通过它们送往城市，生活的背后都离不开液化天然气给我们带来的便利，天然气的使用并不仅仅局限在家庭，我们所用的燃料提供城市运转的电力都正在大量使用天然气，在人类已开发利用的主要能源物质中天然气具有独特的优势，天然气是最清洁的能源，它在排放二氧化碳方面燃烧相同的热值的情况下，它比石油要少排放25%，比常用的煤要少排放40%，所以称为最清洁的能源；保护环境；温室气体的排放让地球环境面临严峻的挑战，天然气因为它清洁高效的特点而逐渐成为现代社会运转的基础能源。
上海，这座中国最大的城市正在经历着经济的高速发展，环境问题也越来越多地受到人们的关注，天然气能源自然成为这座城市发展的保障，到2012年，上海需要40亿立方米的天然气供应，但这里却没有天然气可以开采；天然气和石油、煤炭一样，是古代生物经过数百万年的复杂的地质变迁形成的一种自然资源，它在地球上虽然分布广泛，但并不均衡，目前发现的可大规模开采利用的天然气产区主要集中在：俄罗斯、中东、南太平洋等地区，从遥远的太平洋彼岸运送天然气，不是一件容易的事情，需要一项新的技术才能实现。
世界上最大的天然气运输船世界上最大的天然气运输船液化天然气，我们大家都不陌生，是大中城市的燃气主导气源，而船运是其主要的运输方式。
那么大家知道全球最大的液化天然气运输船是哪艘吗?下面就让店铺带你们了解全球最大的液化天然气运输船。
液化天然气运输船简称LNG船，主要运输液化天然气。
液化天然气的主要成分是甲烷，为便于运输，通常采用在常压下极低温(-165℃)冷冻的方法使其液化。
我国不仅是继韩、日等国后实现自主研发系列LNG船型的国家，而且我国设计船型在、节能、环保方面具有明显的后发优势。
LNG船是在 162摄氏度(-162)低温下运输液化气的`专用船舶，是一种"海上超级冷冻车"，被喻为世界造船"皇冠上的明珠"，目前掌握LNG运输船造船技术的国家不超过9个，只有13家船厂允许建造。
船体结构液舱要求有严格的隔热结构，要求能保证液舱恒定低温。
常见的液舱形状有球形和矩形两种，但也有少数船舶将液舱形状设计成菱柱形或圆筒形。
国产液化天然气船中国的建造的四艘LNG运输船是世界上唯一被允许使用的自身运输的货物——LNG驱动航行的LNG运输船，之前的LNG运输船只使用柴油作为燃料。
“大鹏昊”我国制造的第一艘液化天然气(LNG)船"大鹏昊"，是世界上最大的薄膜型LNG船，船长292米、宽43.35米、型深26.25米，装载量为14.7万立方米，时速19.5节。
于2008年4月顺利交船，成为广东深圳大鹏湾秤头角的国内第一个进口LNG大型基地配套项目。
“大鹏月”我国制造的第二艘LNG船"大鹏月"是中船集团公司所属沪东中华造船(集团)有限公司，为广东大型LNG运输项目建造的第2艘LNG船。
该船同"大鹏昊"属同一级别，货舱类型为GTT NO.96E-2薄膜型，是当时世界上最大的薄膜型LNG船。
其船坞周期仅为160天，比首制船缩短近1个月，码头周期比首制船缩短66天，总建造周期比首制船缩短126天。
中国最大的船世界最大的船20XX年世界最大”;船世界最大LNG动力乙烯船“NavigatorAurora”号20XX年9月，由江南造船(位置评论新闻)集团为Navigator Gas公司建造的全球最大的乙烷/乙烯液化气运输船“Navigator Aurora”号交付。
该船货物运输能力达37000立方米，能容纳高达20000吨乙烷/乙烯，入级美国船级社(位置联系)。
“Navigator Aurora”号船上配备了双燃料发动机(产品库求购供应)，可使用柴油燃料或LNG作为动力，能符合现在和未来最严格的污染排放要求。
主机(产品库求购供应)是市场上最具燃料高效的两冲程发动机，设计配有高压气体喷射系统。
这艘运输船已被租赁至欧洲Borealis化学品集团公司运营，已获得为期至少10年的租约，用于从美国东部沿海向欧洲运输乙烷。
全球最大双燃料汽车船“TBN AUTO ECO”号20XX年9月28日，南通中远川崎(位置评论新闻)建造的全球首艘LNG动力4000车汽车运输船(船型船厂买卖)(PCTC)“TBN AUTO ECO”号正式交付。
该船采用船用燃油和LNG双燃料主机推进系统(产品库求购供应)，是目前世界上最大的双燃料推进系统汽车运输船，该船交付标志着LNG首次作为燃料用于汽车运输船。
20XX年3月由欧洲近海滚装运营商欧洲联合汽车运输船公司(UECC)在南通中远川崎订造2艘汽车运输船，该船是系列船中的首艘，入级英国劳氏船级社(位置联系)(LR)。
当前，随着全球各个航区对环保要求日益提高，以LNG作为船舶动力已是大势所趋。
作为全球最大的LNG双燃料冰区加强型汽车运输船，该船无疑是双燃料船中的“大块头”，无论是设计、建造难度，还是船舶性能、质量和智能化、大型化方面，均毫无疑问创造了造船业的新纪录。
世界最大邮轮“Harmony of the Seas”号20XX年5月12日，STX法国建造的全球最大的豪华游轮“Harmony of the Seas”号正式交付，总吨位达22700吨，长362米。
1 LNG船简介LNG运输船是指载运LNG(常压下沸点为-162.5℃)的专用船舶。
LNG(液化天然气)的主要成分是甲烷,还有一些乙烷、丙烷、少量的氮、二氧化碳、硫化氢等。
天然气常温常压下为气体,而同等质量的LNG体积只有天然气的1/600左右,所以,为了提高天然气的运输效率,通常都将天然气液化成LNG进行运输。
LNG船目前的标准载货量在12万~15万m3之间,一些先进国家已经能设计出16万m3、20万m3、甚至30万m3的LNG船,但是由于船只尺寸通常受到港口码头和接收站条件的限制,所以LNG船的舱容量可能会稳定在十几万立方米的水平上。
LNG船的储罐是独立于船体的特殊构造。
在该船的设计中,考虑的主要因素是能适应低温介质的材料,对易挥发、易燃物的处理。
LNG船的使用寿命一般为35~40年。
鉴于LNG特殊的理化性质,对LNG船的各方面性能要求极高。
所以,LNG船被称为是前所未有的高技术、高难度和高附加值的船舶。
2 LNG的危险性LNG由于是低温液体,所以LNG除了具有和原油相似的危险性外,还有着其特殊的低温危险性,具体表现在以下几个方面。
首先,LNG是-162.5℃的低温液化气体,当其与人体直接接触时,裸露在外的皮肤会被冻伤。
如果皮肤与LNG 接触时间过长,就会造成永久性的伤害。
严重时,可能会危及生命。
再者,工作人员进入舱内作业时,由于LNG 的蒸发,如果达到一定的浓度,会造成窒息甚至死亡。
其次,由于LNG在储存过程中出现的沸腾与翻滚现象,容易导致液货舱内的压力急剧升高,冲开安全阀,从而导致大量的天然气释放到空气中。
一方面是能源的浪费,一方面会造成天然气在空气中的浓度超过规定,而引起爆炸以及火灾,对于船体的本身及港口、设备的安全也造成极大的威胁。
3 LNG船修理的相关安全要求由于LNG具有其特殊的低温危险特征,所以,对LNG船安全性能的要求比油轮和其他一些化学品船高得多,具体要求如下。
(1)安全区。
2015年5月全球LNG运输船大盘点2015年06月03日 14:04全球建造LNG运输船最多的国家是国和日本，不是欧美国家。
中国算不上老几，但比美国强得多，中国悄悄地爬到世界第三。
2008年中国首次建造的LNG运输船LNG（液化天然气，Liquefied Natural Gas) 是在一定的温度和压力条件下被液化了的以甲烷为主的天然气。
它是储存与运输天然气的经济方式，适用于远距离海运。
LNG被鼓吹为新能源，那是忽悠人的。
LNG本质仍然是天然气，天然气是化石燃料的一种，不是清洁能源。
LNG只是天然气的一种输送形式，适合于开发如中东、东南亚等的“闲置天然气”，生产成LNG便于海洋航运到消费地区如东亚。
中国地处东亚，天然气资源相对贫乏，中国进口LNG比日本足足迟缓45年，但是中国LNG进口量上升很快。
美国页岩气开发获得成功，媒体大肆鼓吹美国LNG 大举出口，输往全球并与卡塔尔抢市场，当然制造LNG运输船首当其冲，给人造成错觉：美国是LNG运输船生产大国。
全球LNG运输船状况究竟如何？本文用2015年5月的最新数据回答这个问题：全球建造LNG运输船最多的国家是国和日本，不是欧美国家。
中国算不上老几，但比美国强得多，中国悄悄地爬到世界第三。
LNG运输船舱容是怎么发展的？LNG船舱容是指运载的专用船舶LNG的载货体积。
形成工业规模的天然气液化和海运始于1964年。
当时处于试运阶段，舱容小，在1975年前，都小于100 000 m3，属于小型LNG运输船。
其后发展到100 000～200 000 m3，主要在126 000～133 000 m3之间，称为“标准型”，船龄为25～30年。
到20世纪70年代进入大规模发展阶段，各国建造的液化天然气运输船也越来越多。
时间推移到1971年，卡塔尔和伊朗发现了有世界上最大的气田—南帕尔斯/北部穹窿凝析气田（South Pars / North Dome Gas-Condensate field），可采储量高达36万亿立方米。

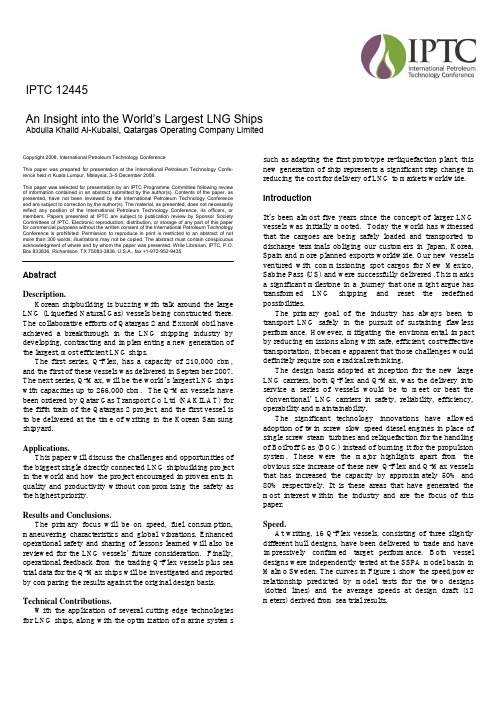

Copyright 2008, International Petroleum Technology ConferenceThis paper was prepared for presentation at the International Petroleum Technology Confe-rence held in Kuala Lumpur, Malaysia, 3–5 December 2008.This paper was selected for presentation by an IPTC Programme Committee following review of information contained in an abstract submitted by the author(s). Contents of the paper, as presented, have not been reviewed by the International Petroleum Technology Conference and are subject to correction by the author(s). The material, as presented, does not necessarily reflect any position of the International Petroleum Technology Conference, its officers, or members. Papers presented at IPTC are subject to publication review by Sponsor Society Committees of IPTC. Electronic reproduction, distribution, or storage of any part of this paper for commercial purposes without the written consent of the International Petroleum Technology Conference is prohibited. Permission to reproduce in print is restricted to an abstract of not more than 300 words; illustrations may not be copied. The abstract must contain conspicuous acknowledgment of where and by whom the paper was presented. Write Librarian, IPTC, P.O. Box 833836, Richardson, TX 75083-3836, U.S.A., fax +1-972-952-9435.AbstractDescription.Korean shipbuilding is buzzing with talk around the large LNG (Liquefied Natural Gas) vessels being constructed there. The collaborative efforts of Qatargas 2 and ExxonMobil have achieved a breakthrough in the LNG shipping industry by developing, contracting and implementing a new generation of the largest, most efficient LNG ships.The first series, Q-Flex, has a capacity of 210,000 cbm, and the first of these vessels was delivered in September 2007. The next series, Q-Max, will be the world’s largest LNG ships with capacities up to 266,000 cbm. The Q-Max vessels have been ordered by Qatar Gas Transport Co Ltd (NAKILAT) for the fifth train of the Qatargas 2 project, and the first vessel is to be delivered at the time of writing in the Korean Samsung shipyard.Applications.This paper will discuss the challenges and opportunities of the biggest single directly connected LNG shipbuilding project in the world and how the project encouraged improvements in quality and productivity without compromising the safety as the highest priority.Results and Conclusions.The primary focus will be on speed, fuel consumption, maneuvering characteristics and global vibrations. Enhanced operational safety and sharing of lessons learned will also be reviewed for the LNG vessels’ future consideration. Finally, operational feedback from the trading Q-Flex vessels plus sea trial data for the Q-Max ships will be investigated and reported by comparing the results against the original design basis. Technical Contributions.With the application of several cutting edge technologies for LNG ships, along with the optimization of marine systems such as adapting the first prototype re-liquefaction plant, this new generation of ship represents a significant step change in reducing the cost for delivery of LNG to markets worldwide.IntroductionIt’s been almost five years since the concept of larger LNG vessels was initially mooted. Today the world has witnessed that the cargoes are being safely loaded and transported to discharge terminals obliging our customers in Japan, Korea, Spain and more planned exports worldwide. Our new vessels ventured with commissioning spot cargos for New Mexico, Sabine Pass (US) and were successfully delivered .This marks a significant milestone in a journey that one might argue has transformed LNG shipping and reset the redefined possibilities.The primary goal of the industry has always been to transport LNG safely in the pursuit of sustaining flawless performance. However, mitigating the environmental impact by reducing emissions along with safe, efficient, cost-effective transportation, it became apparent that those challenges would definitely require some radical rethinking.The design basis adopted at inception for the new large LNG carriers, both Q-Flex and Q-Max, was the delivery into service a series of vessels would be to meet or beat the ‘conventional’ LNG carriers in safety, reliability, efficiency, operability and maintainability.The significant technology innovations have allowed adoption of twin screw slow speed diesel engines in place of single screw steam turbines and reliquefaction for the handling of Boil-off Gas (BOG) instead of burning it for the propulsion system. These were the major highlights apart from the obvious size increase of these new Q-Flex and Q-Max vessels that has increased the capacity by approximately 50% and 80% respectively. It is these areas that have generated the most interest within the industry and are the focus of this paper.Speed.At writing, 16 Q-Flex vessels, consisting of three slightly different hull designs, have been delivered to trade and have impressively confirmed target performance. Both vessel designs were independently tested at the SSPA model basin in Malmo Sweden. The curves in Figure 1 show the speed/power relationship predicted by model tests for the two designs (dotted lines) and the average speeds at design draft (12 meters) derived from sea trial results.IPTC 12445An Insight into the World’s Largest LNG Ships Abdulla Khalid Al-Kubaisi, Qatargas Operating Company Limited2 IPTC 12445Model & Trial PerformanceDesign Draft - 12 Meters12131415161718192021222324Ship Speed KnotsS h a f t H o r s e p o w e rFigure 1The designs performed virtually identically in the model basin but slightly different on sea trials despite that the designs differ slightly in form at the bow and stern. But speed trial results at ballast draft gave slightly lower speed than model test prediction. After an extensive study, SSPA’s key finding was that the optimised bulbous bow that was not fully submerged at ballast draft, made it very difficult to accurately predict the ‘form factor’ which is used for scaling of the viscous resistance component using conventional Prohaska plot. A new modified method for prediction of the form factor was proposed by SSPA. The description of the new method is beyond the scope of this paper. In summary, • The new method is believed to give more objective and consistent estimates of the form factor. • In ballast the form factors will often be higher than what has previously been used. • Predictions using the new method are believed to correlate well with sea trials as shown in the next figure. • A correction of 1-2% is also proposed for design draft.Single screw operation with the idle shaft either locked or free wheeling has been considered through design by providing clutches to allow such option for the Large LNG (LLNG) ships with twin screw. Model tests predicted that the vessel would achieve up to 15 knots on trials in single screw mode with the idle propeller free wheeling and about 12 knots with the idle propeller locked. The vessels demonstrated about 13 knots with the idle propeller free wheeling and about 11 knots in locked configuration on trials, and in service. The difference is due to torque limitations of the main engine which could not be modeled in the test basin.The ballast trial results in twin screw mode show the propellers running with an operating margin of 5% over the trial speed range compared to a specification minimum of 3%. However, in single screw mode, maximum available power was limited due to torque-speed considerations to about 90% of NCR for the free wheeling mode and 80% for the locked mode. Figure 2 illustrates an engine RPM/Power layoutdiagram for one of the vessel designs with ballast trial results plotted on the diagram.Engine Layout MAN-B&W 6S70ME-C500070009000110001300015000170001900021000230002500027000Engine RPME n g i n e B H PFigure 2The provision of clutches in the shafting presented unforeseen problems with shaft alignment. The Renk clutches installed on these vessels are gear tooth type sliding clutches with internal sleeve bearings that allow the idle propeller to free wheel while maintaining alignment of the fore and aft shaft sections. On two early sea trials one of the clutches on each ship exhibited a sharp rise in temperature soon after starting of free wheeling tests. Later inspection showed the sleeve bearing to be heavily damaged. The damage was consistent with misalignment, although the vessel’s shafting had been carefully aligned in accordance with alignment calculations using traditional gap-and-sag and bearing weight methods.After reviewing the clutch manufacturer’s tolerances of allowable bending moment and shear across the clutch and the actual results achieved, it was determined that traditional ‘gap & sag’ alignment methods did not provide the accuracy necessary for clutch alignment. After switching to strain gauge alignment techniques there have been no further clutch incidents due to installation methodology. In addition the project has followed the maker’s operational recommendation to slowly raise the speed to the intended knots to gradually warm up the clutch components and avoid thermal spikes.Vibration and Noise.A joint research program by the shipyards, Class societies and independent analytical studies commissioned by the project was carried out with a single objective of minimising hull and engine induced vibrations in Q-Max and Q-Flex designs. The findings from the first principle approach using Computational Fluid Dynamics (CFD) analysis were looped back into the design process to find the optimum solution to the vibrations problem.One of the noteworthy examples was the identification of resonance in the pump tower of one design. After the combined review and analysis, it was agreed that a five bladed propeller would not only mitigated resonance issue but alsoIPTC 12445 3reduced pressure pulses from the propeller on the hull by some 30%.On another design, external electric vibration dampers were installed to mitigate known effects of six cylinder engine. Further, additional hydraulic side bracings were fitted to the engine tops and tuned on sea trials to minimize X-moment forces.On yet another design, optimally designed ‘SAVER’ fins were fitted (See Figures 3a & 3b). CFD analysis indicated that by directing the flow outside the propeller tips, excitation forces generated by the propellers would be reduced by as much as 30%, while increasing the powering performance by about 1%.Figure 3aFigure 3bAs a consequence, none of the vessels have barred speed ranges and have improved manoeuvring performance.Effectiveness of this approach during the design process has been confirmed by local and global vibration measurements. The results in Tables 1a and 1b below indicate not only specification limits were met, in some cases found to be considerably better:Noise VibrationLocation Spec Maximum Db(A) Trial Result Db(A) SpecMaximummm/sec 2 Trial Result mm/sec 2Bridge 65 55 107 38.5Bridge Wings 90 70 107 - Captain’s Day Room 55 49 107 46.0 Cargo Control Room 55 52 143 24.6 Crew’s Mess 55 53 107 38.1 Engine Control Room70 69 143 43.4 Steering Gear Room - 0.8mm/sTable 1aNoise VibrationLocation Spec Maxi-mum Db(A) Trial Result Db(A) SpecMaxi-mum mm/secTrialResultmm/se cBridge 65 59 3 0.8 Bridge Wings 70 69.2/71 - 3.4 Captain’s Day Room 55 47 3 2.9 Cargo Control Room 55 50 3 1.5 Crew’s Mess 55 56.8 3 2.3 Engine Control Room 70 69 3 1.2 Steering Gear Room - 6.9Table 1bManeouvering.The design of the Q-Flex and Q-Max LLNG Carriers of twin screw and twin rudders is demonstrating several advantages. In ship handling and maneuvering the advantages include: redundancy in propulsion and steering plus very good heading control and turning ability. The performance of these vessels, from a ship handling and maneuvering perspective, meet or exceed the project team’s expectations. Recent operational experiences at Suez Canal and Sabine (US) proved the vessels handled better than predicted through the virtual reality simulations carried out in labs. Table 2 below shows the results obtained vs. IMO / Project standard.Table 24 IPTC12445Concept and Development.The concept and development of larger LNG Carriers, to maximize cargo carrying capacity to customers, necessarily took into consideration the physical limitations of the export and import terminals of their intended trade. This resulted in the vessel classification design called Q-Max. The Q-Flex concept design, as is implied in its name, provides an increased flexibility in delivery points. Once the principle dimensions and concept design of the Q-Flex and Q-Max class of ships were identified, ship handling studies were conducted to verify that these ship sizes could safely enter, maneuver, berth and depart the targeted ports.A wide range of propulsion system options, with different rudder and propeller configurations were carefully studied before the final project selection of the use of twin screw and twin rudders. This was considered to be the more challenging propulsion system of those under review by the project team. However, studies confirmed that the propulsive efficiency of the twin screw ship is higher than the single screw design due to wake flow characteristics of the relatively wide but shallow draft ships. The improved efficiency and reduced fuel consumptions compensated for the extra capital cost of a twin screw ship.Additionally, from a ship handling and control point of view, the twin rudder and twin propeller design also provides advantages over a single propeller vessel for the size.Preliminary ship handling studies were carried out for several concept designs of the Q-Flex and Q-Max ships for maneuver in Ras Laffan Harbour and the port of Milford Haven in Wales, UK. These studies verified the feasibility of being able to safely maneuver the large LNG Carriers into and out of these ports with both twin and single screw configurations. They also gave the project team confidence in the design concept and handling ability of these ships with their length over all, beam, draught, and wind sail area.Throughout the project there were numerous studies involving ship handling looking at various aspects of berth locations, configuration, and layout. The ship models used always performed well and resulted in no changes in the berth designs being required due to ship handling characteristics. Trials and Service.The first fleet of eight Q-Flex vessels have been delivered and are in service. Their outstanding ship handling and manoeuvring performance has been proven while delivering cargoes to LNG Receiving Terminals around the world including in: Japan; Korea; the United States; Mexico and Spain, as well as during transits of the Suez Canal. Feedback from pilots and the ships’ captains, on the handling properties of these ships have been very positive and reinforce the findings during the concept design maneuvering studies and in sea trails.The first Sea Trials of the Q-Max design ships have recently been completed. These have demonstrated the effectiveness of the twin rudders and screws on this class of ship with results similar to the Q-Flex ships performance and within the design specifications. The Full Speed Turning Circle Tests for the Q-Max resulted in starboard turning Advance and Tactical diameter of up to 3.15 ship lengths and a Transfer of 1.13 lengths and port turning slightly lower. The full turns were completed in less than thirteen minutes. (See Figure 4 and Table 3 below)Figure 4Table 3Split Engine Turn.It’s been proven from sea trials that these large LNG vessels can easily turn within their own length splittingIPTC 12445 5 engines due to twin-screw capabilities during harbourmanoeuvring. (See Figure 5 and Table 4 below).Table 4Crash Stop Tests.Full ahead to full astern at sea speed on two engines, theresults showed that the twin screw Q-Flex ships stop within anadvance of about 12 Lbp or less with a travel distance of lessthan 15 Lbp.(See Figure 6 below).Figure 6Manoeuvring Stability.The responsiveness and manoeuvring stability of the vesselis captured by the ‘zigzag’ test and the plots in the Figures No.7 & 8 below attest to measured outcome significantly betterthan IMO resolution requirements.Figure 7Figure 8Even at low speeds the ships have proven to be verysensitive to the twin rudders and screws at speeds down toabout three knots and have maintained steerage withoutengines down to about four knots. Ship heading has beenmaintained while on Auto Pilot at speeds as low as four knots.In at least one instance a pilot maintained vessel positionand heading outside the breakwater for an extended period oftime by operating engines and rudders independently. Theseships can easily be turned, with engine and tug assist, in abouttheir own length.In summary, the handling characteristics and ability tomaintain heading of these twin screw and twin rudder vesselsis already proving to be outstanding.Reliquefaction Plant.Unlike all other cargo ships, LNG carriers have continuedto use steam turbine propulsion plant despite more efficientdiesel engines being available. This is because the gas thatnaturally evaporates from the cargo BOG is used as fuel forthe steam turbines, and until recently there was no alternative.The ability to re-liquefy the BOG now makes it possible toincrease the amount of LNG delivered to the discharge port, Initial speed 0.0ktsTravel Distance 211.5mAhead Reach 193.8mSide Reach 19.8mRpm 26Rudder angle 35°6 IPTC 12445which is more of interest for the LNG buyers globally.Reliquefaction paves the way for the installation of more efficient propulsion systems on LNG carriers. The efficiency of diesel engines is up to 50 per cent, compared with approximately 30 per cent for a steam turbine plant. The economic advantage of diesel engine propulsion translates to minimum savings of 2 to 5 million USD per year for a LNG carrier depending on size of vessel and LNG price.This all leads to higher efficiency and economy which enhances profitability significantly. However, it’s also considered as one of the most difficult challenges for such new technology to be adopted; since its use in a marine environment to date has been very limited.This paper addresses the two designs that have been adopted by the project as the main reliquefaction plants from “Hamworthy” and “Cryostar”, installed onboard the Q-Flex and the Q-Max vessels respectively. Both the concept and the actual performance as witnessed on the maiden voyage is also discussed.Main Plant Concept.The LNG is kept in a liquid state at -163°C in the tanks. Due to heat leak during transportation, gas naturally evaporates from the cargo raising tank pressure, in order to control this pressure the boil-off gas produced can be utilized within in a boiler for production of steam required for a steam-turbine propulsion plant. Or alternatively it can be used in a gas turbine or dual-fuel diesel engine to provide electric power for the propulsion of the vessel, a further option is to reliquefy the BOG and return to the cargo tanks, resulting in increased cargo quantity delivered .The reliquefaction plant process is based on the simple Brayton cycle, selected for its simplicity over a mixed refrigerant type, it uses a single closed refrigeration cycle extracting heat from the BOG through a series of heat exchangers, the preferred choice for refrigerant medium is nitrogen, due to its bulk production capability onboard standard LNG vessels it is also suitable for the reliquefaction of LNG, and as non-toxic/flammable properties.The basic plant concept (Hamworthy Mark I design) consists of cryogenic compressors, Compander and heat exchangers, whose duty is to re-liquefy BOG and control tank pressure onboard the LNG vessel. (See Figure 9)The green loop in the Figure 9 above shows the integrally-geared compressor-expander (Compander) which provides three stages of compression and one stage of expansion. Thehigh-pressure nitrogen stream is pre-cooled in a counter-current heat exchanger against the cryogenic nitrogen stream that is generated by the expansion of the pre-cooled stream. The cryogenic nitrogen refrigerant also serves to liquefy the boil-off gas, which is compressed by a two-stage integrally geared compressor (BOG Compressor) -in the red loop above- to increase its boiling point. After the boil-off gas is reliquefied within the separator, it is returned to the LNG tanks using the pressure generated by the compressor. The return pump is also provided as an alternative means to push the condensate back to the tanks if the pressure induced by the BOG compressor is not sufficient.The project opted for full redundancy of all rotating elements consistent with the base design philosophy (see Figure 10 for typical layout) in a configuration that meets full IGC requirements for back-up. Additionally a Gas Combustion unit (GCU) back up system to the reliquefaction plant is provided.Figure 10Step out in Technology.Over forty years have passed since the construction of the first LNG carrier. Of the more than 150 LNG carriers currently in service, nearly every one has been equipped with a steam turbine propulsion system. This propulsion arrangement offers notable advantages for this application. The LNG cargo continuously boils and if left unchecked would lead to unacceptable rises in tank pressure. Combustion of the boil off gas in the main boiler to produce steam provides a safe, convenient and reliable means for disposal of this gas to control tank pressure.The economic disadvantages of this propulsion system are, however, significant. Steam turbine propulsion systems are thermodynamically inefficient, converting only about 30% of the fuel's energy into useable power. Considering alternative propulsion systems can offer thermodynamic efficiencies of 40% to 50%, fuel savings provided by their introduction can be significant. In an effort to capture these savings, the QGII Development project undertook a thorough study of alternative propulsion systems for LNG carriers.IPTC 12445 7 Some of these propulsion options, such as slow-speeddiesel, were not at the time compatible with the use of thisboil-off gas as a fuel and therefore required an alternative tankpressure control system. Reliquefaction of the LNG boil-offprovides one such means. Economics may also suggest thatreliquefaction systems be installed even on LNG carriers withpropulsion systems that allow the consumption of boil-off gasas a fuel. This would provide the flexibility to select thepropulsion system's primary fuel depending on the relativeprices of the fuel options at a given time.Experience with LNG reliquefaction is, however, verylimited. Only one LNG carrier, the LNG Jamal, has ever beenbuilt with a reliquefaction system. The plant on the LNGJamal was installed as a test bed for future system development. This is evidenced by the fact that the plant was installed in association with a steam turbine propulsion system, which limits the criticality of the operation of the reliquefaction plant.The QGII Shipping Team decided that the ExxonMobil Technology Qualification Management System (TQMS) should be applied for this qualification effort. TQMS provides a method to evaluate the introduction and adequacy of new technologies. For this process, the TQMS procedure seeks consensus from ExxonMobil's and Qatar Petroleum's technical and operating organizations that this new technology, which offers significant potential but whose performance is not established and outside existing applied norms, is qualified for such marine application.Reliquefaction capacity.The initial plant design capacity was set to equal the guaranteed boil off rate of the specified vessel with the process concept for the partial reliquefaction of the QG2 cargo composition, any waste gas generated (nitrogen rich) is disposed of within the gas combustion unit (GCU). However, an early result from the dynamic model simulations was an indication that the plant would be capable of full reliquefaction at QG2 LNG design composition. This has been subsequently proven in actual service with a composition that is slightly more nitrogen rich than the original design basis. Implementing advanced concepts.Later on, in the project, HGS introduced the improved Mark III reliquefaction plant to the project for evaluation. The main feature of the new plant is that it uses a pre-heater instead of the pre-cooler as in Mark I (See Figure 11). The new concept is based on the interesting thermal phenomena of the refrigeration process when the heat exchanging operation of the hot BOG takes place in the cold box, the energy efficiency is improved by some 800kW. Figure 11The implementation of the Mark III LNG reliquefaction system will also have effect on other equipment than that delivered by HGS. Since the BOG cycle pressure may become higher than the N2 refrigeration loop, all equipment should be placed in hazardous area zone 1. This implies that all electrical equipment must be (Ex) classified in accordance with this zone.The bulkhead which previously separated the motor room from the compressor room can be removed. Equipment can therefore be arranged more efficient in the room, and it consequently seems to be a potential for reducing the room size in total. When removing the bulkhead, all bulkhead seals are removed. This results in reduced instrument air/N2 consumption. (See Figure 12 HGS Mark III design).Figure 12Due to a more energy efficient system, N2 compander motor can be significantly reduced along with the associated frequency converter, cables, and similar. The BOG compressor motor becomes larger. Overall motor power is reduced while number of motors remains the same. Cooling water system (including pumps, pipes, valves, heat exchangers, etc.) can in total be reduced since the cooling water demand for the LNG Reliquefaction system will be reduced proportionally with the rated power. See Table 5 below for the estimated power demand for the Mark I and Mark III:8 IPTC12445 Equipment/system MarkIMarkIIIN2 Compander 4681 3572BOG Compressor 381 870Total kW 5062 4442Table 5The power demand is approximately 13-15% higher forMark I than for Mark III. This will consequently represent amajor advantage to the owners in terms of operational costsfor the LNG Reliquefaction plant. Mark III was then the bestchoice for the rest of the 11 Q-Flex’s.Promoting commercial competiveness.Following signing of the Shipbuilding Contract (SBC)with the three shipyards, different vendors were put forwardby the yards for consideration as Reliquefaction vendors. At that time with HGS being sole supplier, the project was well aware that such a situation did not necessarily promote design development and/or commercial competiveness and so a project decision was made to identify at least one additional suitable vendor.Having appraised the initial submissions it was clear, careful evaluation was required. In the pursuit of finding another qualified vendor; the project team with specialist support in both rotating equipment and process applications fields being provided by ExxonMobil Upstream Research Company (EMURC) has subjected both hardware and software aspects of the various proposals to:•Close scrutiny and inspection, with particular emphasis being placed on the software/control applications. •Process evaluations using sophisticated Dynamic Modeling System (DMS) techniques.•Presentation of proven track record system in marine cryogenic system applications,•Demonstration of having adequate resources, technical ability and capabilities to produce a working plant. Following this strategy, Cryostar attained vendor qualification in 2005 and have been awarded the contracts for the Q-Max vessels now being constructed.The Ecorel system that has been proposed by Cryostar is for full reliquefaction of LNG BOG with up to 1% N2 content, with no venting or waste gas handling required. Design highlight of the system include:•Upstream of the compressor, part of condensate stream from the condenser outlet is recycled into a spray cooler in order to reduce and control the vapor inlet temperature •The condensed stream after the expansion valve is remixed with an LNG stream taken from spray pumps inorder to sub-cool the mixed stream before returning this stream into the tank.•The system design relies upon specialized distribution manifold within each tank to ensure good mixing of the condensate into tank.A schematic of the Cryostar system is presented in Figure 13 Figure 13Functionality assurance.All plant designs are a combination of major cryogenic components supplied by different vendors and onshore testing of the complete plant prior to installation was not practicable. In recognition of the interface complexity the Project developed an alternative testing schedule to mitigate any risk: •All major rotating equipment subject to full performance Factory Acceptance Testing (FAT).•Adoption of an integrated Mechanical Acceptance & Completion (MAC) matrix based on established upstreamproject methodology.•Process verification using snapshot and DMS techniques. •DMS model subject to functionality testing, while integrated with vessels Distributed Alarm & Control System (DACS) to confirm control algorithms before anylive tests being conducted onboard•Prior to Gas Trial each yard to undertake a N2 onboard reliquefaction test on the first vessels.Adopting a consistent project philosophy for all PC based sys-tems installed has significantly reduced the potential for the introduction of faults and errors. Thus a guiding principle of a single point of contact (generally the DACS vendor) to adopt responsibility for all integrated solutions was instigated.Reliquefaction operation overview.Minimise thermal cycling and improve plant availability.Minimizing plant exposure to thermal cycling is one of the major design concept and philosophies to be achieved. This was addressed by ensuring that at all times the nitrogen (N2) cycle would be maintained in cold conditions. Other than for equipment changeover and/or maintenance, the N2 Compander will be running continuously, including during vessel loading and unloading, for which a standby mode is adopted with the BOG cycle shutdown and N2 cycle on minimum load. In order to reduce the BOG start-up times upon completion of cargo loading; the project has investigated the possibility of using BOG free flow mode without running BOG compressor.。
LNG运输船市场现状及未来前景一、LNG运输船市场现状1.需求增长近年来，随着全球对清洁能源的需求不断增长，LNG的需求也在不断扩大。
特别是在亚太地区，LNG需求增长迅猛，主要受到中国、印度等国家的推动。
相应的，LNG运输船市场也呈现出了增长的态势。
由于欧洲和美国等地区也在逐渐增加对LNG的需求，因此全球范围内LNG运输船市场的需求也将呈现出增长的趋势。
2.船龄更新目前全球范围内运行的LNG运输船大部分都已经具有较高的船龄，因此随着LNG需求的增长和市场的发展，液化天然气运输船的需求也将进一步增加。
随着技术的不断进步和环保要求的加强，老旧的LNG运输船将逐渐被新型更为高效和环保的船舶所取代。
3.市场竞争LNG运输船市场虽然需求增长迅猛，但是市场竞争也日益激烈。
各大造船企业在LNG运输船领域展开了激烈的竞争，同时LNG运输船的运营商也在不断扩大船队规模，从而更好地满足市场需求。
在这种市场竞争的背景下，各参与者需要不断提高自身的技术水平和服务质量，以获取更多的市场份额。
未来，全球对清洁能源的需求将继续增长，而LNG作为清洁高效的能源将成为最为主要的选择之一。
尤其是在发展中国家和新兴经济体，LNG的需求将会继续增长。
LNG运输船市场的需求也将呈现出持续增长的趋势。
伴随着LNG需求的增长，LNG运输船的设计和技术也将不断更新。
未来的LNG运输船将更加注重环保性能和能效性能，从而将更好地满足全球对清洁能源的需求。
新型LNG运输船也将更注重船舶的安全性能和操作效率，以应对日益激烈的市场竞争。
未来，LNG运输船市场将面临着很多机遇。
随着世界各国对清洁能源的需求不断增加，LNG运输船市场的需求将会持续扩大。
特别是在亚太地区，LNG运输船市场的发展将更为迅猛。
LNG作为清洁能源的推广将会成为未来的发展趋势，这必将为LNG运输船市场带来更多的发展机遇。
LNG运输船市场在未来将面临着巨大的发展机遇，但是同时也将面临更为激烈的市场竞争。
LNG运输船是指载运LNG(常压下沸点为-162.5℃)的专用船舶。
LNG(液化天然气)的主要成分是甲烷,还有一些乙烷、丙烷、少量的氮、二氧化碳、硫化氢等。
天然气常温常压下为气体,而同等质量的LNG体积只有天然气的1/600左右,所以,为了提高天然气的运输效率,通常都将天然气液化成LNG进行运输。
LNG船目前的标准载货量在12万~15万m3之间,一些先进国家已经能设计出16万m3、20万m3、甚至30万m3的LNG船,但是由于船只尺寸通常受到港口码头和接收站条件的限制,所以LNG船的舱容量可能会稳定在十几万立方米的水平上。
LNG船的储罐是独立于船体的特殊构造。
在该船的设计中,考虑的主要因素是能适应低温介质的材料,对易挥发、易燃物的处理。
LNG船的使用寿命一般为35~40年。
鉴于LNG特殊的理化性质,对LNG船的各方面性能要求极高。
所以,LNG船被称为是前所未有的高技术、高难度和高附加值的船舶。
2 LNG的危险性LNG由于是低温液体,所以LNG除了具有和原油相似的危险性外,还有着其特殊的低温危险性,具体表现在以下几个方面。
首先,LNG是-162.5℃的低温液化气体,当其与人体直接接触时,裸露在外的皮肤会被冻伤。
如果皮肤与LNG 接触时间过长,就会造成永久性的伤害。
严重时,可能会危及生命。
再者,工作人员进入舱内作业时,由于LNG 的蒸发,如果达到一定的浓度,会造成窒息甚至死亡。
其次,由于LNG在储存过程中出现的沸腾与翻滚现象,容易导致液货舱内的压力急剧升高,冲开安全阀,从而导致大量的天然气释放到空气中。
一方面是能源的浪费,一方面会造成天然气在空气中的浓度超过规定,而引起爆炸以及火灾,对于船体的本身及港口、设备的安全也造成极大的威胁。
3 LNG船修理的相关安全要求由于LNG具有其特殊的低温危险特征,所以,对LNG船安全性能的要求比油轮和其他一些化学品船高得多,具体要求如下。
液化气船在未经置换、未经除气的情况下,只可在船厂进行停泊或进坞,但是在该停泊位或干船坞周围要有一个25m的安全区,25m的距离是从船舶处开始测量的。
