Specification Sheet SS-CP-2385-USPRODUCT DESCRIPTIONThe AMC910 multi-purpose calibrator is the right solution for high precision signal, temperature, and pressure calibrations, as it combines the power and features of a laboratory calibrator, with the addition of an isolated measurement channel.The AMC910 calibrator offers laboratory grade accuracy, high per-formance and simple-to-use functionalities. With the optional exter-nal pressure modules, the system may be taylored to address all possible calibration needs.FeaturesThe JOFRA AMC910 not only offers temperature and pressure calibration features, it combines sourcing of current and voltage, measurement of millivolts and resistance with a second completely isolated measurement channel for a single laboratory calibration instrument unmatched in ver-satility, performance, and value. This flexibility means that only one unit is needed for calibration or verification giving the confidence needed for test instruments as well as for field calibrations.The JOFRA AMC910 has the ability to store up to 9 setpoints for each output range. The setpoints can be selected manually or automatically stepped at timed intervals. The AMC910 also features an intuitive, easy-to-operate user interface and computer control through the RS232 or IEEE-488 interface for automated production testing. The unit sources DC voltage and current for multifunction workload coverage, enabling calibration of data loggers, strip chart recorders, multi-meters, handheld calibrators, and other industrial instruments. This is the cost-effective solution for multiple calibration needs.Model AMC910Advanced Multi-purpose CalibratorN ow wi t h s ou r c i n ga n d me a s u r i n g i no n e i ns t r u m e n t2Direct keyboard entry (1)The JOFRA AMC910 provides simple, front-panel entry of mode,range, and value. Using direct keyboard entry (1), the exact valuedesired is entered using the numeric keys, and the ENTER keyis pressed to set the output to that value. Whichever way youchoose, setup is simple and fast. In the voltage output mode, theJOFRA AMC910 auto-ranges on the entered value for maximumaccuracy at all times.Curser entry (2)Using cursor entry (2), the LEFT/RIGHT arrow keys are used tomove the cursor under the digit in the display to be changed. TheUP/DOWN arrow keys increment/decrement the value at the cur-sor position.Choose the mode you want (3)Voltage ModeThe JOFRA AMC910 offers four precision voltage output ranges(100mV, 1V, 10V, and 100V) all with ±0.003% of reading ±0.001%F. S. accuracy. These ranges are ideal for calibrating a broadrange of DC voltage instrumentation. Additionally all voltageoutputs settle to full specification in less than 200ms making theJOFRA AMC910 ideal for automated calibration systems.An automatic stand-by mode (3) assures that output voltagesabove 30VDC must be acknowledged by the operator before thevoltage appears at the output jacks. The stand-by mode is alsotriggered if the output current compliance is exceeded, therebyprotecting the device under calibration.Current ModeThe JOFRA AMC910 features a precision current output range(100mA) that offers 0.01% accuracy, which is ideal for calibratingprocess instrumentation especially 4 to 20mA equipment. Witha full 12 volts of compliance at 100mA virtually any precision DCcurrent measuring device can be calibrated using the JOFRAAMC910. Like the voltage ranges the current range offers quicksettling time and an operate/stand-by mode.Thermocouple ModeThe JOFRA AMC910 can read and source any of 11 typesof thermocouples. Its T/C input and output is Cold JunctionCompensated, using an ultra-stable PT-1000 sensor.RTD ModeThe JOFRA AMC910 can read and source 9 RTD types as well asYSI-400 and Ohms for non-standard curves. Probe coefficients (A,B, C, and R0) can be entered directly, with storage for up to fivecustom curves and one SPRT curve. The performance of the JOFRAAMC910 in the RTD mode compares to dedicated RTD measure-ment instruments. Unlike low-cost, less accurate RTD instruments,the display in the JOFRA AMC910 is always active, reading to threedecimal places, using polynomial averaging to extract a high accu-racy signal. The result is a very high accuracy reading.Pressure ModeSignal calibration capabilities of the JOFRA AMC910 include, cur-rent, voltage and resistance. In temperature mode, the unit can readand source any of 11 types of thermocouples and 9 RTD types aswell as YSI-400 and Ohms for non-standard curves. In pressuremode, the instrument operates with all JOFRA APM modules andcovers pressure ranges from vacuum to 700 bar / 10,000 psi, select-able through more than 60 different pressure modules, representingvacuum, absolute, gauge and compound pressure types as well asSetpoint Control (4 and SPT)A SHIFT key (4) provides easy accessto the setpoint controls of the JOFRAAMC910. Up to nine setpoints canbe defined for each output mode andeach thermocouple and RTD type.Setpoints are recalled individually atthe touch of three buttons, SHIFT (4),SETPOINT (SPT) button and then thecorresponding numeric keys 1-9. Anynumber of sequential setpoints canbe stepped through automatically,with complete control of dwell time.Either way, for rapid setup of repeat-able tests, no other instrument comesclose to the JOFRA AMC910.Remote Control (4)All of the JOFRA AMC910 operating functions can be accessedvia RS232, IEEE-488 or optional USB interface cable using astandard PC running Windows® HyperTerminal or other soft-ware using an ASCII protocol. Custom control programs maybe written using programming software such as C++. Switchingbetween LOCAL and REMOTE is as simple as touching theSHIFT (4) and LOCAL buttons.Rock-Solid StabilityThe accuracy of the JOFRA AMC910 is specified for both 90-dayand one-year intervals. Manual zero calibrations can be made onall T/C and pressure functions to eliminate offsets.Flexible Output (5, 6 and 7)Five-way copper alloy binding posts (5) provide a wide range ofconnection options. A standard pressure module connector isprovided (6), as is the CJC T/C mini-jack (7).Isolated Measurement Channel (8 and 9)The JOFRA AMC910 features a fully isolated measurement chan-nel which allows the user to calibrate process transmitters andsignal isolators. In reality it’s like having two instruments in one!This channel also incorporates a 24 volt loop power supply topower 2-wire transmitters and a HART interface resistor enablingdirect connection to HART communicators. Key features are:Two voltage ranges 10V and 100V DCMilliamp range 0 to 50mAMilliamp range with simultaneous 24 volt power (0 to 24ma)Selectable 250 ohm HART resistorAccuracy of 0.005% of reading on all ranges•••••3SPECIFICATIONS AMC910(1 year at 23°C ±5°C; % of reading, unless otherwise noted)Output VoltageRange..0 to 100.000 mV, 0 to 1.00000 V, 0 to 10.0000 V, 0 to 100.000 V Resolution0 to 100 mV Range ..................................................................1 μV 0 to 1 V Range .......................................................................10 μV 0 to 10 V Range ...................................................................100 μV 0 to 100 V Range ....................................................................1 mV Accuracy (% of reading)0 to 100 mV Range ................................±0.003% (30ppm) ± 3 μV 0 to 1 V Range .....................................±0.003% (30ppm) ± 10 μV 0 to 10 V Range .................................±0.003% (30ppm) ± 100 μV 0 to 100 V Range ..................................±0.003% (30ppm) ± 1 mV Maximum Burden (~ 1 Ohm output impedance)0 to 100 mV Range ...............................................................10 mA 0 to 1 V Range ......................................................................10 mA 0 to 10 V Range ....................................................................10 mA 0 to 100 V Range ....................................................................1 mA Output CurrentRange ...................................................................0 to 100.000 mA Resolution ................................................................................1 μA Accuracy (% of reading) .................................± 0.005% ± 1 Count Maximum Burden .....................................................................10 V ThermocouplesOutputTypes ....................................J, K, T, E, R, S, N, B, L, U, C, BP, XK Range .........................................................................................mV Resolution ........................................................................0.1 °C/°F Accuracy ....................................................0.14 °C; Type J, typical InputTypes ....................................J, K, T, E, R, S, N, B, L, U, C, BP, XK Range .........................................................................................mV Resolution ......................................................................0.01 °C/°F Accuracy ....................................................0.14 °C; Type J, typical RTDOutput Range ....................................Pt385 (100, 200, 500, 1000), Pt392, ................................................Pt3916 (JIS), Ni120, Cu 10, YS I400Resolution .......................................0.01 °C/°F; Pt385-100, typical Accuracy ..............................±0.05°C / 0.09°F; Pt385-100, typical Input (All RTD inputs are 4 wire)Range ....................................Pt385 (100, 200, 500, 1000), Pt392, ........................PT3916 (JIS), Ni120, Cu10, YSI400, 25 Ohm SPRT Resolution ......................................0.001°C/°F; Pt385-100, typical Accuracy ..............................±0.02°C / 0.04°F; Pt385-100, typical OhmsOutput Range ........................................................................5 to 4000.0 ΩResolution .....................5 to 400.00 Ω .............................0.001 Ω........................................5 to 4000.0 Ω ...............................0.01 ΩAccuracy ........................5 to 400.00 Ω .............................±0.05 Ω........................................5 to 4000.0 Ω ...............................±0.3 ΩInput (4 wire connection)Range ......................................................................0 to 4000.00 ΩResolution .....................0 to 400.00 Ω ...............................0.001 Ω ........................................0 to 4000.0 Ω ...............................0.01 ΩAccuracy ........................0 to 400.00 Ω .............40 PPM ±0.002 Ω........................................0 to 4000.00 Ω .............40 PPM ±0.02 ΩPressureRange .......................................................0 to 700 bar / 10,000 psi Compatibility ...........................All JOFRA APM pressure moduels Isolated Measurement ChannelRange ...............................................................................Accuracy 0-10.0000V .........................................................±0.005% ± 0.2mV 0-100.000V .........................................................±0.005% ± 2.0mV 0-52.0000mA ...........................................................±0.01% ± 1μA Loop power: .................................................................24 V ± 10%HART™ resistor: ...........................................................250Ω ± 3%Maximum current: .................................................................24 mA StabilityWarm-up Time .................................30 minutes to rated accuracy Temp. coefficient (t<18°C/t>28°C) ........10% of accuracy spec/°C Temp. coefficient (t<64°C/t>82°C) ..........5% of accuracy spec/°F EnvironmentalOperating Temperature ..............................0 to 50°C / 32 to 122°F Storage Temperature ...............................-20 to 70°C / -4 to 158°F Operating humidity ........................................< 80% to 30°C / 86°F ......................................................................< 70% to 40°C / 104°F ......................................................................< 40% to 50°C / 122°F Storage humidity ........................................<95%, non-condensing Power RequirementsVoltage Range .........................................................90 to 240 VAC ....................................................................................... Max. 15 VA MechanicalDimensions (h x w x d): ..............17.7 cm x 48.26 cm x 27.96 cm / .............................................................................5 in x 19 in x 11 in Weight ...................................................................4.8 kg / 10.5 lbs Display 2 Large character 16 by 2 line alphanumeric backlit LCDsOrder No.Description Base model numberAMC910AMC910 Advanced Multi-purpose Calibrator Power supply115 115 VAC, 50/60 Hz 220 230 VAC, 50/60 Hz Mains power cable type A EUROPEAN, 230 V B USA/CANADA, 115 V C UK, 240 VD SOUTH AFRICA, 220 VE ITALY, 220F AUSTRALIA, 240 VG DENMARK, 230 VH SWITZERLAND, 220 VI ISRAEL, 230 VCertificateG NIST traceable certificate (standard)HAccredited certificateAMC910115BG Sample order numberJOFRA AMC910 for 115 VAC with NIST traceablecertificate.ORDERING INFORMATIONAMETEK Calibration Instrumentsis one of the world’s leading manufacturers anddevelopers of calibration instruments fortemperature, pressure and process signalsas well as for temperature sensors both froma commercial and a technological point of view.JOFRA Temperature InstrumentsPortable precision thermometers. Dry-block andliquid bath calibrators: 4 series, with more than25 models and temperature ranges from-90° to 1205°C / -130° to 2200°F. All featuring speed,portability, accuracy and advanced documentingfunctions with JOFRACAL calibration software.JOFRA Pressure InstrumentsConvenient electronic systems ranging from-1 to 1000 bar (25 inHg to 14,500 psi) -multiple choices of pressure ranges, pumps andaccuracies, fully temperature-compensatedfor problem-free and accurate field use.JOFRA Signal InstrumentsProcess signal measurement and simulation foreasy control loop calibration and measurementtasks - from handheld field instruments tolaboratory reference level bench top instruments.JOFRA / JF Marine InstrumentsA complete range of calibration equipmentfor temperature, pressure and signal,approved for marine use.FP Temperature SensorsA complete range of temperature sensorsfor industrial and marine use.M&G Pressure TestersPneumatic floating-ball or hydraulic piston deadweight testers with accuracies to 0.015% of reading.M&G PumpsPressure generators from small pneumatic“bicycle” style pumps to hydraulic pumpsgenerating up to 1,000 bar (15,000 psi)....because calibration isa matter of confidenceJOFRA AMC910 calibratorInstruction manualAC line cordThermocouple shorting jumperNIST traceable certificate•••••Information in this document is subject to change without notice.©2007, by AMETEK, Inc. All rights reserved.Pub code SS-CP-2385-US Issue 0901JOFRA APM PRESSURE MODULESTo get an ideal reference system, JOFRAoffers a range of reference sensors. All JOFRASuperior Temperature Standard sensors areeconomical and offer fast response times, lowimmersion depths, compact physical sizes, andspecified low drift rates: even at high tempera-tures. These are all important considerationswhen selecting a reference sensor.Please find more information in accessory sheet AS-CP-2210, which maybe found at JOFRA STS REFERENCE SENSORSThe APM series of pressure modules by JOFRA arecompatible with the AMC900, AMC910, ASC300or APC calibrators. The JOFRA APM external pres-sure modules includes more than 60 models avail-able with gauge, absolute, differential, and vacuumpressure references and in metric and imperialengineering units. The modules are engineered forin-plant, field, or laboratory use. They are ready-to-use with the JOFRA AMC910 and the protocolallows for immediate recognition and use of themodule once plugged into the calibrator.Please find more information in specification sheet SS-CP-2190, whichmay be found at STANDARD DELIVERYACCESSORIESPart No. Description121985 Extension cable for Pt100 sensor, length 5.0 m121983 Extension cable for Type K - 5 m122523 Extension cable for Type N - 5 m120519 Thermocouple Male Plug - Type Cu-Cu - White120518 Thermocouple Male Plug - Type R / S - Green120517 Thermocouple Male Plug - Type K - Yellow120516 Thermocouple Male Plug - Type J - Black120515 Thermocouple Male Plug - Type T - Blue120514 Thermocouple Male Plug - Type N - Orange2206011 Thermocouple plug + K wire + alligator2206012 Thermocouple plug + T wire + alligator126812 Cable for USB to serial105366 Cable for RS232104203 Test lead set。

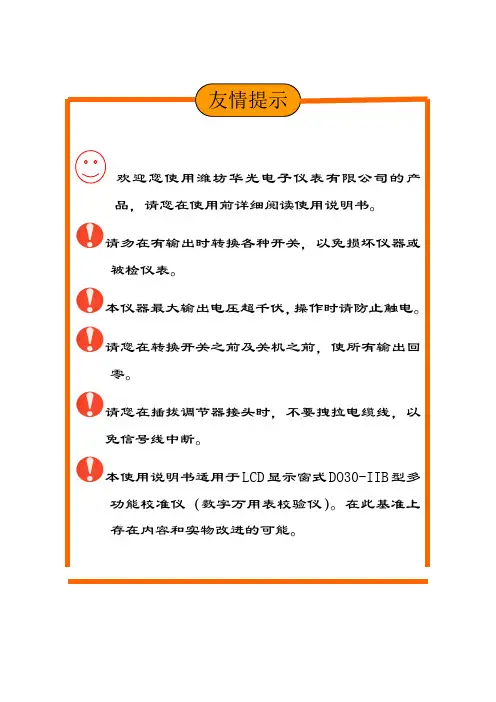

一、用途、特点 (1)二、主要功能 (1)三、技术参数 (2)四、工作原理及框图 (5)五、使用方法 (5)六、校准与维修 (17)七：注意事项 (19)八、应用举例 (20)九、成套性 (23)一、用途、特点DO30-IIB型多功能校准仪（以下简称校准仪）是具有五位半LCD 液晶屏数字显示输出值，并可同屏显示被检表误差、误差修正值、输出量百分比、被检表满度值、步进值、频率等参数的交直流电压、电流校准源。

另设有22档标准电阻器组，方便校准万用表电阻档。

备有RS232接口实现数据自动处理功能。

校准仪采用先进的稳幅、功放、保护新技术，使其稳定性好、精度高、量程宽、分档细、安全可靠；幅值调节选择数字键式控制和编码器调节组合，使其控制灵活，反应迅速，实现定值输出和连续调节的不同需求，使用更加方便快捷。

适用于检定、校验四位半数字三用表、各种0.2级以下电流、电压表头及相应精度等级的多用表。

亦可作为高稳定度测试电源使用，配合高等级标准表，校对0.2级以上电流、电压表。

广泛应用于工矿企业、科研院所、铁路、电力等单位的质检、计量及仪表维修等。

二、主要功能2.1 5位半LCD数字显示输出量，同屏显示档位、量程、被检表示值误差r A和引用误差r m、误差修正值、输出量百分比、被检表满度值、频率、步进值，按实际值和百分比两种方式同时显示输出量，即时读出被检仪表的误差，省时省力。

2.2采用调节器键盘控制输出量的增减。

调节器上有键盘和编码器两种配置，光标初始位置在最后一位，按左右箭头可移动至除第一位数字外的各位数下方。

编码器依光标位置增减数值。

键盘控制量分为100%/N、10%/N、1%/N、0. 1%/N、0.01%/N（N为4、5、6、10、15）。

2.3交、直流电压输出范围:0～250mV～1V～2.5V～5V～10V～25V～50V～100V～250V～500V～1000V,电压最大输出1100V。

2.4交、直流电流输出范围:0～100uA～500uA～2mA～5mA～20mA～50mA～200mA～500mA～2A～5A～20A,电流最大输出22A。

DO30-Ⅱ型多功能校准仪使用说明书一：概述DO30-Ⅱ型多功能校准仪（以下简称校准仪)是一种LCD 数字显示输出值的交、直流标准电压、电流发生器，可用于校验、检定、计量数字式、指针式三用表及0.2级以下电压、电流各类表头。

如选购钳形表校验线圈则可以校验交直流钳形表（0-1000A）,另设有标准电阻器组，可方便校验电阻表。

校准仪采用了新型的复合大功率放大器，输出功率大，可靠性高，失真度小。

优选的16位A/D转换芯片，转换速度和精度得到了大幅度提高；AC/DC采用真有效值转换芯片，保证了交流输出的精度，交流输出线性更好。

窗口同时显示输出实际值、百分比、频率。

输出调节既可采用面板“按位”调节、“百分比”调节，也可采用外接“外控调节盒”调节。

整机采用“闭环控制”电路设计，极大的提高了输出稳定性。

整机并具有过压、过流自动保护功能。

本校准仪交、直流电压输出22档（0~1000V）；交、直流电流输出22档（0~20A）；中值电阻11×2档(10Ω~20MΩ)；交流频率50Hz、60Hz、400Hz（数字合成，按键选择），以上项目及量程均通过精密开关转换。

具有数字显示、量程宽、分档细、精度高、稳定性好、使用方便等优点。

广泛被仪表生产、维修、计量检定等部门使用。

二、工作原理及方框图2.1：工作原理本校准仪主要有数字合成正弦波信号发生器、功率放大器、项目与量程转换、CPU单元、键盘及显示单元、电源与保护单元、标准电阻器等组成。

其基本工作原理是：数字正弦波信号发生器产生的微弱电信号，经功率放大器放大，放大后的固定信号进行电压变换，送到项目、量程转换，进行分压或限流，以取得多量限值；直接输出。

键盘输入信息，经CPU处理，送显示单元显示结果。

三、主要特点3.1 电压短路、电流开路自动保护。

3.2 交、直流电流输出可达24A。

3.3 输出超载自动保护，手动复位，工作更加可靠。

3.4 输出调节可以“按位”调节，也可按“百分比”调节。

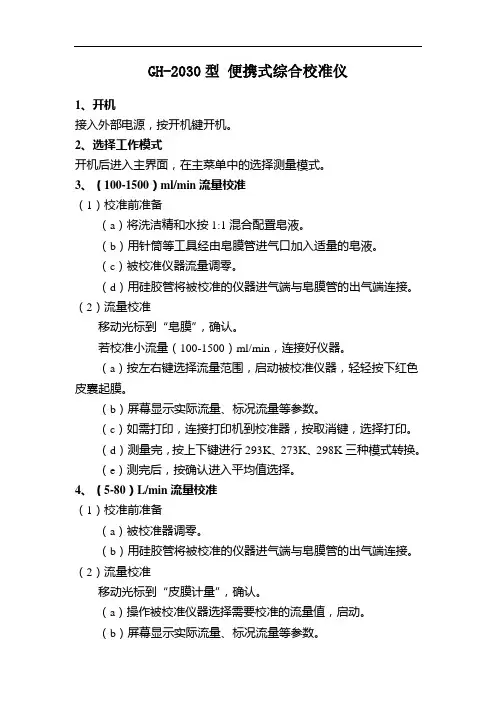

GH-2030型便携式综合校准仪1、开机接入外部电源，按开机键开机。

2、选择工作模式开机后进入主界面，在主菜单中的选择测量模式。

3、（100-1500）ml/min流量校准（1）校准前准备（a）将洗洁精和水按1:1混合配置皂液。

（b）用针筒等工具经由皂膜管进气口加入适量的皂液。

（c）被校准仪器流量调零。

（d）用硅胶管将被校准的仪器进气端与皂膜管的出气端连接。

（2）流量校准移动光标到“皂膜”，确认。

若校准小流量（100-1500）ml/min，连接好仪器。

（a）按左右键选择流量范围，启动被校准仪器，轻轻按下红色皮囊起膜。

（b）屏幕显示实际流量、标况流量等参数。

（c）如需打印，连接打印机到校准器，按取消键，选择打印。

（d）测量完，按上下键进行293K、273K、298K三种模式转换。

（e）测完后，按确认进入平均值选择。

4、（5-80）L/min流量校准（1）校准前准备（a）被校准器调零。

（b）用硅胶管将被校准的仪器进气端与皂膜管的出气端连接。

（2）流量校准移动光标到“皮膜计量”，确认。

（a）操作被校准仪器选择需要校准的流量值，启动。

（b）屏幕显示实际流量、标况流量等参数。

（c）如需打印，连接打印机到校准器，按取消键，选择打印。

5、（80-150）L/min中流量校准（1）校准前准备（a）被校准器调零。

（b）将流量计旋入到被测仪器接口，用硅胶管将校准仪的微压接口与孔口流量计取压端连接。

（2）流量校准首先进行传感器调零，采样嘴悬空。

选择中流量测量，确认。

（a）选中校零，确认。

（b）操作被校准仪器选择需要校准的流量值，启动，进行校准。

（c）屏幕显示实际流量、标况流量等参数。

（d）如需打印，连接打印机到校准器，按取消键，选择打印。

6、（800-1200）L/min大流量校准（1）校准前准备（a）被校准器调零。

（b）将流量计旋入到被测仪器接口，用硅胶管将校准仪的微压接口与孔口流量计取压端连接。

（2）流量校准选择大流量测量，确认。

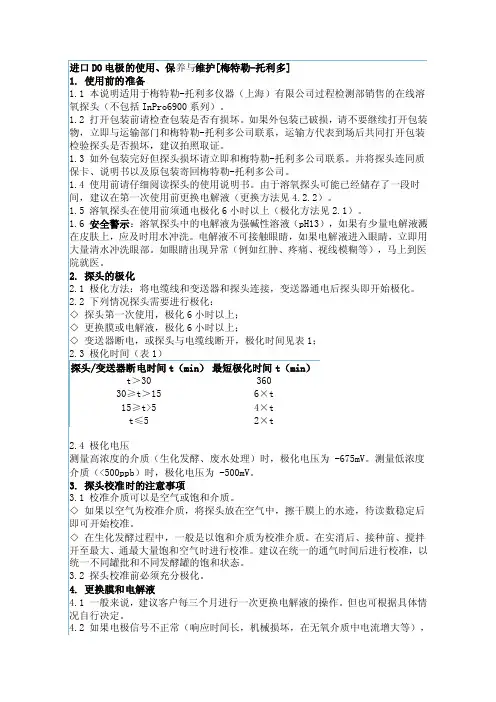

M300-DO简要操作说明1. 功能说明和接线1.1. 功能说明M300-DO用于测量DO值，其操作模式包括三个部分：测量、校准和参数设置。

在设置模式中按“Menu”键可回到测量模式。

1.1.1. 测量模式用于正常运行时仪器进行pH的测量。

1.1.2. 校准模式（Cal）用于DO电极。

在显示屏的上方显示（校准）图标。

1.1.3. 设置模式（Menu）用于调整仪器的运行参数（参见3）。

进入的的步骤为：在测量模式下按Menu键，按“Enter”键进入设置模式。

1.2. 端子说明TB1：继电器输出TB2：模拟量输出/数字输入TB3:传感器输入接口1.3. 电缆接线：端子号VP电缆AS/AK电缆2（pH电极）红线4（参比电极）黄绿线/蓝5 透明线6（Pt100/1000）白线8（Pt100/1000）绿线2. 校准模式2.1. 进入校准模式：进入校准模式的步骤为：在测量模式下按“Cal”键，用 和 键选择所需的校正模式（1point(一点校正)； process(过程校正)），按“Enter”键确定（我们一般都选择1point）。

DO的校准包括单点校准和两点校准，通常进行单点校准，不需进行零点校准。

2.2. 校准介质：通常的校准介质为空气。

但在生化发酵过程中，由于探头在消毒后不能取出，校准介质为饱和介质，校准条件通常选择在实消后接种前，通最大量的饱和空气，搅拌速度开至最大。

2.3. 校准步骤：按Cal键出现 Calibration senor 然后按Enter ,出现Channel A OxygenO2 caliration 然后按Enter,出现 A Point1=100%sat 然后再出现Type =1point slope A o2=****%satO2 S=*****nA Z=0.000nA 按Enter 出现Calibration successful.Save Caliration Yes即校正完成注意：在校正的时候无法从此步骤中设定校正时候的压力，要通过Meun/Configure/Measurement/o2这个路径下输入校正压力和测量压力。

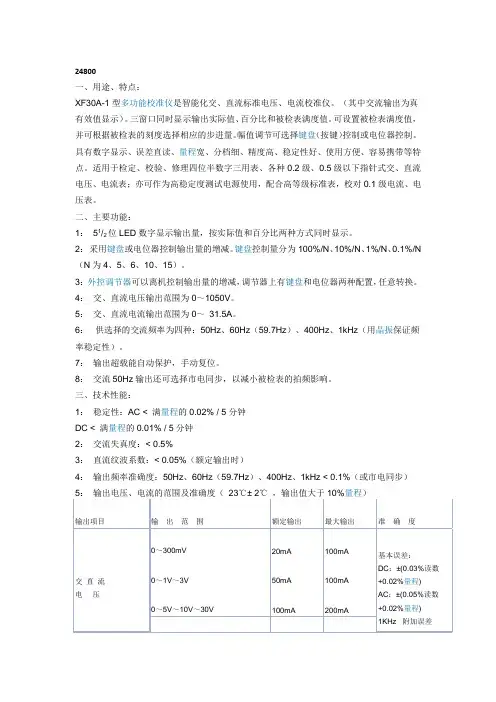

24800一、用途、特点：XF30A-1型多功能校准仪是智能化交、直流标准电压、电流校准仪。

（其中交流输出为真有效值显示）。

三窗口同时显示输出实际值、百分比和被检表满度值。

可设置被检表满度值，并可根据被检表的刻度选择相应的步进量。

幅值调节可选择键盘（按键）控制或电位器控制。

具有数字显示、误差直读、量程宽、分档细、精度高、稳定性好、使用方便、容易携带等特点。

适用于检定、校验、修理四位半数字三用表、各种0.2级、0.5级以下指针式交、直流电压、电流表；亦可作为高稳定度测试电源使用，配合高等级标准表，校对0.1级电流、电压表。

二、主要功能：1：51/2位LED数字显示输出量，按实际值和百分比两种方式同时显示。

2：采用键盘或电位器控制输出量的增减。

键盘控制量分为100%/N、10%/N、1%/N、0.1%/N （N为4、5、6、10、15）。

3：外控调节器可以离机控制输出量的增减，调节器上有键盘和电位器两种配置，任意转换。

4：交、直流电压输出范围为0～1050V。

5：交、直流电流输出范围为0～31.5A。

6：供选择的交流频率为四种：50Hz、60Hz（59.7Hz）、400Hz、1kHz（用晶振保证频率稳定性）。

7：输出超载能自动保护，手动复位。

8：交流50Hz输出还可选择市电同步，以减小被检表的拍频影响。

三、技术性能：1：稳定性：AC < 满量程的0.02% / 5分钟DC < 满量程的0.01% / 5分钟2：交流失真度：< 0.5%3：直流纹波系数：< 0.05%（额定输出时）4：输出频率准确度：50Hz、60Hz（59.7Hz）、400Hz、1kHz < 0.1%（或市电同步）6：电源功耗：交流电源电压220V±10%，频率50Hz±1Hz；功耗< 230VA 7：工作环境：工作环境的温度5℃～35℃，相对湿度<80%8：工作时间：连续9：产品外形尺寸：139×480× 420mm310：重量：< 22kg。
