BATM60 便携式电池巡检议使用说明书深圳奥特迅电力设备有限公司一、概述BATM60便携式蓄电池巡检仪是由微电脑控制，采用大屏幕液晶汉字显示，操作方便，智能化程度高，实时检测蓄电池组的环境温度及单节电池的端电压，并将其测量数据处理后显示，当电池电压异常或温度异常时会有报警提示。

同时采用串行方式，通过RS232（电流环型）或RS485通讯接口与上位JKQ2000C、JKQ3000A集中监控器或其他监控系统相连接，将其测量数据传送给集中监控系统，对其进行数据分析处理。

二、 主要技术性能与参数1、电源额定电压：DC48 V、DC110V、DC220V2、工作电源范围：DC40V~DC60V (额定48V) 、DC90V~DC270V (额定110V，220V)3、电压检测精度：±0.1%4、单节电池电压检测范围：0~15V5、整组电压检测范围：0~480V6、温度检测精度：±0.5℃7、温度检测范围：-50℃~100℃8、数据采集最小间隔：60S9、巡检电池数：最大126节10、通讯接口：RS232（电流环型）、RS48511、串行通讯波特率：1200bps或2400bp12、工作环境：环境温度：-10~+40℃相对湿度：<90%环境磁场：<400A/m大气压：80－107 kPa环境周围不允许有易腐蚀易燃易爆气体13、功率消耗：<10W14、外形尺寸： 335mm×212mm×164mm三、 系统构成及功能简介3.1构成及功能3.1.1、蓄电池巡检仪构成：数据采集卡N（N≤7）块，主卡1块。

数据采集卡负责蓄电池温度及蓄电池端电压数据采集。

在系统中，不同的数据采集卡有数据采集卡地址区分，每卡有18路蓄电池电压采集回路，可采集1 ~18节蓄电池端电压数据；数据采集卡数量根据具体蓄电池数量确定。

蓄电池巡检仪主卡用于蓄电池整组电压、温度数据的采集，并收集各数据采集卡的单节电池电压数据，进行数据处理和显示。

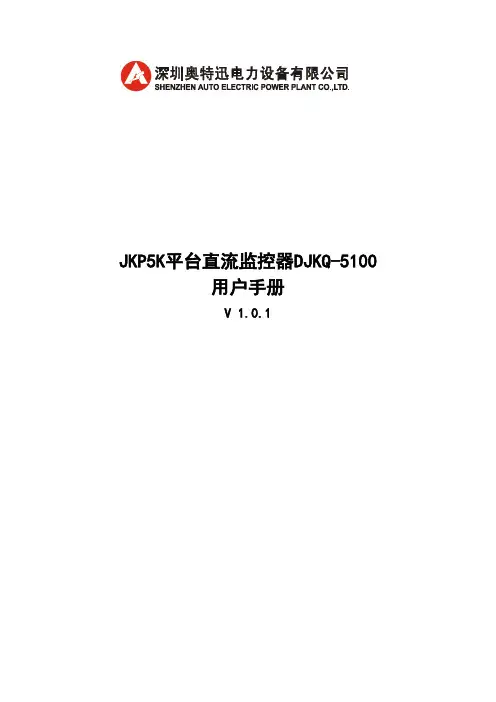

JKP5K平台直流监控器DJKQ-5100用户手册V 1.0.1本资料为深圳奥特迅电力设备有限公司版权所有，未经公司书面许可，任何单位和个人不得摘录、复制、翻译、注释、编辑本资料的部分或全部，侵权必究。

使用前请详细阅读本说明书！版次：2014年8月第1版，第1次印刷印数：1-3000本ATC1100JKA-5200型电力专用交流监控器使用说明书目录目录一概述 (1)二适用范围 (1)三工作原理 (1)四特点 (2)五技术参数 (2)六主机描述 (3)七显示及操作说明 (4)7.1 参数设置 (8)7.2 配置设置 (13)7.3 状态信息 (23)7.4 电池信息 (21)7.5 充电机信息 (22)7.6 馈线信息 (23)7.7 充电机控制 (24)7.8 历史记录 (25)7.9 蜂鸣器控制 (26)7.10 帮助 (27)7.11 配置下载软件 (28)ATC1100JKA-5200型电力专用交流监控器使用说明书概述、工作原理一概述该产品为基于JKP5K监控平台的直流监控器，用于监控直流子系统中的各类设备，并作为总监控器的下位机接受其监控。

该产品由测控模块和触摸屏组成，测控模块为直流监控器的主机，触摸屏作为人机交互的接口，通过RS232连接到主机。

二适用范围本说明书仅限于公司内容设计学习使用，未经许可，不得外发。

三工作原理图3.1 DJKQ-5100原理框图ATC1100JKA-5200型电力专用交流监控器使用说明书特点及技术参数四特点●使用大屏幕液晶显示器，触摸屏输入，使显示内容丰富，操作简便。

●本监控器设有模拟能量流图显示，使运行状态一目了然，可以防止误操作。

●所有对外接口都有光电隔离，并且有独立的隔离电源，增强了稳定性和抗干扰能力。

五技术参数六主机描述1)电源采用24VDC供电，接口为24V、24VGND2)通信口CAN口CAN1（接口为CAN1H、CAN1L）CAN2（接口为CAN2H、CAN2L）COM口COM3（RS485接口为A3、B3；RS232接口为T3、R3、GND3）COM5（RS485接口为A5、B5；RS232接口为T5、R5、GND5）COM1（接口为A1、B1）COM2（接口为A2、B2）COM4（接口为A4、B4）COM6（接口为A6、B5）其中，COM3、COM5为高速COM口，且这两个COM口的RS485和RS232不能同时使用，只能选其一；其他4个为低速COM口3)开关量输入具有16个开关量的输入（接口为INPUT0~INPUT15）4)开关量输出2路开关量隔离MOS继电器输出（接口为LOUT102、LOUT002、LOUT001、LOUT101）9个开关量输出（接口为JOUT11、JOUT01~JOUT18、JOUT08、ERR01、ERR11）七显示及操作说明监控器支持多种运行模式：一充一电单母无降压、一充一电单母带降压、一充一电单母分段无降压、二充一电单母带降压、二充一电单母分段无降压、二充二电双母带降压、二充二电单母分段无降压、一充二电电池充电系统、无图模式。

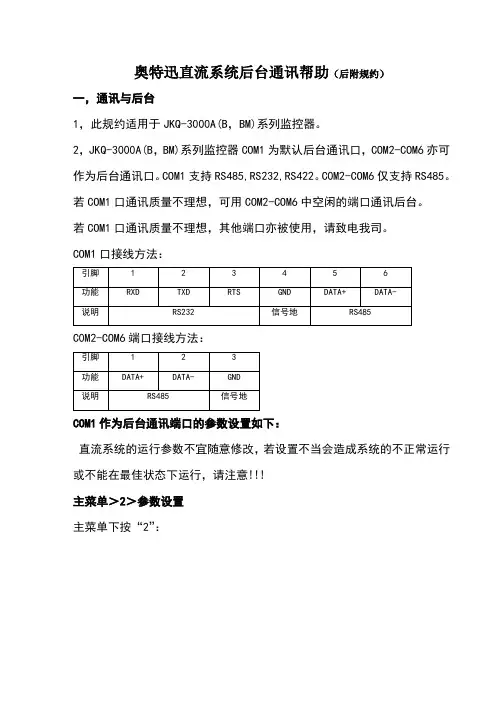

奥特迅直流系统后台通讯帮助（后附规约）一，通讯与后台1，此规约适用于JKQ-3000A(B，BM)系列监控器。

2，JKQ-3000A(B，BM)系列监控器COM1为默认后台通讯口，COM2-COM6亦可作为后台通讯口。

COM1支持RS485,RS232,RS422。

C0M2-COM6仅支持RS485。

若COM1口通讯质量不理想，可用COM2-COM6中空闲的端口通讯后台。

若COM1口通讯质量不理想，其他端口亦被使用，请致电我司。

COM1口接线方法：C0M2-COM6端口接线方法：COM1作为后台通讯端口的参数设置如下：直流系统的运行参数不宜随意修改，若设置不当会造成系统的不正常运行或不能在最佳状态下运行，请注意主菜单＞2＞参数设置主菜单下按“2”：请输入设置密码：密码为５位数字，若输入密码正确，按“确认”键则进入参数设置页，否则返回上一屏：注意：密码可以修改，出厂时为“11111”。

参数设置＞6＞其它＞2＞通讯设置可进行监控器通讯端口参数的设置通讯端口： 01 用键修改通讯协议： 10本机地址： 001........地址需分配上位地址： 016........一般不需改动波特率： 1200 BPS...（推荐值）停止位： 01 位奇偶位：无校验通讯方式： RS485.....（可转换RS232）右侧方向键区左、右键和更改数值上图为JKQ-3000B(BM)监控器画面，JKQ-3000A监控器需翻显示。

COM2--COM6作为后台通讯端口的参数设置如下：以COM2为例：通讯端口： 02 用键修改通讯协议： 10.........奥特迅规约本机地址： 031........地址需分配上位地址： 016........一般不需改动波特率： 1200 BPS...（推荐值）停止位： 01 位奇偶位：无校验通讯方式： RS485 测试返回下页3，后台机设置建议：1）指令下发周期建议设置为4-8秒，波特率推荐1200 BPS2）我司监控器内本位机地址、上位机地址均为十进制数据。

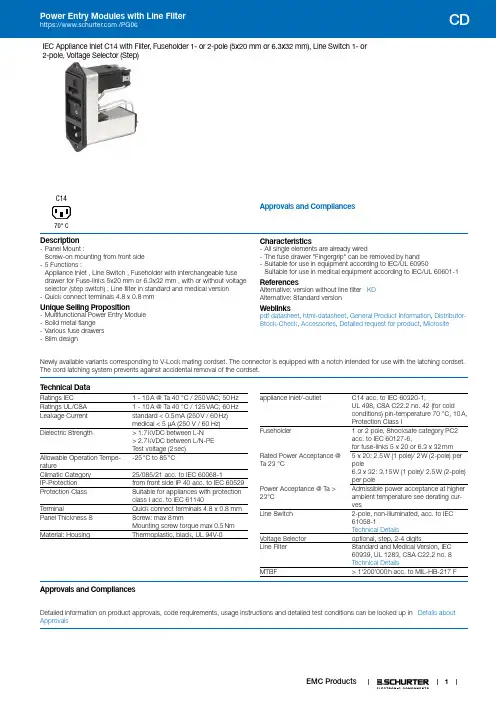

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole (5x20 mm or 6.3x32 mm), Line Switch 1- or2-pole, Voltage Selector (Step)Approvals and CompliancesC1470° CDescription- Panel Mount :Screw-on mounting from front side- 5 Functions :Appliance Inlet , Line Switch , Fuseholder with interchangeable fuse drawer for Fuse-links 5x20 mm or 6.3x32 mm , with or without voltage selector (step switch) , Line filter in standard and medical version- Quick connect terminals 4.8 x 0.8 mmUnique Selling Proposition- Multifunctional Power Entry Module- Solid metal flange- Various fuse drawers- Slim design Characteristics- All single elements are already wired- The fuse drawer "Fingergrip" can be removed by hand- Suitable for use in equipment according to IEC/UL 60950Suitable for use in medical equipment according to IEC/UL 60601-1 ReferencesAlternative: version without line filter KDAlternative: Standard versionWeblinkspdf datasheet, html-datasheet, General Product Information, Distributor-Stock-Check, Accessories, Detailed request for product, MicrositeNewly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.T echnical DataRatings IEC 1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz Ratings UL/CSA 1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz Leakage Current standard < 0.5 mA (250 V / 60 Hz)medical < 5 µA (250 V / 60 Hz) Dielectric Strength> 1.7 kVDC between L-N> 2.7 kVDC between L/N-PETest voltage (2 sec)Allowable Operation Tempe-rature-25 °C to 85 °CClimatic Category25/085/21 acc. to IEC 60068-1IP-Protection from front side IP 40 acc. to IEC 60529 Protection Class Suitable for appliances with protectionclass I acc. to IEC 61140Terminal Quick connect terminals 4.8 x 0.8 mm Panel Thickness S Screw: max 8 mmMounting screw torque max 0.5 Nm Material: Housing Thermoplastic, black, UL 94V-0appliance inlet/-outlet C14 acc. to IEC 60320-1,UL 498, CSA C22.2 no. 42 (for coldconditions) pin-temperature 70 °C, 10 A,Protection Class IFuseholder 1 or 2 pole, Shocksafe category PC2acc. to IEC 60127-6,for fuse-links 5 x 20 or 6.3 x 32 mm Rated Power Acceptance @Ta 23 °C5 x 20: 2.5 W (1 pole)/ 2 W (2-pole) perpole6.3 x 32: 3.15 W (1 pole)/ 2.5 W (2-pole)per polePower Acceptance @ Ta >23°CAdmissible power acceptance at higherambient temperature see derating cur-vesLine Switch2-pole, non-illuminated, acc. to IEC61058-1Technical DetailsVoltage Selector optional, step, 2-4 digitsLine Filter Standard and Medical Version, IEC60939, UL 1283, CSA C22.2 no. 8Technical DetailsMTBF> 1'200'000 h acc. to MIL-HB-217 FApprovals and CompliancesDetailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals1ApprovalsThe approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products. Approval Reference T ype: CDApproval Logo Certificates Certification Body DescriptionVDE Approvals VDE Certificate Number: 40004665 (FKSO, FKSP, FKSU, FKSV)UL Approvals UL UL File Number: E72928 (FKSO, FKSP, FKSU, FKSV) Product standardsProduct standards that are referencedOrganization Design StandardDescriptionDesigned according to IEC 60320-1Appliance couplers for household and similar general purposesDesigned according to IEC 60939Passive filters for suppressing electromagnetic interferenceDesigned according to IEC 60127-6Miniature fuses. Part 6. Fuse-holders for miniature fuse-linksDesigned according to IEC 61058-1Switches for appliances. Part 1. General requirements Designed according to UL 498Standard for Attachment Plugs and ReceptaclesDesigned according to UL 1283Electromagnetic interference filtersDesigned according to CSA C22.2 no. 42General Use Receptacles, Attachment Plugs, and Similar Wiring DevicesDesigned according to CSA C22.2 no. 8Electromagnetic interference (EMI) filters Application standardsApplication standards where the product can be usedOrganization Design StandardDescriptionDesigned for applications acc.IEC/UL 60950IEC 60950-1 includes the basic requirements for the safety of informationtechnologyequipment.Designed for applications acc.IEC 60601-1Medical electrical equipment - Part 1: General requirements for basicsafety and essential performanceDesigned for applications acc.IEC 60335-1Safety of electrical appliances for household and similar purposes. Meetsthe requirements for appliances in unattended use. This includes the en-hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13. CompliancesThe product complies with following Guide LinesIdentification Details Initiator DescriptionCE declaration of conformity SCHURTER AG The CE marking declares that the product complies with the applicablerequirements laid down in the harmonisation of Community legislation onits affixing in accordance with EU Regulation 765/2008.RoHS SCHURTER AG EU Directive RoHS 2011/65/EUChina RoHS SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March2007. It is similar to the EU directive RoHS.REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as"REACH") entered into force.MicrositeV-Lock SCHURTER AG V-Lock system are based on a matching plug-dose combination. Theconnector is equipped with a notch intended for use with the latchingcordset. The cord latching system prevents against accidental removal ofthe cordset.Medical Equipment SCHURTER AG Suitable for use in medical equipment according to IEC/UL 60601-123Dimension [mm]CDDiagrams Standard versionwith voltage selectorL N1)1) Line 2) Loadx) External connection to be made by the customer Medical versionwith voltage selectorLPEN1)1) Line 2) Loadx) External connection to be made by the customer4Derating Curves Fuses5 x 20 mm (1-pole)A d m i s s i b l e p o w e r a c c e p t a n c e i n W a t tAmbient air temperature T a °C Fuses5 x 20 mm (2-pole, per pole)A d m i s s i b l e p o w e r a c c e p t a n c e i nW a t tAmbient air temperature T a °C Fuses6.3 x 32 mm (1-pole)A d m i s s i b l e p o w e r a c c e p t a n c e i n W a t tAmbient air temperature T a °C Fuses6.3 x 32 mm (2-pole, per pole)A d m i s s i b l e p o w e r a c c e p t a n c e i n W a t tAmbient air temperature Ta °CAttenuation Loss- - - - 50Ωdifferential mode _____ 50Ω common modeStandard version1 A2 A 4 A6 A10 AMedical version (M5)1 A2 A 4 A 6 A10 AAll VariantsPackaging unit 10 Pcs Required AccessoryDescriptionFusedrawer 3Fusedrawer for Fuse Links 5x20 mm resp. 6.3x32 mmFingergrip, 5 x 20, 2-pole, Voltage Selector4303.2014.00 Fingergrip, 5 x 20, 2-pole, Voltage Selector, 100, 120, 220, 2404303.2014.01 Fingergrip, 5 x 20, 2-pole, Voltage Selector, 110, 150, 2204303.2014.02 Fingergrip, 5 x 20, 2-pole, Voltage Selector, 110, 2204303.2014.03...5AccessoriesWire HarnessWire harness for SCHURTER products Assorted CoversRear Cover0859.0077Cord retaining kitsCord retaining strain reliefFlat head, A4700.0001Mating Outlets/ConnectorsCategory / DescriptionAppliance Outlet Overview completeIEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal4787IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal4788IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal5091Appliance Outlet further types to CDConnector Overview complete4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C1347824022 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C1340224785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C1347854300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C134300-064012 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C134012Connector further types to CD...Mating Outlets/Connectors shutteredPower Cord Overview completeVAC13KS, Overview, diverse Connector IEC C13, cord end:VAC13KSPower Cord further types to CDThe specifications, descriptions and illustrations indicated in this document are based on currentinformation. All content is subject to modifications and amendments. Information furnished is believed2.12.2176。

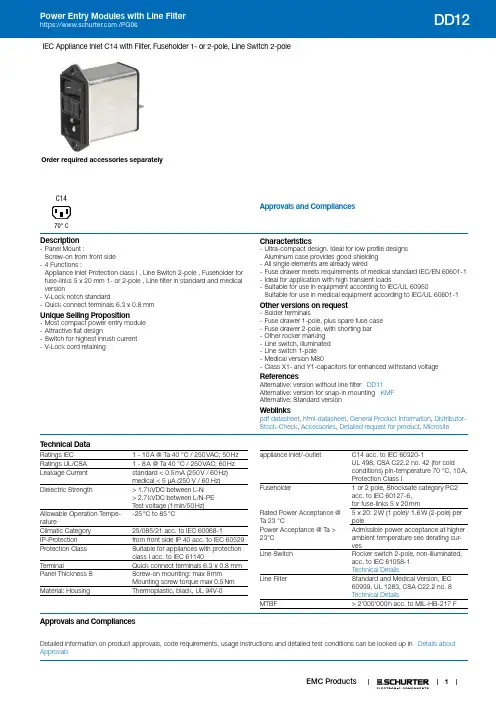

1IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, Line Switch 2-poleOrder required accessories separatelyApprovals and CompliancesC1470° CDescription- Panel Mount :Screw-on from front side - 4 Functions :Appliance Inlet Protection class I , Line Switch 2-pole , Fuseholder for fuse-links 5 x 20 mm 1- or 2-pole , Line filter in standard and medical version- V-Lock notch standard- Quick connect terminals 6.3 x 0.8 mmUnique Selling Proposition- Most compact power entry module - Attractive flat design- Switch for highest inrush current - V-Lock cord retainingCharacteristics- Ultra-compact design. Ideal for low profile designs Aluminum case provides good shielding - All single elements are already wired- Fuse drawer meets requirements of medical standard IEC/EN 60601-1- Ideal for application with high transient loads- Suitable for use in equipment according to IEC/UL 60950Suitable for use in medical equipment according to IEC/UL 60601-1Other versions on request- Solder terminals- Fuse drawer 1-pole, plus spare fuse case - Fuse drawer 2-pole, with shorting bar - Other rocker marking - Line switch, illuminated - Line switch 1-pole - Medical version M80- Class X1- and Y1-capacitors for enhanced withstand voltageReferencesAlternative: version without line filter DD11 Alternative: version for snap-in mounting KMF Alternative: Standard versionWeblinkspdf datasheet , html-datasheet , General Product Information , Distributor-Stock-Check , Accessories , Detailed request for product , MicrositeT echnical DataRatings IEC1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz Ratings UL/CSA 1 - 8 A @ Ta 40 °C / 250 VAC; 60 Hz Leakage Current standard < 0.5 mA (250 V / 60 Hz) medical < 5 µA (250 V / 60 Hz)Dielectric Strength> 1.7 kVDC between L-N > 2.7 kVDC between L/N-PE Test voltage (1 min/50 Hz)Allowable Operation Tempe-rature-25 °C to 85 °CClimatic Category 25/085/21 acc. to IEC 60068-1IP-Protection from front side IP 40 acc. to IEC 60529Protection Class Suitable for appliances with protection class I acc. to IEC 61140TerminalQuick connect terminals 6.3 x 0.8 mm Panel Thickness S Screw-on mounting: max 8 mm Mounting screw torque max 0.5 Nm Material: HousingThermoplastic, black, UL 94V-0appliance inlet/-outletC14 acc. to IEC 60320-1UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class IFuseholder1 or2 pole, Shocksafe category PC2 acc. to IEC 60127-6, for fuse-links 5 x 20 mmRated Power Acceptance @ Ta 23 °C5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per polePower Acceptance @ Ta > 23°C Admissible power acceptance at higher ambient temperature see derating cur-vesLine SwitchRocker switch 2-pole, non-illuminated, acc. to IEC 61058-1 Technical DetailsLine FilterStandard and Medical Version, IEC 60939, UL 1283, CSA C22.2 no. 8 Technical DetailsMTBF> 2'000'000 h acc. to MIL-HB-217 FApprovals and CompliancesDetailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about ApprovalsApprovalsThe approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products. Approval Reference T ype: DD12Approval Logo Certificates Certification Body DescriptionVDE Approvals VDE Certificate Number: 40001522UL Approvals UL UL File Number: E72928Product standardsProduct standards that are referencedOrganization Design StandardDescriptionDesigned according to IEC 60320-1Appliance couplers for household and similar general purposesDesigned according to IEC 60939Passive filters for suppressing electromagnetic interferenceDesigned according to IEC 60127-6Miniature fuses. Part 6. Fuse-holders for miniature fuse-linksDesigned according to IEC 61058-1Switches for appliances. Part 1. General requirements Designed according to UL 498Standard for Attachment Plugs and ReceptaclesDesigned according to UL 1283Electromagnetic interference filtersDesigned according to CSA C22.2 no. 42General Use Receptacles, Attachment Plugs, and Similar Wiring DevicesDesigned according to CSA C22.2 no. 8Electromagnetic interference (EMI) filters Application standardsApplication standards where the product can be usedOrganization Design StandardDescriptionDesigned for applications acc.IEC/UL 60950IEC 60950-1 includes the basic requirements for the safety of informationtechnologyequipment.Designed for applications acc.IEC 60601-1Medical electrical equipment - Part 1: General requirements for basicsafety and essential performanceDesigned for applications acc.IEC 60335-1Safety of electrical appliances for household and similar purposes. Meetsthe requirements for appliances in unattended use. This includes the en-hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13. CompliancesThe product complies with following Guide LinesIdentification Details Initiator DescriptionCE declaration of conformity SCHURTER AG The CE marking declares that the product complies with the applicablerequirements laid down in the harmonisation of Community legislation onits affixing in accordance with EU Regulation 765/2008.RoHS SCHURTER AG EU Directive RoHS 2011/65/EUChina RoHS SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March2007. It is similar to the EU directive RoHS.REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as"REACH") entered into force.MicrositeV-Lock SCHURTER AG V-Lock system are based on a matching plug-dose combination. Theconnector is equipped with a notch intended for use with the latchingcordset. The cord latching system prevents against accidental removal ofthe cordset.Medical Equipment SCHURTER AG Suitable for use in medical equipment according to IEC/UL 60601-12Dimension [mm]Screw version34Diagrams Standard version non-illuminatedL PEL’PE’N’1)2)1) Line 2) LoadMedical version M5 non-illuminatedLPE L’PE’N’1)2)1) Line 2) LoadDerating Curves 1-poleA d m i s s i b l e p o w e r a c c e p t a n c e i n W a t tAmbient air temperature T a °C 2-poleA d m i s s i b l e p o w e r a c c ep ta n c ein W at tAmbient air temperature T a °CAttenuation Loss- - - - 50Ω differential mode _____ 50Ω common modeStandard version1 A2 A 4 A 6 A8 A 10 A5Medical version (M5)1 A2 A4 A6 A8 A10 AAll VariantsPackaging unit 20 PcsRequired AccessoryDescriptionFusedrawer 2Fusedrawer für Fuse Links 5x20 mm, with or without Voltage Selector InsertFingergrip, 2-pole4301.1401Extra-Safe, 2-pole4301.1403Fingergrip, 1-pole4301.1405 Extra-Safe, 1-pole4301.1407...AccessoriesWire HarnessWire harness for SCHURTER productsAssorted CoversRear Cover0859.0076 Cord retaining kitsCord retaining strain reliefFlat head, A4700.0001Mating Outlets/ConnectorsCategory / DescriptionAppliance Outlet Overview completeIEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal4787IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal4788IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal5091Appliance Outlet further types to DD12Connector Overview complete4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C1347824022 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C1340224785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C1347854300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C134300-064012 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C134012Connector further types to DD12...67Mating Outlets/Connectors shutteredPower Cord Overview completeVAC13KS, Overview, diverse Connector IEC C13, cord end:VAC13KSPower Cord further types to DD12The specifications, descriptions and illustrations indicated in this document are based on currentinformation. All content is subject to modifications and amendments. Information furnished is believed 02.12.2017。

通合充电模块2.1.1 三相输入模块简介三相输入系列智能型高频开关电源模块，是电力电源最主要的配置模块，同时也是我公司推出的第三代产品，是专门为电力系统设计，具有“四遥”功能的高频开关电源，模块采用世界领先的“谐振电压型双环控制的谐振开关电源” 技术，生产出来的模块具有体积小、重量轻、效率高、空载损耗小、可靠性高等优点。

产品包括220V 和110V 两大系列，十多个品种，配有标准RS-485接口，易于与自动化系统对接，适用于各种容量的直流系统。

型号说明TH系列号 3：代表第三代产品产品系列 三相输入充电模块产品主要型号如表2-1所示。

表2-1 三相输入充电模块产品型号额定输出电流值：5A 、7A 、10A 、20A 、30A 、40A 模块类别：D 代表电力用模块 直流额定输出电压等级230为标称电压220V 电力模块; 110为标称电压110V 电力模块 ZZ ：自冷智能型模块；NZ ：风冷智能型模块 TH 为“通合电子”的缩写2.1.2 模块主要特点●采用全程软开关技术，效率高，空载功耗小，体积小。

●交流输入内置符合安规的保险管。

●直流输出内置二极管，可以不增加额外措施实现热插拔。

同类其他没有内置二极管的产品，用户需要额外在直流屏上增加二极管散热片，接线繁琐。

●采用“三相无源功率因数校正电路”，输入无中线，功率因数可达0.94。

●采用隔离自主均流，并机不均流度＜±3%，可保证二十台以上模块良好并机。

●模块具有RS-485接口，方便接入自动化系统进行通信。

●输出过压保护：内置过压保护电路，出现过压后模块自动锁死，模块故障指示灯亮，故障模块自动退出工作，不影响整个系统正常运行；过压保护点：220V模块为320V±5% ，110V模块为160V±5% 。

●输出限流保护：每个模块输出电流最大限制为额定输出电流的1.05倍。

●短路保护：采用回缩下垂限流方式，模块电流输出特性如图2-1，输出短路时模块在瞬间把输出电压拉低到零，限制短路电流在额定输出电流的15％以下。

奥特迅直流系统后台通讯帮助(后附规约)一，通讯与后台1,此规约适用于JKQ-3000A(B, BM)系列监控器。

2,JKQ-3000A(B, BM)系列监控器COM1为默认后台通讯口，COM2-COM6 亦可作为后台通讯口。

COM1支持RS485,RS232,RS422COM2-COM6仅支持RS485若COM1 口通讯质量不理想，可用COM2-COM6中空闲的端口通讯后台。

若COM1 口通讯质量不理想，其他端口亦被使用，请致电我司。

COM1 口接线方法：COM1作为后台通讯端口的参数设置如下：直流系统的运行参数不宜随意修改，若设置不当会造成系统的不正常运行或不能在最佳状态下运行，请注意！!！主菜单＞2 ＞参数设置主菜单下按“ 2” :请输入设置密码:返回密码为5位数字，若输入密码正确，按“确认”键则进入参数设置页, 否则返回上一屏：注意：密码可以修改，出厂时为“ 1111T参数设置1母线电压2输入保护3电池参数4充电机返回5绝缘设置6其它参数设置〉6＞其它〉2＞通讯设置可进行监控器通讯端口参数的设置通讯端口：01 t用键修改通讯协议：10本机地址：001…•…地址需分配上位地址：016•……一般不需改动测试返回下页波特率：1200BPS ...（推荐值）停止位：01位奇偶位：无校验通讯方式：RS485••…（可转换RS232）右侧方向键区左、右键和更改数值上图为JKQ-3000B（BM）监控器画面，JKQ-3000A监控器需翻下页显示。

COM2--COM6作为后台通讯端口的参数设置如下:以COM2为例:3,后台机设置建议：1）指令下发周期建议设置为4-8秒，波特率推荐1200 BPS!2）我司监控器内本位机地址、上位机地址均为十进制数据。

3）如有两台以上监控器（包括两台）与后台机通讯，请为每台监控器单独铺设通讯电缆!!!4）如需上传电池巡检仪单只电池电压数据、支路绝缘数据，后台机请合适设置数据长度限制。

奥特迅直流系统后台通讯帮助（后附规约）一，通讯与后台1，此规约适用于JKQ-3000A(B，BM)系列监控器。

2，JKQ-3000A(B，BM)系列监控器COM1为默认后台通讯口，COM2-COM6亦可作为后台通讯口。

COM1支持RS485,RS232,RS422。

C0M2-COM6仅支持RS485。

若COM1口通讯质量不理想，可用COM2-COM6中空闲的端口通讯后台。

若COM1口通讯质量不理想，其他端口亦被使用，请致电我司。

COM1口接线方法：C0M2-COM6端口接线方法：COM1作为后台通讯端口的参数设置如下：直流系统的运行参数不宜随意修改，若设置不当会造成系统的不正常运行或不能在最佳状态下运行，请注意主菜单＞2＞参数设置主菜单下按“2”：密码为５位数字，若输入密码正确，按“确认”键则进入参数设置页，否则返回上一屏：注意：密码可以修改，出厂时为“11111”。

参数设置＞6＞其它＞2＞通讯设置可进行监控器通讯端口参数的设置上图为JKQ-3000B(BM)监控器画面，JKQ-3000A监控器需翻下页显示。

COM2--COM6作为后台通讯端口的参数设置如下：以COM2为例：3，后台机设置建议：1）指令下发周期建议设置为4-8秒，波特率推荐1200 BPS2）我司监控器内本位机地址、上位机地址均为十进制数据。

3）如有两台以上监控器（包括两台）与后台机通讯，请为每台监控器单独铺设通讯电缆4）如需上传电池巡检仪单只电池电压数据、支路绝缘数据，后台机请合适设置数据长度限制。

此时上传数据量大5）我公司直流系统上传数据全面，具体遥测，遥信数据需根据现场情况确定。

建议遥测点跟JKQ监控器画面显示一致。

例如主界面显示合母一段：243.0 V控母一段：223.0 V 021.0 A蓄电池一：243.0 V 00.12 A充电机一：243.0 V 21.12 A合母二段：243.0 V控母二段：223.0 V 016.0 A 蓄电池二：243.0 V 00.12 A 充电机二：243.0 V 16.50 A 菜单下页下页下页系统状态：正常表计状态：正常蓄电池一：浮充/充电蓄电池二：浮充/充电09/12/03 23:30:00 上页菜单下页下页后台遥测就要包括以上显示项目。

一直流电源概述奥特迅GZDW系列直流电源柜,适用于大中小型发电厂、变电所,作为高压断路器直流操作机构的分、合闸、继电保护、自动装置、信号装置等使用的操作电源及事故照明和控制用直流电源。

各项性能指标达到并超过DL/T459-2000标准。

1.型号命名GZDW一口/口口/口---充电机组数×充电机额定输出电流/直流标称电压(V)G---电源柜Z---直流电源W---微机控制D---电力系统用2.正常使用条件户内使用,设备运行的周围空气温度不低于-10℃,不高于+40℃,在设备停用期间,周围空气温度不低于-25℃,不高于+55℃；日平均相对湿度不超过95%,月平均相对湿度不大于90%；运行地点无导电或爆炸尘埃,无腐蚀金属和破坏绝缘的气体或蒸汽；交流输入电压波形为正弦,电压波动范围不超过额定值的±20%；交流输入频率波动范围不超过额定值的50HZ±10%。

3.主要技术指标二系统构成及工作原理：电力操作电源系统主要由交流配电单元，充电模块，直流馈电，集中监控单元，绝缘监测单元和蓄电池等部分组成，图1为整个系统的构成原理框图：图 1 系统原理框图1.单路交流检测回路单路交流检测回路由交流状态监测单元实现如图2。

图 2 交流检测回路原理图正常运行时,三相交流电处于相对平衡的状态,三相交流电中心点与零线之间无电势差,内部继电器J1不动作,交流故障监测单元内的告警继电器J3的线图通过J1的常闭接点接于零线与火线间,同时LED发光管点亮,指示交流电源正常。

当交流任一相发生缺相或三相严重不平衡时,三相交流电中心点与零线之间产生电势差,内部继电器Jl得电动作,其常闭接点断开,使得内部继电器J3线图失电,J3常闭接点闭合,发出故障告警信号,同时LED熄灭,指示交流电源故障。

2．防雷保护电路雷击分为直击雷和感应雷两种,线路直接适雷击时,电缆中流过很大电流,同时引起数千伏的过电压直接加到线路装直和电源设备上,持续时间达若干微秒,直接危害用电设备。
