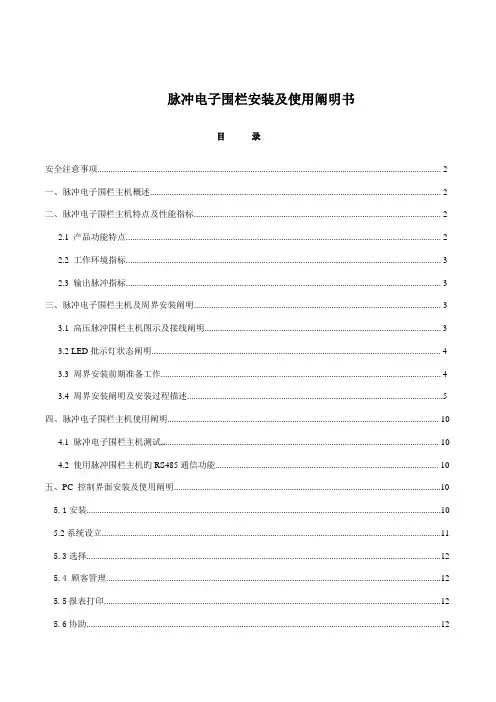

脉冲电子围栏安装及使用阐明书目录安全注意事项 (2)一、脉冲电子围栏主机概述 (2)二、脉冲电子围栏主机特点及性能指标 (2)2.1 产品功能特点 (2)2.2 工作环境指标 (3)2.3 输出脉冲指标 (3)三、脉冲电子围栏主机及周界安装阐明 (3)3.1 高压脉冲围栏主机图示及接线阐明 (3)3.2 LED批示灯状态阐明 (4)3.3 周界安装前期准备工作 (4)3.4 周界安装阐明及安装过程描述 (5)四、脉冲电子围栏主机使用阐明 (10)4.1 脉冲电子围栏主机测试 (10)4.2 使用脉冲围栏主机旳RS485通信功能 (10)五、PC 控制界面安装及使用阐明 (10)5.1安装 (10)5.2系统设立 (11)5.3选择 (12)5.4 顾客管理 (12)5.5报表打印 (12)5.6协助 (12)5.7 主界面 (12)六、键盘使用阐明 (13)6.1 键盘内部接线图 (13)6.2 键盘开机与关机 (13)6.3 按键阐明 (13)6.4 通过界面设立围栏及本键盘参数旳操作 (14)6.5 关闭窗口轮询 (15)6.6 键盘告警阐明 (15)6.7报警记录 (15)七、施工安装规范及安全注意事项 (15)7.1施工安装规范 (15)7.2施工中应注意旳其她问题 (15)尊敬旳客户:您好！感谢您使用本产品，为了更好更快旳安装及使用本产品，请在使用前认真仔细地阅读本手册。

脉冲电子围栏系统涉及脉冲电子围栏主机以及对其控制旳PC 主机、键盘主机, 本手册针对脉冲电子围栏主机合用，如是您有任何技术问题或需要技术支持，请拨我司服务电话: 。

安全注意事项◆除非电子围栏已解除高/低压输出，否则切勿触摸系统导体部分。

◆切勿在雷电期间安装电子围栏。

切勿将控制器直接安装于潮湿场合。

◆在安装使用本产品之前，对工作人员应预先作好安全教育技术培训。

◆安装本产品过程中，为了产品后来旳正常使用，产品旳接地一定要严格按照阐明书规定。

深圳市华俊信科技有限公司电子围栏说明书●使用前请仔细阅读本说明书●本说明书适用于电子围栏主机系列产品●本说明书包含服务指南，请务必妥善保管目录第一章产品介绍.................................................................................................................................................... - 1 -1.1产品设计依据............................................................................................................................................ - 1 -1.2产品特性.................................................................................................................................................... - 1 -1.3产品技术参数............................................................................................................................................ - 2 -1.4 LED/LCD指示灯状态说明...................................................................................................................... - 2 -1.5控制器主机正面、底部接线说明示意图................................................................................................ - 3 -1.6控制器主机功能端接线说明（见上图）................................................................................................ - 5 -1.7主机前段施工示意图................................................................................................................................ - 6 - 第二章主机调试与报警试验................................................................................................................................ - 8 -2.1通电检查.................................................................................................................................................... - 8 -2.2报警试验.................................................................................................................................................... - 8 - 第三章使用与维护................................................................................................................................................ - 9 -3.1 检查........................................................................................................................................................... - 9 -3.2 蓄电池管理............................................................................................................................................... - 9 -3.3 常见问题处理........................................................................................................................................... - 9 -3.4 注意事项................................................................................................................................................... - 9 -3.5使用.......................................................................................................................................................... - 10 -3.6 日常维护................................................................................................................................................. - 10 -第一章产品介绍1.1产品设计依据GB/T7946-2008《脉冲电子围栏及其安装和安全运行》JB/T5163-2007《中华人民共和国机械行业标准》1.2产品特性电子围栏系统，就是在非出入通道的周边区域设置脉冲电子围栏探测器，形成一道电子围墙进行防范和管理。

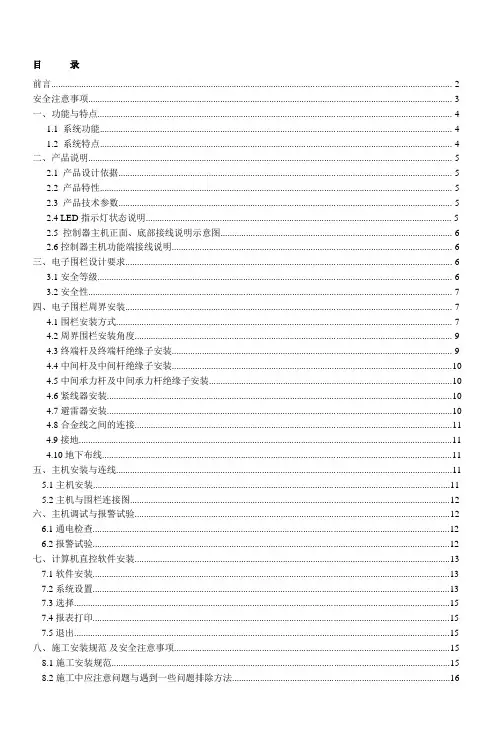

目录前言 (2)安全注意事项 (3)一、功能与特点 (4)1.1 系统功能 (4)1.2 系统特点 (4)二、产品说明 (5)2.1 产品设计依据 (5)2.2 产品特性 (5)2.3 产品技术参数 (5)2.4 LED指示灯状态说明 (5)2.5 控制器主机正面、底部接线说明示意图 (6)2.6控制器主机功能端接线说明 (6)三、电子围栏设计要求 (6)3.1安全等级 (6)3.2安全性 (7)四、电子围栏周界安装 (7)4.1围栏安装方式 (7)4.2周界围栏安装角度 (9)4.3终端杆及终端杆绝缘子安装 (9)4.4中间杆及中间杆绝缘子安装 (10)4.5中间承力杆及中间承力杆绝缘子安装 (10)4.6紧线器安装 (10)4.7避雷器安装 (10)4.8合金线之间的连接 (11)4.9接地 (11)4.10地下布线 (11)五、主机安装与连线 (11)5.1主机安装 (11)5.2主机与围栏连接图 (12)六、主机调试与报警试验 (12)6.1通电检查 (12)6.2报警试验 (12)七、计算机直控软件安装 (13)7.1软件安装 (13)7.2系统设置 (13)7.3选择 (15)7.4报表打印 (15)7.5退出 (15)八、施工安装规范及安全注意事项 (15)8.1施工安装规范 (15)8.2施工中应注意问题与遇到一些问题排除方法 (16)前言深圳市兰星科技有限公司是一家从事“周界安全防范系统”的研发、生产、及销售的专业公司。

公司始终遵循“用心做好每一件事”的原则，以优质的产品和热忱的服务回报广大国内外用户的长期支持与信赖。

专业的研发团队不断跟踪国内外行业发展动向，根据客户要求开发市场需求的产品。

专业配套的高压产品生产线、测试平台及专业培训的技术队务确保每一台产品均为优质产品。

公司自主研发、生产的脉冲电子围栏主机及周界配件不但符合GB/T7946-2008《脉冲电子围栏及其安装和安全运行》的要求而且满足CEI-61011国际电围栏标准。

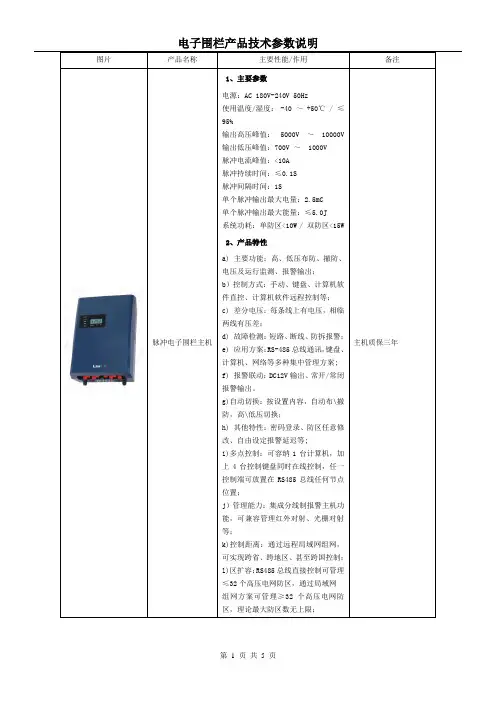

脉冲电子围栏主机1、主要参数电源：AC 180V-240V 50Hz使用温度/湿度： -40 ～ +50℃ / ≤95%输出高压峰值： 5000V ～ 10000V输出低压峰值：700V ～ 1000V脉冲电流峰值：<10A脉冲持续时间：≤0.1S脉冲间隔时间：1S单个脉冲输出最大电量：2.5mC单个脉冲输出最大能量：≤5.0J系统功耗：单防区<10W / 双防区<15W2、产品特性a) 主要功能：高、低压布防、撤防、电压及运行监测、报警输出；b）控制方式：手动、键盘、计算机软件直控、计算机软件远程控制等；c) 差分电压：每条线上有电压，相临两线有压差；d) 故障检测：短路、断线、防拆报警；e) 应用方案：RS-485总线通讯，键盘、计算机、网络等多种集中管理方案;f) 报警联动：DC12V输出、常开/常闭报警输出。

g)自动切换：按设置内容，自动布\撤防，高\低压切换；h) 其他特性：密码登录、防区任意修改、自由设定报警延迟等;i)多点控制：可容纳1台计算机，加上4台控制键盘同时在线控制，任一控制端可放置在RS485总线任何节点位置；j）管理能力：集成分线制报警主机功能，可兼容管理红外对射、光栅对射等；k)控制距离：通过远程局域网组网，可实现跨省、跨地区、甚至跨国控制；l)区扩容：RS485总线直接控制可管理≤32个高压电网防区，通过局域网组网方案可管理≥32个高压电网防区，理论最大防区数无上限；主机质保三年控制键盘a）多控制端联机控制功能，最多可以有4个控制键盘或者一台PC + 4个控制键盘联机（误区：勿将键盘称为键盘主机）；b）最多可控制32个防区；c）修改防区号时可以读出旧防区；d）报警延迟可以设置为：快、正常、慢三种状态；e）可设置警号延迟为 1-9分钟；f）可设置两路定时布撤防功能；g）一键快速布撤防功能，并且可以开启快速布撤防密码；h）无线遥控功能，可学习最多两个无线遥控器多点控制直型铝合金终端杆直型终端杆安装在前端围栏防区的开始、未端、拐角角度小于120°位置设置一根，主要用于承受拉力。

电子围栏键盘简易说明书第一章产品介绍电子围栏键盘功能简介：电子围栏键盘是电子围栏系统的控制设备，可以对系统进行设置、布撤防、查询等操作，是操作电子围栏系统的方式之一，其主要功能如下：1、键盘可以同时和电脑软件共同使用，来控制电子围栏系统，整个系统里可以接多个键盘；2、键盘有一个联动485接口，可以连接联动模块，能够把前端的个电子围栏主机一一对应的和一个联动输出口对应起来。

3、键盘具有报警联动输出口，可以接警号或其它联动设备；4、键盘有6个LED指示灯：分别为电源指示灯、布防指示灯、撤防指示灯、准备指示灯、通讯指示灯、报警指示灯；5、键盘上的四个大按键的功能为：左右两个为高压组输出、低压组输出，上下两个白天模式、夜晚模式（在查询时为上翻、下翻键）；6、键盘具有搜索设备、更改设备ID的功能；7、键盘具有按组布防、全部布防、撤防、查询等功能，可以查看每一台设备的输出高压、布撤防状态、电池状态、防拆状态等系统状态情况；8、系统设备出现异常或报警时，能显示异常设备的ID号、异常情况，报警时能显示报警类型（比如短路、断线、对地、防拆报警等）；9、键盘具有设置分键盘的功能，只能单独控制某一组别的功能（比如第二个键盘只能控制第三组别的设备，其它组别设备，该键盘无权操作）；第二章键盘的日常操作与参数设置键盘的使用当键盘按正确接法（458信号线接入A1、B1）接入电子围栏系统时，会显示“设备列表为空”，所以首先要在键盘上先搜索系统的设备，有设备后，才能进行布防、撤防、设置等操作，键盘默认为主机盘、默认管理第1组设备（搜索到的设备默认为第1组设备）；1、搜索设备：在撤防状态下，按*键，按下翻键选择“请输入工程密码”界面，输入工程密码（默认工程密码999999）按“#”键确认，按下翻键选择“电子围栏管理”项，按“#”键确认，按下翻键选择“设备管理”项，按“#”键确认，选择“搜索新设备”项，按“#”键确认，就可以搜索到系统里所接的设备了，按返回键退出设置菜单；2、系统布防：按“在家按键”或“外出按键”后输入用户密码（默认用户密码111111），按“#”键确认，会对系统进行按组布防或全部布防。

电子围栏系统日常操作说明
一、系统开启及关闭：
1、确认主控制器220v电源总开关已开启。

2、确认各防区电子围栏控制器处于开启状态：即需到机箱位置处检查控制器
工作状态。

系统主控制器开启时，左起第一个黑色拨钮置于“ON”，控制
器发出有规律的“嗒、嗒”的响声，此时表明系统处于正常工作状态。

3、确认电子围栏控制器处于关闭状态：系统主控制器关闭时，左起第一个黑
色拨钮置于“OFF”，控制器没有发出有规律的“嗒、嗒”的响声，此时表
明系统处于关闭状态，这时各防区的导线上是不带电的。

二、系统报警的常规处理方法：
查看报警防区的周界情况：系统报警时，首先应查看系统机箱外部防区指示灯的报警情况（即确认哪个防区报警）；然后通知相关工作人员查看报警防区的周界情况。

三、系统的日常维护及注意事项：
1、每隔一段时间应对各防区进行一次检查：一是检查周界上是否有短路情况
（相邻两根能量传导线上搭有导电物质），二是检查周界上是否有传导线断
线或接地情况（任意一根能量传导线断线或有接地点）。

一旦发现，可用一
根干燥的木棍或其他绝缘体去拨动出现打火的能量传导线，将其和导体拨
离即可。

2、每隔一段时间应对各防区进行一次常规报警测试：测试时只需用高压绝缘
导线将每个防区的任意相邻两根能量传导线短路3S以上，此时报警灯发出
声光提示，各防区指示灯正确指示，即可结束测试。

测试时应注意：测试
导线必须是良好的导体；测试时要与能量传导线接触良好，不能虚接。

3、控制器最好每月停电做表面清洁一次。

4、电子围栏两侧的树枝应及时清除，保持应有的空间，以免刮风时树枝撞击
导线而引起短路，发生误报警。

Learn more about fencing by visiting our websites at: FOR OPTIMAL RESULTS, WE RECOMMEND YOU HAVE THE FOLLOWING:1. Electric Fence Tester 2. Three 6-8’ Ground Rods3. Battery Tester (For DC and Solar)4. Three Ground Rod Clamps5. 2 Two Lengths 20 KV Insulated Hook-up Wire (one long enough to connect to fence energizer to ground system and one long enough to fence energizer to fence line)WARNING: THE FOLLOWING CAN RESULT IN DECREASED FENCE PERFORMANCE1. Brush, weed and plant growth around the base of your fence.2. Improper grounding.3. Snow.4. Cracked or broken insulators.5. Fence wires that are less than 4” apart.6. Dry, rocky or sandy soils.7. Insu ciently charged battery.☐WARNING: Read ALL these instructions. Only use electric fence energizer products for the purpose intended as de ned in this manual.☐This controller must be grounded. If it should malfunction or break down, grounding reduces the risk of electrical shock by providing a path of low resistance for the electric current. Grounding this product is provided by properly installed ground rod electrically connected to the fence controller output ground terminal.☐To reduce the risk of electric shock, an AC line operated fence controller has an polarized plug (one blade wider than the other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a quali ed electrician to installthe proper outlet. Do not change the plug in any way.☐To reduce risk of electrical shock do not remove cover. Refer to service personnel.☐Never electrify barbed wire! The barbs may injure animals if they become tangled in the fence.☐Always disconnect battery-powered fence controllers from the battery before recharging the battery. Failure to do so may damage your fence controller and battery charger, and void your warranty.☐Never run more than on fence controller on the same fence line at one time. The pulses of short shock solid state fence controllers will be too close together and may be hazardous to animals and people. It will also damage your fence controllers.☐Instruct all persons how to disconnect a fence controller in case of emergency. Post signs on electric fences along public roads or near residences.☐Never disconnect wires or approach a fence during lightning storms.☐WARNING: Risk of electric shock! Do not connect an eletric fence to any other device such as a cattle trainer or a poultry trainer. Otherwise lightning striking your fence will be conducted to all other devices.☐Never connect a DC fence to an AC power supply.☐WARNING: Energizers requiring an external ground must be properly grounded.☐WARNING: Many AC energizers are internally grounded and are equipped with polarized 2 prong plugs. These plugs must never be altered and must be inserted into a properly installed, appropriate outlet. Only use a polarized extension cord. Damaged polarized plugs must be replaced with polarizedplugs. failure to follow this warning could create a safety hazard, damage the energizer, and void the warranty.☐Install fence lines powered by seperate fence energizers far enough apart to prevent contact with both fence lines at the same time. Simultaneously touching two fences powered by seperate energizers could be hazardous.☐Install fence lines powered by seperate fence energizers far enough apart to prevent contact with both fence lines at the same time. Simultaneously touching two fences powered by seperate energizers could be hazardous.☐In a double-insulated energizer, two systems of insulation are provided instead of grounding. No means of equipment ground is provided in the supply cord of a double-insulated energizer, nor shoulda means for equipment grounding be added to the energizer. Servicing of a double-insulatedenergizer requires extreme care and knowledge of the system, and should be done only by a serive personnel. Replacement parts for a double-insulated energizer must be identical to the parts they replace.IMPORTANT: Mount inside or in a waterproof enclosure (Required for AC Energizers)AC/DC Inside installationSheltered InstallationInstallationSolar T-Post Installation (applicable for speci c models)Solar Wood Post Installation (applicable for speci c models)Solar Wood Post InstallationSTEP 4: Connect to Fence LinePoly tape connectionAluminum/Steel/Poly wire connectionSTEP 5: Power Fence EnergizerNOTE: Fence energizer will be outputting voltage at this point - to avoid shock do not touch fence terminal orWoodstream gaurantees your satisfaction. You can return product with it receipt to the place of purchase within 30 days for a full refund. Proof of purchase is required for a full refund.LIMITED WARRANTYWoodstream warrants energizers based on their milage rating from the date of purchase (or date of manufacture if proof of purchase is not provided) against defects in materials and workmanship, and from damage caused by lightning. Visit our website at www. to learn more about the warranty that applies to the speci c energizer purchased.For any sized energizer, retain your receipt for proof of purchase or register your energizer online at immediately after purchase. Also, please reference the web page for a list ofCerti ed Repair Centers and instructions on returning fence controllers for service.TERMS APPLICABLE TO BOTH 30-DAY RETURN POLICY AND THE LIMITED WARRANTY. Neither the30-day return policy nor the limited warranty applies to any defect caused by improper installation,misuse, product alterations, tampering, neglect or any similar reason not related to product malfunctionsor defects in the materials or workmanship of the product. The 30-day return policy and the limited warranties are given only to the original purchaser of the product and not to any subsequent owners orto any other user or person when installed and used in accordance with the instructions found in theowner’s manual. No person is authorized to grant any warranty additional to or di erent from thiswritten warranty.To make a warranty claim, you must contact Woodstream Corp. at 800-800-1819 or regarding defective product or parts during the warranty period or contact one of the Certi ed Repair Centers listed on If you have not registered your energizer online immediately after purchase, you may need to provide additional information such as, your name, mailing address, proof of purchase date and a description ofthe problem. If the defect is covered by the limited warranty, Woodstream Corp. or a repair center willrepair or replace (at its option) the defective product or parts.NEITHER THE SELLER NOR THE MANUFACTURE SHALL HAVE LIABILITY FOR ANY ACCIDENTIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM OR CAUSED BY ANY DEFECT, FAILURE OR MALFUNCTION OF ANY PRODUCT.Part # EC-ENGMANUALSERIAL NUMBER INFORMATIONThe serial number for all Woodstream Corp. fence energizers will go to a 12 digit serial number. The format for the 12 digit serial number is as follows:EC XX XX XX XXXXCategory Year Month Day Serial numberIf no sales receipt is provided with the return, we will use the date of manufacture shown in the serial number.Please contact Woodstream Corp. for all warranty claims or returns:Woodstream Corp.69 North Locust Street Lititz, PA 17543855-592-7322LIMITATION OF DAMAGESThe directions for use of this product should be followed carefully. It is impossible to eliminate all risk inherently associated with use of the product. The e ectiveness of Woodstream brands of fence controllers may depend on the e ectiveness of connections, interruption of power source, accidential grounding of wires, weatherconditions or the manner of use or application, all of which are beyond the control of Woodstream or the seller. All such risks shall be assumed by the buyer.Woodstream warrants that this product is reasonbly t for the purposes referred to in the directions for use, subject to the inherent risks referred to above. Woodstream makes no other expressed or implied warranty of tness or merchantability or any other expressed or implied warranty. IN NO CASE SHALL WOODSTREAM AND THE SELLER BE LIABLE FOR CONSEQUENTIAL, SPECIAL OR INDIRECT DAMAGES RESULTING FROM THE USE OR HANDLING OF THIS PRODUCT. WOODSTREAM AND THE SELLER OFFER THIS PRODUCT AND THE BUYER AND USER ACCEPT IT, SUBJECT TO THE FOREGOING CONDITIONS OF SALE AND WARRANTY WHICH MAY BE VARIED ONLY BY AGREEMENT IN WRITING SIGNED BY AN OFFICER OF WOODSTREAM.Some states, however, do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you speci c legal rights, and you may also have other rights which vary from state to state.。

深圳市华俊信科技有限公司电子围栏说明书●使用前请仔细阅读本说明书●本说明书适用于电子围栏主机系列产品●本说明书包含服务指南，请务必妥善保管目录第一章产品介绍.................................................................................................................................................... - 1 -1.1产品设计依据............................................................................................................................................ - 1 -1.2产品特性.................................................................................................................................................... - 1 -1.3产品技术参数............................................................................................................................................ - 2 -1.4 LED/LCD指示灯状态说明...................................................................................................................... - 2 -1.5控制器主机正面、底部接线说明示意图................................................................................................ - 3 -1.6控制器主机功能端接线说明（见上图）................................................................................................ - 5 -1.7主机前段施工示意图................................................................................................................................ - 6 - 第二章主机调试与报警试验................................................................................................................................ - 8 -2.1通电检查.................................................................................................................................................... - 8 -2.2报警试验.................................................................................................................................................... - 8 - 第三章使用与维护................................................................................................................................................ - 9 -3.1 检查........................................................................................................................................................... - 9 -3.2 蓄电池管理............................................................................................................................................... - 9 -3.3 常见问题处理........................................................................................................................................... - 9 -3.4 注意事项................................................................................................................................................... - 9 -3.5使用.......................................................................................................................................................... - 10 -3.6 日常维护................................................................................................................................................. - 10 -第一章产品介绍1.1产品设计依据GB/T7946-2008《脉冲电子围栏及其安装和安全运行》JB/T5163-2007《中华人民共和国机械行业标准》1.2产品特性电子围栏系统，就是在非出入通道的周边区域设置脉冲电子围栏探测器，形成一道电子围墙进行防范和管理。

电子围栏键盘控制器说明书型号：四线制键盘控制器目录电子围栏键盘控制器简介：...................................................................................................... - 1 -一、电子围栏键盘控制器的按键定义说明.............................................................................. - 1 -1.1、F1按键....................................................................................................................... - 1 -1.2、F2按键....................................................................................................................... - 1 -1.3、F3按键....................................................................................................................... - 1 -1.4、F4按键....................................................................................................................... - 2 -1.5、* 按键........................................................................................................................ - 2 -1.6、# 按键........................................................................................................................ - 2 -1.7、0～9 数字按键.......................................................................................................... - 2 -二、电子围栏键盘控制器的开机和关机.................................................................................. - 2 -2.1、开机............................................................................................................................ - 2 -2.2、关机............................................................................................................................ - 2 -三、电子围栏键盘的各个界面的说明...................................................................................... - 2 -3.1、‘开机状态界面’.................................................................................................... - 2 -3.2、‘输入密码界面’.................................................................................................... - 3 -3.3、 7个一级菜单的界面............................................................................................... - 3 -3.4、‘查看防区状态界面’............................................................................................ - 4 -3.5、‘查看报警信息界面’............................................................................................ - 5 -3.6、‘围栏与PC通信中界面’...................................................................................... - 5 -四、电子围栏键盘控制器的其他几个特别的说明.................................................................. - 5 -4.1、键盘告警说明............................................................................................................ - 5 -4.2、报警信息提示说明.................................................................................................... - 6 -4.3、液晶背光说明............................................................................................................ - 6 -五、电子围栏键盘控制器的10孔接头说明............................................................................ - 6 -电子围栏键盘控制器简介：本键盘控制器具有以下的优点：●界面友好，人性化操作；●具有密码登录功能，安全可靠，同时还可以对密码进行修改；●通过RS485总线对1～16路电子围栏主机进行全面控制；●可以任意设定围栏主机的防区号；●可以设定围栏主机的报警检测延时的时间；●可以设定整个系统的时间；●可以对全部或部分防区进行关闭、布防、撤防，各个防区高低压转换功能；●可以记录16条报警信息，报警信息详细明了（包括报警防区号，类别（短路、断路、防拆），报警时间）；●可以对各个防区的围栏主机进行报警复位；●可以循环显示已经打开的防区的状态信息（包括防区输出的实际电压值或者防区的报警状态）；●可以接PC机，由PC客户端软件来对各个防区进行控制；●具有12V的警号输出功能，报警的时间可以在1～9分钟自由设定；●轮巡一周的时间短，可以快速的反映防区状态以及报警信息；●有报警时，会自动的突出显示正在报警的信息；●智能关闭液晶背光，更节能省电；一、电子围栏键盘控制器的按键定义说明1.1、F1按键此按键有两种功能：①. 为“确认”按键。

兰星牧场电子围栏是怎么运行的？
随着天气越来越好，气温越来越高，国内畜牧业圈养改为放养，将牛、羊、猪等牲畜赶到山上，然后围上一圈栅栏，不让牲畜出去，也不让狼或者野猪等危险动物进来。

这就是牧场经常用到的电子围栏。

那么兰星牧场电子围栏系统是怎么运行的呢，今天给大家揭秘一下。

No.1主机原理
牧场能量控制器主机的原理是将DC 12V电通过逆变升压的方式输出12KV的脉冲电，原则上是不会对人体造成危险的。

No.2主机特点
● LX-P系列牧场能量控制器主机有多个型号，防区长度从4KM到40KM不等；
●带有断线、短路报警，可及时反馈至本机显示或用户终端；
●自带白天模式和黑夜模式，轻松应对客户需求；
●防护等级IP55，室外风雨丝毫不惧；
●实时脉冲电压显示，LED灯和显示屏双指示。

●报警灵敏度可调，可根据现场环境更改报警灵敏度。

No.3输出方式
输出到前端线网的方式有两种，分别是回路式和并联式，这两种的区别就是回路式带有断线报警，并联式就没有断线报警：
● 回路式
●并联式
针对不同的动物，前端线网的间隔也是不一样的，这里给大家一些参考间距：看完这些会用牧场电子围栏了么，（•ω•）不同的项目现场有不同的用法，这里只是最普遍的用法，想了解更多的话可以咨询兰星科技！。
