焊缝射线照相底片的评判规律一、探伤人员要评片,四项指标放在先*,底片标记齐又正,铅字压缝为废片。
二、评片开始第一件,先找四条熔合线,小口径管照椭圆,根部都在圈里面。
三、气孔形象最明显,中心浓黑边缘浅,夹渣属于非金属,杂乱无章有棱边。
四、咬边成线亦成点,似断似续常相见,这个缺陷最好定,位置就在熔合线。
五、未焊透是大缺陷,典型图象成直线,间隙太小钝边厚,投影部位*中间。
六、内凹只在仰焊面,间隙太大是关键,内凹未透要分清,内凹透度成弧线。
七、未熔合它斜又扁,常规透照难发现,它的位置有规律,都在坡口与层间。
八、横裂纵裂都危险,横裂多数在表面,纵裂分布范围广,中间稍宽两端尖。
九、还有一种冷裂纹,热影响区常发现,冷裂具有延迟性,焊完两天再拍片。
十、有了裂纹很危险,斩草除根保安全,裂纹不论长和短,全部都是Ⅳ级片。
十一、未熔和也很危险,黑度有深亦有浅,一旦判定就是它,亦是全部Ⅳ级片。
十二、危害缺陷未焊透,Ⅱ级焊缝不能有,管线根据深和长,容器跟着条渣走**。
十三、夹渣评定莫着忙,分清圆形和条状,长宽相比3为界,大于3倍是条状。
十四、气孔危害并不大,标准对它很宽大,长径折点套厚度,中间厚度插入法。
十五、多种缺陷大会合,分门别类先评级,2类相加减去Ⅰ,3类相加减Ⅱ级。
十六、评片要想快又准,下拜焊工当先生,要问诀窍有哪些,焊接工艺和投影。
注:*四项指标系底片的黑度、灵敏度、清晰度、灰雾度必须符合标准的要求。
**指单面焊的管线焊缝和双面焊的容器焊缝内未焊透的判定标准。
(感谢锅炉信息网锅炉论坛-dingf朋友提供)一、表面缺陷二、气孔三、加渣。

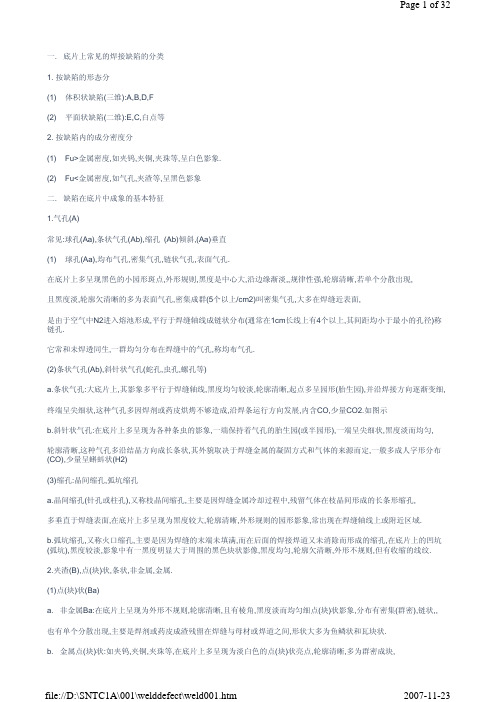

一. 底片上常见的焊接缺陷的分类1. 按缺陷的形态分(1) 体积状缺陷(三维):A,B,D,F(2) 平面状缺陷(二维):E,C,白点等2. 按缺陷内的成分密度分(1) Fu>金属密度,如夹钨,夹铜,夹珠等,呈白色影象.(2) Fu<金属密度,如气孔,夹渣等,呈黑色影象二. 缺陷在底片中成象的基本特征1.气孔(A)常见:球孔(Aa),条状气孔(Ab),缩孔 (Ab)倾斜,(Aa)垂直(1) 球孔(Aa),均布气孔,密集气孔,链状气孔,表面气孔.在底片上多呈现黑色的小园形斑点,外形规则,黑度是中心大,沿边缘渐淡,,规律性强,轮廓清晰,若单个分散出现,且黑度淡,轮廓欠清晰的多为表面气孔,密集成群(5个以上/cm2)叫密集气孔,大多在焊缝近表面,是由于空气中N2进入熔池形成,平行于焊缝轴线成链状分布(通常在1cm长线上有4个以上,其间距均小于最小的孔径)称链孔.它常和未焊透同生,一群均匀分布在焊缝中的气孔,称均布气孔.(2)条状气孔(Ab),斜针状气孔(蛇孔,虫孔,螺孔等)a.条状气孔:大底片上,其影象多平行于焊缝轴线,黑度均匀较淡,轮廓清晰,起点多呈园形(胎生园),并沿焊接方向逐渐变细,终端呈尖细状,这种气孔多因焊剂或药皮烘烤不够造成,沿焊条运行方向发展,内含CO,少量CO2.如图示b.斜针状气孔:在底片上多呈现为各种条虫的影象,一端保持着气孔的胎生园(或半园形),一端呈尖细状,黑度淡而均匀,轮廓清晰,这种气孔多沿结晶方向成长条状,其外貌取决于焊缝金属的凝固方式和气体的来源而定,一般多成人字形分布(CO),少量呈蝌蚪状(H2)(3)缩孔:晶间缩孔,弧坑缩孔a.晶间缩孔(针孔或柱孔),又称枝晶间缩孔,主要是因焊缝金属冷却过程中,残留气体在枝晶间形成的长条形缩孔,多垂直于焊缝表面,在底片上多呈现为黑度较大,轮廓清晰,外形规则的园形影象,常出现在焊缝轴线上或附近区域.b.弧坑缩孔,又称火口缩孔,主要是因为焊缝的末端未填满,而在后面的焊接焊道又未消除而形成的缩孔,在底片上的凹坑(弧坑),黑度较淡,影象中有一黑度明显大于周围的黑色块状影像,黑度均匀,轮廓欠清晰,外形不规则,但有收缩的线纹. 2.夹渣(B),点(块)状,条状,非金属,金属.(1)点(块)状(Ba)a. 非金属Ba:在底片上呈现为外形不规则,轮廓清晰,且有棱角,黑度淡而均匀细点(块)状影象,分布有密集(群密),链状,,也有单个分散出现,主要是焊剂或药皮成渣残留在焊缝与母材或焊道之间,形状大多为鱼鳞状和瓦块状.在5倍放大镜观察下有棱角的均为钨夹渣;铜夹渣底片上多呈现为灰白色,不规则的影像,轮廓清晰,无棱角,多为单个出现;夹珠,在底片上多为园形的灰白色影像,在白色的影像周围有黑度偏大于焊缝金属的黑度园圏,如同句号影像,这主要是大的飞溅或熄弧后焊条(丝)头剪断后埋在焊缝金属之中,周围一圏,黑色影像为未熔合.(2)条状夹渣(Bb)a.条状夹渣,在底片上呈现带有不规则,两端呈棱角(或尖角),大多是沿焊缝方向延伸成条状的,宽窄不一,黑度不均匀,轮廓清晰影像,这种夹渣常伴随焊道之间和焊道与母材之间的未熔合同生.b.条状夹杂物:在底片上,其形态和条状夹渣雷同,但黑度淡而均匀,轮廓不清晰,无棱角,两端成尖细状,多残存在焊缝金属内部,出现在焊缝轴线(中心)部位和弧坑内,特别是焊缝局部过烧(热)区更明显.3.未焊透(D)单面焊根部未透,双面焊中心根部未焊透,带垫板的焊根未焊透(1).单面焊根部未焊透:在底片上多呈现为规则的,轮廓清晰,黑度均匀的直线性黑色线条影像,有连续和断续之分,垂直透照时,多位于焊缝影像的轴线部位(中心),线条两侧在5倍放大镜观察可见保留钝边加工痕迹,其宽度是依据焊根间隙大小而定,两端无尖角,(在用压力容器未焊透应注意在其影像中间及两端有无出现更细更黑的线纹,有则为未焊透开裂),它常伴随着根部内凹,错口影像.(2)双面焊X坡口中心未焊透,在底片上多呈现为规则的,轮廓清晰,黑度均匀的直线性黑色线条,垂直透照时,位于焊缝影像中间部位,在5倍放大镜下观察,明显可见黑线两侧保留原钝边加工痕迹,常伴有链孔和点状夹渣,有断续和连续之分.(3)带垫板的焊根未焊透:在底片上常出现在钝边的一侧(或两个钝边均有)其外形较规则,靠钝边侧保留钝边加工痕迹(直边状),靠焊缝中心呈不规则,有曲齿或弧曲状,黑度均匀,轮廓清晰,有断续和连续之分4.未熔合(C)可分为坡口未熔合,焊道之间未熔合,单面焊根部未熔合a.坡口未熔合:V型未熔合,U型未熔合a.1 V型(X型):在底片上焊缝影像的两侧边缘区,呈灰黑色条云状,靠母材侧呈直线状(保留坡口加工痕迹),靠焊缝中心侧变为弯曲状(有时为曲齿状),垂直透照时,黑度较淡,轮廓靠焊缝中心侧不清晰,沿坡口面方向透照时,会获得黑度大,轮廓清晰,近似于线状细夹渣的影像,在5倍放大镜观察下,可见靠母材侧保留坡口加工痕迹(直线性),靠焊缝中心侧仍为弯曲状,该缺陷多伴随夹渣同生,故又称黑色未熔合,若不含渣,多为气隙,故又称白色未熔合a.2 U型(双U型):垂直透照时,在底片上焊缝影像的两侧边缘区内,可见直线状的黑色线条,如同未焊透影像,但在5倍放大镜下观察仍可见靠母材侧具有坡口加工痕迹(直线状)而靠焊缝中心侧可见有曲齿状,并在此侧伴有点状气孔,黑色均匀,轮廓清晰,b.焊道之间未熔合b.1并排焊道之间未熔合:垂直透照时,在底片上多呈现黑线条,黑度不均匀,轮廓不清晰,两端无尖角,外形不规则,大多沿焊缝方向,在5倍放大镜下观察其轮廓线有散焦特征(即无黑度无梯度边界线)b.2层间未熔合(上下焊道之间):垂直透照时,在底片上多呈现为淡黑色,黑度均匀的影像,外形不规则,轮廓欠清晰,与内凹,凹坑影像相似,但黑度变化不同。
ASME规范中焊缝RT评定法则一. 透照黑度要求:(1)单片:X射线D≥1.8,γ射线:D≥2.0;(2)多片曝光并叠片观察时,每一张底片的D≥1.3;(3)对(1)或(2)最大黑度D=4.0;(4)当孔型IQI的本体黑度或线型IQI规定线号区的黑度为D时,则被检区任一处的黑度为0.85D~1.3D,否则为不符合要求,在这超差区域应另加一个IQI重新拍片──计算D的变化时,应圆整到0.1。
二.线型IQI选用按下表规定:(1)线形缺陷显示评为不合格的有三种:((a)任何显示特征为裂纹、未焊透、未熔合的;对全焊透焊缝包含角焊缝,则角焊缝的厚度应计入t内。
(c)任何一群成一直线分布的显示,在12 t焊缝长度内显示累计长度> t的,但相邻缺间距> 6L的除外,这L为群显示中最长缺陷显示长度。
当长度<12t的则按比例折算。
(2)圆形缺陷显示(a)不计黑度大小;(b)计作圆形缺陷显示的:(c)间距≥1in.(25mm)时,允许单个显示尺寸为1/3 t或1/4in.(6mm)中的较小者。
若t >2in.(50mm)允许单个圆形显示尺寸为3/8in.(10mm)。
(d)多个圆形显示成线状排列时:在长度为12 t内显示直径d的总和< t时为合格,详见强制性附录4中图4-1。
各组群孔显示成线状排列长度Li及各组相互间距的规定,详见图4-2;在长度12 t内各组群长度之和< t为合格。
(d)密集的和单个的圆形显示对于不同焊缝厚度在图4-3至图4-8中分别给出了典型密集度和尺寸的合格范围,这应结合表4-1给焊缝质量作出正确评定。
(e)对于焊缝厚度t <1/8(3mm)时,在长6in.(150mm)的焊缝内圆形显示数量≤12为合格。
当长度< 6in.(150mm)的焊缝则应按比例折算。
(以上图、表的复印件另附本文后面)(f)密集性显示:(ⅰ)合格的密集性显示长度≤1in.(25mm)或2t中的较小者。
1.外部缺陷在焊缝的表面,用肉眼或低倍放大镜就可看到,如咬边,焊瘤,弧坑,表面气孔和裂纹等。
2.内部缺陷位于焊缝内部,必须通过各种无损检测方法或破坏性试验才能发现。
内部缺陷有未焊透,未熔合,夹渣,气孔,裂纹等,这些缺陷是我们无损检测人员检查的主要对象。
焊缝缺陷的危害性:1、由于缺陷的存在,减少了焊缝的承载截面积,削弱了静力拉伸强度。
2、由于缺陷形成缺口,缺口尖端会发生应力集中和脆化现象,容易产生裂纹并扩展。
3、缺陷可能穿透焊缝,发生泄漏,影响致密性。
焊缝纵向裂纹示意图一、焊缝纵向裂纹X光底片焊缝纵向裂纹1 焊缝纵向裂纹2焊缝纵向裂纹3 焊缝纵向裂纹4焊缝纵向裂纹5 焊缝纵向裂纹6焊缝纵向裂纹7 焊缝纵向裂纹8焊缝纵向裂纹9 焊缝纵向裂纹10焊缝纵向裂纹11 焊缝纵向裂纹12焊缝纵向裂纹13 焊缝纵向裂纹14焊缝纵向裂纹15 焊缝纵向裂纹16焊缝纵向裂纹17 焊缝纵向裂纹18焊缝纵向裂纹19 焊缝纵向裂纹20 纵向裂纹的表面特征是沿焊缝长度方向出现的黑线,它既可以是连续线条,也可以是间断线条。
纵向裂纹影像产生的原因是沿焊缝长度破裂而导致的不连续黑线。
二、热影响区纵向裂纹X光底片热影响区纵裂1 热影响区纵裂2 热影响区撕裂呈线性黑色锯齿状,平行于熔合线,穿晶扩展,表面无明显氧化色彩,属脆性断口的延迟裂纹。
焊缝横向裂纹示意图三、焊缝横向裂纹X光底片焊缝横向裂纹1 焊缝横向裂纹25焊缝横向裂纹3 焊缝横向裂纹4焊缝横向裂纹的表征是横在焊接影像上的一根细小黑线(直线或曲线),它产生的原因是由焊缝上的金属破裂引起的。
当焊接应力为拉应力并与氢的析集和淬火脆化同时发生时,极易产生冷裂纹。
四、母材裂纹X光底片母材裂纹1 母材裂纹2裂纹:材料局部断裂形成的缺陷。
裂纹的分类方法:按延伸方向可分为纵向裂纹、横向裂纹、辐射状裂纹;按发生部位可分为焊缝裂纹、热影响区裂纹、熔合区裂纹、焊趾裂纹、弧坑裂纹、母材裂纹;按发生条件和时机可分为热裂纹、冷裂纹、再热裂纹。
未熔合
定义:
未熔合是指焊缝金属与母材金属可焊缝金属之间未熔化结合在一起的缺陷。
影像特征:
根部未熔合的典型影像是连续或断续的黑线,线的一侧轮廓整齐且黑度较大,为坡口或钝边的痕迹,另一侧轮廓可能较规则,也可能不规则。
根部未熔合在底片上的位置就是焊缝根部的投影位置,一般在焊缝的中间,因坡口形状或投影角度等原因出可能偏向一边。
坡口未熔合的典型影像是连续或断续的黑线,宽度不一,黑度不均匀,一侧轮廓较齐,黑度较大,另一侧轮廓不规则,黑度较小,在底片上的位置一般在中心至边缘的1/2处,沿焊缝纵向延伸。
层间未熔合的典型影像是黑度不大的块状阴影,开关不规则,如伴有夹渣时,夹渣部位黑度较大。
一般在射线照相检测中不易发现。
条状缺陷
• 不属于裂纹、未焊透和未熔合的缺陷,当缺陷的长宽比大于3
时,定义为条状缺陷,包括条渣和条孔。
其他缺陷。
本资料是本人在工作中的积累,以焊缝实例为基础,用图片的形式,明确了焊缝合格、存在问题及不合格的界定要求。
本手册仅供相关人员在实际工作中参考使用。
本资料适用于各类厚钢板产品3级及以下的焊缝检验参考使用。
其他级别也可参考。
1 焊缝破坏实例
1.1使用后焊缝出现裂纹
假焊受力后的焊缝裂纹
1.2 假焊焊缝使用后焊缝撕裂
1.4焊接质量不合格导致使用时焊缝撕裂
1.3 焊缝缺陷导致使用时出现焊缝裂纹
1.5 焊缝高度不合格
1.6焊缝不合格导致破坏
1.7焊缝不合格导致秤体在使用时出现焊缝裂纹
1.8假焊受力后形成的裂纹
1.9假焊形成的裂纹
1.10焊接缺陷,气孔、裂纹等
1.11焊缝夹渣,受力后从夹渣处开始破坏
1.12 焊接电流过大,材料退火导致应力集中使结构破坏
2焊缝实例
下图中的焊缝太薄,实际是假焊,该处母材未融化,只是在母材外表面涂了一层焊液。
材料没有融合在一起,该结构起不了受力作用。
反面过烧,材料性能破坏,不合格。
易造成面板变形,影响产品质量,缩短产品寿命
未焊到位、断焊,焊瘤,不合格
表面链状气孔,不合格
焊缝不合格,欠焊
焊缝外观不合格
穿透性气孔
3 合格焊缝图集3.1 平焊焊缝
3.2立焊
3.2.1 从下往上焊
3.2.2从上往下焊
21。
焊缝射线照相底片的评判规律一、探伤人员要评片,四项指标放在先*,底片标记齐又正,铅字压缝为废片。
二、评片开始第一件,先找四条熔合线,小口径管照椭圆,根部都在圈里面。
三、气孔形象最明显,中心浓黑边缘浅,夹渣属于非金属,杂乱无章有棱边。
四、咬边成线亦成点,似断似续常相见,这个缺陷最好定,位置就在熔合线。
五、未焊透是大缺陷,典型图象成直线,间隙太小钝边厚,投影部位靠中间。
六、内凹只在仰焊面,间隙太大是关键,内凹未透要分清,内凹透度成弧线。
七、未熔合它斜又扁,常规透照难发现,它的位置有规律,都在坡口与层间。
八、横裂纵裂都危险,横裂多数在表面,纵裂分布范围广,中间稍宽两端尖。
九、还有一种冷裂纹,热影响区常发现,冷裂具有延迟性,焊完两天再拍片。
十、有了裂纹很危险,斩草除根保安全,裂纹不论长和短,全部都是Ⅳ级片。
十一、未熔和也很危险,黑度有深亦有浅,一旦判定就是它,亦是全部Ⅳ级片。
十二、危害缺陷未焊透,Ⅱ级焊缝不能有,管线根据深和长,容器跟着条渣走**。
十三、夹渣评定莫着忙,分清圆形和条状,长宽相比3为界,大于3倍是条状。
十四、气孔危害并不大,标准对它很宽大,长径折点套厚度,中间厚度插入法。
十五、多种缺陷大会合,分门别类先评级,2类相加减去Ⅰ,3类相加减Ⅱ级。
十六、评片要想快又准,下拜焊工当先生,要问诀窍有哪些,焊接工艺和投影。
注:*四项指标系底片的黑度、灵敏度、清晰度、灰雾度必须符合标准的要求。
**指单面焊的管线焊缝和双面焊的容器焊缝内未焊透的判定标准。
Radiograph Interpretation - WeldsIn addition to producing high quality radiographs, the radiographer must also be skilled in radiographic interpretation. Interpretation of radiographs takes place in three basic steps which are (1) detection, (2) interpretation, and (3) evaluation. All of these steps make use of the radiographer's visual acuity. Visual acuity is the ability to resolve a spatial pattern in an image. The ability of an individual to detect discontinuities in radiography is also affected by the lighting condition in the place of viewing, and the experience level for recognizing various features in the image. The following material was developed to help students develop an understanding of the types of defects found in weldments and how they appear in a radiograph.DiscontinuitiesDiscontinuities are interruptions in the typical structure of a material. These interruptions may occur in the base metal, weld material or "heat affected" zones. Discontinuities, which do not meet the requirements of the codes or specification used to invoke and control an inspection, are referred to as defects.General Welding DiscontinuitiesThe following discontinuities are typical of all types of welding.Cold lap is a condition where the weld filler metal does not properly fuse with the base metal or the previous weld pass material (interpass cold lap). The arc does not melt the base metal sufficiently and causes the slightly molten puddle to flow into base material without bonding.Porosity气孔is the result of gas entrapment in the solidifying metal. Porosity can take many shapes on a radiograph but often appears as dark round or irregular spots or specks appearing singularly, in clusters or rows. Sometimes porosity is elongated and may have the appearance of having a tail This is the result of gas attempting to escape while the metal is still in a liquid state and is called wormhole porosity. All porosity is a void in the material it will have a radiographic density more than the surrounding area..Cluster porosity链状气孔is caused when flux coated electrodes are contaminated with moisture. The moisture turns into gases when heated and becomes trapped in the weld during the welding process. Cluster porosity appear just like regular porosity in the radiograph but the indications will be grouped close together.Slag inclusions夹渣 are nonmetallic solid material entrapped in weld metal or between weld and base metal. In a radiograph, dark, jagged asymmetrical shapes within the weld or along the weld joint areas are indicative of slag inclusions.Incomplete penetration (IP) or lack of penetration (LOP)未焊透occurs when the weld metal fails to penetrate the joint. It is one of the most objectionable weld discontinuities. Lack of penetration allows a natural stress riser from which a crack may propagate. The appearance on a radiograph is a dark area with well-defined, straight edges that follows the land or root face down the center of the weldment.Incomplete fusion未熔合is a condition where the weld filler metal does not properly fuse with the base metal. Appearance on radiograph: usually appears as a dark line or lines oriented in the direction of the weld seam along the weld preparation or joining area.Internal concavity or suck back内凹或吸入is condition where the weld metal has contracted as it cools and has been drawn up into the root of the weld. On a radiograph it looks similar to lack of penetration but the line has irregular edges and it is often quite wide in the center of the weld image.Internal or root undercut内部或根部咬边is an erosion of the base metal next to the root of the weld. In the radiographic image it appears as a dark irregular line offset from the centerline of the weldment. Undercutting is not as straight edged as LOP because it does not follow a ground edge.External or crown undercut外部或顶部咬边is an erosion of the base metal next to the crown of the weld. In the radiograph, it appears as a dark irregular line along the outside edge of the weld area.Offset or mismatch错边are terms associated with a condition where two pieces being welded together are not properly aligned. The radiographic image is a noticeable difference in density between the two pieces. The difference in density is caused by the difference in material thickness. The dark, straight line is caused by failure of the weld metal to fuse with the land area.Inadequate weld reinforcement未填满is an area of a weld where the thickness of weld metal deposited is less than the thickness of the base material. It is very easy to determine by radiograph if the weld has inadequate reinforcement, because the image density in the area of suspected inadequacy will be more (darker) than the image density of the surrounding base material.Excess weld reinforcement增强余高is an area of a weld, which has weld metal added in excess of that specified by engineering drawings and codes. The appearance on a radiograph is a localized, lighter area in the weld. A visual inspection will easily determine if the weld reinforcement is in excess of that specified by the individual code involved in the inspection.Cracking裂纹can be detected in a radiograph only the crack is propagating in a direction that produced a change in thickness that is parallel to the x-ray beam. Cracks will appearas jagged and often very faint irregular lines. Cracks can sometimes appearing as "tails" on inclusions or porosity.Discontinuities in TIG weldsThe following discontinuities are peculiar to the TIG welding process. These discontinuities occur in most metals welded by the process including aluminum and stainless steels. The TIG method of welding produces a clean homogeneous weld which when radiographed is easily interpreted.Tungsten inclusions. 夹钨Tungsten is a brittle and inherently dense material used in the electrode in tungsten inert gas welding. If improper welding procedures are used, tungsten may be entrapped in the weld. Radiographically, tungsten is more dense than aluminum or steel; therefore, it shows as a lighter area with a distinct outline on the radiograph.Oxide inclusions夹氧化物are usually visible on the surface of material being welded (especially aluminum). Oxide inclusions are less dense than the surrounding materials and, therefore, appear as dark irregularly shaped discontinuities in the radiograph.Discontinuities in Gas Metal Arc Welds (GMAW)The following discontinuities are most commonly found in GMAW welds.Whiskers are short lengths of weld electrode wire, visible on the top or bottom surface of the weld or contained within the weld. On a radiograph they appear as light, "wire like" indications.Burn through (icicles) results when too much heat causes excessive weld metal to penetrate the weld zone. Lumps of metal sag through the weld creating a thick globular condition on the back of the weld. On a radiograph, burn through appears as dark spots surrounded by light globular areas.welld-02 (Incomplete Root Fusion、根部未熔合)welld-03 (Insuffucient Reinforcement、增强高) '.'.welld-04 (Excess Root Penetration、根部焊瘤) '.'.welld-05 (External Undercut、外部咬肉) '.'.welld-06 (Internal Undercut、内部咬肉) '.'.welld-07 (Root Concavity、根部凹陷) '.'.welld-08 (Burn Through、烧穿) '.'.welld-09 (Isolated Slag Inclusion、单个的夹渣) '.'.welld-10 (Wagon Track - Slag Line、线状夹渣) '.'.welld-11 (Interrun Fusion、内部未熔合) '.'.welld-12 (Lack of Sidewall Fusion、内侧未熔合) '.'.welld-13 (Porosity、气孔) '.'.welld-14 (Cluster Porosity、链状气孔) '.'.welld-15 (Hollow Bead、夹珠) '.'.welld-16 (Transverse Crack、横向裂纹) '.'.welld-17 (Centerline Crack、中心线裂纹) '.'.welld-18 (Root Crack、根部裂纹) '.'.welld-19 (Tungsten Inclusion)夹钨'.'.。
