以太网交换机的配置

S3000工业以太网络交换机用户手册上海宽域工业网络设备有限公司Shanghai Kuanyu Industrial Network Equipment Co.,Ltd.目录第1章概述 (1)第2章满足标准 (2)第3章选型指南 (3)第4章技术指标参数 (4)4.1 系统参数 (4)4.2 通信接口参数 (4)4.3 管理端口参数 (4)4.4 电源参数 (5)4.5 机械参数 (5)4.6 环境条件参数 (5)4.7 无故障率参数 (5)第5章功能介绍 (6)第6章结构尺寸 (8)6.1 安装尺寸 (8)6.2 通信接口 (9)6.3 电源及告警端子 (10)6.4 指示灯 (12)第1章概述APEX S3000系列交换机是上海宽域工业网络设备有限公司自主研发的工业以太网通信产品，适用于工业现场各种工作环境，能满足高低温、过电压、漏电及高压冲击等各种要求，并对严酷的电磁环境中的数据口防雷、快速脉冲群、浪涌、静电等方面作了可靠性设计，支持全双工、半双工工作模式，具有工作速率自检测和自适应能力，支持MDI/MDI-X自动极性反转。

APEX S3000系列以太网交换机适用于变电站综合自动化系统、电厂监控系统、工业控制系统等。

可提供千兆以太网接口，提供更高的数据传输速率，满足日益发展的设备通信需求。

APEX S3000系列交换机采用高性能的交换芯片和优秀的工业设计，可在所有端口满负载运行下保持线速转发，产品的设计制造充分考虑了工业应用环境中的各种恶劣条件和干扰因素，可保证数据在严苛环境下可靠传输。

APEX S3000工业以太网交换机是专业为电力系统设计的高可靠性、高抗干扰、宽温度及宽电压工作范围的电力通信产品，符合以下技术标准：IEC61000-4-2(静电)：接触放电±8kV、空气放电±15kV；IEC61000-4-3(电磁场)：10V/mIEC61000-4-4(快速瞬变)：电源线±4kV、数据线±2kV；IEC61000-4-5(浪涌)：电源线:线/地±4kV、线/线±2kV；数据线:线/地±1kV；IEC61000-4-6(射频传导)：3V（10kHz～150kHz）、10V（150kHz～80MHz）；IEC61000-4-8(工频磁场)：100A/m连续、1000A/m 1s到3s；IEC61850-3(变电站网络通信)；IEEE1613(变电站环境标准)；APEX S3000选型表：说明：（1）S3016-F8T8、S3024-F16T8支持双电源，默认单电源输入，若有特殊需求可在订货时注明；（2）100Base-FX光口标配为ST多模1310nm光模块，若需其他类型光模块可在订货时注明。

H3C S5130-EI 登录设备典型配置举例
Copyright © 2014 杭州华三通信技术有限公司 版权所有，保留一切权利。 非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部， 并不得以任何形式传播。本文档中的信息可能变动，恕不另行通知。
目录
1 简介 ······················································································································································ 1 2 配置前提 ··············································································································································· 1 3 通过Console口登录设备配置举例 ········································································································· 1
6 版本上进行配置和验证的。
3.4 配置注意事项
• 连接时请认准接口上“Console”的标识，以免误插入其它接口。 • 如果主机使用的是 Windows Server 2003、Windows XP 操作系统，请在 Windows 组件中添加
5.5.1 iMC的配置步骤 ·························································································································· 8 5.5.2 设备的配置步骤 ······················································································································· 12 5.6 验证配置 ············································································································································· 13 5.7 配置文件 ············································································································································· 15 6 相关资料 ············································································································································· 16

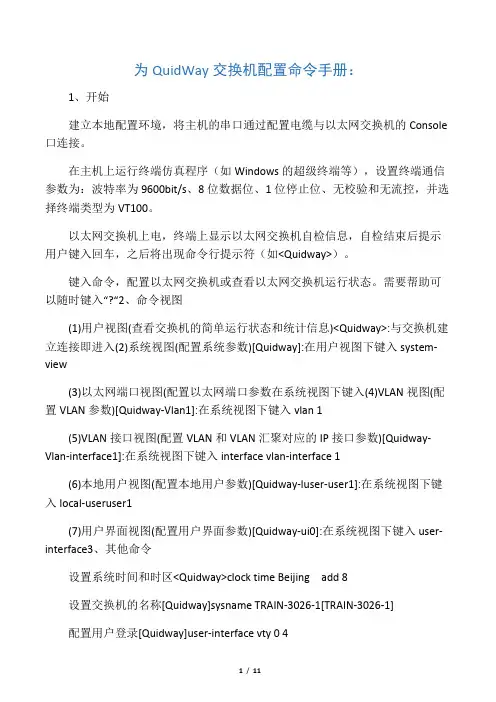

为QuidWay交换机配置命令手册：1、开始建立本地配置环境，将主机的串口通过配置电缆与以太网交换机的Console 口连接。

在主机上运行终端仿真程序（如Windows的超级终端等），设置终端通信参数为：波特率为9600bit/s、8位数据位、1位停止位、无校验和无流控，并选择终端类型为VT100。

以太网交换机上电，终端上显示以太网交换机自检信息，自检结束后提示用户键入回车，之后将出现命令行提示符（如<Quidway>）。

键入命令，配置以太网交换机或查看以太网交换机运行状态。

需要帮助可以随时键入“?“2、命令视图(1)用户视图(查看交换机的简单运行状态和统计信息)<Quidway>:与交换机建立连接即进入(2)系统视图(配置系统参数)[Quidway]:在用户视图下键入system-view(3)以太网端口视图(配置以太网端口参数在系统视图下键入(4)VLAN视图(配置VLAN参数)[Quidway-Vlan1]:在系统视图下键入vlan 1(5)VLAN接口视图(配置VLAN和VLAN汇聚对应的IP接口参数)[Quidway-Vlan-interface1]:在系统视图下键入interface vlan-interface 1(6)本地用户视图(配置本地用户参数)[Quidway-luser-user1]:在系统视图下键入local-useruser1(7)用户界面视图(配置用户界面参数)[Quidway-ui0]:在系统视图下键入user-interface3、其他命令设置系统时间和时区<Quidway>clock time Beijing add 8设置交换机的名称[Quidway]sysname TRAIN-3026-1[TRAIN-3026-1]配置用户登录[Quidway]user-interface vty 0 4[Quidway-ui-vty0]authentication-mode scheme创建本地用户[Quidway]local-user huawei[Quidway-luser-huawei]password simple huawei[Quidway-luser-huawei] service-type telnet level 34、VLAN配置方法『配置环境参数』SwitchA端口属于VLAN2，属于VLAN3『组网需求』把交换机端口加入到VLAN2，加入到VLAN3数据配置步骤『VLAN配置流程』(1)缺省情况下所有端口都属于VLAN 1，并且端口是access端口，一个access端口只能属于一个vlan；(2)如果端口是access端口，则把端口加入到另外一个vlan的同时，系统自动把该端口从原来的vlan中删除掉；(3)除了VLAN1，如果VLAN XX不存在，在系统视图下键入VLAN XX，则创建VLANXX并进入VLAN视图；如果VLAN XX已经存在，则进入VLAN视图。
