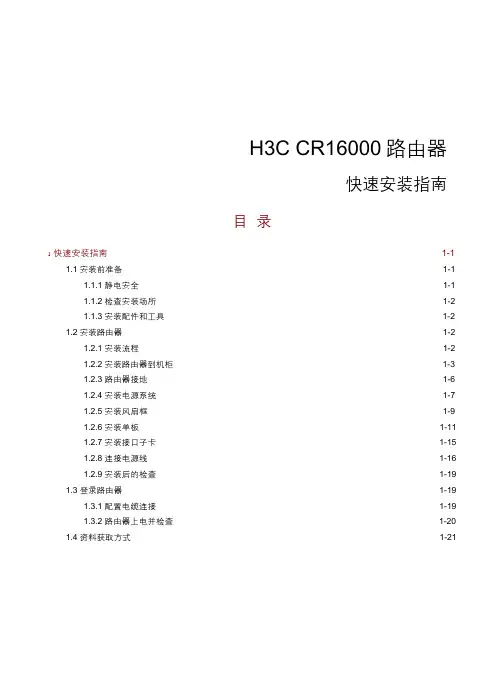

H3C CR16000 路由器快速安装指南目录1快速安装指南················································································································ 1-11.1 安装前准备················································································································1-11.1.1 静电安全··········································································································1-11.1.2 检查安装场所····································································································1-21.1.3 安装配件和工具·································································································1-21.2 安装路由器················································································································1-21.2.1 安装流程··········································································································1-21.2.2 安装路由器到机柜······························································································1-31.2.3 路由器接地·······································································································1-61.2.4 安装电源系统····································································································1-71.2.5 安装风扇框·······································································································1-91.2.6 安装单板········································································································ 1-111.2.7 安装接口子卡·································································································· 1-151.2.8 连接电源线····································································································· 1-161.2.9 安装后的检查·································································································· 1-191.3 登录路由器·············································································································· 1-191.3.1 配置电缆连接·································································································· 1-191.3.2 路由器上电并检查···························································································· 1-201.4 资料获取方式··········································································································· 1-211快速安装指南本文档用于为H3C CR16000 路由器的硬件安装提供简明快捷的操作指导，关于安装过程及注意事项更全面、完整的介绍，请参见《H3C CR16000 路由器安装指导》。

H3C5120以太网交换机产品介绍

H3C5120以太网交换机产品介绍

H3C S5120-EI 系列IPv6 智能弹性交换机产品概述H3C S5120-EI 系列交换机是H3C 公司自主开发的全千兆三层以太网交换机产品，具备丰富的业务特性，提供IPv6 转发功能以及最多4 个10GE 扩展接口。

通过H3C 特有的IRF（智能弹性架构）功能，用户能够简化对网络的管理。

S5120-EI 系列千兆以太网交换机定位为企业网千兆接入，同时还可以用于数据中心服务器群的连接。

S5120-24P-EI S5120-48P-EIS5120-28C-EI/S5120-28C-PWR-EI S5120-52C-EI/S5120-52C-PWR-EIH3C S5120-EI 系列以太网交换机目前包含如下型号：S5120-24P-EI：24 个10/100/1000Base-T 以太网端口，4 个复用的SFP 千兆端口（Combo）；S5120-48P-EI：48 个10/100/1000Base-T 以太网端口，4 个复用的SFP 千兆端口（Combo）；S5120-28C-EI：24 个10/100/1000Base-T 以太网端口，4 个复用的SFP 千兆端口（Combo），两个扩展槽位；S5120-52C-EI：48 个10/100/1000Base-T 以太网端口，4 个复用的SFP 千兆端口（Combo），两个扩展槽位；S5120-28C-PWR-EI：24 个10/100/1000Base-T 以太网端口（PoE），4 个复用的SFP 千兆端口（Combo），两个扩展槽位；S5120-52C-PWR-EI：48 个10/100/1000Base-T 以太网端口（PoE），4 个复用的SFP 千兆端口（Combo），两个扩展槽位；产品特点高扩展性保护投资随着用户端速度不断提高，用户最终会使集群千兆链路达到饱和，而能够拥有多条10GE 链路将是我们的未来发展方向。

S5120-EI 系列交换机支持两个扩展槽位，每个槽位支持单端口或双端口的10GE 扩展模块，在实现千兆汇聚或接入时保留进一步支持10GE 的扩展能力，尽力保护用户投资。

H3CS5120-LI系列以太网交换机配置教程

H3CS5120-LI系列以太网交换机配置教程

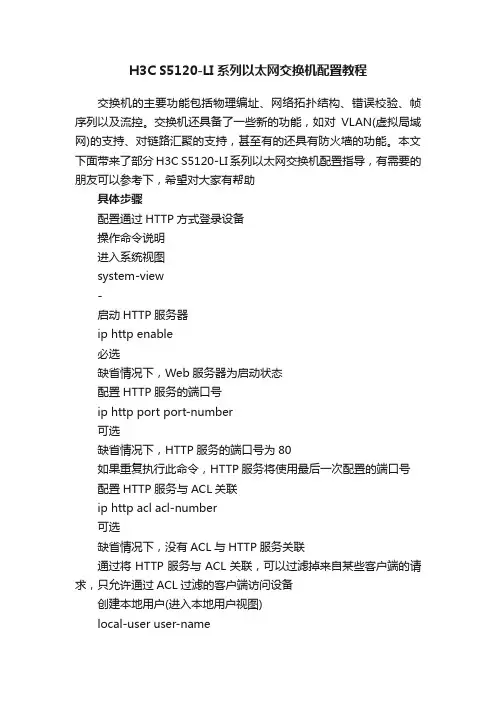

H3C S5120-LI系列以太网交换机配置教程交换机的主要功能包括物理编址、网络拓扑结构、错误校验、帧序列以及流控。

交换机还具备了一些新的功能，如对VLAN(虚拟局域网)的支持、对链路汇聚的支持，甚至有的还具有防火墙的功能。

本文下面带来了部分H3C S5120-LI系列以太网交换机配置指导，有需要的朋友可以参考下，希望对大家有帮助具体步骤配置通过HTTP方式登录设备操作命令说明进入系统视图system-view-启动HTTP服务器ip http enable必选缺省情况下，Web服务器为启动状态配置HTTP服务的端口号ip http port port-number可选缺省情况下，HTTP服务的端口号为80如果重复执行此命令，HTTP服务将使用最后一次配置的端口号配置HTTP服务与ACL关联ip http acl acl-number可选缺省情况下，没有ACL与HTTP服务关联通过将HTTP服务与ACL关联，可以过滤掉来自某些客户端的请求，只允许通过ACL过滤的客户端访问设备创建本地用户(进入本地用户视图)local-user user-name必选缺省情况下，无本地用户配置本地认证口令password { cipher | simple }password必选缺省情况下，无本地认证口令配置Web登录的用户级别authorization-attribute level level必选缺省情况下，没有配置Web登录的用户级别配置Web登录用户的服务类型service-type telnet必选缺省情况下，没有配置用户的服务类型退出至系统视图quit-创建VLAN接口并进入VLAN接口视图interface vlan-interface vlan-interface-id必选如果该VLAN接口已经存在，则直接进入该VLAN接口视图配置VLAN接口的IP地址ip address ip-address { mask | mask-length }必选缺省情况下，没有配置VLAN接口的IP地址配置通过HTTPS方式登录设备操作命令说明进入系统视图system-view-配置HTTPS服务与SSL服务器端策略关联ip https ssl-server-policy policy-name必选缺省情况下，没有SSL服务器端策略与HTTPS服务关联l 关闭HTTPS服务后，系统将自动取消HTTPS服务与SSL服务器端策略的关联。

H3C S5120

H3C S5120

环境保护
本产品符合关于环境保护方面的设计要求，产品的存放、使用和弃置应遵照相关国家法律、法规要 求进行。
前言
H3C S5120-EI 系列以太网交换机安装手册介绍了本系列交换机的产品外观、安装方式、上电启动 方法、故障处理与维护方法等内容。 前言部分包含如下内容： • 读者对象 • 本书约定 • 产品配套资料 • 资料获取方式 • 技术支持 • 资料意见反馈
大类
资料名称
内容介绍
产品彩页
帮助您了解产品的主要规格参数及亮点
技术白皮书
帮助您了解产品和特性功能，对于特色及复杂 技术从细节上进行介绍
产品知识介绍
RPS电源用户手册
H3C低端系列以太网交换机 RPS电源选购指 南
帮助您了解产品支持的RPS电源的外观、功能、 规格
帮助您了解各种RPS电源适用的交换机产品型 号及RPS电源配套电缆的相关规格
如果您在使用过程中发现产品资料的任何问题，可以通过以下方式反馈： E-mail：info@ 感谢您的反馈，让我们做得更好！
目录
1 产品介绍 ············································································································································ 1-1 1.1 产品型号及规格介绍··························································································································1-1 1.2 前后面板介绍·····································································································································1-3 1.2.1 S5120-28C-EI·························································································································1-3 1.2.2 S5120-52C-EI·························································································································1-4 1.2.3 S5120-24P-EI ·························································································································1-5 1.2.4 S5120-48P-EI ·························································································································1-6 1.2.5 S5120-28C-PWR-EI ···············································································································1-6 1.2.6 S5120-52C-PWR-EI ···············································································································1-8 1.3 固定端口介绍·····································································································································1-9 1.3.1 Console口·······························································································································1-9 1.3.2 10/100/1000Base-T以太网端口······························································································1-9 1.3.3 SFP口 ···································································································································1-10 1.3.4 Combo口 ······························································································································1-10 1.4 指示灯介绍 ······································································································································1-10 1.1.1 系统状态指示灯 ····················································································································1-11 1.4.2 RPS电源状态指示灯 ·············································································································1-11 1.4.3 端口模式指示灯 ····················································································································1-11 1.4.4 7 段数码指示灯 ·····················································································································1-12 1.4.5 10/100/1000Base-T自适应以太网端口状态指示灯·······························································1-13 1.4.6 1000Base-X SFP口状态指示灯 ····························································································1-14 1.4.7 接口模块扩展卡状态指示灯 ··································································································1-14 1.5 接口模块扩展卡选购························································································································1-15 1.6 可插拔SFP/SFP+/XFP模块及SFP+/CX4 电缆选购·········································································1-15

H3C5120完全配置手册

H3C5120完全配置手册

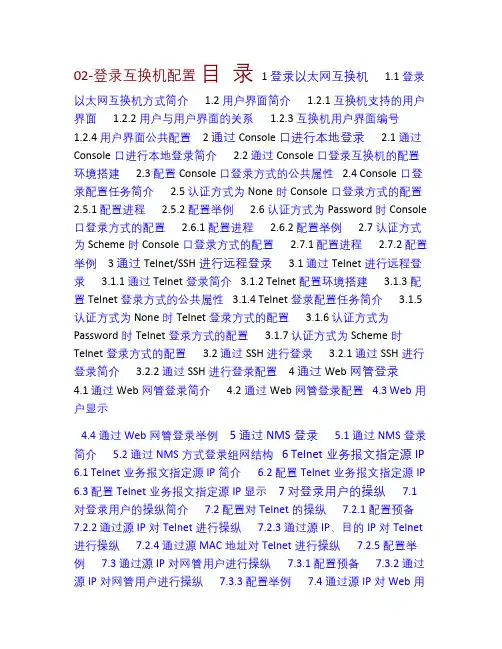

02-登录互换机配置目录 1 登录以太网互换机 1.1 登录以太网互换机方式简介 1.2 用户界面简介 1.2.1 互换机支持的用户界面 1.2.2 用户与用户界面的关系 1.2.3 互换机用户界面编号1.2.4 用户界面公共配置 2 通过Console口进行本地登录 2.1 通过Console口进行本地登录简介 2.2 通过Console口登录互换机的配置环境搭建 2.3 配置Console口登录方式的公共属性 2.4 Console口登录配置任务简介 2.5 认证方式为None时Console口登录方式的配置2.5.1 配置进程 2.5.2 配置举例 2.6 认证方式为Password时Console 口登录方式的配置 2.6.1 配置进程 2.6.2 配置举例 2.7 认证方式为Scheme时Console口登录方式的配置 2.7.1 配置进程 2.7.2 配置举例 3 通过Telnet/SSH进行远程登录 3.1 通过Telnet进行远程登录 3.1.1 通过Telnet登录简介 3.1.2 Telnet配置环境搭建 3.1.3 配置Telnet登录方式的公共属性 3.1.4 Telnet登录配置任务简介 3.1.5 认证方式为None时Telnet登录方式的配置 3.1.6 认证方式为Password时Telnet登录方式的配置 3.1.7 认证方式为Scheme时Telnet登录方式的配置 3.2 通过SSH进行登录 3.2.1 通过SSH进行登录简介 3.2.2 通过SSH进行登录配置 4 通过Web网管登录4.1 通过Web网管登录简介 4.2 通过Web网管登录配置 4.3 Web用户显示4.4 通过Web网管登录举例 5 通过NMS登录5.1 通过NMS登录简介 5.2 通过NMS方式登录组网结构 6 Telnet业务报文指定源IP6.1 Telnet业务报文指定源IP简介 6.2 配置Telnet业务报文指定源IP 6.3 配置Telnet业务报文指定源IP显示 7 对登录用户的操纵7.1 对登录用户的操纵简介 7.2 配置对Telnet的操纵 7.2.1 配置预备7.2.2 通过源IP对Telnet进行操纵 7.2.3 通过源IP、目的IP对Telnet 进行操纵 7.2.4 通过源MAC地址对Telnet进行操纵 7.2.5 配置举例 7.3 通过源IP对网管用户进行操纵 7.3.1 配置预备 7.3.2 通过源IP对网管用户进行操纵 7.3.3 配置举例 7.4 通过源IP对Web用户进行操纵 7.4.1 配置预备 7.4.2 通过源IP对Web用户进行操纵7.4.3 强制在线Web用户下线 7.4.4 配置举例1 登录以太网互换机 1.1 登录以太网互换机方式简介用户能够通过以下几种方式登录以太网互换机：通过Console口进行本地登录通过Telnet或SSH进行远程登录通过Web网管登录通过NMS登录 1.2 用户界面简介 1.2.1 互换机支持的用户界面在S5120-SI系列以太网互换机中，AUX口（Auxiliary port，辅助端口）和Console口是同一个端口，以下称为Console口，与其对应的用户界面类型只有AUX用户界面类型。

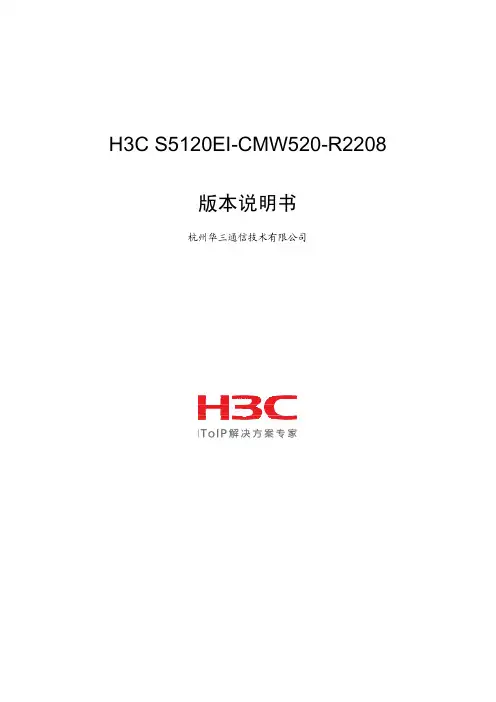

H3C_S5120EI-CMW520-R2208_版本说明书

H3C S5120EI-CMW520-R2208版本说明书杭州华三通信技术有限公司H3C S5120EI-CMW520-R2208版本说明书关键词：版本信息版本变更说明版本存在问题和规避措施解决问题列表。

摘要：对相应产品版本的各方面的事项进行了详细说明，包括版本信息、版本变更说明、版本存在问题和规避措施、解决问题列表、配套资料、版本升级操作指导。

缩略语：缩略语英文全名中文解释IRF Intelligent Resilient Framework 智能弹性架构Authorization and Accounting 认证、授权和计费AAA Authentication,ARP Address Resolution Protocol 地址解析协议CMW Comware 无DHCP Dynamic Host Configuration Protocol 动态主机配置协议GVRP GARP VLAN Registration Protocol GARP VLAN注册协议IGMP Internet Group Management Protocol 因特网组管理协议LACP Link Aggregation Control Protocol 链路聚合控制协议Information Base 管理信息库MIB ManagementMSTP Multiple Spanning Tree Protocol 多生成树协议RIP Routing Information Protocol 路由信息协议SNMP Simple Network Management Protocol 简单网络管理协议TCP Transmission Control Protocol 传输控制协议VLAN Virtual Local Area Network 虚拟局域网络目录1 版本信息 (5)1.1 版本号 (5)1.2 历史版本信息 (5)1.3 版本配套表 (5)2 版本使用限制及注意事项 (6)3 版本特性说明 (7)3.1 版本硬件特性 (7)3.2 版本软件特性 (8)4 版本变更说明 (11)4.1 特性变更说明 (11)4.2 命令行变更说明 (14)4.3 MIB变更说明 (16)4.4 操作方式变更说明 (18)4.4.1 S5120EI-CMW520-R2208版本操作方式变更 (18)4.4.2 S5120EI-CMW520-F2206P15版本操作方式变更 (18)4.4.3 S5120EI-CMW520-F2206L12版本操作方式变更 (18)4.4.4 S5120EI-CMW520-F2206L09版本操作方式变更 (18)4.4.5 S5120EI-CMW520-F2206L02版本操作方式变更 (18)4.4.6 S5120EI-CMW520-R2202P06版本操作方式变更 (19)5 存在问题与规避措施 (19)6 解决问题列表 (19)6.1 S5120EI-CMW520-R2208版本解决问题列表 (19)6.2 S5120EI-CMW520-F2206P15版本解决问题列表 (20)6.3 S5120EI-CMW520-F2206L12版本解决问题列表 (20)6.4 S5120EI-CMW520-F2206L09版本解决问题列表 (21)6.5 S5120EI-CMW520-F2206L02版本解决问题列表 (21)6.6 S5120EI-CMW520-R2202P06版本解决问题列表 (22)7 配套资料 (22)7.1 配套资料清单 (22)7.2 配套产品资料的获取方法 (22)8 版本升级操作指导 (23)8.1 加载方式简介 (23)8.2 本地加载 (23)8.2.1 BOOT菜单 (24)8.2.2 通过Console口利用XModem完成加载 (25)8.2.3 通过以太网口利用TFTP完成加载 (29)8.2.4 通过以太网口利用FTP完成加载 (30)8.3 远程加载 (32)8.3.1 通过FTP实现远程加载 (32)8.3.2 通过TFTP实现远程加载 (33)表目录表1 历史版本信息表 (5)表2 版本配套表 (5)表3 产品硬件特性 (7)表4 产品软件特性 (8)表5 特性变更说明 (11)表6 命令行变更说明 (14)表7 MIB文件变更说明 (16)表8 配套手册清单 (22)表9 从网站查询和下载资料的说明 (22)1 版本信息1.1 版本号版本号：Comware software, Version 5.20, Release 2208注：该版本号可在命令行任何视图下用display version命令查看，见注①1.2 历史版本信息表1历史版本信息表版本号基础版本号发布日期备注S5120EI-CMW520-R2208 S5120EI-CMW520-F2206P152010-12-27 无S5120EI-CMW520-F2206P15S5120EI-CMW520-F2206L122010-09-25 无S5120EI-CMW520-F2206L12S5120EI-CMW520-F2206L092010-08-27 无S5120EI-CMW520-F2206L09S5120EI-CMW520-F2206L022010-06-29 无S5120EI-CMW520-F2206L02 S5120EI-CMW520-R2202P062009-12-31 无S5120EI-CMW520-R2202P06首次发布2009-06-26 无1.3 版本配套表表2版本配套表产品系列 S5120EI系列交换机型号H3C S5120-28C-EI/ H3C S5120-52C-EI/H3C S5120-28C-PWR-EI/ H3C S5120-52C-PWR-EI/ H3C S5120-24P-EI/ H3C S5120-48P-EI内存需求128MBFLASH需求16MBBOOTROM版本号203以上版本(该版本号可在命令行任何视图下用display version命令查看，见注②) 目标文件名称S5120EI-CMW520-R2208-S168.bin产品系列 S5120EI系列交换机iMC版本号iMC PLAT 3.20-R2606 + P13 + L15 iMC UAM 3.60-E6301 + P04iMC EAD 3.60-E6301 + P04iMC NTA 3.20-F0606iMC QoSM 3.20-F0606iNode版本号iNode PC 3.60-E6307示例：查看 S5120EI的软件版本和Bootrom版本号方式如下：<H3C>dis verH3C Comware Platform SoftwareComware Software, Version 5.20, Release 2208 --------------------注①Copyright (c) 2004-2010 Hangzhou H3C Tech. Co., Ltd. All rights reserved.H3C S5120-52C-PWR-EI uptime is 0 week, 0 day, 9 hours, 37 minutesH3C S5120-52C-PWR-EI with 1 Processor128M bytes SDRAM16384K bytes Flash MemoryHardware Version is REV.BCPLD Version is 007Bootrom Version is 203----------------------------------------------注②[SubSlot 0] 48GE+4SFP+POE Hardware Version is REV.B2 版本使用限制及注意事项(1) 由于实现限制，对于QinQ enable的端口，VLAN ACL不起作用。

H3C 以太网交换机配置操作手册V1.0(正稿)7.doc

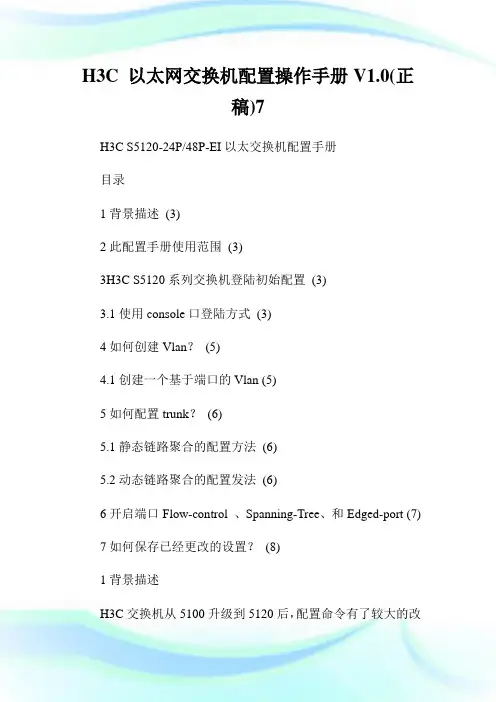

H3C 以太网交换机配置操作手册V1.0(正稿)7H3C S5120-24P/48P-EI以太交换机配置手册目录1背景描述(3)2此配置手册使用范围(3)3H3C S5120系列交换机登陆初始配置(3)3.1使用console口登陆方式(3)4如何创建Vlan？(5)4.1创建一个基于端口的Vlan (5)5如何配置trunk？(6)5.1静态链路聚合的配置方法(6)5.2动态链路聚合的配置发法(6)6开启端口Flow-control 、Spanning-Tree、和Edged-port (7) 7如何保存已经更改的设置？(8)1背景描述H3C交换机从5100升级到5120后，配置命令有了较大的改变，本手册根据H3C新版交换机操作系统命令进行配置指导。

旨在指导大洋系统工程师正确配置和使用H3C交换机。

2此配置手册使用范围此配置手册使用于H3C S5120系列交换机，如是其他系列交换机，请先参考操作手册。

此配置手册介绍了H3C S5120交换机初始配置，VLAN设置，trunk设置、spanning-tree 设置、portfast设置方法。

其他功能设置请参考交换机操作手册3H3C S5120系列交换机登陆初始配置3.1 使用console口登陆方式第一步：如图2-1所示，建立本地配置环境，只需将PC机（或终端）的串口通过配置电缆与以太网交换机的Console口连接。

PC通过Console口搭建本地配置环境第二步：在PC机上运行终端仿真程序（如Windows 3.X的Terminal或Windows 9X/Windows 2000/Windows XP的超级终端等，以下配置以Windows XP为例），选择与交换机相连的串口，设置终端通信参数：传输速率为9600bit/s、8位数据位、1位停止位、无校验和无流控，如图2-2至图2-4所示。

新建连接连接端口设置端口通信参数设置第三步：以太网交换机上电，终端上显示设备自检信息，自检结束后提示用户键入回车，之后将出现命令行提示符（如），如图2-5所示。

H3C S5120-EI系列以太网交换机 安装手册

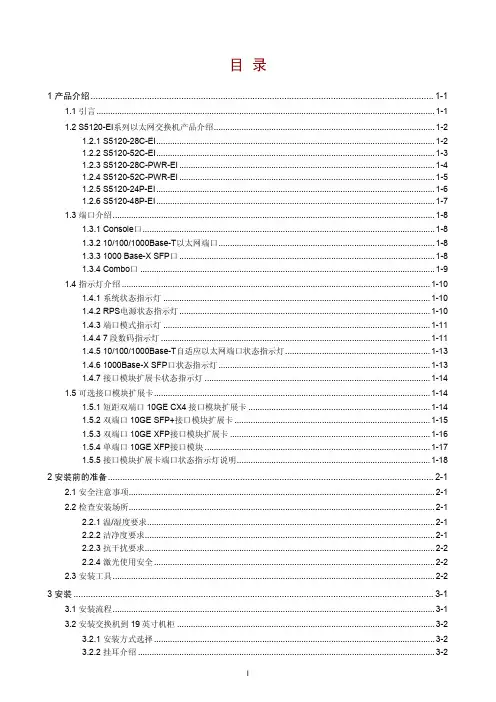

............................................................................................................................................ 1-1 1.1 引言 ................................................................................................................................................... 1-1 1.2 S5120-EI系列以太网交换机产品介绍................................................................................................ 1-2 1.2.1 S5120-28C-EI......................................................................................................................... 1-2 1.2.2 S5120-52C-EI......................................................................................................................... 1-3 1.2.3 S5120-28C-PWR-EI ............................................................................................................... 1-4 1.2.4 S5120-52C-PWR-EI ............................................................................................................... 1-5 1.2.5 S5120-24P-EI ......................................................................................................................... 1-6 1.2.6 S5120-48P-EI ......................................................................................................................... 1-7 1.3 端口介绍............................................................................................................................................ 1-8 1.3.1 Console口............................................................................................................................... 1-8 1.3.2 10/100/1000Base-T以太网端口.............................................................................................. 1-8 1.3.3 1000 Base-X SFP口 ............................................................................................................... 1-8 1.3.4 Combo口 ................................................................................................................................ 1-9 1.4 指示灯介绍 ...................................................................................................................................... 1-10 1.4.1 系统状态指示灯 .................................................................................................................... 1-10 1.4.2 RPS电源状态指示灯 ............................................................................................................. 1-10 1.4.3 端口模式指示灯 .................................................................................................................... 1-11 1.4.4 7 段数码指示灯 ..................................................................................................................... 1-11 1.4.5 10/100/1000Base-T自适应以太网端口状态指示灯............................................................... 1-13 1.4.6 1000Base-X SFP口状态指示灯 ............................................................................................ 1-13 1.4.7 接口模块扩展卡状态指示灯 .................................................................................................. 1-14 1.5 可选接口模块扩展卡........................................................................................................................ 1-14 1.5.1 短距双端口 10GE CX4 接口模块扩展卡 ............................................................................... 1-14 1.5.2 双端口 10GE SFP+接口模块扩展卡 ..................................................................................... 1-15 1.5.3 双端口 10GE XFP接口模块扩展卡 ....................................................................................... 1-16 1.5.4 单端口 10GE XFP接口模块 .................................................................................................. 1-17 1.5.5 接口模块扩展卡端口状态指示灯说明.................................................................................... 1-18

H3C S5500-EI以太网交换机配置手册V101(国 内版)

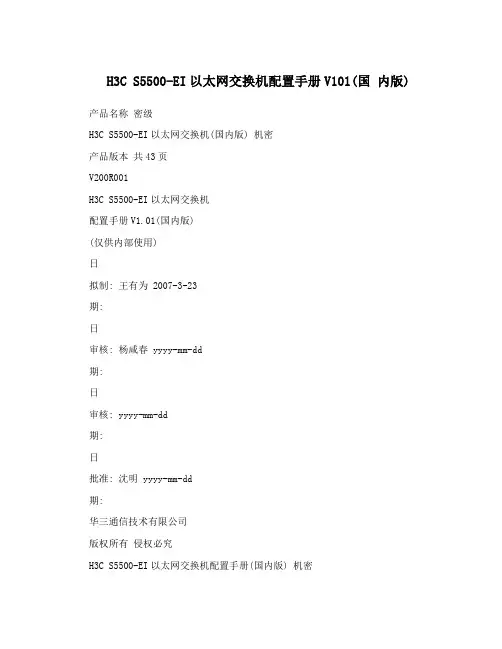

H3C S5500-EI以太网交换机配置手册V101(国内版) 产品名称密级H3C S5500-EI以太网交换机(国内版) 机密产品版本共43页V200R001H3C S5500-EI以太网交换机配置手册V1.01(国内版)(仅供内部使用)日拟制: 王有为 2007-3-23期:日审核: 杨咸春 yyyy-mm-dd期:日审核: yyyy-mm-dd期:日批准: 沈明 yyyy-mm-dd期:华三通信技术有限公司版权所有侵权必究H3C S5500-EI以太网交换机配置手册(国内版) 机密修订记录日期修订版描述作者本2007-3-23 1.00 初稿完成王有为 2007-4-11 1.01 光模块集中加入1000BASE-T和BIDI光模块杨绵华2011-08-28 版权所有，侵权必究第2页,共43页H3C S5500-EI以太网交换机配置手册(国内版) 机密目录1 电信网络系统总体介绍(可选)..................................................................... .............. 9 2 产品基本配置说明...................................................................... .. (9)2.1 机柜布置图 ..................................................................... ..................................... 9 2.1.1 S5500-28C-EI ..................................................................... ................................ 9 2.1.2 S5500-28C-EI-DC ..................................................................... ........................ 10 2.1.3 S5500-52C-EI ..................................................................... .............................. 11 2.1.4 S5500-28C-PWR-EI ..................................................................... .................... 12 2.1.5 S5500-52C-PWR-EI ..................................................................... .................... 13 2.1.6 S5500-28F-EI(AC) ................................................................. ...................... 14 2.1.7 S5500-28F-EI(DC) ................................................................. ...................... 15 2.1.8 基本配置说明 ..................................................................... . (16)2.2 S5500-EI国内版产品配置清单及配置说明 ........................................................ 16 2.2.1 产品配置清单 ..................................................................... ............................... 16 2.2.2 配置说明 ..................................................................... (17)2.3 S5500-EI国内版调测整机配置说明 ...................................................................18 2.3.1 调测整机配置清单 ..................................................................... ........................ 18 2.3.2 调测整机配置说明 ..................................................................... (22)2.4 S5500-EI国内版总装机柜配置说明 ...................................................................23 2.4.1 总装机柜配置清单 ..................................................................... ........................ 23 2.4.2 总装机柜配置说明 ..................................................................... (26)2.5 S5500-EI功能模块配置说明 ..................................................................... ......... 26 2.5.1 1端口万兆以太网XFP光接口模块配置清单 ....................................................... 27 2.5.2 2端口万兆以太网XFP光接口模块配置清单 ....................................................... 27 2.5.3 2端口万兆以太网CX4接口模块配置清单 .......................................................... 27 2.5.4 CX4 本地连接线缆(clip-clip)-50cm模块配置清单 ............................................. 28 2.5.5 CX4 本地连接线缆(clip-clip)-100cm模块配置清单 ........................................... 28 2.5.6 CX4 本地连接线缆(clip-clip)-300cm模块配置清单 ........................................... 28 2.5.7 150W可插拔交流电源模块配置清单 (29)2.5.8 150W可插拔直流电源模块配置清单 (29)2.6 S5500-EI光电收发模块配置说明 ..................................................................... .. 292011-08-28 版权所有，侵权必究第3页,共43页H3C S5500-EI以太网交换机配置手册(国内版) 机密2.6.1 千兆多模光接口模块(850nm，0.55km)配置清单 ............................................. 30 2.6.2 千兆单模光接口模块(1310nm，10km)配置清单 ..............................................31 2.6.3 千兆单模光接口模块(1310nm，40km)配置清单 .............................................. 31 2.6.4 千兆单模光接口模块(1550nm，40km)配置清单 .............................................. 31 2.6.5 千兆单模光接口模块(1550nm，70km)配置清单 .............................................. 32 2.6.6 万兆XFP多模光接口模块(850nm ，300m)配置清单 ........................................32 2.6.7 万兆XFP单模光接口模块(1310nm ，10km)配置清单 ...................................... 32 2.6.8 万兆XFP单模光接口模块(1550nm,40km)配置清单 (33)2.6.9 百兆SFP光接口模块(1310nm,2km)配置清单 ................................................... 33 2.6.10 百兆SFP光接口模块(1310nm,15km)配置清单 ................................................. 33 2.6.11 百兆SFP光接口模块(1310nm,40km)配置清单 ................................................. 33 2.6.12 百兆SFP光接口模块(1550nm,80km)配置清单 ................................................. 34 2.6.13 千兆SFP电接口模块(100m,RJ45)配置清单 ...................................................... 34 2.6.14 千兆BIDI光模块(TX1310/RX1490,10km,LC)配置清单 ..................................... 34 2.6.15 千兆BIDI光模块(TX1490/RX1310,10km,LC)配置清单 (35)2.6.16 百兆BIDI光模块(TX1310/RX1550,15km,LC)配置清单 ..................................... 35 2.6.17 百兆BIDI光模块(TX1550/RX1310,15km,LC)配置清单 (35)2.6.18 接口配置说明 ..................................................................... ............................... 36 3 外部电源、电缆(光缆)配置说明 ..................................................................... .. (36)3.1 各种外部电源、电缆(光缆)的配置清单(国内版) ...................................... 36 4 发货附件配置说明...................................................................... (37)4.1 各种发货附件配置清单 ..................................................................... ................. 37 4.1.1 S5500-EI国内版发货附件配置清单 ................................................................... 37 5 安装成套件配置说明 ..................................................................... .............................. 38 6 配套设备配置说明...................................................................... ................................. 38 7 相关服务器的配置说明 ..................................................................... .......................... 38 8 终端系统配置说明...................................................................... (38)8.1 终端系统连接示意图 ..................................................................... .. (38)8.2 终端系统配置说明 ..................................................................... ........................ 39 8.2.1 终端设备配置清单 ..................................................................... ........................ 39 8.2.2 终端设备的配置说明 ..................................................................... .. (39)8.3 终端软件的选配说明 ..................................................................... .................... 40 9 网管系统配置说明...................................................................... (41)2011-08-28 版权所有，侵权必究第4页,共43页H3C S5500-EI以太网交换机配置手册(国内版) 机密9.1 网管系统连接示意图 ..................................................................... .. (41)9.2 网管系统的配置清单 ..................................................................... .. (41)9.3 网管系统配置说明 ..................................................................... ........................ 41 10 扩容和升级改造方法与配置说明...................................................................... .. (41)10.1 扩容方法与配置说明 ..................................................................... .. (41)10.2 升级改造方法与配置说明 ..................................................................... ............. 42 10.2.1 升级改造方法 ..................................................................... ............................... 42 10.2.2 升级设备的清单 ..................................................................... ............................ 42 10.2.3 可升级部分的说明 ..................................................................... ........................ 42 10.2.4 更换部件注意事项 ..................................................................... ........................ 42 11 其它配置说明 ..................................................................... .. (42)11.1 附录I:配置计算模板 ..................................................................... . (43)11.2 附录II:产品性能指标 ..................................................................... (43)11.3 附录III:缩略语清单 ..................................................................... (43)2011-08-28 版权所有，侵权必究第5页,共43页H3C S5500-EI以太网交换机配置手册(国内版) 机密表目录表1 H3C S5500-EI产品配置清单(国内版) .................................................................... .. 16 表2 0235A252调测整机的配置清单(国内版) ..................................................................18 表3 0235A24R调测整机的配置清单(国内版) ..................................................................19 表4 0235A24W调测整机的配置清单(国内版) (19)表5 0235A254调测整机的配置清单(国内版) ..................................................................20 表6 0235A24Y调测整机的配置清单(国内版) ..................................................................21 表7 0235A24T调测整机的配置清单(国内版) ..................................................................21 表8 0235A24V调测整机的配置清单(国内版) ..................................................................22 表9 0211A17X总装机柜配置清单 ..................................................................... ................... 23 表10 0211A18G总装机柜配置清单...................................................................... ................ 23 表11 0211A18A总装机柜配置清单 ..................................................................... ................. 24 表12 0211A17Y总装机柜配置清单 ..................................................................... ................. 24 表13 0211A18B总装机柜配置清单 ..................................................................... ................. 25 表14 0211A18N总装机柜配置清单 ..................................................................... ................. 25 表15 0211A18H总装机柜配置清单 ..................................................................... ................. 26 表16 1端口万兆以太网XFP光接口模块配置清单 (27)表17 2端口万兆以太网XFP光接口模块配置清单 (27)表18 2端口万兆以太网 CX4 接口模块配置清单 (27)表19 CX4 本地连接线缆(clip-clip)-50cm模块配置清单 ....................................................... 28 表20 CX4 本地连接线缆(clip-clip)-100cm模块配置清单 ..................................................... 28 表21 CX4 本地连接线缆(clip-clip)-300cm模块配置清单 ..................................................... 29 表22 150W可插拔交流电源模块配置清单 ..................................................................... ...... 29 表23 150W可插拔直流电源模块配置清单 ..................................................................... ...... 29 表24 S5500光电收发模块集配置清单 ..................................................................... ............ 30 表25 千兆多模光接口模块(850nm，0.55km)配置清单 ...................................................... 31 表26 千兆单模光接口模块(1310nm，10km)配置清单 ........................................................ 31 表27 千兆单模光接口模块(1310nm，40km)配置清单 ....................................................... 31 表28 千兆单模光接口模块(1550nm，40km)配置清单 ........................................................ 31 表29 千兆单模光接口模块(1550nm，70km)配置清单 ........................................................ 32 表30 万兆光接口模块(850nm ，300m)配置清单 (32)2011-08-28 版权所有，侵权必究第6页,共43页H3C S5500-EI以太网交换机配置手册(国内版) 机密表31 万兆光接口模块(1310nm ，10km)配置清单 .............................................................. 32 表32 万兆光接口模块(1550nm,40km)配置清单 (33)表33 百兆光接口模块(1310nm,2km)配置清单 ....................................................................33 表34 百兆光接口模块(1310nm,15km)配置清单 (33)表35 百兆光接口模块(1310nm,40km)配置清单 (33)表36 百兆光接口模块(1550nm,80km)配置清单 (34)表37 千兆SFP电接口模块(100m,RJ45)配置清单................................................................ 34 表38 千兆BIDI光模块(TX1310/RX1490,10km,LC)配置清单 ............................................... 34 表39 千兆BIDI光模块(TX1490/RX1310,10km,LC)配置清单 ............................................... 35 表40 百兆BIDI光模块-TX1310/RX1550,15km,LC配置清单 ................................................ 35 表41 百兆BIDI光模块(TX1550/RX1310,15km,LC)配置清单 ............................................... 35 表42 S5500-EI外部电源、电缆(光缆)的配置清单(国内版) ........................................ 36 表43 H3C S5500 系列以太网交换机国内版发货附件配置清单 ........................................... 37 表44 外部电缆/光缆列表 ..................................................................... (42)2011-08-28 版权所有，侵权必究第7页,共43页H3C S5500-EI以太网交换机配置手册(国内版) 机密图目录图1 S5500-28C-EI交换机前面板示意图 ..................................................................... ........... 9 图2 S5500-28C-EI交换机后面板示意图 ..................................................................... ......... 10 图3 S5500-28C-EI以太网交换机TOP面示意图 ...................................................................10 图4 S5500-28C-EI-DC交换机前面板示意图...................................................................... .. 10 图5 S5500-28C-EI-DC交换机后面板示意图...................................................................... .. 10 图6 S5500-28C-EI-DC以太网交换机TOP面示意图 ............................................................ 11 图7 S5500-52C-EI交换机前面板示意图 ..................................................................... ......... 11 图8 S5500-52C-EI交换机后面板示意图 ..................................................................... ......... 11 图9 S5500-52C-EI以太网交换机TOP面示意图 ................................................................... 12 图10 S5500-28C-PWR-EI交换机前面板示意图 (12)图11 S5500-28C-PWR-EI交换机后面板示意图 (12)图12 S5500-28C-PWR-EI以太网交换机TOP面示意图 ....................................................... 13 图13S5500-52C-PWR-EI交换机前面板示意图 (13)图14 S5500-52C-PWR-EI交换机后面板示意图 (13)图15 S5500-52C-PWR-EI以太网交换机TOP面示意图 ....................................................... 14 图16S5500-28F-EI(AC)交换机前面板示意图 (14)图17 S5500-28F-EI(AC)交换机后面板示意图 (14)图18 S5500-28F-EI(AC)以太网交换机TOP面示意图 ..................................................... 15 图19 S5500-28F-EI(DC)交换机前面板示意图 (15)图20 S5500-28F-EI(DC)交换机后面板示意图 (15)图21 S5500-28F-EI(DC)以太网交换机TOP面示意图 ..................................................... 16 图22 操作维护系统连接示意图 ..................................................................... ....................... 38 图23 新建连接 ..................................................................... ................................................ 39 图24 连接端口(串口)设置 ..................................................................... .......................... 40 图25 连接端口通信参数设置 ..................................................................... .......................... 40 图26 S5500-EI网管系统连接示意图 ..................................................................... (41)2011-08-28 版权所有，侵权必究第8页,共43页H3C S5500-EI以太网交换机配置手册(国内版) 机密H3C S5500-EI 以太网交换机配置手册V1.00(国内版)关键词:H3C S5500、以太网交换机、配置手册摘要:本文介绍了S5500-EI以太网交换机的国内版组成和配置原则，供配置产品使用，保证产品的正确组网，正确发货。

  1. 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

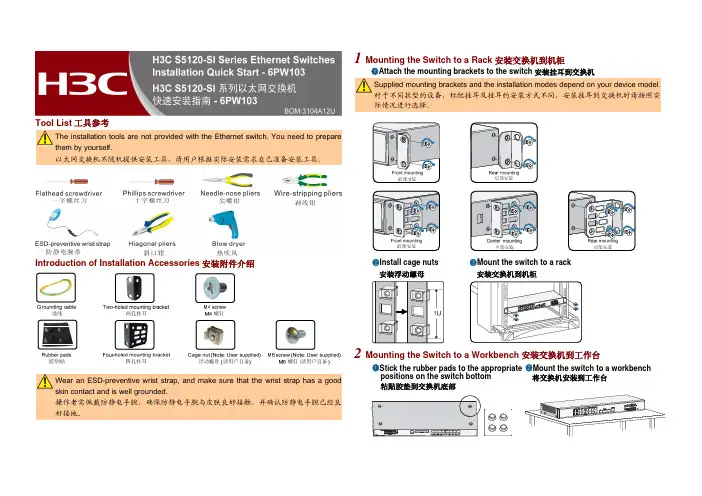

Method 1—Using only front mounting brackets 仅使用前挂耳安装 1 2
1U
3
Tool list 工具参考
Install front mounting brackets 安装前挂耳 Flathead screwdriver 一字螺丝刀 Phillips screwdriver 十字螺丝刀 Needle-nose pliers 尖嘴钳 Wire-stripping pliers 剥线钳 Diagonal pliers 斜口钳 Install cage nuts to the square holes of the rack 安装浮动螺母到机柜方孔条
Connect the AC power cable 连接交流电源线
3 1
Install the bail latch 安装电源线卡钩
2
Connect the power cable to the receptacle 安装电源线
Secure the bail latch over the power cable 使用电源线卡钩固 定电源线插头
Before connecting the power cable, connect the grounding cable and make sure that the switch is correctly grounded. 在连接电源线前，需先连接保护地线，保证交换机正 确接地。 Connect the power cable to the switch first and then to the power supply system to avoid bodily injury. 连接电源线时，请先完成电源线与交换机侧的连接，再进行电源线 与供电系统的连接，以免造成人身伤害。
Blow dryer 热吹风
The installation tools are not provided with the switch. Prepare them by yourself.交换机不随机 提供安装工具，请用户根据实际安装需求自己 准备安装工具。
1U Install the load-bearing screw 安装承重螺钉
Install an OT terminal on the other end of the grounding cable, and connect the OT terminal to the grounding strip. 保护地线的另一端需自行安装OT端子，然后与接地排相连
Connecting the power cable 连接电源线
2
3
Copyright © 2011 杭州华三通信技术有限公司 版权所有，保留一切权利。 如需了解产品及安装方面的更多信息，请登录 H3C 网站
Connect the DC power cable 连接直流电源线
2 1
Method 1 –52 VDC to –55 VDC (RPS)
Copyright © 2011, Hangzhou H3C Technologies Co., Ltd.
1
Method 2 +12 VDC (RPS)
For more information about the product and installation procedures, log in to
Introduction to installation accessories 安装附件介绍
Install the front mounting bracket 安装前挂耳
4 3
Grounding cable 地线 M6 screw (User supplied) M6螺钉（请用户自备） Cage nut (User supplied) 浮动螺母（请用户自备） Bail latch 电源线卡钩
Method 2—Using front and rear mounting brackets 前挂耳和后挂耳配合安装 1 2
Install cage nuts to the square holes of the rack 安装浮动螺母到机柜方孔条
ESD-preventive wrist strap 防静电腕带
Rubber pads 胶垫贴
Rear mounting bracket and load-bearing screw 后挂耳和承重螺钉
Front mounting bracket and M4 screws 前挂耳和M4螺钉
Mount the rear mounting brackets to the square holes on the rear post of the rack安装后挂耳到机柜后方孔条
Before installation, wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is well grounded. 在以下安装交换机的过程中，操作者需佩 戴防静电腕带，请确保防静电腕ck the rubber pads to the appropriate positions on the switch bottom 粘贴脚垫到交换机底部
Connecting the grounding cable 连接保护地线
1
2
3
Connect the OT terminal of the grounding cable to the switch 将保护地线一端的OT端子与交换机相连
Mounting the switch to a workbench 安装交换机到工作台
1 2
Mounting the switch to a rack 安装交换机到机柜
When the depth of a switch is greater than 300 mm (11.81 in), the front mounting brackets only secure the switch rather than bear its weight. 当交换机的深度大于300mm 时，前挂耳只对交换机起固定作用，不能用来承重。
