Assignment-Form---中山大学经济管理实验教学中心首页
University

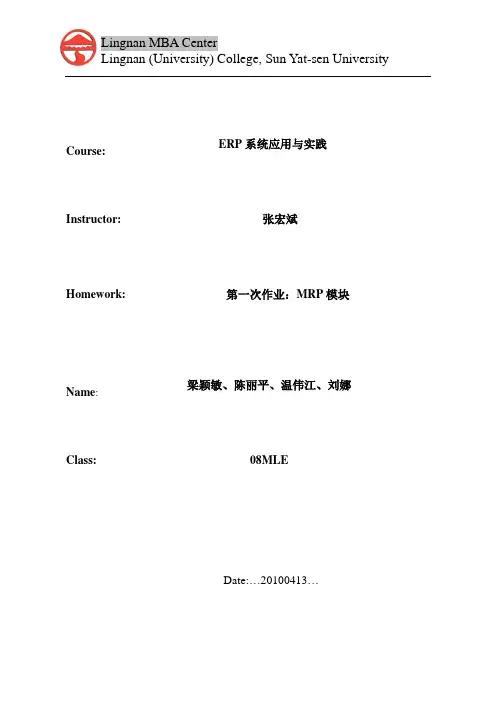

ERP系统应用与实践Course:
Instructor: 张宏斌Homework: 第一次作业：MRP模块
梁颖敏、陈丽平、温伟江、刘娜Name:
Class: 08MLE
Date:…20100413…
University
本次作业MRP模块的操作主要包括以下几个部分： 实验设计
实验流程设计
实验流程
实验收获与问题
University
实验设计
某企业生产的一款蛋糕烤盘的产品结构如图所示
款蛋糕烤盘生产的相关信息如下：
◦TA-KP和TA-DP由企业生产
◦TA-PP、TA-TL、TA-XJ、TA-GJ采购，采购价格及采购提前期详见下表：
该款蛋糕烤盘生产的相关信息如下：
◦TA-KP的售价为40元/个，预测4月的销售量为2000件，已接到一张需求量为400件的订单，要求发运时间为4月20
第一周第二周第三周第四周
预测量500 500 500 500
订单量400
University
可用量100 100 200 200
生产计划500 500 500 500
现有量100
该款蛋糕烤盘生产的相关信息如下：
◦TA-DP经由自动喷涂工序（TA-PTA）生产，所需设备为归属于喷涂车间（TA-PTD）的自动喷涂生产线（TA-PTR）◦TA-KP经由装配工序（TA-ZPA）生产，所需设备为归属于装配车间（TA-ZPD）的装配生产线（TA-ZPR）
◦TA-PTR和TA-ZPR的数量均为1，均采用一个白班的班次生产，生产能力均为每天100个
实验流程设计
1.创建物料
2.创建物料清单
3.创建资源
4.创建部门
5.创建工序
6.创建工艺路线
7.创建价目表
8.创建销售订单
9.创建预测
10.定义和装载主需求计划
11.定义和运行物料需求计划
12.生成生产工单
13.生成采购计划
14.创建采购订单
15.采购接收入库
16.查找并释放生产工单
17.生产子装配件
18.子装配件完工入库
19.生产产成品
20.产成品完工入库
实验流程
责任：制造和分销经理
University
组织：M1
创建物料
创建TA-KP
复制自“成品”模板，分配给M1
创建TA-DP
复制自“子装配件”模板，分配给M1
创建TA-PP、TA-TL、TA-XJ、TA-GJ
复制自“采购物料”模板
依据实验设计在“采购”属性的“价目表”栏输入价格，在“总计划”栏输入计划员
分配给M1
将上述物料的“MPS/MRP计划”属性中的“追溯”改为“总装/软反查”
创建物料清单
创建TA-DP的BOM
在“物料”栏输入TA-DP
在“组件”栏输入TA-PP、TA-TL，依据实验设计输入所需数量
创建TA-KP的BOM
在“物料”栏输入TA-KP
在“组件”栏输入TA-DP、TA-XJ、TA-GJ，依据实验设计输入所需数量
创建资源
创建自动喷涂生产线TA-PTR
在“类型”栏选择“设备”
在“单位”栏选择“HR”
在“费用类型”栏选择“WIP移动”
创建装配生产线TA-ZPR
在“类型”栏选择“设备”
在“单位”栏选择“HR”
在“费用类型”栏选择“WIP移动”
创建部门
创建喷涂车间TA-PTD
在“资源”栏选择TA-PTR
取消“24小时可用”，在“数量”栏输入1
选择白班，在“数量”栏输入1
University
创建装配车间TA-ZPD
在“资源”栏选择TA-ZPR
取消“24小时可用”，在“数量”栏输入1
选择白班，在“数量”栏输入1
创建工序
创建自动喷涂工序TAPA
在“资源”栏选择TA-PTR
在“倒数”栏输入每小时产量12.5
在“计划”栏选择“是”
创建装配工序TAZA
在“资源”栏选择TA-ZPR
在“倒数”栏输入每小时产量12.5
在“计划”栏选择“是”
创建工艺路线
创建TA-DP的工艺路线
在“物料”栏选择TA-DP
在“代码”栏选择TAPA
创建TA-KP的工艺路线
在“物料”栏选择TA-KP
在“代码”栏选择TAZA
创建价目表
查找“Corporate”
在“Corporate”的列表行新建一行
在“产品属性”栏选择“项目编号”
在“产品值”栏输入TA-KP
在“价格”栏输入40
创建销售订单
在“客户”栏选择“Business World”
在“行信息”的“订购项目”栏输入TA-KP
在“日期”栏输入4月20日
在“数量”栏输入400
将“发运”中的仓库改为M1
记录订单编号为64031
创建预测
在“预测集”栏输入TA-KPS
在“预测”栏输入TA-KPC
University
在“预测物料”的“物料”栏输入TA-KP
在“详细资料”的“时段”栏选择“天”
在“详细资料”的“日期”栏输入2010/4/10
在“详细资料”的“数量”栏输入100
定义和装载主需求计划
定义主需求计划TA-MDS
在“目标计划”栏输入TA-MDS
在“来源类型”栏选择“特定预测”
在“来源名称” 栏输入TA-KPS
在“改写” 栏选择“所有分录”
在“数量类型”栏选择“原始”
在“冲减”栏选择“是”
在“正向冲减天数”栏输入5
在“反向冲减天数”栏输入5
查看主需求计划
定义和运行物料需求计划
◦定义物料需求计划TA-MRP
◦在“选项”中的“计划”栏输入TA-MDS
◦选择“计划能力”和“反查”
◦保存，点击“生成”、“确定”、“提交”
◦记录MRP运行请求编号为4557496
University
查看物料需求计划
生成生产工单
◦查找物料需求计划TA-MRP
◦在“供应/需求”中查找物料TA-KP和TA-DP
◦选中“选定发放”
◦保存
◦点击“发放”
◦查看后记录生产申请号为4557522
生成采购计划
◦查找物料需求计划TA-MRP
◦在“供应/需求”中查找物料TA-PP、TA-TL、TA-XJ、TA-GJ ◦选中“选定发放”，在“实施方式”栏选择“采购申请”
◦保存
◦点击“发放”
◦查看后记录采购申请号为4557523
创建采购订单
◦删除采购员，点击查找
◦选择物料TA-PP、TA-TL、TA-XJ、TA-GJ的采购申请，点击“自动”
◦点击“发运”
◦点击“分配”，在“子库存”栏输入”RIP”
◦保存
◦点击“审批”、“确定”，状态自动改为“批准”
University
◦记录订单号为5566
采购接收入库
◦输入采购订单号5566进行查询
◦勾选物料TA-PP、TA-TL、TA-XJ、TA-GJ
◦保存
◦查看后确认子库存RIP中上述物料的现有量与采购订单中的采购量相符
查找并释放生产工单
◦查找并释放TA-DP的生产工单
在“装配件”栏输入TA-DP进行查找
在菜单“工具”中点选“更改状态”后选择“释放”
保存
◦查找并释放TA-KP的生产工单
在“装配件”栏输入TA-KP进行查找
在菜单“工具”中点选“更改状态”后选择“释放”
保存
生产子装配件
◦在“装配件”栏输入TA-DP
◦输入工序序号
◦工序步骤从“排队”到“移动”
◦在“处理量”栏输入拟生产数量400（与排队量相等）
子装配件完工入库
◦在“装配件”栏输入TA-DP
◦点击“继续”
◦在“子库存”栏输入“RIP”
◦在“数量”栏输入子装配件生产的处理量400
◦点击“完成”
◦查看后确认子库存RIP中TA-DP的现有量为400
生产产成品
◦在“装配件”栏输入TA-KP
◦输入工序序号
◦工序步骤从“排队”到“移动”
◦在“处理量”栏输入拟生产数量400（与排队量相等）
产成品完工入库
◦在“装配件”栏输入TA-KP
◦点击“继续”
Lingnan MBA Center
Lingnan (University) College, Sun Yat-sen University
◦在“子库存”栏输入“FGI”
◦在“数量”栏输入产成品生产的处理量400
◦点击“完成”
◦查看后确认子库存FGI中TA-KP的现有量为400
查看产成品库存
实验收获与问题
实验收获
◦增进了对业务流程的了解
◦增进了对业务运作与系统运作间的关联关系的了解
◦进一步熟习了ORACLE MRP模块的应用
实验中遇到且尚未解决的问题
◦预测如何对主需求计划产生影响？
◦各种物料的现有量、外购物料的提前期如何录入系统以及如何对主需求计划、物料需求计划产生影响？。
