NX11302 DATASHEET

  • 格式：pdf
  • 大小：19.78 KB
  • 文档页数：3

Thursday, July 05, 2012 LNP* Thermocomp* NX11302Units EnglishSABIC Innovative Plastics Asia Pacific - Acrylonitrile Butadiene Styrene + PCActionLegend (Open)

General InformationProduct DescriptionThis is a PC/ABS compound with colorable, good plating, surface and mechanical performance, a good candidate for Laser Direct Structuring applications GeneralMaterial Status Commercial: Active Availability Asia Pacific Features Good Colorability Good Surface Finish Platable Processing Method Injection Molding ASTM & ISO Properties 1PhysicalNominal Value Unit Test Method Density1.22 g/cm3 ASTM D792Melt Volume-Flow Rate (MVR) (260¡ãC/5.0 kg 0.854 in3/10min ISO 1133Molding Shrinkage- Flow (24 hr) 0.0060 in/in ASTM D955Molding Shrinkage- Across Flow (24 hr) 0.0060 in/in ASTM D955Water AbsorptionASTM D57024 hr 0.010 % 24 hr, 50% RH 0.010 % MechanicalNominal Value Unit Test Method Tensile Modulus2 341000 psi ASTM D638Tensile Strength3 (Yield) 6820 psi ASTM D638Tensile Strength3 (Break) 6670 psi ASTM D638Tensile Elongation3 (Yield) 4.6 % ASTM D638Tensile Elongation3 (Break) 75 % ASTM D638Flexural Modulus4 (1.97 in Span) 323000 psi ASTM D790Flexural Strength4 (Yield, 1.97 in Span) 11500 psi ASTM D790Flexural Strength4 (Break, 1.97 in Span) 11300 psi ASTM D790ImpactNominal Value Unit Test Method Notched Izod Impact (73¡ãF 10 ft¡¤lb/i ASTM D256ThermalNominal Value Unit Test Method Deflection Temperature Under Load (264 psi, Unannealed, 0.126 in) 223 ¡ã ASTM D648CLTE- Flow (-40 to 104¡ãF 0.000039 in/in/¡ã ASTM E831CLTE- Transverse (-40 to 104¡ãF 0.000042 in/in/¡ã ASTM E831ElectricalNominal Value Unit Test Method Relative Permittivity (1.00 GHz) 2.94 IEC 60250Dissipation Factor (1.00 GHz) 0.0057 IEC 60250Processing InformationInjectionNominal Value Unit

Drying Temperature 185 to 205 ¡ã Drying Time 2.0 to 4.0 hr Drying Time, Maximum 8.0 hr Suggested Max Moisture 0.010 % Suggested Shot Size 50 to 70 % Rear Temperature 390 to 480 ¡ã Middle Temperature 420 to 490 ¡ã Front Temperature 420 to 490 ¡ã Nozzle Temperature 425 to 500 ¡ã Processing (Melt) Temp 425 to 500 ¡ã Mold Temperature 100 to 170 ¡ã Back Pressure 75.0 to 125 psi Screw Speed 50 to 100 rpm Vent Depth 0.0015 to 0.0020 in

Notes1Typical properties: these are not to be construed as specifications.22.0 in/min3Type I, 2.0 in/min1/2(W)w

2012/7/5http://catalog.ides.com/Datasheet.aspx?I=28365&E=15786040.051 in/min

Disclaimer : THE MATERIALS, PRODUCTS AND SERVICES OF SABIC INNOVATIVE PLASTICS HOLDING BV, ITS SUBSIDIARIES AND AFFILIATES ("SELLER"), ARE SOLD SUBJECT TO SELLER'S STANDARD CONDITIONS OF SALE, WHICH CAN BE FOUND AT http://www.sabic-ip.com. AND ARE AVAILABLE UPON REQUEST. ALTHOUGH ANY INFORMATION OR RECOMMENDATION CONTAINED HEREIN IS GIVEN IN GOOD FAITH, SELLER MAKES NO WARRANTY OR GUARANTEE, EXPRESS OR IMPLIED, (i) THAT THE RESULTS DESCRIBED HEREIN WILL BE OBTAINED UNDER END-USE CONDITIONS, OR (ii) AS TO THE EFFECTIVENESS OR SAFETY OF ANY DESIGN INCORPORATING SELLER'S PRODUCTS, SERVICES OR RECOMMENDATIONS. EXCEPT AS PROVIDED IN SELLER'S STANDARD CONDITIONS OF SALE, SELLER SHALL NOT BE RESPONSIBLE FOR ANY LOSS RESULTING FROM ANY USE OF ITS PRODUCTS OR SERVICES DESCRIBED HEREIN. Each user is responsible for making its own determination as to the suitability of Seller's products, services or recommendations for the user's particular use through appropriate end-use testing and analysis. Nothing in any document or oral statement shall be deemed to alter or waive any provision of Seller's Standard Conditions of Sale or this Disclaimer, unless it is specifically agreed to in a writing signed by Seller. No statement by Seller concerning a possible use of any product, service or design is intended, or should be construed, to grant any license under any patent or other intellectual property right of Seller or as a recommendation for the use of such product, service or design in a manner that infringes any patent or other intellectual property right. SABIC Innovative Plastics is a trademark of SABIC Holding Europe BV * LNP Thermocomp is a trademark of SABIC Innovative Plastics IP BV 1997-2012 SABIC Innovative Plastics Holding BV.All rights reserved 2/2(W)w

2012/7/5http://catalog.ides.com/Datasheet.aspx?I=28365&E=157860

This document was created with Win2PDF available at http://www.win2pdf.com.The unregistered version of Win2PDF is for evaluation or non-commercial use only.This page will not be added after purchasing Win2PDF.

合集下载

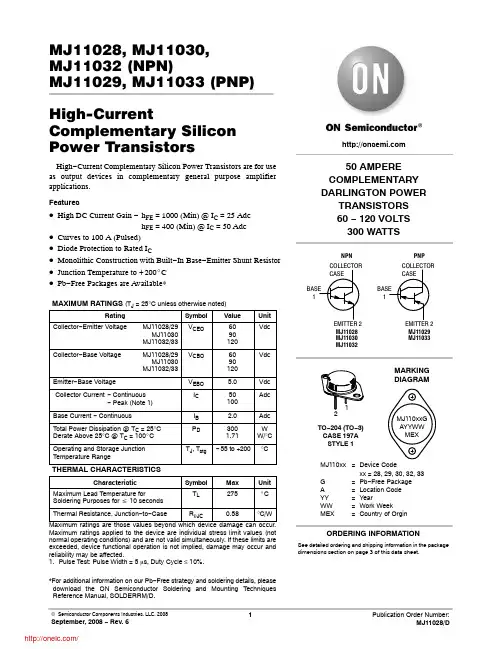

MJ11032G;MJ11033G;MJ11028G;MJ11032;MJ11030;中文规格书,Datasheet资料

MJ11032G;MJ11033G;MJ11028G;MJ11032;MJ11030;中文规格书,Datasheet资料

© Semiconductor Components Industries, LLC, 2008September, 2008 − Rev. 61Publication Order Number:MJ11028/DMJ11028, MJ11030,

MJ11032 (NPN)MJ11029, MJ11033 (PNP)

High-Current

Complementary Silicon

Power Transistors

High−Current Complementary Silicon Power Transistors are for useas output devices in complementary general purpose amplifierapplications.

Features•High DC Current Gain −hFE = 1000 (Min) @ IC = 25 AdchFE = 400 (Min) @ IC = 50 Adc•Curves to 100 A (Pulsed)•Diode Protection to Rated IC•Monolithic Construction with Built−In Base−Emitter Shunt Resistor•Junction Temperature to +200_C•Pb−Free Packages are Available*MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)

RatingSymbolValueUnitCollector−Emitter VoltageMJ11028/29MJ11030MJ11032/33VCEO6090120Vdc

Collector−Base VoltageMJ11028/29MJ11030MJ11032/33VCBO6090120Vdc

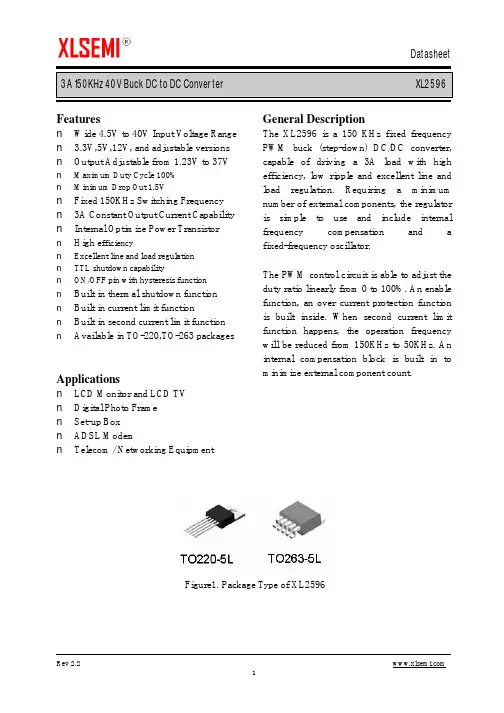

XL2596 datasheet
