MOTOTRBO技术及全线产品综述当前，无线对讲机正经历着从模拟技术走向数字技术的巨大变革。

数字对讲机不仅能够提供更优良的语音通话质量，还可以承载数据、图像传输等丰富的无线应用、增加频谱资源利用效率，帮助用户大幅度提升业务绩效和工作效率。

2009年末，我国工业与信息化部专门发布了有关通知，自2011年1月1日开始，停止该频段内模拟对讲机的型号核准，五年后数字对讲机将完全取代模拟对讲机，数字无线通信时代全面到来。

MOTOTRBO数字技术综述MOTOTRBO产品采用符合欧洲电信标准协会（ETSI）数字移动无线对讲机（DMR）Tier 2标准的12.5kHz TDMA数字化技术。

这是一个在高功率、许可频段下专业通信的数字对讲机标准，并已得到全球公认。

TDMA可提升系统容量与频谱效率都比传统设备提高了一倍，同时改善了话音质量、延长电池使用时间以及为调度管理提供更强大的呼叫信令和控制能力。

利用TDMA平台，可在同一地区和同一频率下支持更多用户和更多信息传输。

MOTOTRBO数字无线通信系统采用专有的数字语音技术，可实现包括自动与环境噪音相适应的智能音频、一对一私密通话、灵活通讯编组等多种功能。

MOTOTRBO的创新音频技术，通过出色的语音清晰度提供智能通信，为用户带来优质的音频和出色的效率。

这一数字创新在提升团队工作效率的同时实现了一致、可靠的无线通信，优势包括：语音更清晰、覆盖范围更广，消除静电、抑制噪音并改善音质、在不失真的前提下实现私密性、通过失真管理提升语音清晰度等。

特别是通过失真管理提升语音清晰度，因为静电和噪音等失真现象会降低语音清晰度，其蜂鸣声会在用户增加音量或通信覆盖距离增加时明显听到。

为了有效管理失真问题，MOTOTRBO的数字语音技术利用内置纠错技术重新构建语音，在整个覆盖区域内几乎不会有任何失真。

它还采用背景噪音抑制技术，这样背景噪音不会被发射出去，用户自然也接收不到。

失真管理功能增强了语音清晰度，提高了语音通信效果。

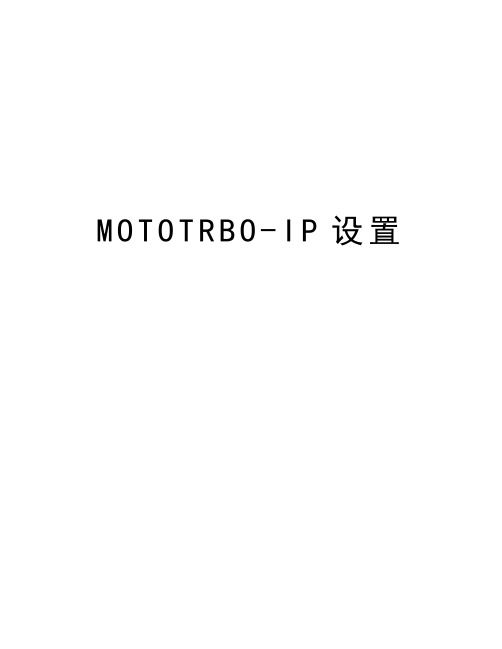

M O T O T R B O-I P设置MOTOTRBO数字系统IP联网写频设置要点MOTOTRBO设备联网时最基本的设置注意事项如下（以不同频的两基站联网为例）：一、主站与副站的两个中转台分别设置项目（以下所有图片左边为主站，右边为副站）：1、对讲机名称和ID可随意定制，名称可以相同（也可以不同），而ID一定不能相同2、连接类型要选好主站还是副站（对等方为副站），分别定好各自IP，局域网的自行定制，如果是电信网络，必须要向电讯公司申请一个固定IP给主站使用，因为机器断电重启时电信IP改变，导至不能联网。

副站必须填上主站IP，而且防火墙打开计时器秒数要相同。

3、两站彩色码可以不同，IP站点连接可以设成时隙1和2都联网，但是就算有6个站联网也是只有时隙1和时隙2两个信道可以作为呼叫使用，如果设置了插槽1就是时隙1联网，时隙2为本地使用，其他站的时隙2在使用时不会互相干扰。

设置为插槽2就刚好相反使用。

4、基站的使用频点可以不同频段（推荐不同，因为使用相同的时候如果出现重叠区，则在重叠区的范围内会出现难以呼叫的现象，如果一定要相同，只能使用不同彩色码，但不能减去重叠区的烦恼）。

二、下面是各手持机的设置项目：1、对讲机名称和ID可随意定制，名称可以相同（也可以不同），而ID一定不能相同2、呼叫组ID要相同，否则呼叫时要选取相同ID的组才能互相对话。

组ID设置接收列表设置3、3、彩色码和频点要对应手台所使用的中转台彩色码和频点，两台对讲机的信道所使用的时隙必须要一致。

4、数字对讲机写频项目里必须要选上接收时的组呼列表，发射时的通信录。

通过上述步骤后，就能实现两站IP联网对讲功能。

如果联网媒介是公网，主站必须要在网络路由器上把自身IP挂到公网上，即：把主站IP192.168.1.101挂到路由器里的DMZ项目中去，而副站的主站IP填写项目里把电信给主站点所在的网络公网IP填上。

三、手机设置漫游功能步骤：1、在写频菜单里把IP站点连接打钩2、在左边菜单最底下一项创建漫游列表3、在漫游列表中选取需要漫游的信道4、在信道设置菜单中找到扫描/漫游列表的选项，选取已建立好的漫游列表当漫游功能开启后，手持机就能在两站信号覆盖范围内平滑漫游过站，而不须要手动去选取所在站点的信道。

直通模式下两个时隙同时通话和空中编程MOTOTRBO TM数字对讲机的两个新功能2012年摩托罗拉相继推出了XiR M8600系列数字车载台，SL系列手持对讲机，XirP86/GP300D系列手持对讲机和Xir P6600系列的手持对讲机。

给广大用户带来了多行大屏幕彩屏显示，内置蓝牙，智能音频，语音播报等一系列全新的功能。

这里就给大家介绍一下直通模式下两个时隙同时通话和空中编程这两个比较有特点的功能。

在直通模式下两个时隙同时通话在直通模式下两个时隙同时通话，也就是6.25Khz等效信道间隔的直通模式(也叫6.25e直通模式)。

以往，满足DMR标准的数字对讲机只能在中继模式下实现两个时隙同时通话，在直通模式下，在12.5kHz信道间隔同一时间只能有一路通话。

2012年发布的新版DMR 标准规定了在直通模式下两个时隙同时通话这一新功能的实现方法，也使得DMR技术体制的优势更加明显。

新版DMR标准巧妙地利用领导对讲机(Leader)和其他对讲机对时间基准的互相传播，实现了大范围直通模式对讲机的时间同步，避免了不同时隙通话可能出现的干扰，实现了直通模式下的双时隙通话。

目前，摩托罗拉公司已经将这一功能植入现有对讲机，让更多的用户能够利用能够在有限的频率资源下增加通信容量。

空中编程空中编程可以使用户通过电脑连接对讲机对系统内其他对讲机进行编程。

这样，当用户需要修改系统内其他对讲机参数时，不用将所有对讲机收回进行编程，而通过简单的空中编程就可以了。

具体的系统设置如下图所示：图1. 应用服务器和客户端在同一台计算机上，用户通过客户端软件空中编程对讲机图2. 应用服务器和客户端在不同地点，用户可以通过客户端软件空中编程对讲机空中编程可以在直通模式， 6.25Khz等效信道间隔的直通模式，中继模式，IP互连系统，单基站智能多信道系统，和多基站智能多信道系统中实现。

如果安装了上线通知器软件，则系统还可以自动识别系统内的对讲机，让空中编程更加智能化。

发现更多体验优势MOTOTRBOTM数字技术带来无限可能MOTOTRBO TM专业数字常规通讯系统，是迄今为止非常出色的一款未来创新产品。

不断创新的数字技术，为其提供了强大性能。

这是摩托罗拉 60 年来一贯的设计理念。

我们要始终建立超越局限的无线对讲机性能。

帮助企业和人员进行顺畅的通信，MOTOTRBO 的这一目标看似非常简单，但其内在数字技术并不简单。

我们在不断开发创新解决方案，让 MOTOTRBO 可以满足所有企业的任何通信要求。

所有这些只需一个数字平台即可实现。

用于即时访问的 IP 基站互连功能该 IP 连接功能让您能够通过标准互联网，连接多个单站点系统。

随时随地都可以进行无中断的语音和数据通信，而且不必担心物理障碍、手动漫游操作、有限的覆盖范围和功能丢失等问题。

Capacity Plus 智能信道共享可以将信道容量增至两倍此款可扩展的单站点数字解决方案，允许上千个MOTOTRBO 对讲机用户在同一系统中进行语音和数据通信。

您的员工可以快速、高效地共享大量关键业务通信和信息。

IP57 防水标准，具备全天候坚固能力这是置于水下 1 米时可保持 30 分钟不进水的国际评级，是潮湿工作环境中的理想选择。

此外，它还符合多种严格标准，例如美国军标 810 C、D、E 和 F 以及摩托罗拉的耐用性和可靠性标准。

这些标准确保 MOTOTRBO 对讲机可以在各种恶劣环境中使用。

通过增强的数字功能提高频谱效率此款基于 TDMA 数字技术的频谱效率特性，将模拟系统的通话容量提高至两倍，可以与数据相集成，而且延长的电池寿命使通话时间增加了40%。

另外，增强的私密性可以让您通过 16 个加密密钥（每个密钥 40 位）的密码保护，确保语音、文本消息和 GPS 数据的安全。

十全十美的数字优势事半功倍MOTOTRBO 用户可以减少频谱拥堵现象，同时将现有许可的中继台信道效率提高至两倍。

利用双时隙 TDMA 技术支持一个 12.5 kHz 中继台信道中的双虚拟信道，可以将一个许可信道的呼叫容量提升至两倍。
