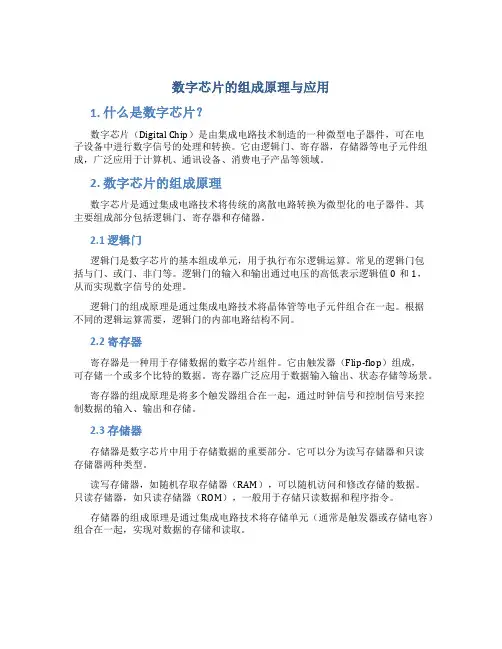

数字芯片的组成原理与应用1. 什么是数字芯片？数字芯片（Digital Chip）是由集成电路技术制造的一种微型电子器件，可在电子设备中进行数字信号的处理和转换。
它由逻辑门、寄存器，存储器等电子元件组成，广泛应用于计算机、通讯设备、消费电子产品等领域。
2. 数字芯片的组成原理数字芯片是通过集成电路技术将传统的离散电路转换为微型化的电子器件。
其主要组成部分包括逻辑门、寄存器和存储器。
2.1 逻辑门逻辑门是数字芯片的基本组成单元，用于执行布尔逻辑运算。
常见的逻辑门包括与门、或门、非门等。
逻辑门的输入和输出通过电压的高低表示逻辑值0和1，从而实现数字信号的处理。

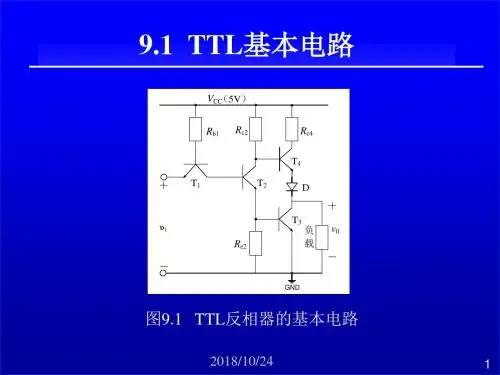

逻辑门的组成原理是通过集成电路技术将晶体管等电子元件组合在一起。
根据不同的逻辑运算需要，逻辑门的内部电路结构不同。
2.2 寄存器寄存器是一种用于存储数据的数字芯片组件。
它由触发器（Flip-flop）组成，可存储一个或多个比特的数据。
寄存器广泛应用于数据输入输出、状态存储等场景。
寄存器的组成原理是将多个触发器组合在一起，通过时钟信号和控制信号来控制数据的输入、输出和存储。
2.3 存储器存储器是数字芯片中用于存储数据的重要部分。
它可以分为读写存储器和只读存储器两种类型。
读写存储器，如随机存取存储器（RAM），可以随机访问和修改存储的数据。
只读存储器，如只读存储器（ROM），一般用于存储只读数据和程序指令。
存储器的组成原理是通过集成电路技术将存储单元（通常是触发器或存储电容）组合在一起，实现对数据的存储和读取。
3. 数字芯片的应用3.1 计算机数字芯片在计算机中有广泛的应用。
它们包括处理器、缓存存储器、内存控制器等。
这些芯片通过处理和转换数字信号，实现计算机的数据处理功能。
3.2 通讯设备数字芯片在通讯设备中也扮演着重要的角色。
它们用于实现通讯中的信号处理、协议转换和数据压缩等功能。
例如，调制解调器、信号处理器等都采用了数字芯片。
3.3 消费电子产品数字芯片在消费电子产品中的应用越来越广泛。
激光电源维修宝典电子邮箱：lanqy@ 咨询电话：1 目 录前言································································································3 激光电源维修常识····················································································4 后附：激光电源常用数字IC 、器件内部原理框图·························································40 后附：激光电源常用电子元器件········································································ 维修随身工具箱······················································································5 一、YAG 激光电源系列YAG20A(380V)电源、YAG20A(软件调电流380V)电源·····················································7 YAG20A(220V)电源···················································································13 YAG30A 激光电源II HYP5000-02······································································13 YAG 主控箱 HYC/M50-04··············································································17 P20YAG 恒流电源P20YAG-220V-02A ········································································ P20YAG 恒流电源P20YAG-380V-02A ········································································· 二、CO2电源及主控箱系列CO248V50A 激光电源 HCPG100······································································· CO2三维主控箱(M3) HCC3D-A ······································································· CO2S30主控箱 CO2S30-02A ·········································································· CO2-30W 主控箱 HCCD30············································································ CO2-30W 电源箱 HCPC30············································································· CO2三维主控箱 音圈电机通用型-01A ·································································· 三、700A 激光电源系列700A 激光电源 HWP10000············································································ 700A 电源箱 HPP700A0401············································································ 700A 电源箱 HPP700A2007············································································ 四、PPS400V 脉冲激光电源系列PPS400V 脉冲激光电源 HWP3000-03··································································· PPS400电源升级版 HWP3000A ········································································ PPS400电源 HWP3000-01············································································· 五、红外半导体主控箱系列红外半导体主控箱 DP-R50············································································ 红外半导体主控箱 HDP50············································································· 红外半导体主控箱 HDP50L-03-Y24····································································· 红外半导体主控箱 HDP50L-02········································································· 红外半导体激光器主控箱 D50R ········································································ 半导体主控箱 DP-R50················································································ 半导体主控箱 YAG/D50S ·············································································· 五、主控箱系列主控箱 EP12-05A ··················································································· 主控箱 EP12-05B ··················································································· 主控箱 EP12-05C ··················································································· 主控箱 DP-HR50-04A ·············································································· 主控箱 DP-HR50-04B ·············································································· 主控箱 DP-HR50-04C ·············································································· 主控箱 DP-HR50L-04A ·············································································· 主控箱DP-HR50L-04B ··············································································激光电源维修宝典 电子邮箱：lanqy@ 咨询电话：2 主控箱 EP-25-01A ··················································································· 主控箱EP-25-01B ···················································································六、DP-R50主控箱系列DP-R50主控箱 DPR50-RSL27-A ·········································································· DP-R50L 主控箱 DPR50L-RSL27-A ···································································· DP-R75主控箱 DPR75-RSL27-A ··········································································DP-R75L 主控箱 DPR75L-RSL27-A ····································································七、光纤机系列YLP-F10主控箱 YLP-F10-04A ··········································································激光电源维修宝典电子邮箱：lanqy@ 咨询电话：3 前 言本资料涉及YAG 、CO2、红外半导体、光纤焊接机、W150焊接机、W50点焊机等激光电源、电子技术、电源电路维修等，实战维修实例经验，技术全面，资料收集面广，故障描述更真实，故障排除更清楚，图文并茂，通俗易懂。
芯片基本结构
芯片（集成电路）的基本结构通常包括以下几个核心部分：
1. 晶体管：作为芯片的基本组成单元，晶体管是控制电流流动的开关。
根据类型不同，可以分为NPN型和PNP型双极型晶体管、MOSFET（金属氧化物半导体场效应晶体管）等。
2. 逻辑门电路：由多个晶体管组合形成各种基本逻辑门（如与门、或门、非门），进而构成复杂的数字逻辑功能模块。
3. 存储器单元：包括RAM（随机存取存储器）和ROM（只读存储器），用于暂时或永久性地存储数据。
4. 布线系统：芯片内部通过金属连线将各个组件连接起来，实现信号传输。
这包括多层互联（Interconnect）和过孔（Vias）结构。
5. 输入/输出端口（I/O）：芯片与外部电路通信的接口，用于接收外部指令和数据，并输出处理结果。
6. 电源和接地网络：为芯片内部各部分提供稳定电源，并确保良好的接地以维持正常工作状态。
7. 时钟电路：对于同步电路而言，时钟电路是非常关键的部分，它提供了整个芯片运行的节拍和同步信号。
8. 保护和隔离元件：如二极管、电容、电阻等，用于信号调理、滤波、保护芯片免受电压波动影响。
9. 模拟电路和混合信号电路：在一些集成度高的芯片中，还包含有模拟电路，例如运算放大器、比较器、ADC/DAC（模数/数模转换器）等。
