丰田乘用车电气故障六例◆文/江苏 高惠民案例一：丰田锐志P/S警告灯间隙性点亮故障现象2009年生产的丰田锐志轿车，车型为GRX122-AETZKC，行驶里程60000km。
客户来店反映，该车有两次遇红灯停车(发动机未熄火)，仪表盘上P/S红色警告灯点亮，且打方向时感觉沉重，关闭点火开关，重新启动发动机，P/S警告灯熄灭，打方向恢复正常。
故障诊断与排除(1)技师接修该车后，取读故障码为历史故障码C1555。
在锐志GRX121/122车型修理手册上解释C1555故障码含义为“检测到动力转向电动机继电器故障”。
故障部位为动力转向ECM总成。
保存故障码信息并予以清除故障码。
(2)接着进行路试，行驶20km后停车再起步，P/S 故障灯又点亮，故障码仍旧是C1555。
故障码定格数据如图1所示。
从定格数据中发现动力转向电动机三相端电压均为0(正常车辆方向盘在中间位置，没有转动方向盘时，动力转向电动机三相端电压为13.5V的电源电压)，这说明动力转向系统有故障且已经进入失效保护状态。
(3)根据动力转向系统电路图(图2)检查动力转向ECU与发动机室1号继电器盒内的EPS继电器的连线高惠民(本刊专家委员会委员)现任江苏省常州外汽丰田汽车销售服务有限公司技术总监，江苏技术师范学院、常州机电职业技术学院汽车工程运用系专家委员，高级技师。
图1锐志轿车C1555故障码定格数据图2 锐志轿车电动转向系统电路图和连接器以及动力转向ECU与动力转向电动机连线和连接器，都连接正常，点火开关IG-ON，动力转向ECU A12号连接器4号端子与5号端子有12V蓄电池电压，EPS继电器向动力转向ECU供电正常。
(4)根据维修手册提示，唯一的修理方法就是更换动力转向ECU。
因此，技师更换了该车的动力转向ECU并进行了转向角传感器初始化和扭矩传感器零点校正，然后试车50km，故障没有出现，于是就交车给客户，结果客户将车辆刚开出店门停下来时，P/S警告灯又点亮，车辆重新回店。

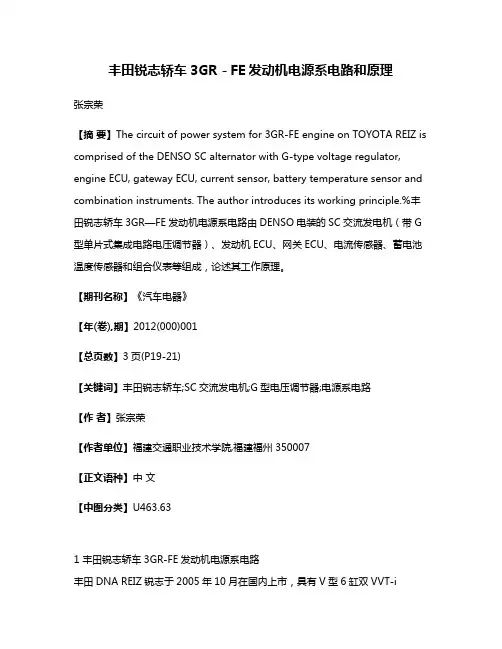

丰田锐志轿车3GR－FE发动机电源系电路和原理张宗荣【摘要】The circuit of power system for 3GR-FE engine on TOYOTA REIZ is comprised of the DENSO SC alternator with G-type voltage regulator, engine ECU, gateway ECU, current sensor, battery temperature sensor and combination instruments. The author introduces its working principle.%丰田锐志轿车3GR—FE发动机电源系电路由DENSO电装的SC交流发电机（带G 型单片式集成电路电压调节器）、发动机ECU、网关ECU、电流传感器、蓄电池温度传感器和组合仪表等组成，论述其工作原理。
【期刊名称】《汽车电器》【年(卷),期】2012(000)001【总页数】3页(P19-21)【关键词】丰田锐志轿车;SC交流发电机;G型电压调节器;电源系电路【作者】张宗荣【作者单位】福建交通职业技术学院,福建福州350007【正文语种】中文【中图分类】U463.631 丰田锐志轿车3GR-FE发动机电源系电路丰田DNA REIZ锐志于2005年10月在国内上市，具有V型6缸双VVT-i（Variable Valve Timing，智能可变气门正时系统）发动机、手自一体式6档自动变速器。
其主力级别车型具有大型车顶照明系统、HID（High Intensity Discharge，高压气体放电灯）氙气前照灯（自动水平调节及前照灯清洗装置）、驾驶席膝部SRS空气囊、定速巡航控制系统等多种先进电气系统作为标准配置，其配置的3GR-FE发动机的电源电路也是当今技术最先进的电路之一，如图1所示。
1.1 组成该电源电路由蓄电池、DENSO电装的SC整体式交流发电机（带G型单片式集成电路电压调节器）、发动机ECU、网关ECU、电流传感器、蓄电池温度传感器、组合仪表、点火开关、空调ECU等组成，使用了多路通信和计算机控制等新技术。

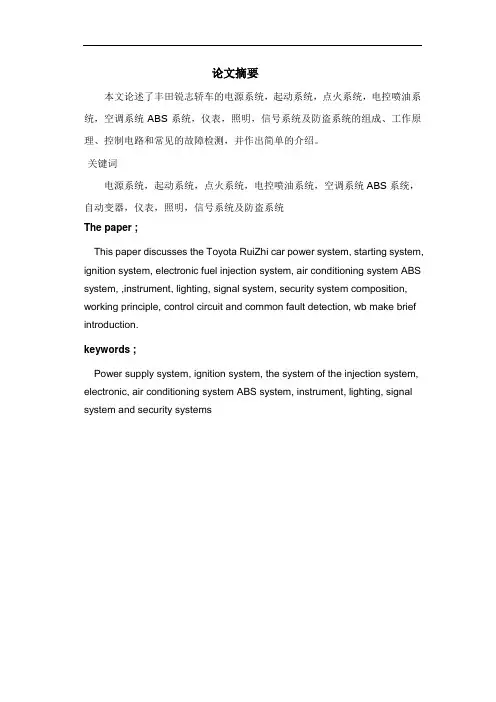

论文摘要本文论述了丰田锐志轿车的电源系统，起动系统，点火系统，电控喷油系统，空调系统ABS系统，仪表，照明，信号系统及防盗系统的组成、工作原理、控制电路和常见的故障检测，并作出简单的介绍。
关键词电源系统，起动系统，点火系统，电控喷油系统，空调系统ABS系统，自动变器，仪表，照明，信号系统及防盗系统The paper ;This paper discusses the Toyota RuiZhi car power system, starting system, ignition system, electronic fuel injection system, air conditioning system ABS system, ,instrument, lighting, signal system, security system composition, working principle, control circuit and common fault detection, wb make brief introduction.keywords ;Power supply system, ignition system, the system of the injection system, electronic, air conditioning system ABS system, instrument, lighting, signal system and security systems目录1 电源系统 (4)1.1 电源系统的组成与原理 (4)1.2 电源系统的控路 (4)1.3 电源系统的检测 (4)1.3.1 蓄电池的检测 (5)1.3.2 发电机的检测 (5)1.4 电源系统常见的故障与诊断方法 (6)2 锐志的起动系统 (7)2.1 起动系统的组成与原理 (7)2.2 起动机系统检修 (7)2.3 起动机系统常见的故障与诊断方法 (8)2.3.1冷车启动起动机空转 (8)2.3.2起动机撞击异响 (9)3 锐志轿车点火系统 (9)3.1 点火系统的组成与原理 (9)3.2 点火系统的控制电路 (10)3.3 点火系统常见的故障和排除 (10)4 锐志轿车电控燃油喷射系统 (11)4.1 电控燃油喷射系统的组成与工作原理 (11)4.1.1 电控燃油系统的组成 (11)4.1.2燃油供给系统的工作原理 (11)4.2 电控燃油系统的控制电路 (12)4.3 电控燃油喷射系统常见的故障与诊断 (13)5 锐志的空调系统 (14)5.1 空调系统的组成与原理 (14)5.1.1汽车空调系统的组成 (14)5.1.2空调系统的工作原理 (15)5.2 空调系统的控制电路 (16)5.3 空调系统的检测 (18)5.3.1锐志轿车空调系统的检测方法 (18)5.3.2制冷剂的检查 (19)5.4 空调系统常见的故障与诊断 (20)5.4.1用歧管压力表诊断空调系统故障 (22)5.4.2锐志轿车空调系统故障的自诊断 (23)6 锐志轿车的ABS系统 (25)6.1 锐志轿车ABS系统的组成 (25)6.2 A BS的工作原理 (26)6.3 锐志轿车ABS系统的控制电路 (28)6.4 锐志轿车ABS系统常见的故障与诊断方法 (29)7 轿车的照明信、信号、仪表系统 (30)7.1锐志轿车照明系统的组成 (30)7.1.1 锐志轿车照明系统的组成 (30)7.1.2锐志轿车照明系统的控制电路 (30)7.1.3锐志轿车照明系统常见的故障与诊断 (31)7.2锐志轿车信号系统 (32)7.2.1信号系统的组成 (32)7.2.2锐志轿车信号系统的控制电路 (32)7.2.3锐志轿车信号系统常见的故障与诊断 (33)7.3车仪表系统 (34)7.3.1锐志轿车仪表系统的组成 (34)7.3.2锐志轿车仪表系统的电路图 (34)7.3.3锐志轿车仪表系统常见的故障与诊断 (34)8 轿车防盗系统 (35)8.1锐志轿车防盗系统的组成 (35)8.2锐志轿车防盗系统的工作原理 (36)8.3防盗控制系统的故障诊断 (38)结束语 (42)谢辞 (43)参考文献 (44)丰田锐志轿车电路分析与检测1电源系统1.1电源系统的组成与原理锐志电源系统主要由蓄电池、发电机和调节器等组成，如图1-1所示。
