保护板规格书

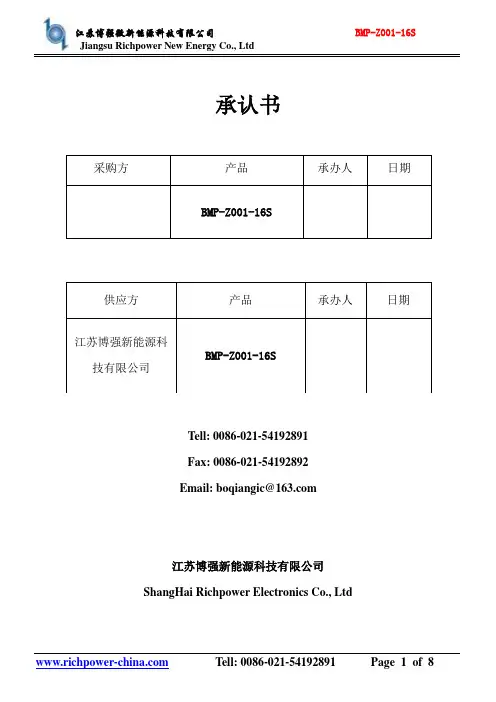

承认书采购方产品承办人日期BMP-Z001-16S供应方产品承办人日期江苏博强新能源科BMP-Z001-16S技有限公司Tell: 0086-021-********Fax: 0086-021-********Email: boqiangic@江苏博强新能源科技有限公司ShangHai Richpower Electronics Co., Ltd1.简介IntroductionBMP-Z001-16S是一款由上海博强微电子有限公司设计的16节锂电池保护板。

该款保护板具有单节电池管理的能力，单节电压检测精度高,抗干扰性能强、总体静态功耗低，单节电芯功耗差异小，可靠性高等特点。

该款保护板充电口和放电口为同一个口。

BMP-Z001-FS01-15S is a kind of 15-cell Li-ion battery protection board (PB) which is developed by Shanghai Richpower Electronics Co., Ltd. The advantages can be described as follow: 1) the capability of protection and high detection precision for the single-cell; 2) strong anti-interference ability; 3) low quiescent dissipation;4) a smaller power difference of the single cells; 5) reliability. The charging port isseparated from the discharging port in the PB. This type of PB can be used for Li-ion battery in electric bicycle2.保护板功能Protection Board Functions2.1可以管理16节电池组成的电池组(It can manage a 16-cell battery package.)2.2充电保护(Charging Protection )名称项目(Item) 值(Value) 单位(Unit)过充电压Over V oltage(OV)单节过充电压OV of single cell4200±50 mV 单节恢复充电Recovery V oltage of singlecell4100±50 mV 延迟Delay Time 1000±500 mS 恢复条件OC Recovery condition每一串电压低于过充保护恢复电压2.3放电保护(Discharging Protection )名称项目（Item）值(Value) 单位(Unit)过放电压Under V oltage （UV）过放电压UV2500±80 mV 恢复放电Recovery voltage3000±100 mV 延迟Delay Time1000±500 mS 恢复条件OC Recovery condition移除负载且每一串电压高于过放保护恢复电压/充电恢复过放电流Over Current(OC)过放电流OC120±20 A 过放延迟OC Delay Time500±150mS 恢复条件OC Recovery condition移除负载/充电恢复短路保护短路保护有短路保护恢复断开负载2.4均衡功能（Balance Function ）名称项目（Item）值(Value) 单位(Unit)均衡Balance均衡始电压Starting voltage of Balance4180±50 mV 均衡电流Balance Current50±5 mA2.5带电量显示3.电气参数Electrical Parameters项目(Item) Min Max Type Unit正常工作电压68 VOperating V oltage正常充电电压70 VCharging V oltage工作温度范围-20 65 25 ℃Operating Temperature持续工作电流60 AContinuous Operating Current保护板内阻10 mΩInternal Resistance常态功耗4 mANormal power Consumption欠压功耗500 uA Undervoltage power Consumption4.外形结构Structure4.1 电路板尺寸Size of Printed Circuit Board(PCB)：Length*width*high=160mm*70mm*1.6mm 4.2丝印图：5.保护板实物图Protective plate physical diagram5.1保护板正面实物图Protective plate Positive physical diagram5.2保护板实物反面图Protective plate Negative physical diagram6.接线说明表：表1 15S接线说明表Item DetailsB-（蓝色）连接到电池的总负极Connect to the Negative port of Cell 1 B1（黑）连接到第一节电池的正极Connect to the Positive port of Cell 1B2（红）连接到第二节电池的正极Connect to the Positive port of Cell 2B3（黄）连接到第三节电池的正极Connect to the Positive port of Cell 3B4（红）连接到第四节电池的正极Connect to the Positive port of Cell 4B5（黄）连接到第五节电池的正极Connect to the Positive port of Cell 5B6（红）连接到第六节电池的正极Connect to the Positive port of Cell 6B7（黄）连接到第七节电池的正极Connect to the Positive port of Cell 7B8（红）连接到第八节电池的正极Connect to the Positive port of Cell8B9（黄）连接到第九节电池的正极Connect to the Positive port of Cell 9B10（红）连接到第十节电池的正极Connect to the Positive port of Cell 10B11（黄）连接到第十一节电池的正极Connect to the Positive port of Cell 11B12（红）连接到第十二节电池的正极Connect to the Positive port of Cell 12B13（黄）连接到第十三节电池的正极Connect to the Positive port of Cell 13B14（红）连接到第十四节电池的正极Connect to the Positive port of Cell 14B15（黄）连接到第十五节电池的正极Connect to the Positive port of Cell 15B16（红）连接到第十六节电池的正极Connect to the Positive port of Cell 167．接线顺序A、连接保护板的步骤：Steps to Connect the PB预处理：先将电压检测端子严格按照表1中的端子定义顺序，焊接到每个单体电芯上。
