第8卷 第6期 新 能 源 进 展Vol. 8 No. 62020年12月ADVANCES IN NEW AND RENEWABLE ENERGYDec. 2020* 收稿日期：2020-07-17 修订日期：2020-09-08基金项目：广东省普通高校特色创新项目（CQ1700007）；广东省重点学科建设项目（CQ1700003）；广东省科技创新战略专项资金（大学生科技创新培育）立项项目（pdjh2020b0818）† 通信作者：林 涛，E-mail ：************.cn文章编号：2095-560X （2020）06-0455-07NCR18650A 电池的充放电温度特性与管理*林 涛1,2†，赖沛恒1，李丽雅1，韩凤琴1（1. 华南理工大学广州学院 电气工程学院，广州 510800；2. 华南理工大学 电力学院，广州 510640）摘 要：采用实验测试与数值仿真的方法对NCR18650A 三元锂电池组在1 ~ 3 C 放电和1.6 C 充电过程的温升特性进行测试，同时验证所建立电池产热模型的准确性。
结果显示，实验测试结果与电池产热模型仿真结果之间的相对误差在合理范围内，满足工程应用需求。
电池组在自然冷却的情况下，仅在1 C 放电状态下符合其最佳工作区间42.5 ~ 45.0℃的要求，3 C 放电倍率下最高温度为89.4℃。
提出并建立基于热电致冷主动热管理模型，将热电致冷组件设置在电池组上方，致冷功率为50 W 时可有效控制电池组3 C 放电过程的温度，在最佳工作区间实现电池单体温差小于5℃，抑制电池组的热失效并实现良好的均温性。
关键词：NCR18650A ；电池热管理；热电致冷；数值仿真 中图分类号：TK11 文献标志码：ADOI ：10.3969/j.issn.2095-560X.2020.06.002开放科学（资源服务）标识码（OSID ）：NCR18650A Battery Charging and Discharging TemperatureCharacteristics and ManagementLIN Tao 1,2, LAI Pei-heng 1, LI Li-ya 1, HAN Feng-qin 1(1. School of Electrical Engineering, Guangzhou College of South China University of Technology, Guangzhou 510800, China;2. School of Electric Power, South China University of Technology, Guangzhou 510640, China)Abstract: In order to analyze the temperature rise characteristics of ternary lithium battery during charging and discharging at different rates, the temperature rise characteristics of NCR18650A ternary lithium battery pack during 1-3 C discharge and 1.6 C charging process were tested by experimental test and numerical simulation, and the accuracy of the battery heat generation model was verified. The deviation between the tested result and the simulated result was within a reasonable range, meeting the requirements of engineering application. Under the condition of natural cooling, the battery pack only met the requirements of its best working range of 42.5-45.0o C under 1 C discharge state, and the maximum temperature under 3 C discharge rate was 89.4o C. In order to improve the working performance and safety of power battery, the active thermal management model of thermoelectric refrigeration was established. The thermoelectric cooling module was set above the battery pack. When the cooling power was 50 W, it can reduce the temperature of the battery pack under the 3 C discharge rate and realize that the temperature difference of the battery unit was less than 5o C, effectively suppress the thermal failure of the battery pack and achieve good temperature uniformity.Key words: NCR18650A; battery thermal management; thermoelectric refrigeration; numerical simulation0 引 言随着电动汽车强制性国家标准[1]正式发布，对动力电池的热失控、热扩散与热管理提出更加严格的要求。
锂离子电池热失控射流下载温馨提示：该文档是我店铺精心编制而成，希望大家下载以后，能够帮助大家解决实际的问题。
文档下载后可定制随意修改，请根据实际需要进行相应的调整和使用，谢谢!并且，本店铺为大家提供各种各样类型的实用资料，如教育随笔、日记赏析、句子摘抄、古诗大全、经典美文、话题作文、工作总结、词语解析、文案摘录、其他资料等等，如想了解不同资料格式和写法，敬请关注!Download tips: This document is carefully compiled by the editor. I hope that after you download them, they can help yousolve practical problems. The document can be customized and modified after downloading, please adjust and use it according to actual needs, thank you!In addition, our shop provides you with various types of practical materials, such as educational essays, diary appreciation, sentence excerpts, ancient poems, classic articles, topic composition, work summary, word parsing, copy excerpts,other materials and so on, want to know different data formats and writing methods, please pay attention!锂离子电池近年来被广泛应用于电子产品、电动汽车及储能设备中，其高能量密度和长寿命使其成为最受欢迎的电池类型之一。

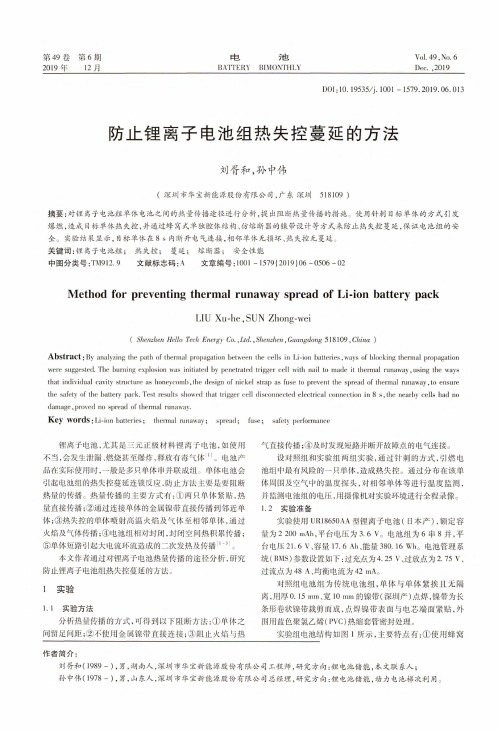

第49卷第6期2019年12月电池BATTERY BIMONTHLYVol.49,No.6Dec.,2019DOI：10.19535/j.1001-1579.2019.06.013防止锂离子电池组热失控蔓延的方法刘胥和,孙中伟（深圳市华宝新能源股份有限公司，广东深圳518109）摘要：对锂离子电池组单体电池之间的热量传播途径进行分析，提出阻断热量传播的措施。
