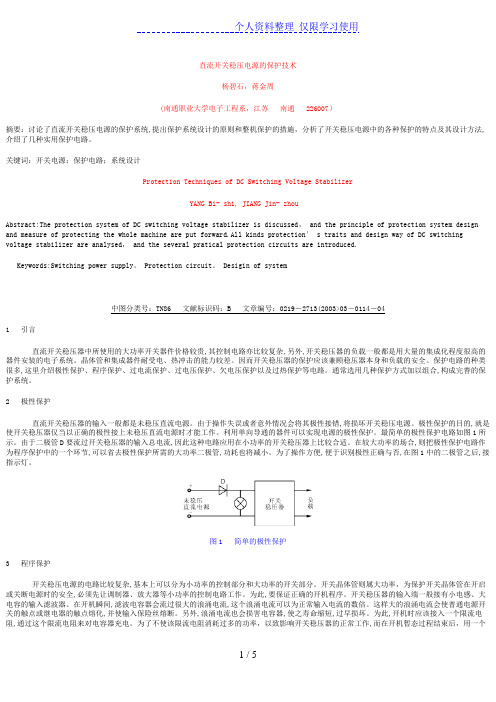

直流开关稳压电源的保护技术杨碧石，蒋金周(南通职业大学电子工程系，江苏南通 226007）摘要：讨论了直流开关稳压电源的保护系统,提出保护系统设计的原则和整机保护的措施，分析了开关稳压电源中的各种保护的特点及其设计方法,介绍了几种实用保护电路。

关键词：开关电源；保护电路；系统设计Protection Techniques of DC Switching Voltage StabilizerYANG Bi- shi, JIANG Jin- zhouAbstract:The protection system of DC switching voltage stabilizer is discussed， and the principle of protection system design and measure of protecting the whole machine are put forward.All kinds protection′ s traits and design way of DC switching voltage stabilizer are analysed， and the several pratical protection circuits are introduced.Keywords:Switching power supply。

Protection circuit。

Desigin of system中图分类号：TN86 文献标识码：B 文章编号：0219－2713(2003>03－0114－041 引言直流开关稳压器中所使用的大功率开关器件价格较贵,其控制电路亦比较复杂,另外,开关稳压器的负载一般都是用大量的集成化程度很高的器件安装的电子系统。

晶体管和集成器件耐受电、热冲击的能力较差。

因而开关稳压器的保护应该兼顾稳压器本身和负载的安全。
