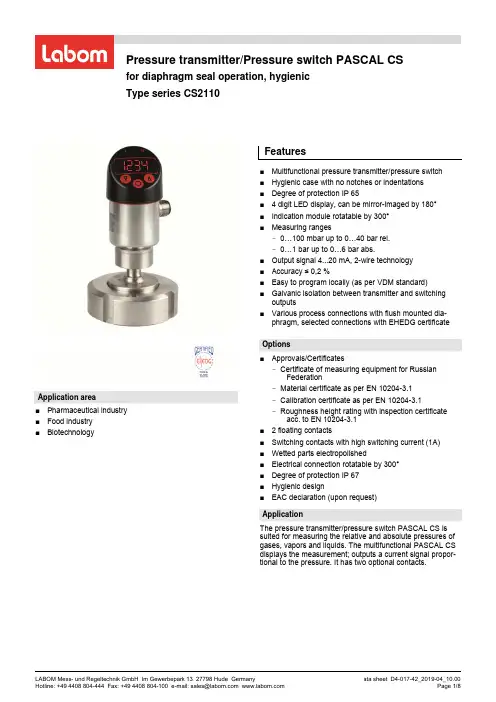

Pressure transmitter/Pressure switch PASCAL CSfor diaphragm seal operation, hygienic Type series CS2110LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germanyata sheet D4-017-42_2019-04_10.00Application area■ Pharmaceutical industry ■ Food industry ■ BiotechnologyFeatures■ Multifunctional pressure transmitter/pressure switch ■ Hygienic case with no notches or indentations ■ Degree of protection IP 65■ 4 digit LED display, can be mirror-imaged by 180° ■ Indication module rotatable by 300° ■ Measuring ranges- 0…100 mbar up to 0…40 bar rel. - 0…1 bar up to 0…6 bar abs.■ Output signal 4...20 mA, 2-wire technology ■ Accuracy ≤ 0,2 %■ Easy to program locally (as per VDM standard)■ Galvanic isolation between transmitter and switchingoutputs■ Various process connections with flush mounted dia-phragm, selected connections with EHEDG certificateOptions■ Approvals/Certificates- Certificate of measuring equipment for RussianFederation- Material certificate as per EN 10204-3.1 - Calibration certificate as per EN 10204-3.1- Roughness height rating with inspection certificateacc. to EN 10204-3.1■ 2 floating contacts■ Switching contacts with high switching current (1A) ■ Wetted parts electropolished■ Electrical connection rotatable by 300° ■ Degree of protection IP 67 ■ Hygienic design■ EAC declaration (upon request) ApplicationThe pressure transmitter/pressure switch PASCAL CS is suited for measuring the relative and absolute pressures of gases, vapors and liquids. The multifunctional PASCAL CS displays the measurement; outputs a current signal propor-tional to the pressure. It has two optional contacts.Technical dataConstructional design / caseDesign: Hygienic case design, including gasket forseamless designFully encapsulated electronics unitMaterial: Stainless steel mat.-no. 1.4301 (304)Indication module: macrolonDegree of protection per EN 60529: ■ IP 65■Optional IP 67Pressure com-pensation:Aeration via sintered filterElectrical con-nection: ■circular connector M12, 4 pin■circular connector M12, 8 pin(necessary for devices with switchfunction)Incl. sealing ring to ensure case is com-pletely sealedClimatic cate-gory per EN60721 3-4:4K4HProcess connectionDesign: See order detailsHygienic designThe surface roughness of the wetted parts made of stain-less steel are executed according to EHEDG Doc.8 and ASME BPE SF3.In case of choosing the additional feature HY, we guarantee the following surface roughness values:Diaphragm foil: Ra ≤ 0.38 µmLaser welds: Ra ≤ 0.76 µmTurned parts: Ra ≤ 0.76 µmFurther versions of hygienic design upon request. Measuring systemSensor: Piezoresistivemeasuringelement System filling: Synthetic oil FD1, free of silicone,FDA compliantMeasuring ranges / overload limitsMeasuringrange / over-load limit:See order detailsVakuum tight-ness: Long term vacuum measurements atrelative measurement ranges can alter thedevice characteristics.(piezoresistive measuring system, only)Zero settingsZero point: Easy zero setting max. ± 20 %.AccuracyLimit point set-ting:per DIN 16086Accuracy(Lin./Hyst./Repr.):0.2 % v. of mr (mr ≥ 250 mbar)0.5 mbar (mr < 250 mbar)Long-term drift: ≤ 0.1 % / year per EN 61298-1Temperatureinfluence:Range: 0…50 °C:≤ 0.25 % of mr (mr ≥ 400 mbar)≤ 0.4 % of mr (mr < 400 mbar)≤ 0.5 % of mr (mr < 160 mbar)Range: -20…0 and 50…85 °C:≤ 0.4 % of mr (mr ≥ 400 mbar)≤ 0.6 % of mr (mr < 400 mbar)≤ 0.8 % of mr (mr < 160 mbar)mr = measuring rangeProcessconnection:(zero error)3/4" 10mbar/10KDN 25/1“ 4.8 mbar/10KDN 32/1 ½“ 2.3 mbar/10KDN 40 1.6 mbar/10KDN 50/2“ 0.6 mbar/10KIndicationType: 4 digit, red LED with 7 segmentsDigit high: 8.5 mmResolution: -9999 (9999)digitAccuracy: ± 0,2 % ± 1 digitTemperature-influence:± 0,1 %/10KAlignment: Can be rotated through 300°,Can be mirror-imaged by 180° when in-stalled upside downIndication: Visual confirmation for operator when abutton is pressedDecimal point: Automatic setting depending on measur-ing range/unit, max. 3 decimal placesOr manual setting 0...3 decimal placesIndication automatically changing from measurement valueto measurement unit or indication of unit or value per key-stroke.Measuringunit:bar, mbar, PSI, kPa, MPa, %, mAOutputSignal: 4…20 mA , 2-wire technology Sampling rate: 10 measurements / secondCurrent range: 3.8…20.8 mAResolution: 2µACurrent limita-tion:≤ 22 mAAlarm state: < 3.6 mALoad, R: R ≤ (U-14V)/0.02 A [Ω]U = supply voltageSwitching output (option)Type: 2 floating contacts with commonground (low side NPN) or commonpower supply (high side PNP)Switching capaci-ty: 200 mA, short-circuit-proof Optional 1 ASwitching status: breakers or makers, programmable,device off circuit: open contact Switching func-tion:window / hysteresis, programmable Setting range: within range limitsHysteresis: within range limitsSwitching delay: 0,0…999.9 sRepeat accuracy: 0.2 % of full-scale value Temperatureinfluence:± 0.1 % / 10KGalvanic isolation: between transmitter and outputs Switching cycles: > 10 millionsVoltage drop: < 1 V (< 1.5 V, if current is > 100 mA) Output state indi-cator:red LED per switching outputParamerterisation: 3-key parameterisationSupply voltageFunctionalrange:14…30 V DCTemperature rangesAmbient: -20 (85)°CMedium: -20…125° C, short term 140 °C,optional up to 160 °C for 1 h.Higher process temperatures upon re-questStorage: -40 (85)°CTests and certificatesEMC: EMC directives 2014/30/EU■EAC declaration upon request■Certificate of measuring equipment for Russian Federa-tionMounting informationMounting position: At choiceCalibration position: VerticalParameterisationThe following parameters can be assigned via 3 keys:Parameter Valuesunit Bar, mbar, PSI, kPa, MPa, %, mApressure trimming lower range value/upper range valuemin/max-value between upper range and lower range value, resettable display time for measurement 1.0…99.9 sdisplay time for unit 0.0…99.9 sdisplay rotation 0° / 180° (when installed upside down)decimal point automatic, manuel 0...3 decimal placesswitching function hysteresis function window functionbreakers makers breakers makersswitching point between upper range value and reset point reset point between lower range value and switching point ON delay 0.0…999.9 sOFF delay 0.0…999.9 sParameterisation see operating instruction BA_060.Hysteresis functionsHysteresis function Window function Connection diagram4-pin connector 8-pin connector (for switching out-puts) Explanations(+) plus-side of supply(-) minus-side of supplyn.c. not connectedS1/S2 common pin of switching outputs(see below)S1 switching output 1S2 switching output 2Pgm 1/2 programming pinsto in tto wo w (+)(-)(+) o. (-)S1S2( )DimensionsAll dimensions are in mmProcess connection All dimensions are in mmSanitary pipe connection with union nut per DIN 11851DN PN dM b G25 40 27 16 Rd.52x1/6“ 32 40 34 16 Rd.58x1/6“ 40 40 40 16 Rd.65x1/6“ 50 25 51 17 Rd.78x1/6“Aseptic screw joint collar connection with union nut perDIN 11864-1 type ADN PN dM G25 40 24 Rd.52x1/6“32 40 30 Rd.58x1/6“40 40 34 Rd.65x1/6“50 25 48 Rd.78x1/6“Clamp connection per DIN 32676 model A (metric) for pipes perEN 10357 (DIN 11850)DN PN dM b D25 25 22.6 14 50.532 25 27 12 50.540 25 34 12 50.550 16 46 14 64Clamp connection per DIN 32676 model B (OD, ISO) for pipes per DIN EN ISO 1127DN PN dM b D 26.9 25 22.6 14 50.533.7 25 27 12 50.542.4 25 34 12 6448.3 16 40 14 64 Clamp connection per DIN 32676 model C (Tri-Clamp) for pipes per ASME BPEDN PN dM b D3/4" 25 15.5 15 251“ 25 22.6 14 50.51 1/2“ 25 34 12 50.52“ 16 46 14 64Clamp connection per ISO 2852 for pipes per ISO 2037DN PN dM b D25 16 22.6 14 50.538 16 34 12 50.551 16 46 14 64VARIVENT® connection for VARINLINE® access unitConnection PN dM A D Form F 25 40 66 50Form N 25 58 84 68HYGIENIC screw-in thread, gasket without elastomerG PN (bar) dM h1 h2 SW G1 A 50 24 45 28.5 36Screw-in thread with O ring gasketG PN (bar) dM h1 h2 SW G1/2 A 200 15.5 33 20.5 27 G1 A 50 24 33 20.5 41Order detailsPressure transmitter PASCAL CS for diaphragm seal operation, hygienic Type series CS2110Order details PASCAL CS2110CS2110 Pressure transmitter PASCAL CS for diaphragm seal operation, hygienicmeasuring range overload limitA1008measuring ranges 0...100 mbar 1 barA1009 0...160 mbar 1 barA1010 0...250 mbar 3 barA1011 0...400 mbar 3 barA1012 0...600 mbar 3 barA1053 0...1 bar 10 bar A1054 0...1.6 bar 10 bar A1055 0...2.5 bar 10 bar A1056 0...4 bar 20 bar A1057 0...6 bar 20 bar A1058 0...10 bar 100 bar A1059 0...16 bar 100 bar A1060 0...25 bar 100 bar A1061 0...40 bar 100 bar A1025 -100...0 mbar 1 barA1026 -160...0 mbar 1 barA1027 -250...0 mbar 3 barA1028 -400...0 mbar 3 barA1552 -600...0 mbar 3 barA1086 -1...0 bar 10 bar A1087 -1...0.6 bar 10 bar A1088 -1...1.5 bar 10 bar A1089 -1...3 bar 20 bar A1090 -1...5 bar 20 bar A1091 -1...9 bar 100 bar A1092 -1...15 bar 100 bar A1093 -1...24 bar 100 bar B1053 0...1 bar abs 10 bar B1054 0...1.6 bar abs 10 bar B1055 0...2.5 bar abs 10 bar B1056 0...4 bar abs 20 bar B1057 0...6 bar abs 20 bar A9999 variant as in writingH11 output signal 4...20 mA, 2-wire technologyN10switching output withoutN702 floating contacts with common ground (NPN), switching capacity 30 V DC, 200 mAN70.1 with common ground (NPN), switching capacity 30 V DC, 1 AN71 with common power supply (PNP) switching capacity 30 V DC, 200 mA N71.1 with common power supply (PNP) switching capacity 30 V DC, 1 AT30electrical connection circular connector M12 4 pinT31 8 pin 1K1085design standardK2085 with temperature decoupler K102process connection 2 material: ASTM 316L Sanitary pipe connection with unionnut perDIN 11851 3,4DN 25K103 DN 32 K104 DN 40 K105 DN 50K162Aseptic screw joint collar connectionwith union nut perDIN 11864-1 Form A 3DN 25K163 DN 32 K165 DN 40 K166 DN 50K124Clamp connection per ISO 2852 forpipes per ISO 2037 3,4DN 25 (1“)K126 DN 38 (1 1/2“) K127 DN 51 (2“)K144Clamp connection per DIN 32676,model A (metric) for pipes perEN 10357 (DIN 11850) 3,4DN 25K146 DN 32 K147 DN 40 K148 DN 50K213Clamp connection per DIN 32676,model B (OD, ISO) for pipes perEN ISO 1127 3,4DN 26.9K214 DN 33.7 K215 DN 42.4 K216 DN 48.3K134Clamp connection per DIN 32676,model C (Tri-Clamp) for pipes perASME BPE 3,4DN 3/4" 5K136 DN 1“K137 DN 1 1/2“ K138 DN 2“K152VARIVENT® connection 3,4Form F (D=50) for VARINLINE® access unitK153 Form N (D=68) for VARINLINE® access unitK172 HYGIENIC Tubus Ø 43.3 mm with screwing DN 25/PN 40K185 DRD-connection nominal width DN 50 / nominal pressure PN 40K195Screw-in thread G1 A with O-ring gasket 6K80 G1 A hygienic sealing (no elastomer)surface roughness (wetted parts) standardHY Hygienic version as per EHEDG Doc.8 and ASME BPE SF3Additional features (to be indicated if required)F2 parameterization as in writingR88 electrical connection continuously rotatable by 300°T1 case degree of protection IP 67W1020 material certificate per EN 10204-3.1, wetted parts (stainless steel)W2673 certificate of measuring equipment for Russian FederationOrder code (example): CS2110 - A1086 - N70.1 - T30 - K136 - HY - ...1 necessary for devices with switching contact2 further process connections (pressure transmitter) upon request3 EHEDG certified only in connection with hygienic design (order code option HY)4 EHEDG certificate valid only if gaskets are used that are listed in the "EHEDG position paper"5 possible for measuring ranges ≥ 250 mbar. For a function calculation and optimim system design it is necessary to specify the operation temperature6 hygienic design not possible。

Data S heet 402051Page 1/3 JUMO dTRAN S p32Pre ss ure Tran s mitterG eneral applicationPressure transmitters are used for measuring relative (gauge) pressures in dry, non-corro-sive and non-ionizing gaseous media. The transmitter operates on the piezoresistive mea-suring principle. The pressure is converted into an electrical signal.Technical dataReference condition sto DIN 16086 and IEC 770/5.3Mea s urement range ssee Order detailsOverload limit4 x full scaleBur s ting pre ss ure8 x full scalePart s in contact with mediumSi, borosilicate glass, silicone, Au,CrNi steelOutput0—20mA3-wire burden ≤ (U B-12V) / 0.02A 4—20mA2-wire burden ≤ (U B-10V) / 0.02A 4—20mA3-wire burden ≤ (U B-12V) / 0.02A 0.5—4.5V burden ≥ 50kΩ1—6V burden ≥ 10kΩ0—10V burden ≥ 10kΩBurden error< 0.5% max.Zero s ignal deviation≤ 0.4% of full scaleThermal hy s tere s i s(within compensated temperature range)≤± 2%Ambient temperature errorwithin range 0to+100°C (compensated temperature range) zero:≤ 0.03%/°C typical,≤ 0.05%/°C max.span:≤ 0.02%/°C typical,≤ 0.04%/°C max. Deviation from characteri s tic≤ 0.5% of full scale(limit setting)Hy s tere s i s≤ 0.1% of full scaleRepeatability≤ 0.05% of full scaleS ettling timefor current output (output 402, 405 or 406):≤ 3msec max.for voltage output (output 412, 415,418 or 420):≤ 10msec max.S tability over 1 year≤ 1% of full scaleS upply10—30V DC(output 4—20mA and1—6V)5V DC (output0.5—4.5V)11.5—30V DC(output 0—10V)11.5—30V DC(output 0(4)—20mA)Ripple:The voltage spikes must not go outside thelimits specified for the supply.Max. current drawn: approx. 25mAS upply voltage error≤ 0.02%per V(nominal supply voltage 24V DC)ratiometric with supply voltage 5V DC(±0.5V)Permi ss ible ambient temperature-20to+100°CS torage temperature-40to+125°CPermi ss ible temperature of medium-30to+120°CElectromagnetic compatibilityEN 61 326interference emission:Class Binterference immunity:to industrialrequirementsMechanical s hoc k(to IEC 68-2-27)100g/1msecMechanical vibration(to IEC 68-2-6)20g max. at 15—2000HzProtectionwith terminal boxIP65 to EN 60529(connection cable diameter:5mm min., 7mm max.)with connection cableIP67 to EN 60529Hou s ingstainless steel, Mat. Ref. 1.4301polycarbonate GFPre ss ure connectionsee Order details;other connections on requestElectrical connectionsee Order detailsterminal box to DIN 43650,Style A,conductor cross-section up to 1.5mm2;orattached 4-core PVC cable, 2m longother lengths on requestNominal po s itionunrestrictedWeight200gmData S heet 40.2051Page 2/3Dimen s ion sElectrical connectionCaution:Earth the instrument!(pressure connection and / oror screenConnectionTerminalsConnector Cable Supply10—30V DC 11.5—30V DC 5V DC 1 L+2 L-white grayOutput 1—6V 0—10V 0.5—4.5V2 -3 +gray yellowOutput 4—20mA, 2-wire1 +2 -white grayproportional 4 to 20mA currentin supplyOutput 0(4)—20mA, 3-wire2 -3 +gray yellowProtective earth conductorScreenblackData S heet 40.2051Page 3/3Order detail sBa s ic type402051Pressure transmitter JUMO dTRANS p32I Ba s ic type e x ten s ionI/000noneI/034Sensor mit GelvorlageI/999special versionI I InputI I4110 40 mbar gauge pressureI I4130 60 mbar gauge pressureI I4140 100 mbar gauge pressureI I4150 160 mbar gauge pressureI I4510 0.25 bar gauge pressureI I4520 0.4 bar gauge pressureI I4530 0.6 bar gauge pressureI I999special gauge pressure rangeI I I OutputI I I4020 to 20mA 3-wireI I I405 4 to 20mA 2-wireI I I406 4 to 20mA 3-wireI I I4120.5 to 4.5V 3-wireI I I4150 to 10V 3-wireI I I418 1 to 5V 3-wireI I I420 1 to 6V 3-wireI I I I Proce ss connection (not front-flu s h)I I I I501pressure connection G 1/8 to EN 837I I I I502pressure connection G 1/4 to EN 837I I I I504pressure connection G 1/2 to EN 837 (standard connection)I I I I510pressure connection 1/8-27 NPT to DIN 837I I I I511pressure connection 1/4-18 NPT to DIN 837I I I I692 6 mm hose connectionI I I I Material of proce ss connectionI I I I I20stainless steelI I I I I I Electrical connectionI I I I I I12by attached cable (cable length in plain text)I I I I I I36by circular connector M12 x 1I I I I I I61by terminal boxI I I I I I I402051/----20-Order code。

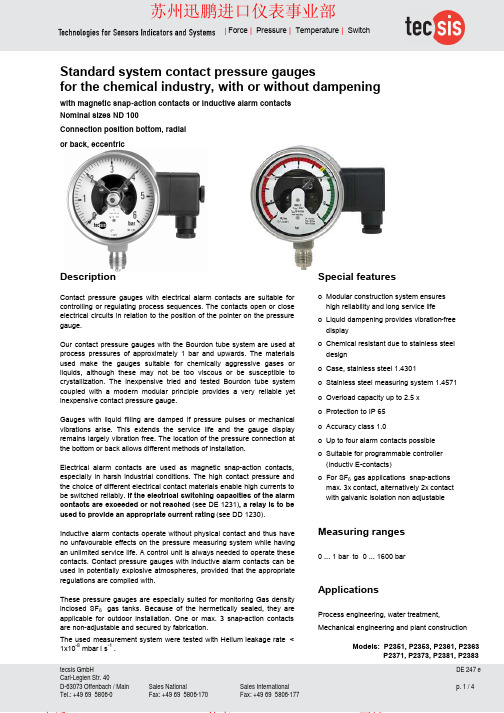

tecsis GmbHDE 247 e Carl-Legien Str. 40D-63073 Offenbach / Main Sales NationalSales International p. 1 / 4Tel.: +49 69 5806-0 Fax: +49 69 5806-170 Fax: +49 69 5806-177| Force | Pressure | Temperature | SwitchStandard system contact pressure gaugesfor the chemical industry, with or without dampeningwith magnetic snap-action contacts or inductive alarm contactsNominal sizes ND 100 Connection position bottom, radialor back, eccentricDescriptionContact pressure gauges with electrical alarm contacts are suitable for controlling or regulating process sequences. The contacts open or close electrical circuits in relation to the position of the pointer on the pressure gauge.Our contact pressure gauges with the Bourdon tube system are used at process pressures of approximately 1 bar and upwards. The materials used make the gauges suitable for chemically aggressive gases or liquids, although these may not be too viscous or be susceptible to crystallization. The inexpensive tried and tested Bourdon tube system coupled with a modern modular principle provides a very reliable yet inexpensive contact pressure gauge.Gauges with liquid filling are damped if pressure pulses or mechanical vibrations arise. This extends the service life and the gauge display remains largely vibration free. The location of the pressure connection at the bottom or back allows different methods of installation.Electrical alarm contacts are used as magnetic snap-action contacts, especially in harsh industrial conditions. The high contact pressure and the choice of different electrical contact materials enable high currents to be switched reliably. If the electrical switching capacities of the alarm contacts are exceeded or not reached (see DE 1231), a relay is to be used to provide an appropriate current rating (see DD 1230).Inductive alarm contacts operate without physical contact and thus have no unfavourable effects on the pressure measuring system while having an unlimited service life. A control unit is always needed to operate these contacts. Contact pressure gauges with inductive alarm contacts can be used in potentially explosive atmospheres, provided that the appropriate regulations are complied with.These pressure gauges are especially suited for monitoring Gas density inclosed SF 6 gas tanks. Because of the hermetically sealed, they are applicable for outdoor installation. One or max. 3 snap-action contacts are non-adjustable and secured by fabrication.The used measurement system were tested with Helium leakage rate <1x10-8 mbar l s -1. Special featureso Modular construction system ensures high reliability and long service life o Liquid dampening provides vibration-free displayo Chemical resistant due to stainless steel designo Case, stainless steel 1.4301o Stainless steel measuring system 1.4571 o Overload capacity up to 2.5 x o Protection to IP 65 o Accuracy class 1.0o Up to four alarm contacts possible o Suitable for programmable controller (inductiv E-contacts)o For SF 6 gas applications snap-actions max. 3x contact, alternatively 2x contact with galvanic isolation non adjustableMeasuring ranges0 ... 1 bar to 0 ... 1600 barApplicationsProcess engineering, water treatment, Mechanical engineering and plant constructionModels: P2351, P2353, P2361, P2363P2371, P2373, P2381, P2383 苏州迅鹏进口仪表事业部苏州迅鹏进口仪表事业部Technical Data* Number of contactsMeasuring range Magnetic snap-action contact Inductive contact up to 1 bar 2 21.6 bar 2 3above 4 bar 4 3See data sheet - DE 1231 for electrical dataSee data sheet - DE 1230 for electrical dataDE 247 ep. 2 / 4DE 247 ep. 3 / 4DimensionsConnection position bottom, radial Model : P2351 , P2353 , P2361 , P2363Connection position back, eccentric Model : P2371 , P2373 , P2381 , P2383SW22ModelP2351, P2353, P2371, P2373 P2361, P2363, P2381, P2383Dimension: " A "108 mmDE 247 ep. 4 / 4DimensionsConnection position bottom, radial Model : P2351 , P2353 , P2361 , P2363.Front / rear mounting flangeConnection position back, eccentric Model : P2371 , P2373 , P2381 , P2383. Front / rear mounting flangeModelP2351, P2353, P2371, P2373,P2361, P2363, P2381, P2383Dimension " A "108 mmModifications reservedCable junction box, back:。

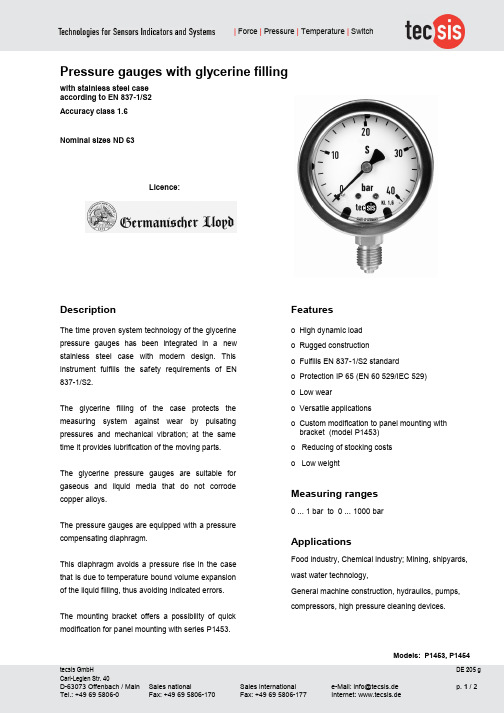

tecsis GmbHDE 205 g Carl-Legien Str. 40D-63073 Offenbach / Main Sales nationalSales international e-Mail: info@tecsis.de p. 1 / 2 Tel.: +49 69 5806-0Fax: +49 69 5806-170Fax: +49 69 5806-177Internet: www.tecsis.de| Force | Pressure | Temperature | SwitchPressure gauges with glycerine fillingwith stainless steel case according to EN 837-1/S2 Accuracy class 1.6Nominal sizes ND 63DescriptionThe time proven system technology of the glycerine pressure gauges has been integrated in a new stainless steel case with modern design. This instrument fulfills the safety requirements of EN 837-1/S2.The glycerine filling of the case protects the measuring system against wear by pulsating pressures and mechanical vibration; at the same time it provides lubrification of the moving parts.The glycerine pressure gauges are suitable for gaseous and liquid media that do not corrode copper alloys.The pressure gauges are equipped with a pressure compensating diaphragm.This diaphragm avoids a pressure rise in the case that is due to temperature bound volume expansion of the liquid filling, thus avoiding indicated errors.The mounting bracket offers a possibility of quick modification for panel mounting with series P1453.Featureso High dynamic load o Rugged constructiono Fulfills EN 837-1/S2 standard o Protection IP 65 (EN 60 529/IEC 529) o Low wearo Versatile applicationso Custom modification to panel mounting with bracket (model P1453) o Reducing of stocking costs o Low weightMeasuring ranges0 ... 1 bar to 0 ... 1000 barApplicationsFood industry, Chemical industry; Mining, shipyards, wast water technology,General machine construction, hydraulics, pumps, compressors, high pressure cleaning devices.Models:P1453, P1454Licence:DE 205 g 2 / 2Technical dataDimensionsModel : P1454 Model : P1453Modifications reserved。

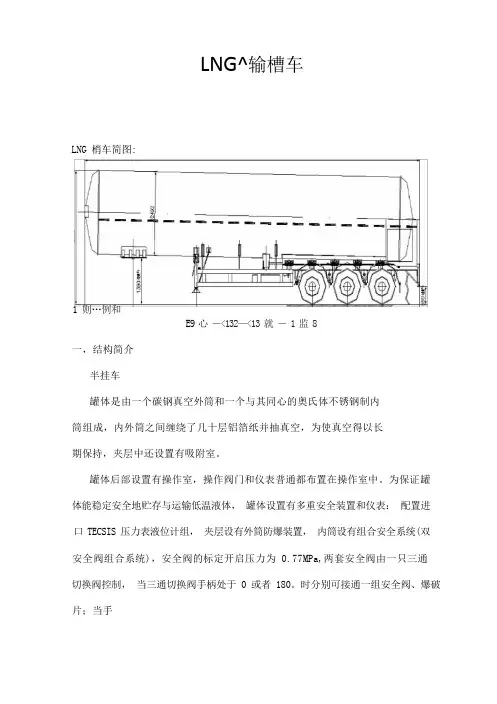

LNG^输槽车LNG 梢车简图:1 则…例和E9 心―<132—<13 就― 1 监 8一，结构简介半挂车罐体是由一个碳钢真空外筒和一个与其同心的奥氏体不锈钢制内筒组成，内外筒之间缠绕了几十层铝箔纸并抽真空，为使真空得以长期保持，夹层中还设置有吸附室。

罐体后部设置有操作室，操作阀门和仪表普通都布置在操作室中。

为保证罐体能稳定安全地贮存与运输低温液体，罐体设置有多重安全装置和仪表：配置进口 TECSIS 压力表液位计组，夹层设有外筒防爆装置，内筒设有组合安全系统(双安全阀组合系统)，安全阀的标定开启压力为 0.77MPa,两套安全阀由一只三通切换阀控制，当三通切换阀手柄处于 0 或者 180。

时分别可接通一组安全阀、爆破片；当手柄处于 90 摆布时，此时可接通二只安全阀。

在正常工作状况下，安全阀不会启跳排故。

当充液过量(大于 90 炕装率)或者连续长期在高温下停放等情况使罐体压力超过工作压力时，应先启动一只安全阀，此时当罐体下降时安全阀会自动回座，但为了考虑安全性、经济性，避免自动回座时有霜冻卡住等原因，可用三通切换阀关闭正在工作的安全阀，强行使其回座，并使另一组安全阀处于待工作状态。

罐体前另设有一个压力表，此外还有管路安全阀等。

安全阀和放气阀的排放口采用集中回收管道通过阻火器进行排放。

对底部进液管路、增压管路及装卸用气相管路设置了三重保护(根部为紧急切断阀，第二个为截止阀，第三个为盲法兰)。

二，流程简介：安全系统罐体：罐体安全系统由V-13 组合安全系统阀、 SV-1 安全阀 1、SV-2 安全阀2、FA 阻火器组成。

V-13 组合安全系统阀可以自由切换控制任一安全阀， FA 阻火器可以防止在气体排放时遇火保护梢车。

管路：管路安全系统由V-7 残液排放阀、 SV-3 安全阀 3、SV-4 安全阀4、FA 阻火器组成。

这个安全系统可以防止误操作而引起管路压力倍增。

外壳：在正常情况下防爆盖被真空吸住，当万一浮现内胆泄漏而引起夹层压力增高时，防爆盖能自动打开，从而保护梢车。

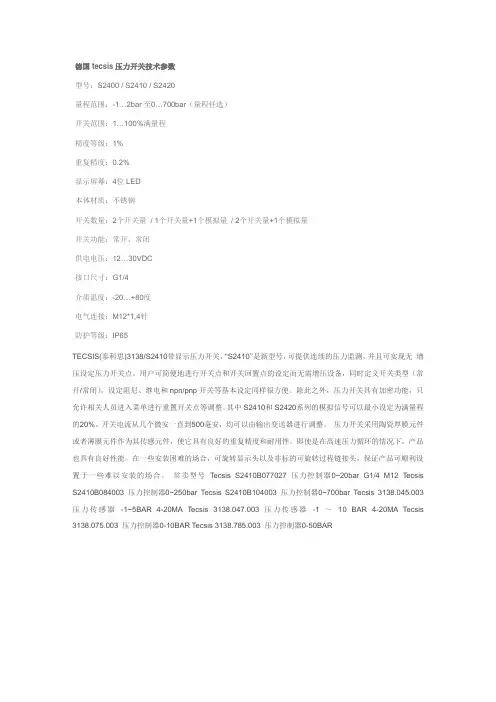

德国tecsis压力开关技术参数型号：S2400 / S2410 / S2420量程范围：-1…2bar至0…700bar（量程任选）开关范围：1…100%满量程精度等级：1%重复精度：0.2%显示屏幕：4位LED本体材质：不锈钢开关数量：2个开关量/ 1个开关量+1个模拟量/ 2个开关量+1个模拟量开关功能；常开、常闭供电电压：12…30VDC接口尺寸：G1/4介质温度：-20 (80)电气连接：M12*1,4针防护等级：IP65TECSIS(泰科思)3138/S2410带显示压力开关，“S2410”是新型号，可提供连续的压力监测，并且可实现无增压设定压力开关点。

用户可简便地进行开关点和开关回置点的设定而无需增压设备，同时定义开关类型（常开/常闭），设定阻尼、继电和npn/pnp开关等基本设定同样很方便。

除此之外，压力开关具有加密功能，只允许相关人员进入菜单进行重置开关点等调整。

其中S2410和S2420系列的模拟信号可以最小设定为满量程的20%。

开关电流从几个微安一直到500毫安，均可以由输出变送器进行调整。

压力开关采用陶瓷厚膜元件或者薄膜元件作为其传感元件，使它具有良好的重复精度和耐用性。

即使是在高速压力循环的情况下，产品也具有良好性能。

在一些安装困难的场合，可旋转显示头以及非标的可旋转过程链接头，保证产品可顺利设置于一些难以安装的场合。

常卖型号Tecsis S2410B077027 压力控制器0~20bar G1/4 M12 Tecsis S2410B084003 压力控制器0~250bar Tecsis S2410B104003 压力控制器0~700bar Tecsis 3138.045.003 压力传感器-1~5BAR 4-20MA Tecsis 3138.047.003 压力传感器-1 ～10 BAR 4-20MA Tecsis 3138.075.003 压力控制器0-10BAR Tecsis 3138.785.003 压力控制器0-50BAR产品特点◆潜水测量◆精度等级0.25%和0.5% ◆标准输出：2线,4-20Ma；或3线,0-20Ma ◆量程:正压0-0.1～0-25bar 产品特性◆紧凑的设计◆防护类型IP68（300米深）◆抗侵蚀的不锈钢设计◆PUR 内部通风的铠装电缆◆电缆抗张强度1000N ◆选项：闪电防护◆选项：PTFE电缆◆选项：温度测量（PT100）产品简介德国TECSIS（泰科思）3233/P3233液位传感器，“P3233是新型号”，投入式测量液体压力传感器，精确度0.25%和0.5%，标准信号：4～20 mA，两线系统或0～20 mA，三线系统。
