MF58型高精度负温度系数热敏电阻器* 简介：本型号产品采用陶瓷工艺与半导体工艺相结合的工艺技术制作而成，为两端轴向引出线玻璃封装结构。

* 应用：1、家用电器，如空调机、微波炉、电风扇、电取暖炉等的温度控制与温度检测。

2、办公自动化设备，如复印机、打印机的温度检测或温度补偿。

3、工业、医疗、环保、气象、食品加工设备的温度控制与检验。

4、液面指示和流量测量。

5、手机电池。

6、仪表线圈、集成电路、石英晶体振荡器和热电偶的温度补偿。

* 特点：1、稳定性好，可靠性高。

2、阻值范围宽：0.1-1000K3、阻值精度高。

4、由于玻璃封装，可在高温和高温等恶劣环境下使用。

5、体积小、重量轻、结构坚固，便于自动化安装（在印制线路板上）。

6、热感应速度快、灵敏度高。

* 主要技术参数：1、额定零功率电阻值范围(R25):0.1~1000KΩ2、R25允许偏差:±1%、±2%,±3%, ±5%, ±10%.3、B值范围(B25/50℃):1960~4480K4、B值允许偏差:±0.5%,±1%,±2%.5、耗散系数: 2mW/℃(在静止空气中)6、热时间常数: 20S (在静止空气中)7、工作温度范围: -55℃~ +300℃8、额定功率:≤50Mw。

* 产品代码说明：①②③④⑤⑥①玻璃封装热敏电阻器②Z：轴向引出线J：径向引出线③阻值：103----10KΩ502---5KΩ④阻值精度：F：±1% G：±2% H：±3% J：±5% K：±10%⑤L：B25/50 H：B25/85 T：特殊温度范围⑥B值：347----3470 338----3380 取前三位* 外型尺寸：TG系列：NTC热敏电阻器采用玻璃封装，在高温高湿的环境中使用仍能可靠、稳定地工作，性能稳定，电阻值及B值漂移极小。

1---芯片，2----玻封，3----引线MF58Z1---芯片，2----玻封，3----引线MF58J* MF58Z型常用规格电阻值--温度对照表：（单位：KΩ）5 KΩ10 KΩ5KΩ10 KΩ10 KΩ10 KΩ10 KΩ47 KΩ50KΩ100KΩ23KΩ3270 3380 3470 3470 3550 3700 3950 3950 3950 3990 4200-40 91.35 201.36 109.52 223.17 244.82 278.64 343.12 1672.6 1715.6 960 -35 69.936 152.72 82.394 167.6 181.45 204.43 247.22 1195.8 1236.1 681.7 -30 54.022 116.91 62.588 127.09 135.97 151.58 180.17 865.62 900.83 1810 489.1 -25 42.08 90.288 47.975 97.256 105.94 113.53 132.72 633.97 663.58 1338 354.4 -20 33.034 70.301 37.088 75.066 78.687 85.854 98.754 469.43 493.77 997.9 259.3 -15 26.131 55.165 28.903 58.41 60.7 65.52 74.184 351.21 370.92 750.4 190.5 -10 20.814 43.604 22.695 45.797 47.229 50.439 56.229 265.34 281.14 568.8 142.7 -5 16.688 34.705 17.948 36.167 37.046 39.153 42.981 202.32 214.91 434.6 107.3 0 13.452 27.794 14.286 28.748 29.283 30.635 33.109 155.61 165.54 334.5 81.38 5 10.907 22.378 11.435 22.952 23.315 24.152 25.676 120.68 128.38 259.3 62.24 10 8.898 18.134 9.213 18.427 18.691 19.179 20.067 94.316 100.34 202.4 47.98 15 7.302 14.786 7.471 14.942 15.082 15.336 15.8 74.262 79.002 159.1 37.27 20 6.026 12.126 6.094 12.189 12.245 12.345 12.528 58.882 62.641 125.8 29.17 25 5 10 5 10 10 10 10 47 50 100 23 30 4.173 8.295 4.127 8.253 8.217 8.15 8.037 37.775 40.186 80.23 18.2635 3.503 6.922 3.427 6.854 6.795 6.681 6.506 30.576 32.528 64.77 14.59 40 2.957 5.81 2.863 5.726 5.653 5.507 5.301 24.917 26.507 52.6 11.74 45 2.509 4.903 2.406 4.811 4.731 4.564 4.348 20.436 21.741 42.96 9.601 50 2.139 4.16 2.032 4.064 3.981 3.801 3.588 16.864 17.941 35.28 7.735 55 1.831 3.542 1.723 3.445 3.359 3.183 2.974 13.973 14.869 29.12 6.333 60 1.573 3.028 1.467 2.934 2.847 2.677 2.477 11.636 12.387 24.16 5.213 65 1.3572.61.2552.509 2.423 2.262 2.047 9.736 10.37 20.15 4.31270 1.174 2.241 1.077 2.154 2.071 1.92 1.744 8.841 8.722 16.87 6.585 75 1.018 1.935 0.926 1.853 1.776 1.636 1.47 6.91 7.351 14.2 2.99480 0.885 1.676 0.799 1.599 1.529 1.41.244 5.859 6.22122.51185 0.772 1.455 0.692 1.384 1.315 1.203 1.057 4.988 5.283 10.17 2.1140.673 1.264 0.599 1.198 1.135 1.037 0.898 4.24 4.489 8.661 1.76795 0.588 1.101 0.52 1.039 0.981 0.897 0.765 3.61 3.827 7.408 1.516 100 0.515 0.961 0.452 0.904 0.851 0.779 0.654 3.091 3.271 6.361.29105 0.452 0.84 0.394 0.788 0.74 0.679 0.561 2.651 2.804 5.48 1.101 110 0.398 0.737 0.345 0.689 0.644 0.594 0.482 2.28 2.411 4.738 0.942 115 0.351 0.647 0.302 0.604 0.563 0.52 0.416 1.965 2.078 4.11 120 0.310.57 0.265 0.53 0.4920.359 1.698 1.795 3.581125 0.274 0.503 0.233 0.466 0.432 0.311 1.471 1.555 3.126 130 0.243 0.444 0.205 0.411 0.380.27 1.278 1.35 2.737* MF58J 耐高温电阻（R ）--温度（T ）特性表R200℃ =1KΩR200℃ =4KΩR200℃ =8KΩR200℃ =1KΩR200℃ =4KΩR200℃ =8KΩ B100/200= 4537K±3% B200/300= 5133K±3% B150/250= 5300K±3% B100/200= 4537K±3% B200/300=5133K±3% B150/250=5300K±3%0 806.5 5336 15577 250 0.3865 1.432 2.699 5 618.9 4009 11544 255 0.3547 1.305 2.446 10 478.8 3039 8632 260 0.3259 1.191 2.22 15 373.1 2322 6511 2650.31.0882.018 20 292.9 1789 4951 270 0.2765 0.9958 1.837 25 231.4 1388 3794 275 0.2552 0.9127 1.675 30 184.1 1085 2929 280 0.2358 0.8377 1.53 35 147.4 853.9 2278 285 0.2182 0.77 1.399 40 118.7 676.5 1783 290 0.2022 0.7086 1.128 45 96.13 539.3 1405 295 0.1876 0.6531 1.175 50 78.29 432.5 1115 300 0.1743 0.6026 1.079 55 64.1 348.9 889.3 305 0.1621 0.5565 0.9923 60 52.76 283 713.6 310 0.1509 0.5146 0.9137 6543.63230.8575.9315 0.14060.47640.842370 36.26 189.2 467.2 320 0.1311 0.4415 0.7775 75 30.27 155.9 380.9 325 0.1224 0.4097 0.7185 80 25.38 129 312.2 330 0.1144 0.3806 0.6648 85 21.37 107.3 257 335 0.1071 0.3539 0.6159 90 18.06 89.57 212.6 340 0.1003 0.3295 0.5711 95 15.33 75.12 176.7 345 0.094 0.3071 0.5302 100 13.06 63.26 147.4 350 0.0882 0.2864 0.4928 105 11.17 53.48 123.5 355 0.0828 0.2675 0.4585 110 9.585 45.38 103.9 360 0.0778 0.25 0.427 115 8.254 38.65 87.71 365 0.0732 0.2339 0.3981 120 7.131 33.04 74.34 370 0.0689 0.2191 0.3715 125 6.181 28.34 63.23 375 0.0649 0.2054 0.3471 130 5.374 24.39 53.97 380 0.0612 0.1927 0.3245 135 4.686 21.05 46.22 385 0.0578 0.181 0.3037 140 4.098 18.23 39.71 390 0.0546 0.1701 0.2845 145 3.594 15.84 34.22 395 0.0516 0.16 0.2668 150 3.161 13.8 29.58 400 0.0488 0.1507 0.2503 155 2.787 12.05 25.65 405 0.0462 0.142 0.2351 160 2.464 10.56 22.3 410 0.0437 0.1339 0.221 165 2.184 9.272 19.45 415 0.0414 0.1264 0.208 170 1.94 8.164 17 420 0.0393 0.1194 0.1958 175 1.728 7.207 14.9 425 0.0373 0.1128 0.1845 180 1.542 6.377 13.1 430 0.0354 0.1067 0.174 185 1.379 5.656 11.54 435 0.0336 0.1011 0.1642 190 1.237 5.028 10.19 440 0.032 0.0957 0.1551 195 1.111 4.48 9.018 445 0.0304 0.0908 0.1466 200 1 4 8 450 0.029 0.0861 0.1387 205 0.902 3.579 7.112 455 0.0276 0.0818 0.1313 210 0.8151 3.209 6.337 460 0.0263 0.0777 0.1244 215 0.738 2.882 5.658 465 0.0251 0.0739 0.1179 220 0.6694 2.594 5.061 470 0.0239 0.0703 0.1118 225 0.6083 2.34 4.537 475 0.0228 0.0669 0.1061 230 0.5537 2.114 4.075 480 0.0218 0.0637 0.1008 235 0.5049 1.913 3.666 485 0.0208 0.0607 0.0958 240 0.4611 1.734 3.305 490 0.0199 0.0579 0.0911 245 0.4218 1.575 2.984 495 0.019 0.0553 0.0867500 0.0182 0.0528 0.0826注意事项：1.MF系列热敏电阻器是玻璃封装的，请勿剧震、碰击以防玻璃外壳破裂。

合集下载

MF58D-104F3950FAA单端玻封

MF58D-104F3950FAA单端玻封

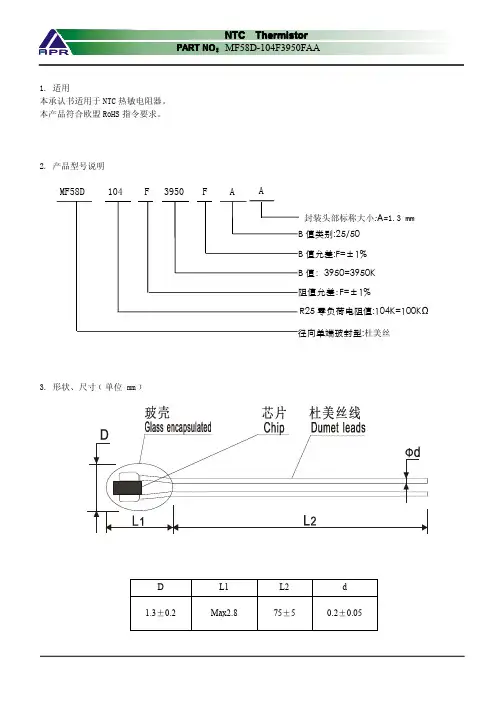

1.适用本承认书适用于NTC 热敏电阻器。

本产品符合欧盟R O HS 指令要求。

2.产品型号说明3.形状、尺寸﹝单位mm﹞D L1L2d 1.3±0.2Max2.875±50.2±0.05MF58D B 值类别:25/50B 值允差:F=±1%阻值允差:F=±1%R25零负荷电阻值:104K=100KΩ径向单端玻封型:杜美丝104F 3950F A B 值：3950=3950K A封装头部标称大小:A =1.3mm4.电气性能参数NO.项目定义技术要求4-1阻值25℃零负荷阻值,At=25℃±0.05℃恒定油槽中测试;R25＝100KΩ±1%4-2B值25℃与50℃间的B值B=Ln(R1/R2)/(1/T1-1/T2)T1=(273.15+25)K T2=(273.15+50)K注:273.15为绝对温度B25/50＝3950K±1%4-3使用温度范围在规定的使用条件下的温度范围TW＝－40℃～＋300℃4-4热时间常数在零功率条件下,静止空气中，热敏电阻器的温度下降到其最初温度与最终温度差之63.2%所需的时间,一般定义为25℃～50℃.≤6.5seconds4-5热耗散系数在25℃静止空气中，使热敏电阻器的温度上升1℃所需消耗的功率δ≥0.5mW/℃4-6绝缘电阻在室温条件下施压50V DC保持60sec（玻璃和引线之间）≥10MΩ5.可靠性能试验NO.项目标准试验方法技术要求5.1高温试验IEC60068-2-2(GB2423.2)环境温度：250℃±5℃持续时间：1000±24h试验完成后,在常温常湿下恢复1～2Hr后，复测R25额定零功率电阻外观无可见性损伤△R/R25≤±3%续：5.可靠性能试验NO.项目标准试验方法技术要求5.2低温试验IEC60068-2-1(GB2423.1)环境温度：-40℃±5℃持续时间：1000±24h试验完成后,在常温常湿下恢复1～2Hr后，复测R25额定零功率电阻外观无可见性损伤△R/R25≤±3%5.3耐潮湿试验(稳态湿热)IEC60068-2-3(GB2423.3)环境温度：40℃±2℃环境湿度:90%～95%持续时间：1000±24h试验完成后,在常温常湿下恢复1～2Hr后，复测R25额定零功率电阻外观无可见性损伤△R/R25≤±3%5.4热冷冲击试验IEC60068-2-14(GB2423.22)–40℃×30min→室温×5min→250℃×30min→室温×5min,反复五次试验完成后,在常温常湿下恢复1～2Hr后，复测R25额定零功率电阻外观无可见性损伤△R/R25≤±3%注1：与以上性能试验相关的补充条件：常温常湿＝23℃±10℃、相对湿度25%～85%。

MF58-503-3950-1 热敏电阻 产品说明书

MF58-503-3950-1 热敏电阻 产品说明书

日期Ｄａｔｅ：２００９－３－２２　日期Ｄａｔｅ：２００９－３－２２　 （ｃ）绝缘电阻Ｉｎｓｕｌａｔｉｏｎ　ｒｅｓｉｓｔａｎｃｅ１００ＭΩ　ｏｒ　ｏｖｅｒ　ｂｙ　ＤＣ５００Ｖ　ｍｅｇｇｅｒ （ｂｅｔｗｅｅｎ　ｇｌａｓｓ　ａｎｄ　ｌｅａｄ　ｗｉｒｅ） （２）　热时间常数Ｔｈｅｒｍａｌ　ｔｉｍｅ　ｃｏｎｓｔａｎｔ　（τ）：　τ≤２０ｓ　（静止空气中　 ｉｎ　ｓｔｉｌｌ　ａｉｒ）　 （３）　热耗散系数Ｔｈｅｒｍａｌ　ｄｉｓｓｉｐａｔｉｏｎ　ｃｏｎｓｔａｎｔ　（δ）：　δ≥２．０Ｍｗ／°Ｃ　（静 止空气中ｉｎ　ｓｔｉｌｌ　ａｉｒ）　 （４）　使用温度范围Ｏｐｅｒａｔｉｎｇ　ｔｅｍｐｅｒａｔｕｒｅ　ｒａｎｇｅ：－５０￣＋２６０°Ｃ　３、可靠性（Ｒｅｌｉａｂｉｌｉｔｙ）　 ３．１高温存放　ｈｉｇｈ　Ｔｅｍｐ．　ｓｔｏｒａｇｅ：２５０°Ｃ环境中放置１０００小时阻值变化不大于±２％。

　 ３．２低温存放　Ｌｏｗ　Ｔｅｍｐ．　ｓｔｏｒａｇｅ：－４０°Ｃ环境中放置１０００小时阻值变化不大于±２％。

　 ３．３耐湿热　Ｈｉｇｈ　ｔｅｍｐｅｒａｔｕｒｅ　ａｎｄ　ｈｕｍｉｄｉｔｙ：６０°Ｃ　９５％ＲＨ存放１０００小时后阻值变化不大于±２％。

　 ３．４耐温度冲击　Ｔｈｅｒｍａｌ　ｓｈｏｃｋ：热敏电阻经历如下温度循环１００次后，阻值变化不大于±２％。

　 －４０°Ｃ１０分钟－－－－常温５分钟－－－－２００°Ｃ１０分钟－－－－常温５分钟　 ３．５振动Ｖｉｂｒａｔｉｏｎ：元件经受加速度１０ｇ，振幅１．５ｍｍ频率从１０Ｈｚ到５００Ｈｚ　Ｘ、Ｙ方向各１５分钟后应无损伤，阻值变化不大于±２％。

　 ３．６引线强度　Ｐｕｌｌｉｎｇ　：引线沿轴向施加９．８Ｎ拉力并持续６０秒后，外观无损伤，阻值变化不大于±２％。

　 ３．７　跌落　Ｆａｌｌ　ｄｏｗｎ　：从１米高度自由落下１０次在规定的木板上外观无损伤，阻值变化不大于±１％。

ntc热敏电阻对照表

ntc热敏电阻对照表

265.2
-20
97120
19
13070
58
2674
97
741.8
136
258.8
-19
91660
20
12490
59
2580
98
720.2
137
252.6
-18
86540
21
11940
60
2488
99
699.4
138
246.4
-17
81720
22
11420
61
2400
100
679.2
139
240.6
温度与电阻表
温度（℃）
欧姆
温度（℃）
阻值(Ω）
温度（℃）
阻值(Ω）
温度（℃）
阻值(Ω）
温度（℃）
阻值(Ω）
-40
336600
-1
34380
38
5776
77
1385
116
433.4
-39
315000
0
32660
39
5546
78
1341
117
421.8
-38
295000
1
31040
40
5326
79
1298
-13
32630
14
8230
41
2559
68
938
-39
157500
-12
30880
15
7855
42
2459
69
906.5
-38
147500
-11
29230
MF58 104F3950_P182-6B2_

MF58 104F3950_P182-6B2_

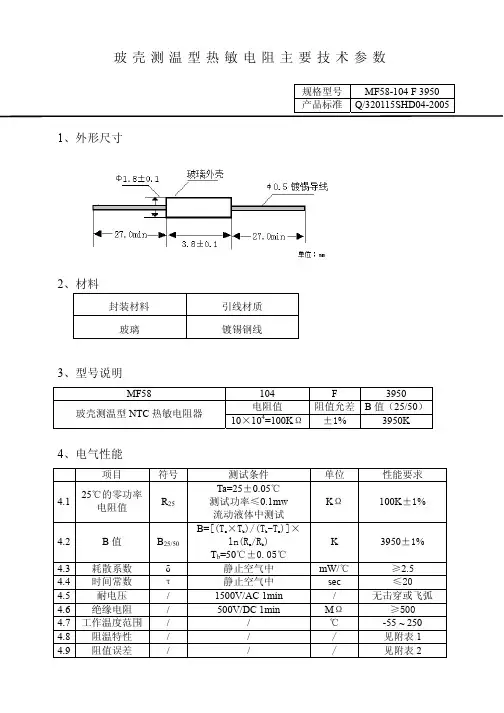

玻壳测温型热敏电阻主要技术参数规格型号MF58-104 F 3950产品标准 Q/320115SHD04-20051、外形尺寸2、材料封装材料引线材质玻璃镀锡钢线3、型号说明MF58 104F3950电阻值阻值允差B值（25/50）玻壳测温型NTC热敏电阻器10×104=100KΩ±1% 3950K4、电气性能项目符号测试条件单位性能要求4.1 25℃的零功率电阻值R25Ta=25±0.05℃测试功率≤0.1mw流动液体中测试KΩ 100K±1%4.2 B值B25/50B=[(T a×T b)/(T b-T a)]×ln(Ra/Rb)T b=50℃±0.05℃K 3950±1%4.3 耗散系数δ静止空气中 mW/℃≥2.5 4.4 时间常数τ静止空气中 sec ≤204.5 耐电压 / 1500V/AC1min / 无击穿或飞弧4.6 绝缘电阻 / 500V/DC1min MΩ≥500 4.7 工作温度范围 / / ℃-55 ~ 250 4.8 阻温特性 / / / 见附表1 4.9 阻值误差 / / / 见附表25、可靠性能试验6、焊接、使用条件6.1焊接时，焊接处距电阻体根部至少6mm ，焊接温度应低于350℃，焊接时间应尽量短。
