施耐德电涌保护器上图选型指南

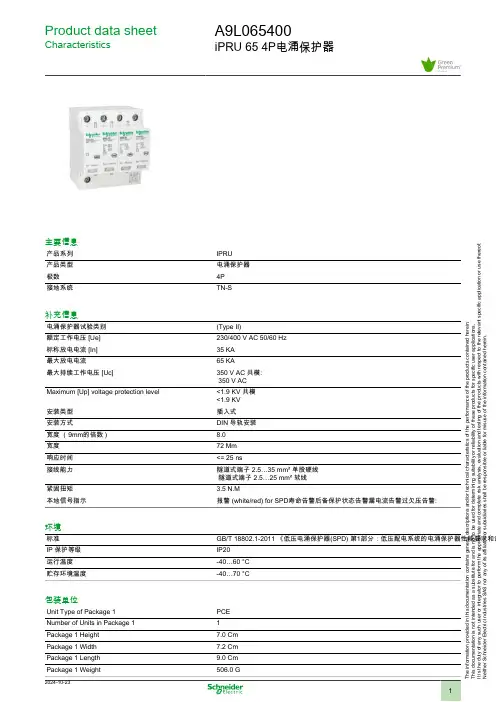

Product data sheetCharacteristicsA9L065400iPRU 65 4P电涌保护器主要信息产品系列IPRU 产品类型电涌保护器极数4P 接地系统TN-S 补充信息电涌保护器试验类别(Type II)额定工作电压 [Ue]230/400 V AC 50/60 Hz标称放电电流 [In]35 KA 最大放电电流65 KA 最大持续工作电压 [Uc]350 V AC 共模: 350 V ACMaximum [Up] voltage protection level<1.9 KV 共模<1.9 KV 安装类型插入式安装方式DIN 导轨安装宽度 （9mm的倍数）8.0宽度72 Mm 响应时间<= 25 ns 接线能力隧道式端子 2.5…35 mm² 单股硬线 隧道式端子 2.5…25 mm² 软线紧固扭矩3.5 N.M 本地信号指示报警 (white/red) for SPD寿命告警后备保护状态告警漏电流告警过欠压告警:环境标准GB/T 18802.1-2011 《低压电涌保护器(SPD) 第1部分：低压配电系统的电涌保护器性能要求和试IP 保护等级IP20运行温度-40…60 °C贮存环境温度-40…70 °C包装单位Unit Type of Package 1PCENumber of Units in Package 11Package 1 Height7.0 CmPackage 1 Width7.2 CmPackage 1 Length9.0 CmPackage 1 Weight506.0 GT h e i n f o r m a t i o n p r o v i d e d i n t h i s d o c u m e n t a t i o n c o n t a i n s g e n e r a l d e s c r i p t i o n s a n d /o r t e c h n i c a l c h a r a c t e r i s t i c s o f t h e p e r f o r m a n c e o f t h e p r o d u c t s c o n t a i n e d h e r e i n .T h i s d o c u m e n t a t i o n i s n o t i n t e n d e d a s a s u b s t i t u t e f o r a n d i s n o t t o b e u s e d f o r d e t e r m i n i n g s u i t a b i l i t y o r r e l i a b i l i t y o f t h e s e p r o d u c t s f o r s p e c i f i c u s e r a p p l i c a t i o n s .I t i s t h e d u t y o f a n y s u c h u s e r o r i n t e g r a t o r t o p e r f o r m t h e a p p r o p r i a t e a n d c o m p l e t e r i s k a n a l y s i s , e v a l u a t i o n a n d t e s t i n g o f t h e p r o d u c t s w i t h r e s p e c t t o t h e r e l e v a n t s p e c i f i c a p p l i c a t i o n o r u s e t h e r e o f .N e i t h e r S c h n e i d e r E l e c t r i c I n d u s t r i e s S A S n o r a n y o f i t s a f f i l i a t e s o r s u b s i d i a r i e s s h a l l b e r e s p o n s i b l e o r l i a b l e f o r m i s u s e o f t h e i n f o r m a t i o n c o n t a i n e d h e r e i n .可持续性产品类型Green Premium 产品REACh法规REACh 声明欧盟ROHS指令符合欧盟ROHS声明可持续的包装YesRoHS exemption information支持中国 ROHS 管理办法中国 ROHS 声明环境披露产品环境文件流通资料产品使用寿命终期信息合同保修保修单18 个月Product Life Status :Commercialised。

施耐德低压电器选型接触器：I<=7.5A LC1-D0922M5C I<=10A LC1-D1222M5C I<=15.3A LC1-D1822M5CI<=21A LC1-D2522M5CI<=27.2A LC1-D3222M5CI<=34A LC1-D4022M5CI<=42.2A LC1-D5022M5C ；I<=55.5A LC1-D6522M5CI<=68A LC1-D8022M5CI<=82A LC1-D9522M5C I<=98A LC1-D11522M5CI<=128A LC1-D15022M5C；I<=145A LC1-D17022M5CI<=175A LC1-D20522M5CI<=210A LC1-D24522M5CI<=260A LC1-D30022M5CI<=350A LC1-D41022M5CI<=410A LC1-D47522M5C I<=540A LC1-D62022M5C热继电器：I<=0.16A LRD-01C I<=0.25A LRD-02C I<=0.40A LRD-03C I<=0.63A LRD-04C I<=1A LRD-05C I<=1.6A LRD-06C I<=2.5A LRD-07C I<=4A LRD-08C I<=6A LRD-10C I<=8A LRD-12C I<=10A LRD-14C I<=13A LRD-16C I<=18A LRD-21C I<=24A LRD-22C I<=32A LRD-32C I<=38A LRD-35C I<=50A LRD-3357C I<=65A LRD-3359C I<=70A LRD-3361C I<=80A LRD-3363C I<=104A LRD-4365 I<=120A LRD-4367 I<=140A LRD-4369空气开关：电机的：I<=11A NSX100HMA12.5 3P I<=23A NSX100HMA25 3PI<=45A NSX100HMA50 3PI<=70A NSX100HMA80 3PI<=90A NSX100HMA100 3PI<=140A NSX160HMA160 3PI<=230A NSX250HMA250 3PI<=360A NSX400HMIC2.3M 400 3P I<=570A NSX630HMIC2.3M 630 3P配电的：I<=13A NSX100HTM16 3PI<=18A NSX100HTM25 3PI<=29A NSX100HTM32 3P I<=35A NSX100HTM40 3PI<=45A NSX100HTM50 3PI<=55A NSX100HTM63 3PI<=70A NSX100HTM80 3PI<=90A NSX100HTM100 3PI<=110A NSX160HTM125 3PI<=140A NSX160HTM160 3PI<=180A NSX250HTM200 3PI<=225A NSX250HTM250 3PI<=360A NSX400HMIC2.3 400 3P I<=600A NSX630HMIC2.3 630 3P三、中间继电器40、31、22CA2-DN□□M5C常闭接点数量常开接点数量四、框架断路器：I=800A 型号：MT08N13P MIC 5.0AI=1000A 型号：MT10N13P MIC 5.0AI=1250A 型号：MT12N13P MIC 5.0AI=1600A 型号：MT16H13P MIC 5.0AI=2000A 型号：MT20H13P MIC 5.0AI=2500A 型号：MT25H13P MIC 5.0AI=3200A 型号：MT32H13P MIC 5.0AI=4000A 型号：MT40H13P MIC 5.0ATD101B(分体式，P<=45kW)TD101BB(分体式，P>45kW，用三只电流互感器)TD101B-#-M(#用数字1~5代替，1：1A、2：6.3A、3：25A、4：63A、5：100A)(M代表有4~20mA输出，不输出时取消M)TD101BB-#-M(#用数字6~7代替，6：200A、7：400A)(M代表有4~20mA输出，不输出时取消M) 并注明电流互感器的变比。

ABB EntrelecSommaireBU0402061SNC 160 003 C0205SummarySelection guide ....................................................................................page 1Screw clamp ........................................................................................page 2Feed through and ground terminal blocks .......................................................page 2 - 5 to 10Single pole, multiclamp terminal blocks..........................................................................page 4Feed through terminal blocks - Double-deck................................................................page 11Feed through terminal blocks - Triple-deck...................................................................page 12Three level sensor, terminal blocks without ground connection...................................page 13Three level sensor, terminal blocks with ground connection ........................................page 14Terminal blocks for distribution boxes, double deck + protection .......................page 15 - 16Interruptible terminal blocks for neutral circuit......................................................page 17 - 18Distribution : phase, ground terminal blocks .......................................................page 19 to 21Single pole or four pole distribution blocks..........................................................page 22 to 24Heavy duty switch terminal blocks with blade......................................................page 25 - 26Heavy duty switch terminal blocks with push-turn knob..............................................page 26Heavy duty switch terminal blocks with contact control pull lever...............................page 29Heavy duty switch terminal blocks with blade - Double-deck .....................................page 27Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.)or 6.35x25.4 mm (1/4x1 in.) and 6.35x32 mm (1/4x11/4 in.) fuse s.........................................page 28 - 29Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuses -Double-dec k.....................................................................................................................page 27Terminal blocks for test circuits with sliding bridge ......................................................page 30Terminal blocks for metering circuits.............................................................................page 31ESSAILEC terminal blocks.............................................................................................page 32Safety connection terminal blocks ................................................................................page 33Miniblocks for EN 50045 (DIN 46277/2) rail ..........................................................page 34 - 35Spring clamp ......................................................................................page 36Angled terminal blocks - Feed through and ground .....................................................page 36Feed through and ground terminal blocks ...........................................................page 37 to 41Feed through terminal blocks - Double deck ................................................................page 42Terminal blocks for sensors / actuators ........................................................................page 42Terminal blocks for distribution boxes...........................................................................page 43Switch terminal blocks for neutral conductor........................................................page 44 - 45Heavy duty switch terminal blocks with blade..............................................................page 46Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuse s....page 47Miniblocks Spring clamp ......................................................................................page 48 to 52ADO - Screw clamp ...........................................................................page 53Feed through and ground terminal blocks ...........................................................page 53 to 56Feed through and ground terminal blocks - Double-deck............................................page 57Heavy duty switch terminal blocks with blade..............................................................page 58Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuse s ......page 59 - 60Miniblocks ADO - Screw clamp............................................................................page 61 to 65ADO - ADO .........................................................................................page 66Feed through and ground terminal blocks ...........................................................page 66 to 69Feed through and ground terminal blocks - Double-deck............................................page 70Terminal blocks for sensors / actuators ........................................................................page 71Heavy duty switch terminal blocks with blade..............................................................page 72Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuse s ......page 73 - 74Miniblocks ADO - ADO .........................................................................................page 75 to 79Accessories ADO ...........................................................................................................page 80Power terminal blocks .............................................................page 81 to 84Quick-connect terminal blocks .................................................page 85 - 86Terminal blocks for railway applications ................................page 87 to 97Pluggable terminal blocks .....................................................page 98 to 100Accessories......................................................................................page 101Marking..................................................................................page 102 to 104GrossAutomation(877)268-3700··*************************PR30PR3.Z2PR3.G2PR5PR4PR1.Z2Rated wire size :Rated wire size :Rated wire size :Rated wire size :Mounting railsShield terminals forcollector barMarking tableHorizontal Rated wire size :0.5 to 16 mm² (22 to 8 AWG)Rated wire size :Rated wire size :Rated wire size :P a g e t o 29e30 t o 32ag e e3P a ge 8 t o 60a g e6t o 6574P a ge 7 t o 79P a ge 9P a g P a gGrossAutomation(877)268-3700··*************************2ABB Entrelecd010830402051SNC 160 003 C0205MA 2,5/5 - 2.5 mm² blocks - 5 mm .200" spacingAccessoriesGrossAutomation(877)268-3700··*************************3ABB Entrelec D010740402051SNC 160 003 C0205M 4/6 - 4 mm² blocks - 6 mm .238" spacingAccessoriesGrossAutomation(877)268-3700··*************************4ABB EntrelecD011030402051SNC 160 003 C0205M 4/6.3A - 4 mm² blocks - 6 mm .238" spacingM 4/6.4A - 4 mm² blocks - 6 mm .238" spacingGrossAutomation(877)268-3700··*************************5ABB Entrelec D010840402051SNC 160 003 C0205M 6/8 - 6 mm² blocks - 8 mm .315" spacingAccessoriesGrossAutomation(877)268-3700··*************************6ABB EntrelecD010850402051SNC 160 003 C0205M 10/10 - 10 mm² blocks - 10 mm .394" spacingAccessoriesGrossAutomation(877)268-3700··*************************7ABB Entrelec D010860402051SNC 160 003 C0205M 16/12 - 16 mm² blocks - 12 mm .473" spacingAccessoriesGrossAutomation(877)268-3700··*************************8ABB EntrelecD010870402051SNC 160 003 C0205M 35/16 - 35 mm² blocks - 16 mm .630" spacingGrossAutomation(877)268-3700··*************************M 95/26 - 95 mm² blocks - 26 mm 1.02" spacingM 70/22.P - 70 mm² ground block with rail contact - 22 mm .630" spacingSelection35 mm / 1.37"12 mm / 0.47"14-30 Nm / 124-260 Ib.in 1.2-1.4 Nm / 10.6-12.3 Ib.in1000600600415400400577070240 mm 2500 MCM 500 MCM 10 mm 2 6 AWG 6 AWG IEC UL CSANFC DIN0.5 - 160.5 - 100 AWG-600 MCM 2 AWG-500 MCM 50 - 30035 - 24018-6 AWGD 150/31.D10 - 150 mm² blocks - 31 mm 1.22" spacingCharacteristicsD 240/36.D10 - 240 mm² blocks - 36 mm 1.41" spacingSelectionWire size main circuit mm² / AWG VoltageV Current main circuit A Current outputARated wire size main circuit mm² / AWG Rated wire size outputmm² / AWG Wire stripping length main circuit mm / inches Wire stripping length output mm / inches Recommended torque main circuit Nm / Ib.in Recommended torque outputNm / Ib.inSolid Stranded Solid Stranded Wire size output mm² / AWG9.5 mm / .37"0.5-0.8 Nm / 4.4-7.1 Ib.in5003003003220204 mm 212 AWG12 AWG0.2 - 422-12 AWG 22-12 AWG 0.22 - 4IEC ULCSANFC DINCharacteristicsWire size mm² / AWGSolid Stranded D 4/6.T3 - 4 mm² blocks - 6 mm .238" spacingSelectionVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inM 4/6.T3.P - 4 mm² block - 6 mm .238" spacingD 2,5/6.D - 2.5 mm² blocks - 6 mm .238" spacingD 2,5/6.DL - 2.5 mm² blocks - 6 mm .238" spacingD 2,5/6.DPA1 - 2.5 mm² blocks - 6 mm .238" spacingD 2,5/6.DPAL1 - 2.5 mm² blocks - 6 mm .238" spacingD 4/6... - 4 mm² blocks - 6 mm .238" spacingD 4/6.LNTP - 4 mm² closed blocks - 17.8 mm .700" spacingMA 2,5/5.NT- 2.5 mm² block - 5 mm .200" spacingAccessories**SFB2 : 16 to 35 mm² 6 to 2 AWG H= 3 mm/.12"M 10/10.NT- 10 mm² block - 10 mm .394" spacingAccessories(1) Except for M 35/16 NT (closed block)*SFB1 : 0.5 to 35 mm² 18 to 2 AWG H= 7 mm/.28"**SFB2 : 16 to 35 mm² 6 to 2 AWG H= 3 mm/.12"MB 4/6... - 4 mm² blocks - 6 mm .238" spacingMB 6/8... - 6 mm² blocks - 8 mm .315" spacingMB 10/10... - 10 mm² blocks - 10 mm .394" spacingBRU 125 A - 35 mm² block - 27 mm 1.063" spacingBRU 160 A - 70 mm² block - 35.2 mm 1.388" spacingBRU 250 A - 120 mm² blocks - 44.5 mm 1.752" spacingBRU 400 A - 185 mm² block - 44.5 mm 1.752" spacingAccessoriesAccessoriesBRT 80 A - 16 mm² block - 48 mm 1.89" spacingBRT 125 A - 35 mm² block - 48 mm 1.89" spacingBRT 160 A - 50 mm² block - 50 mm 1.97" spacing9.5 mm / .37"0.5-0.6 Nm / 4.4-5.3 Ib.in4003003002010104 mm 210 AWG 12 AWG 0.5 - 422-10 AWG20-12 AWG0.5 - 2.5IEC ULCSANFC DINMA 2,5/5.SNB - 2.5 mm² blocks - 5 mm .200" spacingCharacteristicsM 4/6.SNB - 4 mm² blocks - 6 mm .238" spacingSelectionWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inSolid StrandedM 6/8.SNB - 6 mm² blocks - 8 mm .315" spacing - blade switchingSelectionAccessoriesM 4/8.D2.SF - for fuses 5x20 mm .197x.787 in. and 5x25 mm .197x.984 in. -4 mm² blocks - 8 mm .315" spacingM 4/6.D2.SNBT - 4 mm² blocks - 6 mm .238" spacing - blade switchM 4/8.SF- 4 mm² blocks - 8 mm .315" spacingM 4/8.SFL - 4 mm² blocks - 8 mm .315" spacing12 mm / .472"1.2-1.4 Nm / 10.6-12.3 Ib.in800(1)60060016252510 mm 210 AWG8 AWG0.5 - 1622-10 AWG 22-8 AWG 0.5 - 10IEC ULCSANFC DINCBD2SML 10/13.SF - for fuses 6.35x25.4 mm 1/4x1 in. and 6.35x32 mm 1/4x11/4 in. -10 mm² blocks - 13 mm .512" spacingSelectionAccessoriesCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inSolid Stranded (1) Insulation voltage of terminal block - operating voltage : according to fuse.M 4/6.D2.2S2... - 4 mm² blocks - 6 mm .238" spacing11 mm / .43"0.8-1 Nm / 7.1-8.9 Ib.in50060030306 mm 28 AWG0.5 - 1022-8 AWG0.5 - 6IECULCSANFC DINM 6/8.ST... - 6 mm² blocks - 8 mm .315" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inSolid Stranded M 6/8.STA - 6 mm² blocks - 8 mm .315" spacing(3)Only for M 6/8.STAM 4/6.ST- 4 mm² blocks - 6 mm .236" spacingBNT...PC...(2) Only for M10/10.ST-SnThe PREM IUM solution for testing the secondary circuits of current or voltage transformers.ESSAILEC, approved by the major electricity utilities, remains the premium choice for the energy market.Implemented in the transformers secondary circuits, ESSAILEC thanks to its intelligent “make before break” design eases and secures any intervention. Cutting the energy supply is avoided with zero risk for the operator.The plug and socket connection cuts cost installation as well as in-situ wiring errors. ESSAILEC is ideal for the wiring of sub-assemblies in the secondary circuits.ESSAILEC terminal blocksProtection relays,Protection relays,Testing :The ESSAILEC socket supplies energy to the protection or counting devices. The insertion of the test plug, which is connected to the measurement equipment, allows the testing of the devices, without perturbing the circuit.ESSAILEC blocks are well adapted to current or voltage measurement :-Current sockets with make before break contacts and pre-wired test plug for current measures-Voltage sockets with open contacts and pre-wired test plug for voltage measures-Up to 4 ammeters or 4 voltmeters connected to the test plugDistributing :The ESSAILEC plug is continuously mounted on the socket to supply current or voltage to secondary circuits sub assemblies.ESSAILEC blocks extreme versatility allow :-Safe current distribution with current socket with mobile contacts since the secondary circuit is not cut when plug is removed-Voltage or polarity distribution with dedicated voltage or polarity socket with closed contactESSAILEC is designed to offer :Great flexibility :-Connection multi contacts « plug and play »-Panel, rail, rack fixed mounting or stand-alone connector -Two wiring technologies, up to 10 mm²Extreme reliability :-Non symmetric blocks -Coding accessories -IP20 design -Locking system -Sealed coverR S T NFor technical characteristics and complete part numbers list, please ask for the ESSAILEC catalog10005006003225254 mm 21.65 mm²12 AWG 13 mm / .51"IECB.SCSANFC DINTS 50-180.5 - 0.8 Nm /4.4 - 7.1 Ib.in0.2 - 422-12 AWG0.22 - 40.5 - 1.50.28 - 1.6580050060041252562.512 AWG 13 mm / .51"0.8 - 1 Nm / 7.1 - 8.9 Ib.inIECB.S CSANFC DINTS 50-180.5 - 1020-12 AWG0.5 - 60.28 - 2.590050060046406510 mm 26 mm² 6 AWG 14 mm / .55"IECB.S UL/CSANFC DINTS 50-181.2 - 1.4 Nm / 10.6 - 12.3 Ib.in0.5 - 1620 - 6 AWG0.5 - 100.28 - 6M 4/6.RS - 4 mm² blocks - 6 mm .238" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping lengthmm / inches Recommended torque (screw)Nm / Ib.inSolid wire Stranded wire Solid wire Stranded wire Screw clampLugsM 6/8.RS - 6 mm² blocks - 8 mm .315" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping lengthmm / inches Recommended torque (screw)Nm / Ib.inSolid wire Stranded wire Solid wire Stranded wire Screw clampLugspending M 10/10.RS - 10 mm² blocks - 10 mm .394" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping lengthmm / inches Recommended torque (screw)Nm / Ib.inSolid wire Stranded wire Solid wire Stranded wire Screw clampLugspending SelectionAccessories(1) Only for block M 4/6.RS (4) For blocks M 4/6.RS and M 6/8.RS(2) Only for block M 6/8.RS(3) Only for block M 10/10.RSDR 1,5/4 - 1.5 mm² blocks - 4 mm .157" spacingDR 1,5/5... - 1.5 mm² blocks - 5 mm .200" spacing。

施耐德低压电器选型手册-Busway母线槽选型表第三部分Busway 母线槽选型表母线槽选型表（1000 V, 50/60 Hz）系列电流等级短路耐受能力母线槽型号用途导体(A) lpk (kA)柔性照明母线20 3.6 KDP20 照明铜刚性照明母线25 4.4 KBA25/KBB25 照明铜40 9.6 KBA40/KBB40 照明铜小电流配电母线40 6 KNA40/KNT40 低容量配电铝63 11 KNA63/KNT63 低容量配电铝100 14 KNA100/KNT100 中低容量配电铝160 20 KNA160 中低容量配电铝中电流配电母线KSC KSA100 17 17 KSC10/KSA10 中低容量配电铜/铝160 17 17 KSC16/KSA16 中低容量配电铜/铝250 17 17 KSC25/KSA25 中容量配电铜/铝400 36 36 KSC40/KSA40 中容量配电铜/铝500 56.7 56.7 KSC50/KSA50 中容量配电铜/铝630 73.5 73.5 KSC63/KSA63 中容量配电铜/铝800 86.1 86.1 KSC80/KSA80 中容量配电铜/铝中高电流配电母线250 51 I-LINE250A 中容量配电铜/铝400 51 I-LINE400A 中容量配电铜/铝630 51 I-LINE630A 中容量配电铜/铝800 104 I-LINE800A 中高容量配电铜/铝1000 104 I-LINE1000A 中高容量配电铜/铝1250 104 I-LINE1250A 中高容量配电铜/铝1350 104 I-LINE1350A 中高容量配电铜/铝1600 104 I-LINE1600A 中高容量配电铜/铝2000 104 I-LINE2000A 中高容量配电铜/铝2500 213 I-LINE2500A 中高容量配电铜/铝3000 213 I-LINE3000A 中高容量配电铜/铝3200 213 I-LINE3200A 中高容量配电铜/铝4000 213 I-LINE4000A 中高容量配电铜/铝5000 338 I-LINE5000A 中高容量配电铜/铝6000 338 I-LINE6000A 中高容量配电铜母线插接单元选型表（380~690V, 50/60 Hz）系列电流等级开关使用分断能力保护单元型号适用母线备注kA (380/415V)照明母线插接单元10 - KBC10 KDP/KB16 - KBC16 KDP/KB小电流母线插接单元16 - KNB16 KN25 - KNB25 KN32 - KNB32 KN中电流母线插接单元32 - KSB32 KSA/KSC 可配Muilt 9系列断路器63 - KSB63 KSA/KSC 可配Muilt 9系列断路器100 - KSB100 KSA/KSC 可配Muilt 9系列断路器25 25/36 NSD/NSX KSA/KSC NSD仅提供3极保护40 25/36 NSD/NSX KSA/KSC NSD仅提供3极保护50 25/36 NSD/NSX KSA/KSC NSD仅提供3极保护63 25/36 NSD/NSX KSA/KSC NSD仅提供3极保护80 25/36 NSD/NSX KSA/KSC NSD仅提供3极保护100 25/35/36 NSD/NSE/NSX KSA/KSC NSD仅提供3极保护160 35/36/50/70 NSE/NSX KSA/KSC 可提供3/4极保护250 35/36/50/70 NSE/NSX KSA/KSC 可提供3/4极保护400 35/36/50/70 NSE/NSX KSA/KSC 可提供3/4极保护高电流母线插接箱15-100 25 NSD I-LINE NSD仅提供3极保护16-500 35/50/70 NSE I-LINE 可提供3/4极保护16-500 36/50/70/100 NSX I-LINE 3/4极,可选漏电保护630-1000 50/70 NS I-LINE 3/4极,可选漏电保护30-1600 - 熔断器I-LINE 熔断器由用户自行购买3-23-3I-LINE 插接箱15A ~ 1600AKB/KDP 通用插接单元10A, 16A图7图10I-LINE 母线槽250A ~ 6000AKSC 中电流母线100A ~ 800A KSA 中电流母线100A, 160A, 250A KDP 照明母线20A KB 照明母线KN 低电流母线图3图2图1图4图5图6KSA/KSC 通用插接箱塑壳断路器插接箱25A ~ 400A图8图9KSA/KSC 配小型断路器插接箱(断路器由用户提供)32，63，100A3-4。

施耐德低压电器选型接触器：I<=7.5A LC1-D09 22M5C I<=10A LC1-D12 22M5C I<=15.3A LC1-D18 22M5C I<=21A LC1-D25 22M5CI<=27.2A LC1-D32 22M5CI<=34A LC1-D40 22M5C I<=42.2A LC1-D50 22M5C ；I<=55.5A LC1-D65 22M5CI<=68A LC1-D80 22M5CI<=82A LC1-D95 22M5C I<=98A LC1-D115 22M5CI<=128A LC1-D150 22M5C；I<=145A LC1-D170 22M5CI<=175A LC1-D205 22M5CI<=210A LC1-D245 22M5CI<=260A LC1-D300 22M5C I<=350A LC1-D410 22M5C I<=410A LC1-D475 22M5C I<=540A LC1-D620 22M5C热继电器：I<=0.16A LRD-01C I<=0.25A LRD-02C I<=0.40A LRD-03C I<=0.63A LRD-04C I<=1A LRD-05C I<=1.6A LRD-06C I<=2.5A LRD-07C I<=4A LRD-08C I<=6A LRD-10C I<=8A LRD-12C I<=10A LRD-14C I<=13A LRD-16C I<=18A LRD-21C I<=24A LRD-22C I<=32A LRD-32C I<=38A LRD-35C I<=50A LRD-3357C I<=65A LRD-3359C I<=70A LRD-3361C I<=80A LRD-3363C I<=104A LRD-4365 I<=120A LRD-4367 I<=140A LRD-4369空气开关：电机的：I<=11A NSX100HMA 12.5 3PI<=23A NSX100HMA 25 3PI<=45A NSX100HMA 50 3PI<=70A NSX100HMA 80 3PI<=90A NSX100HMA 100 3PI<=140A NSX160HMA 160 3PI<=230A NSX250HMA 250 3PI<=360A NSX400HMIC2.3M 400 3P I<=570A NSX630HMIC2.3M 630 3P 配电的：I<=13A NSX100HTM 16 3P I<=18A NSX100HTM 25 3P I<=29A NSX100HTM 32 3P I<=35A NSX100HTM 40 3P I<=45A NSX100HT M50 3P I<=55A NSX100HTM 63 3P I<=70A NSX100HTM 80 3P I<=90A NSX100HTM 100 3P I<=110A NSX160HTM 125 3P I<=140A NSX160HTM 160 3P I<=180A NSX250HTM 200 3PI<=225A NSX250HTM 250 3P I<=360A NSX400HMIC2.3 400 3PI<=600A NSX630HMIC2.3 630 3P三、中间继电器40、31、22CA2-DN□□M5C常闭接点数量常开接点数量四、框架断路器：I=800A 型号：MT08N13P MIC 5.0AI=1000A 型号：MT10N13P MIC 5.0AI=1250A 型号：MT12N13P MIC 5.0AI=1600A 型号：MT16H13P MIC 5.0AI=2000A 型号：MT20H13P MIC 5.0AI=2500A 型号：MT25H13P MIC 5.0AI=3200A 型号：MT32H13P MIC 5.0AI=4000A 型号：MT40H13P MIC 5.0ATD101B(分体式，P<=45kW)TD101BB(分体式，P>45kW，用三只电流互感器)TD101B-#-M(#用数字1~5代替，1：1A、2：6.3A、3：25A、4：63A、5：100A)(M代表有4~20mA输出，不输出时取消M)TD101BB-#-M(#用数字6~7代替，6：200A、7：400A)(M代表有4~20mA输出，不输出时取消M) 并注明电流互感器的变比。

iPR 可插拔式电涌保护器1/8 iST 固定式电涌保护器2/8 iPT 可插拔式通信基站和OEM专用电涌保护器3/8 iPR-DC 可插拔式光伏发电专用电涌保护器3/8PRF1 Ⅰ级试验电涌保护器4/8 PR 可插拔式电涌保护器4/8 ST 固定式电涌保护器5/8 PT 可插拔式通信基站和OEM专用电涌保护器6/8 PR-DC 可插拔式光伏发电专用电涌保护器6/8 PL 速装式电涌保护器7/8 PRC/PRI 信号类电涌保护器7/8 SE 系列天馈类/信号类电涌保护器7/8EA9L 固定式电涌保护器8/8iPR 可插拔式电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：IEC 61643-1/GB 18802.1最大可持续运行电压Uc：340V最大放电电流Imax：120/80/65/40/20/10kA标称放电电流In：60/40/35/20/10/5kA电压保护水平Up：2.1/2.0/1.5/1.2/1.0kV级数：1P/2P/3P/4P/1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型A9L916870iPR 120r 1P1965.12库存产品A9L916800iPR 65r 1P1050.74非库存产品A9L916802iPR 65r 1P+N2199.28非库存产品A9L916803iPR 65r 2P2008.93非库存产品A9L916804iPR 65r 3P3253.77库存产品A9L916806iPR 65r 3P+N3891.88库存产品A9L916807iPR 65r 4P3514.39库存产品A9L916808iPR 40r 1P830.82非库存产品A9L916809iPR 40 1P545.35非库存产品A9L916812iPR 40r 1P+N1563.63库存产品A9L916813iPR 40 1P+N1114.48库存产品A9L916814iPR 40r 2P1469.90非库存产品A9L916815iPR 40 2P1067.99库存产品A9L916816iPR 40r 3P2211.17非库存产品A9L916817iPR 40 3P1605.94库存产品A9L916820iPR 40r 3P+N2978.58库存产品A9L916821iPR 40 3P+N1919.70库存产品A9L916822iPR 40r 4P2791.98库存产品A9L916823iPR 40 4P1746.91库存产品A9L916844iPR 20r 1P754.02非库存产品A9L916824iPR 20 1P482.58非库存产品A9L916825iPR 20r 1P+N1331.93非库存产品A9L916826iPR 20 1P+N913.31库存产品A9L916847iPR 20r 2P1252.13非库存产品A9L916827iPR 20 2P901.41库存产品A9L916848iPR 20r 3P1894.42非库存产品A9L916828iPR 20 3P1252.45库存产品A9L916850iPR 20r 3P+N2729.74库存产品A9L916830iPR 20 3P+N1663.79库存产品A9L916851iPR 20r 4P2484.11库存产品A9L916831iPR 20 4P1514.03库存产品A9L916832iPR 10 1P403.31非库存产品A9L916834iPR 10 1P+N922.52非库存产品A9L916835iPR 10 2P839.29非库存产品A9L916836iPR 10 3P1216.24非库存产品A9L916838iPR 10 3P+N1623.94库存产品A9L916839iPR 10 4P1506.43非库存产品A9L916865iPR 80r 1P1157.22非库存产品A9L916864iPR 80r 1P NPE1081.70非库存产品A9L916867iD120-3401575.84非库存产品A9L916840iD65-340787.87非库存产品A9L916843iD40-340415.41非库存产品A9L916846iD20-340378.78非库存产品A9L916849iD10-340303.04非库存产品A9L916842iDGn407.38非库存产品A9L916862iD80-340902.59非库存产品A9L916863iDGn-80843.68非库存产品iST 固定式电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：IEC 61643-1/GB 18802.1最大可持续运行电压Uc：340V最大放电电流Imax：65/40/20kA标称放电电流In：35/20/10kA电压保护水平Up：1.8/1.5/1.2kV级数：1P/2P/3P/4P/1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型A9L916600iST 65 1P771.80非库存产品A9L916603iST 65 2P1703.53非库存产品A9L916604iST 65 3P2881.85非库存产品A9L916605iST 65r 3P+N3347.29库存产品A9L916606iST 65 3P+N2906.27库存产品A9L916607iST 65r 4P3194.00非库存产品A9L916608iST 65 4P2729.85库存产品A9L916609iST 40 1P463.72非库存产品A9L916611iST 40 1P+N1077.52非库存产品A9L916612iST 40 2P967.94非库存产品A9L916613iST 40 3P1601.34非库存产品A9L916614iST 40r 3P+N2322.90非库存产品A9L916615iST 40 3P+N1658.54库存产品A9L916616iST 40r 4P2235.92非库存产品A9L916617iST 40 4P1595.12库存产品A9L916618iST 20 1P253.45非库存产品A9L916620iST 20 1P+N603.73库存产品A9L916621iST 20 2P512.68库存产品A9L916622iST 20 3P919.84库存产品A9L916623iST 20 3P+N970.29库存产品A9L916624iST 20 4P911.59库存产品A9L916625iST 20r 3P+N1236.27非库存产品iPT 可插拔式通信基站和OEM专用电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：GB 18802.1, YD 1235.1最大可持续运行电压Uc：385V最大放电电流Imax：40/20kA标称放电电流In：20/10kA电压保护水平Up：1.6/1.5kV级数：1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型A9L916871iPT 40r 3P+N3127.58非库存产品A9L916872iPT 40 3P+N1977.33非库存产品A9L916873iPT 40 1P+N1170.18非库存产品A9L916874iPT 20r 3P+N2729.74非库存产品A9L916875iPT 20 3P+N1799.51非库存产品A9L916876iPT 20 1P+N987.97非库存产品A9L916885iD40-385415.41非库存产品A9L916886iD20-385378.78非库存产品A9L916887iDGn PT407.38非库存产品iPR-DC 可插拔式光伏发电专用电涌保护器符合标准：GB 18802.1最大可持续运行电压Uc：840/1230V标准开路电压Uocstc：600/1000V最大放电电流Imax：40kA标称放电电流In：15kA电压保护水平Up：2.8/3.9kVReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型A9L16434iPR-DC 40r 600PV2321.72非库存产品A9L16436iPR-DC 40r 1000PV2391.24非库存产品A9L16683iD40 600PV415.41非库存产品A9L16692iD40 1000PV415.41非库存产品A9L16690iCneutral407.38非库存产品PRF1 Ⅰ级试验电涌保护器IEC试验类别：Ⅰ级试验 (10/350us)符合标准：IEC 61643-1/GB 18802.1最大可持续运行电压Uc：440/350V最大冲击电流Iimp：50/12.5kA标称放电电流In：50/25kA电压保护水平Up：1.5kV级数：1P/3P/1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型16630PRF1 Master 1P 440V2709.48非库存产品16632PRF1 12.5KA 1P+N2628.23非库存产品16633PRF1 12.5KA 3P4118.57非库存产品16634PRF1 12.5KA 3P+N4835.35库存产品PR 可插拔式电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：IEC 61643-1/GB 18802.1最大可持续运行电压Uc：340V最大放电电流Imax：120/65/40/20/10kA标称放电电流In：60/35/20/10/5kA电压保护水平Up：2.1/2.0/1.5/1.2/1.0kV级数：1P/2P/3P/4P/1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型916870PR 120 r 120kA 1P2080.69库存产品916800PR 65r 65kA 1P 340V 1112.54非库存产品916802PR 65r 65kA 1P+N 340V2328.63非库存产品916803PR 65r 65kA 2P 340V2127.08非库存产品916804PR 65r 65kA 3P 340V3445.13库存产品916806PR 65r 65kA 3P+N 340V4120.78库存产品916807PR 65r 65kA 4P 340V 3721.08库存产品916808PR 40r 40kA 1P 340V879.69非库存产品916809PR 40 40kA 1P 340V 577.42非库存产品916812PR 40r 40kA 1P+N 340V1655.59非库存产品916813PR 40 40kA 1P+N 340V 1180.02非库存产品916814PR 40r 40kA 2P 340V1556.35非库存产品916815PR 40 40kA 2P 340V 1130.80非库存产品916816PR 40r 40kA 3P 340V2341.22非库存产品916817PR 40 40kA 3P 340V 1700.39库存产品916820PR 40r 40kA 3P+N 340V3065.28库存产品916821PR 40 40kA 3P+N 340V 1975.66库存产品916822PR 40r 40kA 4P 340V2956.18非库存产品916823PR 40 40kA 4P 340V 1849.65库存产品916844PR 20r 20kA 1P 340V798.36非库存产品916824PR 20 20kA 1P 340V 510.96非库存产品916825PR 20r 20kA 1P+N 340V 1410.26非库存产品916826PR 20 20kA 1P+N 340V 967.02非库存产品916847PR 20r 20kA 2P 340V1325.77非库存产品916827PR 20 20kA 2P 340V 954.43非库存产品916848PR 20r 20kA 3P 340V2005.83非库存产品916828PR 20 20kA 3P 340V 1326.11非库存产品916850PR 20r 20kA 3P+N 340V2890.28非库存产品916830PR 20 20kA 3P+N 340V 1761.64库存产品916851PR 20r 20kA 4P 340V2630.21非库存产品916831PR 20 20kA 4P 340V 1603.08库存产品916832PR 10 10kA 1P 340V 427.03非库存产品916834PR 10 10kA 1P+N 340V 976.77非库存产品916835PR 10 10kA 2P 340V 888.65非库存产品916836PR 10 10kA 3P 340V 1287.77非库存产品916838PR 10 10kA 3P+N 340V 1719.45非库存产品916839PR 10 10kA 4P 340V 1595.03非库存产品916867D120-3401668.52非库存产品916840D65-340834.20非库存产品916843D40-340439.84非库存产品916846D20-340401.05非库存产品916849D10-340320.87非库存产品916842DGn431.34非库存产品ST 固定式电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：IEC 61643-1/GB 18802.1最大可持续运行电压Uc：340V最大放电电流Imax：65/40/20kA标称放电电流In：35/20/10kA电压保护水平Up：1.8/1.5/1.2kV级数：1P/2P/3P/4P/1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型916600ST 65 65kA 1P 340V817.19非库存产品916603ST 65 65kA 2P 340V1803.72非库存产品916604ST 65 65kA 3P 340V3051.34非库存产品916605ST 65r 65kA 3P+N 340V3544.15非库存产品916606ST 65 65kA 3P+N 340V3077.20非库存产品916607ST 65r 65kA 4P 340V3381.84非库存产品916608ST 65 65kA 4P 340V2890.40库存产品916609ST 40 40kA 1P 340V491.00非库存产品916611ST 40 40kA 1P+N 340V1140.89非库存产品916612ST 40 40kA 2P 340V1024.86非库存产品916613ST 40 40kA 3P 340V1695.52非库存产品916614ST 40r 40kA 3P+N 340V2459.51非库存产品916615ST 40 40kA 3P+N 340V1756.08库存产品916616ST 40r 40kA 4P 340V2367.42非库存产品916617ST 40 40kA 4P 340V1688.94库存产品916618ST 20 20kA 1P 340V268.35非库存产品916620ST 20 20kA 1P+N 340V639.24非库存产品916621ST 20 20kA 2P 340V542.83非库存产品916622ST 20 20kA 3P 340V973.94非库存产品916623ST 20 20kA 3P+N 340V1027.36库存产品916624ST 20 20kA 4P 340V965.20库存产品916625ST 20r 20kA 3P+N 340V1308.98非库存产品PT 可插拔式通信基站和OEM专用电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：GB 18802.1, YD 1235.1最大可持续运行电压Uc：385V最大放电电流Imax：40/20kA标称放电电流In：20/10kA电压保护水平Up：1.6/1.5kV级数：1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型916871PT 40r 40kA 3P+N3311.52非库存产品916872PT 40 40kA 3P+N2093.62非库存产品916873PT 40 40kA 1P+N1239.00非库存产品916874PT 20r 20kA 3P+N2890.28非库存产品916875PT 20 20kA 3P+N1905.34非库存产品916876PT 20 20kA 1P+N1046.07非库存产品916885D40-385439.84非库存产品916886D20-385401.05非库存产品916887DGn PT431.34非库存产品PR-DC 可插拔式光伏发电专用电涌保护器符合标准：GB 18802.1最大可持续运行电压Uc：840/1230V标准开路电压Uocstc：600/1000V最大放电电流Imax：40kA标称放电电流In：15kA电压保护水平Up：2.8/3.9kVReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型16434PR-DC 40r 600PV2458.27非库存产品16436PR-DC 40r 1000PV2531.87非库存产品16684D40-460439.84非库存产品16685D40-340439.84非库存产品16691Cneutral431.34非库存产品PL 速装式电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：IEC 61643-1/GB 18802.1最大可持续运行电压Uc：320V最大放电电流Imax：10kA标称放电电流In：5kA电压保护水平Up：1.5kV级数：1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型16638PL 10 1P+N703.99非库存产品16639PL 10 3P+N1193.79非库存产品PRC/PRI 信号类电涌保护器最大可持续运行电压Uc：PRC: 130VAC, 180VDC; PRI: 37VAC, 53VDC最大放电电流Imax：PRC: 18kA; PRI: 10kA标称放电电流In：PRC: 10kA; PRI: 10kA电压保护水平Up：PRC: 300; PRI: 70V可保护进线数：2对Reference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型16339PRI2011.44非库存产品16337PRC2017.94非库存产品SE 系列天馈类/信号类电涌保护器Reference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型911660SETT8-10N-40739.60非库存产品911661SETT17-24N-40845.76非库存产品911662SETT8-10D-601394.98非库存产品911663SETT8-25D-601660.55非库存产品911664SEKT25N-10852.49非库存产品911665SEKT25T-10M753.38非库存产品911666SEKT25D-101014.76非库存产品911672SEKT15FL-10896.69非库存产品911673SEKT20F-10970.44非库存产品911667SEWT16N-10CN1195.22非库存产品911668SEWT10N-20N2160.92非库存产品911669SEWT20N-20N2160.92非库存产品911670SEWT10D-20N2597.70非库存产品911671SEWT20D-20N2597.70非库存产品9116676SEXM-1B-5918.30非库存产品9116677SEXM-1B-24918.30非库存产品9116678SEXL-1H-12695.95非库存产品9116679SEXL-1H-48695.95非库存产品9116680SEXL-1H-110695.95非库存产品9116681SEXM-2R-51108.24非库存产品9116682SEXH-2R-51185.52非库存产品9116683SEXL-1J-5927.89非库存产品9116684SEXL-1J-12773.11非库存产品9116685SEXL-1J-24773.11非库存产品9116686SEXL-1J-110773.11非库存产品9116687SEXL-2J-51217.71非库存产品9116688SEXL-2J-121739.70非库存产品9116689SEXL-2J-241652.72非库存产品9116690SEXL-2J-1101449.66非库存产品EA9L 固定式电涌保护器IEC试验类别：Ⅱ级试验 (8/20us)符合标准：IEC 61643-1/GB 18802.1最大可持续运行电压Uc：340V最大放电电流Imax：65/40/20kA标称放电电流In：35/20/10kA电压保护水平Up：1.8/1.5/1.2kV级数：1P+N/3P+NReference Description Unit price with VAT (RMB)Stock / Indent 订货号中文说明含税单价 (RMB)存货类型EA9L208Fr400EA9L电涌保护器20kA 3P+N (带遥信接点）1227.39非库存产品EA9L208F400EA9L电涌保护器20kA 3P+N943.61库存产品EA9L209F230EA9L电涌保护器20kA 1P+N542.91库存产品EA9L408Fr400EA9L电涌保护器40kA 3P+N (带遥信接点）2067.83非库存产品EA9L408F400EA9L电涌保护器40kA 3P+N1515.07库存产品EA9L409F230EA9L电涌保护器40kA 1P+N995.09非库存产品EA9L658Fr400EA9L电涌保护器65kA 3P+N (带遥信接点）3268.18非库存产品EA9L658F400EA9L电涌保护器65kA 3P+N2832.88库存产品EA9L659F230EA9L电涌保护器65kA 1P+N1647.99非库存产品。

别墅(某 2 层别墅，另有一地下室)优点：有部分分级保护。

缺点：某一回路出现剩余电流故障时，iC65回路跳闸，iC65回路会断电直到剩余电流故障排除。

照明回路正常工作。

iDPNN 16A 照明iDPNN 20A 变频空调iDPNN 20A插座iDPNN 16A 卫生间iDPNN 16A 厨房(电磁炉，微波炉...)iDPNN 20A 备用普通住宅(两室一厅，80~120m 2)随着科技和经济的不断发展，用电设备越来越种类繁多。

日益复杂的配电系统对剩余电流保护产品的种类和性能也提出了越来越高的要求。

作为低压配电行业的领导者，施耐德电气拥有世界领先的剩余电流保护产品的设计制造技术和最先进的产品生产线，持续引领技术发展潮流。

针对不同的用电场合，施耐德电气有不同的剩余电流保护产品解决方案，全面满足不同的客户需求。

剩余电流保护产品选型方案推荐优点：价格中等，有部分分级保护。

缺点：某一回路出现剩余电流故障时，i ID 回路跳闸，i ID 回路会断电直到剩余电流故障排除。

照明回路正常工作。

iDPNN 20A 空调iDPNN 16A 一般插座iDPNN 16A 卫生间插座iDPNN 16A 厨房插座方案二：TYA-12优点：实现全面的分级保护功能，漏电保护回路使用18mm RCBO ，排列更紧凑。

按摩浴缸用10毫安更安全。

iDPNN 16A 照明iDPNN Vigi+ 16A VE+ 30mA 变频空调iDPNN Vigi+ 16A VE+ 30mA 插座iDPNN 16A VE 10mA 卫生间(按摩浴缸)iDPNN Vigi+ 16A VE+ 30mA 厨房(电磁炉，微波炉...)iDPNN Vigi+ 16A VE+ 30mA 备用●将电磁式换成电子式，总造价将降低29%。

注：如需进一步对操作过电压或线路雷电来波进行防护，建议 在图示位置加装一电涌保护器。

方案一：方案二：注：如需进一步对操作过电压或线路雷电来波进行防护，建议 在图示位置加装一电涌保护器。
