Type C协会标准规范

  • 格式：xlsx
  • 大小：11.66 KB
  • 文档页数：10

Group B-1 Type C connector

and cable assembly

mechanical tests協會標準

Cable pull out

線材吊重40 N Minmum, 線材組裝

需無電性斷開且線材不會

從CONN分離

Cable flex

線材柔軟No loss of continuity

during cycling

在循環操作時不會斷開

4-axis continuity四軸向No discontinuity

greater than 1 us

duration in any of the

four orientation

tested

在四個方向測試無大於

1us的瞬斷

Voltage Drop

壓降250mV for GND and

500mV for Vbus

Group B-2 USB2.0 and low

speed signal tests of Type

C cable and adaptor

assemblies

Type C-C

D+/D- pair attenuation

D+/D- 衰減≧-1.02dB@50MHz

≧-1.43dB@100MHz

≧-2.40dB@200MHz

≧-4.35dB@400MHz

D+/D- pair differential

impedance

D+/D- 衰減差75 ohms to 105 ohms

D+/D- pair Propagation

Delay

D+/D- pair 傳播延遲20 ns max

D+/D- intra-pair Skew

D+/D- 訊號對內的延遲差100 ps max

Coupling between CC and

differential USB D+/D-For cables the limit

is defined with the

vertices of (0.3MHz, -

60.5dB), (1MHz, -

50dB), (10MHz, -30dB),

(16MHz, -26dB), and

(100MHz, -26dB) in

scale of log10(f)

Coupling between VBus and

differential USB D+/D-≦-40dB for 0.3MHz

30MHz, and ≦

19.12log10(f/30)-40(in

dB) for 30MHz

100MHz

Single-ended coupling

between SBU_A and CC,

SBU_B and CCThe limit is defined

with the vertices of

(0.3MHz, -65dB),

(1MHz, -55dB), (18MHz,

-30dB), and (100MHz, -

26dB) in scale of

log10(f)

Single-ended coupling

between CC and D-For USB 2.0 Type C

cables, the singled-

ended couppling

between CC and D-

shall be below the

limits defined with

the vertices of

(0.3MHz, -48.5dB),

(1MHz, -38dB), (10MHz,

-18dB), and (100MHz, -

18dB) in scale of

log11(f)

For USB full featured

type C, the singled-

ended couppling

between CC and D-

shall be below the

limits defined with

the vertices of

(0.3MHz, -58dB),

(10MHz, -27.5dB),

(11.8MHz, -26dB), and

Single-ended coupling

between SBU_A and SBU_BThe limit is defined

with the vertices of

(0.3MHz, -56.5dB),

(1MHz, -46dB), (10MHz,

-26dB), (11.2MHz, -

25dB) and (100MHz, -25dB) in scale of

log10(f)

Single-ended coupling

between SBU_A/SBU_B and

differential USB D+/D-The limit is defined

with the vertices of

(0.3MHz, -80dB),

(30MHz, -40dB) and

(100MHz, -40dB) in

scale of log10(f)

Vbus loop inductance≦ 900 nH

Vbus capacitance8 nF to 500 nF in each

Type C plug

Inductance coupling factor

between Vbus and Other low

speed signal<= 0.3

Rd resistor verificationNA

Rp resistor verificationNA

Group B-3 USB super speed

signal tests of Type C

cable and adaptor

assemblies

Type C-C

Insertion loss Fit at

NyquistFor all USB 3.1 Gen2

super speed pairs:

≧-4 dB at 2.5 GHz

≧-6 dB at 5 GHz

≧-11 dB at 10 GHz

For all USB 3.1 Gen1

super speed pairs:

≧-7 dB at 2.5 GHz

≧-12 dB at 5 GHz

Integrated Muli-reflection

(IMR)≦0.126

ILfitatNq^2+3.024.

ILfitatNq-23.392, in

dB

合集下载

USB Type C 协会规范

USB Type C 协会规范

Release 1.0 - 28 - USB Type-C Cable and

August 11, 2014 Connector Specification

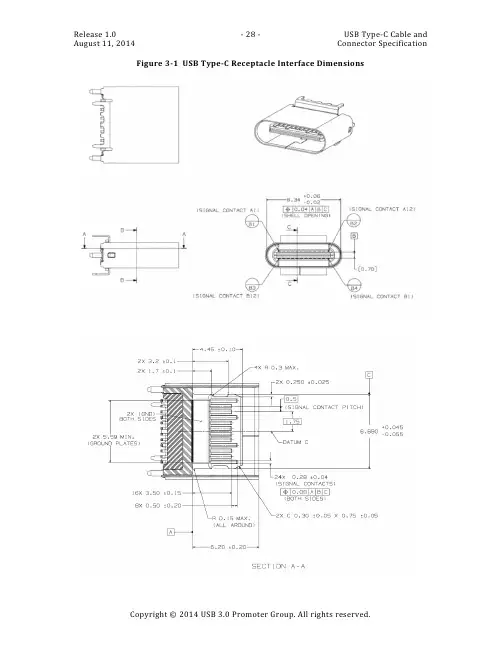

Copyright © 2014 USB 3.0 Promoter Group. All rights reserved. Figure 3-1 USB Type-C Receptacle Interface Dimensions
