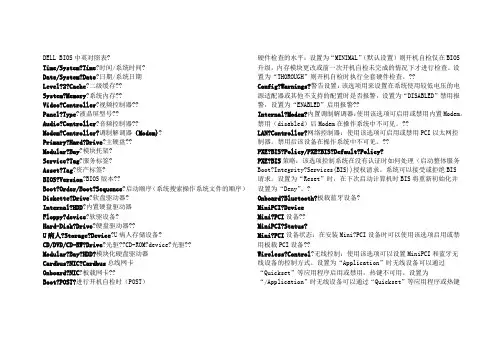

戴尔DELL笔记本最新BIOS-中英文对照表
Description 中文
This section lists out the primary hardware features of the system. There are no configurable options in this section, only information.
Lists the the following:
∙System Information
o BIOS Version
o Service Tag
o Asset Tag
o Ownership Tag
o Manufacture Date
o Ownership Date
∙Memory Information
o Memory Installed
o Memory Available
o Memory Speed
o Memory Channel Mode
o Memory Technology
o DIMM A Size
o DIMM B Size
∙Processor Information
o Processor Type
o Core Count
o Processor ID
o Current Clock Speed
o Minimum Clock Speed
o Maximum Clock Speed
∙Device Information
o Primary Hard Drive 该选项列出系统的主要硬件信息。此处仅提供信息,无法修改。
∙系统信息
o BIOS 版本
o机器编号
o资产编号
o Ownership编号
o出厂日期
o Ownership日期
∙内存信息
o安装内存容量
o可用内容容量
o当前内存频率
o Memory通道
o Memory技术
o DIMM A尺寸
o DIMM B尺寸
∙CPU信息
o CPU型号
o CPU核数(几核)
o CPU ID
o当前时钟频率
o最小时钟频率
o最大时钟频率
∙设备信息
o主硬盘容量
o光驱型号
o系统eSATA设备
o Dock eSATA
o Cellular Device
o Bluetooth Device
Indicates the primary battery and the media bay battery status. Also displays the AC adapter type connected to the system. 侦测主电池和第二块电池状态,也显示的型号。
Boot Sequence The computer attempts to boot from the
sequence of devices specified in this list:
∙Diskette drive
∙USB Storage Device
∙CD/DVD/CD-RW Drive.
∙Internal HDD (IRRT)
∙Cardbus NIC
∙Onboard NIC
This list specifies the order that the BIOS
searches devices when trying to find an
operating system to boot. To change the boot
order, select the device to be changed in the list
then click the up/down arrows or use the
keyboard PgUp/PgDn keys to change the boot
order of the device. The boot devices can also be
de-selected from the list using the check boxes.
This also where the UEFI boot option can be
enable or disable. 计算机尝试从以下列表顺序启动:
∙软驱
∙USB存储设备
∙光驱
∙Internal HDD (IRRT)
∙Cardbus NIC
∙Onboard NIC
我们可以勾选需要启动的设备。并在界面右侧对显示的设备设置启动的顺序,可以通过鼠标也可以通过上下键选择。
我们可以通过选择UEFI BIOS启动,点击
Boot Option”自定义启动选项。
Displays current date and time settings. 显示当前的日期和时间
Disabled, AT, PS2 and ECP. Default setting: ECP 禁用,AT,PS2 和ECP 默认设置是ECP。
This field determines how the integrated serial port operates. The settings are Disabled, COM1, COM2, COM3 and COM4.
Default setting: COM1 串口设置选项:
禁用,COM1,COM2,COM3,默认设置是COM1
SATA Operation This option configures the operating mode of the
internal SATA hard drive controller. The settings
are Disabled, ATA, AHCI, and RAID On.
Default setting: RAID On = SATA is configured to
support RAID mode
SATA Operation 设置选项:
禁用,ATA ,AHCI 和Raid On
默认设置是Raid On=SATA 设置支持
Miscellaneous Use the check boxes to enable/disable the
following devices:
∙Internal Modem
∙Module Bay
∙ExpressCard or PC Card
∙Media Card, PC Card and 1394
∙External USB Port
∙Microphone
∙eSATA Ports
∙Hard Drive Free Fall Protection
∙Camera / Microphone
Default setting: All enabled.
请点击复选框启用/禁用下面设备:
∙内置Modem
∙模块设备
∙ExpressCard 或PC Card
∙SD卡, PC卡和1394
∙外置USB口
∙内置麦克风
∙eSATA口
∙自由落体硬盘保护
∙摄像头/ 麦克风
默认所有设备启用。
;This field lets you choose the operating mode of
the Latitude On™;Reader.
启用或禁用Latitude On Reader
