Cisco 6509配置手册

格式：doc
大小：161.00 KB
文档页数：23

下载文档原格式

cisco6509 时间访问列表配置

cisco6509 时间访问列表配置要达到的具体要求如下：周一到周五早8：00到12：00不允许上网，12:00到13：00可以上网，13：00到17：00不可以上网，17：00以后到第二天早上8：00可以，周六，周日两天都可以上网。

大师们，帮帮我吧，我感觉不用网管软件实现起来是不是太困难了阿。

#1首先配置NTP服务，让你的路由器时间和北京时间一致。

Router(config)#ntp source gigabitEthernet 0/1指定NTP服务使用哪个端口连接国家授时中心Router(config)#ntp server 210.72.145.44（国家授时中心地址）Router(config)#ntp update-calendar让国家授时中心提供的日期时间更新你的路由器电池供电的电子表时间这样你的路由器时间就很准确了。

#2配置时间序列,基于时间的访问列表。

通过它，可以根据一天中的不同时间或者根据一星期中的不同日期（当然也可以二者结合起来）控制网络数据包的转发,实现上网控制。

Router(config)#time-range time_online（能够上网时间序列）Router(config-time-range)#periodic weekdays 12:00 to 13:00（工作日12点到13点）Router(config-time-range)#periodic weekdays 17:00 to 23:59（工作日17点到00点）Router(config-time-range)#periodic weekdays 00:00 to 08:00（工作日00点到08点）Router(config-time-range)#periodic weekend 00:00 to 23:59（休息日全天）这样就实现了基于北京时间的准确上网时间序列。

#3配置基于北京时间的访问控制列表Router(config)#ip access-list extended net_control（ACL名称）Router(config-ext-nacl)#permit ip any any time-range time_online(刚配好的上网时间序列)Router(config-ext-nacl)#end#4将该ACL应用到要控制上网的内网口，收工。

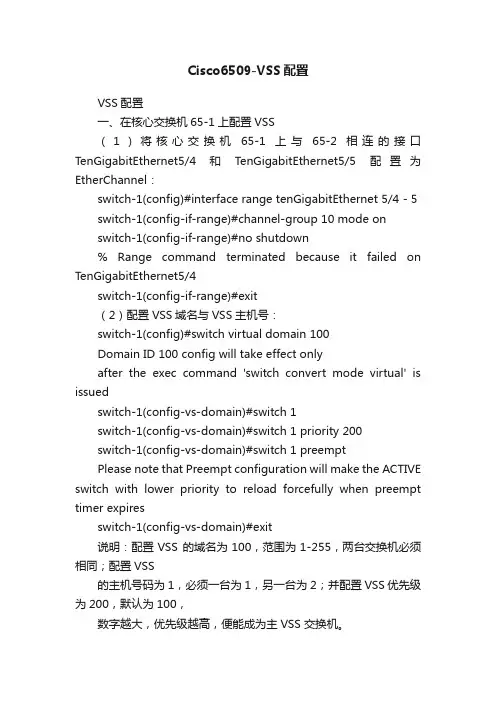

Cisco6509-VSS配置

Cisco6509-VSS配置VSS配置一、在核心交换机65-1上配置VSS（1）将核心交换机65-1 上与65-2 相连的接口TenGigabitEthernet5/4 和TenGigabitEthernet5/5配置为EtherChannel：switch-1(config)#interface range tenGigabitEthernet 5/4 - 5 switch-1(config-if-range)#channel-group 10 mode onswitch-1(config-if-range)#no shutdown% Range command terminated because it failed on TenGigabitEthernet5/4switch-1(config-if-range)#exit（2）配置VSS域名与VSS主机号：switch-1(config)#switch virtual domain 100Domain ID 100 config will take effect onlyafter the exec command 'switch convert mode virtual' is issuedswitch-1(config-vs-domain)#switch 1switch-1(config-vs-domain)#switch 1 priority 200switch-1(config-vs-domain)#switch 1 preemptPlease note that Preempt configuration will make the ACTIVE switch with lower priority to reload forcefully when preempt timer expiresswitch-1(config-vs-domain)#exit说明：配置VSS 的域名为100，范围为1-255，两台交换机必须相同；配置VSS的主机号码为1，必须一台为1，另一台为2；并配置VSS 优先级为200，默认为100，数字越大，优先级越高，便能成为主VSS 交换机。

CISCO交换机6509简介(初级学习)

目录第1章CISCO交换机概述 (6)1.1概述 (6)1.2 Cisco交换机产品介绍 (7)1.2.1低端产品 (7)1.2.2中端产品 (7)1.2.3高端产品 (7)1.2.4单板与华为S8016的对比............................................................... 错误!未定义书签。

第2章Catalyst6000系列 (8)2.1特性表与华为S8016的对比...................................................................... 错误!未定义书签。

2.2接口模块与华为S8016的对比.................................................................. 错误!未定义书签。

第3章多层交换技术 (9)3.1概述 (9)3.2 Catalyst交换机的VLAN交换技术 (11)第4章6509的进一步配置 (18)4.1准备 (18)4.1.1网桥或交换机 (18)4.1.2生成树协议 (18)4.1.3 V L A N (18)4.1.4中继 (19)4.1.5捆绑端口 (19)4.1.6配置 (19)4.2 6509配置实战 (20)4.2.1 Catalyst模式 (20)4.2.2控制台波特率 (21)4.2.3 sc0接口 (21)4.2.4 IP允许表 (21)4.2.5 Reset命令 (22)4.2.6配置文件 (22)4.2.7快速以太网和千兆快速以太网端口的配置 (25)4.2.8生成树协议的使用 (26)4.2.9配置VLAN (26)4.2.10配置动态VLAN (26)4.2.11使用外部路由器路由VLAN (26)关键词：Catalyst 6509；S8016；多层交换（MLS）；VLAN；6509配置摘要：第一章CISCO交换机概览”，对于想了解cisco的Catalyst系列交换机知识的可以看看；第二章Catalyst6000系列”，着重简述了6000系列交换机的规格。

关于Cisco 65097609 交换机Netflow的配置

关于Cisco 6509/7609 交换机Netflow的配置Netflow 在6500和7209 交换机上配置和路由器上配置有所不同，在公司开发Netflow的应用上，发现现场工程师基本没有配置对，导致流量出不来。

下面列出配置信息；CATOS的配置也的参考该配置1、首先看看Netflow配置是否正常起来：Switch# show mls nde一般看到都是Netflow Data Export disabled 这说明Netflow都没有起来。

参看Cisco 《Configuring NetFlow Data Export》PDf文档，默认是Disabled的2、启动netflowSwitch(config)# mls netflow3、启动netflow 的双向流量Switch(config)# mls flow ip destination-source4、启动NDE发送以及发送版本Switch(config)# mls nde sender [version {5 | 7}]如果只输入mls nde sender系统默认启用的是版本7，如果需要版本5，则mls nde send er version 5，目前版本能配的是5或7，这两个版本WEB均能出现正常的数据。

对于Cisco IOS 12.17以下版本的交换机，只有版本7。

5、进入VLAN，启动接口Netflow（如果在物理接口上其3层，则直接进入物理接口）。

Switch(config)# interface vlan 5Switch(config-if)# ip flow-export ingressSwitch(config-if)# ip route-cache flow6、配置Netflow的数据源，如果没有配置Loopback的接口，可以采用物理接口，建议配置L oopback接口Switch(config)# ip flow-export source loopback 07、检测Switch# show mls nde （能看到如下的信息，而且明确Netflow Data Export enable d ）Netflow Data Export enabledExporting flows to 10.110.10.254 (9991)Exporting flows from 10.16.68.72 (55425)Version: 5Include Filter not configuredExclude Filter is:Total Netflow Data Export Packets are:49 packets, 0 no packets, 247 recordsTotal Netflow Data Export Send Errors:IPWRITE_NO_FIB = 0IPWRITE_ADJ_FAILED = 0IPWRITE_PROCESS = 0Switch(config)# show mls netfow ip看到大量的流量信息，大量的滚屏信息。

思科交换机6509配置实例(双机热备)

CISCO 6509配置手册1.设置时间switch#config tswitch(config)# clock timezone GMT 8 ；配置时区switch(config)# clock set 13:30:21 31 JAN 2004 ；配置交换机时间2.设置主机名及密码Switch#congfig tSwitch(config)#hostname 6509a //配置交换机名称6509a(config)#enable password cisco //配置用户密码6509a (config)#enable secret cisco //配置安全密码6509a (config-line)#line vty 0 15 //配置远程访问密码6509a (config-line)#login6509a (config-line)#password cisco6509a (config-line)#login6509a (config-line)#^z6509a #show running-config //查看配置信息6509a #copy running-config startup-config6509a #show startup-config6509a #show bootvar6509a #dir bootflash:6509a #copy system:running-config nvram:startup-config6509a #show fabric status6509a #show hardware3.配置vlan6509a #config t6509a (config)#vlan 3016509a (config-vlan)# name hexinxitong6509a (config)#vlan 3026509a (config-vlan)# name callcenter6509a (config)#vlan 3036509a (config-vlan)# name kuaijicaiwu6509a (config)#vlan 3046509a (config-vlan)# name guojiyewu6509a (config)#vlan 3056509a (config-vlan)# name guanlixitong6509a (config)#vlan 3066509a (config-vlan)# name ceshihuanjing6509a (config)#vlan 3076509a (config-vlan)# name wangluoguanli6509a (config-vlan)#exit6509a (config)#exit6509a #show vlan6509a (config)#interface range giga 2/1 – 8 //配置端口信息6509a (config-if-range)#switchport //二层交换模式6509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3016509a (config-if-range)#exit6509a (config)#interface range giga 2/9– 146509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3026509a (config-if-range)#exit6509a (config)#interface range giga 2/15 – 176509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3036509a (config-if-range)#exit6509a (config)#interface range giga 2/18 – 226509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3046509a (config)#interface range giga 2/23 – 266509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3056509a (config-if-range)#exit6509a (config)#interface range giga 2/27 – 336509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3066509a (config-if-range)#exit6509a (config)#interface range giga 2/34 – 396509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3076509a (config-if-range)#exit6509a (config)#interface giga 2/486509a (config-if)#ip address 12.10.254.2 255.255.255.0 6509a (config-if)#no shut6509a (config)#exit6509a #show vlan4.配置trunk6509a(config)#int giga 5/16509a(config-if)#shut down6509a(config-if)#switchport6509a(config-if)#switchport trunk enca dot1q6509a(config-if)#switchport mode trunk6509a #show int giga 2/48 trunk6509a #show vtp counters6509a #show vtp status6509a(config)#int giga 6/16509a(config-if)#shut down6509a(config-if)#switchport6509a(config-if)#switchport trunk enca dot1q6509a(config-if)#switchport mode trunk6509a(config-if)#no shut down5.设置vlan地址及HSRP6509a #config t6509a(config) #int vlan 3016509a(config-if) #ip address 192.1.2.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 1 ip 192.1.2.16509a(config-if) #standby 1 priority 1056509a(config-if) #standby 1 preempt6509a(config-if) #standby 1 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3026509a(config-if) #ip address 192.100.4.2 255.255.255.06509a(config-if) #no ip redirects6509a(config-if) #standby 2 ip 192.100.4.16509a(config-if) #standby 2 priority 1056509a(config-if) #standby 2 preempt6509a(config-if) #standby 2 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3036509a(config-if) #ip address 192.100.5.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 3 ip 192.100.5.16509a(config-if) #standby 3 priority 1056509a(config-if) #standby 3 preempt6509a(config-if) #standby 3 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3046509a(config-if) #ip address 192.100.6.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 4 ip 192.100.6.16509a(config-if) #standby 4 priority 1056509a(config-if) #standby 4 preempt6509a(config-if) #standby 4 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3056509a(config-if) #ip address 192.100.7.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 5 ip 192.100.7.16509a(config-if) #standby 5 preempt6509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3066509a(config-if) #ip address 192.100.8.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 6 ip 192.100.8.16509a(config-if) #standby 6 preempt6509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3076509a(config-if) #ip address 192.100.9.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 7 ip 192.100.9.16509a(config-if) #standby 7 preempt6509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6.配置EIGRP6509a #config t6509a(config) #ip routing eigrp 1006509a(config) #router eigrp 1006509a(config-router) #network 192.1.2.06509a(config-router) #network 192.100.0 .0 255.255.0.0 6509a(config-router) #network 12.0.0.06509a(config-router) #network 192.254.253.06509a(config-router) #no auto-summary6509a(config-router) #^z6509a #show ip proto6509a #show ip route。

思科交换机6509的配置方法

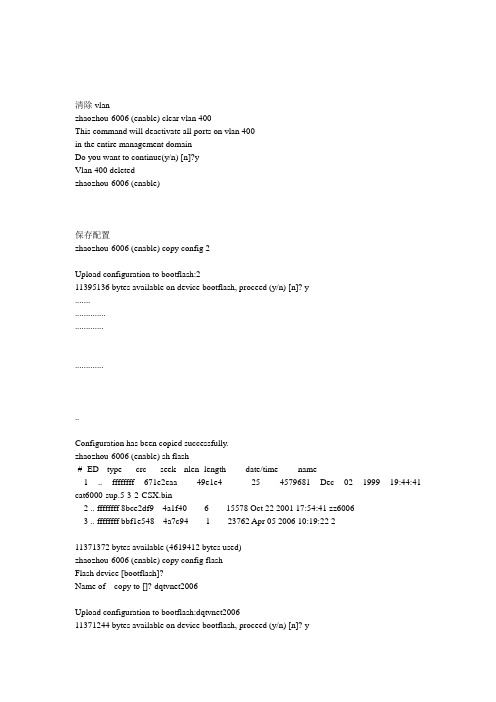

清除vlanzhaozhou-6006 (enable) clear vlan 400This command will deactivate all ports on vlan 400in the entire management domainDo you want to continue(y/n) [n]?yVlan 400 deletedzhaozhou-6006 (enable)保存配置zhaozhou-6006 (enable) copy config 2Upload configuration to bootflash:211395136 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable) sh flash-#- ED --type-- --crc--- -seek-- nlen -length- -----date/time------ name1 .. ffffffff 671e2eaa 49e1e4 25 4579681 Dec 02 1999 19:44:41 cat6000-sup.5-3-2-CSX.bin2 .. ffffffff 8bce2df9 4a1f40 6 15578 Oct 22 2001 17:54:41 zz60063 .. ffffffff bbf1e548 4a7c94 1 23762 Apr 05 2006 10:19:22 211371372 bytes available (4619412 bytes used)zhaozhou-6006 (enable) copy config flashFlash device [bootflash]?Name of copy to []? dqtvnet2006Upload configuration to bootflash:dqtvnet200611371244 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable)删除带有名字的vlanzhaozhou-6006 (enable) copy config 2Upload configuration to bootflash:211395136 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable) sh flash-#- ED --type-- --crc--- -seek-- nlen -length- -----date/time------ name1 .. ffffffff 671e2eaa 49e1e4 25 4579681 Dec 02 1999 19:44:41 cat6000-sup.5-3-2-CSX.bin2 .. ffffffff 8bce2df9 4a1f40 6 15578 Oct 22 2001 17:54:41 zz60063 .. ffffffff bbf1e548 4a7c94 1 23762 Apr 05 2006 10:19:22 211371372 bytes available (4619412 bytes used)zhaozhou-6006 (enable) copy config flashFlash device [bootflash]?Name of copy to []? dqtvnet2006Upload configuration to bootflash:dqtvnet200611371244 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable)查看端口命令zhaozhou-6006 (enable) sh intsl0: flags=51<UP,POINTOPOINT,RUNNING>slip 0.0.0.0 dest 0.0.0.0sc0: flags=63<UP,BROADCAST,RUNNING>vlan 100 inet 221.209.150.82 netmask 255.255.255.248 broadcast 221.209.150.87 zhaozhou-6006 (enable)通过命令设置多个端口vlanzhaozhou-6006 (enable) set vlan 1 2/1-48VLAN 1 modified.VLAN 100 modified.VLAN Mod/Ports---- -----------------------1 2/1-485/1-48zhaozhou-6006 (enable)vtp清除#vtpset vtp domain zxstkset vtp mode serverset vtp v2 disableset vtp pruning disableset vtp pruneeligible 2-1000clear vtp pruneeligible 1001-1005set vlan 1 name default type ethernet mtu 1500 said 100001 state activeset vlan 1002 name fddi-default type fddi mtu 1500 said 101002 state activeset vlan 1004 name fddinet-default type fddinet mtu 1500 said 101004 state active bridge 0x0 stp ieeeset vlan 1005 name trnet-default type trbrf mtu 1500 said 101005 state active bridge 0x0 stp ibm set vlan 1003 name token-ring-default type trcrf mtu 1500 said 101003 state active parent 0 ring 0x0 mode srb aremaxhop 0 stemaxhop 0!#ipset interface sc0 100 221.209.150.82/255.255.255.248 221.209.150.87set interface sc0 upzhaozhou-6006 (enable) clear vtp domain zxstkUsage: clear vtp statisticsclear vtp pruneeligible <vlans..>(vlans: 1..1005An example of vlans is 2-10,1005)zhaozhou-6006 (enable) clear vtp pruneeligible 2-1000Vlans 1-1005 will not be pruned on this device.VTP domain zxstk modified.zhaozhou-6006 (enable)设置vtp模式透明zhaozhou-6006 (enable) set vtp mode ?Usage: set vtp [domain <name>] [mode <mode>] [passwd <passwd>][pruning <enable|disable>] [v2 <enable|disable>(mode = client|server|transparentUse passwd '0' to clear vtp password)Usage: set vtp pruneeligible <vlans>(vlans = 2..1000An example of vlans is 2-10,1000)zhaozhou-6006 (enable) set vtp mode transparentVTP domain zxstk modifiedzhaozhou-6006 (enable)设置端口汇聚zhaozhou-6006 (enable) set trunk ?Usage: set trunk <mod_num/port_num> [on|off|desirable|auto|nonegotiate] [vlans] [trunk_type] (vlans = 1..1005An example of vlans is 2-10,1005)(trunk_type = isl,dot1q,dot10,lane,negotiate)zhaozhou-6006 (enable) set trunk 2/3 on 1-400Adding vlans 1-400 to allowed list.Please use the 'clear trunk' command to remove vlans from allowed list.Port(s) 2/3 allowed vlans modified to 1-1005.Failed to set port 2/3 to trunk mode on.Trunk mode 'on' not allowed with trunk encapsulation type 'negotiate'.zhaozhou-6006 (enable) set trunk 2/3 on 1-400 dot1qAdding vlans 1-400 to allowed list.Please use the 'clear trunk' command to remove vlans from allowed list.Port(s) 2/3 allowed vlans modified to 1-1005.Port(s) 2/3 trunk mode set to on.Port(s) 2/3 trunk type set to dot1q.zhaozhou-6006 (enable)。

cisco6509配置(扩展访问控制列表)

!version 12.2service timestamps debug datetime msec localtimeservice timestamps log datetime msec localtimeservice password-encryption!hostname 6509-L3!logging snmp-authfailenable password 7 060E0D220146000D!boot system flash bootflash:c6msfc3-pk9sv-mz.122-14.SX2.bin clock timezone PST 8ip subnet-zero!!ip domain-list assip host 1hl_7 192.168.0.5ip host 1hl_gy 192.168.0.6ip host 1hl_11 192.168.0.7ip host 2hl 192.168.0.8ip host 4hl 192.168.0.9ip host 6hl 192.168.0.10ip host 1cf 192.168.0.11ip host 2cf 192.168.0.12ip host 4c 192.168.0.4!no standby redirectredundancyhigh-availabilitysingle-router-mode!!!!!!interface Group-Async0physical-layer asyncip address negotiated previousencapsulation ppp!interface Vlan1ip address 192.168.0.1 255.255.255.0ip access-group tofirewall out!interface Vlan10ip address 192.168.41.1 255.255.255.0!interface Vlan20ip address 192.168.42.1 255.255.255.0!interface Vlan30ip address 172.16.9.1 255.255.255.0!interface Vlan40ip address 172.16.10.1 255.255.255.0ip access-group invlan40 inip access-group outvlan40 out!interface Vlan50ip address 172.16.11.1 255.255.255.0ip access-group invlan50 inip access-group outvlan50 out!interface Vlan60ip address 172.16.0.1 255.255.255.0!interface Vlan70ip address 172.16.1.1 255.255.255.0!interface Vlan80ip address 172.16.2.1 255.255.255.0!interface Vlan90ip address 172.16.3.1 255.255.255.0!interface Vlan100ip address 172.16.4.1 255.255.255.0!interface Vlan110ip address 172.16.5.1 255.255.255.0!interface Vlan120ip address 172.16.7.1 255.255.254.0 secondary ip address 172.16.6.1 255.255.254.0no ip redirects!interface Vlan130ip address 172.16.12.1 255.255.254.0ip access-group inbound inip access-group outbound out!interface Vlan140ip address 172.16.8.1 255.255.255.0!interface Vlan150ip address 172.16.16.1 255.255.255.252!router ripversion 2network 172.16.0.0network 192.168.0.0!ip classlessip route 0.0.0.0 0.0.0.0 192.168.0.236ip route 10.0.0.0 255.0.0.0 192.168.0.100ip route 172.16.17.0 255.255.255.0 172.16.16.2ip route 192.168.1.0 255.255.255.0 172.16.1.65ip route 220.201.208.112 255.255.255.252 172.16.16.2ip http server!!ip access-list extended inboundpermit ip any any reflect iptrafficip access-list extended invlan40permit ip host 172.16.10.168 any reflect iptrafficpermit ip any host 192.168.0.244 reflect iptrafficpermit ip any host 192.168.0.53 reflect iptrafficpermit ip any host 192.168.0.254 reflect iptrafficpermit ip any host 172.16.8.110 reflect iptrafficpermit ip host 172.16.10.82 any reflect iptrafficpermit ip host 172.16.10.117 any reflect iptrafficpermit ip any host 172.16.8.52 reflect iptrafficpermit tcp host 172.16.10.70 any eq domain reflect iptraffic permit tcp host 172.16.10.70 any eq pop3 reflect iptraffic permit tcp host 172.16.10.70 any eq smtp reflect iptraffic permit udp host 172.16.10.70 any eq domain reflect iptraffic permit ip any host 172.16.8.50 reflect iptrafficpermit ip any host 192.168.0.110 reflect iptrafficpermit ip any host 172.16.8.94 reflect iptrafficevaluate iptrafficip access-list extended invlan50permit ip any any reflect iptrafficip access-list extended outboundpermit ip host 192.168.0.3 anypermit ip host 172.16.1.65 anypermit ip any host 172.16.13.253permit ip any host 172.16.13.252permit ip any host 172.16.12.9permit ip host 172.16.8.52 anypermit ip host 192.168.0.247 host 172.16.12.52 permit ip host 172.16.8.50 anypermit ip host 192.168.0.110 anypermit ip host 172.16.8.94 anyevaluate iptrafficip access-list extended outvlan40permit ip any host 172.16.10.168permit ip host 192.168.0.237 anypermit ip any host 172.16.10.117permit ip host 172.16.8.52 anypermit tcp any host 172.16.10.70 eq domainpermit tcp any host 172.16.10.70 eq pop3permit tcp any host 172.16.10.70 eq smtppermit udp any host 172.16.10.70 eq domainpermit ip host 172.16.8.50 anypermit ip host 192.168.0.110 anypermit ip host 172.16.4.105 host 172.16.10.82 permit ip host 172.16.11.160 host 172.16.10.82 permit ip host 172.16.8.94 anyevaluate iptrafficip access-list extended outvlan50permit ip host 192.168.0.108 anypermit ip host 172.16.1.60 host 172.16.11.52 permit ip host 172.16.1.60 host 172.16.11.53 permit ip host 172.16.1.61 host 172.16.11.52 permit ip host 172.16.1.61 host 172.16.11.53 permit ip host 172.16.6.230 anypermit ip host 172.16.6.231 anypermit ip host 192.168.0.237 anypermit ip host 10.0.1.147 host 172.16.11.52permit ip host 10.0.1.147 host 172.16.11.53permit ip host 10.0.1.147 host 172.16.11.72permit ip host 172.16.6.171 host 172.16.11.52 permit ip host 172.16.6.171 host 172.16.11.53permit ip host 172.16.6.183 host 172.16.11.52 permit ip host 172.16.6.183 host 172.16.11.53 permit ip host 172.16.6.183 host 172.16.11.72 permit ip host 172.16.4.190 host 172.16.11.52 permit ip host 172.16.4.190 host 172.16.11.53 permit ip host 172.16.3.57 host 172.16.11.52 permit ip host 172.16.3.57 host 172.16.11.53 permit ip host 172.16.3.57 host 172.16.11.72 permit ip host 172.16.3.64 host 172.16.11.52 permit ip host 172.16.3.64 host 172.16.11.53 permit ip host 172.16.3.64 host 172.16.11.72 permit ip host 172.16.3.101 host 172.16.11.52 permit ip host 172.16.3.101 host 172.16.11.53 permit ip host 172.16.3.101 host 172.16.11.72 permit ip host 172.16.2.185 host 172.16.11.52 permit ip host 172.16.2.185 host 172.16.11.53 permit ip host 172.16.2.185 host 172.16.11.72 permit ip host 172.16.2.196 host 172.16.11.53 permit ip host 172.16.2.196 host 172.16.11.52 permit ip host 172.16.2.196 host 172.16.11.72 permit ip host 172.16.2.245 host 172.16.11.52 permit ip host 172.16.2.245 host 172.16.11.53 permit ip host 172.16.2.245 host 172.16.11.72 permit ip host 172.16.2.81 host 172.16.11.52 permit ip host 172.16.2.81 host 172.16.11.53 permit ip host 172.16.2.81 host 172.16.11.72 permit ip host 172.16.2.96 host 172.16.11.52 permit ip host 172.16.2.96 host 172.16.11.53 permit ip host 172.16.2.96 host 172.16.11.72 permit ip host 172.16.2.94 host 172.16.11.52 permit ip host 172.16.2.94 host 172.16.11.53 permit ip host 172.16.2.94 host 172.16.11.72 permit ip host 172.16.2.151 host 172.16.11.52 permit ip host 172.16.2.151 host 172.16.11.53 permit ip host 172.16.2.151 host 172.16.11.72 permit ip host 10.0.1.27 host 172.16.11.72permit ip host 10.0.1.27 host 172.16.11.53permit ip host 10.0.1.27 host 172.16.11.52permit ip host 172.16.4.55 host 172.16.11.52 permit ip host 172.16.4.55 host 172.16.11.53 permit ip host 172.16.4.55 host 172.16.11.72 permit ip host 172.16.4.190 host 172.16.11.121 permit ip host 172.16.4.190 host 172.16.11.250permit ip host 172.16.3.101 host 172.16.11.250 permit ip host 172.16.3.57 host 172.16.11.250 permit ip host 172.16.3.101 host 172.16.11.121 permit ip host 172.16.3.57 host 172.16.11.121 permit ip host 172.16.1.61 host 172.16.11.250 permit ip host 172.16.8.75 host 172.16.11.52 permit ip host 172.16.8.77 host 172.16.11.52 permit ip host 172.16.8.73 host 172.16.11.52 permit ip host 172.16.8.80 host 172.16.11.52 permit ip host 172.16.8.75 host 172.16.11.53 permit ip host 172.16.8.77 host 172.16.11.53 permit ip host 172.16.8.73 host 172.16.11.53 permit ip host 172.16.8.80 host 172.16.11.53 permit ip host 172.16.8.75 host 172.16.11.72 permit ip host 172.16.8.77 host 172.16.11.72 permit ip host 172.16.8.80 host 172.16.11.72 permit ip host 172.16.8.73 host 172.16.11.72 permit ip host 172.16.8.75 host 172.16.11.121 permit ip host 172.16.8.77 host 172.16.11.121 permit ip host 172.16.8.73 host 172.16.11.121 permit ip host 172.16.8.80 host 172.16.11.121 permit ip host 172.16.8.75 host 172.16.11.250 permit ip host 172.16.8.77 host 172.16.11.250 permit ip host 172.16.8.73 host 172.16.11.250 permit ip host 172.16.8.80 host 172.16.11.250 permit ip host 172.16.1.61 host 172.16.11.121 permit ip host 172.16.7.108 host 172.16.11.250 permit ip host 172.16.7.108 host 172.16.11.52 permit ip host 172.16.7.108 host 172.16.11.53 permit ip host 172.16.7.108 host 172.16.11.72 permit ip host 172.16.7.114 host 172.16.11.121 permit ip host 172.16.7.114 host 172.16.11.52 permit ip host 172.16.7.114 host 172.16.11.53 permit ip host 172.16.7.114 host 172.16.11.72 permit ip host 172.16.7.117 host 172.16.11.72 permit ip host 172.16.7.117 host 172.16.11.52 permit ip host 172.16.7.117 host 172.16.11.53 permit ip host 172.16.7.114 host 172.16.11.250 permit ip host 172.16.7.117 host 172.16.11.250 permit ip host 172.16.8.50 anypermit ip host 10.0.1.147 host 172.16.11.250 permit ip host 10.0.1.27 host 172.16.11.250permit ip host 10.0.1.147 host 172.16.11.121permit ip host 10.0.1.27 host 172.16.11.121permit ip host 192.168.0.110 anypermit tcp host 192.168.0.254 any eq ftppermit ip host 172.16.7.121 host 172.16.11.250 permit ip host 172.16.7.121 host 172.16.11.121 permit ip host 172.16.7.121 host 172.16.11.52 permit ip host 172.16.7.121 host 172.16.11.53 evaluate iptrafficip access-list extended tofirewallpermit tcp any host 192.168.0.110deny tcp any any eq echodeny tcp any any eq 139deny tcp any any eq 445deny tcp any any eq 135permit ip any any!logging 192.168.0.2access-list 11 permit 192.168.0.108access-list 11 permit 192.168.0.110access-list 11 permit 192.168.0.2access-list 11 permit 192.168.0.3access-list 11 permit 192.168.0.235access-list 11 permit 192.168.0.237access-list 11 permit 172.16.8.50arp 192.168.42.67 0014.224a.ea63 ARPAarp 172.16.7.185 000a.ebd9.7f33 ARPAarp 192.168.42.65 0010.dcd4.e74b ARPAarp 192.168.0.108 000d.61e8.a430 ARPAarp 192.168.42.71 0010.dcd4.dc0c ARPAarp 192.168.42.69 0010.dcce.e735 ARPAarp 192.168.42.75 0010.dcd4.7d3e ARPAarp 192.168.42.73 0005.5dd4.059b ARPAarp 192.168.0.101 000b.dbb7.9da4 ARPAarp 192.168.42.79 0010.dcd4.76d6 ARPAarp 192.168.0.102 000b.dbb8.4e25 ARPAarp 192.168.0.103 0016.7626.3c29 ARPAarp 192.168.42.77 000b.dbb8.cea5 ARPAarp 172.16.1.168 000d.6193.9c92 ARPAarp 172.16.7.172 0011.11a8.ab15 ARPAarp 172.16.2.164 000b.dbbb.00fa ARPAarp 172.16.2.162 0013.20d9.d0cb ARPAarp 192.168.42.95 0050.ba4f.9d8d ARPAarp 172.16.10.168 000d.61e8.3b66 ARPAarp 192.168.42.93 0011.110d.4cca ARPAarp 172.16.4.149 00e0.4cea.fab7 ARPA arp 172.16.2.254 0050.fc3a.8977 ARPA arp 172.16.5.254 0006.1bd0.b94c ARPA arp 171.16.2.254 0050.fc3a.8977 ARPA arp 172.16.8.253 0014.2246.4c96 ARPA arp 172.16.11.253 000b.dbb9.6520 ARPA arp 172.16.10.253 000d.61e8.a3ce ARPA arp 172.16.6.237 0011.110d.4de2 ARPA arp 172.16.11.208 1111.1111.1111 ARPA arp 172.16.7.209 0010.b54d.7b6c ARPA arp 172.16.7.208 000b.dbbb.00de ARPA arp 192.168.42.50 0005.5dd4.0704 ARPA arp 192.168.42.51 000a.e423.e9dd ARPA arp 172.16.7.200 0013.d303.28b1 ARPA arp 192.168.42.54 000b.dbbb.0e3b ARPA arp 192.168.42.52 000a.e43c.003a ARPA arp 192.168.42.53 000a.e423.ed2c ARPA arp 192.168.42.59 0010.dcd4.e951 ARPA arp 192.168.42.56 000b.dbb8.c8fb ARPA arp 172.16.7.199 0013.d324.c03a ARPA arp 172.16.4.56 0015.f240.edb7 ARPA arp 172.16.5.56 000c.f1ea.a554 ARPA arp 172.16.0.62 0010.dcd4.6eed ARPA arp 172.16.5.58 0011.11b7.1153 ARPA arp 172.16.0.56 000d.8740.7abf ARPA arp 172.16.2.58 0005.5dd4.0674 ARPA arp 172.16.11.50 0005.5d26.3229 ARPA arp 192.168.0.237 000b.dbb9.1131 ARPA arp 172.16.4.62 0014.2246.4bd2 ARPA arp 172.16.1.58 000f.1f5d.8b43 ARPA arp 172.16.3.56 0005.5d26.3461 ARPA arp 172.16.9.50 5254.ab14.6e7a ARPA arp 172.16.5.51 0060.6702.f70d ARPA arp 172.16.7.55 0010.c6cf.4a25 ARPA arp 172.16.4.52 0060.6706.a32c ARPA arp 172.16.3.51 0011.110d.4d16 ARPA arp 192.168.0.253 0010.5ce3.baab ARPA arp 192.168.0.254 000c.766e.ff8a ARPA arp 192.168.42.231 0013.20ac.53ed ARPA arp 192.168.42.228 0013.20d3.f9ad ARPA arp 172.16.6.23 0020.ed83.0c04 ARPA arp 172.16.6.10 0010.5cc5.811d ARPA arp 172.16.2.11 de ARPAarp 172.16.9.126 00e0.4c61.14d7 ARPAarp 172.16.2.110 0013.20d3.7d21 ARPAarp 172.16.4.107 0015.5809.c9ee ARPAarp 172.16.2.104 0011.110d.a157 ARPAarp 172.16.3.104 0010.5ce3.b37c ARPAarp 172.16.3.103 0013.20d9.cee8 ARPAarp 172.16.0.97 0013.20d9.ced5 ARPAarp 172.16.0.93 0010.b500.0657 ARPAarp 172.16.2.95 0020.ed3b.c492 ARPAarp 172.16.4.91 0015.f240.edb0 ARPAarp 172.16.10.82 0010.b54d.73e4 ARPAarp 172.16.4.93 000f.1f9e.aba3 ARPAarp 172.16.7.87 0014.2a31.7b60 ARPAarp 172.16.2.82 0010.b54d.7b6a ARPAarp 172.16.7.86 0014.2a35.ba95 ARPAarp 172.16.0.77 0010.dcd4.7d10 ARPAarp 172.16.5.75 000c.7680.fb56 ARPAarp 172.16.0.79 5254.ab14.769d ARPAarp 172.16.8.64 000b.dbb9.15c2 ARPAarp 172.16.5.77 0011.0911.bffd ARPAarp 172.16.8.65 000d.61e8.b0c1 ARPAarp 172.16.0.73 00d0.b76c.9893 ARPAarp 172.16.5.79 0010.dc48.ff46 ARPAarp 172.16.5.65 0013.20d9.cd7c ARPAarp 172.16.1.70 0020.ed15.91aa ARPAarp 172.16.7.70 000a.eb6a.0403 ARPAarp 172.16.0.66 0010.dcd4.76e3 ARPA!snmp-server community public ROsnmp-server community private RWsnmp-server chassis-idsnmp-server enable traps snmp authentication linkdown linkup coldstart warmstart snmp-server enable traps ttysnmp-server enable traps flash insertion removalsnmp-server enable traps hsrpsnmp-server enable traps configsnmp-server enable traps entitysnmp-server enable traps fru-ctrlsnmp-server enable traps bgpsnmp-server enable traps pim neighbor-change rp-mapping-change invalid-pim-message snmp-server enable traps ipmulticastsnmp-server enable traps msdpsnmp-server enable traps rsvpsnmp-server enable traps frame-relaysnmp-server enable traps rtrsnmp-server enable traps isakmp policy add snmp-server enable traps isakmp policy delete snmp-server enable traps isakmp tunnel start snmp-server enable traps isakmp tunnel stop snmp-server enable traps ipsec cryptomap add snmp-server enable traps ipsec cryptomap delete snmp-server enable traps ipsec cryptomap attach snmp-server enable traps ipsec cryptomap detach snmp-server enable traps ipsec tunnel start snmp-server enable traps ipsec tunnel stop snmp-server enable traps ipsec too-many-sas snmp-server enable traps isdn call-information snmp-server enable traps isdn layer2snmp-server enable traps isdn chan-not-avail snmp-server enable traps isdn ietfsnmp-server enable traps dlswsnmp-server host 192.168.0.2 privatesnmp-server host 192.168.0.2 public!tftp-server 192.168.0.3!line con 0exec-timeout 5 30password 7 141F1008410C233Flogging synchronousloginline vty 0 4access-class 11 inpassword 7 011B040716030F1Blogin!exception dump 192.168.0.3end。

思科6509交换机FWSM防火墙模块配置资料_大全

特性FSM Cisco PIX
性能5 Gb 1.7 Gb
VLAN标签有无
路由动态静态
故障恢复使用许可不需要需要
VPN功能无有
IDS签名无有
最大接口数100 10
输入控制列表（ACL）支持1280002M
Q. FWSM的性能如何？
A.总性能约为5Gbps。FWSM可以每秒支持一百万个并发连接，并且每秒可以建立超过10万个连接。
Q. FWSM主要具有哪些特性？
A. FWSM的主要特性包括：
·高性能，OC-48或者5 Gbps吞吐量，全双工防火墙功能
·具有整个X 6.0软件功能集和PIX 6.2的下列特性：
o命令授权
o对象组合
o ILS/NetMeeting修正
o URL过滤改进
·3Mpps吞吐量
·支持100个VLAN
·一百万个并发连接
Q. FWSM所能支持的最低的软件版本是多少？
A.最低的IOS软件版本是12.1(13)E，而综合CatOS的最低版本是7.5(1)。
Q. FWSM支持交换矩阵吗？
A.是的，FWSM支持交换矩阵。它具有一条与总线的连接和一条与交换矩阵的连接。
Q. FWSM是否利用热备份路由协议（HSRP）实现冗余？
Q. FWSM用什么机制检测流量？
A. FWSM使用与Cisco PIX防火墙相同的检测算法：自适应安全算法（ASA）。ASA是一种状态检测引擎，可以检测流量的完整性。ASA可以使用源和目的地的地址和端口、TCP序列号，以及其他TCP标志，散列IP报头信息。散列的作用相当于指纹，即创建一个独特的代码，表明建立输入或者输出连接的客户端的身份。
传统防火墙往往会成为网络上的瓶颈，因此性能是用户相当关心的问题。通过此次测试（请见表中数据），我们可以看到出众的性能是FWSM与Catalyst 6500紧密集成所带来的结果，交换机的优异性能表现在启动防火墙后同样得到了良好的体现。

Cisco 6509安装手册

Catalyst 6509 交换机安装手册version 1.0.0金中信息产业有限公司系统工程部2001.2.5目录1产品概述 (3)2系统描述 (4)2.1 系统特征 (4)2.1.1冗余 (4)2.1.2组件热插拔 (5)2.2 交换组件 (5)2.2.1配置选项 (5)2.2.2风扇 (5)2.2.3电源 (6)3安装 (7)1 产品概述●支持带有两个上行链路千兆端口的监控引擎；●支持MSFC及PFC；●支持可选的冗余监控引擎（带两个千兆上行链路接口）；●最多支持八个附加的模块（以太网、快速以太网、千兆以太网及ATM）；●支持多层交换模块（MSM）；●所有的模块都可以热插拔；●支持冗余的、热插拔的AC（交流）电源或DC（直流）电源；●风扇可热插拔；●数据在背板总线上进行转发。

6509的底盘有9个插槽，插槽1保留给监控引擎使用，监控引擎提供交换、本地及远程管理、多个千兆上行链路端口功能。

插槽2可以插入一个附加的冗余监控引擎，如果第一个监控引擎失效，则这个监控引擎可以扮演备份的角色。

如果不需要冗余监控引擎，这个插槽就可以插入其它的模块。

其外形图如下：2 系统描述注：下面的描述适合所有的6000系列，除非有特殊的说明。

2.1 系统特征这个章节描述了6000系列交换机的硬件特征。

对于软件的描述，请参考the Catalyst 6000 Family Software Configuration Guide。

对于模块的描述及安装过程，请参考the Catalyst 6000 Family Module Installation Guide。

2.1.1 冗余6000系列交换机有下列特征：●底盘可放入两个热插拔的监控引擎；●底盘可放入两个冗余的、热插拔的交流或直流并进行负载共享的电源；●风扇是可热插拔的；●底板上的时钟模块是冗余的。

2.1.2 组件热插拔所有的模块（包括监控引擎，如果系统有冗余的监控引擎的话），风扇，电源，都支持热插拔，因此可以在不中断系统或使软件或接口shutdown的情况下对模块进行增加、替换、移动。

思科6509配置

3.4.2.2. 远程telnet连接5.当完成交换机配置，并起给交换机配置了管理地址，就可以直接采用远程telnet 登陆进入交换机了，但是必须先配置line vty的密码和enable密码才能允许远程登陆。

6.配置telnet登陆命令如下：7.#conf t8.#line vty 0 49.#login ；控制vty接口是否能够telnet10.#password switch11.3. 基本信息配置12.3.1. 交换机软件版本13.Cisco的65xx交换机支持两种版本的系统软件，分别称为Natvie IOS版本和Cat OS版本的系统软件，CatOS版本的软件是为了兼容之前的65xx系列交换机的命令而沿袭下来的。

Native IOS版本软件是Cisco公司为了统一其交换机及路由器的软件风格而研发出来的新一代IOS系统软件，Cisco所有的交换机版本都在整体向Native IOS版本过渡，目前来说，Native IOS版本的软件功能和CatOS 版本的软件功能相差不多，但是今后都会向Native IOS版本软件。

14.本项目中所使用的6509交换机采用的是Native IOS版本。

15.3.2. 查看交换机基本配置16.show version ；查看系统版本，内存配置，寄存器等基本信息17.show module all ；查看交换机配置模块18.show catalyst6000 chassis-mac-address ；查看交换机MAC地址19.#show version输出信息如下：20.Cisco Internetwork Operating System Software21.IOS (tm) s72033_rp Software (s72033_rp-PK9S-M), Version 12.2(17a)SX1, EARLY22.DEPLOYMENT RELEASE SOFTWARE (fc1)23.TAC Support: /tac24.Copyright (c) 1986-2003 by cisco Systems, Inc.piled Wed 29-Oct-03 08:16 by cmong26.Image text-base: 0x40008FBC, data-base: 0x41E5000027.28.ROM: System Bootstrap, Version 12.2(14r)S9, RELEASE SOFTWARE (fc1)29.BOOTLDR: s72033_rp Software (s72033_rp-PK9S-M), Version 12.2(17a)SX1, EARLY30.DEPLOYMENT RELEASE SOFTWARE (fc1)31.32.Router uptime is 29 minutes33.Time since Router switched to active is 29 minutes34.System returned to ROM by power-on (SP by power-on)35.System restarted at 12:57:08 PST Sat Jan 31 200436.System image file is "sup-bootflash:s72033-pk9s-mz.122-17a.SX1.bin"37.38.39.This product contains cryptographic features and is subject to United40.States and local country laws governing import, export, transfer ande. Delivery of Cisco cryptographic products does not imply42.third-party authority to import, export, distribute or use encryption.43.Importers, exporters, distributors and users are responsible forpliance with U.S. and local country laws. By using this product you45.agree to comply with applicable laws and regulations. If you are unable46.to comply with U.S. and local laws, return this product immediately.47.48.A summary of U.S. laws governing Cisco cryptographic products may be found49.at:50./wwl/export/crypto/tool/stqrg.html51.52.If you require further assistance please contact us by sending email to53.export@.54.55.cisco WS-C6509 (R7000) processor (revision 3.0) with 458752K/65536K bytes of56.memory.57.Processor board ID SAL0743NKW858.SR71000 CPU at 600Mhz, Implementation 0x504, Rev 1.2, 512KB L2 Cachest reset from power-on60.X.25 software, Version 3.0.0.61.Bridging software.62.1 Virtual Ethernet/IEEE 802.3 interface(s)63.48 FastEthernet/IEEE 802.3 interface(s)64.36 Gigabit Ethernet/IEEE 802.3 interface(s)65.1917K bytes of non-volatile configuration memory.66.8192K bytes of packet buffer memory.67.65536K bytes of Flash internal SIMM (Sector size 512K).68.Standby is up69.Standby has 458752K/65536K bytes of memory.70.71.Configuration register is 0x210272.73.Router#sho module all74.Mod Ports Card Type Model Serial75.No.76.--- ----- -------------------------------------- ------------------ -----------77.2 16 16 port 1000mb GBIC78.ethernet WS-X6416-GBIC SAL0750QNJP79.3 16 16 port 1000mb GBIC80.ethernet WS-X6416-GBIC SAL0750QNFV81.5 2 Supervisor Engine 72082.(Active) WS-SUP720-BASE SAD075000YF83.6 2 Supervisor Engine 72084.(Warm) WS-SUP720-BASE SAD075109SZ85.7 48 48 port 10/100 mb86.RJ45 WS-X6348-RJ-45 SAL0752R3E687.88.Mod MAC89.addresses Hw Fw Sw Status90.--- ---------------------------------- ------ ------------ ------------ -------91.2 000e.8442.4850 to 000e.8442.485f 2.5 5.4(2) 8.2(0.56)TET Ok92.3 000e.8442.48f0 to 000e.8442.48ff 2.5 5.4(2) 8.2(0.56)TET Ok93.5 000d.290f.fd08 to 000d.290f.fd0b 3.0 7.7(1) 12.2(17a)SX1 Ok94.6 000e.3838.1a8c to 000e.3838.1a8f 3.0 7.7(1) 12.2(17a)SX1 Ok95.7 000e.84c8.54f0 to 000e.84c8.551f 6.8 5.4(2) 8.2(0.56)TET Ok96.97.Mod98.Sub-Module Model Serial Hw Statu99.s100.--- --------------------------- ------------------ ------------ ------- ------- 101.5 Policy Feature Card 3 WS-F6K-PFC3A SAD0752009D 2.0 Ok 102.5 MSFC3 Daughterboard WS-SUP720 SAD075109HX 2.0 Ok 103.6 Policy Feature Card 3 WS-F6K-PFC3A SAD0751085J 2.0 Ok104.6 MSFC3 Daughterboard WS-SUP720 SAD0751077C 2.0 Ok105.7 Inline Power Module WS-F6K-PWR 0.0 Ok106.107.Mod Online Diag Status108.--- -------------------109.2 Pass110.3 Pass111.5 Pass112.6 Pass113.7 Pass114.3.3. 配置机器名、telnet、密码115.在全局模式下，用conf t，进入配置模式，进行以下配置：116.#conf t117.#clock timezone GMT 8 ；配置时区118.#clock set 13:30:21 31 JAN 2004 ；配置交换机时间119.#clock calendar-valid ；使能硬件时钟同步120.#service timestamps debug datetime localtime ；配置系统debug记录时间格式121.#service timestamps log datetime localtime ；配置系统日志记录时间格式122.#service password-encryption ；配置使用加密服务，主要针对口令加密123.#hostname xxxx ；配置交换机名称124.#enable secret 0 xxxxx ；配置enable口令125.#copy run start ；将配置信息保存到NVRAM中，重启动不会丢失126.#line vty 0 4 ；配置telnet127.#exec-timeout 30 0128.#password 0 xxxx129.#login130.3.4. 配置snmp131.#conf t132.#snmp-server community cisco ro（只读）；配置只读通信字符串133.#snmp-server community secret rw（读写）；配置读写通信字符串134.#snmp-server enable traps ；配置网关SNMP TRAP135.#snmp-server host 10.254.190.1 rw ；配置网关工作站地址136.137.3.5. 启动三层功能138.#ip routing ；启动路由功能139.3.6. 查看和配置系统环境变量140.使用show bootvar命令查看系统启动环境变量，包括BOOT, BOOTLDR, and 141.CONFIG_FILE参数：142.Router# show bootvar143.BOOT variable = slot0:c6sup22-jsv-mz.121-5c.EX.bin,1;144.CONFIG_FILE variable does not exist145.BOOTLDR variable = bootflash:c6msfc2-boot-mz.121-3a.E4146.Configuration register is 0x2147.Router#148.改变BOOT,、BOOTLDR、CONFIG_FILE 这三个环境变量使用命令：149.BOOT #boot system150.BOOTLDR #boot bootldr151.CONFIG_FILE #boot config152.153.共5页: 上一页[1] 2 [3] [4] [5] 下一页154.155.156.157.65xx系列交换机配置(Native IOS)(3)158.发布时间：2004-06-17 浏览次数：159.160.161.162.4. 端口设置163.4.1. 端口基本设置164.Cisco 65xx系列交换机的端口缺省都是路由模式，一般都会配置为交换端口使用，进入端口配置模式：165.对于单一端口，在配置模式下输入：interface Ethernet,Fast Ethernet,Gigabit 166.Ethernet x/y, x为槽位号，y为端口号。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

Catalyst 6509 交换机配置手册version 1.0.0中望商业机器有限公司© 1995, 2001 Chinaweal Business Machinery CO. LTDAll Rights Reserve目录1基础配置11.1建立到控制台的连接11.2配置交换机的地址21.3配置Ethernet 口31.4配置交换机的全局参数41.5测试网络的连通性52其它参数的配置62.1配置Login Banner62.2配置DNS72.3配置CDP协议83VLAN的配置93.1配置VTP协议（VLAN Trunk Protocol）93.2配置VLAN103.2.1创建VLAN103.3将交换端口配置到VLAN中113.4配置VLAN Trunks123.5在MSFC上配置IP InterVLAN路由133.5.1从Console口进入MSFC133.5.2通过Telnet Session 进入MSFC 模块143.5.3在MSFC上配置IP InterVLAN路由143.6配置HSRP协议153.7配置以太通道161基础配置1.1建立到控制台的连接在进行配置和将交换机接入网络前必须通过控制台来进入交换机的CLI，对交换机进行配置。

在进入CLI后，通过命令enable进入到 privileged 模式。

通过以下步骤将终端连接到交换机的控制口例如:<... output truncated ...>Cisco Systems ConsoleEnter password:Console> enableEnter password:Console> (enable)页脚内容11.2配置交换机的地址在远程登录交换机前你必须为交换机配置地址，掩码和网关等信息在你第一次配置交换机时，将sc0口配置到default VLAN，即VLAN 1中，在你配置了其他VLAN以后，你可以将sc0口配置到其他VLAN中，但是sc0口的地址和网关必须与所在的VLAN的网段对应.配置IP地址和网关的步骤如下例如：Console> (enable) set interface sc0 10.1.1.50/255.0.0.0Interface sc0 IP address and netmask set.Console> (enable) set interface sc0 100Interface sc0 vlan set.Console> (enable) set ip route default 10.1.1.1Route added.Console> (enable) show interfacesl0: flags=51<UP,POINTOPOINT,RUNNING>slip 0.0.0.0 dest 0.0.0.0sc0: flags=63<UP,BROADCAST,RUNNING>vlan 100 inet 10.1.1.50 netmask 255.0.0.0 broadcast 10.255.255.255Console> (enable) show ip routeFragmentation Redirect Unreachable------------- -------- -----------enabled enabled enabledDestination Gateway Flags Use Interface页脚内容2----------------------- ----------------------- ------ ---------- ---------default 10.1.1.1 UG 0 sc010.0.0.0 10.1.1.50 U 0 sc0default default UH 0 sl0Console> (enable) ping 10.1.1.10010.1.1.100 is aliveConsole> (enable)1.3配置 Ethernet 口在一条连路两端的Ethernet, Fast Ethernet和 Gigabit Ethernet 口的端口速率了工作方式必须相同。

Ethernet 和Fast Ethernet 会自动配置工作方式，10/100-Mbps Fast Ethernet 口可以自动检测连路速率。

. Gigabit Ethernet总是在 full duplex方式下工作。

配置步骤如下注：对10/100-Mbps Fast Ethernet 口，当端口的速率是AUTO时，你不能手动改变工作方式。

例如：Console> (enable) set port speed 2/12 autoPort 2/12 speed set to auto detect.页脚内容3Console> (enable) set port name 2/12 NT Server 12Port 2/12 name set.Console> (enable) show port 2/12Port Name Status Vlan Level Duplex Speed Type----- ------------------ ---------- ---------- ------ ------ ----- ------------ 2/12 NT Server 12 connect 1 normal a-half a-100 10/100BaseTX <... output truncated ...>Console> (enable)1.4配置交换机的全局参数配置步骤和命令如下：例如：Console> (enable) set system name Catalyst 6000System name set.Catalyst 6000> (enable) set time 08/18/98 10:08:00Sat Apr 18 1998, 10:08:00Catalyst 6000> (enable) set passwordEnter old password:Enter new password:Retype new password:Password changed.Catalyst 6000> (enable) set enablepassEnter old password:Enter new password:Retype new password:Password changed.Catalyst 6000> (enable)页脚内容41.5测试网络的连通性在你配置了交换机的地址和网关以后，你就可以与网络上的其它节点连通了。

测试方法如下：Ping和traceroute的例子如下Console> (enable) ping -s 172.20.52.20 1200 4PING 172.20.52.20: 1200 data bytes1208 bytes from 172.20.52.20: icmp_seq=0. time=6 ms1208 bytes from 172.20.52.20: icmp_seq=1. time=6 ms1208 bytes from 172.20.52.20: icmp_seq=2. time=6 ms1208 bytes from 172.20.52.20: icmp_seq=3. time=5 ms----172.20.52.20 PING Statistics----4 packets transmitted, 4 packets received, 0% packet lossround-trip (ms) min/avg/max = 5/5/6Console> (enable) traceroute 172.20.52.20 1400traceroute to 172.20.52.20 (172.20.52.20), 30 hops max, 1440 byte packets1 172.20.52.33 (172.20.52.33)2 ms3 ms 1 ms2 172.20.52.20 (172.20.52.20) 4 ms * 4 msConsole> (enable)页脚内容52其它参数的配置2.1配置 Login Bannerlogin banner或 message of the day是在你登陆到交换机时出现在屏幕上的提示信息，最多可以配置255 个字符。

配置步骤:例如： (通过控制口):Console> (enable) set banner motd *Catalyst 6000Software Release 5.4(1)IP address 10.1.1.20*MOTD banner setConsole> (enable) exitCisco Systems ConsoleCatalyst 6000Software Release 5.4(1)IP address 10.1.1.20页脚内容6Enter password:2.2配置 DNS域名系统（Domain Name System，DNS) 可以让你使用主机名来代替交换机的IP地址。

在使用DNS前，你必须有一个或一个以上的域名服务器（DNS server） .步骤：例如:Console> (enable) set ip dns server 10.1.1.100 primary10.1.1.100 added to DNS server table as primary server.Console> (enable) set ip dns server 10.1.1.12210.1.1.122 added to DNS server table as backup server.Console> (enable) set ip dns domain Default DNS domain name set to Console> (enable) set ip dns enableDNS is enabledConsole> (enable) show ip dnsDNS is currently enabled.The default DNS domain name is: DNS name server status---------------------------------------- -------10.1.1.100 primary10.1.1.122Console> (enable)页脚内容72.3配置 CDP协议Cisco Discovery Protocol (CDP) 是一种协议和介质无关的协议。
