思科交换机6509配置实例(双机热备)

思科交换机双机热备模式怎么使用方法步骤1、打开Cisco Packet Tracer，点击【交换机】，选择2960交换机，按住鼠标左键拖动到工作区。

这里有很多类型的交换机，其它类型的天使以后慢慢和大家讲解。

2、我们选择【终端设备】拖动两台台式机到工作区，用于测试通信3、最后用直通线连接交换机和电脑，对核心交换机进行双冗余设计4、分别设置两台主机的IP地址，主机0为：192.168.1.1;主机1为：192.168.1.25、在主机1上进行Ping测试，ping 192.168.1.1，发现是连通的6、假如现在我们核心交换机坏了一个，我们交换机双机热备，数据包可以走另外一个交换机，两台客户机没有受到任何的干扰7、我们假设核心交换机0坏了，就相当于所有连接核心交换机的线路都断了，这时任然不影响主机之间的通信相关阅读：交换机工作原理过程交换机工作于OSI参考模型的第二层，即数据链路层。

交换机内部的CPU会在每个端口成功连接时，通过将MAC 地址和端口对应，形成一张MAC表。

在今后的通讯中，发往该MAC地址的数据包将仅送往其对应的端口，而不是所有的端口。

因此，交换机可用于划分数据链路层广播，即冲突域;但它不能划分网络层广播，即广播域。

交换机拥有一条很高带宽的背部总线和内部交换矩阵。

交换机的所有的端口都挂接在这条背部总线上，控制电路收到数据包以后，处理端口会查找内存中的地址对照表以确定目的MAC(网卡的硬件地址)的NIC(网卡)挂接在哪个端口上，通过内部交换矩阵迅速将数据包传送到目的端口，目的MAC若不存在，广播到所有的端口，接收端口回应后交换机会学习新的MAC地址，并把它添加入内部MAC地址表中。

使用交换机也可以把网络分段，通过对照IP地址表，交换机只允许必要的网络流量通过交换机。

通过交换机的过滤和转发，可以有效的减少冲突域，但它不能划分网络层广播，即广播域。

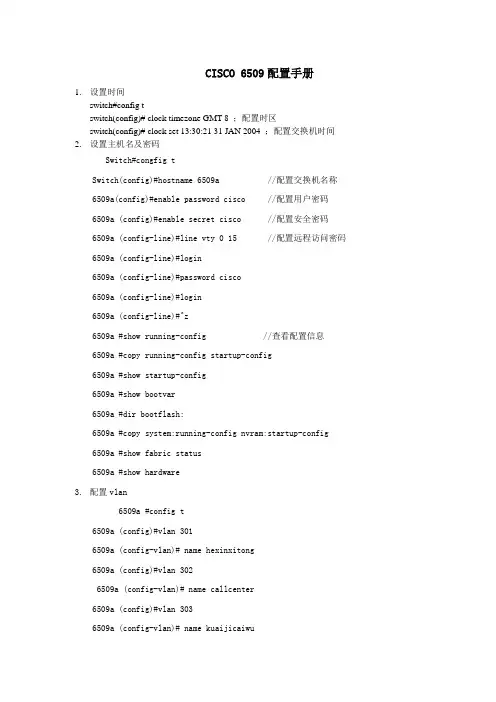

CISCO 6509配置手册1.设置时间switch#config tswitch(config)# clock timezone GMT 8 ；配置时区switch(config)# clock set 13:30:21 31 JAN 2004 ；配置交换机时间2.设置主机名及密码Switch#congfig tSwitch(config)#hostname 6509a //配置交换机名称6509a(config)#enable password cisco //配置用户密码6509a (config)#enable secret cisco //配置安全密码6509a (config-line)#line vty 0 15 //配置远程访问密码6509a (config-line)#login6509a (config-line)#password cisco6509a (config-line)#login6509a (config-line)#^z6509a #show running-config //查看配置信息6509a #copy running-config startup-config6509a #show startup-config6509a #show bootvar6509a #dir bootflash:6509a #copy system:running-config nvram:startup-config6509a #show fabric status6509a #show hardware3.配置vlan6509a #config t6509a (config)#vlan 3016509a (config-vlan)# name hexinxitong6509a (config)#vlan 3026509a (config-vlan)# name callcenter6509a (config)#vlan 3036509a (config-vlan)# name kuaijicaiwu6509a (config)#vlan 3046509a (config-vlan)# name guojiyewu6509a (config)#vlan 3056509a (config-vlan)# name guanlixitong6509a (config)#vlan 3066509a (config-vlan)# name ceshihuanjing6509a (config)#vlan 3076509a (config-vlan)# name wangluoguanli6509a (config-vlan)#exit6509a (config)#exit6509a #show vlan6509a (config)#interface range giga 2/1 – 8 //配置端口信息6509a (config-if-range)#switchport //二层交换模式6509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3016509a (config-if-range)#exit6509a (config)#interface range giga 2/9– 146509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3026509a (config-if-range)#exit6509a (config)#interface range giga 2/15 – 176509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3036509a (config-if-range)#exit6509a (config)#interface range giga 2/18 – 226509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3046509a (config)#interface range giga 2/23 – 266509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3056509a (config-if-range)#exit6509a (config)#interface range giga 2/27 – 336509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3066509a (config-if-range)#exit6509a (config)#interface range giga 2/34 – 396509a (config-if-range)#switchport mode access6509a (config-if-range)#switchport access vlan 3076509a (config-if-range)#exit6509a (config)#interface giga 2/486509a (config-if)#ip address 12.10.254.2 255.255.255.0 6509a (config-if)#no shut6509a (config)#exit6509a #show vlan4.配置trunk6509a(config)#int giga 5/16509a(config-if)#shut down6509a(config-if)#switchport6509a(config-if)#switchport trunk enca dot1q6509a(config-if)#switchport mode trunk6509a #show int giga 2/48 trunk6509a #show vtp counters6509a #show vtp status6509a(config)#int giga 6/16509a(config-if)#shut down6509a(config-if)#switchport6509a(config-if)#switchport trunk enca dot1q6509a(config-if)#switchport mode trunk6509a(config-if)#no shut down5.设置vlan地址及HSRP6509a #config t6509a(config) #int vlan 3016509a(config-if) #ip address 192.1.2.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 1 ip 192.1.2.16509a(config-if) #standby 1 priority 1056509a(config-if) #standby 1 preempt6509a(config-if) #standby 1 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3026509a(config-if) #ip address 192.100.4.2 255.255.255.06509a(config-if) #no ip redirects6509a(config-if) #standby 2 ip 192.100.4.16509a(config-if) #standby 2 priority 1056509a(config-if) #standby 2 preempt6509a(config-if) #standby 2 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3036509a(config-if) #ip address 192.100.5.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 3 ip 192.100.5.16509a(config-if) #standby 3 priority 1056509a(config-if) #standby 3 preempt6509a(config-if) #standby 3 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3046509a(config-if) #ip address 192.100.6.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 4 ip 192.100.6.16509a(config-if) #standby 4 priority 1056509a(config-if) #standby 4 preempt6509a(config-if) #standby 4 track giga 1/486509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3056509a(config-if) #ip address 192.100.7.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 5 ip 192.100.7.16509a(config-if) #standby 5 preempt6509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3066509a(config-if) #ip address 192.100.8.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 6 ip 192.100.8.16509a(config-if) #standby 6 preempt6509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6509a #config t6509a(config) #int vlan 3076509a(config-if) #ip address 192.100.9.2 255.255.255.0 6509a(config-if) #no ip redirects6509a(config-if) #standby 7 ip 192.100.9.16509a(config-if) #standby 7 preempt6509a(config-if) #no shutdown6509a(config-if) #exit6509a(config) #exit6509a#show ip interface brief6.配置EIGRP6509a #config t6509a(config) #ip routing eigrp 1006509a(config) #router eigrp 1006509a(config-router) #network 192.1.2.06509a(config-router) #network 192.100.0 .0 255.255.0.0 6509a(config-router) #network 12.0.0.06509a(config-router) #network 192.254.253.06509a(config-router) #no auto-summary6509a(config-router) #^z6509a #show ip proto6509a #show ip route。

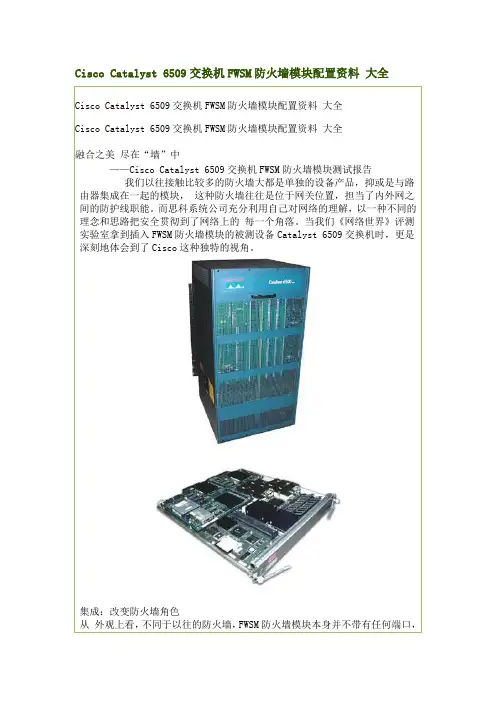

Cisco Catalyst 6509交换机FWSM防火墙模块测试报告我们以往接触比较多的防火墙大都是独立的设备产品，抑或是和路由器集成在一起的模块，这种防火墙往往是位于网关位置，担当了内外网之间的防护线职能。

而思科系统公司充分利用自己对网络的理解，以一种不同的理念和思路把安全贯彻到了网络上的每一个角落。

当我们《网络世界》评测实验室拿到插入FWSM防火墙模块的被测设备Catalyst 6509交换机时，更是深刻地体会到了Cisco这种独特的视角。

集成：改动防火墙角色从外观上看，不同于以往的防火墙，FWSM防火墙模块本身并不带有所有端口，能插在Catalyst 6509交换机所有一个交换槽位中，交换机的所有端口都能够充当防火墙端口，一个FWSM模块能服务于交换机所有端口，在网络基础设施之中集成状态防火墙安全特性。

由于70%的安全问题来自企业网络内部，因此企业网络的安全不仅在周边，防止未经授权的用户进入企业网络的子网和VLAN是我们一直忽视的问题，也正是6509交换机加上FWSM防火墙模块要完成的职责。

Catalyst 6509作为企业的汇聚或核心交换机，往往要为企业的不同部门划分子网和VLAN，FWSM模块的加入为不同部门之间搭建了坚实的屏障。

和传统防火墙的体系结构不同，FWSM内部体系主要由一个双Intel PIII处理器和3个IBM网络处理器及相应的ASIC芯片组成。

其中两个网络处理器各有三条千兆线路连接到6509的背板上。

FWSM使用的是Cisco PIX操作系统这一实时、牢固的嵌入式操作系统，采用基于ASA（自适应安全算法）的核心实现机制，继承了思科PIX防火墙性能和功能方面的既有优势。

对于已购买了Catalyst 6509交换机的用户来说，他们不必对原有产品进行更换，就能通过独立购买FWSM 模块，获得这种防火墙特性，在简化网络结构的同时，真正实现对用户的投资保护。

功能：细致到每一处从FWSM防火墙模块的管理和易用性来看，对于那些非常熟悉Cisco IOS命令行的工程师来说，通过Console或Telnet进行设置非常容易上手，而对于笔者这种对Cisco 命令仅略通一二的人来说，最佳的管理和设置方式莫过于用Web进行管理，Web管理其实是调用了用来管理PIX防火墙的PIX Device Manager(PDM)2.1(1)工具，非常直观地帮助用户进行规则设置、管理和状态监视。

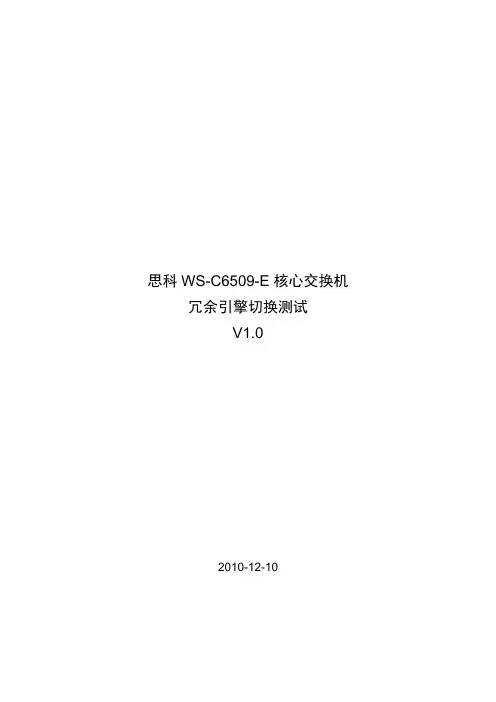

思科WS-C6509-E核心交换机冗余引擎切换测试V1.02010-12-101．首先查看引擎冗余状态：WS-C6509-E_TJCore# wrBuilding configuration...1w0d: %PFINIT-SP-5-CONFIG_SYNC: Sync'ing the startup configuration to the standby Router. [OK]WS-C6509-E_TJCore#show redWS-C6509-E_TJCore#show redundancyRedundant System Information :------------------------------Available system uptime = 1 week, 13 hours, 44 minutesSwitchovers system experienced = 0Standby failures = 0Last switchover reason = noneHardware Mode = DuplexConfigured Redundancy Mode = ssoOperating Redundancy Mode = ssoMaintenance Mode = DisabledCommunications = UpCurrent Processor Information :-------------------------------Active Location = slot 5Current Software state = ACTIVEUptime in current state = 1 week, 13 hours, 43 minutesImage Version = Cisco Internetwork Operating System SoftwareIOS (tm) s72033_rp Software (s72033_rp-IPSERVICES_WAN-M), Version 12.2(18)SXF3, RELEASE SOFTWARE (fc1)Technical Support: /techsupportCopyright (c) 1986-2006 by cisco Systems, Inc.Compiled Tue 14-Feb-06 18:22 by kehsiaoBOOT =BOOTLDR =Configuration register = 0x2102Peer Processor Information :----------------------------Standby Location = slot 6Current Software state = STANDBY HOTUptime in current state = 1 week, 13 hours, 43 minutesImage Version = Cisco Internetwork Operating System SoftwareIOS (tm) s72033_rp Software (s72033_rp-IPSERVICES_WAN-M), Version 12.2(18)SXF3, RELEASE SOFTWARE (fc1)Technical Support: /techsupportCopyright (c) 1986-2006 by cisco Systems, Inc.Compiled Tue 14-Feb-06 18:22 by kehsiaoBOOT =BOOTLDR =Configuration register = 0x2102通过查看可以得知引擎冗余采用的为SSO状态化切换模式，且Slot5为SUP1，Slot6为SUP2。

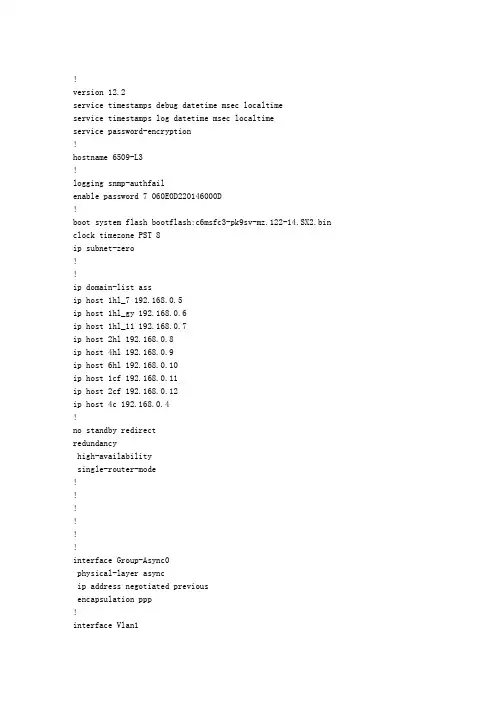

!version 12.2service timestamps debug datetime msec localtimeservice timestamps log datetime msec localtimeservice password-encryption!hostname 6509-L3!logging snmp-authfailenable password 7 060E0D220146000D!boot system flash bootflash:c6msfc3-pk9sv-mz.122-14.SX2.bin clock timezone PST 8ip subnet-zero!!ip domain-list assip host 1hl_7 192.168.0.5ip host 1hl_gy 192.168.0.6ip host 1hl_11 192.168.0.7ip host 2hl 192.168.0.8ip host 4hl 192.168.0.9ip host 6hl 192.168.0.10ip host 1cf 192.168.0.11ip host 2cf 192.168.0.12ip host 4c 192.168.0.4!no standby redirectredundancyhigh-availabilitysingle-router-mode!!!!!!interface Group-Async0physical-layer asyncip address negotiated previousencapsulation ppp!interface Vlan1ip address 192.168.0.1 255.255.255.0ip access-group tofirewall out!interface Vlan10ip address 192.168.41.1 255.255.255.0!interface Vlan20ip address 192.168.42.1 255.255.255.0!interface Vlan30ip address 172.16.9.1 255.255.255.0!interface Vlan40ip address 172.16.10.1 255.255.255.0ip access-group invlan40 inip access-group outvlan40 out!interface Vlan50ip address 172.16.11.1 255.255.255.0ip access-group invlan50 inip access-group outvlan50 out!interface Vlan60ip address 172.16.0.1 255.255.255.0!interface Vlan70ip address 172.16.1.1 255.255.255.0!interface Vlan80ip address 172.16.2.1 255.255.255.0!interface Vlan90ip address 172.16.3.1 255.255.255.0!interface Vlan100ip address 172.16.4.1 255.255.255.0!interface Vlan110ip address 172.16.5.1 255.255.255.0!interface Vlan120ip address 172.16.7.1 255.255.254.0 secondary ip address 172.16.6.1 255.255.254.0no ip redirects!interface Vlan130ip address 172.16.12.1 255.255.254.0ip access-group inbound inip access-group outbound out!interface Vlan140ip address 172.16.8.1 255.255.255.0!interface Vlan150ip address 172.16.16.1 255.255.255.252!router ripversion 2network 172.16.0.0network 192.168.0.0!ip classlessip route 0.0.0.0 0.0.0.0 192.168.0.236ip route 10.0.0.0 255.0.0.0 192.168.0.100ip route 172.16.17.0 255.255.255.0 172.16.16.2ip route 192.168.1.0 255.255.255.0 172.16.1.65ip route 220.201.208.112 255.255.255.252 172.16.16.2ip http server!!ip access-list extended inboundpermit ip any any reflect iptrafficip access-list extended invlan40permit ip host 172.16.10.168 any reflect iptrafficpermit ip any host 192.168.0.244 reflect iptrafficpermit ip any host 192.168.0.53 reflect iptrafficpermit ip any host 192.168.0.254 reflect iptrafficpermit ip any host 172.16.8.110 reflect iptrafficpermit ip host 172.16.10.82 any reflect iptrafficpermit ip host 172.16.10.117 any reflect iptrafficpermit ip any host 172.16.8.52 reflect iptrafficpermit tcp host 172.16.10.70 any eq domain reflect iptraffic permit tcp host 172.16.10.70 any eq pop3 reflect iptraffic permit tcp host 172.16.10.70 any eq smtp reflect iptraffic permit udp host 172.16.10.70 any eq domain reflect iptraffic permit ip any host 172.16.8.50 reflect iptrafficpermit ip any host 192.168.0.110 reflect iptrafficpermit ip any host 172.16.8.94 reflect iptrafficevaluate iptrafficip access-list extended invlan50permit ip any any reflect iptrafficip access-list extended outboundpermit ip host 192.168.0.3 anypermit ip host 172.16.1.65 anypermit ip any host 172.16.13.253permit ip any host 172.16.13.252permit ip any host 172.16.12.9permit ip host 172.16.8.52 anypermit ip host 192.168.0.247 host 172.16.12.52 permit ip host 172.16.8.50 anypermit ip host 192.168.0.110 anypermit ip host 172.16.8.94 anyevaluate iptrafficip access-list extended outvlan40permit ip any host 172.16.10.168permit ip host 192.168.0.237 anypermit ip any host 172.16.10.117permit ip host 172.16.8.52 anypermit tcp any host 172.16.10.70 eq domainpermit tcp any host 172.16.10.70 eq pop3permit tcp any host 172.16.10.70 eq smtppermit udp any host 172.16.10.70 eq domainpermit ip host 172.16.8.50 anypermit ip host 192.168.0.110 anypermit ip host 172.16.4.105 host 172.16.10.82 permit ip host 172.16.11.160 host 172.16.10.82 permit ip host 172.16.8.94 anyevaluate iptrafficip access-list extended outvlan50permit ip host 192.168.0.108 anypermit ip host 172.16.1.60 host 172.16.11.52 permit ip host 172.16.1.60 host 172.16.11.53 permit ip host 172.16.1.61 host 172.16.11.52 permit ip host 172.16.1.61 host 172.16.11.53 permit ip host 172.16.6.230 anypermit ip host 172.16.6.231 anypermit ip host 192.168.0.237 anypermit ip host 10.0.1.147 host 172.16.11.52permit ip host 10.0.1.147 host 172.16.11.53permit ip host 10.0.1.147 host 172.16.11.72permit ip host 172.16.6.171 host 172.16.11.52 permit ip host 172.16.6.171 host 172.16.11.53permit ip host 172.16.6.183 host 172.16.11.52 permit ip host 172.16.6.183 host 172.16.11.53 permit ip host 172.16.6.183 host 172.16.11.72 permit ip host 172.16.4.190 host 172.16.11.52 permit ip host 172.16.4.190 host 172.16.11.53 permit ip host 172.16.3.57 host 172.16.11.52 permit ip host 172.16.3.57 host 172.16.11.53 permit ip host 172.16.3.57 host 172.16.11.72 permit ip host 172.16.3.64 host 172.16.11.52 permit ip host 172.16.3.64 host 172.16.11.53 permit ip host 172.16.3.64 host 172.16.11.72 permit ip host 172.16.3.101 host 172.16.11.52 permit ip host 172.16.3.101 host 172.16.11.53 permit ip host 172.16.3.101 host 172.16.11.72 permit ip host 172.16.2.185 host 172.16.11.52 permit ip host 172.16.2.185 host 172.16.11.53 permit ip host 172.16.2.185 host 172.16.11.72 permit ip host 172.16.2.196 host 172.16.11.53 permit ip host 172.16.2.196 host 172.16.11.52 permit ip host 172.16.2.196 host 172.16.11.72 permit ip host 172.16.2.245 host 172.16.11.52 permit ip host 172.16.2.245 host 172.16.11.53 permit ip host 172.16.2.245 host 172.16.11.72 permit ip host 172.16.2.81 host 172.16.11.52 permit ip host 172.16.2.81 host 172.16.11.53 permit ip host 172.16.2.81 host 172.16.11.72 permit ip host 172.16.2.96 host 172.16.11.52 permit ip host 172.16.2.96 host 172.16.11.53 permit ip host 172.16.2.96 host 172.16.11.72 permit ip host 172.16.2.94 host 172.16.11.52 permit ip host 172.16.2.94 host 172.16.11.53 permit ip host 172.16.2.94 host 172.16.11.72 permit ip host 172.16.2.151 host 172.16.11.52 permit ip host 172.16.2.151 host 172.16.11.53 permit ip host 172.16.2.151 host 172.16.11.72 permit ip host 10.0.1.27 host 172.16.11.72permit ip host 10.0.1.27 host 172.16.11.53permit ip host 10.0.1.27 host 172.16.11.52permit ip host 172.16.4.55 host 172.16.11.52 permit ip host 172.16.4.55 host 172.16.11.53 permit ip host 172.16.4.55 host 172.16.11.72 permit ip host 172.16.4.190 host 172.16.11.121 permit ip host 172.16.4.190 host 172.16.11.250permit ip host 172.16.3.101 host 172.16.11.250 permit ip host 172.16.3.57 host 172.16.11.250 permit ip host 172.16.3.101 host 172.16.11.121 permit ip host 172.16.3.57 host 172.16.11.121 permit ip host 172.16.1.61 host 172.16.11.250 permit ip host 172.16.8.75 host 172.16.11.52 permit ip host 172.16.8.77 host 172.16.11.52 permit ip host 172.16.8.73 host 172.16.11.52 permit ip host 172.16.8.80 host 172.16.11.52 permit ip host 172.16.8.75 host 172.16.11.53 permit ip host 172.16.8.77 host 172.16.11.53 permit ip host 172.16.8.73 host 172.16.11.53 permit ip host 172.16.8.80 host 172.16.11.53 permit ip host 172.16.8.75 host 172.16.11.72 permit ip host 172.16.8.77 host 172.16.11.72 permit ip host 172.16.8.80 host 172.16.11.72 permit ip host 172.16.8.73 host 172.16.11.72 permit ip host 172.16.8.75 host 172.16.11.121 permit ip host 172.16.8.77 host 172.16.11.121 permit ip host 172.16.8.73 host 172.16.11.121 permit ip host 172.16.8.80 host 172.16.11.121 permit ip host 172.16.8.75 host 172.16.11.250 permit ip host 172.16.8.77 host 172.16.11.250 permit ip host 172.16.8.73 host 172.16.11.250 permit ip host 172.16.8.80 host 172.16.11.250 permit ip host 172.16.1.61 host 172.16.11.121 permit ip host 172.16.7.108 host 172.16.11.250 permit ip host 172.16.7.108 host 172.16.11.52 permit ip host 172.16.7.108 host 172.16.11.53 permit ip host 172.16.7.108 host 172.16.11.72 permit ip host 172.16.7.114 host 172.16.11.121 permit ip host 172.16.7.114 host 172.16.11.52 permit ip host 172.16.7.114 host 172.16.11.53 permit ip host 172.16.7.114 host 172.16.11.72 permit ip host 172.16.7.117 host 172.16.11.72 permit ip host 172.16.7.117 host 172.16.11.52 permit ip host 172.16.7.117 host 172.16.11.53 permit ip host 172.16.7.114 host 172.16.11.250 permit ip host 172.16.7.117 host 172.16.11.250 permit ip host 172.16.8.50 anypermit ip host 10.0.1.147 host 172.16.11.250 permit ip host 10.0.1.27 host 172.16.11.250permit ip host 10.0.1.147 host 172.16.11.121permit ip host 10.0.1.27 host 172.16.11.121permit ip host 192.168.0.110 anypermit tcp host 192.168.0.254 any eq ftppermit ip host 172.16.7.121 host 172.16.11.250 permit ip host 172.16.7.121 host 172.16.11.121 permit ip host 172.16.7.121 host 172.16.11.52 permit ip host 172.16.7.121 host 172.16.11.53 evaluate iptrafficip access-list extended tofirewallpermit tcp any host 192.168.0.110deny tcp any any eq echodeny tcp any any eq 139deny tcp any any eq 445deny tcp any any eq 135permit ip any any!logging 192.168.0.2access-list 11 permit 192.168.0.108access-list 11 permit 192.168.0.110access-list 11 permit 192.168.0.2access-list 11 permit 192.168.0.3access-list 11 permit 192.168.0.235access-list 11 permit 192.168.0.237access-list 11 permit 172.16.8.50arp 192.168.42.67 0014.224a.ea63 ARPAarp 172.16.7.185 000a.ebd9.7f33 ARPAarp 192.168.42.65 0010.dcd4.e74b ARPAarp 192.168.0.108 000d.61e8.a430 ARPAarp 192.168.42.71 0010.dcd4.dc0c ARPAarp 192.168.42.69 0010.dcce.e735 ARPAarp 192.168.42.75 0010.dcd4.7d3e ARPAarp 192.168.42.73 0005.5dd4.059b ARPAarp 192.168.0.101 000b.dbb7.9da4 ARPAarp 192.168.42.79 0010.dcd4.76d6 ARPAarp 192.168.0.102 000b.dbb8.4e25 ARPAarp 192.168.0.103 0016.7626.3c29 ARPAarp 192.168.42.77 000b.dbb8.cea5 ARPAarp 172.16.1.168 000d.6193.9c92 ARPAarp 172.16.7.172 0011.11a8.ab15 ARPAarp 172.16.2.164 000b.dbbb.00fa ARPAarp 172.16.2.162 0013.20d9.d0cb ARPAarp 192.168.42.95 0050.ba4f.9d8d ARPAarp 172.16.10.168 000d.61e8.3b66 ARPAarp 192.168.42.93 0011.110d.4cca ARPAarp 172.16.4.149 00e0.4cea.fab7 ARPA arp 172.16.2.254 0050.fc3a.8977 ARPA arp 172.16.5.254 0006.1bd0.b94c ARPA arp 171.16.2.254 0050.fc3a.8977 ARPA arp 172.16.8.253 0014.2246.4c96 ARPA arp 172.16.11.253 000b.dbb9.6520 ARPA arp 172.16.10.253 000d.61e8.a3ce ARPA arp 172.16.6.237 0011.110d.4de2 ARPA arp 172.16.11.208 1111.1111.1111 ARPA arp 172.16.7.209 0010.b54d.7b6c ARPA arp 172.16.7.208 000b.dbbb.00de ARPA arp 192.168.42.50 0005.5dd4.0704 ARPA arp 192.168.42.51 000a.e423.e9dd ARPA arp 172.16.7.200 0013.d303.28b1 ARPA arp 192.168.42.54 000b.dbbb.0e3b ARPA arp 192.168.42.52 000a.e43c.003a ARPA arp 192.168.42.53 000a.e423.ed2c ARPA arp 192.168.42.59 0010.dcd4.e951 ARPA arp 192.168.42.56 000b.dbb8.c8fb ARPA arp 172.16.7.199 0013.d324.c03a ARPA arp 172.16.4.56 0015.f240.edb7 ARPA arp 172.16.5.56 000c.f1ea.a554 ARPA arp 172.16.0.62 0010.dcd4.6eed ARPA arp 172.16.5.58 0011.11b7.1153 ARPA arp 172.16.0.56 000d.8740.7abf ARPA arp 172.16.2.58 0005.5dd4.0674 ARPA arp 172.16.11.50 0005.5d26.3229 ARPA arp 192.168.0.237 000b.dbb9.1131 ARPA arp 172.16.4.62 0014.2246.4bd2 ARPA arp 172.16.1.58 000f.1f5d.8b43 ARPA arp 172.16.3.56 0005.5d26.3461 ARPA arp 172.16.9.50 5254.ab14.6e7a ARPA arp 172.16.5.51 0060.6702.f70d ARPA arp 172.16.7.55 0010.c6cf.4a25 ARPA arp 172.16.4.52 0060.6706.a32c ARPA arp 172.16.3.51 0011.110d.4d16 ARPA arp 192.168.0.253 0010.5ce3.baab ARPA arp 192.168.0.254 000c.766e.ff8a ARPA arp 192.168.42.231 0013.20ac.53ed ARPA arp 192.168.42.228 0013.20d3.f9ad ARPA arp 172.16.6.23 0020.ed83.0c04 ARPA arp 172.16.6.10 0010.5cc5.811d ARPA arp 172.16.2.11 de ARPAarp 172.16.9.126 00e0.4c61.14d7 ARPAarp 172.16.2.110 0013.20d3.7d21 ARPAarp 172.16.4.107 0015.5809.c9ee ARPAarp 172.16.2.104 0011.110d.a157 ARPAarp 172.16.3.104 0010.5ce3.b37c ARPAarp 172.16.3.103 0013.20d9.cee8 ARPAarp 172.16.0.97 0013.20d9.ced5 ARPAarp 172.16.0.93 0010.b500.0657 ARPAarp 172.16.2.95 0020.ed3b.c492 ARPAarp 172.16.4.91 0015.f240.edb0 ARPAarp 172.16.10.82 0010.b54d.73e4 ARPAarp 172.16.4.93 000f.1f9e.aba3 ARPAarp 172.16.7.87 0014.2a31.7b60 ARPAarp 172.16.2.82 0010.b54d.7b6a ARPAarp 172.16.7.86 0014.2a35.ba95 ARPAarp 172.16.0.77 0010.dcd4.7d10 ARPAarp 172.16.5.75 000c.7680.fb56 ARPAarp 172.16.0.79 5254.ab14.769d ARPAarp 172.16.8.64 000b.dbb9.15c2 ARPAarp 172.16.5.77 0011.0911.bffd ARPAarp 172.16.8.65 000d.61e8.b0c1 ARPAarp 172.16.0.73 00d0.b76c.9893 ARPAarp 172.16.5.79 0010.dc48.ff46 ARPAarp 172.16.5.65 0013.20d9.cd7c ARPAarp 172.16.1.70 0020.ed15.91aa ARPAarp 172.16.7.70 000a.eb6a.0403 ARPAarp 172.16.0.66 0010.dcd4.76e3 ARPA!snmp-server community public ROsnmp-server community private RWsnmp-server chassis-idsnmp-server enable traps snmp authentication linkdown linkup coldstart warmstart snmp-server enable traps ttysnmp-server enable traps flash insertion removalsnmp-server enable traps hsrpsnmp-server enable traps configsnmp-server enable traps entitysnmp-server enable traps fru-ctrlsnmp-server enable traps bgpsnmp-server enable traps pim neighbor-change rp-mapping-change invalid-pim-message snmp-server enable traps ipmulticastsnmp-server enable traps msdpsnmp-server enable traps rsvpsnmp-server enable traps frame-relaysnmp-server enable traps rtrsnmp-server enable traps isakmp policy add snmp-server enable traps isakmp policy delete snmp-server enable traps isakmp tunnel start snmp-server enable traps isakmp tunnel stop snmp-server enable traps ipsec cryptomap add snmp-server enable traps ipsec cryptomap delete snmp-server enable traps ipsec cryptomap attach snmp-server enable traps ipsec cryptomap detach snmp-server enable traps ipsec tunnel start snmp-server enable traps ipsec tunnel stop snmp-server enable traps ipsec too-many-sas snmp-server enable traps isdn call-information snmp-server enable traps isdn layer2snmp-server enable traps isdn chan-not-avail snmp-server enable traps isdn ietfsnmp-server enable traps dlswsnmp-server host 192.168.0.2 privatesnmp-server host 192.168.0.2 public!tftp-server 192.168.0.3!line con 0exec-timeout 5 30password 7 141F1008410C233Flogging synchronousloginline vty 0 4access-class 11 inpassword 7 011B040716030F1Blogin!exception dump 192.168.0.3end。

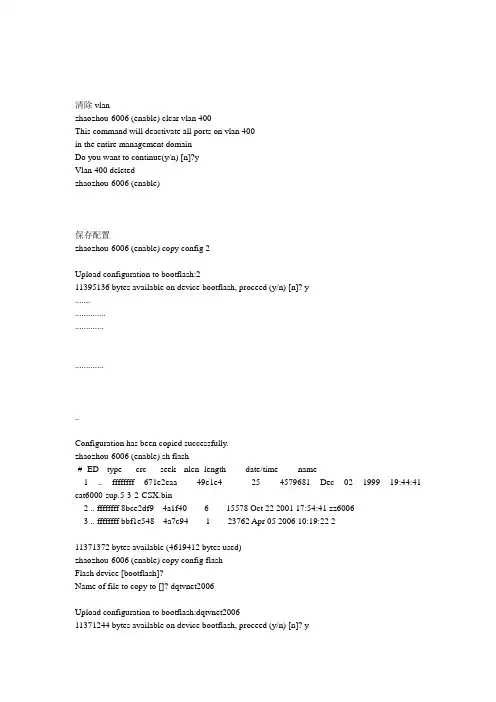

清除vlanzhaozhou-6006 (enable) clear vlan 400This command will deactivate all ports on vlan 400in the entire management domainDo you want to continue(y/n) [n]?yVlan 400 deletedzhaozhou-6006 (enable)保存配置zhaozhou-6006 (enable) copy config 2Upload configuration to bootflash:211395136 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable) sh flash-#- ED --type-- --crc--- -seek-- nlen -length- -----date/time------ name1 .. ffffffff 671e2eaa 49e1e4 25 4579681 Dec 02 1999 19:44:41 cat6000-sup.5-3-2-CSX.bin2 .. ffffffff 8bce2df9 4a1f40 6 15578 Oct 22 2001 17:54:41 zz60063 .. ffffffff bbf1e548 4a7c94 1 23762 Apr 05 2006 10:19:22 211371372 bytes available (4619412 bytes used)zhaozhou-6006 (enable) copy config flashFlash device [bootflash]?Name of file to copy to []? dqtvnet2006Upload configuration to bootflash:dqtvnet200611371244 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable)删除带有名字的vlanzhaozhou-6006 (enable) copy config 2Upload configuration to bootflash:211395136 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable) sh flash-#- ED --type-- --crc--- -seek-- nlen -length- -----date/time------ name1 .. ffffffff 671e2eaa 49e1e4 25 4579681 Dec 02 1999 19:44:41 cat6000-sup.5-3-2-CSX.bin2 .. ffffffff 8bce2df9 4a1f40 6 15578 Oct 22 2001 17:54:41 zz60063 .. ffffffff bbf1e548 4a7c94 1 23762 Apr 05 2006 10:19:22 211371372 bytes available (4619412 bytes used)zhaozhou-6006 (enable) copy config flashFlash device [bootflash]?Name of file to copy to []? dqtvnet2006Upload configuration to bootflash:dqtvnet200611371244 bytes available on device bootflash, proceed (y/n) [n]? y.................................................Configuration has been copied successfully.zhaozhou-6006 (enable)查看端口命令zhaozhou-6006 (enable) sh intsl0: flags=51<UP,POINTOPOINT,RUNNING>slip 0.0.0.0 dest 0.0.0.0sc0: flags=63<UP,BROADCAST,RUNNING>vlan 100 inet 221.209.150.82 netmask 255.255.255.248 broadcast 221.209.150.87 zhaozhou-6006 (enable)通过命令设置多个端口vlanzhaozhou-6006 (enable) set vlan 1 2/1-48VLAN 1 modified.VLAN 100 modified.VLAN Mod/Ports---- -----------------------1 2/1-485/1-48zhaozhou-6006 (enable)vtp清除#vtpset vtp domain zxstkset vtp mode serverset vtp v2 disableset vtp pruning disableset vtp pruneeligible 2-1000clear vtp pruneeligible 1001-1005set vlan 1 name default type ethernet mtu 1500 said 100001 state activeset vlan 1002 name fddi-default type fddi mtu 1500 said 101002 state activeset vlan 1004 name fddinet-default type fddinet mtu 1500 said 101004 state active bridge 0x0 stp ieeeset vlan 1005 name trnet-default type trbrf mtu 1500 said 101005 state active bridge 0x0 stp ibm set vlan 1003 name token-ring-default type trcrf mtu 1500 said 101003 state active parent 0 ring 0x0 mode srb aremaxhop 0 stemaxhop 0!#ipset interface sc0 100 221.209.150.82/255.255.255.248 221.209.150.87set interface sc0 upzhaozhou-6006 (enable) clear vtp domain zxstkUsage: clear vtp statisticsclear vtp pruneeligible <vlans..>(vlans: 1..1005An example of vlans is 2-10,1005)zhaozhou-6006 (enable) clear vtp pruneeligible 2-1000Vlans 1-1005 will not be pruned on this device.VTP domain zxstk modified.zhaozhou-6006 (enable)设置vtp模式透明zhaozhou-6006 (enable) set vtp mode ?Usage: set vtp [domain <name>] [mode <mode>] [passwd <passwd>][pruning <enable|disable>] [v2 <enable|disable>(mode = client|server|transparentUse passwd '0' to clear vtp password)Usage: set vtp pruneeligible <vlans>(vlans = 2..1000An example of vlans is 2-10,1000)zhaozhou-6006 (enable) set vtp mode transparentVTP domain zxstk modifiedzhaozhou-6006 (enable)设置端口汇聚zhaozhou-6006 (enable) set trunk ?Usage: set trunk <mod_num/port_num> [on|off|desirable|auto|nonegotiate] [vlans] [trunk_type] (vlans = 1..1005An example of vlans is 2-10,1005)(trunk_type = isl,dot1q,dot10,lane,negotiate)zhaozhou-6006 (enable) set trunk 2/3 on 1-400Adding vlans 1-400 to allowed list.Please use the 'clear trunk' command to remove vlans from allowed list.Port(s) 2/3 allowed vlans modified to 1-1005.Failed to set port 2/3 to trunk mode on.Trunk mode 'on' not allowed with trunk encapsulation type 'negotiate'.zhaozhou-6006 (enable) set trunk 2/3 on 1-400 dot1qAdding vlans 1-400 to allowed list.Please use the 'clear trunk' command to remove vlans from allowed list.Port(s) 2/3 allowed vlans modified to 1-1005.Port(s) 2/3 trunk mode set to on.Port(s) 2/3 trunk type set to dot1q.zhaozhou-6006 (enable)。

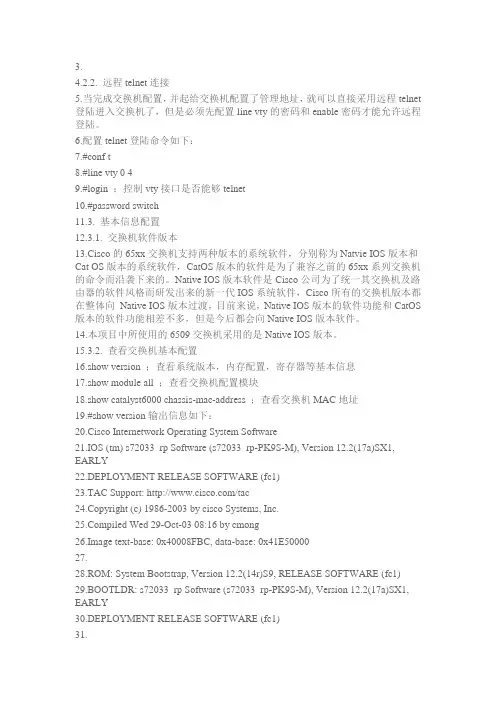

3.4.2.2. 远程telnet连接5.当完成交换机配置，并起给交换机配置了管理地址，就可以直接采用远程telnet 登陆进入交换机了，但是必须先配置line vty的密码和enable密码才能允许远程登陆。

6.配置telnet登陆命令如下：7.#conf t8.#line vty 0 49.#login ；控制vty接口是否能够telnet10.#password switch11.3. 基本信息配置12.3.1. 交换机软件版本13.Cisco的65xx交换机支持两种版本的系统软件，分别称为Natvie IOS版本和Cat OS版本的系统软件，CatOS版本的软件是为了兼容之前的65xx系列交换机的命令而沿袭下来的。

Native IOS版本软件是Cisco公司为了统一其交换机及路由器的软件风格而研发出来的新一代IOS系统软件，Cisco所有的交换机版本都在整体向Native IOS版本过渡，目前来说，Native IOS版本的软件功能和CatOS 版本的软件功能相差不多，但是今后都会向Native IOS版本软件。

14.本项目中所使用的6509交换机采用的是Native IOS版本。

15.3.2. 查看交换机基本配置16.show version ；查看系统版本，内存配置，寄存器等基本信息17.show module all ；查看交换机配置模块18.show catalyst6000 chassis-mac-address ；查看交换机MAC地址19.#show version输出信息如下：20.Cisco Internetwork Operating System Software21.IOS (tm) s72033_rp Software (s72033_rp-PK9S-M), Version 12.2(17a)SX1, EARLY22.DEPLOYMENT RELEASE SOFTWARE (fc1)23.TAC Support: /tac24.Copyright (c) 1986-2003 by cisco Systems, Inc.piled Wed 29-Oct-03 08:16 by cmong26.Image text-base: 0x40008FBC, data-base: 0x41E5000027.28.ROM: System Bootstrap, Version 12.2(14r)S9, RELEASE SOFTWARE (fc1)29.BOOTLDR: s72033_rp Software (s72033_rp-PK9S-M), Version 12.2(17a)SX1, EARLY30.DEPLOYMENT RELEASE SOFTWARE (fc1)31.32.Router uptime is 29 minutes33.Time since Router switched to active is 29 minutes34.System returned to ROM by power-on (SP by power-on)35.System restarted at 12:57:08 PST Sat Jan 31 200436.System image file is "sup-bootflash:s72033-pk9s-mz.122-17a.SX1.bin"37.38.39.This product contains cryptographic features and is subject to United40.States and local country laws governing import, export, transfer ande. Delivery of Cisco cryptographic products does not imply42.third-party authority to import, export, distribute or use encryption.43.Importers, exporters, distributors and users are responsible forpliance with U.S. and local country laws. By using this product you45.agree to comply with applicable laws and regulations. If you are unable46.to comply with U.S. and local laws, return this product immediately.47.48.A summary of U.S. laws governing Cisco cryptographic products may be found49.at:50./wwl/export/crypto/tool/stqrg.html51.52.If you require further assistance please contact us by sending email to53.export@.54.55.cisco WS-C6509 (R7000) processor (revision 3.0) with 458752K/65536K bytes of56.memory.57.Processor board ID SAL0743NKW858.SR71000 CPU at 600Mhz, Implementation 0x504, Rev 1.2, 512KB L2 Cachest reset from power-on60.X.25 software, Version 3.0.0.61.Bridging software.62.1 Virtual Ethernet/IEEE 802.3 interface(s)63.48 FastEthernet/IEEE 802.3 interface(s)64.36 Gigabit Ethernet/IEEE 802.3 interface(s)65.1917K bytes of non-volatile configuration memory.66.8192K bytes of packet buffer memory.67.65536K bytes of Flash internal SIMM (Sector size 512K).68.Standby is up69.Standby has 458752K/65536K bytes of memory.70.71.Configuration register is 0x210272.73.Router#sho module all74.Mod Ports Card Type Model Serial75.No.76.--- ----- -------------------------------------- ------------------ -----------77.2 16 16 port 1000mb GBIC78.ethernet WS-X6416-GBIC SAL0750QNJP79.3 16 16 port 1000mb GBIC80.ethernet WS-X6416-GBIC SAL0750QNFV81.5 2 Supervisor Engine 72082.(Active) WS-SUP720-BASE SAD075000YF83.6 2 Supervisor Engine 72084.(Warm) WS-SUP720-BASE SAD075109SZ85.7 48 48 port 10/100 mb86.RJ45 WS-X6348-RJ-45 SAL0752R3E687.88.Mod MAC89.addresses Hw Fw Sw Status90.--- ---------------------------------- ------ ------------ ------------ -------91.2 000e.8442.4850 to 000e.8442.485f 2.5 5.4(2) 8.2(0.56)TET Ok92.3 000e.8442.48f0 to 000e.8442.48ff 2.5 5.4(2) 8.2(0.56)TET Ok93.5 000d.290f.fd08 to 000d.290f.fd0b 3.0 7.7(1) 12.2(17a)SX1 Ok94.6 000e.3838.1a8c to 000e.3838.1a8f 3.0 7.7(1) 12.2(17a)SX1 Ok95.7 000e.84c8.54f0 to 000e.84c8.551f 6.8 5.4(2) 8.2(0.56)TET Ok96.97.Mod98.Sub-Module Model Serial Hw Statu99.s100.--- --------------------------- ------------------ ------------ ------- ------- 101.5 Policy Feature Card 3 WS-F6K-PFC3A SAD0752009D 2.0 Ok 102.5 MSFC3 Daughterboard WS-SUP720 SAD075109HX 2.0 Ok 103.6 Policy Feature Card 3 WS-F6K-PFC3A SAD0751085J 2.0 Ok104.6 MSFC3 Daughterboard WS-SUP720 SAD0751077C 2.0 Ok105.7 Inline Power Module WS-F6K-PWR 0.0 Ok106.107.Mod Online Diag Status108.--- -------------------109.2 Pass110.3 Pass111.5 Pass112.6 Pass113.7 Pass114.3.3. 配置机器名、telnet、密码115.在全局模式下，用conf t，进入配置模式，进行以下配置：116.#conf t117.#clock timezone GMT 8 ；配置时区118.#clock set 13:30:21 31 JAN 2004 ；配置交换机时间119.#clock calendar-valid ；使能硬件时钟同步120.#service timestamps debug datetime localtime ；配置系统debug记录时间格式121.#service timestamps log datetime localtime ；配置系统日志记录时间格式122.#service password-encryption ；配置使用加密服务，主要针对口令加密123.#hostname xxxx ；配置交换机名称124.#enable secret 0 xxxxx ；配置enable口令125.#copy run start ；将配置信息保存到NVRAM中，重启动不会丢失126.#line vty 0 4 ；配置telnet127.#exec-timeout 30 0128.#password 0 xxxx129.#login130.3.4. 配置snmp131.#conf t132.#snmp-server community cisco ro（只读）；配置只读通信字符串133.#snmp-server community secret rw（读写）；配置读写通信字符串134.#snmp-server enable traps ；配置网关SNMP TRAP135.#snmp-server host 10.254.190.1 rw ；配置网关工作站地址136.137.3.5. 启动三层功能138.#ip routing ；启动路由功能139.3.6. 查看和配置系统环境变量140.使用show bootvar命令查看系统启动环境变量，包括BOOT, BOOTLDR, and 141.CONFIG_FILE参数：142.Router# show bootvar143.BOOT variable = slot0:c6sup22-jsv-mz.121-5c.EX.bin,1;144.CONFIG_FILE variable does not exist145.BOOTLDR variable = bootflash:c6msfc2-boot-mz.121-3a.E4146.Configuration register is 0x2147.Router#148.改变BOOT,、BOOTLDR、CONFIG_FILE 这三个环境变量使用命令：149.BOOT #boot system150.BOOTLDR #boot bootldr151.CONFIG_FILE #boot config152.153.共5页: 上一页[1] 2 [3] [4] [5] 下一页154.155.156.157.65xx系列交换机配置(Native IOS)(3)158.发布时间：2004-06-17 浏览次数：159.160.161.162.4. 端口设置163.4.1. 端口基本设置164.Cisco 65xx系列交换机的端口缺省都是路由模式，一般都会配置为交换端口使用，进入端口配置模式：165.对于单一端口，在配置模式下输入：interface Ethernet,Fast Ethernet,Gigabit 166.Ethernet x/y, x为槽位号，y为端口号。

思科交换机双机热备模式怎么使用交换机除了能够连接同种类型的网络之外，还可以在不同类型的网络(如以太网和快速以太网)之间起到互连作用。

为了防止核心交换机出现故障就会导致全网瘫痪，我们可以采用双机热备模式，下面我们就来看看详细的教程，需要的朋友可以参考下方法步骤1、打开C i s c o P a c k e t T r a c e r，点击，选择2960交换机，按住鼠标左键拖动到工作区。

这里有很多类型的交换机，其它类型的天使以后慢慢和大家讲解。

2、我们选择拖动两台台式机到工作区，用于测试通信3、最后用直通线连接交换机和电脑，对核心交换机进行双冗余设计4、分别设置两台主机的I P地址，主机0为：192.168.1.1;主机1为：192.168.1.25、在主机1上进行P i n g测试，p i n g 192.168.1.1，发现是连通的6、假如现在我们核心交换机坏了一个，我们交换机双机热备，数据包可以走另外一个交换机，两台客户机没有受到任何的干扰7、我们假设核心交换机0坏了，就相当于所有连接核心交换机的线路都断了，这时任然不影响主机之间的通信相关阅读：交换机工作原理过程交换机工作于O S I参考模型的第二层，即数据链路层。

交换机内部的C P U会在每个端口成功连接时，通过将M A C地址和端口对应，形成一张M A C表。

在今后的通讯中，发往该M A C地址的数据包将仅送往其对应的端口，而不是所有的端口。

因此，交换机可用于划分数据链路层广播，即冲突域;但它不能划分网络层广播，即广播域。

交换机拥有一条很高带宽的背部总线和内部交换矩阵。

交换机的所有的端口都挂接在这条背部总线上，控制电路收到数据包以后，处理端口会查找内存中的地址对照表以确定目的M A C(网卡的硬件地址)的N I C(网卡)挂接在哪个端口上，通过内部交换矩阵迅速将数据包传送到目的端口，目的M A C若不存在，广播到所有的端口，接收端口回应后交换机会学习新的M A C地址，并把它添加入内部M A C地址表中。

初始配置enconf tno ip domain lookupline con 0loginexec-timeout 0 30logging synchronousexitusername et password et6fenable secret et6fhostname 6F-CORE-SW（2）将核心交换机6F-CORE-SW01上与6F-CORE-SW02相连的接口TenGigabitEthernet5/4和TenGigabitEthernet5/5配置为EtherChannel：6F-CORE-SW01(config)#interface range tenGigabitEthernet 5/4 - 56F-CORE-SW01(config-if-range)#channel-group 1 mode on6F-CORE-SW01(config-if-range)#no shutdown% Range command terminated because it failed on TenGigabitEthernet5/46F-CORE-SW01(config-if-range)#exit说明：将核心交换机6F-CORE-SW01上与6F-CORE-SW02相连的接口TenGigabitEthernet5/4和TenGigabitEthernet5/5配置为EtherChannel，为配置VSL作准备。

（3）配置VSS域名与VSS主机号：6F-CORE-SW01(config)#switch virtual domain 100Domain ID 100 config will take effect onlyafter the exec command 'switch convert mode virtual' is issued6F-CORE-SW01(config-vs-domain)#switch 16F-CORE-SW01(config-vs-domain)#switch 1 priority 2006F-CORE-SW01(config-vs-domain)#exit说明：这里没有配置抢占，因为找不到抢占这个命令（因为active交换几只是在控制层面起作用，实际的数据还是各自进行转发所以哪台做active无所谓）配置VSS的域名为100，范围为1-255，两台交换机必须相同；配置VSS的主机号码为1，必须一台为1，另一台为2；并配置VSS优先级为200，默认为100，数字越大，优先级越高，便能成为主VSS交换机。

一、拓扑二、IOS升级（由于新6509两块引擎ios版本不一致）1.升级的目的由于6509两块引擎版本不一致，无法配置引擎冗余，需升级另一块引擎ios，两块引擎ios版本一致，才可做sso2.升级前确认首先查看两块引擎板卡ios版本分别为：s72033-ipbase-mz.122-33.SXI7；s72033-ipservices_wan-vz.122-33.SXI7然后分别备份两块板卡引擎ios。

两块板卡引擎升级后同为s72033-ipservices_wan-vz.122-33.SXI7版本。

3.升级步骤上传s72033-ipservices_wan-vz.122-33.SXI7至主引擎，指定交换机从新的ios文件引导启动（boot system flash sup-bootdisk: s72033-ipservices_wan-vz.122-33.SXI7）no boot system flash sup-bootdisk:s72033-ipbase-mz.122-33.SXI(取消旧的ios启动项)boot system flash sup-bootdisk:s72033-ipservices_wan-vz.122-33.SXI7(设置新的ios为启动项)show run | begin boot 会显示启动项如若show boot 显示ios 启动参数为empty，此时reload4.升级后检验配置冗余强制切换Redundancy force-switcher5. 设备状态检查Show module ;show switch virtual等三、基础配置1.port-channel配置：6509-720(config)#interface range gigabitEthernet 7/1 – 26509-720(config-if)#switchport6509-720(config-if)switchport trunk encapsulation dot1q6509-720(config-if)switchport mode trunk6509-720(config-if)channel-group 3 mode on6509-720(config)#interface port-channel 36509-720(config-if)#switchport trunk encapsulation dot1q6509-720(config-if)#switchport mode trunk另一台6509port-channel配置如上一样。

一、 Catalyst 6509交换机配置方案1.1、配置6509二层交换Console> (enable) set system name bg-sw-01 /设备名称Bg-sw-01> (enable) set passwordEnter old password: <old_password>Enter new password: <new_password> test /设备口令Retype new password: <new_password> testBg-sw-01> (enable) set enablepassEnter old password: <old_enablepass>Enter new password: <new_ enablepass > test /设备口令Retype new password: <new_ enablepass > testBg-sw-01> (enable) set banner motd % Welcome to the c6509 in the office % /提示文本Bg-sw-01> (enable) set interface sc0 10.234.180.21 255.255.255.0 /设置管理接口 #sh intBg-sw-01> (enable) set ip route default 10.234.180.234 /设置默认网关 #sh ip routeBg-sw-01> (enable) set vtp mode server /设置VTP模式#sh vtp domainBg-sw-01> (enable) set vtp domain Core_Net /设置VTP 域名Bg-sw-01> (enable) set vlan 31 name ZhongSanLu /创建VLAN #sh vlanBg-sw-01> (enable) set vlan 32 name YiYangBg-sw-01> (enable) set vlan 33 name JianXiuBg-sw-01> (enable) set vlan 34 name RaoDianBg-sw-01> (enable) set vlan 35 name JinSanLouBg-sw-01> (enable) set vlan 36 name WuZiBg-sw-01> (enable) set port channel 1/1-2 on /设置Channel #sh port channelBg-sw-01> (enable) set trunk 1/1 on dot1q 1-1005Bg-sw-01> (enable) set trunk 2/2 on dot1q 1-1005 /设置trunk口 #sh trunk #Bg-sw-01> (enable) set trunk 2/3 on dot1q 1-1005Bg-sw-01> (enable) set trunk 2/4 on dot1q 1-1005Bg-sw-01> (enable) set trunk 2/5 on dot1q 1-1005Bg-sw-01> (enable) set trunk 2/6 on dot1q 1-1005Bg-sw-01> (enable) set trunk 2/7 on dot1q 1-1005Bg-sw-01> (enable) set spantree root 1-40 dia 4 /设为spantree的根#sh spantreeBg-sw-01> (enable) set spantree portfast 1/1-2 enable /设spantree端口快速启用Bg-sw-01> (enable) set spantree portfast 2/1-8 enableBg-sw-01> (enable) set spantree uplinkfast enable /设spantree端口快速切换Bg-sw-01> (enable) set spantree backbonefast enable /设spantree端口快速定位根1.2、配置路由Console> (enable) session 15 /进入路由子卡Router(config)# hostname c6509-msfc /设备名c6509-msfc (config)# enable password test /设口令c6509-msfc (config)# enable secret testC6509-msfc(config)# banner motd % Welcome to the c6509-msfc in the Office % /设提示文本c6509-msfc (config)# line vty 0 4 / 进入VTY模式c6509-msfc (config-line)#login / 登入提示c6509-msfc (config-line)#password test / 设用户级口令c6509-msfc (config-line)# endC6509-msfc#configure terminal / 进入全局模式Enter configuration commands, one per line. End with CNTL/Z.C6509-msfc(config)# interface vlan 1 /进入虚子接口C6509-msfc(config-if)# ip address 10.234.180.232 255.255.255.0 /加ip 地址C6509-msfc(config-if)# no shutdown /开启端口C6509-msfc(config-if)# standby 1 ip 10.234.180.234 /建HSRP组并设虚IP地址C6509-msfc(config-if)# standby 1 priority 110 /设优先级C6509-msfc(config-if)# standby 1 preempt /设切换许可C6509-msfc(config-if)# interface vlan 31C6509-msfc(config-if)# ip address 10.234.181.60 255.255.255.192C6509-msfc(config-if)# no shutdownC6509-msfc(config-if)# standby 31 ip 10.234.181.62C6509-msfc(config-if)# standby 31 priority 110C6509-msfc(config-if)# standby 31 preemptC6509-msfc(config-if)# interfacevlan 32C6509-msfc(config-if)# ip address 10.234.181.124 255.255.255.192C6509-msfc(config-if)# no shutdownC6509-msfc(config-if)# standby 32 ip 10.234.181.126C6509-msfc(config-if)# standby 32 priority 110C6509-msfc(config-if)# standby 32 preemptC6509-msfc(config-if)# interface vlan 33C6509-msfc(config-if)# ip address 10.234.181.188 255.255.255.192C6509-msfc(config-if)# no shutdownC6509-msfc(config-if)# standby 33 ip 10.234.181.190C6509-msfc(config-if)# standby 33 priority 110C6509-msfc(config-if)# standby 33 preemptC6509-msfc(config-if)# interface vlan 34C6509-msfc(config-if)# ip address 10.234.181.220 255.255.255.224C6509-msfc(config-if)# no shutdownC6509-msfc(config-if)# standby 34 ip 10.234.181.222C6509-msfc(config-if)# standby 34 priority 110C6509-msfc(config-if)# standby 34 preemptC6509-msfc(config-if)# interface vlan 35C6509-msfc(config-if)# ip address 10.234.181.254 252.255.255.224C6509-msfc(config-if)# no shutdownC6509-msfc(config-if)# standby 35 ip 10.234.181.254C6509-msfc(config-if)# standby 35 priority 110C6509-msfc(config-if)# standby 35 preemptC6509-msfc(config-if)# interface vlan 36C6509-msfc(config-if)# ip address 10.234.182.28 255.255.255.224C6509-msfc(config-if)# no shutdownC6509-msfc(config-if)# standby 36 ip 10.234.182.30C6509-msfc(config-if)# standby 36 priority 110C6509-msfc(config-if)# standby 36 preemptC6509-msfc(config-if)# exitC6509-msfc #copy running config二、Catalyst 4006交换机配置方案2.1、配置4006二层交换（三层交换模块安置在第二个槽）Console> (enable) set system name bg-sw-02 /设备名称Bg-sw-02> (enable) set passwordEnter old password: <old_password>Enter new password: <new_password> test /设备口令Retype new password: <new_password> testBg-sw-02> (enable) set enablepassEnter old password: <old_enablepass>Enter new password: <new_ enablepass > test /设备口令Retype new password: <new_ enablepass > testBg-sw-02> (enable) set banner motd % Welcome to the c4006 in the office % /提示文本Bg-sw-02> (enable) set interface sc0 10.234.180.22 255.255.255.0 /设置管理接口 #sh intBg-sw-02> (enable) set ip route default 10.234.180.234 /设置默认网关 #ship routeBg-sw-02> (enable) set vtp mode server /设置VTP模式 #sh vtp domain Bg-sw-02> (enable) set vtp domain Core_Net /设置VTP域名Bg-sw-02> (enable) set vlan 31 name ZhongSanLu /创建VLAN #sh vlan Bg-sw-02> (enable) set vlan 32 name YiYangBg-sw-02> (enable) set vlan 33 name JianXiuBg-sw-02> (enable) set vlan 34 name RaoDianBg-sw-02> (enable) set vlan 35 name JinSanLouBg-sw-02> (enable) set vlan 36 name WuZiBg-sw-02> (enable) set port channel 1/1-2 on /设置Channel #sh port channelBg-sw-02> (enable) set trunk 1/1 on dot1q 1-1005Bg-sw-02> (enable) set port channel 2/1-2 on /设置Channel #sh port channelBg-sw-02> (enable) set trunk 2/1 on dot1q 1-1005Bg-sw-02> (enable) set trunk 4/1 on dot1q 1-1005 /设置trunk口 #sh trunk #Bg-sw-02> (enable) set trunk 4/3 on dot1q 1-1005Bg-sw-02> (enable) set trunk 4/4 on dot1q 1-1005Bg-sw-02> (enable) set spantree root secondary 1-40 dia 4Bg-sw-02> (enable) set spantree portfast 1/1-2 enable /设spantree端口快速启用Bg-sw-02> (enable) set spantree portfast 2/1-34 enableBg-sw-02> (enable) set spantree portfast 3/1-32 enableBg-sw-02> (enable) set spantree portfast 4/1-6 enableBg-sw-02> (enable) set spantree uplinkfast enable /设spantree端口快速切换Bg-sw-02> (enable) set spantree backbonefast enable /设spantree端口快速定位根2.1、配置三层交换模块（三层交换模块安置在第二）Console> (enable) session 2 /进入路由子卡Router(config)# hostname c4006-L3 /设备名c4006-L3 (config)# enable password test /设口令c4006-L3 (config)# enable secret testc4006-L3(config)# banner motd % Welcome to the c4006-l3 in the Office % /设提示文本c4006-L3 (config)# line vty 0 4 / 进入VTY模式c4006-L3 (config-line)#login / 登入提示c4006-L3 (config-line)#password test / 设用户级口令c4006-L3 (config-line)# endC4006-L3#configure terminalEnter configuration commands, one per line. End with CNTL/Z.C4006-L3(config)# interface port-channel 1 /建内部虚端口C4006-L3(config)# interface g3 /进入接口模式C4006-L3(config-if)# channel-group 1 / 加入到channel组中C4006-L3(config-if)# exitC4006-L3(config)# interface g4 /进入接口模式C4006-L3(config-if)# channel-group 1 / 加入到channel组中C4006-L3(config-if)# exitC4006-L3(config)# interface port-channel 1.1 /进入子接口模式C4006-L3(config-if)# encapsulation dot1q 1 native / 封装trunk C4006-L3(config-if)# ip address 10.234.180.233 255.255.255.0 /加ip 地址C4006-L3(config-if)# no shutdown /开启端口C4006-L3(config-if)# standby 1 ip 10.234.180.234 /建HSRP组并设虚IP 地址C4006-L3(config-if)# standby 1 priority 100 /设优先级C4006-L3(config-if)# standby 1 preempt /设切换许可C4006-L3(config-if)# interface port-channel 1.31C4006-L3(config-if)# encapsulation dot1q 31C4006-L3(config-if)# ip address 10.234.181.61 255.255.255.192C4006-L3(config-if)# no shutdownC4006-L3(config-if)# standby 31 ip 10.234.181.62C4006-L3(config-if)# standby 31 priority 100C4006-L3(config-if)# standby 31 preemptC4006-L3(config-if)# interface port-channel 1.32C4006-L3(config-if)# encapsulation dot1q 32C4006-L3(config-if)# ip address 10.234.181.125 255.255.255.192C4006-L3(config-if)# no shutdownC4006-L3(config-if)# standby 32 ip 10.234.181.126C4006-L3(config-if)# standby 32 priority 100C4006-L3(config-if)# standby 32 preemptC4006-L3(config-if)# interface port-channel 1.33C4006-L3(config-if)# encapsulation dot1q 33C4006-L3(config-if)# ip address 10.234.181.189 255.255.255.192C4006-L3(config-if)# no shutdownC4006-L3(config-if)# standby 33 ip 10.234.181.190C4006-L3(config-if)# standby 33 priority 100C4006-L3(config-if)# standby 33 preemptC4006-L3(config-if)# interface port-channel 1.34C4006-L3(config-if)# encapsulation dot1q 34C4006-L3(config-if)# ip address 10.234.181.221 255.255.255.224C4006-L3(config-if)# no shutdownC4006-L3(config-if)# standby 34 ip 10.234.181.222C4006-L3(config-if)# standby 34 priority 100C4006-L3(config-if)# standby 34 preemptC4006-L3(config-if)# interface port-channel 1.35C4006-L3(config-if)# encapsulation dot1q 35C4006-L3(config-if)# ip address 10.234.181.253 255.255.255.224C4006-L3(config-if)# no shutdownC4006-L3(config-if)# standby 35 ip 10.234.181.254C4006-L3(config-if)# standby 35 priority 100C4006-L3(config-if)# standby 35 preemptC4006-L3(config-if)# interface port-channel 1.36C4006-L3(config-if)# encapsulation dot1q 36C4006-L3(config-if)# ip address 10.234.182.29 255.255.255.224C4006-L3(config-if)# no shutdownC4006-L3(config-if)# standby 36 ip 10.234.182.30C4006-L3(config-if)# standby 36 priority 100C4006-L3(config-if)# standby 36 preemptC4006-L3(config-if)# exitC4006-L3#copy running config三、Catalyst 3500XL交换机配置方案3.1Catalyst 3500XL交换机配置方案第一台Catalyst 3548switch#configure terminalEnter configuration commands, one per line. End with CNTL/Z.switch(config)#hostname bg-sw-03 /设备名bg-sw-03(config)#enable password test /设口令bg-sw-03(config)#enable secret testbg-sw-03(config)#banner motd % Welcome to the C3548 in the Office % /提示文本bg-sw-03(config)#line vty 0 4 / 进入VTY模式bg-sw-03(config.line)#login / 登入提示bg-sw-03(config.line)#password test / 设用户级口令bg-sw-03(config.line)#exitbg-sw-03 (config)#int vlan 1 / 进入内部管理接口bg-sw-03 (config-if)#ip address 10.234.180.23 255.255.255.0 /加入IP地址bg-sw-03(config-if)#exitbg-sw-03(config)#ip default.gateway 10.234.180.234 /设网关bg-sw-03(config)#endbg-sw-03#vlan database / 进入vtp数据库bg-sw-03(vlan)#vtp domain Corp_Net /设vtp域bg-sw-03(vlan)#vtp client /设定vtp模式bg-sw-03(vlan)#exitbg-sw-03(config)#spantree uplinkfast /设定端口快速上连bg-sw-03(config)#int g0/1 /进入接口模式bg-sw-03(config-if)#switchport mode trunk /设为trunk模式bg-sw-03(config-if)#switchport trunk encapsulation dot1q /设定封装模式bg-sw-03(config-if)#switchport trunk allowed vlan all /设定trunk许可vlanbg-sw-03(config-if)#spanning-tree portfast /设定端口快速启用bg-sw-03(config-if)#int g0/2 /进入接口模式bg-sw-03(config-if)#switchport mode trunk /设为trunk模式bg-sw-03(config-if)#switchport trunk encapsulation dot1q /设定封装模式bg-sw-03(config-if)#switchport trunk allowed vlan all /设定trunk许可vlanbg-sw-03(config-if)#spanning-tree portfast /设定端口快速启用bg-sw-03(config-if)#exitbg-sw-03#write memory第二台Catalyst 3548switch#configure terminalEnter configuration commands, one per line. End with CNTL/Z.switch(config)#hostname bg-sw-04 /设备名bg-sw-04(config)#enable password test /设口令bg-sw-04(config)#enable secret testbg-sw-04(config)#banner motd % Welcome to the C3548 in the Office % /提示文本bg-sw-04(config)#line vty 0 4 / 进入VTY模式bg-sw-04(config.line)#login / 登入提示bg-sw-04(config.line)#password test / 设用户级口令bg-sw-04(config.line)#exit / 进入内部管理接口bg-sw-04(config)#int vlan 1bg-sw-04(config-if)#ip address 10.234.180.24 255.255.255.0bg-sw-04(config-if)#exitbg-sw-04(config)#ip default.gateway 10.234.180.234bg-sw-04(config)#endbg-sw-04#vlan databasebg-sw-04(vlan)#vtp domain Corp_Netbg-sw-04(vlan)#vtp clientbg-sw-04(vlan)#exitbg-sw-04(config)#spantree uplinkfastbg-sw-04(config)#int g0/1bg-sw-04(config-if)#switchport mode trunkbg-sw-04(config-if)#switchport trunk encapsulation dot1qbg-sw-04(config-if)#switchport trunk allowed vlan allbd-sw-03 (config-if)# spanning-tree portfastbg-sw-04(config-if)#exitbg-sw-04(config)#int g0/2bg-sw-04(config-if)#switchport mode trunkbg-sw-04(config-if)#switchport trunk encapsulation dot1qbg-sw-04(config-if)#switchport trunk allowed vlan allbg-sw-04(config-if)#spanning-tree portfastbg-sw-04(config-if)#exitbg-sw-04#write memory3.2 Catalyst 3548XL交换机配置方案switch#configure terminalEnter configuration commands, one per line. End with CNTL/Z.switch(config)#hostname zsr-sw-01zsr-sw-01(config)#enable password testzsr-sw-01(config)#enable secret testzsr-sw-01(config)#banner motd % Welcome to the C3548 in the Zhong San Lu ban Gong Lou %zsr-sw-01(config)#line vty 0 4zsr-sw-01(config.line)#loginzsr-sw-01(config.line)#password testzsr-sw-01(config.line)#exitzsr-sw-01(config)#int vlan 1zsr-sw-01(config-if)#ip address 10.234.180.25 255.255.255.0zsr-sw-01(config-if)#exitzsr-sw-01(config)#ip default.gateway 10.234.180.234zsr-sw-01(config)#endzsr-sw-01#vlan databasezsr-sw-01(vlan)#vtp domain Corp_Netzsr-sw-01(vlan)#vtp clientzsr-sw-01(vlan)#exitzsr-sw-1#configure terminalzsr-sw-1(config)#int f0/1zsr-sw-1(config-if)#switchport mode accesszsr-sw-1(config-if)#switchport access vlan 31zsr-sw-1(config-if)#exitzsr-sw-1(config)#int f0/2。

Catalyst 6509 交换机配置手册version 1。

0。

0中望商业机器有限公司© 1995, 2001 Chinaweal Business Machinery CO。

LTDAll Rights Reserve目录1基础配置11.1建立到控制台的连接11。

2配置交换机的地址11。

3配置Ethernet 口31。

4配置交换机的全局参数31.5测试网络的连通性42其它参数的配置52.1配置Login Banner52。

2配置DNS62.3配置CDP协议73VLAN的配置83.1配置VTP协议(VLAN Trunk Protocol)83.2配置VLAN93.2。

1创建VLAN93.3将交换端口配置到VLAN中103。

4配置VLAN Trunks113.5在MSFC上配置IP InterVLAN路由123。

5。

1从Console口进入MSFC123。

5。

2通过Telnet Session 进入MSFC 模块133。

5.3在MSFC上配置IP InterVLAN路由133.6配置HSRP协议143.7配置以太通道161 基础配置1.1 建立到控制台的连接在进行配置和将交换机接入网络前必须通过控制台来进入交换机的CLI，对交换机进行配置。

在进入CLI后，通过命令enable进入到privileged 模式。

通过以下步骤将终端连接到交换机的控制口例如:〈... output truncated ..。

〉Cisco Systems ConsoleEnter password：Console〉enableEnter password：Console> （enable）1.2 配置交换机的地址在远程登录交换机前你必须为交换机配置地址，掩码和网关等信息- 1 -在你第一次配置交换机时，将sc0口配置到default VLAN,即VLAN 1中，在你配置了其他VLAN以后，你可以将sc0口配置到其他VLAN中，但是sc0口的地址和网关必须与所在的VLAN的网段对应.配置IP地址和网关的步骤如下例如：Console〉 (enable) set interface sc0 10.1。
