小功率脉冲光纤激光器使用说明书武汉锐科光纤激光器技术有限责任公司安全信息在使用该产品之前，请先阅读和了解这份用户手册并熟悉我们为您提供的信息。
这份用户手册提供了重要的产品操作，安全以及其他信息给您以及所有将来的用户作参考。
为了确保操作安全和产品的最佳性能，请遵循以下注意和警告事项以及该手册的其他信息去操作。
●锐科公司脉冲光纤激光器是IV级的激光产品。
在打开24VDC电源前，要确保连接是正确的24VDC的电源并确认正负极，错误连接电源，将会损坏激光器。
●该激光器在1060~1085nm波长范围内发出超过5W、10W、15W、20W、25W、30W（根据不同激光器型号）的激光辐射。
避免眼睛和皮肤接触到光输出端直接发出或散射出来的辐射。
●不要打开机器，因为没有可供用户使用的产品零件或配件。
所有保养或维修只能在锐科公司内进行。
●不要直接观看输出头，在操作该机器时要确保长期配戴激光安全眼镜。
安全标识及位置上面二个安全标识符号表示有激光辐射，我们把这符号标在产品光纤盒体盖顶上。
目录1．产品描述 (1)1.1 产品描述 (1)1.2实际配置清单 (1)1.3使用环境要求及注意事项 (1)1.4技术参数 (2)2．安装 (3)2.1 安装尺寸图 (3)2.2 安装方法 (4)3．控制接口 (5)4．操作程序 (6)4.1 前期检查工作 (6)4.2 操作步骤 (6)4.3打标过程中应注意的事项 (7)5．质保及返修、退货流程 (7)5.1一般保修 (7)5.2保修的限定性 (7)5.3服务和维修 (8)1．产品描述1.1 产品描述锐科脉冲激光器是是为高速和高效的激光打标系统而专门发展的。
为工业激光打标机和其它应用提供了一款理想的高功率激光能量源。
脉冲激光器相对于传统的激光器，能够对每瓦的泵浦光转换效率提高10倍以上，低能量消耗的自动设计，适合实验室或室外操作。
精巧，可独立放置，可随时使用，能够直接嵌入用户的设备上。
产品质量保证条款谢谢贵公司购买我公司光纤激光器!贵公司需在发货后一个月内确认产品的质量问题, 如果不能尽快在一个月内确认的话, 就会造成在服务和供货上不必要的麻烦, 特别是对于产品不是在美国本土安装的。
我们将给贵公司提供最好的质量和技术支持, 在设备的安装和调试操作方面我们有一套详细的方案。
能够经过以下两种途径确认产品的质量:1.将已付资费同时写好地址的信封寄给我方2.直接上网进行确认所有提供的信息都是必须保密的有任何问题能够直接拨打客服电话 ( 508) 373-1157安全条款:1.警告鉴于对人体潜在的伤害, 请按照规定的程序进行操作, 如果不这样做的话, 对自己或者她人都会造成伤害2.警示鉴于产品潜在的危险, 请按照规定的程序进行操作, 如果不这样做的话, 对产品自身或者产品的零配件都会有损害3.重要事项关于产品的操作事项请按照说明书逐步操作。
你公司所购买的是400瓦的光纤激光器, 执行标准是21 CFR 1040.10, 激光波长达到1070纳米, 经过光纤输出的激光的功率实际上已经超过400瓦, 对人的眼睛和皮肤都会造成伤害, 尽管这种辐射是不可见的, 可是这种激光对人的角膜的伤害是无法避免的, 在设备工作的时候必须带上激光护目镜。
警告:在设备工作中请根据波长范围选择合适的护目镜, 请仔细阅读产品上的安全标签, 产品的输出功率和波长范围。
有很多供应商为我们提供原材料和零配件。
如果设备经过重新安装或者改进的话, 由终端客户负全责。
在设备的调试, 操作过程当中如果不按照规定的程序运行, 就会造成一定的危害在设备运行过程中, 不要随意触动光纤激光器任何部件。
比如光纤准直器。
在靠近激光的位置会从不同的角度发散出激光, 这些激光会从不同的镜面物体反射, 反射的激光强度都会对人的眼睛和皮肤造成一定的伤害。
激光对人的皮肤, 服装都会造成很大的伤害, 激光能够引燃比如酒精, 汽油之类的溶剂, 激光能够进行切割和焊接, 在安装和使用设备的时候请谨慎使用一些易燃的材料和气体。
版本：V0连续光纤激光器使用说明书1000W武汉锐科光纤激光器技术有限责任公司WuHan Raycus Fiber Laser Technologies CO., LTD安全信息在使用该产品之前，请先阅读和了解这份用户手册并熟悉我们为您提供的信息。
这份用户手册提供了重要的产品操作，安全以及其他信息给您以及所有将来的用户作参考。
为了确保操作安全和产品的最佳性能，请遵循以下注意和警告事项以及该手册的其他信息去操作。
●连续光纤激光器是IV级的激光产品。
在接入交流电源前，要确保连接是正确的三相380VAC的电源，错误连接电源，将会损坏激光器。
●请确保使用带有可靠接地以及过流保护装置的交流电源。
使用时务必保证激光器的可靠接地，以避免可能产生的人身伤害。
●该激光器在1080nm波长范围内发出超过1000瓦的激光辐射。
避免眼睛和皮肤接触到光输出端直接发出或散射出来的辐射。
●不要打开激光器，因为没有可供用户使用的产品零件或配件。
所有保养或维修只能在锐科公司内进行。
●在操作该机器时要确保全程配戴激光安全防护眼镜。
即使佩戴了激光安全防护眼镜，也严禁直接观看输出头。
安全标识及位置上面二个安全标识符号表示有激光辐射，我们把这符号标在产品光纤盒体盖顶上。
目录1. 产品描述 (1)1.1. 产品描述 (1)1.2 实际配置清单 (1)1.3 使用环境要求及注意事项 (1)1.4 性能参数 (2)2. 安装 (2)2.1 安装尺寸图 (2)2.2 安装方法 (4)2.3 冷却系统要求 (4)3. 控制接口与操作 (5)3.1串口操作-超级终端 (8)3.2外部RS232控制 (15)3.3外部模拟量控制 (16)4. 质保及返修、退货流程 (17)4.1一般保修 (17)4.2保修的限定性 (17)4.3服务和维修 (17)版本：V0 1.产品描述1.1. 产品描述光纤激光器相对于传统的激光器，能够使每瓦的泵浦光转换效率提高10倍以上，低能量消耗的自动设计，适合实验室或室外操作。

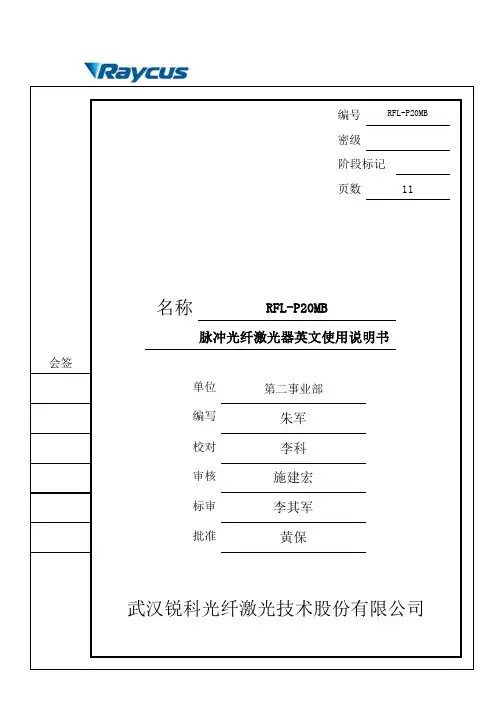

User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0Ytterbium Pulsed Fiber LaserUser’s GuideRFL-P20MBWuhan Raycus Fiber Laser Technologies Co., Ltd.,2018Proprietary information. All rights reservedIssued 19 October 2018User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0Safety InformationPlease read this instruction carefully and familiarize yourself with the information we have provided before you use the product. In this brochure, important operation procedures, safety and other information are provided for you and all future users. In order to ensure operating safely and optimal performance of the product, please do according to following warnings, cautions and other information.Raycus pulsed fiber laser is classified as a high power Class IV laser device. Before supplying the power to the device, please make sure that the correct voltage of 24VDC power source is connected and the anode and cathode are right. Failure to connect power source correctly will cause damage to the device.The device emits invisible 1060~1085nm wavelength light with average power 20W. Do not expose your eyes or skin to the radiation of the laser.Do not take apart the device, because there are no replaceable accessories available for users to use. Any maintenance can only be proceeded in Raycus.Do not look into the light output end directly. Use appropriate laser safety eyewear when operating the device.Safety labels and locationsThe two labels above is located on the top of the cover of the device, representing laser radicalization.User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0Content1. Description (1)1.1. Product description (1)1.2. Actual configuration list (1)1.3. Environmental requirements and cautions (1)1.4. Specifications (2)2. Mounting (3)2.1 Mounting dimensions (3)2.2 Method of installation (4)3. Control Interface (5)4. Operation Regulations (9)4.1 Pre-inspection (9)4.2 Operation procedures (9)4.3 Cautions (10)5. Instructions for warranty, return and maintenance (10)5.1 General warranty (10)5.2 Limitations of warranty (10)5.3 Service and repairs (11)User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0 1. Description1.1. Product descriptionRaycus pulsed laser is an ideal high power laser source with high speed and high efficiency. It is specially designed for industrial laser making system and other applications.Compared with traditional lasers, pulsed laser has some unique advantages in increasing the conversion efficiency of the pump light 10 times higher. Its low power consumption and automotive design make it appropriate for operating both in and outside the lab. Besides, it is exquisite and convenient for its independence in placement, free time in using and facility in connecting to equipment directly.The device can emit 1060~1085nm wavelength pulsed light under the control of industrial laser’s standard interface driven by 24VDC power source.1.2. Actual configuration listTable 1. Configuration list1.3. Environmental requirements and cautionsPulsed laser should be driven by 24VDC±1V power source.1)Caution: Make sure the corresponding wires of the device are properly grounded.2)All the maintenance to the device should only be done by Raycus, because there is noreplacement or accessory provided with the device. Please do not try to damage the labels or open the cover in order to prevent against electric shock, or the warranty will be invalid.3)The output head of the product is connected with an optical cable. Please be careful handlingthe output head. Avoid dirt and any other contaminations. Please use the specialized lens paper when cleaning the lens. Please lid the laser with protective cover of the light isolator to be against dirt only when the laser is not installed in the device or not in working.4)If the operating the device fails to follow this instruction, the protective function will beweakened. Therefore, it should be used under normal conditions.5)Do not install the collimating device into the output head when the laser device is in working.1 / 11User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.06)The device has three cooling fans at the rear panel to dissipate heat. In order to guaranteeenough airflow to help giving heat off, there must be a space of at least 10 cm’s width for airflow in front and rear side of the device. As the cooling fans are working at blow condition, if laser is mounted in a cabinet with fans, the directio n should be same as laser’s fans.7)Do not look into the output head of the device directly. Please do wear appropriate lasersafety eyewear during the time when operating the device.8)Make sure the pulse repetition rate higher than 10 kHz.9)For the longest time without pulse is only 100 us. If there is no pulse output, please stopmarking at once, to avoid further damage of the device.10)Power source sudden interruption will do great harm to the laser device. Please make surethe power supply works continuously.1.4.SpecificationsTable 2. 20MB pulsed fiber laser specificationsUser’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.02. Mounting2.1Mounting dimensions1) Fiber Laser module dimensions (As shown in Fig. 1).Figure 1. Dimension drawing of laser module (Unit: mm).2) Isolated output isolator (As shown in Fig. 2).Figure 2. Dimension drawing of output isolator (Unit: mm).3 / 11User ’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.02.2Method of installation1) Fix the module stable to the bracket and keep the laser in good ventilation.2) Connect the power line to 24VDC power and ensure enough DC output power. Keep it clearto the polarity of the electric current: anode-brown; cathode-blue; PE-yellow and green. The definition figure is shown in Fig. 3.24V+24V —Figure 3. Definition of power line wires3) Make sure that the interface of the external controller matches the laser and the control cableis well connected to the laser’s interface. The recommended electrical connection is shown in Fig. 4.Figure 4. Schematic of recommended electrical connection4) The bending radius of the delivery fiber should not exceed 15 cm.4 / 11GND3. Control InterfaceThere are DB9 and DB25 interfaces at the rear of the laser. The DB9 is a RS232 interface only used for debugging, no needs to connect. And DB25 is the joint interface connecting control system to the laser system, please make sure the connection is reliable before operation. Feet of the DB25 are defined as follows in Fig. 5.Figure 5. Connect port of controllerTable 3 Definition of connect ports of controller5 / 111)The pump current of diode laser and the laser output power are controlled by setting the valueof PIN1-PIN8 (TTL level). PIN1-PIN8 can be set from 0～255，corresponding to the laser output power from 0～100％(the actual laser power may not be strictly linear with the setting value). The relationship between PIN value and output power is shown in Table 4:Table 4 Definition of power control pins.2)PIN 10 and PIN 14 are all digital GND.3)PIN 17 receives external 5V DC voltage to provide power supply for alarm signal.4)PIN 18 is the start signal of the MO. PIN19 is the input for the optical output signal. Theelectrical level for both PIN18 and PIN19 are 5V. Before turning on PIN 19, MO signal must be switched ON, in other word, the signal of PIN 18 must be ahead of PIN 19 at least 5 ms, and otherwise the laser machine may be damaged.5)PIN 20 provides control of the frequency. The frequency range should be 10 kHz~1000kHz, depends on the varying power levels of different laser machines.ATTENTION: The frequency signal must be ahead of the EM signal at least 5 ms,otherwise the laser machine may be damaged.Below figure shows DB25 sequence diagram:6 / 11User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0Figure 6 DB25 sequence diagramT1：Represent the initialization time of the laser machine. The initialization time is less than10s from power-on to perform initialization.T2：Represent the pump recharge time, usually around 5ms.T3：Represent the frequency switching time. Frequency needs to be adjusted before optical laser output, and the switching time should not less than 5ms.T4：Represent the pulse build-up time. Usually the build-up time is less than 200 us from the pump current raising up to reach the 90% power of the optical pulse.T5：Represent the pulse shut down time. Usually the shut down time is less than 100 us from the pump current decliner to drop to the 10% power of the optical pulse.6)Definition of alarm signalTable 5 Definition of warning signalPS 1：PIN 17 receives external DC voltage to provide power supply for alarm signal. Therefore, please make sure PIN17 is connected to the +5V power supply. The temperature warning will7 / 11User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0remain if the power or DB25 port is not well connected.PS 2: If the voltage or current states of the laser are abnormal, the alarm might present “POWER ERR” due to using different marking card (for example: Beijing JCZ Technology Co. marking card,).PS 3: If the laser output system is abnormal, the alarm might present “SYSTEM ERR”due to using different marking card (for example: Beijing JCZ Technology Co. marking card,). 7）Introduction of laser pulse duration controlPIN2, 3, and 22 on DB25 port not only used for the foundation control of the laser machine, but also achieves the pulse duration control as the extender.Table 6 Laser duration control signala)Marking machine send the command to the laser machine by the PIN2 on the DB25 port, meanwhile send the clock signal to the PIN3. The comment is the binary form, and delivers the most significant bit as the priority.b)The order structure from marking machine to the laser machine is: 0xA5+instruction code.c)0xA5（A5h）is the comment byte to active the laser pulse duration control port. 0xA5 and the following data will be directly sent as the serial input form to the PIN2 on the DB25 port.d)The input data length is 4 bytes: the first byte of instruction code should be 0x01（01h）, the second byte and the third byte are the value of the binary coding of laser duration (for example: 200 is the decimal number of 0x00C8, represents the setting pulse duration is 200ns).e)PIN22 is the Enable signal. The Enable should achieve high state at least 10us before PIN2 and PIN3 changing. The Enable should achieve low state at least 10us after PIN2 and PIN3 changing. Figure 7 shows the adjustment process of laser duration control.f)PIN19 should decrease to low state before adjusting laser pulse duration.8 / 11User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0Figure 7 Schematic of laser pulse duration adjustment（200ns）For example, if using Beijing JCZ Technology Co. marking card to adjust laser pulse duration, the setting processes are described as follows:a)Make sure the power supply, DB25 cable, control card and computer are correctly connected, and then turn on the 24V power supply.b)Open Ezcad2.7.6 (or other version), then click ‘F3’, the configuration parameter should s how up, select ‘Fiber’ in category of the ‘Laser Control’ panel, follow that select ‘IPG_YLPM’, and then close this window.c)Pulse duration can be modified by the ‘Duration’ on the right side of the window. If the setting duration is smaller than the limiting minimum value, the duration of output laser will be 2ns (minimum). If the setting duration is larger than the limiting maximum value, the duration of output laser will be 200ns (maximum). If the setting duration within the range, the duration of output laser will tend to the smaller side.4. Operation Regulations4.1 Pre-inspection1)Make sure the device appearance is in good condition and the output fiber is neitherexcessively bended nor broken.2)Make sure signal line of laser and marking system are properly connected.4.2 Operation procedures1)Starting procedures9 / 11User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0Please make sure the control system is on before you turn on the fiber laser. Only after at least 1 minute since the power turned on, the subsequent operations can be proceeded.2)Frequency set introductionsThe frequency setting range is from 10 kHz to 1000 kHz.3)Laser marking checkingFor the device initial testing, first turn the power down to zero without turning on the marking system after the device is successfully started. Then draw a quadrate, marking continuously while slowly increasing the power from 0% to 100% at the same time. Meanwhile, use a ceramic material to observe the laser and the laser should become stronger, otherwise shut down the device and check. If operating normally, the marking system can be used in common order afterwards.4.3 Cautions1)Marking frequency must be in the range of 10 kHz to 1000 kHz.2)It should not modify the frequency while marking.3)Stop marking first before shutting down the device, then turn the power down to zero and cutthe power off.5. Instructions for warranty, return and maintenance5.1 General warrantyAll products are warranted by Raycus against defects and problems in materials and workmanship during the warranty period according to the purchase order or specifications and we guarantee the product will accord with the specification under normal use.Raycus has the right to choose to repair or replace any product that proves to be defective in materials and workmanship selectively during the warranty period. Only products with particular defects are under warranty. Raycus reserves the right to issue a credit note for any defective products produced in normal conditions.5.2 Limitations of warrantyThe warranty does not cover the maintenance or reimbursement of our product of which the problem results from tampering, disassembling, misuse, accident, modification, unsuitable physical or operating environment, improper maintenance, damages due to excessive use or not10 / 11User’s guide Ytterbium Pulsed Fiber Laser RFL-P20MB Ver.: 2.0following the instructions caused by those who are not from Raycus. Customer has the responsibility to understand and follow this instruction to use the device. Any damage caused by fault operating is not warranted. Accessories and fiber connectors are excluded in this warranty.According to the warranty, client should write to us within 31 days since the defect is discovered. This warranty does not involve any other party, including specified buyer, end-user or customer and any parts, equipment or other products produced by other companies.5.3 Service and repairsRaycus is responsible for all the maintenance, for there is no accessory available inside for users to use. Please contact Raycus as soon as possible when problems under warranty about maintenance happen to the product. The product returned with permission should be placed in a suitable container. If any damage happens to the product, please notify the carrier in document immediately.All the items about warranty and service above provided by Raycus are only for reference; formal contents about warranty and service are subject to the contract.Wuhan Raycus Fiber Laser Technologies Co. Ltd.All Rights Recerved.11 / 11。

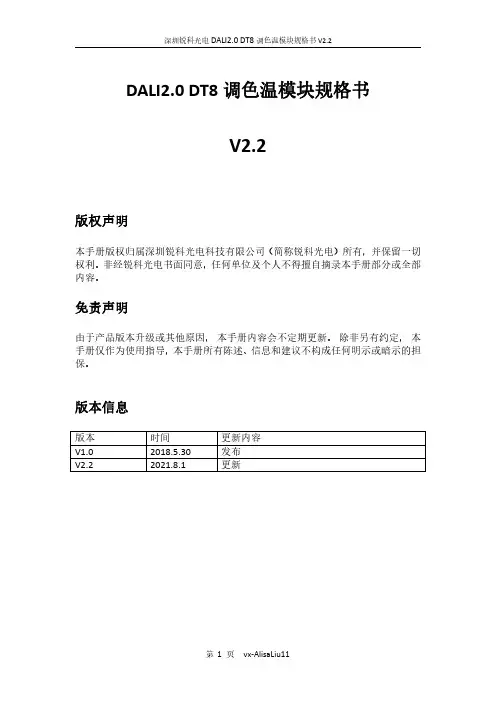

DALI2.0DT8调色温模块规格书V2.2版权声明本手册版权归属深圳锐科光电科技有限公司（简称锐科光电）所有，并保留一切权利。
非经锐科光电书面同意，任何单位及个人不得擅自摘录本手册部分或全部内容。
免责声明由于产品版本升级或其他原因，本手册内容会不定期更新。
除非另有约定，本手册仅作为使用指导，本手册所有陈述、信息和建议不构成任何明示或暗示的担保。
版本信息版本时间更新内容V1.02018.5.30发布V2.22021.8.1更新一、产品概述本公司的DALI2.0色温模块，符合IEC62386-101:2018Ed2.0、IEC62386-102:2018 Ed2.0、IEC62386-207:2018Ed2.0（DT6）和IEC62386-209:2011Ed1.0（色温）标准协议，同时支持DT6（LED模块）和DT8（颜色控制-色温）协议。
采用了原装进口瑞萨单片机芯片，完美兼容TRIDONIC（锐高）、OSRAM（欧司朗）、PHILIPS（飞利浦）等国际知名品牌的DALI控制系统。
本DALI模块把国际标准DALI协议信号转换成PWM信号，应用于LED两路色温开关电源上，实现DALI系统控制方式。
两路PWM互补输出，任何色温输出的最大功率与单路最大输出功率一致，默认物理色温范围为2700K-6500K，物理色温范围可更改，调光范围为1%~100%。
具备Push DIM、高压防误接、故障检测等功能。
二、模块图示图1DALI2.0色温模块RK-DALIT8-V3正面图2DALI2.0色温模块RK-DALIT8-V3反面图3DALI2.0色温模块RK-DALIT8-V3尺寸图板尺寸：37.5mm X17.5mm X1.2mm三、引脚说明引脚标识说明电气参数PIN1DA DALI接口引脚11.5V~22.5VPIN2DA DALI接口引脚11.5V~22.5VPIN3GND电源输入地引脚GNDPIN4ERC冷色温错误检测输入引脚低电平(小于0.7V)表示电源冷光正常（不开路不短路）；高电平（3.6V-5V）表示冷光灯故障（开路或者短路）。
RFL-P20Q脉冲光纤激光器使用说明书武汉锐科光纤激光技术股份有限公司Wuhan Raycus Fiber Laser Technologies CO., LTD.安全信息在使用该产品之前，请先阅读和了解这份用户手册并熟悉我们为您提供的信息。
这份用户手册提供了重要的产品操作，安全以及其他信息给您以及所有将来的用户作参考。
为了确保操作安全和产品的最佳性能，请遵循以下注意和警告事项以及该手册的其他信息去操作。
a)锐科公司脉冲光纤激光器是IV级的激光产品。
在打开24VDC电源前，要确保连接是正确的24VDC的电源并确认正负极，错误连接电源，将会损坏激光器。
b)该激光器在1060~1085nm波长范围内发出超过20 W的激光辐射。
避免眼睛和皮肤接触到光输出端直接发出或散射出来的辐射。
c)不要打开机器，因为没有可供用户使用的产品零件或配件。
所有保养或维修只能在锐科公司内进行。
d)不要直接观看输出头，在操作该机器时要确保长期配戴激光安全眼镜。
安全标识及位置上面二个安全标识符号表示有激光辐射，我们把这符号标在产品光纤盒体盖顶上。
目录1．产品描述 (1)1.1. 产品描述 (1)1.2. 实际配置清单 (1)1.3. 使用环境要求及注意事项 (1)1.4. 技术参数 (2)2. 安装 (3)2.1. 安装尺寸图 (3)2.2. 安装方法 (4)3. 控制接口 (5)4. 操作程序 (7)4.1. 前期检查工作 (7)4.2. 操作步骤 (7)4.3. 打标过程中应注意的事项 (7)5. 质保及返修、退货流程 (8)5.1. 一般保修 (8)5.2. 保修的限定性 (8)5.3. 服务和维修 (8)武汉锐科光纤激光技术股份有限公司P20-30QS脉冲光纤激光器使用手册1.产品描述1.1.产品描述锐科脉冲激光器是为高速和高效的激光打标系统而专门发展的。
为工业激光打标机和其它应用提供了一款理想的高功率激光能量源。
脉冲激光器相对于传统的激光器，能够对每瓦的泵浦光转换效率提高10倍以上，低能量消耗的自动设计，适合实验室或室外操作。
