超声测距系统设计外文资料翻译

摘要：超声测距系统技校在工业场车辆导航水声工程等领域都具有了广泛的应用价值，目前已应用于物理测量，机器人自动导航以及空气中与水下的目标探测、识别定位等场合，因此，深入研究超声的探测理论和方法具有重要的实践意义，为了进一步提高测量的精确度，满足工程人员对测量精度测距量程和测距仪使用的要求，本文研制了一套基于单片机的使拱式超声测距系统。

关键词：超声波测距仪单片机1、前言随着科技的发展，人们生活水平的提高，城市发展建设加快，城市给排水系统也有较大发展，其状况不断改善，但是，由于历史原因合成时间性的许多不可预见因素，城市给排水系统，特别是排水系统往往落后于城市建设，因此，经常出现开挖已经建设好的建筑设施来改造排水系统的现象。

城市污水给人们带来的困扰，因此箱的排污疏通对大城市给排水系统污水理，人们生活舒适显得非常重要。

而设计研制箱涵排水疏通移动机器人的自动控制系统，保证机器人在箱涵中自由排污疏通，是箱涵排水系统疏通机器人的设计研制的核心部分，控制系统核心部分就是超声波测仪的研制。

因此，设计好的超声波测距仪就显得非常重要了。

1.1课题背景随着经济的发展与汽车科学技术的进步，公路交通呈现出行驶高速化、车流密集化和驾驶员非职业化的趋势。

同时，随着汽车工业的飞速发展，汽车的产量和保有量都在急剧增加。

但公路发展、交通管理却相对落后，导致了交通事故与日剧增，城市里尤其突出。

智能交通系统ITS是目前世界上交通运输科学技术的前沿技术，它在充分发挥现有基础设施的潜力，提高运输效率，保障交通安全，缓解交通赌塞，改善城市环境等方面的卓越效能，已得到各国政府的广泛关注。

中国政府也高度重视智能交通系统的研究开发与推广应用。

汽车防撞系统作为ITS 发展的一个基础，它的成功与否对整个系统有着很大的作用。

从传统上说，汽车的安全可以分为两个主要研究方向:一是主动式安全技术，即防止事故的发生，该种方式是目前汽车安全研究的最终目的;二是被动式安全技术，即事故发生后的乘员保护。

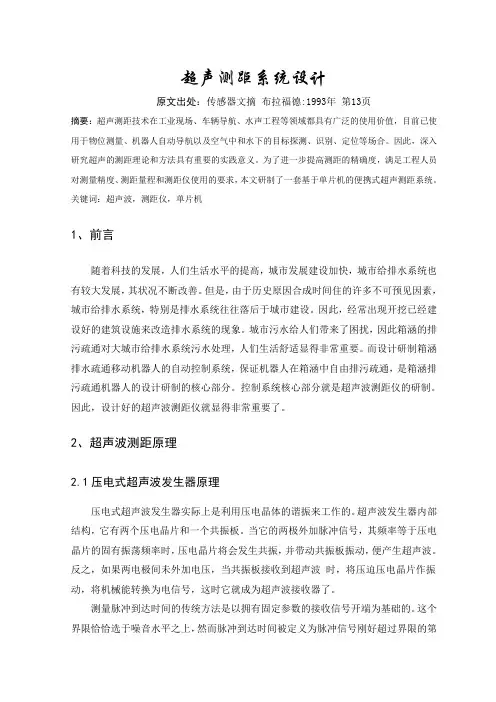

超声测距系统设计原文出处：传感器文摘布拉福德:1993年第13页摘要：超声测距技术在工业现场、车辆导航、水声工程等领域都具有广泛的使用价值，目前已使用于物位测量、机器人自动导航以及空气中和水下的目标探测、识别、定位等场合。

因此，深入研究超声的测距理论和方法具有重要的实践意义。

为了进一步提高测距的精确度，满足工程人员对测量精度、测距量程和测距仪使用的要求，本文研制了一套基于单片机的便携式超声测距系统。

关键词：超声波，测距仪，单片机1、前言随着科技的发展，人们生活水平的提高，城市发展建设加快，城市给排水系统也有较大发展，其状况不断改善。

但是，由于历史原因合成时间住的许多不可预见因素，城市给排水系统，特别是排水系统往往落后于城市建设。

因此，经常出现开挖已经建设好的建筑设施来改造排水系统的现象。

城市污水给人们带来了困扰，因此箱涵的排污疏通对大城市给排水系统污水处理，人们生活舒适显得非常重要。

而设计研制箱涵排水疏通移动机器人的自动控制系统，保证机器人在箱涵中自由排污疏通，是箱涵排污疏通机器人的设计研制的核心部分。

控制系统核心部分就是超声波测距仪的研制。

因此，设计好的超声波测距仪就显得非常重要了。

2、超声波测距原理2.1压电式超声波发生器原理压电式超声波发生器实际上是利用压电晶体的谐振来工作的。

超声波发生器内部结构，它有两个压电晶片和一个共振板。

当它的两极外加脉冲信号，其频率等于压电晶片的固有振荡频率时，压电晶片将会发生共振，并带动共振板振动，便产生超声波。

反之，如果两电极间未外加电压，当共振板接收到超声波时，将压迫压电晶片作振动，将机械能转换为电信号，这时它就成为超声波接收器了。

测量脉冲到达时间的传统方法是以拥有固定参数的接收信号开端为基础的。

这个界限恰恰选于噪音水平之上，然而脉冲到达时间被定义为脉冲信号刚好超过界限的第一时刻。

一个物体的脉冲强度很大程度上取决于这个物体的自然属性尺寸还有它和传感器的距离。

毕业设计(论文)外文资料翻译系（院）：电子与电气工程学院专业：电气工程及其自动化姓名：学号：外文出处：United States Patent 5442592(用外文写)附件： 1.外文资料翻译译文；2.外文原文。

指导教师评语：签名：（手写签名）年月日注：请将该封面与附件装订成册。

外文资料翻译译文超声波测距仪文件类型和数目：美国专利5442592摘要：提出了一种可以抵消温度的影响和湿度的变化的新型超声波测距仪，包括测量单元和参考资料。

在每一个单位，重复的一系列脉冲的产生，每有一个重复率，直接关系到各自之间的距离，发射机和接收机。

该脉冲序列提供给各自的计数器，计数器的产出的比率，是用来确定被测量的距离。

出版日期：1995年8月15日主审查员：罗保.伊恩j.一、背景发明本发明涉及到仪器的测量距离，最主要的是，这种仪器，其中两点之间传输超声波。

精密机床必须校准。

在过去，这已经利用机械设备来完成，如卡钳，微米尺等。

不过，使用这种装置并不利于本身的自动化技术发展。

据了解，两点之间的距离可以通过测量两点之间的行波传播时间的决定。

这样的一个波浪型是一种超声波，或声波。

当超声波在两点之间通过时，两点之间的距离可以由波的速度乘以测量得到的在分离的两点中波中转的时间。

因此，本发明提供仪器利用超声波来精确测量两点之间的距离对象。

当任意两点之间的介质是空气时，声音的速度取决于温度和空气的相对湿度。

因此，它是进一步的研究对象，本次的发明，提供的是独立于温度和湿度的变化的新型仪器。

二、综述发明这项距离测量仪器发明是根据上述的一些条件和额外的一些基础原则完成的，其中包括一个参考单位和测量单位。

参考和测量单位是相同的，每个包括一个超声波发射机和一个接收机。

间隔发射器和接收器的参考值是一个固定的参考距离，而间距之间的发射机和接收机的测量单位是有最小距离来衡量的。

在每一个单位，发射器和接收器耦合的一个反馈回路，它会导致发射器产生超声脉冲，这是由接收器和接收到一个电脉冲然后被反馈到发射机转换，从而使重复系列脉冲的结果。
