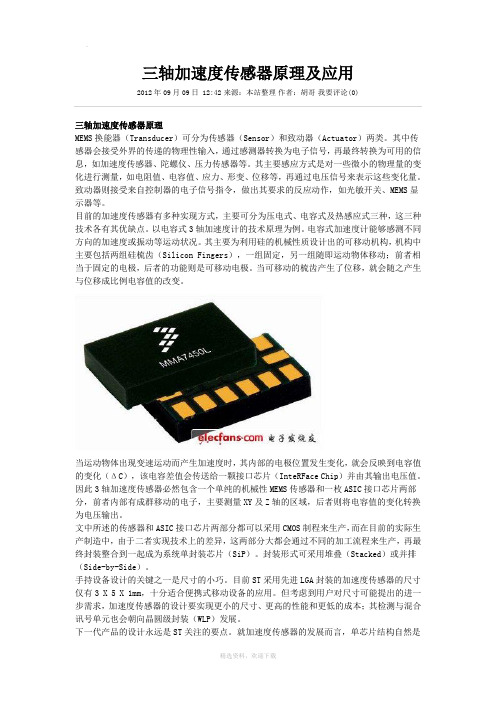

三轴加速度传感器原理及应用2012年09月09日 12:42来源：本站整理作者：胡哥我要评论(0)三轴加速度传感器原理MEMS换能器（Transducer）可分为传感器（Sensor）和致动器（Actuator）两类。
其中传感器会接受外界的传递的物理性输入，通过感测器转换为电子信号，再最终转换为可用的信息，如加速度传感器、陀螺仪、压力传感器等。
其主要感应方式是对一些微小的物理量的变化进行测量，如电阻值、电容值、应力、形变、位移等，再通过电压信号来表示这些变化量。
致动器则接受来自控制器的电子信号指令，做出其要求的反应动作，如光敏开关、MEMS显示器等。
目前的加速度传感器有多种实现方式，主要可分为压电式、电容式及热感应式三种，这三种技术各有其优缺点。
以电容式3轴加速度计的技术原理为例。
电容式加速度计能够感测不同方向的加速度或振动等运动状况。
其主要为利用硅的机械性质设计出的可移动机构，机构中主要包括两组硅梳齿（Silicon Fingers），一组固定，另一组随即运动物体移动；前者相当于固定的电极，后者的功能则是可移动电极。
当可移动的梳齿产生了位移，就会随之产生与位移成比例电容值的改变。
当运动物体出现变速运动而产生加速度时，其内部的电极位置发生变化，就会反映到电容值的变化（ΔC），该电容差值会传送给一颗接口芯片（InteRFace Chip）并由其输出电压值。
因此3轴加速度传感器必然包含一个单纯的机械性MEMS传感器和一枚ASIC接口芯片两部分，前者内部有成群移动的电子，主要测量XY及Z轴的区域，后者则将电容值的变化转换为电压输出。
文中所述的传感器和ASIC接口芯片两部分都可以采用CMOS制程来生产，而在目前的实际生产制造中，由于二者实现技术上的差异，这两部分大都会通过不同的加工流程来生产，再最终封装整合到一起成为系统单封装芯片（SiP）。
封装形式可采用堆叠（Stacked）或并排（Side-by-Side）。
