Commercial generator set Quiet Gasoline TM SeriesQG 7000Features and benefits Weight, size and sound level∙Integrated hydraulic pump option (pictured)∙Quietest and lowest vibration generator set in Its class∙Integrated housing design∙Enclosed muffler for ease of installation∙Self-diagnostic capability to simplify troubleshooting ∙Runs two ACs with power to spare∙Digital regulation for voltage stability as loads change∙2-year limited warranty, 5-year drive warranty Weight: 290 lb (132 kg)Size: Length 33.6 in (853 mm), width 22.2 in (563 mm), height 16.7 in (425 mm)Sound: 70 dB(A) at 10 ft (3 m), typical installation, full loadModels and ratingsModel Fuel Hz Watts VoltageAmps PF PhaseCircuitbreaker 7 HGJAE-2132 Gasoline 60 7000 120 58.3 1.0 1 2 pole, 30 A7 HGJAE-2556# Gasoline 60 7000 120/240 29.2 1.0 1 2 pole, 30 A7 HGJAE-1912 Gasoline 60 7000 120/240 29.2 1.0 1 2 pole, 30 A7 HGJAE-6758♦Gasoline 60 7000 120/240 29.2 1.0 1 2 pole, 30 A7 HGJAE-2137 Gasoline 60 7000 120/240 16.8 1.0 3 3 pole, 18 A6.5 HGJAE-2145 LP vapor 60 6500 120/240 27.1 1.0 1 2 pole, 30 A6.5 HGJAE-3554 LP vapor 60 6500 120 54.0 1.0 1 2 pole, 30 A- All 60 Hz models operate at 2880 r/min.- Ratings apply up to 3000 ft (914 m) altitude, 85° F (29.4° C).- Derating: Power output will decrease 3.5% for each 1000 ft (305 m) above 3000 ft (914 m), temperature derate not required for ambient** temperatures under 120° F (49.2° C).- Ratings are at intermittent power output. Continuous ratings are 90% of intermittent.# Splined shaft.** Ambient is defined as the air temperature measured at the cooling air inlet to the set.♦ Evaporative spec: For trailer applications required to meet Tier III Evaporative emissions of the California Air Resources board.Effective January 1, 2011, gasoline generator sets on trailers, diesel chassis or any other non-motorized mobile apparatus must have an EVAP generator set, approved tank, EVAP canister, hoses and fittings all meeting the CARB Tier 3 and EPA phase 3 standards andspecifications. This law applies in all 50 states.Cummins®, Onan®, the "C" logo, Performance you rely on.TM and Quiet Gasoline TM areCummins ®, Onan ®, the "C" logo, Performance you rely on.TM and Quiet Gasoline TM are Standard featuresEngine details∙ Mechanical governor adjustable from service side ∙ Cummins Onan OHV engine∙ Pressurized Thru Flow cooling system∙ 4-point mounting system with coil spring vibration isolators∙Universal mounting tray with structural capability to support the generator set in commercial mobile applications∙ Integral USDA Forest Service-approved spark-arrestor muffler∙ Integral control box∙ Instant one-touch stop switch ∙ Electronic ignition∙ Self diagnostic capability ∙ Hour meter∙ Battery charging - 5 A∙ Remote disable/continuous stop∙ Start and run without AC output - engine run only∙ Enclosed muffler provides noise reduction and ease of installation∙ Sound-attenuated housing ∙ Waterproof remote connector ∙ Heavy-duty solenoid shift starter ∙ Fuel filter∙ Spin-on, full-flow oil filter ∙ Low oil pressure protection ∙ Over/under speed protection∙ Low power factor field overcurrent protection ∙ Digital voltage regulation∙ Hydraulic pump standard on some models ∙10 ft generator set output leadTypical fuel consumptionModel: Cummins Onan OHV EH65V gasoline engine Design: 4-cycle, OHV, 90-degree V-twin Cylinders: 2 Bore: 80 mm Stroke: 65 mmDisplacement: 39.8 in 3 (653 cm 3) Compression ratio: 8:1Oil capacity: 2.0 qt (1.9 L) including filterPower (max): At 2880 r/min: - Gasoline-fueled models: 14.0 hp - LP-fueled models: 11.6 hpCooling: Centrifugal blower, generator set mounted for high effectiveness, pressurized system, vertical flowCooling air volume: 60 Hz: 500 ft 3/min (14.2 m 3/min) at 2880 r/min. Air flow includes engine, generator set and control cooling air flow Fuel system:Replaceable dry element air cleaner - Gasoline - sidedraft carburetorElectronic fuel pump with positive fuel shutoff (3 psi), maximum fuel lift 3 ft (0.9 m), Automatic choke with vacuum pull-offCombustion air volume: 60 Hz: 18.9 ft 3/min (0.53 m 3/min) at 2880 r/min- LPG - sidedraft mixer with demand regulator Combustion air volume: 60 Hz: 18.3 ft 3/min (0.51 m 3/min) at 2880 r/minStarting system: Remote, 12 V, negative ground; automotive type starter with steel pinion and ring gear, automatic start disconnect, connector for remote start cable, start-stop rocker switch mounted on set control Ignition system: Electronic magneto type with resistor plugsLubrication: Full pressure positive displacement lube oil pump, spin-on, full-flow lube oil filter, low oil pressure shutdown, dipstickCylinder crankcase: Alloy aluminum with iron cylinder liners cast into the block, aluminum oil base Cylinder head: Aluminum, OHV, removableGasoline, Gal/hr (L/hr) No load Halfload Full load 7.0 HGJAE0.42 (1.6) 0.73 (2.8) 1.22 (4.6) LP vapor, Gal/hr (L/hr)6.5 HGJAE0.52 (1.95)0.90 (3.4)1.5 (5.9)Alternator detailsDesign: Cummins Onan, revolving field, AC, 2-pole self-excited, two bearing designInsulation system and temperature rise : Meets requirements of NEMA MG-1 and CSA C22.2, Std. 100 Motors and GeneratorsCooling: Direct drive centrifugal blower, cast aluminum housing for excellent heat transferRotor: Laminated electrical steel assembly press-fitted to shaft, balanced; heavy insulated copper wire windings; optimized air gap for improved waveform and motor starting; Class 200 magnet wireStator: Laminated electrical steel assembly, skewed for improved waveform; Class 200 quadrature wire with 70%more insulation over comparable generator sets Excitation: Capped, digital voltage regulation DC brushes: Electrographic; long lifeBearing: Double-sealed pre-lubricated ball bearingsGenerator set detailsHydraulic pump- Fixed displacement gear pump, 1.8 Gal/min at 2500 psi - Hydraulic pump is rated with the pump idle- When using a non-Cummins Onan pump supplied by the customer, the hydraulic pump shaft seals must be capable of operating in a temperature environment of 225° F to 250° F. Seal failure will result in equipment damageFrequency regulation No load/Full load 5.0% Frequency regulation Constant load 1.7% Voltage regulationNo load/Full load2.0%Voltage regulationConstant load1.7%Cummins ®, Onan ®, the "C" logo, Performance you rely on.TM and Quiet Gasoline TM are Basic dimensionsDimensions: in (mm)Note: This outline drawing is provided for general reference only and is not intended for design or installation. For more information see Operation and Installation manuals or obtain drawing 500-3449 and wiring diagram from your distributor/dealer.Options and accessories∙ Remote control start/stop rocker switch (P/N 300-5331)∙ Remote control with start/stop switch and hour meter (P/N 300-5332)∙ Remote control with start/stop switch and DC voltmeter (P/N 300-5333)∙ Remote control plug and wire harness 10 ft (P/N 338-3489-01), 30 ft (P/N 338-3489-02) ∙Remote harness (P/N 300-4946) pigtail harness to connect to sealed remote connector∙ LPG vapor fuel conversion kit (P/N 148-1161) ∙ Under floor mounting kit (P/N 405-6699) ∙ Installation template (P/N 539-2057)∙Tailpipe kit 22 in (P/N 155-3481-01), 26 in (P/N 155-3481-02)∙ Exhaust tube, straight with flanged end 3 in (P/N 155-2610), 7 in (P/N 155-2424), 12.5 in (P/N 155-2610-01)∙ Exhaust elbow, tight radius 90° to route exhaust through cutouts (P/N 155-3439)Cummins ®, Onan ®, the "C" logo, Performance you rely on.TM and Quiet Gasoline TM are Standards and testingAfter sale support- Tested at extremes of temperature -20°F to 120°F forstarting and operation - Tested installed- Tested with commercial loads - Tested in high humidity conditions - Tested in salt spray conditions- Tested in heavy air borne dust conditions - Field test program- 60 Hz models meet applicable U.S. EPA and California emissions standards- This generator set was designed and manufactured in facilities certified to ISO 9001- CSA certified for CSA C22.2 Std 100 and Std 14Warranty policyThe Cummins Onan limited warranty covers virtually everything except routine maintenance for the first two years that you own your generator set, or the first 2,000 hours of operation, whichever comes first. In addition, it includes a free 90-day adjustment policy, which provides that Cummins Inc. will make minor adjustments to your new generator set during the first three months you own it - free of charge!Largest distributor/dealer support network Cummins Onan generator sets are supported by the largest and best trained worldwide certifieddistributor/dealer network in the industry. This network of knowledgeable Cummins Onan distributor/dealers will help you select and install the right generator set and accessories to meet the requirements of your specificapplication. This same network offers a complete selection of commonly used generator set maintenance parts,accessories and products plus manuals and specification sheets. Plus, they can answer your questions regarding proper operation, maintenance schedules and more.Manuals: Operation and installation manuals ship with the generator set. To obtain additional copies or other manuals for this model, see your Cummins Onan distributor/dealer and request the following manualnumbers: Operation (A035D007), Installation (A035D003), Parts (983-0202 I10), Service (A035D011).To easily locate the nearest Cummins Onandistributor/dealer in your area, or for more information, contact us at 1-800-888-6626 (or 763-574-5000), or visit .Contact your distributor/dealer for more informationCummins Power Generation 1400 73rd Ave. NEMinneapolis, MN 55432 USA Phone 1 763 574 5000 Toll-free 1 800 888 6626 Fax 1 763 574 5298Email /contact Back feed to a utility system can cause electrocution and/or property damage. Do not connect to any building electrical except through an approved device or after building main breaker is open.WARNING:!Do not use this generator set on a boat. Such use may violate U.S. Coast Guard regulations, and can result in severe personal injury or death from fire, explosion, electrocution, or carbon monoxide poisoning.WARNING:!。

液压发电机——在任何工作现场为您的机器提供持续电能－自动控制电压和频率：功率大，体积小，重量轻－提供可靠持久的电力输出－电压可选110V 、220V 、400V 等，频率为50/60Hz ，功率可达70kV A－全转速液压发电机：在原动机(柴油发动机)从空转到全速所有过程中产生稳定的电能液压电焊机——世界上最小最轻的电焊机－最小重量只有17kg(37磅)，体积小；输出电流可达DC 250A－内建工具用电和照明用电电源输出：11V 或者230V ，2000W－运行可靠：无振荡，免维护－优良的焊接性能：可使用Φ5mm的焊条，高起弧电压，无级控制，过载自动保护HWG 200 HWG 250 3040 液压磁铁、液压电磁发生器——起吊钢铁（钢材、废铁、铁屑、矿渣等）物质的理想设备－标准电压：直流DC220V-240V ；输出功率可达20kW－与挖掘机、臂式起重机、及臂式装载机等机器的液压系统同时工作；－使用方便，控制电压为直流DC24V－具有自动消磁、自动调节电压和励磁功能；配备交流输出插座－最新产品：快速连接型液压磁铁——可以通过承载机械的液压断路器直接控制HMG 3.5 kWHMG 6.0 kW HMG 10 kW HMG 15 kW etc.18 30 44 73 Min oil flow (L/min) 高压水泵——把任何水源转变成高效工具－利用机器原有液压系统驱动，体积小，重量轻；自吸式柱塞泵，无旋转部件，高效率运转－压力范围：90bar －1800bar （1305psi －26100psi ）；流量范围：30－300L/min （7.9－79美国加仑），－输出功率范围：10－200kW ，从零点直到最大功率输出线性可控，可通过液压系统控制输出功率，－采用耐热达80ºC （176ºF）的特殊密封件－抗腐蚀材料制造，可以使用淡水、盐水、海水、甚至污水；对环境无污染；－利用HPW 高压水泵带动各种水压工具：水液压缸、水液压马达、水射流切割、其它水射流工具HPW 200/30 HPW 180/50 HPW 450/30 HPW 180/90 HPW 800/30 HPW 300/300 etc. 45 65 85 115 150 350 Min oil flow (L/min) 街道清洗设备——最适合中国的城市街道清洁装备－利用高压技术，节约用水，耗水量仅为普通清洗设备的1/20，不和泥，自然干爽－适用于各种市政工程车辆、小型卡车及运输车、拖拉机、专用装载车等车辆、道路维修车辆等－与车辆的原有液压系统同时工作－清洗作用宽度可达3m （10英尺），行进速度可以达到60km/h ——极小影响城市交通－全自动过程控制，利用液压控制系统调节喷头的位置与姿态KPL 600KPL 1000 KPL 1500 etc. 45 65 115 Oil flow (L/min)市政设施管道清洗、排污管道清洗、水泥灌浆输送管道清洗等多种应用的清洗冲刷设备－配合各种专用喷嘴，利用高压技术以及高压水加热技术，可以实现管道清洗、冲刷、切割、以及管道解冻等等多种作业高压水射流泵——填充水箱、抽水、排污的绝佳选择－利用射流原理抽取各种介质；利用丹纳森KPL 高压水泵或者其它高压泵提供动力－高效、安全地从湖泊、河流中抽水，从排污池中抽取污水，或者深挖作业中的排水……－没有机械运动零件，具有极高的耐磨性和安全性，易于维护 射流喷沙器——高效清除清洁处理表面，顽固附着物清洗的完美解决方案－干沙吸入，湿沙喷射；灰尘抑制，对环境无污染；－以HPW 高压水泵为动力源，完美清除顽固附着物：如建筑混凝土表面或者金属表面的油漆、石膏、字迹、铁锈等。

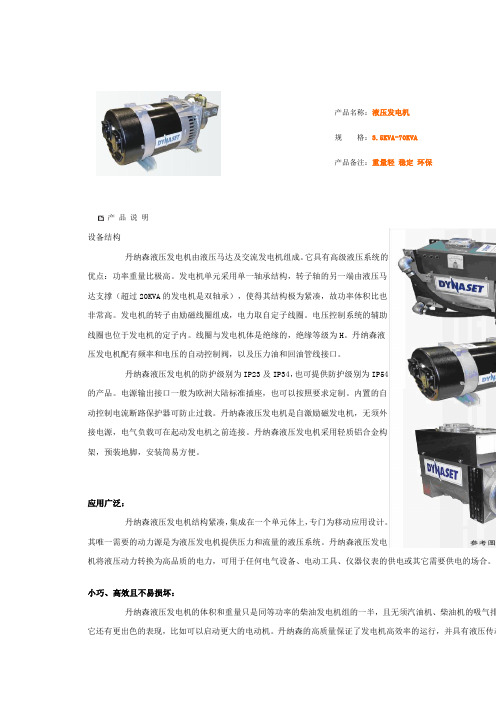

产品名称：液压发电机规格：3.5KVA-70KVA产品备注：重量轻稳定环保产品说明设备结构丹纳森液压发电机由液压马达及交流发电机组成。

它具有高级液压系统的优点：功率重量比极高。

发电机单元采用单一轴承结构，转子轴的另一端由液压马达支撑（超过20KVA的发电机是双轴承），使得其结构极为紧凑，故功率体积比也非常高。

发电机的转子由励磁线圈组成，电力取自定子线圈。

电压控制系统的辅助线圈也位于发电机的定子内。

线圈与发电机体是绝缘的，绝缘等级为H。

丹纳森液压发电机配有频率和电压的自动控制阀，以及压力油和回油管线接口。

丹纳森液压发电机的防护级别为IP23及IP34，也可提供防护级别为IP54的产品。

电源输出接口一般为欧洲大陆标准插座，也可以按照要求定制。

内置的自动控制电流断路保护器可防止过载。

丹纳森液压发电机是自激励磁发电机，无须外接电源，电气负载可在起动发电机之前连接。

丹纳森液压发电机采用轻质铝合金构架，预装地脚，安装简易方便。

应用广泛：丹纳森液压发电机结构紧凑，集成在一个单元体上，专门为移动应用设计。

其唯一需要的动力源是为液压发电机提供压力和流量的液压系统。

丹纳森液压发电机将液压动力转换为高品质的电力，可用于任何电气设备、电动工具、仪器仪表的供电或其它需要供电的场合。

小巧、高效且不易损坏：丹纳森液压发电机的体积和重量只是同等功率的柴油发电机组的一半，且无须汽油机、柴油机的吸气排气，还有更出色的表现，比如可以启动更大的电动机。

丹纳森的高质量保证了发电机高效率的运行，并具有液压传动的负载能力。

易于连接到承载机械上：安装丹纳森液压发电机，只需要把压力口和回油口连接到液压动力源上；或者可以用一只三通阀连接到液压系统中森液压控制器能够自动调节液压动力的输入，使该设备非常容易安装。

用一个附加的装配套件就可以使丹纳森液压动力的机器上工作。

低成本供电：由于丹纳森发电机本身上需要单独的内燃机，并且在通常情况下，电能是承载机器在运行其它功能的同时产生的副液压发电机每千伏安的成本比较低。

Dynaset 液压发电机
丹纳森历史
• 1986年，液压发电机原型机制成；
• 1987～90年，建立液压发电机、高压水泵、液压空压机产品系列 • 1992年，新型HPW 自由活塞动力转换发明并形成系列产品 • 1998年，液压电磁发生器开始形成系列产品 • 2002年，新厂房建成投产
• 2003年，获得SED2003欧洲创新金奖
• 2003年，被芬兰政府与行业协会评为AAA 级制造商（4.3%），最高产品质量级别
特点
• 品质高：输出电能与电网电力完全相同，电压稳定程度高于电网电力 • 小巧：所占空间为同功率的内燃机拖动的发电机系统的
• 噪音低：充分利用承载车辆的噪音控制基础，不增加噪音 • 强韧：不易损坏、抗恶劣环境能力强
• 安装方便：只需简单的油管连接和固定即可 • 功率范围广：3.5kV A ~ 120kV A
• 可靠性极高：使用寿命长、免维护运行，运营成本低 • 可实现对地绝缘供电。
