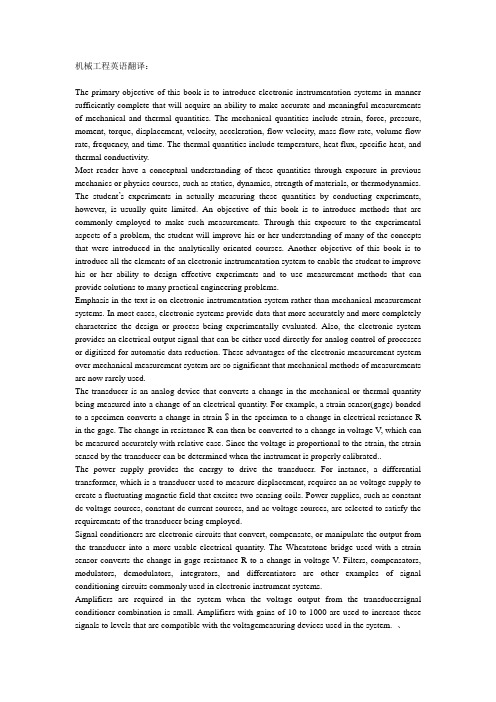

机械工程英语翻译：The primary objective of this book is to introduce electronic instrumentation systems in manner sufficiently complete that will acquire an ability to make accurate and meaningful measurements of mechanical and thermal quantities. The mechanical quantities include strain, force, pressure, moment, torque, displacement, velocity, acceleration, flow velocity, mass flow rate, volume flow rate, frequency, and time. The thermal quantities include temperature, heat flux, specific heat, and thermal conductivity.Most reader have a conceptual understanding of these quantities through exposure in previous mechanics or physics courses, such as statics, dynamics, strength of materials, or thermodynamics. The student’s experiments in actually measuring these quantities by conducting experiments, however, is usually quite limited. An objective of this book is to introduce methods that are commonly employed to make such measurements. Through this exposure to the experimental aspects of a problem, the student will improve his or her understanding of many of the concepts that were introduced in the analytically oriented courses. Another objective of this book is to introduce all the elements of an electronic instrumentation system to enable the student to improve his or her ability to design effective experiments and to use measurement methods that can provide solutions to many practical engineering problems.Emphasis in the text is on electronic instrumentation system rather than mechanical measurement systems. In most cases, electronic systems provide data that more accurately and more completely characterize the design or process being experimentally evaluated. Also, the electronic system provides an electrical output signal that can be either used directly for analog control of processes or digitized for automatic data reduction. These advantages of the electronic measurement system over mechanical measurement system are so significant that mechanical methods of measurements are now rarely used.The transducer is an analog device that converts a change in the mechanical or thermal quantity being measured into a change of an electrical quantity. For example, a strain sensor(gage) bonded to a specimen converts a change in strain $ in the specimen to a change in electrical resistance R in the gage. The change in resistance R can then be converted to a change in voltage V, which can be measured accurately with relative ease. Since the voltage is proportional to the strain, the strain sensed by the transducer can be determined when the instrument is properly calibrated..The power supply provides the energy to drive the transducer. For instance, a differential transformer, which is a transducer used to measure displacement, requires an ac voltage supply to create a fluctuating magnetic field that excites two sensing coils. Power supplies, such as constant dc voltage sources, constant dc current sources, and ac voltage sources, are selected to satisfy the requirements of the transducer being employed.Signal conditioners are electronic circuits that convert, compensate, or manipulate the output from the transducer into a more usable electrical quantity. The Wheatstone bridge used with a strain sensor converts the change in gage resistance R to a change in voltage V. Filters, compensators, modulators, demodulators, integrators, and differentiators are other examples of signal conditioning circuits commonly used in electronic instrument systems.Amplifiers are required in the system when the voltage output from the transducersignal conditioner combination is small. Amplifiers with gains of 10 to 1000 are used to increase these signals to levels that are compatible with the voltagemeasuring devices used in the system. 、Recorders are voltage measuring device used to display the measurement in a form that can be read and interpreted. Recorders may be analog or digital. The voltage from the amplifier is analog signal that is the input to the recorders. Analog recorders, such as oscilloscope, oscillographs, and magnetic tape recorders, display or store the analog signals. Digital recorders accept an analog input and convert this signal to a digital code that is then displayed in a numerical array or stored on magnetic media.Data processors are used with instrument system that incorporate analog to digital converts and provide the output signal representing the measurement in a digital code. The data processors are usually microcomputers that accept the digital input and then perform computations in accordance with programmed instructions. The output from the processor is displayed in graphs and tables that illustrate the salient result from the experiment study.The command generator is a device that provides a control voltage that represents the variation of an important parameter in a given process. As an example, the time temperature profile for an oven must be controlled in curing plastic. The command generator provides a voltage signal that varies with time in exact proportion to the time temperature profile required of the curing oven. Process controllers are used to monitor and adjust any quantity that must be maintained at a specified value to produce a material or product in a controlled process. The signal from the instrumentation system is compared with a command signal that reflects the required value of the quantity in the process. The process controller accepts both the command signal and the measured signal and forms the difference to give an error signal. The error signal is then used to automatically adjust the process.Electronic instrument system are used in three different areas of application, which include the following:Engineering analysis of machine components, structures, and vehicles to ensure efficient and reliable performance.Monitoring processes to provide online operating data that allow an operator to make adjustments and thereby control the process.Automatic process control to provide online operating data that are used as feedback signal in closed loop control systems to continuously control the process.Each of these applications is described in the sections that follow.An engineering analysis is conducted to evaluate new or modified designs of a machine component, structure, electronic system, or vehicle to ensure efficient and reliable performance when the prototype is place in operation. Two approaches can be followed in performing the engineering analysis: theoretical modeling or experimental investigation.In the theoretical approach, an analytical model of the component is formulated and assumptions are made pertaining to the operating conditions, the loads imposed on the components, the properties of the material, and the mode of failure. Equations describing the behavior of the analytical model are written and then solved using either exact mathematical methods or, more frequently, numerical computation. The results of the theoretical analysis provided the designer with an indication of the adequacy of the design and an estimate of the probable performance of the component or structure in service.Uncertainties often exist pertaining to the validity of result from either the analytical model or the numerical procedures. Does the model accurately reflect all aspects of the prototype design? Do the assumed operating conditions cover the full range of loadings imposed on the component? Are the boundary conditions properly represented in the model? Have significant errors been introduced in the analysis through use of the numerical procedures?In the experimental approach, a prototype or a scale model of the component is fabricate and a test program is conducted to evaluate the performance of the component in service by making direct measurements of the important quantities that control the adequacy of the design. This approach eliminates two serious uncertainties of the theoretical approach: an analytical model is not required, and the assumptions regarding operating conditions and material properties are not necessary. However, the experimental approach also has serious shortcomings. In comparison with the theoretical approach, it is extremely expensive. Also, uncertainties arise owing to inevitable experimental error in the measurements. Finally, these is always a question as to whether the transducers were places at the correct locations to record the quantities that actually affect the adequacy of the design.The preferred analysis is a combination of the theoretical and the experimental methods. Theoretical analysis should be conducted to ensure a thorough understanding of the problem. The significance of the result of the theoretical analysis should be completely evaluated, and any shortcoming of the analysis should be clearly identified. An experimental program should then be designed to verify the analytical model, to check the validity of assumptions pertaining to operating conditions and material properties, and to ensure the accuracy of the numerical procedures.The results of theoretical analysis are extremely important in the design of the experimental program, as they enable the locations and orientations of the transducers to be specified more accurately and the number of measurements to be reduces appreciably. The number of test required to cover the full spectrum of operating conditions may also be reduced when results from a verified theoretical model are available.The results from the experimental program are intended to verity the analytical model and to check the validity of the assumptions and numerical procedures. If significant differences exist, the analytical model must be modified and new results developed for comparison with the experimental findings. After the theoretical approach is verified and confidence in the analysis is established, it is possible to optimize the weight, strength, or cost of the component.The combined theoretical experimental approach to engineering analysis provides the most cost effective method to ensure efficient and reliable performances of new or modified designs of mechanical, structural, or electronic system.Electronic instrumentation systems are used in tow types of process control: open loop, or monitoring, control and closed loop, or automatic, control.Open loop control, involving a process that is being monitored with several transducers, is illustrated in figure 4.2. Data from the transducers are displayed continuously on an instrument panel containing charts, meters, and digital display. An operator observes the quantities displayed and, if necessary, makes adjustment to the process input parameters to maintain control of the process. The operator serves to close the loop in this type of process control. The accuracy and reliability of the data displayed on the instrument panel are extremely important, as they provide the basis for the operator’s decisions in adjusting the process. Most ships are operated with openloop control. An operator in the engine room monitors measurements of ship speed, engine temperature, oil pressure, fuel consumption, and the like and manually makes the adjustments to the engine control needed to maintain the required speed.A second type of process control, known as close loop, or automatic control, is illustrated in figure 4.3. In the close loop control system, the operator has been eliminated. Instead, the signals from the electronic instrumentation system are compared with command signals that represent voltage time relationships for the important quantities associated with process. The first controller measures the difference between the command signal and the transducer signal and develops an error, or feedback, signal. The feedback signal is then transmitted to the second controller, where it is amplified and used to drive devices that correct the process.As an example of closed loop control, consider a screw actuated positioning mechanism that moves an engine block, during machining, through a battery of drilling and tapping machines. The desired position of the engine block along a track and time required at each position are used by the command generator to establish a voltage time trace that represent the required position of the block at any time. The actual position of the engine block is measured with a displacement transducer. The difference between the command signal and the measured displacement signal is used by the first controller to generate a feedback signal that is proportional to the adjustment needed to correct the position. The feedback signal is amplified and used to drive a current amplifier in the second controller. The current from this amplifier drives a servo controlled motor, which turns the positioning screw. The screw drive moves the engine block and resets the feedback signal to zero so that the block is correctly positioned for the subsequent machining operation.Control of a process requires frequent adjustment of the quantities involved in the process. Devices used in closed loop control are similar in many respects to those used in open loop control. Fluid flow is controlled by a value that is opened or closed manually by operator in open loop control or automatically with a servomotor in closed loop control.。

科技英语写作中的典型错误例1改正后的句子This new method has the advantages of high efficiency and easy adjustment.例2改正后的句子This paper first discusses the features of this signal,and then describes its generation. 不过本句最好采用下列句型：This paper begins with the discussion on the features of this signal, followed by the description of its generation.例3改正后的句子The features of this device are easy operation and low price.不过比较好的一个句型是：This device is characterized by（its）easy operation and low price.例4改正后的句子Our method is different from those presented（或described）in the papers available（或published before）on（或discussing）the same problem.例5改正后的句子Only through the study of the performance of the system, can one（或we）understand（或appreciate）its advantages.例6改正后的句子This paper presents a CAD method for increasing the printing speed and improving the printing quality.例7改正后的句子 A detailed（或concrete）analysis of the ability of the component to carry loads is made.例8改正后的句子There are M polygons altogether, each of which has N vertexes. 虽然从语法角度来看，定语从句可以译成“the number of vertexes of each of which is N.” 但这种表示法不好，显得很繁琐。

第四章MATLAB 的数值计算功能Chapter 4: Numerical computation of MATLAB数值计算是MATLAB最基本、最重要的功能，是MATLAB最具代表性的特点。

MATLAB在数值计算过程中以数组和矩阵为基础。

数组是MATLAB运算中的重要数据组织形式。

前面章节对数组、矩阵的特征及其创建与基本运算规则等相关知识已作了较详尽的介绍，本章重点介绍常用的数值计算方法。

一、多项式(Polynomial)`多项式在众多学科的计算中具有重要的作用，许多方程和定理都是多项式的形式。

MATLAB提供了标准多项式运算的函数，如多项式的求根、求值和微分，还提供了一些用于更高级运算的函数，如曲线拟合和多项式展开等。

1．多项式的表达与创建(Expression and Creating of polynomial) (1) 多项式的表达（expression of polynomial）_Matlab用行矢量表达多项式系数(Coefficient)，各元素按变量的降幂顺序排列，如多项式为：P(x)=a0x n+a1x n-1+a2x n-2…a n-1x+a n则其系数矢量(Vector of coefficient)为：P=[a0 a1… a n-1 a n]如将根矢量(Vector of root)表示为：ar=[ ar1 ar2… ar n]则根矢量与系数矢量之间关系为：（x-ar1）(x- ar2) … (x- ar n)= a0x n+a1x n-1+a2x n-2…a n-1x+a n(2)多项式的创建（polynomial creating）a)系数矢量的直接输入法利用poly2sym函数直接输入多项式的系数矢量，就可方便的建立符号形式的多项式。

例1：创建多项式x3-4x2+3x+2poly2sym([1 -4 3 2])ans =x^3-4*x^2+3*x+2POLY Convert roots to polynomial.POLY(A), when A is an N by N matrix, is a row vector withN+1 elements which are the coefficients of the characteristicpolynomial, DET(lambda*EYE(SIZE(A)) - A) .POLY(V), when V is a vector, is a vector whose elements arethe coefficients of the polynomial whose roots are theelements of V . For vectors, ROOTS and POLY are inversefunctions of each other, up to ordering, scaling, androundoff error.b) 由根矢量创建多项式已知根矢量ar, 通过调用函数p=poly(ar)产生多项式的系数矢量, 再利用poly2sym函数就可方便的建立符号形式的多项式。
