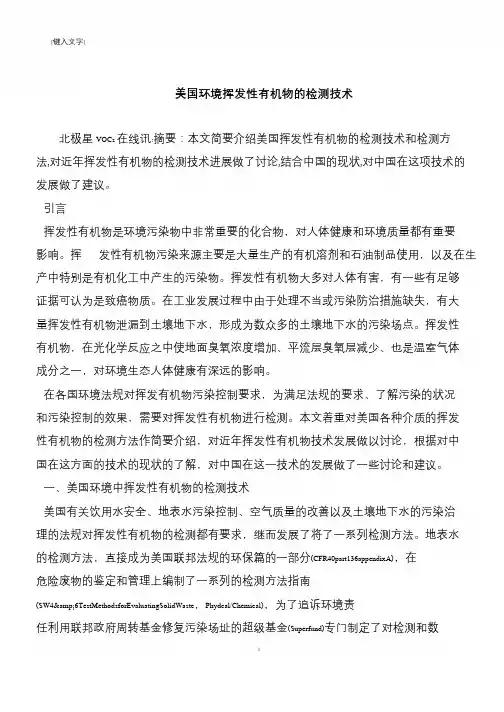

[键入文字]美国环境挥发性有机物的检测技术北极星VOCs 在线讯:摘要：本文简要介绍美国挥发性有机物的检测技术和检测方法,对近年挥发性有机物的检测技术进展做了讨论,结合中国的现状,对中国在这项技术的发展做了建议。
引言挥发性有机物是环境污染物中非常重要的化合物，对人体健康和环境质量都有重要影响。
挥发性有机物污染来源主要是大量生产的有机溶剂和石油制品使用，以及在生产中特别是有机化工中产生的污染物。
挥发性有机物大多对人体有害，有一些有足够证据可认为是致癌物质。
在工业发展过程中由于处理不当或污染防治措施缺失，有大量挥发性有机物泄漏到土壤地下水，形成为数众多的土壤地下水的污染场点。
挥发性有机物，在光化学反应之中使地面臭氧浓度增加、平流层臭氧层减少、也是温室气体成分之一，对环境生态人体健康有深远的影响。
在各国环境法规对挥发有机物污染控制要求，为满足法规的要求、了解污染的状况和污染控制的效果，需要对挥发性有机物进行检测。
本文着重对美国各种介质的挥发性有机物的检测方法作简要介绍，对近年挥发性有机物技术发展做以讨论，根据对中国在这方面的技术的现状的了解，对中国在这一技术的发展做了一些讨论和建议。
一、美国环境中挥发性有机物的检测技术美国有关饮用水安全、地表水污染控制、空气质量的改善以及土壤地下水的污染治理的法规对挥发性有机物的检测都有要求，继而发展了将了一系列检测方法。
地表水的检测方法，直接成为美国联邦法规的环保篇的一部分(CFR40part136appendixA)，在危险废物的鉴定和管理上编制了一系列的检测方法指南(SW4&6TestMethodsforEvaluatingSolidWaste，Phydcal/Chemical)，为了追诉环境责任利用联邦政府周转基金修复污染场址的超级基金(Superfund)专门制定了对检测和数1。
（环境管理）环境空⽓挥发性有机物的测定-T吸附GCMS 法美国EPA TO-17 ⽅法分析环境空⽓中挥发性有机物研究施巍蔡浩洋（⼤连市环境监测中⼼⼤连 116023）摘要选⽤美国EPA TO-17⽅法中的⼀种类型的混合型填料吸附管，分析环境空⽓中挥发性有机物。
通过实验验证EPA TO-17⽅法的可⾏性和可操作性，并得到校正曲线、相关系数、检出限等数据。
关键词挥发性有机物吸附管吸附解析1 前⾔1.1 ⽅法概述本⽅法⽤于环境空⽓中挥发性有机化合物的采集和测定。
本次研究的挥发性有机化合物是指能由35mm Carbopack?B和10mm Carbosieve?SⅢ及Carboxen?1000组成的吸附管捕集，并能⽤热脱附GC/MS技术测定的挥发性有机化合物。
1.2 国内外概况随着⼯业的快速发展，有机物的污染逐步显现。
⽬前，许多国家都根据本国⼤⽓环境污染状况制定相应的防治法或环境标准。
对环境空⽓中的挥发性有机物测定，美国EPA TO-1⽅法采⽤的是Tenax采样GC-MS法，其分析的化合物为沸点⼤约在80℃－200℃的⾮极性有机化合物。
TO-2是采⽤碳分⼦筛采样GC-MS法，主要采集含碳数少的、挥发性强的有机物。
TO-14和TO-15采⽤的是采样罐采样GC-MS法，其与TO-1⽅法区别是进样⽅式不⼀样，能检测化合物⽐TO-1多，但因为其进样设备昂贵，现阶段很难在我国推⼴。
TO-17⽅法采⽤的是固体填料吸附管采样GC-MS法，不同的填料类型可测定不同的挥发性有机物，采集和测定的化合物种类较多。
我国《空⽓和废⽓监测分析⽅法》（第四版）采⽤了固体吸附GC-MS法和采样罐采样GC-MS法，这两种⽅法都是C类⽅法⽽且没有给出检出限和准确度等数据。
国标GB11737-89和GB14677-93也是采⽤固体吸附，⼆硫化碳洗脱或热解析的⽅法，但其能测定的⽬标化合物太少，只局限于苯系物。
综合分析，本论⽂在相关⽂献资料和EPA相关⽅法基础上，提出并建⽴⽤混合型填料吸附管吸附、GC-MS法测定环境空⽓中的挥发性有机物的⽅法。
环境空气voc限值
VOC（挥发性有机物）是指在环境条件下易挥发的有机化合物。
不同国家和地区针对环境空气中的VOC都有不同的限值标准。
以下是一些国家和地区的环境空气VOC限值示例：
1.美国环保署（EPA）限值标准：
- 总非甲烷挥发性有机物（TVOC）：9.0 ppm（小时平均）
- 苯：1.3 ppb（年平均）
2.欧盟限值标准（根据室内环境）：
- TVOC：0.3 mg/m³（小时平均）
- 苯：5 μg/m³（小时平均）
3.中国环境空气质量标准（GB 3095-2012）：
- TVOC：0.6 mg/m³（小时平均）
- 苯：5 μg/m³（小时平均）
需要注意的是，每个国家和地区的限值标准可能会根据特定情况和需求进行调整和更新。
另外，不同地区可能还会设定其他特定的VOC限制值，如甲醛、醋酸乙烯等。
因此，具体的环境空气VOC限值应以当地相关法规和标准为准。

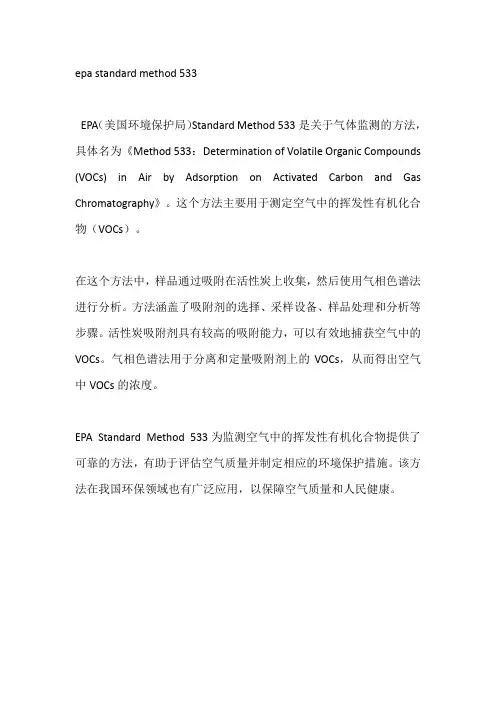

epa standard method 533
EPA（美国环境保护局）Standard Method 533是关于气体监测的方法，具体名为《Method 533：Determination of Volatile Organic Compounds (VOCs) in Air by Adsorption on Activated Carbon and Gas Chromatography》。
这个方法主要用于测定空气中的挥发性有机化合物（VOCs）。
在这个方法中，样品通过吸附在活性炭上收集，然后使用气相色谱法进行分析。
方法涵盖了吸附剂的选择、采样设备、样品处理和分析等步骤。
活性炭吸附剂具有较高的吸附能力，可以有效地捕获空气中的VOCs。
气相色谱法用于分离和定量吸附剂上的VOCs，从而得出空气中VOCs的浓度。
EPA Standard Method 533为监测空气中的挥发性有机化合物提供了可靠的方法，有助于评估空气质量并制定相应的环境保护措施。
该方法在我国环保领域也有广泛应用，以保障空气质量和人民健康。

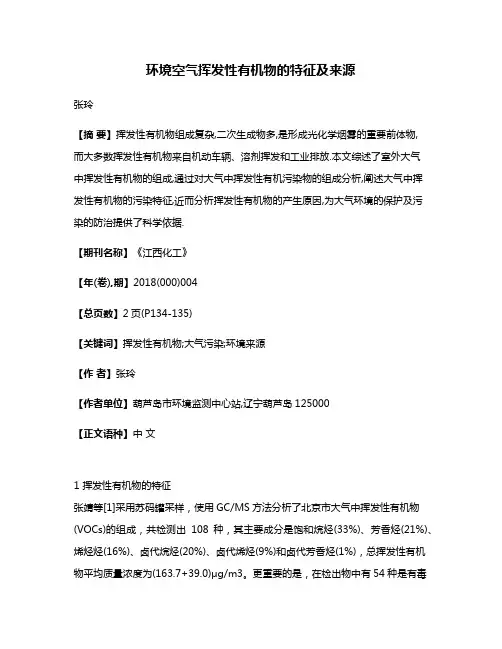

环境空气挥发性有机物的特征及来源张玲【摘要】挥发性有机物组成复杂,二次生成物多,是形成光化学烟雾的重要前体物,而大多数挥发性有机物来自机动车辆、溶剂挥发和工业排放.本文综述了室外大气中挥发性有机物的组成,通过对大气中挥发性有机污染物的组成分析,阐述大气中挥发性有机物的污染特征,近而分析挥发性有机物的产生原因,为大气环境的保护及污染的防治提供了科学依据.【期刊名称】《江西化工》【年(卷),期】2018(000)004【总页数】2页(P134-135)【关键词】挥发性有机物;大气污染;环境来源【作者】张玲【作者单位】葫芦岛市环境监测中心站,辽宁葫芦岛125000【正文语种】中文1 挥发性有机物的特征张靖等[1]采用苏码罐采样，使用GC/MS方法分析了北京市大气中挥发性有机物(VOCs)的组成，共检测出108种，其主要成分是饱和烷烃(33%)、芳香烃(21%)、烯烃烃(16%)、卤代烷烃(20%)、卤代烯烃(9%)和卤代芳香烃(1%)，总挥发性有机物平均质量浓度为(163.7+39.0)μg/m3。
更重要的是，在检出物中有54种是有毒有害的物质，主要成分是苯系物和卤代烃，其中苯，甲苯，丙烯，1，3-丁二烯，氯乙烯和1，2-二氯乙烷是含量最高的组分。
魏思棋等[2]参照美国EPA TO-17的方法对天津市不同城市功能区中环境空气中挥发性有机物(VOCs)夏季和冬季中的组成及浓度水平，共检出62种挥发性有机物，冬季挥发性有机物浓度水平低于夏季；苯系物稳定存在于各功能区且所占比例最高；挥发性有机物的主要来源是机动车尾气。
最大的关键活性物种为丙烯乙烯甲苯二甲苯以及丁烯类物质。
杭维玲等[3]用安装分流旁路的KB-6A采样器及不锈钢气体采样管采样，用菲尼根GCQ气质联用仪分析。
得出南京市不同功能区(交通区、商业旅游区、居住区、工业区和清洁对照点)环境空气中挥发性有机物(VOCs)在一年四季中的组成及浓度水平。
共检出189种挥发性有机物，并随气温下降而减少；苯系物稳定存在于各功能区，浓度秋季最高。

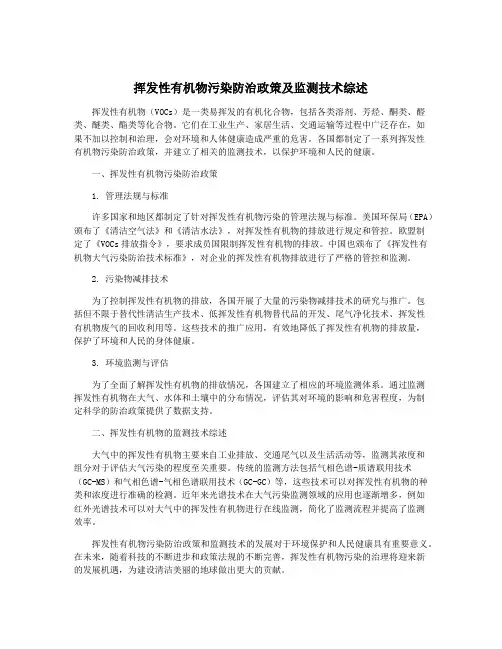

挥发性有机物污染防治政策及监测技术综述挥发性有机物（VOCs）是一类易挥发的有机化合物，包括各类溶剂、芳烃、酮类、醛类、醚类、酯类等化合物。
它们在工业生产、家居生活、交通运输等过程中广泛存在，如果不加以控制和治理，会对环境和人体健康造成严重的危害。
各国都制定了一系列挥发性有机物污染防治政策，并建立了相关的监测技术，以保护环境和人民的健康。
一、挥发性有机物污染防治政策1. 管理法规与标准许多国家和地区都制定了针对挥发性有机物污染的管理法规与标准。
美国环保局（EPA）颁布了《清洁空气法》和《清洁水法》，对挥发性有机物的排放进行规定和管控。
欧盟制定了《VOCs排放指令》，要求成员国限制挥发性有机物的排放。
中国也颁布了《挥发性有机物大气污染防治技术标准》，对企业的挥发性有机物排放进行了严格的管控和监测。
2. 污染物减排技术为了控制挥发性有机物的排放，各国开展了大量的污染物减排技术的研究与推广。
包括但不限于替代性清洁生产技术、低挥发性有机物替代品的开发、尾气净化技术、挥发性有机物废气的回收利用等。
这些技术的推广应用，有效地降低了挥发性有机物的排放量，保护了环境和人民的身体健康。
3. 环境监测与评估为了全面了解挥发性有机物的排放情况，各国建立了相应的环境监测体系。
通过监测挥发性有机物在大气、水体和土壤中的分布情况，评估其对环境的影响和危害程度，为制定科学的防治政策提供了数据支持。
二、挥发性有机物的监测技术综述大气中的挥发性有机物主要来自工业排放、交通尾气以及生活活动等，监测其浓度和组分对于评估大气污染的程度至关重要。
传统的监测方法包括气相色谱-质谱联用技术（GC-MS）和气相色谱-气相色谱联用技术（GC-GC）等，这些技术可以对挥发性有机物的种类和浓度进行准确的检测。
近年来光谱技术在大气污染监测领域的应用也逐渐增多，例如红外光谱技术可以对大气中的挥发性有机物进行在线监测，简化了监测流程并提高了监测效率。
挥发性有机物污染防治政策和监测技术的发展对于环境保护和人民健康具有重要意义。

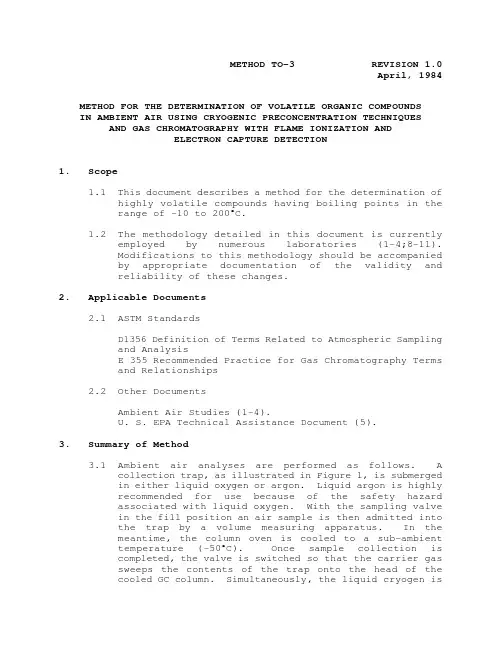

METHOD TO-3 REVISION 1.0April, 1984 METHOD FOR THE DETERMINATION OF VOLATILE ORGANIC COMPOUNDSIN AMBIENT AIR USING CRYOGENIC PRECONCENTRATION TECHNIQUES AND GAS CHROMATOGRAPHY WITH FLAME IONIZATION ANDELECTRON CAPTURE DETECTION1.Scope1.1This document describes a method for the determination ofhighly volatile compounds having boiling points in therange of -10 to 200E C.1.2The methodology detailed in this document is currentlyemployed by numerous laboratories (1-4;8-11).Modifications to this methodology should be accompaniedby appropriate documentation of the validity andreliability of these changes.2.Applicable Documents2.1ASTM StandardsD1356 Definition of Terms Related to Atmospheric Samplingand AnalysisE 355 Recommended Practice for Gas Chromatography Termsand Relationships2.2Other DocumentsAmbient Air Studies (1-4).U. S. EPA Technical Assistance Document (5).3.Summary of Method3.1Ambient air analyses are performed as follows. Acollection trap, as illustrated in Figure 1, is submergedin either liquid oxygen or argon. Liquid argon is highlyrecommended for use because of the safety hazardassociated with liquid oxygen. With the sampling valvein the fill position an air sample is then admitted intothe trap by a volume measuring apparatus. In themeantime, the column oven is cooled to a sub-ambienttemperature (-50E C). Once sample collection iscompleted, the valve is switched so that the carrier gassweeps the contents of the trap onto the head of thecooled GC column. Simultaneously, the liquid cryogen isremoved and the trap is heated to assist the sampletransfer process. The GC column is temperatureprogrammed and the component peaks eluting from thecolumns are identified and quantified using flameionization and/or electron capture detection. Alternatedetectors (e.g., photoionization) can be used asappropriate. An automated system incorporating thesevarious operations as well as the data processingfunction has been described in the literature (8,9).3.2Due to the complexity of ambient air samples, highresolution (capillary column) GC techniques arerecommended. However, when highly selective detectors(such as the electron capture detector) are employed,packed column technology without cryogenic temperatureprogramming can be effectively utilized in some cases.4.Significance4.1Volatile organic compounds are emitted into theatmosphere from a variety of sources including industrialand commercial facilities, hazardous waste storagefacilities, etc. Many of these compounds are toxic,hence knowledge of the levels of such materials in theambient atmosphere is required in order to determinehuman health impacts.4.2Because these organic species are present at ppb levelsor below, some means of sample preconcentration isnecessary in order to acquire sufficient material foridentification and quantification. The two primarypreconcentration techniques are cryogenic collection andthe use of solid adsorbents. The method described hereininvolves the former technique.5.DefinitionsDefinitions used in this document and any user prepared SOPs should be consistent with ASTM D1356(6). All abbreviations and symbols are defined within this document at the point of use.6.Interferences/Limitations6.1Compounds having similar GC retention times willinterfere in the method. Replacing the flame ionizationdetector with more selective detection systems will helpto minimize these interferences. Chlorinated species, inparticular, should be determined using the electroncapture detector to avoid interference from volatilehydrocarbons.6.2An important limitation of the technique is thecondensation of moisture in the collection trap. Thepossibility of ice plugging the trap and stopping theflow is of concern, and water subsequently transferred tothe capillary column may also result in flow stoppage andcause deleterious effects to certain column materials.Use of permaselective Nafion® tubing in-line before thecryogenic trap avoids this problem; however, the materialmust be used with caution because of possible losses ofcertain compounds. Another potential problem iscontamination from the Nafion® tubing. The user shouldconsult the literature (7-12) for details on the use ofpermeation-type driers.7.Apparatus7.1Gas chromatograph/Flame Ionization/Electron CaptureDetection System - must be capable of subambienttemperature programming. A recent publication (8)describes an automated GC system in which the cryogenicsampling and analysis features are combined. This systemallows simultaneous flame ionization and electron capturedetection.7.2Six-port sampling valve - modified to accept a samplecollection trap (Figure 1).7.3Collection trap - 20 cm x 0.2 cm I.D. stainless steeltubing packed with 60/80 mesh silanized glass beads andsealed with glass wool. For the manual system (Section9.2) the trap is externally wrapped with 28 gauge (duplexand fiberglass insulated) type "K" thermocouple wire.This wire, beaded at one end, is connected to a powerstatduring the heating cycle. A thermocouple is alsoattached to the trap as shown in Figure 1.7.4Powerstat - for heating trap.7.5Temperature readout device - for measuring traptemperature during heating cycle.7.6Glass dewar flask - for holding cryogen.7.7Sample volume measuring apparatus - capable of accuratelyand precisely measuring a total sample volume up to 500cc at sampling rates between 10 and 200 cc/minute. SeeSection 9.7.8Stopwatch.7.9Dilution container for standards preparation - glassflasks or Teflon (Tedlar) bags, .002 inch film thickness(see Figure 2).7.10Liquid microliter syringes - 5-50 F l for injecting liquidstandards into dilution container.7.11Volumetric flasks - various sizes, 1-10 mL.7.12GC column - Hewlett Packard 50 meter methyl siliconecross-linked fused silica column (.3 mm I.D., thick film)or equivalent.7.13Mass flow controller - 10-200 mL/minute flow controlrange.7.14Permeation drier - PermaPure® - Model MD-125F, orequivalent. Alternate designs described in theliterature (7-12) may also be acceptable.8.Reagents and Materials8.1Glass beads - 60/80 mesh, silanized.8.2Glasswool - silanized.8.3Helium - zero grade compressed gas, 99.9999%.8.4Hydrogen - zero grade compressed gas, 99.9999%.8.5Air - zero grade compressed gas.8.6Liquid argon (or liquid oxygen).8.7Liquid nitrogen.8.8SRM 1805 - benzene in nitrogen standard. Available fromthe National Bureau of Standards. Additional suchstandards will become available in the future.8.9Chemical standards - neat compounds of interest, highestpurity available.9.Sampling and Analysis ApparatusTwo systems are described below which allow collection of an accurately known volume of air (100-1000 mL) onto a cryogenically cooled trap. The first system (Section 9.1) is an automated device described in the literature (8,9). The second system (Section 9.2) is a manual device, also described in the literature(2).9.1The automated sampling and analysis system is shown inFigure 3. This system is composed of an automated GC system (Hewlett Packard Model 5880A, Level 4, or equivalent) and a sample collection system (Nutech Model 320-01, or equivalent). The overall system is described in the literature (8).9.1.1The electronic console of the sampling unitcontrols the mechanical operation of the six-port valve and cryogenic trapping componentsas well as the temperatures in each of thethree zones (sample trap, transfer line, andvalve).9.1.2The valve (six-port air activated, SeiscorModel 8 or equivalent) and transfer line areconstantly maintained at 120E C. During samplecollection the trap temperature is maintainedat -160 + 5E C by a flow of liquid nitrogencontrolled by a solenoid valve. A cylindrical250 with heater, held in direct contact withthe trap, is used to heat the trap to 120E C in60 seconds or less during the sampledesorption step. The construction of thesample trap is described in Section 7.3.9.1.3The sample flow is controlled by a pump/massflow controller assembly, as shown in Figure3. A sample flow of 10-100 mL/minute isgenerally employed, depending on the desiredsampling period. A total volume of 100-1000mL is commonly collected.9.1.4In many situations a permaselective drier(e.g., Nafion®) may be required to removemoisture from the sample. Such a device isinstalled at the sample inlet. Twoconfigurations for such devices are available.The first configuration is the tube and shelltype in which the sample flow tube issurrounded by an outer shell through which acountercurrent flow of clean, dry air ismaintained. The dry air stream must be freefrom contaminants and its flow rate should be3-4 times greater than the sample flow toachieve effective drying. A secondconfiguration (7) involves placing a dryingagent, e.g., magnesium carbonate, on theoutside of the sample flow tube. Thisapproach eliminates the need for a source ofclean air in the field. However, contaminationfrom the drying agent can be a problem.V s ')P760×298TA%2739.2The manual sampling consists of the sample volumemeasuring apparatus shown in Figure 4 connected to the cryogenic trap/GC assembly shown in Figure 1. The operation of this assembly is described below.9.2.1Pump-Down PositionThe purpose of the pump-down mode of operationis to evacuate the ballast tank in preparationfor collecting a sample as illustrated inFigure 4. (While in this position, helium canalso be utilized to backflush the sample line,trap, etc. However, this cleaning procedureis not normally needed during most samplingoperations). The pump used for evacuating thesystem should be capable of attaining 200 torrpressure.9.2.2Volume Measuring PositionOnce the system has been sufficientlyevacuated, the 4-way ball valve is switched toprepare for sample collection. The 3-positionvalve is used to initiate sample flow whilethe needle valve controls the rate of flow.9.2.3Sample Volume CalculationThe volume of air that has passed through thecollection trap corresponds to a known changein pressure within the ballast tank (asmeasure by the Wallace Tiernan gauge).Knowing the volume, pressure change, andtemperature of the system, the ideal gas lawcan be used to calculate the number of molesof air sampled. On a volume basis, thisconverts to the following equation:whereV =Volume sampled at 760 mm Hg pressure ands25E C.)P =Change in pressure within the ballasttank, mm of Hg.V =Volume of ballast tank and gauge.T =Temperature of ballast tank, E C.AThe internal volume of the ballast tank and gauge can be determined either by H O displacement or by injecting2calibrated volumes of air into the system using large volume syringes, etc.10.Sampling and Analysis Procedure - Manual Device10.1This procedure assumes the use of the manual samplingsystem described in Section 9.2.10.2Prior to sample collection, the entire assembly should beleak-checked. This task is accomplished by sealing thesampling inlet line, pumping the unit down and placingthe unit in the flow measuring mode of operation. Aninitial reading on the absolute pressure gauge is takenand rechecked after 10 minutes. No apparent changeshould be detected.10.3Preparation for sample collection is carried out byswitching the 6-port valve to the "fill" position andconnecting the heated sample line to the sample source.Meanwhile the collection trap is heated to 150E C (orother appropriate temperature). The volume measuringapparatus is pumped-down and switched to the flowmeasuring mode. The 3-position valve is opened and aknown volume of sample is then passed through the heatedsample line and trap to purge the system.10.4After the system purge is completed, the 3-position valveis closed and the corresponding gauge pressure isrecorded. The collection trap is then immersed into adewar of liquid argon (or liquid oxygen) and the 3-position valve is temporarily opened to draw in a knownvolume of air, i.e. a change in pressure corresponds toa specific volume of air (see Section 9). Liquidnitrogen cannot be used as the cryogen since it will alsocondense oxygen from the air. Liquid oxygen representsa potential fire hazard and should not be employed unlessabsolutely necessary.10.5After sample collection is completed, the 6-port valve isswitched to the inject position, the dewar is removed andthe trap is heated to 150E C to transfer the samplecomponents to the head of the GC column which isinitially maintained at -50E C. Temperature programmingis initiated to elute the compounds of interest.10.6 A GC integrator (or data system if available) isactivated during the injection cycle to provide componentidentification and quantification.11.Sampling and Analysis Procedure - Automated Device11.1This procedure assumes the use of the automated systemshown in Figure 3. The components of this system arediscussed in Section 9.1.11.2Prior to initial sample collection the entire assemblyshould be leak-checked. This task is completed bysealing the sample inlet line and noting that the flowindication or the mass flow controller drops to zero(less than 1 mL/minute).11.3The sample trap, valve, and transfer line are heated to120E C and ambient air is drawn through the apparatus(-60mL/minute) for a period of time 5-10 minutes to flushthe system, with the sample valve in the inject position.During this time the GC column is maintained at 150E C tocondition the column.11.4The sample trap is then cooled to -160 + 5E C using acontrolled flow of liquid nitrogen. Once the traptemperature has stabilized, sample flow through the trapis initiated by placing the valve in the inject positionand the desired volume of air is collected.11.5During the sample collection period the GC column isstabilized at -50E C to allow for immediate injection ofthe sample after collection.11.6At the end of the collection period the valve isimmediately placed in the inject position, and thecryogenic trap is rapidly heated to 120E C to desorb thecomponents onto GC column. The GC temperature programand data acquisition are initiated at this time.11.7At the desired time the cryogenic trap is cooled to-160E C, the valve is returned to the collect position andthe next sample collection is initiated (to coincide withthe completion of the GC analysis of the previoussample).12.Calibration ProcedurePrior to sample analysis, and approximately every 4-6 hours thereafter, a calibration standard must be analyzed, using the identical procedure employed for ambient air samples (either Section 10 or 11). This section describes three alternative approaches for preparing suitable standards.12.1Teflon® (or Tedlar®) Bags12.1.1The bag (nominal size; 20L) is filled withzero air and leak checked. This can be easilyaccomplished by placing a moderate weight(text book) on the inflated bag and leavingovernight. No visible change in bag volumeindicates a good seal. The bag should also beequipped with a quick-connect fitting forsample withdrawal and an insertion port forliquid injections (Figure 2).12.1.2Before preparing a standard mixture, the bagis sequentially filled and evacuated with zeroair (5 times). After the 5th filling, asample blank is obtained using the samplingprocedure outlined in Section 10.12.1.3In order to prepare a standard mixture, thebag is filled with a known volume of zero air.This flow should be measured via a calibratedmass flow controller or equivalent flowmeasuring device. A measured aliquot of eachanalyte of interest is injected into the bagthrough the insertion port using a microlitersyringe. For those compounds with vaporpressures lower than benzene or for stronglyadsorbed species, the bag should be heated(60E C oven) during the entire calibrationperiod.12.1.4To withdraw a sample for analysis, thesampling line is directly connected to thebag. Quick connect fittings allow this hook-up to be easily accomplished and alsominimizes bag contamination from laboratoryair. Sample collection is initiated asdescribed.12.2Glass Flasks12.2.1If a glass flask is employed (Figure 2) theexact volume is determined by weighing theflask before and after filling with deionizedwater. The flask is dried by heating at200E C.12.2.2To prepare a standard, the dried flask isflushed with zero air until cleaned (i.e., ablank run is made). An appropriate aliquot ofeach analyte is injected using the sameprocedures as described for preparing bagstandards.12.2.3To withdraw a standard for analysis, the GCsampling line is directly connected to theflask and a sample obtained. However, becausethe flask is a rigid container, it will notremain at atmospheric pressure after samplinghas commenced. In order to prevent room airleakage into the flask, it is recommended thatno more than 10% of the initial volume beexhausted during the calibration period (i.e.,200cc if a 2 liter flask is used).12.3Pressurized Gas Cylinders12.3.1Pressurized gas cylinders containing selectedanalytes at ppb concentrations in air can beprepared or purchased. A limited number ofanalytes (e.g., benzene, propane) areavailable from NBS.12.3.2Specialty gas suppliers will prepare customgas mixtures, and will cross reference theanalyte concentrations to an NBS standard foran additional charge. In general, the usershould purchase such custom mixtures,ratherthan attempting to prepare them becauseof the special high pressure filling apparatusrequired. However, the concentrations shouldbe checked, either by the supplier or the userusing NBS reference materials.12.3.3Generally, aluminum cylinders are suitablesince most analytes of potential interest inthis method have been shown to be stable forat least several months in such cylinders.Regulators constructed of stainless steel andTeflon® (no silicon or neoprene rubber).12.3.4Before use the tank regulator should beflushed by alternately pressuring with thetank mixture, closing the tank valve, andventing the regulator contents to theatmosphere several times.12.3.5For calibration, a continuous flow of the gasmixture should be maintained through a glassor Teflon® manifold from which the calibrationstandard is drawn. To generate variouscalibration concentrations, the pressurizedgas mixture can be diluted, as desired, withzero grade air using a dynamic dilution system(e.g., CSI Model 1700).13.Calibration Strategy13.1Vapor phase standards can be prepared with either neatliquids or diluted liquid mixtures depending upon theconcentration levels desired. It is recommended thatbenzene also be included in this preparation scheme sothat flame ionization detector response factors, relativeto benzene, can be determined for the other compounds.The benzene concentration generated in this fashionshould be cross-checked with an NBS (e.g., SRM 1805) foraccuracy determinations.13.2Under normal conditions, weekly multipoint calibrationsshould be conducted. Each multipoint calibration shouldinclude a blank run and four concentration levels for thetarget species. The generated concentrations shouldbracket the expected concentration of ambient airsamples.13.3 A plot of nanograms injected versus area using a linearleast squares fit of the calibration data will yield thefollowing equation:Y'A%BXwhereY = quantity of component, nanogramsA = interceptB = slope (response factor)If substantial nonlinearity is present in the calibrationcurve a quadratic fit of the data can be used:Y'A%BX%CX2whereC = constantAlternatively, a stepwise multilevel calibration scheme may be used if more convenient for the data system in use.14.Performance Criteria and Quality AssuranceThis section summarizes the quality assurance (QA) measures and provides guidance concerning performance criteria which should be achieved within each laboratory.14.1Standard Operating Procedures (SOPs)14.1.1Each user should generate SOPs describing thefollowing activities as accomplished in theirlaboratories:1)assembly, calibration and operation ofthe sampling system.2)preparation and handling of calibrationstandards.3)assembly, calibration and operation ofthe GC/FID system and4)all aspects of data recording andprocessing.14.1.2SOPs should provide specific stepwiseinstructions and should be readily availableto, and understood by, the laboratorypersonnel conducting the work.14.2Method Sensitivity, Precision and Accuracy14.2.1System sensitivity (detection limit) for eachcomponent is calculated from the data obtainedfor calibration standards. The detectionlimit is defined asDL'A%3.3SwhereDL =calculated detection limit in nanogramsinjected.A =intercept calculated in Section 13.S =standard deviation of replicatedetermination of the lowest levelstandard (at least three determinationsare required).For many compounds detection limits of 1 to 5nanograms are found using the flame ionizationdetection. Lower detection limits can beobtained for chlorinated hydrocarbons usingthe electron capture detector.14.2.2 A precision of + 5% (relative standarddeviation) can be readily achieved atconcentrations 10 times the detection limit.Typical performance data are included in Table1.14.2.3Method accuracy is estimated to be within +10%, based on National Bureau of Standardcalibrated mixtures.REFERENCES1.Holdren, M., Spicer, C., Sticksel, P., Nepsund, K., Ward, G.,and Smith, R., "Implementation and Analysis of Hydrocarbon Grab Samples from Cleveland and Cincinnati 1981 Ozone Monitoring Study", EPA-905/4-82-001. U.S. Environmental Protection Agency, Research Triangle Park, North Carolina, 1982.2.Westberg, H., Rasmussen, R., and Holdren, M., "GasChromatographic Analysis of Ambient Air for Light Hydrocarbons Using a Chemically Bonded Stationary Phase", Anal. Chem. 46, 1852-1854, 1974.3.Lonneman, W. A., "Ozone and Hydrocarbon Measurements in RecentOxidant Transport Studies", in Int. Conf. on Photochemical Oxidant Pollutant and Its Control Proceedings, EPA-600/3-77-001a, 1977.4.Singh, H., "Guidance for the Collection and Use of AmbientHydrocarbon Species Data in Development of Ozone Control Strategies", EPA-450/4-80-008. U.S. Environmental Protection Agency, Research Triangle Park, North Carolina, 1980.5.Riggin, R. M., "Technical Assistance Document for Sampling andAnalysis of Toxic Organic Compounds in Ambient Air", EPA-600/4-83-027. U.S. Environmental Protection Agency, Research Triangle Park, North Carolina, 1983.6.Annual Book of ASTM Standards, Part 11.03, "AtmosphericAnalysis", American Society for Testing and Materials, Philadelphia, Pennsylvania, 1983.7.Foulger, B. E. and P. G. Sinamouds, "Drier for Field Use inthe Determination of Trace Atmospheric Gases", Anal. Chem., 51, 1089-1090, 1979.8.Pheil, J. D. and W. A. McClenney, "Reduced TemperaturePreconcentration Gas Chromatographic Analysis of Ambient Vapor-Phase Organic Compounds: System Automation", Anal.Chem., submitted, 1984.9.Holdren, M. W., W. A. McClenney, and R. N. Smith "ReducedTemperature Preconcentration and Gas Chromatographic Analysis of Ambient Vapor-Phase Organic Compounds: System Performance", Anal. Chem., submitted, 1984.10.Holdren, M., S. Rust, R. Smith, and J. Koetz, "Evaluation ofCryogenic Trapping as a Means for Collecting Organic Compounds in Ambient Air", Draft Final Report on Contract No. 68-02-3487, 1984.11.Cox, R. D. and R. E. Earp, "Determination of Trace LevelOrganics in Ambient Air by High-Resolution Gas Chromatography with Simultaneous Photoionization and Flame Ionization Detection", Anal. Chem. 54, 2265-2270, 1982.12.Burns, W. F., O. T. Tingy, R. C. Evans and E. H. Bates,"Problems with a Nafion® Membrane Dryer for Chromatographic Samples", J. Chrom. 269, 1-9, 1983.Figure 1. Schematic of Six-Port Valve Used for Sample Collection.Figure 2. Dilution Containers for Standard MixturesFigure 3. Automated Sampling and Analysis System for Cryogenic TrappingFigure 4. Sample Volume Measuring Apparatus。
浅论环境空气中挥发性有机物的测定方法及注意事项[摘要] 本文结合笔者多年实践工作经验，针对环境空气中挥发性有机物的测定方法做出分析。
环境空气中VOCs 的测定方法是国内外研究的焦点。
本文通过对国内外环境空气中VOCs 的测定方法进行总结，结合我国实际情况，对测定环境空气中VOCs的两种方法（固体吸附/热脱附/ GC 或GC-MS方法和罐采样/冷冻预浓缩/ GC 或GC-MS方法）进行分析，从而得出更具可操作性的测定环境空气中挥发性有机物的测定方法及注意事项。
[关键字]环境空气挥发性有机物测定方法0 引言环境空气中的挥发性有机物（V olatile organiccompounds，简称VOCs），在大气环境当中是主要的污染物，这类的化合物不仅存在一定的毒性，而且还容易致癌，并且还会产生光化学烟雾。
在实际空气当中，VOCs的成分相对而言比较复杂，不管是室内还是室外的空气质量都有着极大的影响，在实际生活中人们吸入气体也会影响身体健康的状况。
随着社会的不断高速发展，人们针对VOCs 所产生的负面影响也越来越显得重视，就目前而言其也同时成为了国内外重点的研究对象。
VOCs所体现出来的主要成分有烃类和氧烃以及含卤烃类等，这些成分普遍存在室内和室外空气当中，并且它们之间相互融合形成一类复杂的有机污染物。
综合实际情况，我们可以发现其产生的主要原因，是由于当前社会中使用的各种化工原料，而且还有烟草或者树木在燃烧的过程中没有达到完全燃烧的条件也会产生这些成分；还有在公路上行驶的汽车所排放出来的尾气，以及自然界中生长的植物也会自动排放而产生VOCs。
随着现代社会不断的高速发展，人们对于建筑的设计也是不断的推陈出新，建筑物的结构也发生了翻天覆地的变化，因此在实践中也使得新型的建材以及保温材料和室内装潢材料，在当今建筑中得到了前所未有的运用。
与此同时，还有各种的化妆品以及清香、除臭剂等诸多品种的洗涤剂，在现代社会家庭中广泛的得到应用，在这些物品当中有些能够直接挥发出有机化合物，而有些在长期缓解过程中释放出低分子化合物，那么针对当前的环境空气都会造成很大的影响。

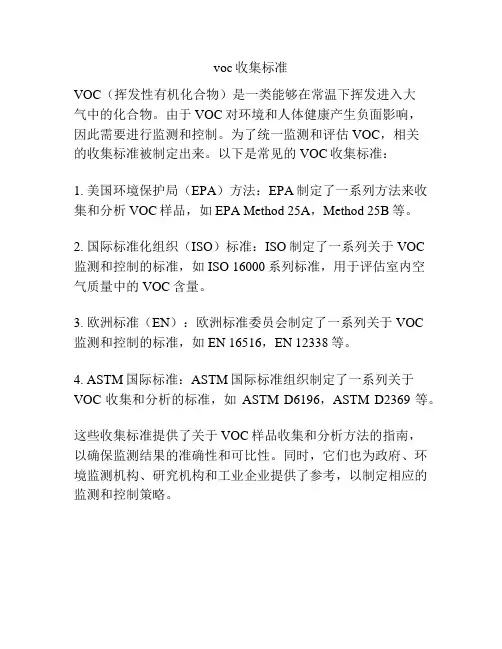

voc收集标准
VOC（挥发性有机化合物）是一类能够在常温下挥发进入大
气中的化合物。
由于VOC对环境和人体健康产生负面影响，
因此需要进行监测和控制。
为了统一监测和评估VOC，相关
的收集标准被制定出来。
以下是常见的VOC收集标准：
1. 美国环境保护局（EPA）方法：EPA制定了一系列方法来收集和分析VOC样品，如EPA Method 25A，Method 25B等。
2. 国际标准化组织（ISO）标准：ISO制定了一系列关于VOC
监测和控制的标准，如ISO 16000系列标准，用于评估室内空
气质量中的VOC含量。
3. 欧洲标准（EN）：欧洲标准委员会制定了一系列关于VOC
监测和控制的标准，如EN 16516，EN 12338等。
4. ASTM国际标准：ASTM国际标准组织制定了一系列关于VOC收集和分析的标准，如ASTM D6196，ASTM D2369等。
这些收集标准提供了关于VOC样品收集和分析方法的指南，
以确保监测结果的准确性和可比性。
同时，它们也为政府、环境监测机构、研究机构和工业企业提供了参考，以制定相应的监测和控制策略。

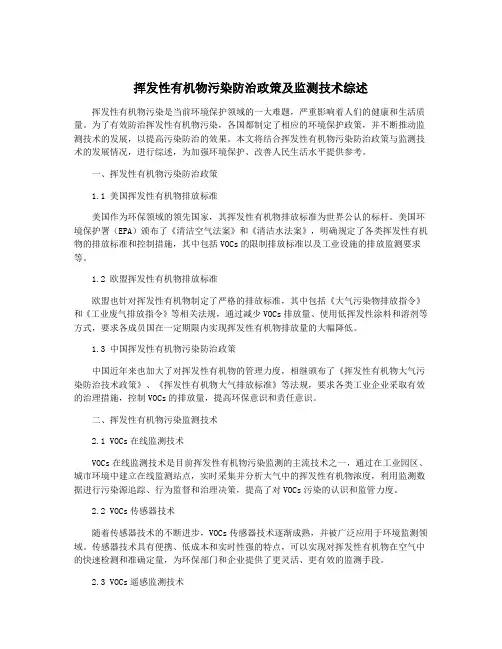

挥发性有机物污染防治政策及监测技术综述挥发性有机物污染是当前环境保护领域的一大难题，严重影响着人们的健康和生活质量。
为了有效防治挥发性有机物污染，各国都制定了相应的环境保护政策，并不断推动监测技术的发展，以提高污染防治的效果。
本文将结合挥发性有机物污染防治政策与监测技术的发展情况，进行综述，为加强环境保护、改善人民生活水平提供参考。
一、挥发性有机物污染防治政策1.1 美国挥发性有机物排放标准美国作为环保领域的领先国家，其挥发性有机物排放标准为世界公认的标杆。
美国环境保护署（EPA）颁布了《清洁空气法案》和《清洁水法案》，明确规定了各类挥发性有机物的排放标准和控制措施，其中包括VOCs的限制排放标准以及工业设施的排放监测要求等。
1.2 欧盟挥发性有机物排放标准欧盟也针对挥发性有机物制定了严格的排放标准，其中包括《大气污染物排放指令》和《工业废气排放指令》等相关法规，通过减少VOCs排放量、使用低挥发性涂料和溶剂等方式，要求各成员国在一定期限内实现挥发性有机物排放量的大幅降低。
1.3 中国挥发性有机物污染防治政策中国近年来也加大了对挥发性有机物的管理力度，相继颁布了《挥发性有机物大气污染防治技术政策》、《挥发性有机物大气排放标准》等法规，要求各类工业企业采取有效的治理措施，控制VOCs的排放量，提高环保意识和责任意识。
二、挥发性有机物污染监测技术2.1 VOCs在线监测技术VOCs在线监测技术是目前挥发性有机物污染监测的主流技术之一，通过在工业园区、城市环境中建立在线监测站点，实时采集并分析大气中的挥发性有机物浓度，利用监测数据进行污染源追踪、行为监督和治理决策，提高了对VOCs污染的认识和监管力度。
2.2 VOCs传感器技术随着传感器技术的不断进步，VOCs传感器技术逐渐成熟，并被广泛应用于环境监测领域。
传感器技术具有便携、低成本和实时性强的特点，可以实现对挥发性有机物在空气中的快速检测和准确定量，为环保部门和企业提供了更灵活、更有效的监测手段。
美国EPA关于大气自动监测系统性能指标的规定和测试方法引言环境空气污染的自动监测方法有多种，一般采用湿法和干法两种。
湿法是基于化学量理论的库仑法和电导法等测量原理，需使用大量试剂，存在试剂调整和废液处理等问题，操作比较繁琐，故障率较高，维护工作量较大；干法是基于物理光谱测量理论，使样品始终保持在气体状态，没有试剂的损耗，维护工作量较小。
比如SO2测量采用紫外荧光法，NOx测量采用化学发光法，O3测量采用紫外光度法，CO测量采用气体过滤相关分析法等，目前我国绝大部分空气自动监测采用的是该方法。
干法测量以欧美为主。
美国开展空气自动监测已有30年的历史，在空气自动监测方面积累了丰富的经验，并制定了详细的规范。
其中物理光谱法作为美国EPA的推荐方法,得到了广泛的应用。
湿法测量以日本为主,但自1996年起日本在法定的测量方法中增加了干式测量法。
利用物质的光谱特性进行污染物的分析已成为自动监测仪器发展的必然趋势。
我国在环境空气质量监测和质量保证方面的规定都参考了美国国家环保署（EPA）的规定。
目前，大气自动监测和空气质量日报工作在我国大部分省市已广泛开展，自动监测仪器监测数据的准确可靠是日报工作中的基础。
为使监测人员了解美国EPA关于空气自动监测的相关规定，特将其有关SO2、NO2、O3、CO自动监测仪器的性能指标规定和测试方法作简要说明，以供参考。
一、美国EPA对性能指标及判定原则的规定1、性能指标B-1自动监测仪器性能指标M/0.02447,M是该气体的摩尔质量。
2、判定原则对于每个性能指标（量程除外），测试程序从开始起要重复7次，得到7组测试结果。
每组结果要和表B-1中的规定指标相比较，高于或超出规定指标的值是一个超标值。
每个参数的7个结果说明如下：（1）0次超标：被测的参数合格；（2）3次或更多次超标：该参数不合格；（3）1次或2次超标：再重复测试该参数 8次，得到共15个测试结果。
将此15个测试结果说明如下：a：1次或2次超标：通过测试；b：3次以上：该参数不合格。
usepa8260d标准EPA8260D是美国环境保护署发布的一项监测有机气体的方法标准。
该标准主要适用于对有机气体的空气监测和采样。
下面将详细介绍EPA8260D标准的背景、应用、具体步骤以及注意事项等内容。
背景：有机污染物是大气污染的主要成因之一，对环境和人体健康造成了严重影响。
因此，准确监测和采样有机气体是非常重要的。
EPA8260D标准方法是目前用于有机气体监测和采样最常使用的方法之一。
应用：EPA8260D标准适用于监测和测定空气中的挥发性有机物（Volatile Organic Compounds, VOCs）。
这些有机物包括苯、甲苯、二甲苯、乙苯、氯化物、醛类、酚类等。
该方法广泛应用于空气质量监测、环境评估、工业排放监测等领域。
具体步骤：1.样品准备：将空气样品收集于气袋或容器中，确保样品收集设备干净，并避免污染。
2.样品浓缩：将样品中的有机气体浓缩，以便于后续的分析和测定。
3.气相色谱分析：将浓缩后的气体样品通过气相色谱仪进行分离和定量分析。
4.质谱检测：在气相色谱仪后连接质谱仪，检测并确认有机化合物的种类和浓度。
注意事项：1.在进行空气样品采集和处理过程中，应避免污染源，严密密闭空气采样装置。
2.操作过程中需使用专业的气体采样、分析和检测设备，确保准确、可靠的测试结果。
3.操作人员应具有相关的分析测试知识和技能，并根据EPA8260D 标准进行操作。
4.样品的储存和运输应遵循相关的规范，以确保测试结果的准确性和可靠性。
5.定期检验和校准设备，确保设备的正常运行和测试结果的准确性。
总结：EPA8260D是美国环境保护署发布的一项监测有机气体的方法标准。
该标准适用于对空气中的挥发性有机化合物的监测和测定。
采用该方法可以准确分析和测定空气中的有机污染物，为环境保护和空气质量监测提供重要依据。
在使用该标准进行采样和分析时，需要注意操作规范，使用专业设备，并定期校准设备，以确保测试结果的准确性和可靠性。
生态环境监测常用epa方法使用指南生态环境监测是保障人类居住环境健康、促进可持续发展的重要手段。
而美国环境保护局（EPA）提出的监测方法被广泛应用于全球。
本文将详细介绍几种常用的EPA监测方法，帮助读者更好地理解和应用。
首先，我们来介绍EPA方法中最常用的VOCs（挥发性有机物）监测方法。
VOCs是一类对人体健康和环境产生不良影响的化学物质，如苯、甲苯等。
EPA方法中，常用的监测技术包括气相色谱-质谱联用仪（GC-MS）和气相色谱仪（GC）。
在进行VOCs监测时，首先需从空气或水样品中提取目标物质，然后使用GC-MS或GC进行定性定量分析。
这些方法具有高灵敏度和准确度，对于环境中微量VOCs的检测非常有效。
其次，来介绍一种常用的水质监测方法，即EPA的标准方法522（EPA Method 522）。
该方法主要用于分析水中的多环芳烃（PAHs）。
PAHs是一类常见的有害物质，源自燃烧过程和工业排放。
在EPA Method 522中，使用气相色谱-质谱联用仪（GC-MS）进行PAHs的检测。
该方法采用固相萃取技术，从水样中富集PAHs，并通过GC-MS进行定性定量分析。
通过该方法，我们可以快速准确地监测水体中PAHs的含量，为水环境管理和保护提供科学依据。
此外，EPA还提出了许多其他的监测方法，如EPA Method 1600和EPA Method 1623等，这些方法主要用于微生物的监测。
例如，EPAMethod 1600用于检测饮用水和环境水体中的大肠杆菌等肠道致病菌的存在。
该方法采用滤膜法，将水样过滤后，将菌落生长于兔肠上进行检测。
而EPA Method 1623则用于监测水中的肠道病毒，如腺病毒和诺沃克病毒。
这些方法操作简单、结果可靠，对于保障水质安全具有重要意义。
除了上述方法外，EPA还提供了许多其它环境监测方法，如大气颗粒物的监测方法、土壤重金属的监测方法等。
这些方法为环境保护部门、科研机构以及行业监管提供了重要的技术支持。
要利用物质的沸点、极性等物理性质上的差异，通过程序变换色谱柱的温度，依据在不同时段内吸附解吸不同种类的物质，有效地分离气体样品中的组分，经检测器形成色谱图，与标准物质的色谱图作比较，进行定量分析，得出最终结果。
气相色谱具有分离效率高、选择性好、灵敏度高、分析速度快等特点[5]。
1.2 质谱法(1)气相色谱-质谱法。
气相色谱-质谱，简称GC-MS，是将气相色谱仪和质谱仪联用的一种技术。
被测物质通过气相色谱仪有效地被分离出来，随后进入质谱仪，通过高能离子流轰击，进入检测器，形成色谱质谱图，与标准物质色谱质谱图对比，进行定性定量分析。
气相色谱-质谱法兼具气相色谱法的优点，准确性更高。
(2)质子转移反应质谱法。
质子转移反应质谱，简称PTR-MS，是痕量挥发性有机物在线监测的主要检测方法。
被测物质在漂移管内与离子源产生的初始反应离子(通常为H3O+、NH4+等离子)发生质子转移反应，产生的(VOCs)H+离子进入质谱仪检测，进行定性定量分析。
质子转移反应质谱法一般情况下无需对样品进行预处理，具有高效、可实时监测、绝对量测量等优点，但对同分异构体的识别能力较差[6]。
(3)飞行时间质谱法。
飞行时间质谱，简称TOF-MS。
使用电离技术将被测物质电离，产生的离子通过电场加速后，通过漂移管飞向离子接收器，通过分析离子到达接收器时间，定性被测物质。
其具有快速检测、高分辨率、高灵敏度等优点，但若出现干扰离子，难以分辨被测物质。
1.3 光谱法(1)傅里叶变换红外光谱法。
傅里叶变换红外光谱，简称FTIR。
由光源发射红外光束，通过迈克尔逊干涉仪，照射气体组分，得到光谱信息，依据傅里叶变换，进行定性和定量分析。
FTIR技术具有测量速度快、分辨率高、可动态分析多种污染物0 引言挥发性有机物(volatile organic compounds,VOCs)被认为是燃烧过程中直接产生的初级污染物[1]，是参与大气光化学反应的有机化合物，主要来自于工业源、生活源和交通源，包括化工、涂装行业、机动车、建筑装饰装修等产生的气体。
常见挥发性有机物(VOCs)一览表VOCs是挥发性有机化合物(Volatile Organic Compounds)的英文缩写，其定义有好几种，美国ASTM D3960-98标准将其定义为任何能参加大气光化学反应的有机化合物。
美国联邦环保署(EPA)这样定义：挥发性有机化合物是除CO、CO2、H2CO3、金属碳化物、金属碳酸盐和碳酸铵外，任何参加大气光化学反应的碳化合物。
在我国，VOCs(volatile organic compounds)挥发性有机物是指常温下饱和蒸汽压大于70.91 Pa、标准大气压101.3kPa下沸点在50~260℃以下且初馏点等于250摄氏度的有机化合物，或在常温常压下任何能挥发的有机固体或液体。
目前，我国VOCs的环境质量标准暂未颁布，VOCs的排放标准暂时没有国家标准，但各重点监测区域相继颁布了地方排放标准或行业标准。
国标对于VOCs的监测，使用的是《环境空气挥发性有机物的测定罐采样/气相色谱-质谱法》（HJ 759-2015）。
该方法可对直链烃、环烷烃、芳香烃、含氧化合物、苯系物、卤代烃等大多数挥发性有机物检测分析，检测组分多达67种，是目前VOC检测组分最齐全的方法。
同时，该方法与美国环保署（EPA）TO-14/15标准较为一致，基本上包含了TO-14/15重点监测组分，是我国各级环境监测站开展挥发性有机物监测的重要指导文件。
从环境监测的角度来讲，VOCs是以氢火焰离子检测器检出的非甲烷总烃类检出物的总称，主要包括烷烃类、芳烃类、烯烃类、卤烃类、酯类、醛类、酮类和其他有机化合物。
综上所述，VOC和VOCs其实是同一类物质，即挥发性有机化合物(Volatile Organic Compounds)的英文缩写，由于挥发性有机化合物一般成分不止一种，因此VOCs更精准。
下表为常见VOCs种类：。
空气中苯的监测技术及其发展概况摘要：对空气中苯系物的监测方法进行了分析，概括了国内外目前测定环境空气中苯系物的主要分析方法，着重介绍了活性炭吸附/二硫化碳解吸-气相色谱法以及常温捕集—热解析—气相色谱法两种方法，对原有标准方法测定方法和分离条件等进行了优化和改善。
并为未来检测空气中苯系物的方法改进方向提出了建议和意见。
关键词：空气苯系物气相色谱法苯系物主要包括苯、甲苯、乙苯、二甲苯、苯乙烯以及异丙苯。
目前，苯系化合物已经被世界卫生组织( WHO)确定为强致癌物[1]。
中国也已将苯系物列入优先控制的污染物名录。
因而，寻求快速准确的空气中苯的监测方法至关重要。
本文主要收集概括目前国内外较常用的空气中苯的分析方法，主要是活性炭吸附/二硫化碳解吸-气相色谱法以及常温捕集—热解析—气相色谱法。
此两种方法快速准确，值得推广借鉴。
1 苯系物的主要来源苯及苯系物的来源比较广泛。
苯系物主要是煤焦油分馏或者石油的裂解产物。
目前，建筑装饰材料中有机溶剂，如油漆的添加剂和稀释剂、防水材料添加剂、粘胶剂，人造板家具等都是苯系化合物的主要污染来源。
2 国内现行环境监测分析方法标准目前，国内苯系物测定环境监测现行方法主要为两大块，即《空气质量苯系物的测定固体吸附/热脱附—气相色谱法》[2]以及《环境空气苯系物的测定活性炭吸附/二硫化碳解析气相色谱法》[3]。
两大方法均为气相色谱法，主要区别为样品采集及前处理过程的不同。
HJ 583-2010《空气质量苯系物的测定固体吸附/热脱附—气相色谱法》。
本标准规定了测定环境空气及室内空气中苯系物的固体吸附/热脱附-气相色谱法。
主要适用于环境空气及室内空气中苯系物的测定。
同时也适用于常温下低浓度废气中苯系物的检测[3]。
HJ 584-2010 《环境空气苯系物的测定活性炭吸附/二硫化碳解析气相色谱法》。
本标准规定了测定空气中苯系物的活性炭吸附/二硫化碳解吸-气相色谱法。
适用于环境空气及室内空气苯系物的测定。
环境空气挥发性有机物的测定吸附管采样-热脱附/气相色谱-质谱法1. 适用范围本方法规定了测定环境空气中挥发性有机物（VOCs）的吸附管采样-热脱附/气相色谱-质谱法。
本方法适用于环境空气中35种挥发性有机物的测定。
若通过验证本标准也可适用于其他非极性或弱极性挥发性有机物的测定。
当采样体积为2L时，本标准的方法检出限为0.3～1.0 μg/m3，测定下限为1.2～4.0μg/m3，详见附录A。
2. 规范性引用文件本方法内容引用了下列文件或其中的条款。
凡是不注日期的引用文件，其有效版本适用于本方法。
3. 方法原理采用固体吸附剂富集环境空气中挥发性有机物，将吸附于热脱附仪中，经气相色谱分离后，用质谱进行检测。
通过与待测目标物标准质谱图相比较和保留时间进行定性，外标法或内标法定量。
4. 试剂和材料4.1甲醇（CH3OH）：农药残留分析纯级。
4.2标准贮备溶液：ρ =2000mg/L，市售有证标准溶液。
4.3 4-溴氟苯（BFB）溶液：ρ =25mg/L ，市售有证标准溶液，或用于高浓度标准溶液配制。
4.4吸附剂：Carbopack C（比表面积10 m2/g），40/60 目；CarbopackB（比表面积100 m2/g）， Carboxen 1000（比表面积800 m2/g），45/60 目或其他等效吸附剂。
4.5 吸附管：不锈钢或玻璃材质，内径6mm，内填装Carbopack C、CarbopackB、Carboxen 1000，长度分别为13、25、13mm。
或使用其他具有相同功能的产品。
4.6 聚焦管：不锈钢或玻璃材质，内径不大于0.9mm，内填装吸附剂种类及长度与吸附管相同。
或使用其他具有相同功能的产品4.7 吸附老化和保存：新购的吸附管或采集高浓度样品后的吸附管需进行老化老化温度350℃，老化流量40ml/min，老化时间10～15min。
吸附管老化后，立即密封两端或放入专用的套管内，外面包层铝箔纸。
