BUK7107-55AIE中文资料

  • 格式：pdf
  • 大小：142.01 KB
  • 文档页数：15

1.2 Features
s Integrated current sensor s ESD protection s Q101 compliant s Standard level compatible.
1.3 Applications
s Variable Valve Timing for engines s Electrical Power Assisted Steering.
VGS ≥ 10 V
Fig 1. Normalized total power dissipation as a function of mounting base temperature.
Fig 2. Continuous drain current as a function of mounting base temperature.
Fig 3. Safe operating area; continuous and peak drain currents as a function of drain-source voltage.
9397 750 09877
© Koninklijke Philips Electronics N.V. 2002. All rights reserved.
1.4 Quick reference data
s VDS ≤ 55 V s ID ≤ 140 A s RDSon = 5.8 mΩ (typ) s ID/Isense = 500 (typ).
2. Pinning information
Table 1: Pin 1 2 3 4 5 mb Pinning - SOT426 and SOT263B, simplified outline and symbol Simplified outline
80
40 40
Capped at 75A due to package
0 0 50 100 150 200 Tmb (° C)
0 0 50 100 150 200 Tmb (°C)
P tot P der = ---------------------- × 100 % P °
tot ( 25 C )
BUK71/7907-55AIE
TrenchPLUS standard level FET
Rev. 01 — 12 August 2002 Product data
1. Product profile
1.1 Description
N-channel enhancement mode field-effect power transistor in a plastic package using TrenchMOS™ technology, featuring very low on-state resistance, TrenchPLUS current sensing and diodes for ESD protection. Product availability: BUK7107-55AIE in SOT426 (D2-PAK) BUK7907-55AIE in SOT263B (TO-220AB).
Fig 4. Transient thermal impedance from junction to mounting base as a function of pulse duration.
9397 750 09877
© Koninklijke Philips Electronics N.V. 2002. All rights reserved.
Product data
Rev. 01 — 12 August 2002
4 of 15
Philips Semiconductors
BUK71/7907-55AIE
TrenchPLUS standard level FET
5. Characteristics
Table 4: Characteristics Tj = 25 °C unless otherwise specified. Symbol V(BR)DSS Parameter drain-source breakdown voltage Conditions ID = 0.25 mA; VGS = 0 V Tj = 25°C Tj = −55 °C VGS(th) gate-source threshold voltage ID = 1 mA; VDS = VGS; Figure 9 Tj = 25°C Tj = 175 °C Tj = −55 °C IDSS drain-source leakage current VDS = 55 V; VGS = 0 V Tj = 25°C Tj = 175 °C V(BR)GSS IGSS gate-source breakdown voltage gate-source leakage current IG = ±1 mA; −55°C < Tj <175 °C VGS = ±10 V; VDS = 0 V Tj = 25 °C Tj = 175 °C RDSon drain-source on-state resistance VGS = 10 V; ID = 50 A; Figure 7 and 8 Tj = 25°C Tj = 175 °C ID/Isense ratio of drain current to sense VGS > 10 V; current −55°C < Tj <175 °C total gate charge gate-source charge gate-to-drain (Miller) charge input capacitance output capacitance reverse transfer capacitance turn-on delay time rise time turn-off delay time fall time internal drain inductance from upper edge of drain mounting base to center of die from source lead to source bond pad VDS = 30 V; RL = 1.2 Ω; VGS = 10 V; RG = 10 Ω VGS = 0 V; VDS = 25 V; f = 1 MHz; Figure 12 VGS = 10 V; VDS = 44 V; ID = 25 A; Figure 14 450 5.8 500 7 14 550 mΩ mΩ 22 1000 10 nA µA 20 0.1 22 10 250 µA µA V 2 1 3 4 4.4 V V V 55 50 V V Min Typ Max Unit Static characteristics
s Kelvin source
1
5
MBL263
SOT426 (D2-PAK)
SOT263B (TO-220AB)
Philips Semiconductors
BUK71/7907-55AIE
TrenchPLUS standard level FET
3. Limiting values
Table 2: Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol VDS VDGS VGS ID Parameter drain-source voltage (DC) drain-gate voltage (DC) gate-source voltage (DC) drain current (DC) Tmb = 25 °C; VGS = 10 V; Figure 2 and 3 Tmb = 100 °C; VGS = 10 V; Figure 2 IDM Ptot IGS(CL) Tstg Tj IDR IDRM EDS(AL)S peak drain current total power dissipation gate-source clamping current storage temperature junction temperature reverse drain current peak reverse drain current non-repetitive drain-source avalanche energy Tmb = 25 °C Tmb = 25 °C; pulsed; tp ≤ 10 µs unclamped inductive load; ID = 68 A; VDS ≤ 55 V; VGS = 10 V; RGS = 50 Ω; starting Tj = 25 °C
103 ID (A)
03nf55
Limit RDSon = VDS/ID
tp = 10 µs
102
100 µs Capped at 75 A due to package 1 ms DC
10
10 ms 100 ms
1 1 10 VDS (V) 102
Tmb = 25 °C; IDM single pulse.
[1] [2] [1] [2] [2]
Conditions IDG = 250 µA
Min −55 −55 -
Max 55 55 ±20 140 75 75 560 272 10 50 +175 +175 140 75 560 460
Unit V V V A A A A W mA mA °C °C A A A mJ
Product data
Rev. 01 — 12 August 2002
3 of 15
Philips Semiconductors

合集下载

AS1117-BQFT;中文规格书,Datasheet资料

AS1117-BQFT;中文规格书,Datasheet资料

3 Applications
The AS1117 is ideal for seven-segment or dot matrix user interface displays of mobile applications, set-top boxes, VCRs, DVD-players, washing machines, micro wave ovens, refrigerators and other white good or personal electronic applications.
Keyscan Input. Keyscan lines for key readback. Can be used for self-adressing. Reset Input. Pull this pin to low to resest all registers (set to default values) and to put the device into shutdown. Connect this pin via a pull-up resistor to VDD for normal operation. Set Segment Current. Connect to VDD or a reference voltage through RSET to set the peak segment current (see Selecting RSET Resistor Value and Using External Drivers on page 19). Serial-Clock Input. 3.4MHz maximum rate.
Stresses beyond those listed in Table 3 may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in Section 6 Electrical Characteristics on page 4 is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
KN-710用户手册

KN-710用户手册

KN-710业余短波单边带收发信机用户手册2004 © BA6BF版权所有版本VER 1.0KN-710 用户手册 本手册对应 BA6BF 设计的 KN-710 型业余短波单边带收 发信机（以下简称“本机”。

请用户仔细阅读本手册，以便 ） 详细了解本机的安装及调试等方法，避免出现不必要的问 题。

1KN-710 用户手册目录一． 二． 三． 四． 五． 六． 七． 八． 九． 十．KN-710 简介 清点元件 认识元件 组装之前的准备工作 焊接技巧 通电之前的准备工作 天线的架设 调试技巧 故障与解决 浅谈单边带通信原理十一．维修与服务1KN-710 用户手册一．KN-710 简介 KN-710 为 BA6BF 设计的业余短波单边带收发信机套件， 它主要工作在 40 公尺业余波段，其具有最大 50 瓦特的额定 输出功率。

而且由于其电路均基于准确的计算和反复的试 验，装调良好的整机具有很高的性能指标和实用性，可以很 好的运用于三级操作证书所规定的 40 公尺业余波段。

基于对单边带通信机以及对业余无线电通信的深刻理 解，KN-710 的电路设计简洁明了。

摈弃了很多华而不实的功 能，而注重在实用性方面取得突破。

针对多数爱好者不具备 专业的测试仪器，设计者在电路安排及细节考虑上均尽了最 大的努力使得套件的手工调整的部分减少到了极限，从而为 提高套件的成功率做出了重要的贡献。

KN-710 技术参数 接收单元： 灵敏度：不劣于 12dB/1uV 选择性：2.7KHz/6dB;3.8KHz/60dB 音频输出功率：300mW/8 欧姆 发射单元： 输出功率：25 瓦特/50 瓦特 杂散抑制：大于 45dB 1KN-710 用户手册 谐波抑制：大于 50dB 一般规格： 供电电压：13.8V/24V 整机电流：接收：60mA 发射：4.5A 频率范围：7.050~7.070MHz1KN-710 用户手册二．清点元件 当用户拿到套件包后，请立即清点元件袋中的零件。

MB90F546GSPF中文资料

MB90F546GSPF中文资料


2
MB90540/540G/545/545G Series
(Continued) • UART 1 With full-duplex double buffer (8-bit length) Clock asynchronized or clock synchronized serial (extended I/O serial) can be used. • External interrupt circuit (8 channels) A module for starting an extended intelligent I/O service (EI2OS) and generating an external interrupt which is triggered by an external input. • Delayed interrupt generation module Generates an interrupt request for switching tasks. • 8/10-bit A/D converter (8 channels) 8/10-bit resolution can be selectively used. Starting by an external trigger input. Conversion time : 26.3 µs • FULL-CAN interfaces MB90540 series : 2 channel MB90545 series : 1 channel Conforming to Version 2.0 Part A and Part B Flexible message buffering (mailbox and FIFO buffering can be mixed) • External bus interface : Maximum address space 16 Mbytes • Package: QFP-100, LQFP-100

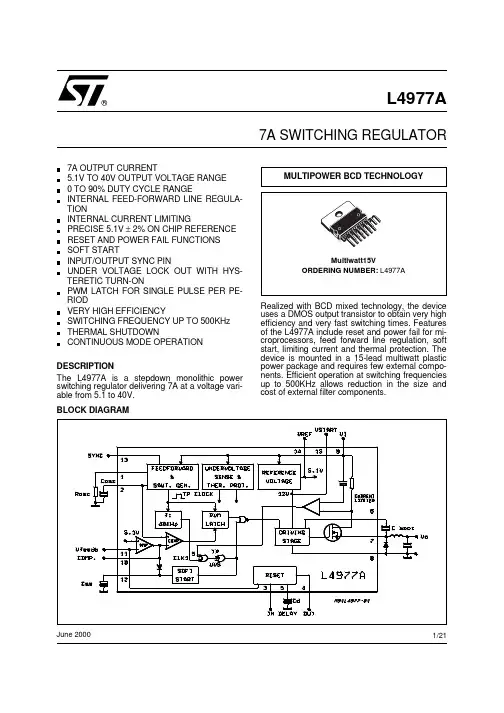

L4977A资料
