下载文档原格式
第一章 K7型GPS测量系统简介 (3)1.1 系统的特色、组成、性能指标及配置 (3)1.1.1 K7型GPS新特色 (3)1.1.2系统组成 (3)1.1.3 K7测量系统的主要技术参数 (3)1.1.4 测量系统的基本配置 (4)1.2 K7型GPS测量系统的硬件 (5)1.2.1 K7型GPS接收机 (5)1.2.2 电池及充电器 (6)1.3 K7型GPS测量系统软件组成 (7)1.4 K7型GPS接收机充电及电源装卸 (7)一、打开K7主机侧面的电池后盖（见图1-2）； (7)二、将电池后盖打开后取出锂电池（见图1-3），然后用配套充电器充电。
(7)第二章 K7型GPS测量系统实测 (8)2.1 概述 (8)2.2系统作业模式 (9)2.2.1 静态相对定位模式 (9)一、作业方法： (9)二、定位精度： (9)三、作业要求： (9)四、适用范围： (9)五、作业范围： (9)2.2.2后差分动态相对定位模式 (9)一、作业方法： (9)二、技术指标： (9)三、应用范围： (10)2.3 GPS网的技术设计 (10)2.3.1 测量的精度标准 (10)2.3.2网的图形设计 (11)2. 环形网 (11)3. 星形网 (12)2.3.3基线长度 (13)2.3.4网的基准 (13)2.4 选点与埋石 (13)2.4.1选点 (13)2.4.2 埋石 (14)2.5 K7型GPS测量系统的野外作业 (14)2.5.1 制定观测计划 (14)一、确定工作量 (14)二、采用分区观测 (15)三、选择观测时段 (15)四、确定观测进程及调度 (15)2.5.2安置及启动仪器 (16)2.5.3如何量取天线高即仪器高 (16)2.5.4启动仪器 (17)2.6 K7型接收机使用注意事项 (17)GPS测量应遵循《国家标准GPS测量规范》布网、施测、检核、计算。
(17)第三章K7型GPS测量系统文件及操作 (17)3.1 K7型文件系统简介与文件界面 (18)3.1.1 初始界面 (18)3.1.2 系统界面 (19)3.2 K7型文件系统野外数据采集 (23)3.2.1智能模式采集 (23)一、数据的采集： (23)二、给记录的数据取一个文件名： (24)三、退出数据记录： (25)3.2.2人工模式采集 (25)一、数据的采集： (25)二、给记录的数据取一个文件名： (25)三、退出数据记录： (25)3.2.3节电模式采集 (26)一、数据的采集： (26)第四章 K7内业数据传输 (27)4.1数据传输软件简介和界面 (27)4.1.1 菜单项 (27)四、查看菜单 (29)4.1.2 工具栏 (30)4.1.2 状态栏 (31)4.1.3 程序视窗 (31)4.2如何进行数据传输 (32)四、数据传输 (33)五、断开连接 (33)4.3.2检测注册码 (34)4.3.3设置功能 (35)第五章常见问题及解决方法 (35)第六章 K7后处理差分系统实测 (36)6.1.1 初始界面 (36)6.1.2 后差分野外作业步骤 (37)第七章如何升级主机软件 (39)附录A 有关专业术语注释 (41)附录B 年积日计算表 (43)附录C 联系方式 (45)附录D 全国销售及服务网络列表 (46)第一章 K7型GPS测量系统简介1.1 系统的特色、组成、性能指标及配置1.1.1 K7型GPS新特色K7智能一体化GPS接收机现已问世。
T.T摩托简要说明书TEST MENU 测试主菜单INPUT TEST 存诸器测试INPUT TEST 输入测试SOUND TEST 声音测试C.R.T TEST 画面测试GANE ASSIGNMENTS 游戏调整COIN ASSIGNMENTS 投币调整BOOKKEEPING 游戏记录BOOKUP DATA CLEAR 清除记录OUTPUT TEST 输出测试EXIT 退出一、MEMORY 主要为ROM〈存储器〉的好坏测试二、INPUT TEST 输入项目的测试MIN MAX MID 最小值最大值中间值〉THROTTLE：20H〈20H〉〈eoH〉加油：20H 〈20H〉〈eoH〉BRAKE ：20H〈20H〉〈eoH〉刹车：20H 〈20H〉〈eoH〉BANK ：80H 〈20H〉〈eoH〉〈80H〉方向：80H 〈20H〉〈eoH〉〈80H〉SHIFT UP：OFF/ON 加档：关/开SHIFT DOWN：OFF/ON 去档：关/开START/VR：OFF/ON 开始/视点：关/开COTN CHUTE.#1：OFF/ON 投币器1：关/开COIN CHUTE#2：OFF/ON 投币器2：关/开SERVICE ：OFF/ON 辅助测试：关/开TEST ：OFF/ON 主测试：关/开三、SOUND TEST 声音测试VOICE 语音EFFECT 音效BRAEE-P 打滑ENGINE-P 加油ENGINE-E 加油B.G.M 背景音乐EXIT 退出四、C.R.T.TEST 主要用于对显示器的红、绿、蓝〈R.G.B〉彩色三基色的校正，以及对网格线的垂直度调整和扫描四个边的到位情况、校正。
五、GAME AWWIGNENTS 游戏方面的各项调整AD.VERTISE SOUND：OFF/ON 演示时，音效的开关：关/开COUNTRY ：JARAN 出口国家：日本CABINET TYPE ：TWIN 游戏立场：DELUXELINK TYPE ：NOTLINK 关于连线：不用连线：MASTER ：设为主机：SIA VE ：设为分机：RELA V ：只为演示BIKE COLIR〈NO〉：RED〈NO.1〉连线团队中的编号：红色一号：BLUE〈NO.2〉：蓝色二号RACE MODE ：T.T 游戏类型：用于连线时或赛时：RACE ：与电脑比赛LAXEY NUMDEROFLAP.1-10 摩托车可跑的圈数：1至10可调GAME.DIFFICULTY ：EASY 游戏的难度：容易：NORMAL ：普通：HARD ：困难：HARDEST ：极困难REVISE.MODE.1-3/3 自动校正项START.SWITCH.OP：ON/OFF 是否用自动开始：是/否EXIT 退出六：COIN/CREDIT.SETTING.1 投币方式的调整，共有27种方式COIN CREDIT 投币器 11 COIN 1 CREDIT 1币1局COIN CHUTE 2 投币器 21 COIN 1 CREDIT 1币1局MANUAL.SETTING 币数与游戏的次数COIN.TO.CREDIT1-9 COIN 1 CREDIT 1至9可调一局BONUS.ADDER：NO BONUS ADDER 额外奖励：无奖：2 COINS.GEVELEXTRA ：2个币奖一将次〈2-9可调查〉COIN CHUTE 1.MUL.TIPLIER 投一个币代表几个币〈1至9可调〉EXIT 退出七、BOOKKEEPING 此项是查看游戏中，投了多少币，以及过关人数时间等诸多参数。
嘉陵牌JH600B型边三轮摩托车使用保养说明书 SERVICE AND MAINTENANCE MANUAL中国嘉陵工业股份有限公司(集团)CHINA JIALING INDUSTRIAL CO.,LTD .(GROUP)前 言本说明书介绍了该车的基本操作和保养方法，驾驶前请您仔细阅读。
正确地使用、保养和维护，能有效的保障行车安全，减少边三轮摩托车的故障，保持该车最佳性能，并延长该车的使用寿命。
本公司的“嘉陵特约维修站”将为您提供优质的售后服务。
本说明书所标明的数据、规格和说明，是根据公司目前最新设计而确定的，嘉陵集团公司随时都有更新的权力。
对此，凡是本公司今后进行的技术变更，将不再另行通知。
感谢您选购了"嘉陵" 牌边三轮摩托车！祝愿您在未来行程中，享受它给您带来的舒适和愉快。
本产品执行标准为：Q/QD918 -2005重要事项承载规定JH600B型边三轮摩托车能够承载驾驶员一人和乘员两人，它的最大允许载质量为320 kg 。
请您仔细阅读本使用保养说明书。
请特别注意:若不遵照交通法规和本使用保养说明书的规定进行操作，以及在非正常条件下进行操作，如在恶劣的碎石上或超载行驶等，可能产生安全事故或损坏机件。
本使用保养说明书是本车的必备附件之一，当车转卖给他人使用时，应随车附上。
本使用保养说明书版权归嘉陵集团公司所有，未经本公司书面同意不准翻印，违者必究。
本使用保养说明书的解释权为嘉陵集团公司。
目 录1一、边三轮摩托车的安全驾驶安全驾驶规则……………………………………………………………………………………………( 3 )安全防护用品……………………………………………………………………………………………( 3 )边三轮摩托车的改装……………………………………………………………………………………( 4 )货物的装载………………………………………………………………………………………………( 4 )二、使用说明零件的位置………………………………………………………………………………………………( 4 )零件的功能………………………………………………………………………………………………( 6 )［组合仪表］……………………………………………………………………………………………( 6 )［组合点火开关］………………………………………………………………………………………( 7 )［左组合开关部件］……………………………………………………………………………………( 7 )［右组合开关部件］……………………………………………………………………………………( 8 )［燃油和油箱锁］………………………………………………………………………………………( 8 )［座垫头盔锁］…………………………………………………………………………………………( 9 )［润滑油的选用］………………………………………………………………………………………( 9 )［轮胎］…………………………………………………………………………………………………( 9 )三、操作指导开车前的检查 (10)边三轮摩托车的起动 (10)发动机的磨合 (11)边三轮摩托车的驾驶 (12)四、维修与保养保养周期表 (13)发动机润滑油的检查与更换 (14)冷却液的检查与添加 (15)火花塞的选用与更换 (15)空气滤清器的清洁及虑芯更换 (16)油门操作的检查与调整 (16)离合器的调整 (17)驱动链条的检查、调整及润滑 (17)前、后、边制动器的检查与调整 (18)转向拉索的检查与调整 (19)随车工具 (19)蓄电池的保养 (20)蓄电池电解液的检查及添加 (20)灯泡的更换 (20)灯光的调整 (21)保险丝的更换 (21)螺栓、螺母的紧固 (21)边三轮摩托车的清洁 (22)边三轮摩托车存放 (22)边三轮摩托车存放后使用 (22)一、边三轮摩托车的安全驾驶2边三轮摩托车是一种独特的机动车辆，它能给乘骑者带来舒适和方便。
1.本田WIN100型摩托车电路图2.本田CHA125型摩托车电路图3.本田GG125,CG125M摩托车电路图4.本田CH125摩托车电路图5.本田CB125T摩托车电路图6.本田CB125S摩托车电路图7.本田CBZ125F摩托车电路图8.本田CBX125C摩托车电路图9.本田CBX250摩托车电路图10.本田VT250摩托车电路图11.本田VT250F摩托车电路图12.本田NSR250摩托车电路图13.本田CBR250R(K)摩托车电路图14.本田CBR400R摩托车电路图15.本田VF400F摩托车电路图16.本田CBX400F摩托车电路图17.雅马哈TZR125摩托车电路图18.雅马哈TZR125摩托车电路图19.雅马哈SR125摩托车电路图20.雅马哈SR125Z摩托车电路图21.雅马哈XV125（S）摩托车电路图22.雅马哈XV250摩托车电路图23.雅马哈TZR250摩托车电路图24.雅马哈TZR250R，RS摩托车电路图25.雅马哈FZR400摩托车电路图26.铃木AX100摩托车电路图27.铃木GS125ES摩托车电路图28.铃木AN125摩托车电路图29.铃木GN125R，ER摩托车电路图30.铃木GN250摩托车电路图31.铃木GN250N摩托车电路图32.铃木GSX-R250摩托车电路图33.铃木GSX400摩托车电路图国产国产摩托车电路图集11.嘉陵JL50QT-9摩托车电路图2.南方羚羊NF50摩托车电路图3.轻骑木兰QM50QW-B型摩托车电路图4.建设JS50Q-4A型摩托车电路图5.建设JS50QT-8型摩托车电路图6.金城JC50QT-6型摩托车电路图7.春兰CL50QT型摩托车电路图8.新大洲.本田SDH50QT-16型摩托车电路图9.新大洲.本田SDH50QT-40型摩托车电路图10.钱江QJ50T-5型摩托车电路图11.天马TM50Q-3，TM100-2，TM100-2A，TM110-9，TM110-9A，TM125-2型摩托车电路图12.天马TM50QT-7，TM100T-4，TM125T-2型摩托车电路图13.嘉陵，本田JH70型摩托车电路图14.金城CJ70B型摩托车电路图15.重庆雅马哈CY80型摩托车电路图16.嘉陵JH90A，JH90C型摩托车电路图17.建设，雅马哈风帆JYM90摩托车电路图18.金城JC90T-8型摩托车电路图19.大阳DY90-3A型摩托车电路图20.嘉陵JH100型摩托车电路图21.建设JS125T-26型摩托车电路图22.建设JS100-8型摩托车电路图23.五洋.本田WH100T(基本型B型C型)型摩托车电路图24.五羊.本田WH100T(A型D型)型摩托车电路图25.五羊.本田WH100T-E型摩托车电路图26.新大洲.本田SDH100-41型摩托车电路图27.轻骑野马QM100型摩托车电路图28.轻骑雄风QS100型摩托车电路图29.宗申ZS100-10型摩托车电路图30.宗申ZS100-18型摩托车电路图国产摩托车电路图集21.力帆LF100-5摩托车电路图2.力帆LF100T-2摩托车电路图3.隆鑫LX100-3，LX110-3摩托车电路图4.大阳DY110-11摩托车电路图5.金城.铃木AX100摩托车电路图6.金城JC100A摩托车电路图7.金轮JL100-10A摩托车电路图8.钱江QJ100摩托车电路图9.钱江QJ100T-4摩托车电路图10.钱江QJ100T-5F摩托车电路图11.光阳名流CH100（微电脑）摩托车电路图12.天马TM100，TM100A，TM110-8，TM110-8A，TM125，TM150-6（电启动）摩托车电路图13.天马TM100-10，TM125-10，TM150-4摩托车电路图14.雅奇YQ100摩托车电路图16.嘉陵JL110-8摩托车电路图17.建设JS110-2摩托车电路图18.建设JS110-3摩托车电路图19.建设雅马哈JY110摩托车电路图20.劲隆JL110-3摩托车电路图21.劲隆JL110-10摩托车电路图22.隆鑫LX110-c,LX125-10,LX150-8摩托车电路图23.宗申ZS110-5摩托车电路图24.宗申ZS110-9摩托车电路图25.宗申ZS110-12摩托车电路图26.大江DJ110摩托车电路图27.嘉陵JH125摩托车电路图28.嘉陵125-3摩托车电路图29.嘉陵JH125-9（CM125）摩托车电路图30.嘉陵125D摩托车电路图国产摩托车电路图集31.嘉陵JL125-12摩托车电路图2.嘉陵JL125-19摩托车电路图3.嘉陵JL125T-10B10摩托车电路图4.嘉陵125T-15摩托车电路图5.嘉陵。

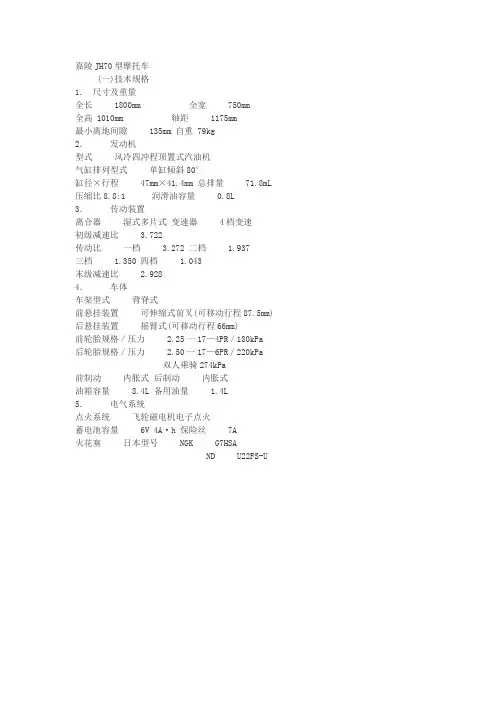

嘉陵jh70型摩托车(一)技术规格1．尺寸及重量全长 1800mm 全宽 750mm 全高 1010mm 轴距 1175mm 最小离地间隙 135mm 自重 79kg 2．发动机型式风冷四冲程顶置式汽油机气缸排列型式单缸倾斜80°缸径×行程 47mm×41.4mm 总排量 71.8ml 压缩比8.8:1 润滑油容量 0.8l 3．传动装置离合器湿式多片式变速器 4档变速初级减速比 3.722 传动比一档 3.272 二档 1.937 三档 1.350 四档 1.043 末级减速比 2.9284．车体车架型式背脊式前悬挂装置可伸缩式前叉(可移动行程87.5mm) 后悬挂装置摇臂式(可移动行程66mm)前轮胎规格／压力 2.25一17—4pr／180kpa 后轮胎规格／压力 2.50一17—6pr／220kpa 双人乘骑274kpa 前制动内胀式后制动内胀式油箱容量 8.4l 备用油量 1.4l 5．电气系统点火系统飞轮磁电机电子点火蓄电池容量 6v 4a·h 保险丝 7a 火花塞日本型号 ngk g7hsa nd u22fs-u 中国型号1136或1137 篇二：lr70使用说明书lr-70激光探测器使用说明书***电子有限公司非常感谢您使用lr-70激光探测器。
在操作之前请仔细阅读此说明书，以便正确使用。
目录1.仪器概述 (1)2.技术规格 (2)3.操作指南 (3)4.标准配件 (6)5.联系方式 (7)1.仪器概述1.1 仪器特征-中文名称：激光投线仪专用探测器 (接收器)-英文名称：line laser detector -主机型号：lr-701 104(1)水平标示水泡 (8)上指示灯 (13)划线槽(2)探测窗 (9)中间指示灯 (14)垂直标示水泡(3)零位指示红线 (10)下指示灯(4)电源指示灯 (11)固定螺纹孔(5)开机/关机键 (12)电池盖(6)声音选择键(7)蜂鸣器1.2 主要用途当激光投线仪器在室外或远距离工作时，人眼不能清楚的观察到激光信号。
REMOVAL FROM CRATEENGINE INSTALLATION1\INSTALL THE CLUTCH TO ENGINE SHAFT. PUT THE PARTS LIKE THE FOLLOWING ORDER:CLUTCH BUSHING (16*20*3mm), CLUTCH 12 TEETH, WASHER(6*25*3mm), M1/4-28*4/3 BOLT.2\TIGHTEN THE CLUTCH BOLT:TROUQE 69-104in.lbs3\ PUT THE ENINGE ON TO THE FARME, USE THE ENGINE MOUNT BOLTS (M8*20 BOLT) TO KEEP THE ENGINE ON POSITION.4\INSTALL THE CHIAN TO “CLUTCH 12 TEETH ”, MOVE THE ENGINE FORWARD TO KEEP THE CHAIN TIGHTED.5\TIGHTEN THE ENGINE MOUNT BOLTS (M8*20 BOLT)TROUQE 13-18 ft.lbs6\TIGHTEN THE CLUTCH COVER BOLTS (M8*20 BOLT).TROUQE 8-12 ft.lbsCAUTION: ALL THE PARTS ARE PUT IN THE PAG WITH THE LABEL “CLUTCH ASSEMBLY ”.FRONT FORK INSTALLATION1\ INSTALL FRONT FORK ASSEMBLY BY INSERTINGTHE M10 STEERING BOLT THROUGH THE ASSEMBLY IN THE FOLLOWING ORDER:TOP BRACKET, 10mm WASHER, STEERING NECK, 10mm WASHER, BOTTOM BRACKET, M10 SELF-LOCK NUT.2\ TIGHTEN THE M10 SELF-LOCK NUT:TROUQE 22-29ft. lbs.3\ INSTALL THE FORNT NUMBER PLATE ON TO THE FORNT FORK AND TIGHTEN THE M6*20 BOLT.TROUQE 69-104in.lbsCAUTION: ALL THE PARTS ARE PUT IN THE PAG WITH THE LABEL “FRONT FORK ASSEMBLY ”.Steering Neck10mm WasherTighten the M61\ ATTACH THE FRONT FENDER WITHM6*16 BOLTS, 6mm WASHERS AND 6mm NUTS.2\TIGHTEN THE M6 SELF-LOCK NUT: TROUQE 69-104in.lbsNOTE: SMALL PORTION OF FENDER FACE FORWARD.CAUTION: ALL THE PARTS ARE PUT IN THE PAG WITH THE LABEL “FRONT FENDER ASSEMBLY”.1\ ORIENT THE FRONT TIRE SO THE ARROW ON THE TIRE SIDE FACE FORWARD.2\INSERT AXLE BOLT WITH THE WHEEL BUSHINGS BETWEEN THE FORKS AND WHEEL ASSEMBLY ON ENACH SIDE.3\ INSTALL THE M12 SELF-LOCK NUT AND TIGHTEN.TROUQE 69-104in.lbsCAUTION: ALL THE PARTS ARE PUT IN THE PAG WITH THE LABEL “FRONT TIRE ASSEMBLY ”.SECURE WIRES AND CABLES1\ MOUNT THE THROTTLE CABLE TO THE ENGINE THROTTLE BRACKET AND CONECT SWITCH OFF WIRE WITH THE ENGINE WIRE.2\MAKE SURE THE ON/OFF SWITCH WIRE, THROTTLE CABLE AND BRAKE CABLE ARE NOT KINKED AND HAVE FREE MOVEMENT WHEN THE HANDLE BAR ARE TRUNED FROM LEFT TO RIGHT.3\ SECURE WIRES AND CABLES TO FRAME USING THE ZIP TIES PROVIDED.CAUTION: ALL THE PARTS ARE PUT IN THE PAG WITH THE LABEL “FRONT FORK ASSEMBLY ”.OIL AND FUELEngine Oil11. Remove the oil fill plug (1)FUELNever use leaded gasoline in this product. It could affect the engine’s emissions and damage the engine.Mini Bike requires clean unleaded regular gasoline with a minimum octane rating of 86 or higher.Fill with gasoline up to the bottom of the filler neck.6Caution: Do not over or under fill with Motor Oil2. fi ll with SAE 10W-30 motor oil. This mini bike takes .63qt. (.6L) of engine oil. Oil should be up to the brim of the fill hole.3. Re- install fill cap, Start engine and allow to run for a few minutes, Re-check oil level and fill accordingly.Filling with OilMini bike DOES NOT have oil in crankcase when shipped from the factory.NEVER ATTEMPT to start the engine without engine oil.Tires1. Check tire pressure. Incorrect tire pressure can affect the handling, rider comfort, steering, tire life and traction. Always check the tire pres-sure before each ride.TIRE PRESSURE7Tire pressure Front tires: 5psi Rear tires: 5psiChain tensionCheck the tension of the chain , The chain (1) tension should be 1/2 - 3/4 in. (15-20mm)Chain tension (slack) adjustment1. Loosen bolt on chain tensioner (2).2. Move Tensioner right to tighten chain or left to loosen chain.3. If chain needs more tightening after adjustment, loosen the 4 bolts on the bottom of the engine plate and move engine forward .Note: Make sure chain is in line with sprockets after adjustment 4. Re-check chain tension.1/2 - 3/4 in.38Brake Lever AdjustmentThe front left brake lever (1) should have 2.0 - 4.0mm (0.08 - 0.16) of free play.To adjust brake lever free play:1. Loosen the jam nut (2) on the brake cable.2. Turn the adjuster nut (3) until the correct amount of free-play is achieved.3. Re tighten jam nut (2)122.0 - 4.0mmBrakes3BRAKE ADJUSTMENTBrake AdjustmentThe brake adjustment (4) is located on the rear brake caliper assembly. To adjust brakes, loosen nut (4) . Increase or decrease the tension of the brake cable by pulling cable tighter or by allowing more slack.45THROTTLE ADJUSTMENT9Throttle Cable adjustmentThe hand grip throttle free play (2) should be .078 - .24 in (2-6 mm)To adjust freeplay 1. Loosen jam nut (3)2. Turn adjusting nut (4) to proper setting3. Once throttle grip is at the proper freeplay, re-tighten the jam nut (3).234.078 - .24 in It is important that the throttle grip have a certain amount of free play .PRE-RIDE INSPECTIONInspecting and checking the condition of the Mini Bike before each ride is important. Following the pre-ride check list will help insure there are no problems which could result in injury or becoming stranded. Make sure the Mini Bike is in good operating condition before each ride.WHAT TO CHECK CHECK FORSteering• Smoothness• No restriction ofmovement Brakes • Proper brake leverplay Tires• Proper tire pressure Fuel Tank• Enough fuel for the ride • Fuel cap secure• Hoses have no signs ofcracks or leaks Throttle grip• Throttle grip snapsback to idle when released• Operates freely • Has correct free play Engine Stop Switch • Switch shuts off enginewhen activated. Engine Oil • Correct oil levelDrive Chain• Proper tension • LubricatedGeneral Condition or frame while running• Axle nuts tight• All nuts and bolts tight• No rattles from engine11STARTING ENGINESTARTING ENGINETo start the engine1. Place the fuel valve (1) in the “ON” (vertical) position.2.. If engine is cold, place the choke lever (2) in the “ON” (right position.3. Place the ON/OFF switch (3), located on the handlebars, in the (on)position.4. Pull the starter recoil cord (4) to start the engine.5. Once engine has warmed up for a few minutes, place the choke lever (2) back to the “OFF” (left) position.1234。
JZ-7型机车制动机使用说明书中国北车集团天津机车车辆机械厂2001.4目录第一节：JZ-7型机车制动机的主要特点及基本参数第二节：结构性能及作用第三节：JZ-7型机车制动机的综合作用第四节：使用注意事项第五节：常见故障及处理第六节：JZ-7型机车制动机的维护第一节JZ-7型机车制动机的主要特点及基本参数1.1 JZ-7型机车制动机的主要特点1.1.1 JZ-7型机车制动机既能用于客运机车，也能用于货运机车。
客车位能阶段缓解，货车位为一次缓解。
1.1.2 该型制动机属于自动保压式，即列车管减压后可自动保压。
1.1.3 自动制动阀所设操纵位置：过充位运转位最小减压位—最大减压位过量减压位手柄取出位和紧急制动位。
1.1.4 结构上采用橡胶膜板和带有O型橡胶密封圈的柱塞结构,便于制造和检修。
1.1.5 分配阀采用了二压力与三压力混合形式的机构，既具有阶段缓解作用，又具有一次缓解作用。
同时，当制动缸漏泄时能自动补风，具有良好的制动不衰性。
实施紧急制动制动缸可增压。
1.1.6 为适应长大货物列车的需要设有过充位，以缩短列车管、副风缸初充气和再充气的时间。
1.2 基本参数单独制动性能表表1-1自动制动性能表表1-2第二节结构性能及作用2.1 JZ-7型机车制动机的构造JZ-7型机车制动机由自动制动阀、单独制动阀、中继阀、分配阀、作用阀、均衡风缸、工作风缸、降压风缸、作用风缸、制动缸等组成。
2.1.1 JZ-7型机车制动机的结构2.1.2 自动制动阀自动制动阀系自动保压式，设有过充位﹑运转位﹑最小减压位及常用制动区﹑过量减压位﹑手把取出位及紧急制动位。
自动制动阀由调整阀﹑放风阀﹑重联柱塞阀﹑缓解柱塞阀﹑二位阀﹑阀体及管座等部分组成（详见图2-1）。
2.1.3 管座：管座上设有九根管路：⑴均衡风缸管⑵列车管⑶总风管⑷中均管(6)撒砂管⑺过充管⑻遮断阀管⑽单独缓解管⑾单独作用管。
（见图2-2）。
2.1.4 调整阀：该阀是用以控制均衡风缸压力变化的。
