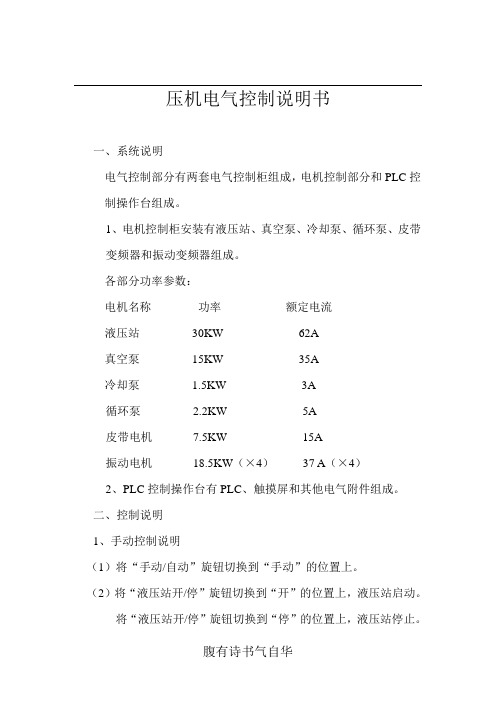

压机电气控制说明书一、系统说明电气控制部分有两套电气控制柜组成，电机控制部分和PLC控制操作台组成。
1、电机控制柜安装有液压站、真空泵、冷却泵、循环泵、皮带变频器和振动变频器组成。
各部分功率参数：电机名称功率额定电流液压站30KW 62A真空泵15KW 35A冷却泵 1.5KW 3A循环泵 2.2KW 5A皮带电机7.5KW 15A振动电机18.5KW（×4）37 A（×4）2、PLC控制操作台有PLC、触摸屏和其他电气附件组成。
二、控制说明1、手动控制说明（1）将“手动/自动”旋钮切换到“手动”的位置上。
（2）将“液压站开/停”旋钮切换到“开”的位置上，液压站启动。
将“液压站开/停”旋钮切换到“停”的位置上，液压站停止。
（3）将“1#真空泵开/停”旋钮切换到“开”的位置上，1#真空泵启动。
将“1#真空泵开/停”旋钮切换到“停”的位置上，1#真空泵停止。
（4）将“2#真空泵开/停”旋钮切换到“开”的位置上，2#真空泵启动。
将“2#真空泵开/停”旋钮切换到“停”的位置上，2#真空泵停止。
（5）将“冷却泵开/停”旋钮切换到“开”的位置上，冷却泵启动。
将“冷却泵开/停”旋钮切换到“停”的位置上，冷却泵停止。
（6）将“循环泵开/停”旋钮切换到“开”的位置上，循环泵启动。
将“循环泵开/停”旋钮切换到“停”的位置上，循环泵停止。
（7）将振动电机“手动/自动”旋钮切换到“手动”的位置上。
将“振动电机开/停”旋钮切换到“开”的位置上，振动电机启动。
将“振动电机开/停”旋钮切换到“停”的位置上，振动电机停止。
调节“振动电机调速”电位器，振动电机根据电位器调节量调节振动速度。
（8）将皮带电机“手动/自动”旋钮切换到“手动”的位置上。
将“皮带电机开/停”旋钮切换到“开”的位置上，皮带电机启动。
将“皮带电机开/停”旋钮切换到“停”的位置上，皮带电机停止。
将“皮带正转/反转”旋钮切换到“正转”的位置上，皮带电机正转运行。
