第七部分低压终端配电产品选型指南7-17-2A c t i 9系列的主要产品Acti 9 断路器安装结构示意图78910115432161. iC65断路器2. iMN/iMN s欠压脱扣器或iMSU过压脱扣器3. iMX/iMX+OF分励脱扣器4. iSD报警接点或OF/SD+OF双重切换接点5. iOF辅助接点6. Vigi iC65剩余电流动作附件7. Multiclip配电模块8. 断路器插拔式底座9. 间隔件10. 旋转手柄11. 手柄锁扣77-37-47-5i C 65断路器选型表-/ + 说明：1. K 系列i C 65断路器分断能力6000A ，额定电流6～32A ，不可选用剩余电流动作保护附件及电气附件。
2. i C 65系列仅B 曲线有3A 的产品。
3. i C 65L 无B 曲线产品。
举例：产品号：i C 65N C 20A /2P V E 30m A 。
表示：i C 65小型断路器，6k A 分断，C 曲线，额定电流20A ，2极带电子式剩余电流保护附件，额定剩余电流30m A 。
7-6i C 60L M A 断路器选型表i C 60/ + 说明：1. i C 60L M A 为单磁式小型断路器，无过载保护。
须与热继电器等元件配合，实现过载保护。
举例：产品号：i C 60L M A 16A /3P i M N 。
表示：i C 60L M A 单磁式小型断路器，分断能力15k A ，额定电流16A ，3极，配i M N 欠压脱扣单元。
7-7i D P N 断路器选型表+ 说明：1. K 系列i D P N 断路器分断能力4500A ，额定电流6～32A ，不可选用剩余电流动作保护附件及电气附件。
2. V E C +表示最新的18m m 一体式剩余电流动作保护器(R C B O )，i D P N a /N V i g i +，电子式，A C 类，30m A ，额定电流10~25A ，不可拼装电气附件3. i D P N a 无2A 型号。
ABB EntrelecSommaireBU0402061SNC 160 003 C0205SummarySelection guide ....................................................................................page 1Screw clamp ........................................................................................page 2Feed through and ground terminal blocks .......................................................page 2 - 5 to 10Single pole, multiclamp terminal blocks..........................................................................page 4Feed through terminal blocks - Double-deck................................................................page 11Feed through terminal blocks - Triple-deck...................................................................page 12Three level sensor, terminal blocks without ground connection...................................page 13Three level sensor, terminal blocks with ground connection ........................................page 14Terminal blocks for distribution boxes, double deck + protection .......................page 15 - 16Interruptible terminal blocks for neutral circuit......................................................page 17 - 18Distribution : phase, ground terminal blocks .......................................................page 19 to 21Single pole or four pole distribution blocks..........................................................page 22 to 24Heavy duty switch terminal blocks with blade......................................................page 25 - 26Heavy duty switch terminal blocks with push-turn knob..............................................page 26Heavy duty switch terminal blocks with contact control pull lever...............................page 29Heavy duty switch terminal blocks with blade - Double-deck .....................................page 27Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.)or 6.35x25.4 mm (1/4x1 in.) and 6.35x32 mm (1/4x11/4 in.) fuse s.........................................page 28 - 29Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuses -Double-dec k.....................................................................................................................page 27Terminal blocks for test circuits with sliding bridge ......................................................page 30Terminal blocks for metering circuits.............................................................................page 31ESSAILEC terminal blocks.............................................................................................page 32Safety connection terminal blocks ................................................................................page 33Miniblocks for EN 50045 (DIN 46277/2) rail ..........................................................page 34 - 35Spring clamp ......................................................................................page 36Angled terminal blocks - Feed through and ground .....................................................page 36Feed through and ground terminal blocks ...........................................................page 37 to 41Feed through terminal blocks - Double deck ................................................................page 42Terminal blocks for sensors / actuators ........................................................................page 42Terminal blocks for distribution boxes...........................................................................page 43Switch terminal blocks for neutral conductor........................................................page 44 - 45Heavy duty switch terminal blocks with blade..............................................................page 46Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuse s....page 47Miniblocks Spring clamp ......................................................................................page 48 to 52ADO - Screw clamp ...........................................................................page 53Feed through and ground terminal blocks ...........................................................page 53 to 56Feed through and ground terminal blocks - Double-deck............................................page 57Heavy duty switch terminal blocks with blade..............................................................page 58Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuse s ......page 59 - 60Miniblocks ADO - Screw clamp............................................................................page 61 to 65ADO - ADO .........................................................................................page 66Feed through and ground terminal blocks ...........................................................page 66 to 69Feed through and ground terminal blocks - Double-deck............................................page 70Terminal blocks for sensors / actuators ........................................................................page 71Heavy duty switch terminal blocks with blade..............................................................page 72Fuse holder terminal blocks for 5x20 mm (.197x.787 in.) and 5x25 mm (.197x.984 in.) fuse s ......page 73 - 74Miniblocks ADO - ADO .........................................................................................page 75 to 79Accessories ADO ...........................................................................................................page 80Power terminal blocks .............................................................page 81 to 84Quick-connect terminal blocks .................................................page 85 - 86Terminal blocks for railway applications ................................page 87 to 97Pluggable terminal blocks .....................................................page 98 to 100Accessories......................................................................................page 101Marking..................................................................................page 102 to 104GrossAutomation(877)268-3700··*************************PR30PR3.Z2PR3.G2PR5PR4PR1.Z2Rated wire size :Rated wire size :Rated wire size :Rated wire size :Mounting railsShield terminals forcollector barMarking tableHorizontal Rated wire size :0.5 to 16 mm² (22 to 8 AWG)Rated wire size :Rated wire size :Rated wire size :P a g e t o 29e30 t o 32ag e e3P a ge 8 t o 60a g e6t o 6574P a ge 7 t o 79P a ge 9P a g P a gGrossAutomation(877)268-3700··*************************2ABB Entrelecd010830402051SNC 160 003 C0205MA 2,5/5 - 2.5 mm² blocks - 5 mm .200" spacingAccessoriesGrossAutomation(877)268-3700··*************************3ABB Entrelec D010740402051SNC 160 003 C0205M 4/6 - 4 mm² blocks - 6 mm .238" spacingAccessoriesGrossAutomation(877)268-3700··*************************4ABB EntrelecD011030402051SNC 160 003 C0205M 4/6.3A - 4 mm² blocks - 6 mm .238" spacingM 4/6.4A - 4 mm² blocks - 6 mm .238" spacingGrossAutomation(877)268-3700··*************************5ABB Entrelec D010840402051SNC 160 003 C0205M 6/8 - 6 mm² blocks - 8 mm .315" spacingAccessoriesGrossAutomation(877)268-3700··*************************6ABB EntrelecD010850402051SNC 160 003 C0205M 10/10 - 10 mm² blocks - 10 mm .394" spacingAccessoriesGrossAutomation(877)268-3700··*************************7ABB Entrelec D010860402051SNC 160 003 C0205M 16/12 - 16 mm² blocks - 12 mm .473" spacingAccessoriesGrossAutomation(877)268-3700··*************************8ABB EntrelecD010870402051SNC 160 003 C0205M 35/16 - 35 mm² blocks - 16 mm .630" spacingGrossAutomation(877)268-3700··*************************M 95/26 - 95 mm² blocks - 26 mm 1.02" spacingM 70/22.P - 70 mm² ground block with rail contact - 22 mm .630" spacingSelection35 mm / 1.37"12 mm / 0.47"14-30 Nm / 124-260 Ib.in 1.2-1.4 Nm / 10.6-12.3 Ib.in1000600600415400400577070240 mm 2500 MCM 500 MCM 10 mm 2 6 AWG 6 AWG IEC UL CSANFC DIN0.5 - 160.5 - 100 AWG-600 MCM 2 AWG-500 MCM 50 - 30035 - 24018-6 AWGD 150/31.D10 - 150 mm² blocks - 31 mm 1.22" spacingCharacteristicsD 240/36.D10 - 240 mm² blocks - 36 mm 1.41" spacingSelectionWire size main circuit mm² / AWG VoltageV Current main circuit A Current outputARated wire size main circuit mm² / AWG Rated wire size outputmm² / AWG Wire stripping length main circuit mm / inches Wire stripping length output mm / inches Recommended torque main circuit Nm / Ib.in Recommended torque outputNm / Ib.inSolid Stranded Solid Stranded Wire size output mm² / AWG9.5 mm / .37"0.5-0.8 Nm / 4.4-7.1 Ib.in5003003003220204 mm 212 AWG12 AWG0.2 - 422-12 AWG 22-12 AWG 0.22 - 4IEC ULCSANFC DINCharacteristicsWire size mm² / AWGSolid Stranded D 4/6.T3 - 4 mm² blocks - 6 mm .238" spacingSelectionVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inM 4/6.T3.P - 4 mm² block - 6 mm .238" spacingD 2,5/6.D - 2.5 mm² blocks - 6 mm .238" spacingD 2,5/6.DL - 2.5 mm² blocks - 6 mm .238" spacingD 2,5/6.DPA1 - 2.5 mm² blocks - 6 mm .238" spacingD 2,5/6.DPAL1 - 2.5 mm² blocks - 6 mm .238" spacingD 4/6... - 4 mm² blocks - 6 mm .238" spacingD 4/6.LNTP - 4 mm² closed blocks - 17.8 mm .700" spacingMA 2,5/5.NT- 2.5 mm² block - 5 mm .200" spacingAccessories**SFB2 : 16 to 35 mm² 6 to 2 AWG H= 3 mm/.12"M 10/10.NT- 10 mm² block - 10 mm .394" spacingAccessories(1) Except for M 35/16 NT (closed block)*SFB1 : 0.5 to 35 mm² 18 to 2 AWG H= 7 mm/.28"**SFB2 : 16 to 35 mm² 6 to 2 AWG H= 3 mm/.12"MB 4/6... - 4 mm² blocks - 6 mm .238" spacingMB 6/8... - 6 mm² blocks - 8 mm .315" spacingMB 10/10... - 10 mm² blocks - 10 mm .394" spacingBRU 125 A - 35 mm² block - 27 mm 1.063" spacingBRU 160 A - 70 mm² block - 35.2 mm 1.388" spacingBRU 250 A - 120 mm² blocks - 44.5 mm 1.752" spacingBRU 400 A - 185 mm² block - 44.5 mm 1.752" spacingAccessoriesAccessoriesBRT 80 A - 16 mm² block - 48 mm 1.89" spacingBRT 125 A - 35 mm² block - 48 mm 1.89" spacingBRT 160 A - 50 mm² block - 50 mm 1.97" spacing9.5 mm / .37"0.5-0.6 Nm / 4.4-5.3 Ib.in4003003002010104 mm 210 AWG 12 AWG 0.5 - 422-10 AWG20-12 AWG0.5 - 2.5IEC ULCSANFC DINMA 2,5/5.SNB - 2.5 mm² blocks - 5 mm .200" spacingCharacteristicsM 4/6.SNB - 4 mm² blocks - 6 mm .238" spacingSelectionWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inSolid StrandedM 6/8.SNB - 6 mm² blocks - 8 mm .315" spacing - blade switchingSelectionAccessoriesM 4/8.D2.SF - for fuses 5x20 mm .197x.787 in. and 5x25 mm .197x.984 in. -4 mm² blocks - 8 mm .315" spacingM 4/6.D2.SNBT - 4 mm² blocks - 6 mm .238" spacing - blade switchM 4/8.SF- 4 mm² blocks - 8 mm .315" spacingM 4/8.SFL - 4 mm² blocks - 8 mm .315" spacing12 mm / .472"1.2-1.4 Nm / 10.6-12.3 Ib.in800(1)60060016252510 mm 210 AWG8 AWG0.5 - 1622-10 AWG 22-8 AWG 0.5 - 10IEC ULCSANFC DINCBD2SML 10/13.SF - for fuses 6.35x25.4 mm 1/4x1 in. and 6.35x32 mm 1/4x11/4 in. -10 mm² blocks - 13 mm .512" spacingSelectionAccessoriesCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inSolid Stranded (1) Insulation voltage of terminal block - operating voltage : according to fuse.M 4/6.D2.2S2... - 4 mm² blocks - 6 mm .238" spacing11 mm / .43"0.8-1 Nm / 7.1-8.9 Ib.in50060030306 mm 28 AWG0.5 - 1022-8 AWG0.5 - 6IECULCSANFC DINM 6/8.ST... - 6 mm² blocks - 8 mm .315" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping length mm / inches Recommended torqueNm / Ib.inSolid Stranded M 6/8.STA - 6 mm² blocks - 8 mm .315" spacing(3)Only for M 6/8.STAM 4/6.ST- 4 mm² blocks - 6 mm .236" spacingBNT...PC...(2) Only for M10/10.ST-SnThe PREM IUM solution for testing the secondary circuits of current or voltage transformers.ESSAILEC, approved by the major electricity utilities, remains the premium choice for the energy market.Implemented in the transformers secondary circuits, ESSAILEC thanks to its intelligent “make before break” design eases and secures any intervention. Cutting the energy supply is avoided with zero risk for the operator.The plug and socket connection cuts cost installation as well as in-situ wiring errors. ESSAILEC is ideal for the wiring of sub-assemblies in the secondary circuits.ESSAILEC terminal blocksProtection relays,Protection relays,Testing :The ESSAILEC socket supplies energy to the protection or counting devices. The insertion of the test plug, which is connected to the measurement equipment, allows the testing of the devices, without perturbing the circuit.ESSAILEC blocks are well adapted to current or voltage measurement :-Current sockets with make before break contacts and pre-wired test plug for current measures-Voltage sockets with open contacts and pre-wired test plug for voltage measures-Up to 4 ammeters or 4 voltmeters connected to the test plugDistributing :The ESSAILEC plug is continuously mounted on the socket to supply current or voltage to secondary circuits sub assemblies.ESSAILEC blocks extreme versatility allow :-Safe current distribution with current socket with mobile contacts since the secondary circuit is not cut when plug is removed-Voltage or polarity distribution with dedicated voltage or polarity socket with closed contactESSAILEC is designed to offer :Great flexibility :-Connection multi contacts « plug and play »-Panel, rail, rack fixed mounting or stand-alone connector -Two wiring technologies, up to 10 mm²Extreme reliability :-Non symmetric blocks -Coding accessories -IP20 design -Locking system -Sealed coverR S T NFor technical characteristics and complete part numbers list, please ask for the ESSAILEC catalog10005006003225254 mm 21.65 mm²12 AWG 13 mm / .51"IECB.SCSANFC DINTS 50-180.5 - 0.8 Nm /4.4 - 7.1 Ib.in0.2 - 422-12 AWG0.22 - 40.5 - 1.50.28 - 1.6580050060041252562.512 AWG 13 mm / .51"0.8 - 1 Nm / 7.1 - 8.9 Ib.inIECB.S CSANFC DINTS 50-180.5 - 1020-12 AWG0.5 - 60.28 - 2.590050060046406510 mm 26 mm² 6 AWG 14 mm / .55"IECB.S UL/CSANFC DINTS 50-181.2 - 1.4 Nm / 10.6 - 12.3 Ib.in0.5 - 1620 - 6 AWG0.5 - 100.28 - 6M 4/6.RS - 4 mm² blocks - 6 mm .238" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping lengthmm / inches Recommended torque (screw)Nm / Ib.inSolid wire Stranded wire Solid wire Stranded wire Screw clampLugsM 6/8.RS - 6 mm² blocks - 8 mm .315" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping lengthmm / inches Recommended torque (screw)Nm / Ib.inSolid wire Stranded wire Solid wire Stranded wire Screw clampLugspending M 10/10.RS - 10 mm² blocks - 10 mm .394" spacingCharacteristicsWire size mm² / AWGVoltage V CurrentARated wire sizemm² / AWG Wire stripping lengthmm / inches Recommended torque (screw)Nm / Ib.inSolid wire Stranded wire Solid wire Stranded wire Screw clampLugspending SelectionAccessories(1) Only for block M 4/6.RS (4) For blocks M 4/6.RS and M 6/8.RS(2) Only for block M 6/8.RS(3) Only for block M 10/10.RSDR 1,5/4 - 1.5 mm² blocks - 4 mm .157" spacingDR 1,5/5... - 1.5 mm² blocks - 5 mm .200" spacing。
71770393施耐德低压电器选型接触器：I<=7.5A LC1-D0922M5C I<=10A LC1-D1222M5C I<=15.3A LC1-D1822M5CI<=21A LC1-D2522M5C I<=27.2A LC1-D3222M5CI<=34A LC1-D4022M5C I<=42.2A LC1-D5022M5C ；I<=55.5A LC1-D6522M5CI<=68A LC1-D8022M5C I<=82A LC1-D9522M5C I<=98A LC1-D11522M5C I<=128A LC1-D15022M5C；I<=145A LC1-D17022M5C I<=175A LC1-D20522M5C I<=210A LC1-D24522M5C I<=260A LC1-D30022M5C I<=350A LC1-D41022M5C I<=410A LC1-D47522M5C I<=540A LC1-D62022M5C热继电器：I<=0.16A LRD-01C I<=0.25A LRD-02C I<=0.40A LRD-03C I<=0.63A LRD-04C I<=1A LRD-05C I<=1.6A LRD-06C I<=2.5A LRD-07C I<=4A LRD-08C I<=6A LRD-10C I<=8A LRD-12C I<=10A LRD-14C I<=13A LRD-16C I<=18A LRD-21C I<=24A LRD-22C I<=32A LRD-32C I<=38A LRD-35C I<=50A LRD-3357C I<=65A LRD-3359C I<=70A LRD-3361C I<=80A LRD-3363C I<=104A LRD-4365 I<=120A LRD-4367 I<=140A LRD-4369空气开关：电机的：I<=11A NSX100HMA12.5 3PI<=23A NSX100HMA25 3PI<=45A NSX100HMA50 3PI<=70A NSX100HMA80 3PI<=90A NSX100HMA100 3PI<=140A NSX160HMA160 3PI<=230A NSX250HMA250 3PI<=360A NSX400HMIC2.3M 400 3P I<=570A NSX630HMIC2.3M 630 3P配电的：I<=13A NSX100HTM16 3PI<=18A NSX100HTM25 3PI<=29A NSX100HTM32 3PI<=35A NSX100HTM40 3P I<=45A NSX100HTM50 3P I<=55A NSX100HTM63 3P I<=70A NSX100HTM80 3P I<=90A NSX100HTM100 3P I<=110A NSX160HTM125 3P I<=140A NSX160HTM160 3PI<=180A NSX250HTM200 3PI<=225A NSX250HTM250 3PI<=360A NSX400HMIC2.3 400 3P I<=600A NSX630HMIC2.3 630 3P三、中间继电器40、31、22CA2-DN□□M5C常闭接点数量常开接点数量四、框架断路器：I=800A 型号：MT08N13P MIC 5.0AI=1000A 型号：MT10N13P MIC 5.0AI=1250A 型号：MT12N13P MIC 5.0AI=1600A 型号：MT16H13P MIC 5.0AI=2000A 型号：MT20H13P MIC 5.0AI=2500A 型号：MT25H13P MIC 5.0AI=3200A 型号：MT32H13P MIC 5.0AI=4000A 型号：MT40H13P MIC 5.0ATD101B(分体式，P<=45kW)TD101BB(分体式，P>45kW，用三只电流互感器)TD101B-#-M(#用数字1~5代替，1：1A、2：6.3A、3：25A、4：63A、5：100A)(M代表有4~20mA输出，不输出时取消M)TD101BB-#-M(#用数字6~7代替，6：200A、7：400A)(M代表有4~20mA输出，不输出时取消M) 并注明电流互感器的变比。

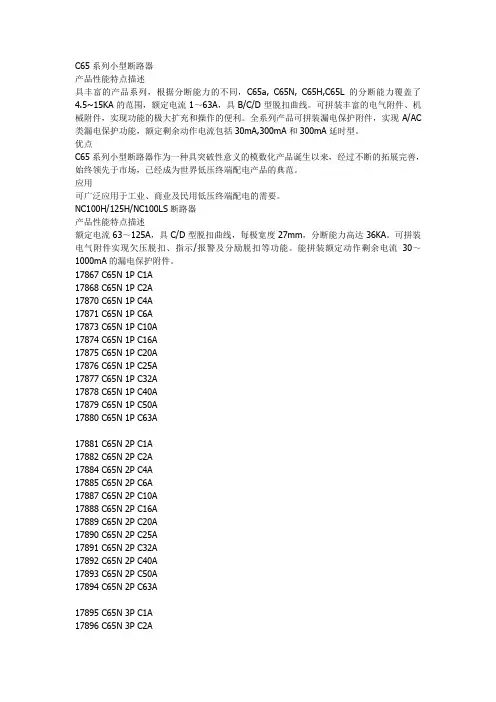

C65系列小型断路器产品性能特点描述具丰富的产品系列，根据分断能力的不同，C65a,C65N,C65H,C65L的分断能力覆盖了4.5~15KA的范围，额定电流1〜63A,具B/C/D 型脱扣曲线。
可拼装丰富的电气附件、机械附件，实现功能的极大扩充和操作的便利。
全系列产品可拼装漏电保护附件，实现A/AC类漏电保护功能，额定剩余动作电流包括30mA,300mA和300mA延时型。
优点C65系列小型断路器作为一种具突破性意义的模数化产品诞生以来，经过不断的拓展完善，始终领先于市场，已经成为世界低压终端配电产品的典范。
应用可广泛应用于工业、商业及民用低压终端配电的需要。
NC100H/125H/NC100LS断路器产品性能特点描述额定电流63〜125A，具C/D型脱扣曲线，每极宽度27mm,分断能力高达36KA。
可拼装电气附件实现欠压脱扣、指示/报警及分励脱扣等功能。
能拼装额定动作剩余电流30〜1000mA的漏电保护附件。
17867C65N1PC1A17868C65N1PC2A17870C65N1PC4A17871C65N1PC6A17873C65N1PC10A17874C65N1PC16A17875C65N1PC20A17876C65N1PC25A17877C65N1PC32A17878C65N1PC40A17879C65N1PC50A17880C65N1PC63A17881C65N2PC1A17882C65N2PC2A17884C65N2PC4A17885C65N2PC6A17887C65N2PC10A17888C65N2PC16A17889C65N2PC20A17890C65N2PC25A17891C65N2PC32A17892C65N2PC40A17893C65N2PC50A17894C65N2PC63A17895C65N3PC1A17896C65N3PC2A17898C65N3PC4A17899C65N3PC6A17900C65N3PC10A17902C65N3PC16A17903C65N3PC20A17904C65N3PC25A17905C65N3PC32A17906C65N 3PC40A17907C65N3PC50A17908C65N3PC63A17909C65N4PC1A17910C65N4PC2A17912C65N4PC4A17913C65N4PC6A17914C65N4PC10A17916C65N4PC16A17917C65N4PC20A17918C65N4PC25A17919C65N4PC32A17920C65N4PC40A17921C65N 4PC50A17922C65N4PC63A17924C65N1PD1A17925C65N1PD2A17927C65N1PD4A17928C65N1PD6A17929C65N1PD 10A17931C65N1PD16A17932C65N1PD20A17933C65N1PD25A17934C65N1PD32A17935C 65N1PD40A17987C65N1PD50A17988C65N1PD63A17936C65N2PD1A17937C65N2PD2A17939C65N2PD4A17940C65N2PD6A17941C65N2PD 10A17943C65N2PD16A17944C65N2PD20A17945C65N2PD25A17946C65N2PD32A17947C65N2PD40A17989C65N2PD50A17990C65N2PD63A17948C65N3PD1A17949C65N3PD2A17951C65N3PD4A17952C65N3PD6A17953C65N3PD10A17955C65N3PD16A17956C65N3PD20A17957C65N3PD25A17958C65N3PD32A17959C65N3PD40A17991C65N3PD50A17992C65N3PD63A17960C65N4PD1A17961C65N4PD2A17963C65N4PD4A17964C65N4PD6A17965C65N4PD10A17967C65N4PD16A17968C65N4PD20A17969C65N4PD25A17985C65N4PD32A17986C65N4PD40A17993C65N4PD50A17994C65N4PD63AC65L断路器技术参数标准：IEC60947-2/GB14048.2脱扣曲线：C/D额定电压：1PAC230V2/3/4PAC400V额定电流：1-63A分断能力：15kAReferenceDescription订货号说明917036C65L1PC1A917037C65L1PC2A917038C65L1PC4A917039C65L1PC6A917040C65L1PC10A917041C65L1PC16A917042C6 5L1PC20A917043C65L1PC25A917044C65L1PC32A917045C65L1PC40A917046C65L1PC50 A917047C65L1PC63A917048C65L2PC1A917049C65L2PC2A917050C65L2PC4A917051C65L2PC6A917052C65L2 PC10A917053C65L2PC16A917054C65L2PC20A917055C65L2PC25A917056C65L2PC32A9 17057C65L2PC40A917058C65L2PC50A917059C65L2PC63A917060C65L3PC1A917061C65L3PC2A917062C65L3PC4A917063C65L3PC6A917064C65L3 PC10A917065C65L3PC16A917066C65L3PC20A917067C65L3PC25A917068C65L3PC32A9 17069C65L3PC40A917070C65L3PC50A917071C65L3PC63A917072C65L4PC1A917073C65L4PC2A917074C65L4PC4A917075C65L4PC6A917076C65L4 PC10A917077C65L4PC16A917078C65L4PC20A917079C65L4PC25A917080C65L4PC32A917081C65L4PC40A917082C65L4PC50A917083 C65L4PC63A917084C65L1PD1A917085C65L1PD2A917086C65L1PD4A917087C65L1PD6A917088C65L 1PD10A917089C65L1PD16A917090C65L1PD20A917091C65L1PD25A917092C65L1PD32A 917093C65L1PD40A917094C65L1PD50A917095C65L1PD63A917096C65L2PD1A917097C65L2PD2A917098C65L2PD4A917099C65L2PD6A917100C65L 2PD10A917101C65L2PD16A917102C65L2PD20A917103C65L2PD25A917104C65L2PD32A 917105C65L2PD40A917106C65L2PD50A917107C65L2PD63A917108C65L3PD1A917109C65L3PD2A917110C65L3PD4A917111C65L3PD6A917112C65L 3PD10A917113C65L3PD16A917114C65L3PD20A917115C65L3PD25A917116C65L3PD32A 917117C65L3PD40A917118C65L3PD50A917119C65L3PD63A917120C65L4PD1A917121C65L4PD2A917122C65L4PD4A917123C65L4PD6A917124C65L 4PD10A917125C65L4PD16A917126C65L4PD20A917127C65L4PD25A917128C65L4PD32A 917129C65L4PD40A917130C65L4PD50A917131C65L4PD63AC65H断路器技术参数标准：IEC60898/GB10963-1999脱扣曲线：C/D额定电压：1PAC230V 2/3/4PAC400V额定电流：1-63A分断能力：10kAReferenceDescription订货号说明17570C65H1PC1A17571C65H1PC2A17573C65H1PC4A17574C65H1PC6A17575C65H1PC10A17577C65H1PC16A17578C65H1PC20A17579C65H1PC25A17580C65H1PC32A17581C65H1PC40A17582C65H1PC50A17583C65H1PC63A17584C65H2PC1A17585C65H2PC2A17587C65H2PC4A17588C65H2PC6A17589C65H2PC10A17591C65H2PC16A17592C65H2PC20A 17593C65H2PC25A 17594C65H2PC32A 17595C65H2PC40A 17596C65H2PC50A 17597 C65H2PC63A施耐德接触器LC1-D300＊7C380VAC/300A,160KWLC1-F330＊＊＊380VAC/330A,160KW380VAC/18A7.5KW380VAC/38A18.5KW380VAC/50A,22KW380VAC/95A,45KW380VAC/80A,37KWLC1-D11500＊5C380VAC/115A,55KWLC1-D3210＊＊＊380VAC/32A15KWLC1-D2501＊5N380VAC/25A11KWLC1-D3801＊＊＊380VAC/38A18.5KWLC1-D15000＊7C380VAC/150A,75KWLC1-D17000＊7C380VAC/170A,90KWLC1-D1210＊5N380VAC/12A5.5KWLC1-D1201＊＊＊380VAC/12A5.5KWLC1-D2510＊＊＊380VAC/25A11KWLC1-D1210＊＊＊380VAC/12A5.5KWLC1-D2510＊5N380VAC/25A11KWLC1-D3201＊＊＊380VAC/32A15KWLC1-D6511＊＊＊380VAC/65A,30KWLC1-D205＊5C380VAC/205A,110KWLC1-D245＊5C380VAC/245A132KWLC1-D245＊7C380VAC245A,132KWLC1-F185＊＊＊380VAC185A,90KWLC1-D1810＊＊＊ LC1-D3810＊＊＊ LC1-D5011＊＊＊ LC1-D9511＊＊＊ LC1-D8011＊＊＊LC1-D1810＊5N380VAC/18A7.5KWLC1-D0601＊5N380VAC/6A2.2KWLC1-D11500＊7C380VAC/115A,55KWLC1-D2501＊＊＊380VAC/25A11KWLC1-F115＊＊＊380VAC/115A,55KWLC1-F225＊＊＊380VAC/225A,110KWLC1-D0910＊5N380VAC/9A4KWLC1-D1801＊＊＊380VAC/18A7.5KWLC1-D0910＊＊＊380VAC/9A4KWLC1-D4011＊＊＊380VAC/40A18.5KWLC1-D1201＊5N380VAC/12A5.5KWLC1-D0901＊5N380VAC/9A4KWLC1-D0610＊5N380VAC/6A2.2KWLC1-D0901＊＊＊380VAC/9A4KWLC1-D1801＊5N380VAC/18A7.5KW施耐德热继电器（经济型LR2-D1306＊0.37KWLR2-D1310＊2.2KWLR2-D1353＊15KWLR2-D3363＊LR2-D1314＊4KWLR2-D2355＊15KWLR2-D1316＊ 5.5KWLR2-D3359＊25KWLR2-D3365＊LR2-D1312＊3-3.7KWLR2-D1321＊7.5KW LR2-D1322＊11KW LR2-D3353＊15KW LR2-D4365＊LR2-D1301＊＊LR2-D1302＊＊LR2-D1303＊＊LR2-D3322＊LR2-D3357＊LR2-D1308＊LR2-D3361＊LR2-D4369＊LR2-D1307＊LR2-D2353＊LR2-D3355＊11KW22KW1.1-1.5KW 30KW0.55-0.75KW 15KW18.5KWLR2-D1304＊＊LR2-D4367＊。
微型断路器
施耐德微型断路器代号标注方法：
举例：1-C65N-C20A/2P+VE+30mA+SD，各项含义为
1---------识别号
C65------序列代号
N--------分断能力，N为6000A，H为10000A，L为15kA
C--------脱扣曲线，B为电子保护，C为配电保护，D为动力保护
20A------额定电流，有1、2、4、6、10、16、20、25、32、40、50、63A
施耐德断路器
2P-------极数，有1、2、3、4极
VE-------剩余电流附件，有VE、VEG、VM、VEA，VM为电磁式
30mA-----剩余动作电流，有30、100、300mA
SD-------选配附件，有MX、OF、MN、MV、SD、Tm、ATm，其中SD为辅助接点。
（其它不同品牌的微型断路器标注方法类似）
另施耐德微型断路器还包括新产品C120 、EA9、INT125系列产品
塑壳断路器
施耐德塑壳断路器常见的有NSX、NSE、EZD、NSC系列产品。
举例：NSX100N TMD100 3P3D
NSX---------产品系列
100---------额定电流大小，有100、250、250、400、630A
N------------分断能力，有F为36KA N为50KA H为70KA L为100KA
TMD--------脱扣执行器，有TMD-热磁脱扣器MIC2.2 MIC5.2A 5.2E 6.2A 6.2E电子脱扣器100---------实际电流100A下有16 25 32 40 50 63 80 100A
160A下有80 100 125 160A
250A下有125 160 200 250A
400A下有400A
630A下有630A
3P3D------极数有3P2D 3P3D 4P3D 4P4D
框架断路器
施耐德框架断路器有MT MTE NW系列产品
框架断路器(3张)
举例：MTN106 mic2.0 3P
MT---------系列号
N1----------分断能力有N1 N2 50KA 、H1 65KA 、H1b 85KA、H2 100KA、NWN1 42KA 06----------电流06-630A 08-800A 10-1000A 12-1250A 16-1600A 20-2000A 25-2500A 32-3200A 40-4000A 50-5000A 63-6300A
mic2.0------控制单元有：
基本型mic2.0 基本保护
mic5.0 选择性保护
mic6.0 选择性保护+接地故障保护
电流表A mic2.0A 基本保护
mic5.0A 选择性保护
mic6.0A 选择+接地故障保护
mic7.0A 选择+漏电保护
电能表D mic5.0D 选择性保护
mic6.0D 选择+接地故障保护
功率表P mic5.0P 选择性保护
mic6.0P 选择+接地故障保护
mic7.0P 选择+漏电保护
谐波表H mic5.0H 选择性保护
mic6.0H 选择+接地故障保护
mic7.0H 选择+漏电保护
3P----------极数分3P 4P 2档
另外还有固定式抽屉式断路器之分。
一个完整的框架断路器包括断路器本体、控制单元、上端接线、下端接线4大基本器件。
抽屉式断路器还需选配抽架
型号含义
MT 06 N1 3P D/O MIC2.0A 附件接线方式
①②③④⑤⑥⑦⑧
①Masterpact MT系列开关
②12种额定值：06、08、10、12、16、20、25、32、40、40b、50、63
③4种分断能力等级：
N1-40~55KA，标准型，适用于分断低等级的短路电流；
H1-65~100KA，适用于分断工业环境中的高等级短路电流或两台变压器并联运行的电气系统中；
H2-100~150KA，高性能型，适用于可能产生非常高短路电流的重工业领域；
L1-130KA，具有高限流能力，用以保护馈电单元或当变压器额定功率提高时提高开关柜的性能水平。
④极数：3P，4P
⑤D/O-抽屉式，FIX-固定式
⑥10种控制单元，MT控制单元的命名：
MIC 2 . 0 A
⑴⑵⑶⑷
⑴MIC=MICROLOGIC
⑵保护类型：
2-基本保护
5-选择性保护（长延时+短延时+瞬时）
6-选择性保护+接地故障保护（长延时+短延时+瞬时+接地）
7-选择性保护+漏电保护（长延时+短延时+瞬时+漏电）
⑶控制单元的版本：O为第一个版本。
⑷测量类型：
A为电流表：保护电源电路
P为功率表：A+功率+可编程保护
H为谐波表：P+谐波
⑦常用配置：
（标配）A、D/O：抽架、MCH-电动机构、MX-分励线圈、XF-合闸线圈（以上三种附件
需提供电压，且需一致）、OF-辅助触点（1组4个标配，H、L型另可选2组8个）、SDE-故障脱扣指示触点（1个标配）、VO-安全挡板（标配）、CC-灭弧罩盖（标配）、CB-二次端子盖、CDP-门框。
（标配）B、FIX：MCH-电动机构、MX-分励线圈、XF-合闸线圈（以上三种附件需提供电压，且需一致）、OF-辅助触点（1组4个标配，H、L型另可选2组8个）、SDE-故障脱扣指示触点（1个标配）、CDP-门框。
C、另可选：MN-失压线圈、MNR-延时失压线圈、SDE-故障脱扣指示触点（1个标配，另可再选1个）、PF-1个准备合闸触点（最多1个）、CE-1个连接位置触点、CD-1个退出位置触点、CT-1个试验位置触点、EIP-相间隔板、CDM-操作计数器。
⑧PP-水平接线；CC-垂直接线；AA-前置接线。
注：a.800A到6300A（除N1型外）相同的连接端子；
b.前连接不需要留有空间，因为端子没有增加断路器的深度；
c.在水平或垂直母排上后连接，只要把连接端子转90°即可。
--------------------------
新的MT订货型号：
MT16H1 5.0A 3P D/o AC220
①②③④⑤⑥⑦
①Masterpact MT系列开关
②12种额定电流值：06、08、10、12、16、20、25、32、40、40b、50、63
③分断能力等级：N1，N2，H1，H2，H3，L1，HA，HF
④控制单元：MIC2.0（2.0），MIC5.0（5.0），
MIC2.0A(2.0A)，MIC5.0A(5.0A)，MIC6.0A(6.0A)，MIC7.0A(7.0A)
MIC5.0P(5.0P)，MIC6.0P(6.0P)，MIC7.0P(7.0P）
MIC5.0H(5.0H)，MIC6.0H(6.0H)，MIC7.0H(7.0H)
⑤极数：3：3极，4：4极
⑥D/O-抽屉式，FIX-固定式
⑦MCH,MX,XF的电压：经常用到的有AC220V，AC380V（可以根据所需的电压让我这新增型号的）。
