日本NEMOTO可燃气体传感器NAP-50A(中文)

19970929ＮＡＰ—５５Ａ(触媒接触燃烧式城市燃气传感器)使用说明书根本特殊化学株式会社东京都杉並区上荻1—15—1目 录1.NAP—55A传感器的特征及用途 (2)2.额定值 (2)3.可测燃气的浓度范围 (2)4.燃气灵敏度特性 (3)5.应答特性 (4)6.电源电压波动特性 (5)7.温度特性 (7)8.湿度特性 (7)9.传感器的检测方法 (8)10.传感器图纸 (11)1.NAP—55A传感器的特征及用途NAP—55A和从前本公司生产的接触燃烧式燃气传感器（NAP—2A、NAP—7A）相比，体积小、节能，消耗电力只有NAP—2A的50%，具有卓越的感应灵敏度，应答速度超出2A约30%以上。

（1） 特征·具有良好的稳定性·突出的再现性和灵敏度·对于城市燃气浓度的输出信号显示为良好直线性·应答速度极快·由于超小型，故报警器形状可随意调整（2） 用途·城市燃气用报警器·各种燃气的浓度计2.额定值·电桥外加电压 Ａ．Ｃ．２.5Ｖ±０.25Ｖ（频率50—60Ｈz）Ｄ．Ｃ．２.5Ｖ±０.25Ｖ·电桥外加电流 Ａ．Ｃ． 160～180ｍＡ（频率50—60Ｈz）（2.5Ｖ外加时） Ｄ．Ｃ． 160～180ｍＡ·使用时周围的温湿度 温度 –10～＋50℃湿度95％ＲＨ以下·保管时周围的温湿度 温度 –20～＋60℃湿度95％ＲＨ以下3.可测燃气的浓度范围针对任何一种燃气都能感应从０～LEL但是对于燃气的浓度输出信号，直线保证在以下的浓度范围内。

天然气 ：０～１％异丁烷 ：０～0.5％丙 烷 ：０～0.5％氢 气 ：０～0.5％4．燃气灵敏度特性图 1 NAP—55A 的灵敏度特性10203000.10.20.30.40.5Gas Concentration (vol%)iso-C 4H 10H 2C 2H 5OH CH 45．应答特性（测定例：和NAP—2A的比较）图中的时间是90%应答的情况图 2 NAP—55A的应答特性6．电源电压波动特性图 3 NAP—55A 的燃气感应灵敏度的电源电压变动特性图 4 空气中输出值的电源电压波动特性2.252.50 2.75Supply Voltage (V)1020∆V o u t i n C H (m V )42.25 2.50 2.752-2V o u t i n A i r (m V )Supply Voltage (V)图 5 理论报警浓度的电源电压波动特性2.752.502.25Supply Voltage (V)20002500300035004000T h e o r i t i c a l A l a r m G a s C o n c e n t r a t i o n o f C H (p p m )47．温度特性图 6 NAP—55A 的温度特性8. 湿度特性图 7 NAP—55A 的湿度特性3030404050502020101000-10-10-22Temperature (C)oTemperature (C)o V o u t i n A i r (m V )303060609090Relative Humidity (%)Relative Humidity (%)-22V o u t i n A i r (m V )9. 传感器的检测方法（１） 试验装置试验装置的简图如下（注意事项） ① 试验槽·试验槽材质必须是不产生燃气和不附着燃气，比如金属或者玻璃为好。

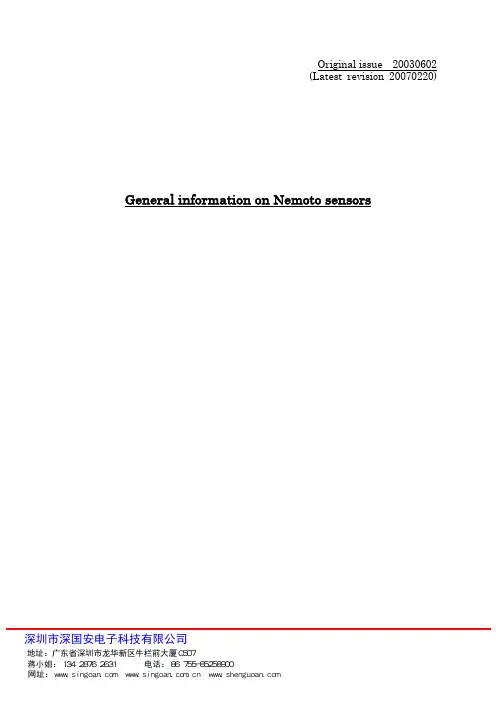

Original issue 20030602(Latest revision 20070220) General information on Nemoto sensors深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍNEMOTO SENSORSNemoto produces GAS SENSORS and SMOKE SENSORS. Wide ranges of models are provided for users’ convenience in the selection of the most suitable sensors for their applications from the vie points of target gases, detection purposes, operating conditions, and required accuracy. Generally speaking, catalytic type gas sensors are the best for flammable gases. Semiconductor type sensors and electrochemical cells would be good for detection of toxic gases and contamination gases contained in air. And thermally conductive type sensors would be suited for inert gas detection. However, the suitable sensor may differ depending on target gas concentrations to be detected. Our suggestions and recommendations will be given upon request.The features and characteristics of each sensor will be described later in this brochure, but rough ideas are shown below for the selection of a suitable sensor depending on the kinds and concentrations of target gases. Users who are going to use our sensor for the detection of a gas concentration near the border lines are recommended to contact us for technical assistance. As far as our smoke sensors are concerned, there is no limitation in the detection ranges and applications.* Flammable gasesHydrogen, Methane, Propane, Iso-butane, Gasoline vapor, Ethanol, etc.0.001％ 0.01％ 0.1％ 1％ 10％ GasconcentrationType of sensors<-No appropriatesensor-> <- Catalytic type -><- Thermally conductive ->* Toxic gasesH 2S, SOx, HCl, Cl, CO, etc.0.1ppm 1ppm 10ppm 100ppm 0.1％ 1％ GasconcentrationType of sensors <- Electrochemical -><- Catalytic ->* Incompletely combusted exhaust gasesCO, Hydrogen, unburned or oxidized hydrocarbons0.1ppm 1ppm 10ppm 100ppm 0.1％ 1％ GasconcentrationType of sensors <- Electrochemical -><- Catalytic ->* Inert gasesCarbon dioxide, Freon gases0.01％ 0.1％ 1％ 10％ GasconcentrationType of sensors<- IR absorption -><- Thermallyconductive ->In addition to the above types of sensors, semiconductor type sensors are also on the market, however because of its inferior gas selectivity and complicated circuitry, we do not recommend this type of sensors for reliable gas detection and measurement.深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００Line-up of Nemoto sensorTypeTarget gases Model No. Detection rangeFeaturesNAP - 2A Universal typeNAP - 55A NAP - 56A Small sized, Lower power consumptionGeneralcombustible gases NAP - 50Aiso-Butane (0.03 - 1.0%) Methane (0.05 - 2.5%) Low sensitivity to ethanol NAP - 3AUniversal typeNAP - 66ALPG, hydrogenand organic solvent vapor NAP - 67A Hydrogen (0.04 - 2％) iso-Butane (0.02 - 1％) Small sized, Lower power consumptionNAP - 100AM NAP - 100ACHigh performance,Commercial application , NAP - 100AH For hydrogen only Combustiblegases forcommercial useNAP - 100ADMethane (0.03 - 5％) iso-Butane (0.02 - 1.8％) High temp. resistivity NAP - 78A Incomplete combustion fluegasNAP - 79A 0.03 - 2％ (1/2H 2 + CO)For gas boilers, oil boilersNAP - 130 NSU - 131A C A T A L Y T I CCombustibleGases, hydrogen NSU - 131AFMethane (0.05 - 5%) Hydrogen (0.04 - 4%) For hydrogen fuel cellThermallyconductive Carbon di-oxide NAP - 21A 2 - 100％ Universal typeNAP - 505 High accuracy,Carbon mono-oxide NAP - 503 CO10 - 1000ppm Low sensitivity to hydrogen OxygenNAP - 7800 - 100%High accuracy, High reliability Electro- chemicalFormaldehydeNAP - 7400 - 50ppmHigh accuracy, High reliability NHS-1210-90%RH For low humidity NHS-2020-95%RH Standard typePolymerResistance type Relative HumidityNHS-2520-100%RH Highly durable to dew condensation NIS - 02A NIS - 02C Out of radioactive source (Lower than exemption) NIS - 09C Universal type Ionization Type General smoke NIS - 05A 0.5 - 5％ / foot**Lower radioactivity深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００Catalytic typeCatalytic type gas sensors are Nemoto’s specialty, and various kinds of gassensors are provided for customers’ selection. The main application is for gas detectors. Catalytic type sensors are much stable compared to semiconductortype gas sensors, and do not need any CPU for making detectors. Thus catalytic type gas sensors enable users to design flexible circuits for lower-cost gas detectors. The general features of Nemoto’s catalytic gas sensors are as below.1. Basic characteristics:* Good output linearity to gas concentrations up to LEL, especially excellentlinearity in the range below 50% of LEL.* Excellent repeatability of gas sensitivity. Variability within a day would beless than +/- 5%.* Speedy response. 90% response time of residential models is less than 20 sec.* Hardly affected by ambient temperature and humidity. No compensationcircuit is required for residential applications.* Least individual differences and simple calibration on detectors.* Short initial stabilization time.* Less affected by supply voltage variation. Stabilized supply voltage is notneeded.2. Durability, Long-term stability* Excellent stability under 60o C.* Durable under high temperature and humidity (50o C, 95% RH).* Not affected by long-term storage under high temperature and humidity (50o C,95% RH).* Resistive against vibration and impact.* Durable against corrosive gases such as hydrogen sulfide.* Durable against silicone gases (HMDS 10ppm).* Acceleration tests have proved a long life more than 10 years.3. Usage* Not like semiconductor type sensors, a long preparatory aging time is notnecessary for performance stabilization.* In case of gas detector applications, aging for 10 minutes would be enoughbefore calibration. Calibration can be done in air without a test gas.* Variation of ambient temperature & humidity or existence of noise gases doesnot affect to the characteristics of Nemoto sensors. It is not needed to createspecial ambient conditions for calibration.4. Applications* Gas leakage detectors* Incomplete combustion alarms* For water heaters* Alcohol checkers, Gas densitometers* For gasoline feeders深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍElectrochemical type gas sensorsThis is one of our main products in addition to the Hot-wire type sensors.Because of the limitation of its detection method, detectable gases are limitedsuch as toxic gases and incompletely combusted flue gases etc., howeverelectrochemical sensors show far superior accuracy and gas selectivitycompared to semiconductor type sensors. It was said that electrochemicaltype sensors had a problem of a shorter life, but Nemoto electrochemicalsensors are uniquely designed in the electrodes to have excellent accuracy andconsistency so that these sensors can be applied for maintenance-freeresidential detectors. Nemoto electrochemical sensors have also an innovativestructure to have realized the smallest size in the world. This small size givesflexibility in the component positioning when detectors are designed. Thereare two series of Nemoto electrochemical sensors, i.e. the 5 series for generaluse and the 7 series mainly used for industrial applications. The 5 seriesincludes a special type which electrode pins can be directly soldered with PCBs.The superior features are described below.1.Basic features:•The output signal is linear in the practical detection range of various target gases.•The excellent repeatability of gas sensitivity. Output signals fall into a range of ± 2% or less.•The faster response time. Electrochemical sensors generally do not have a quick response time, but Nemoto electrochemical sensors show a relatively quick responsecharacteristic. 90% response time is within 30 seconds.* When a simple temperature compensation circuit is added for the range of 20o C ∼ 50o C,the accuracy falls into ± 10% tolerance. Nemoto electrochemical sensors are hardlyaffected by humidity.•The individual differences are so small that alarm concentration can be adjusted by a uniformed calibration.•Initial output is stabilized in a short time after energized.2. Durability and long term stability•Detection accuracy is unchanged after use for 5,000 hours under 60o C and 90%RH.•Gas sensitivity is unchanged after use for 5,000 hours under 60o C and 15%RH.•Excellent resistivity to vibrations and shocks that are expected in common environment.•The sensors are not affected by silicon gases at all.• 5 year life is guaranteed for the standard type NAP-505.3. Usage•Different form semiconductor type sensors, Nemoto electrochemical sensors do not need preparatory aging at all.•In case of use for residential detectors, calibration is not required because the individual differences are negligible.•False-alarm-free because of no response to noise gases.•Battery operation is possible because the sensors do not have a heater.4. Applications•For incomplete combustion detectors, CO detectors, toxic gas detectors.•For combustion controllers for stoking equipment, monitors for indoor environment.•Various gas densitometers, measuring equipment.深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍNAP-2ANAP-2A is a universal type of sensor for flammable gases and can be used for gas detectors as well as for gas densitometers. The following are the ratings and output characteristics of this sensor. It is recommended to refer to the individual user’s manual for further information.* Target gases and concentrationGases Detection range Methane CH 4 0.05 ~ 5％(0.05 ~ 2％) Propane C 3H 8 0.03 ~ 2.2％(0.03~ 1％) Iso-butane Iso-C 4H 10 0.03 ~ 1.8％(0.03 ~ 0.8％) Hydrogen H 2 0.05 ~ 4％(0.05 ~ 1.5％) Ethanol C 2H 5OH 0.05 ~ 3.2％(0.05 ~ 1.5％) Hydrocarbons C n H 2n+21~100% LEL (1~50%LEL)( ) is a detection range in high accuracy* RatingsItems Specifications Supply voltage DC 2.20 +/- 0.22Ｖ AC 2.20 +/- 0.22Ｖ (r.m.s. 50~60Hz) Current(When 2.2Vis supplied) DC 340 ~ 380mAAC 340 ~ 380mA (r.m.s. 50~60Hz) Ambient Temperature In operation -10 ~ +50℃ In storage -10~ +60℃ AmbienthumidityIn operation 95％RH or lessIn storage 99％RH or less(No dew condensation)－2A* Gas sensitivity characteristicsGas & Concentration Output voltage Output in clean air -35 ~ +35 mV Methane 3000ppm 14 ~ 22 mV Iso-butane 1400ppm 12 ~ 18 mV Hydrogen 1400ppm 9 ~ 15 mV Ethanol 1400ppmLess than 15mVRecommended measuring circuit Gas sensitivity characteristics 0102030405000.10.20.30.40.5Gas Concentration (%)深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００NAP-3ANAP-3A is a universal type of LP Gas sensor, and is used for LP Gas detectors,leakage testers, and gas densitometers. The following are the ratings and output characteristics of this sensor. It is recommended to refer to theindividual user’s manual for further information.* Target gases and concentrationGases DetectionrangePropane C3H80.03 ~ 2.2％(0.03 ~ 1％)Iso-butane Iso-C4H100.03 ~ 1.8％(0.03 ~ 0.8％)Hydrogen H20.05 ~ 4％(0.05 ~ 1.5％)Ethanol C2H5OH 0.05 ~ 3.2％(0.05 ~ 1.5％)Hydrocarbons C n H2n+21~100%LEL(1~50%LEL)( ) is a detection range in high accuracy* RatingsItems SpecificationsSupply voltage DC 1.75 +/- 0.175VAC 1.75 +/- 0.175V (r.m.s. 50~60Hz)Current (when 1.75V is applied) DC 310 ~ 350mAAC 310 ~ 350mA (r.m.s. 50~60Hz)Ambient Temperature In operation -10 ~ +50℃In storage -10 ~ +60℃Ambient humidity In operation 95％RH or lessIn storage 99％RH or less(No dew condensation)Structure & appearance of NAP-3AGas sensitivity characteristicsGas and concentration Output voltageOutput in clean air -35 ~ +35mVIso-butane 1400ppm 12 ~ 18mVHydrogen 1400ppm 9 ~ 15mVEthanol 1400ppm Less than 15mVRecommended measuring circuit Gas sensitivity characteristics10203000.10.20.30.4Gas Concentration (%)深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００a half in power consumption compared to 3A so that thinner and lighter-weight detectors can be produced. The following are the basic characteristics but it is recommended to refer to the individual user’s manual for further information. A measuring circuit for sensor evaluation is the same as NAP-3A.* Target gases and concentrationGases DetectionrangePropane C3H80.03 ~ 2.2％ (0.03 ~ 1％)Iso-butane Iso-C4H100.03 ~ 1.8％ (0.03 ~ 0.8％)Hydrogen H20.05 ~ 4％ (0.05 ~ 1.5％)Ethanol C2H5OH 0.05 ~ 3.2％ (0.05 ~ 1.5％)Hydrocarbons C n H2n+21~100% LEL (1~50%LEL)( ) is a detection range in high accuracy* RatingsStructure & appearanceof NAP-66A* Gas sensitivity characteristicsGases and concentrationOutput voltageOutput in clean air-35 ~+35mVIso-butane 1400ppm 10 ~ 15mVHydrogen 1400ppm 7 ~ 12mVEthanol 1400ppm Less than 11mVGas sensitivity characteristics Response characteristicsItems RatingsSupplyVoltageDC 2.0 ± 0.2VAC 2.0 ± 0.2V (r.m.s. 50~60Hz)Current(When 2.0Vis applied)DC 140 ~ 160mAAC 140 ~ 160mA (r.m.s. 50~60Hz)AmbientTemperatureIn operation -10 ~ +50℃In storage -10 ~ +50℃AmbienthumidityIn operation 95％RH or lessIn storage 99％RH or less(No dew condensation)246810121416Gas Concentration (ppm)CH4iso-C4H10C2H5OH深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００a half in power consumption compared to 2A so that thinner and lighter-weight detectors can be produced. The following are the basic characteristics but it is recommended to refer to the individual user’s manual for further information. A measuring circuit for sensor evaluation is the same as NAP-2A.* Target gases and concentrationGases DetectionrangeMethane CH40.05 ~5% (0.05 ~ 2%)Propane C3H80.03 ~ 2.2％ (0.03 ~ 1％)Iso-butane Iso-C4H100.03 ~ 1.8％ (0.03 ~ 0.8％)Hydrogen H20.05 ~ 4％ (0.05 ~ 1.5％)Ethanol C2H5OH 0.05 ~ 3.2％ (0.05 ~ 1.5％)Hydrocarbons C n H2n+21~100%LEL (1~50%LEL)( ) is a detection range in high accuracy* RatingsItems SpecificationsSupply VoltageDC 2.5 +/- 0.25VAC 2.5+/- 0.25V (r.m.s. 50~60Hz)Current (When 2.5V is applied) DC 150 ~ 170mAAC 150 ~ 170mA (r.m.s. 50~60Hz)Ambient Temperature In operation -10 ~ +50℃In storage -10 -~+50℃AmbienthumidityIn operation 95％RH or lessIn storage 99％RH or less(No dew condensation)Structure & Appearance of NAP-55A * Gas sensitivity characteristicsGases & concentration Output voltageOutput in clean air -35 ~ +35mVMethane 3000ppm 10 ~ 16mVIso-butane 1400ppm 10 ~ 15mVHydrogen 1400ppm 7 ~ 12mVEthanol 1400ppm Less than 11mVGas sensitivity characteristics Response characteristics102030Gas Concentration (vol%)H24iso-C4H102H5OH深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００NAP-50ANAP-50A is a miniature & low power consumption type of NAP-2A, and is mainly used for gas detectors. Compared to NAP-55A, NAP-50A has a lower alcohol sensitivity to eliminate false alarms caused by alcohol, thus more reliable gas detectors can be produced with NAP-50A. The following are the basic characteristics but it is recommended to refer to the individual user’s manual for further information. See NAP-2A for measuring circuit for sensor evaluation.* Target gases and detection rangeGases DetectionrangeMethane CH40.05 ~5% (0.05 ~ 2%)Ethane C2H60.05 ~ 3.2％ (0.05 ~ 1.5％)Iso-butane Iso-C4H100.03 ~ 1.8％ (0.03 ~ 0.8％)Hydrogen H20.05 ~ 4％ (0.05 ~ 1.5％)Hydrocarbons C n H2n+21~100% LEL (1~50%LEL)( ) is a detection range in high accuracy* RatingsItems SpecificationsSupply voltage DC 2.5 +/- 0.25VAC 2.5 +/- 0.25V (r.m.s. 50~60Hz)Current (When 2.5V is applied) DC 150 ~ 170mAAC 150 ~ 170mA (r.m.s. 50~60Hz)Ambient Temperature In operation -10 ~ +50℃In storage -10 ~ +50℃Ambient humidity In operation 95％RH or less In operation 99％RH or less(No dew condensation)Structure & Appearance of NAP-50A * Gas sensitivity characteristicsGases & concentration Output voltageOutput in air -35 ~ +35mVMethane 3000ppm 10 ~ 16mVIso-butane 1400ppm 9 ~ 14mVHydrogen 1400ppm 7 ~ 12mVEthanol 1% Less than 10mVGas sensitivity characteristics Response characteristics102030Gas Concentration (vol%)H2CH4iso-C4H102H5OH深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００of Nemoto NAP-55A. The gas sensitivity is better than NAP-55A by about 15%. Users are to pay attention to this higher gas sensitivity upon calibration.・Target gases & concentration ・Ratingsgases Detection range Item Ratings Methane CH 40.05－5% (0.05－2%) Supply voltage DC 2.5±0.25V AC 2.5±0.25V(RMS 50-60Hz) EthaneC 2H 6 0.05－3.2％ (0.05－1.5％)Current (2.5Vapplied)DC 150－170mA AC 150－170mA(RMS 50-60Hz) Hydrogen H 20.05－4％ (0.05－1.5％)Ambient temperature Usage －10 ∼ +50℃ Storage －10 ∼ +50℃ Hydro-carbonsC n H 2n+2 1-100%LEL (1-50%LEL)Ambient humidity Usage 95％RH or less Storage 99％RH or less but no dew Condensation.( ) = Detection range with high accuracyFig. Appearance and structure of NAP －56A・Gas sensitivity characteristicsGases and concentration Output values Output in clean air －35 ∼ +35mV Methane 3,000ppm 15 ∼ 23mV Iso-butane 1,400ppm 12 ∼ 18mV Hydrogen 1,400ppm10 ∼ 17mV深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００of Nemoto NAP-66A. The gas sensitivity is better than NAP-66A by about 15%. Users are to pay attention to this higher gas sensitivity upon calibration.・Gas sensitivity characteristics ・RatingsGases Detection range Items RatingsPropane C 3H 8 0.03－2.2% (0.03－1%) Supply voltage DC 2.0±0.2V AC 2.0±0.2V(RMS 50-60Hz) Iso-butane C 4H 10 0.03－1.8％ (0.03－1％) current (2.0V applied) DC 140－160mA AC 140－160mA(RMS 50-60Hz) Hydrogen H 2 0.05－4％ (0.05－1.5％) Ambient temperature Usage －10 － +50℃ Storage －10 － +50℃ Hydro- carbons C n H 2n+2 1-100%LEL (1-50%LEL) Ambient humidity Usage 95％RH or less Storage 99％RH or less but no dewcondensation( ) = Detection range with high accuracyFig. Appearance and structure of NAP －67A・Gas sensitivity characteristicsGases and concentration Output values Output in clean air －35 ∼ +35mV Iso-butane 1,400ppm 12 ∼ 18mV Hydrogen 1,400ppm 10 ∼ 17mV Ethanol 1,400ppm8 ∼ 16mV深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００NAP-78ANAP-78A is a gas sensor for monitoring incomplete combustion. 78A can be installed in a flue duct for direct monitoring on stoking equipment. Usually this type of sensor has individual temperature dependency to require an individual compensation circuit, but this has been the cause of the high cost of such sensors to eventually impede the popularization, however, 78A’s temperature dependency can be compensated by a simple circuit and does not need an individual circuit.* RatingsItem SpecificationsSupply voltageDC 2.0 +/- 0.1VAC 2.0 +/-0.1V (r.m.s. 50~60Hz) Heat cleaningvoltage DC 2.75 +/- 0.1V AC 2.75 +/- 0.1V (r.m.s. 50~60Hz) Heat cleaning cycles 1 min. only upon switch-on O2 concentration 1 ~ 21％CO/H 2 1/1 ~ 1/4 Current (When 2.0V is applied) DC140 ~ 160mAAC140 ~ 160mA (r.m.s. 50~60Hz)Ambient temperatureIn operation 0~ +200℃ In storage -10~ +50℃ Ambient humidity In operation 95％RH or lessIn storage 99％RH or less(No dew condensation)Structure & appearance of NAP-78A * Gas sensitivity characteristicsGases and concentrationOutput voltage Output in clean air+8.0 ~ +12.0 mVCO 1000ppm + H 2 500ppm6 - 7mV (Normal Temp.), 4 - 5mV (200℃) Temperature dependency at Zero pointZero point variation +/- 1.0mV or less betweennormal temperature and 200℃Gas sensitivity characteristics Circuit with componentPin50510152025150030004500CO/H = 2/1 Mixture gas concentration (ppm)7502深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００NAP-79ANAP-79A is a moderately-priced version of NAP-78A, and to be installed in an exhaust duct of a stoking equipment for direct monitoring of the exhaust gas as same as the conventional version NAP-78A. Difference from NAP-78A, the components are minimized (Harness and intermediary PC board have been eliminated) so that this new version NAP-79A can be used for lower-pricedstoking equipment. The equivalent performances as NAP-78A are guaranteed when an initial output value is read to set the zero point. Heat cleaning cycles are recommended for NAP-78A, but the cycles can be skipped for NAP-79A if simplified control is required.・RatingsPlease refer to the page of NAP-78A since every item is exactly same as NAP-78A.Fig. Appearance and structure of NAP －79A・Gas sensitivity characteristicsGases and concentration Output values Output in clean air 40∼－120mVCO 1,000ppm + H2 500ppm 7∼ 9mV (room Temp.), 5 ∼7mV( 200o C)Temperature characteristics at Zero point Output variation between room temperature and Zero point = less than ± 1.0mVFig. Gas sensitivity feature Fig. Circuit with components 25101520250150030004500CO/H = 2/1 混合ガス濃度 (ppm)750Pin5深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００NAP-100 SeriesNAP-100 series are flammable gas sensors for industrial applications, and 4 types are provided for users’ choice. For detailed technical information, pleaserefer to the individual user’s manuals.* Ratings and gas sensitivityItems NAP-100AMNAP-100ACNAP-100ADNAP-100AH Supplyvoltage2.6V 2.6V 2.6V 1.6VCurrent 160 ~ 180mA 160 ~ 180mA 160 ~ 180mA 120 ~ 140mAAmbient temp. & humidity in operation -10 ~ +50℃95%RH or less-10 ~ +50℃95％RH or less260℃ or less95％RH or less260℃ or less95％RH or lessAmbient temp. & humidity in storage -20 ~ +60℃99％RH or less-20 ~ +60℃99％RH or less-20 ~ +60℃99％RH or less-20 ~ +60℃99％RH or lessApplications Universal type For higher conc.For high temp. For H2 only Target gases Flammable Flammable Flammable H2、CODetection range in highaccuracy 1 ~ 50％LEL 3~ 100％LEL 1~ 50％LEL 1~ 50％LELStructure of 100AC Structure of 100AD Structure of 100AH深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００NAP-130ANAP-130 is a simple gas sensing unit which output voltage in air has been calibrated. When the rated DC voltage is supplied to the unit, it puts out in mV order and reaches to 0mV in the existence of around 10%LEL of methane or hydrogen gas. Calibration is done depending on users’ requirements, but setting at around 10%LEL is recommended for reliable gas detection in consideration of variation of temperature/humidity and presence of tiny quantity of noise gases.* Ratings and specificationsItem Specifications Supply voltage DC 2.5 +/- 0.1VCurrent DC 150 – 170mA (2.5V is supplied.) Ambient temperature In operation -20 - +80 degree C In storage -20 - +70 degree C Ambient humidity Less than 95%RH, not dew condensation Recommended initial insensitive time90sec.Response time T90 : Less than 30sec.Recommended calibration 10 +/- 1%LEL, Methane : 4500 – 5500ppm,Hydrogen : 3600 – 4400ppmAcceptable calibration 5 – 25%LEL Output in air-27 - -33mVStructure & appearance of NAP-130*Terminal explanationNo.1 +2.5V Red2 Unused -3 Output (+) Yellow4 Output (-) Green5 GND. BlackRemarks) GND. does not have to short-circuit with output (-).This sensor is installed in outer cases of fixed type fuel cells and gas engines for the purpose of gas leakage detection. Wire length should be less than 2m long, and please do not use connectors other than our recommended ones.深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００NSU-131A 、NSU-131AFNSU-131A and 131AF are ready-for-use units with Nemoto’s hot-wire type gas sensors already calibrated. Outputs are obtained in mV order when the rated DC voltage is supplied to the units. The alarm concentration is preset at 10% of LEL of natural gas or hydrogen gas, but custom calibration is available upon request. ・Ratingsitems NSU-131A NSU-131AFSupply voltageDC 2.5 ± 0.1V DC 2.5 ± 0.1V Current when rated voltage is supplied DC150 ∼ 170mA DC150 ∼ 170mA Ambient temperature Usage －20 ∼ +80℃ Storage －20 ∼ +70℃ Ambient humidity Usage <95％RH, Storage <95％RH (without dew condensation)・Standard specificationsItems NSU-131A NSU-131AFDelay at initially energized90 SecondsResponse speed 90% response within 30 secondsCalibrated Alarm concentration 10 ± 1% LEL 、Methane 4,500 ∼ 5,500ppm, Hydrogen 3,600 ∼ 4,400ppm Calibration range 5 ∼ 25% LEL Output in clean air-23 ∼ -29mV -18 ∼ -22mVN S U-131AN S U-131AF・TerminalsNo.1 +2.50V2 Not used3 Output signal (+)4 Output signal (−)5 GND.Remarks) GND and output signal (−) terminals are separately provided. Please do not short-circuit these terminals.NAP-21ANAP-21A is a thermal-conductive type gas sensor to detect gases making use ofthe variation of the thermal conductivity of a target gas. This sensor is suitablefor detection of highly concentrated gases more than percent order or inert gases that are not chemically reacted.* Ratings and Gas sensitivityItems NAP-21A Supply voltage DC 1.8 ±0.1VCurrent 120 ~ 130mA (1.8V applied)Ambient Temp. &-10 ~ +50o C, 95％RH or lesshumidity in operationAmbient Temp. &-20 ~ +60o C, 99％RH or lesshumidity in operationCO2 gas sensitivity 0.2mV / ％CO2Structure of NAP-21AThis sensor detects the changes of outputs when the thermal conductivity ofthe ambient atmosphere becomes different from the conductivity of the air. More specifically, the output shifts towards (+) side when the target gas has a larger molecular weight than the air, and shifts towards (-) side in case of a smaller molecular weight. The output characteristic of this sensor shows excellent linearity to the gas concentrations that is good enough to measure concentrations up to 100%. However, this sensor is humidity-dependent (As “humidity is “steam” which makes the output shift towards (-) side.), a compensation circuit would be needed upon designing circuits. Because of these characteristics, this sensor is suitable for CO2 gas measurement & CO2 gas monitoring in containers for vegetables & fruits etc.。

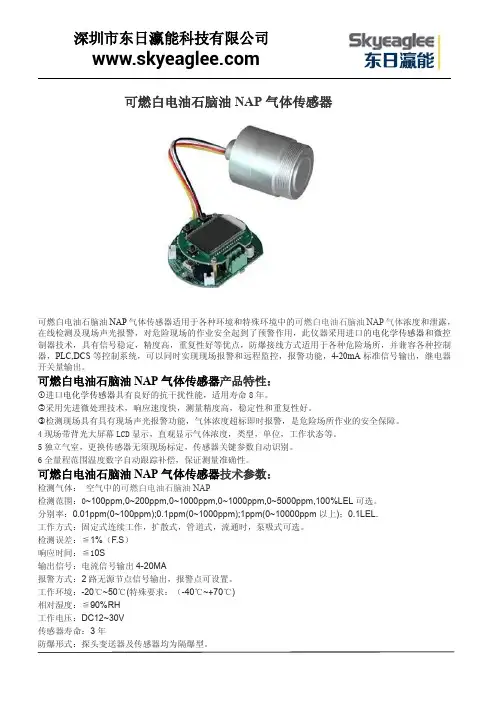

可燃白电油石脑油NAP气体传感器可燃白电油石脑油NAP气体传感器适用于各种环境和特殊环境中的可燃白电油石脑油NAP气体浓度和泄露，在线检测及现场声光报警，对危险现场的作业安全起到了预警作用，此仪器采用进口的电化学传感器和微控制器技术，具有信号稳定，精度高，重复性好等优点，防爆接线方式适用于各种危险场所，并兼容各种控制器，PLC,DCS等控制系统，可以同时实现现场报警和远程监控，报警功能，4-20mA标准信号输出，继电器开关量输出。

可燃白电油石脑油NAP气体传感器产品特性：①进口电化学传感器具有良好的抗干扰性能，适用寿命8年。

②采用先进微处理技术，响应速度快，测量精度高，稳定性和重复性好。

③检测现场具有具有现场声光报警功能，气体浓度超标即时报警，是危险场所作业的安全保障。

4现场带背光大屏幕LCD显示，直观显示气体浓度，类型，单位，工作状态等。

5独立气室，更换传感器无须现场标定，传感器关键参数自动识别。

6全量程范围温度数字自动跟踪补偿，保证测量准确性。

可燃白电油石脑油NAP气体传感器技术参数：检测气体：空气中的可燃白电油石脑油NAP检测范围：0~100ppm,0~200ppm,0~1000ppm,0~1000ppm,0~5000ppm,100%LEL可选。

分别率：0.01ppm(0~100ppm);0.1ppm(0~1000ppm);1ppm(0~10000ppm以上)；0.1LEL.工作方式：固定式连续工作，扩散式，管道式，流通时，泵吸式可选。

检测误差：≦1%（F.S）响应时间：≦10S输出信号：电流信号输出4-20MA报警方式：2路无源节点信号输出，报警点可设置。

工作环境：-20℃~50℃(特殊要求：（-40℃~+70℃)相对湿度：≦90%RH工作电压：DC12~30V传感器寿命：3年防爆形式：探头变送器及传感器均为隔爆型。

防爆等级：Exd II CT6连接电缆：三芯电缆(单根线径≧1.5mm)；建议选用屏蔽电缆。

100525NAP-508气体传感器技术说明书(电化学式一氧化碳传感器)根本传感器技术株式会社〒168-0072東京都杉並区高井戸東4-10-9TEL. : 03-3333-2760FAX. : 03-3333-7344E-mail : ****************.jpURL : http://www.nemoto.co.jpNAP-508是一款新开发的一氧化碳传感器，较之于NAP-505，具有更长的寿命。

除了外壳颜色用棕红色标示外，外形尺寸和NAP-505一致。

检知原理和特性、使用注意事项请参照NAP-505的相关资料。

以下为NAP-508的特性、 优势、寿命方面做一下介绍。

1. 规格・工作温湿度 温度 : -20 ― +50℃ 湿度 : 15 – 90%RH ・气压 : 1 ± 0.1atm ・推荐电阻 : 10Ω ・推荐保管温度 : 0 – 20℃ ・推荐库存时间: 6个月以内2. 特性・检查对象气体 : CO 一氧化碳 ・量程 : 0 – 2000ppm 最大量程 ：1%VOL・输出电流 : 20 ± 5nA/ppm.CO ・基线偏移 : ±5ppm 以下 ・反应时间 : T90 45秒以内 ・零点温飘(-20-50℃) : 10ppm 以下 ・衰减性 : 3%以下/年 ・同日重复性 : ±2%以内3. 各种特性 3-1. 线性120010008006004002000出力電流（μA )ガス濃度（ppm)53-2.3-3.温度（℃）：基準温度 ２０℃-20 -10 0 10 20 30 40 50 変化率(%) 75 82 89 95 100 103.5 106 108 补偿后的变化96 99.4 101.1 101.8 101.8 100.7 99.8 99.3率；（％）＊＊：使用推荐线路上的热敏电阻注意：用推荐线路的热敏电阻，基线不能补偿3-4.4.外形名称材質・規格外盖子本体过滤纸针脚材質：PPO＊、 色：棕红色材質：PPO、 色：黑色PTFE＊＊（多层压制）φ9.5 φ0.5镍合金(50FN)＊＊＊＊：苯醚＊＊：聚四氟乙烯＊＊＊：FeNi50%镍合金ピン配置5.推荐电路6.干扰感应气体实验气体浓度(ppm) CO气体浓度换算值(ppm) 一氧化碳１００１００氢气２５０８０甲烷５００００丙烷２５０００CO2 ５００００SO2 ２５０H2S １００NO ３００NO2 ３０＜１０NH3 １０００＊＊＊乙酸乙酯２０００＊＊＊二氯甲烷２０００＊＊＊庚烷５０００＊＊＊甲苯２０００＊＊＊ＩＰＡ２０００＊＊＊乙醇２０００＜３０＊六甲基二硅氧烷１００＊＊曝露時間：* 30 minutes** 40 minutes *** 2 hours7.耐久试验7-1. 高温試験实验条件: 50℃、40%RH 1000小时暴露试验后输出值变化: ±15%以内7-2. 高温高湿实验实验条件: 50℃、90%RH 1000小时暴露试验后输出值变化: ±10%以内7-3. 低温试验实验条件: -20℃1000小时暴露试验后的输出值变化: ±10%以内7-4. 低湿度实验实验条件: 25℃、20%RH 1000小时暴露试验后输出变化: ±10%以内7-5. 冷热循环实验实验条件: -20℃和50℃环境中分别放置30分钟循环10次试验后输出变化: ±10%以内8.机械强度8-1. 耐震性将传感器安X/Y/Z轴各个方向，以1.5mm 10～55～10Hz （扫描时间：1分钟）各振动2个小时。

Technical InformationElectrochemical Formaldehyde Sensor NE-HCHO-S ~ Industrial Use~(1) Design FeaturesHigh Sensitivity Stability High Reliability Linearity Low Power Consumption for Battery Operation(2) Specifications[Sensitivity Characteristics] Detection Gas Detection Range Maximum Overload Output Signal Repeatability Typical Baseline Range (pure air) Typical Response Time (t90) Baseline Shift (0 ∼ 40oC) Expected Life Time Formaldehyde 0 ∼ 10 ppm 50 ppm 500 ± 150 nA/ppm ±5% < ± 0.05 ppm < 120 sec. (HCHO : 1 ppm) < 0.2 ppm Over 2 years[Operating Conditions] Operating Temperature Operating Humidity Operating Pressure Range Recommended Load Resistor Bias Voltage Position Sensitivity Recommended Storage Temp. Storage Life -20 ∼ 50oC 15 ∼90 % RH 1atm± 10 % 10 Ω Not required None 0 ∼ 20oC Less than 6 months1[Physical Characteristics] Case Material Cap Color Weight PPO Black 5 g (approx.)[Appearance and Dimensions]Fig.1 : Appearance and Dimensions of NE-HCHO-S2(3) Characteristics(3-1) Cross Sensitivity Table 1 : Cross Sensitivity of NE-HCHO-S Gas Formaldehyde Hydrogen Sulfide Carbon-monoxide Carbon-dioxide Hydrogen Sulfur-dioxide Chlorine Methane Nitric Oxide Nitrogen Dioxide Ammonia Acetaldehyde Toluene Xylene Concentration (ppm) 10 1 100 5,000 1000 10 10 5,000 10 10 100 100 100 100 Typical Formaldehyde Concentration(ppm)Equivalent 10 4 <6 0 <10 <8 <-8 0 <0.5 -7 0 <2 0 0(3-2) Temperature DependencyTypical CharacteristicsFig. 2 : Typical Temperature Coefficient of NE-HCHO-S3(4) Basic Test Circuit0.1μF -Vcc 0.1μFNE-HCHO-SC R10kΩ2 6 3OP97WＴＨ0.1μF 56kΩ +Vcc non. 10μF -Vcc 0.1μF10Ω2 6 3Output VoltageOP9710Ω0.1μF+VccTH : NTC Thermistor R 25 = 10kΩ B = 3435k 103AT(Ishizuka Electronic Corp.)Fig. 3 : Basic Test Circuit for NE-HCHO-S・Circuit is test use only. ・Remove the short-pin before sensor is connected to the circuit. ・Applied voltage of the +Vcc and the –Vcc at the same time.4[Notes] ・Use only within specified conditions. ・Sensor characteristics must be measured in clean air. ・Electrode pins must be correctly connected. Wrong connection does not allow correct functions. ・Do not apply voltage directly to electrode pins. ・Do not bend pins. ・Do not put excess vibration or shocks. ・If sensor housing is damaged or scratched, do not use. ・Do not blow organic solvents, paints, chemical agents, oils, or high concentration gases directly onto sensors. ・Do not solder to pins of sensor directly. Use exclusive sockets. ・Do not use contact grease when sensor is connected to the sockets. ・Do not disassemble or change any parts. ・If sensor is used under irregular atmosphere, contact us.NEMOTO SENSOR ENGINEERING CO.,LTD. 4-10-9 Takaido-Higashi Suginami-ku Tokyo 168-0072 Japan TEL 81-03-3333-2760 FAX 81-03-3333-2712Tech.Inf.No.NE-HCHO-S –1507085。

2002/12/12NAP-505 传 感器 (电 化学式 CO 传感器) 使用说明书深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ（１）ＮＥＭＯＴＯ的化学传 感器 （1.1）根本特殊化学株式会社的历 史 （1.2）化学传感事业 方向的组合 （1.3）制品的介绍 ・接触燃烧式气体传感器 ・工业用接触燃烧式气体传感器 ・电化学式气体传感器 ・湿度传感器／湿度传感器组合品 （２）电化学式传感器的概念 （2.1）基本动作原理 （2.2）基本构成 （2.3）特征 （３）ＮＡＰ－５０５ （3.1）特征 （3.2）用途 （3.3）特性 （3.3.1）基本规 格 （3.3.2）气体灵敏度 （3.3.3）应答性 （3.3.4）选择性 （3.3.5）温度依存性 （3.3.6）信頼性 （3.3.7）和其它公司制品的比较 （3.3.8）用语的说明 （3.4）电路设计的指导 （3.4.1）基本动作电路 （3.4.2）低功耗电路的设计 （3.4.3）单电源的动作方法 （3.5）使用上的注意 （3.5.1）气体灵敏度的长期漂移 （3.5.2）气体感度的季节变动 （3.5.3）关于传感器的保管 （3.5.4）传感器实际安装上的留意事项 （3.5.5）气体报警器、气体浓度计的设计、使用上的留意事项 （3.5.6）一般注意事项深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ（１） ＮＥＭＯＴＯ的化学传 感器（1.1）根本特殊化学株式会社的历史根本特殊化学株式会社从１９４１年创业以来经过半世紀以上的飞速发展，主要在安全、防卫、 保健分野，以独创的开发技术为社会做出了卓著贡献。

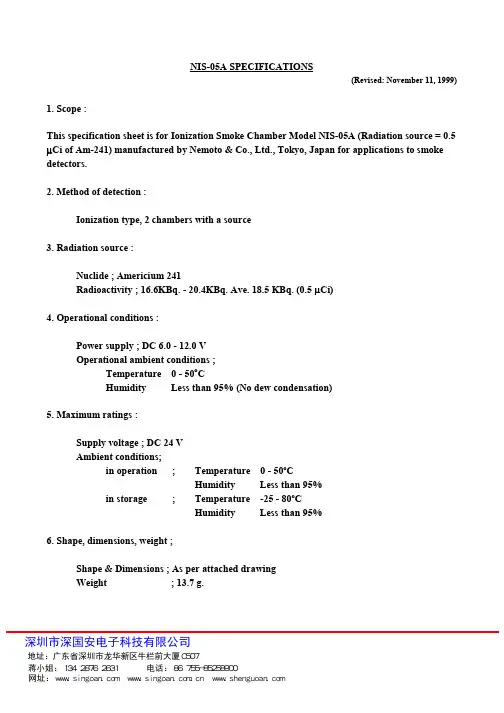

NIS-05A SPECIFICATIONS(Revised: November 11, 1999)1. Scope :This specification sheet is for Ionization Smoke Chamber Model NIS-05A (Radiation source = 0.5 µCi of Am-241) manufactured by Nemoto & Co., Ltd., Tokyo, Japan for applications to smoke detectors.2. Method of detection :Ionization type, 2 chambers with a source3. Radiation source :Nuclide ; Americium 241Radioactivity ; 16.6KBq. - 20.4KBq. Ave. 18.5 KBq. (0.5 µCi)4. Operational conditions :Power supply ; DC 6.0 - 12.0 VOperational ambient conditions ;Temperature 0 - 50o CHumidity Less than 95% (No dew condensation)5. Maximum ratings :Supply voltage ; DC 24 Vconditions;Ambientin operation ; Temperature 0 - 50o CHumidity Less than 95%in storage ; Temperature -25 - 80o CHumidity Less than 95%6. Shape, dimensions, weight ;Shape & Dimensions ; As per attached drawingWeight ; 13.7 g.深圳市深国安电子科技有限公司7. Measuring circuitPower supply Power supplyNormal polarity Reverse polarity8. Ratings :Test conditions; at 25o C, 60% RHSpecificationsItemsNormal polarity Reverse polaritySupply voltage DC 9V DC 9V Current consumption 15 +/- 2 pA 12 +/- 2 pA Output voltage5.5 +/- 0.5 V in clean air4.3 +/- 0.5V Sensitivity1.2 +/- 0.3 V0.8 +/- 0.3 V(Under 2%/foot of smoke, Tested according to UL 217)9. Characteristics :9-1. Sensitivity characteristics Table 1Test conditions; at 25o C, 60% RHOutput Variation (∆V)Smoke Concentration (%/foot)Normal polarity Reverse polarity 0 0 0 1 0.6 +/- 0.2 0.4 +/- 0.3 2 1.2 +/- 0.3 0.8 +/- 0.3 3 1.7 +/- 0.3 1.2 +/- 0.3 42.1 +/- 0.41.5 +/- 0.4Gray smoke test according to UL 217 Air velocity; 0.16m/sec.深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 9-2. Supply voltage dependencyTable 2 Test conditions; at 25o C, 60% RHOutput voltage (V)Supply voltage (V)Normal polarity Reverse polarity6 3.2 +/- 0.4 3.4 +/- 0.49 5.5 +/- 0.5 4.3 +/- 0.512 7.8 +/- 0.6 5.0 +/- 0.69-3. Temperature & Humidity dependencyTable 3 Temperature dependency (Humidity; 60% RH)Temperature (o C) Output(V)0 5.2+/-0.525 5.5+/-0.550 5.8+/-0.5Table 4 Humidity dependency (Temperature; 25o C)Humidity (%C) Output (V)30 5.6 +/- 0.560 5.5 +/- 0.590 5.4 +/- 0.510. Durability tests :10-1. Heat resistance testTest method CriteriaAt +80o C +/- 5o C for 72 hrs. without electrified To maintain the characteristics shown in Heading No. 8 after test. To show neither deforming, nor discoloring, nor cracks.深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 10-2. Low temperature resistance Test method CriteriaAt -30o C +/- 5o C for 72 hrs. without electrified To maintain the characteristics shown in Heading No. 8 after test. To show neither deforming, nor discoloring, nor cracks.10-3. High humidity resistanceTest method CriteriaAt +40o C +/- 5o C, 85 +/- 5% for 72 hrs. without electrified To maintain the characteristics shown in Heading No. 8 after test. To show neither deforming, nor discoloring, nor cracks.10-4. Vibration testTest method Criteria Vibrated with amplitude of 0.25mmat every 5Hz from 10 – 35 Hz for 15 min. with sympathetic vibration.If no sympathetic vibration occurs, to be vibrated at 35Hz for 4 hours. To maintain the characteristics shown in Heading No. 8 after test.To show neither deforming, nor discoloring, nor cracks.10-5. Impact testTest method CriteriaDropped from a height of 1m on to a wooden plate with three different directions. To maintain the characteristics shown in Heading No. 8 after test.To show neither deforming, nor discoloring, nor cracks.深圳市深国安电子科技有限公司11. Remarks:1. Measurement of output voltages ;Output voltages are to be measured with an electrometer having an impedance of 1014 or greater, or with an exclusively designed measuring circuit using an IC for smoke detectors.Usual testers with an impedance of around 100M may not be adequate for accuratemeasurements.2. Contamination with a flux ;Upon assembling of NIS-05A onto your smoke detectors, please pay attention that a soldering flux would not get inside the chamber. Washing or cleaning up should be required if the inside of the chamber is contaminated with a flux.3. Connection of output lead wire ;The lead wire of NIS-05A should be connected in air with the input terminal of your circuit, or the connected point should be supported with a teflon post so that the connected point would not touch to your PCB. Accurate output voltages can not be measured if the current leaks onto the PCB.4. Moisture protection ;The connection point of the output wire of NIS-05A and an input terminal of an IC or an FET should be protected with a silicone resin or the like. Current leakage under highly humid conditions would be minimized.;shielding5. ElectricalBecause of a sensor of a tiny current, NIS-05A is easily affected by electrical noises from the outside. It is therefore recommended to shield the sensor, especially the connection point must be electrically shielded.Packing1,000 pieces packed in an export carton.Dimensions ; 435(D) x 490(W) x 275(H) mmGross weight ; 14.5 Kgs.深圳市深国安电子科技有限公司12 Drawings。

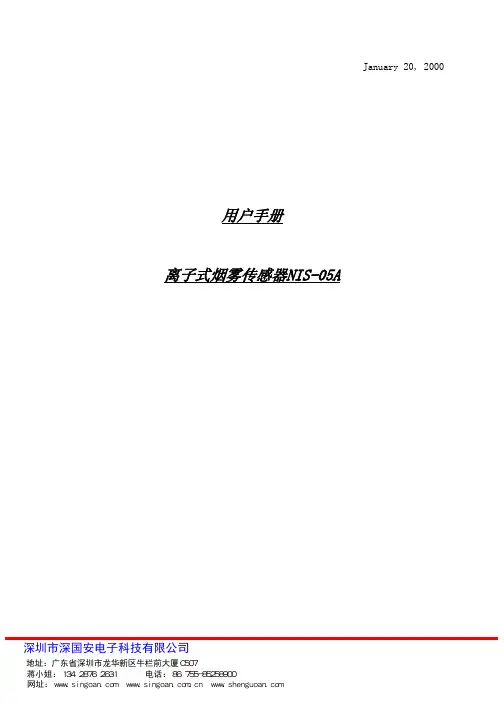

January 20, 2000用户手册离子式烟雾传感器NIS-05A离子式烟雾传感器NIS-05A是用于探测火灾事故中的烟雾，香烟烟雾或者房子中的灰尘等的传感器。

这种传感器是我公司低放射型的标准传感器。

放射源已降至56%，所以可用于放射物质被严格要求控制的场所。

并且放射源已完全被密封。

因为极小的电流功耗，所以此传感器普遍应用于带电池驱动的烟雾探测器。

下面是关于NIS-05A特征的一些介绍。

1)特征;* 功耗极小，可用电池驱动使用几年.* 结构简单，比光电式烟雾传感器更便宜.* 输出不依赖于烟雾的颜色.* 和光电式烟雾传感器相比，耐用性更好.* 放射能很小2) 应用范围;*火灾报警器 * 空气清洁器 * 烟尘计数器3) 最大额定值;* 供给电压 DC 24V* 操作环境中的温湿度 温度 -20 ∼ +70o C湿度 小于95% RH* 储藏环境中的温湿度 温度 -25 ∼ +80o C湿度 小于95% RH4) 推荐额定值;* 供给电压 DC 9V* 电流功耗 15 +/- 2 pA (9V电压供应)* 空气中输出 5.5 +/-0.5 V (25o C, 60% RH) * 烟雾敏感度 1.2 +/- 0.3 V (2%/英尺,依据UL217)* 操作环境中的温湿度 温度 -10 ∼ +60o C湿度 小于95% RH*储藏环境中的温湿度 温度 -10 ∼ +70o C湿度 小于95% RH5) 结构, 尺寸 & 重量* 结构 如下页图纸所示.* 尺寸 如下页图纸所示.* 重量 约13.7克下面是NIS－05A的结构Fig. 1 NIS－05A结构放射性同位元素（图中C）是阿尔法射线放射源镅241，其放射量非常小只有18.5KBq.由于放射源已被不锈钢完全密封（图中G所示），所以放射能不会泄漏到周围环境中。

放射性同位元素本身也有被镀金密封以防止受有机溶脂及碳酸物的腐蚀。

另外封口处也有耐溶性，所以当有必要的时候传感器也可以用有机溶脂清洗。
