ABBRobotstudio仿真软件项目式使用说明

搬运码垛工作站建模1、创建机器人系统2、创建动态输送链3、创建动态夹具4、工作站逻辑连接5、添加IO(设置好需重启)6、示教目标点（同步到RAPID）7、RAPID编程一、创建机器人系统1、创建空工作站2、导入IRB 260机器人模型3、从布局创建机器人系统，勾选Chinese和709-1网络二、创建动态输送链1、添加输送链并修改位置2、创建600*400*200的物料并修改位置3、添加一个smart组件4、添加source组件5、设置物料本地原点6、添加LINEMOVER和QUEUE组件7设置LINEMOVER属性8、添加面传感器组件9、设置输送链不能被传感器检测10、设置SC_输送链的属性连接11、设置信号连接12、添加信号处理组件，用于检测传感器下降沿13、传感器下降沿触发source进行copy14、传感器与SC输送链的输出联系15、添加仿真开始结束组件，用于激活传感器16、添加置位复位组件，对仿真开始结束信号进行保持17、18、进行仿真设定选择SC——输送链进行验证三、创建动态夹具1、先制作一个吸盘模型，然后设置成工具，并安装到机器人法拉盘2、添加SMART组件3、添加ATTACHER和DETACHER组件4、设置属性5、添加一个线传感器组件6、线传感器设置属性7、设置吸盘工具不能被传感器检测8、把线传感器安装到吸盘（不更新位置，保持当前位置）9、设置属性连接10、添加信号及连接11、添加信号处理取非和锁定组件12、继续信号连接13、添加一个示教物料14、应用手动线性验证SC_工具四、工作站逻辑连接五、参考代码MODULE MainMoudlePERS tooldatatGrip:=[TRUE,[[0,0,200],[1,0,0,0]],[25,[0,0.00109327,116.889],[1,0,0,0],0,0,0]];！吸盘工具数据PERS loaddata LoadEmpty:=[0.01,[0,0,1],[1,0,0,0],0,0,0];PERS loaddata LoadFull:=[40,[0,0,50],[1,0,0,0],0,0,0];！有效载荷数据PERS robtarget pHome:=[[1620.00,-0.00,1331.59],[1.27986E-06,-0.707107,-0.707107,1.27986E-06],[0,0,1,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];！基准点PERS robtarget pActualPos:=[[1620,-1.87531E-14,1331.59],[1.27986E-06,-0.707107,-0.707107,1.27986E-06],[0,0,1,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];！实际点PERS robtargetpPick1:=[[1488.007792464,376.826660408,476.964684195],[0,0.707106307,0.7071 07256,0],[0,0,1,0],[9E9,9E9,9E9,9E9,9E9,9E9]];！1路拾取目标点PERS robtarget pPlace1:=[[-292.446,1263.27,55.4492],[0,0.707107,0.707106,0],[1,0,2,0],[9E+09,9E+09,9E+09, 9E+09,9E+09,9E+09]];！1路放置基准点PERS robtarget pBase1_0:=[[-292.446294945,1263.272085268,55.449220723],[0,0.707107387,0.707106176,0],[1, 0,2,0],[9E9,9E9,9E9,9E9,9E9,9E9]];！1路放置0度姿态PERS robtarget pBase1_90:=[[-391.976797324,1362.469634994,55.449159414],[0,1,-0.000030621,0],[1,0,3,0],[9E9,9E9,9E9,9E9,9E9,9E9]];！1路放置90度姿态PERS robtarget pPick2:=[[1488.013130905,-358.406014736,476.965039287],[0,0.707106307,0.707107256,0],[-1,0,0,0],[9E9,9E9,9E9,9E9,9E9,9E9]];PERS robtarget pPlace2:=[[-317.378,-1857.99,55.449],[0,0.707108,0.707106,0],[-2,0,-1,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];PERS robtarget pBase2_0:=[[-317.378137718,-1857.993871961,55.448967354],[0,0.707107745,0.707105817,0],[-2,0,-1,0],[9E9,9E9,9E9,9E9,9E9,9E9]];PERS robtarget pBase2_90:=[[-407.525988074,-1755.902485322,55.449282402],[0,1,-0.000031217,0],[-2,0,0,0],[9E9,9E9,9E9,9E9,9E9,9E9]];PERS speeddata MinSpeed:=[1000,300,5000,1000];PERS speeddata MidSpeed:=[2500,400,5000,1000];PERS speeddata MaxSpeed:=[4000,500,5000,1000];！搬运速度定义PERS bool bPalletFull1:=FALSE;PERS bool bPalletFull2:=FALSE;！逻辑布尔量，拾取后为UE，放置后为FALSEPERS num nCount1:=1;PERS num nCount2:=1;！输送链计数PROC Main()rInitAll;WHILE TRUE DOIF diBoxInPos1=1 AND diPalletInPos1=1 AND bPalletFull1=FALSE THEN rPick1;rPlace1;ENDIFIF diBoxInPos2=1 AND diPalletInPos2=1 AND bPalletFull2=FALSE THEN rPick2;rPlace2;ENDIFWaitTime 0.1;ENDWHILEENDPROCPROC rInitAll()Reset doGrip;pActualPos:=CRobT(\tool:=tGrip);pActualPos.trans.z:=pHome.trans.z;MoveL pActualPos,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pHome,MidSpeed,fine,tGrip\WObj:=wobj0;bPalletFull1:=FALSE;nCount1:=1;bPalletFull2:=FALSE;nCount2:=1;ENDPROCPROC rPick1()MoveJ Offs(pPick1,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0;MoveL pPick1,MinSpeed,fine,tGrip\WObj:=wobj0;Set doGrip;WaitTime 0.3;GripLoad LoadFull;MoveL Offs(pPick1,0,0,400),MinSpeed,z50,tGrip\WObj:=wobj0; ENDPROCPROC rPick2()MoveJ Offs(pPick2,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; MoveL pPick2,MinSpeed,fine,tGrip\WObj:=wobj0;Set doGrip;WaitTime 0.3;GripLoad LoadFull;MoveL Offs(pPick2,0,0,400),MinSpeed,z50,tGrip\WObj:=wobj0; ENDPROCPROC rPlace1()rPosition1;MoveJ Offs(pPlace1,0,0,400),MidSpeed,z50,tGrip\WObj:=wobj0; MoveL pPlace1,MinSpeed,fine,tGrip\WObj:=wobj0;Reset doGrip;WaitTime 0.3;GripLoad LoadEmpty;MoveL Offs(pPlace1,0,0,400),MidSpeed,z50,tGrip\WObj:=wobj0; MoveJ Offs(pPick1,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; nCount1:=nCount1+1;IF nCount1>20 THENbPalletFull1:=TRUE;ENDIFENDPROCPROC rPlace2()rPosition2;MoveJ Offs(pPlace2,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; MoveL pPlace2,MinSpeed,fine,tGrip\WObj:=wobj0;Reset doGrip;WaitTime 0.3;GripLoad LoadEmpty;MoveL Offs(pPlace2,0,0,400),MidSpeed,z50,tGrip\WObj:=wobj0; MoveJ Offs(pPick2,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; nCount2:=nCount2+1;IF nCount2>20 THENbPalletFull2:=TRUE;ENDIFENDPROCPROC rPosition1()TEST nCount1CASE 1:pPlace1:=Offs(pBase1_0,0,0,0);CASE 2:pPlace1:=Offs(pBase1_0,600+10,0,0);CASE 3:pPlace1:=Offs(pBase1_90,0,400+10,0);CASE 4:pPlace1:=Offs(pBase1_90,400+10,400+10,0);CASE 5:pPlace1:=Offs(pBase1_90,800+20,400+10,0);CASE 6:pPlace1:=Offs(pBase1_0,0,600+10,200);CASE 7:pPlace1:=Offs(pBase1_0,600+10,600+10,200);CASE 8:pPlace1:=Offs(pBase1_90,0,0,200);CASE 9:pPlace1:=Offs(pBase1_90,400+10,0,200);CASE 10:pPlace1:=Offs(pBase1_90,800+20,0,200);CASE 11:pPlace1:=Offs(pBase1_0,0,0,400);CASE 12:pPlace1:=Offs(pBase1_0,600+10,0,400);CASE 13:pPlace1:=Offs(pBase1_90,0,400+10,400);CASE 14:pPlace1:=Offs(pBase1_90,400+10,400+10,400);CASE 15:pPlace1:=Offs(pBase1_90,800+20,400+10,400);CASE 16:pPlace1:=Offs(pBase1_0,0,600+10,600);CASE 17:pPlace1:=Offs(pBase1_0,600+10,600+10,600);CASE 18:pPlace1:=Offs(pBase1_90,0,0,600);CASE 19:pPlace1:=Offs(pBase1_90,400+10,0,600);CASE 20:pPlace1:=Offs(pBase1_90,800+20,0,600);DEFAULT:TPErase;TPWrite "the Counter of line 1 is error,please check it!"; Stop;ENDTESTENDPROCPROC rPosition2()TEST nCount2CASE 1:pPlace2:=Offs(pBase2_0,0,0,0);CASE 2:pPlace2:=Offs(pBase2_0,600+10,0,0);CASE 3:pPlace2:=Offs(pBase2_90,0,400+10,0);CASE 4:pPlace2:=Offs(pBase2_90,400+10,400+10,0); CASE 5:pPlace2:=Offs(pBase2_90,800+20,400+10,0); CASE 6:pPlace2:=Offs(pBase2_0,0,600+10,200);CASE 7:pPlace2:=Offs(pBase2_0,600+10,600+10,200); CASE 8:pPlace2:=Offs(pBase2_90,0,0,200);CASE 9:pPlace2:=Offs(pBase2_90,400+10,0,200);CASE 10:pPlace2:=Offs(pBase2_90,800+20,0,200);CASE 11:pPlace2:=Offs(pBase2_0,0,0,400);CASE 12:pPlace2:=Offs(pBase2_0,600+10,0,400);CASE 13:pPlace2:=Offs(pBase2_90,0,400+10,400);CASE 14:pPlace2:=Offs(pBase2_90,400+10,400+10,400); CASE 15:pPlace2:=Offs(pBase2_90,800+20,400+10,400); CASE 16:pPlace2:=Offs(pBase2_0,0,600+10,600);CASE 17:pPlace2:=Offs(pBase2_0,600+10,600+10,600);CASE 18:pPlace2:=Offs(pBase2_90,0,0,600);CASE 19:pPlace2:=Offs(pBase2_90,400+10,0,600);CASE 20:pPlace2:=Offs(pBase2_90,800+20,0,600);DEFAULT:TPErase;TPWrite "the Counter of line 1 is error,please check it!"; Stop;ENDTESTENDPROCPROC rModify()MoveJ pHome,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pPick1,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase1_0,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase1_90,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pPick2,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase2_0,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase2_90,MinSpeed,fine,tGrip\WObj:=wobj0;ENDPROCENDMODULE。

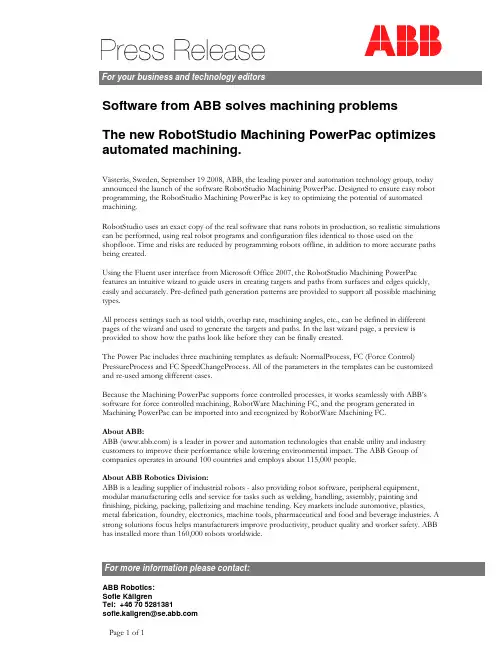

For your business and technology editorsPage 1 of 1 Software from ABB solves machining problemsThe new RobotStudio Machining PowerPac optimizes automated machining.Västerås, Sweden, September 19 2008, ABB, the leading power and automation technology group, today announced the launch of the software RobotStudio Machining PowerPac. Designed to ensure easy robot programming, the RobotStudio Machining PowerPac is key to optimizing the potential of automated machining.RobotStudio uses an exact copy of the real software that runs robots in production, so realistic simulations can be performed, using real robot programs and configuration files identical to those used on the shopfloor. Time and risks are reduced by programming robots offline, in addition to more accurate paths being created.Using the Fluent user interface from Microsoft Office 2007, the RobotStudio Machining PowerPac features an intuitive wizard to guide users in creating targets and paths from surfaces and edges quickly, easily and accurately. Pre-defined path generation patterns are provided to support all possible machining types.All process settings such as tool width, overlap rate, machining angles, etc., can be defined in different pages of the wizard and used to generate the targets and paths. In the last wizard page, a preview is provided to show how the paths look like before they can be finally created.The Power Pac includes three machining templates as default: NormalProcess, FC (Force Control) PressureProcess and FC SpeedChangeProcess. All of the parameters in the templates can be customized and re-used among different cases.Because the Machining PowerPac supports force controlled processes, it works seamlessly with ABB’s software for force controlled machining, RobotWare Machining FC, and the program generated in Machining PowerPac can be imported into and recognized by RobotWare Machining FC.About ABB: ABB () is a leader in power and automation technologies that enable utility and industry customers to improve their performance while lowering environmental impact. The ABB Group of companies operates in around 100 countries and employs about 115,000 people.About ABB Robotics Division:ABB is a leading supplier of industrial robots - also providing robot software, peripheral equipment, modular manufacturing cells and service for tasks such as welding, handling, assembly, painting and finishing, picking, packing, palletizing and machine tending. Key markets include automotive, plastics, metal fabrication, foundry, electronics, machine tools, pharmaceutical and food and beverage industries. A strong solutions focus helps manufacturers improve productivity, product quality and worker safety. ABB has installed more than 160,000 robots worldwide.For more information please contact:ABB Robotics:Sofie KällgrenTel: +46 70 5281381*********************.com。

© C o p y r i g h t 2008-2010 A B B . 保留所有权利。

操作手册RobotStudio5.13文档编号 3HAC032104-010修订: C© C o p y r i g h t 2008-2010 A B B . 保留所有权利。

本手册中包含的信息如有变更，恕不另行通知，且不应视为ABB 的承诺。

ABB 对本手册中可能出现的错误概不负责。

除非本手册中有明确规定，否则不应将其中的任何内容解释为ABB 对个人损失、财产损坏或具体适用性等做出任何担保或保证。

ABB 对因使用本手册及其中所述产品而引起的意外或间接伤害概不负责。

未经ABB 书面许可，严禁复制或翻印本手册及其中的任何部分，不得将任何内容透露给第三方，亦不得用于任何未经授权的用途。

违反本条款将会受到起诉。

本手册的副本可按时价向ABB 购买。

版权所有 2008-2010 ABB，保留所有权利。

ABB ABRobotics Products 721 68 V äster ås瑞典目表© C o p y r i g h t 2008-2010 A B B . 保留所有权利。

概述 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9产品文档, M2004. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12安全 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 简介151.1 概念和术语. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151.1.1 硬件概念 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151.1.2 RobotWare 概念 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161.1.3 RAPID 概念. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171.1.4 编程的概念 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181.1.5 目标点与路径 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191.1.6 坐标系 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201.1.7 机器人轴的配置 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221.1.8 关于程序库、几何体和 CAD 文件. . . . . . . . . . . . . . . . . . . . . . . 241.1.9 关于将 VSTA 用作IDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261.2 安装并许可RobotStudio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .271.3 图形化界面. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301.3.1 图形化界面 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301.3.2 “开始”窗口 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311.3.3 “布局”浏览器 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321.3.4 “路径和目标点”浏览器 . . . . . . . . . . . . . . . . . . . . . . . . . . 331.3.5 “建模”浏览器 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351.3.6 “在线”浏览器和“离线”浏览器. . . . . . . . . . . . . . . . . . . . . . 361.3.7 输出窗口 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381.3.8 操作员窗口 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401.3.9 文档管理器窗口 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411.3.10 使用鼠标. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 461.3.11 选择项目. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471.3.12 安装与拆除对象. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 481.3.13 键盘快捷键. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .492 如何构建工作站532.1 构建新工作站的工作流程. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 532.2 创建传送带跟踪工作站（两个机器人在同一个传送带上工作）. . . . . . . . . . . . . . . . . . 552.2.1 两个机器人共享同一任务框架位置. . . . . . . . . . . . . . . . . . . . . . 552.2.2 两个机器人系统使用不同的任务框架位置. . . . . . . . . . . . . . . . . . . 572.3 自动创建带外轴的系统 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592.4 手动创建带导轨运动的系统. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 612.4.1 手动创建带RTT 或IRBTx003导轨的系统 . . . . . . . . . . . . . . . . . . . 612.4.2 手动创建带IRBTx004的系统 . . . . . . . . . . . . . . . . . . . . . . . . 622.5 虚拟控制器（VC）. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 632.5.1 启动虚拟控制器 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 632.5.2 重启VC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 652.6 工作站组件. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 672.6.1 导入工作站组件 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 672.6.2 转换CAD 格式 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 692.6.3 故障排除和优化几何体 . . . . . . . . . . . . . . . . . . . . . . . . . . . 702.7 建模. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 722.7.1 对象 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 722.7.2 机械装置 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 742.7.3 工具和工具数据 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 752.7.4 设置对象的本地原点 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76目表© C o p y r i g h t 2008-2010 A B B . 保留所有权利。

ABBRobotstudio仿真软件项目式使用说明1.打开Robot studio软件，单击创建新建空工作站，同时储存一下，如下图所示；2.选择ABB机器人模型IRB1600，单击添加，选择承重能力和到达距离，选择确定，如下图所示：3.导入设备-tools-Binzel air 22,并拖动安装在机器人法兰盘上：4.选择建模-固体-矩形体，设定长宽高，点击创建：选择差不多-机器人系统-从布局创建系统-下一步-下一步-完成；操纵器启动完成后，选择路径-创建一个空路径，创建成功后，修改下方参数：moveJ ，V1000，Z1008.激活当前路径，选择机器人起点，单击示教指令9.开启捕捉末端或角点，同时将机器人的移动模式设为手动线性，将机器人工具移到矩形体的一个角点上，单击示教指令，形成第一条路径，依次示教四个角点，形成路径，右击路径，选择查看机器人目标，可将机器人移动到当前位置10.路径制作完成后，选择差不多-同步到VC，在弹出的对话框中全部勾选，并点击确定，同步完成后选择仿真-仿真设定-将路径添加到主队列，选择应用--确定；11.选择仿真录像，点击播放，开始仿真录像。

项目二：搬运机器人1.新建空工作站--导入机器人IRB4600--选择最大承重能力，选择建模-固体-圆柱体，添加两个圆柱体，半径为200mm，高度分不为60mm和500 mm,把其中一个作为工具添加到法兰盘上，同时导入两个设备Euro pallet 如下图所示：2.右击物体或在左侧布局窗口中右击物体名称，在下拉菜单中选择设定颜色来更换颜色：3.按照布局创建机器人系统，细节与项目一相同，系统完全启动后，选择操纵器-配置编辑器，在下拉菜单中选择I/O，在弹出窗口中新建Unit，细节如下图所示；4.Unit新建完毕后，右击新建signal，新建do1和do2，细节如下图所示：新建完毕后，重启操纵器重启完毕后，选择仿真-配置-事件治理器-添加事件，细节如下图所示：7.事件添加完成后，开始创建路径啊，依次示教，机器人到达指定位置时，右击插入逻辑指令，如图所示：8.路径创建完成后，同步到VC，仿真设定，然后进行仿真录像项目三：叉车搬运1.打开软件，新建空工作站，导入机器人模型IRB4600，选择最大承重能力，然后选择差不多--导入几何体--扫瞄几何体--选择本地几何体--打开，如下图所示：2.利用平移和旋转指令，将不同几何体按下图位置摆放整齐：创建一个300*300*70的方体分不作为tool，将其创建为工具，具体操作如下图所示：4.设定tool的本地原点为它的中心点，如下图所示：5.选中tool，点击创建工具，将tool创建为工具，具体操作如下：创建完成后将其安装在机器人法兰盘上，右击机器人选择显示机器人工作范畴，可看到机器人最大到达距离，再次选择取消显示：创建四个200*200*200的方体分不作为Box1~Box4，设定为不同颜色，将Box2~Box4设为不可见布局终止，如下图所示：，6.按照布局创建机器人系统，待系统启动完毕后，选择操纵器--配置编辑器-新建Unit --新建signal，包括do1~do 15,如下图所示：7.设置完成后，重启操纵器，打开事件治理器，添加所需事件，包括显示对象，附加对象，提取对象，移动对象四类事件，具体如下：显示对象具体设置如下：附加对象具体设置如下提取对象设置如下：移动对象设置如下：事件添加完成后，创建路径,分不将Box1,Box2，Box3,Box4移动到垛板上，并排列整齐，路径如下图所示9.路径创建完成后，同步到VC :10.同步完成后进行仿真设定，按下图顺序添加路径，之后进行仿真录像:。

搬运码垛工作站建模1、创建机器人系统2、创建动态输送链3、创建动态夹具4、工作站逻辑连接5、添加IO(设置好需重启)6、示教目标点（同步到RAPID）7、RAPID编程一、创建机器人系统1、创建空工作站2、导入IRB 260机器人模型3、从布局创建机器人系统，勾选Chinese和709-1网络二、创建动态输送链1、添加输送链并修改位置2、创建600*400*200的物料并修改位置3、添加一个smart组件4、添加source组件5、设置物料本地原点6、添加LINEMOVER和QUEUE组件7设置LINEMOVER属性8、添加面传感器组件9、设置输送链不能被传感器检测10、设置SC_输送链的属性连接11、设置信号连接12、添加信号处理组件，用于检测传感器下降沿13、传感器下降沿触发source进行copy14、传感器与SC输送链的输出联系15、添加仿真开始结束组件，用于激活传感器16、添加置位复位组件，对仿真开始结束信号进行保持17、18、进行仿真设定选择SC——输送链进行验证三、创建动态夹具1、先制作一个吸盘模型，然后设置成工具，并安装到机器人法拉盘2、添加SMART组件3、添加ATTACHER和DETACHER组件4、设置属性5、添加一个线传感器组件6、线传感器设置属性7、设置吸盘工具不能被传感器检测8、把线传感器安装到吸盘（不更新位置，保持当前位置）9、设置属性连接10、添加信号及连接11、添加信号处理取非和锁定组件12、继续信号连接13、添加一个示教物料14、应用手动线性验证SC_工具四、工作站逻辑连接五、参考代码MODULE MainMoudlePERS tooldatatGrip:=[TRUE,[[0,0,200],[1,0,0,0]],[25,[0,0.00109327,116.889],[1,0,0,0],0,0,0]];！吸盘工具数据PERS loaddata LoadEmpty:=[0.01,[0,0,1],[1,0,0,0],0,0,0];PERS loaddata LoadFull:=[40,[0,0,50],[1,0,0,0],0,0,0];！有效载荷数据PERS robtarget pHome:=[[1620.00,-0.00,1331.59],[1.27986E-06,-0.707107,-0.707107,1.27986E-06],[0,0,1,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];！基准点PERS robtarget pActualPos:=[[1620,-1.87531E-14,1331.59],[1.27986E-06,-0.707107,-0.707107,1.27986E-06],[0,0,1,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];！实际点PERS robtargetpPick1:=[[1488.007792464,376.826660408,476.964684195],[0,0.707106307,0.707107256,0] ,[0,0,1,0],[9E9,9E9,9E9,9E9,9E9,9E9]];！1路拾取目标点PERS robtarget pPlace1:=[[-292.446,1263.27,55.4492],[0,0.707107,0.707106,0],[1,0,2,0],[9E+09,9E+09,9E+09,9E+09,9 E+09,9E+09]];！1路放置基准点PERS robtarget pBase1_0:=[[-292.446294945,1263.272085268,55.449220723],[0,0.707107387,0.707106176,0],[1,0,2,0],[9 E9,9E9,9E9,9E9,9E9,9E9]];！1路放置0度姿态PERS robtarget pBase1_90:=[[-391.976797324,1362.469634994,55.449159414],[0,1,-0.000030621,0],[1,0,3,0],[9E9,9E9,9E9,9E9,9E9,9E9]];！1路放置90度姿态PERS robtarget pPick2:=[[1488.013130905,-358.406014736,476.965039287],[0,0.707106307,0.707107256,0],[-1,0,0,0],[9E9,9E9,9E9,9E9,9E9,9E9]];PERS robtarget pPlace2:=[[-317.378,-1857.99,55.449],[0,0.707108,0.707106,0],[-2,0,-1,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];PERS robtarget pBase2_0:=[[-317.378137718,-1857.993871961,55.448967354],[0,0.707107745,0.707105817,0],[-2,0,-1,0],[9E9,9E9,9E9,9E9,9E9,9E9]];PERS robtarget pBase2_90:=[[-407.525988074,-1755.902485322,55.449282402],[0,1,-0.000031217,0],[-2,0,0,0],[9E9,9E9,9E9,9E9,9E9,9E9]];PERS speeddata MinSpeed:=[1000,300,5000,1000];PERS speeddata MidSpeed:=[2500,400,5000,1000];PERS speeddata MaxSpeed:=[4000,500,5000,1000];！搬运速度定义PERS bool bPalletFull1:=FALSE;PERS bool bPalletFull2:=FALSE;！逻辑布尔量，拾取后为UE，放置后为FALSEPERS num nCount1:=1;PERS num nCount2:=1;！输送链计数PROC Main()rInitAll;WHILE TRUE DOIF diBoxInPos1=1 AND diPalletInPos1=1 AND bPalletFull1=FALSE THEN rPick1;rPlace1;ENDIFIF diBoxInPos2=1 AND diPalletInPos2=1 AND bPalletFull2=FALSE THEN rPick2;rPlace2;ENDIFWaitTime 0.1;ENDWHILEENDPROCPROC rInitAll()Reset doGrip;pActualPos:=CRobT(\tool:=tGrip);pActualPos.trans.z:=pHome.trans.z;MoveL pActualPos,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pHome,MidSpeed,fine,tGrip\WObj:=wobj0;bPalletFull1:=FALSE;nCount1:=1;bPalletFull2:=FALSE;nCount2:=1;ENDPROCPROC rPick1()MoveJ Offs(pPick1,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0;MoveL pPick1,MinSpeed,fine,tGrip\WObj:=wobj0;Set doGrip;WaitTime 0.3;GripLoad LoadFull;MoveL Offs(pPick1,0,0,400),MinSpeed,z50,tGrip\WObj:=wobj0; ENDPROCPROC rPick2()MoveJ Offs(pPick2,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; MoveL pPick2,MinSpeed,fine,tGrip\WObj:=wobj0;Set doGrip;WaitTime 0.3;GripLoad LoadFull;MoveL Offs(pPick2,0,0,400),MinSpeed,z50,tGrip\WObj:=wobj0; ENDPROCPROC rPlace1()rPosition1;MoveJ Offs(pPlace1,0,0,400),MidSpeed,z50,tGrip\WObj:=wobj0; MoveL pPlace1,MinSpeed,fine,tGrip\WObj:=wobj0;Reset doGrip;WaitTime 0.3;GripLoad LoadEmpty;MoveL Offs(pPlace1,0,0,400),MidSpeed,z50,tGrip\WObj:=wobj0; MoveJ Offs(pPick1,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; nCount1:=nCount1+1;IF nCount1>20 THENbPalletFull1:=TRUE;ENDIFENDPROCPROC rPlace2()rPosition2;MoveJ Offs(pPlace2,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; MoveL pPlace2,MinSpeed,fine,tGrip\WObj:=wobj0;Reset doGrip;WaitTime 0.3;GripLoad LoadEmpty;MoveL Offs(pPlace2,0,0,400),MidSpeed,z50,tGrip\WObj:=wobj0; MoveJ Offs(pPick2,0,0,400),MaxSpeed,z50,tGrip\WObj:=wobj0; nCount2:=nCount2+1;IF nCount2>20 THENbPalletFull2:=TRUE;ENDIFENDPROCPROC rPosition1()TEST nCount1CASE 1:pPlace1:=Offs(pBase1_0,0,0,0);CASE 2:pPlace1:=Offs(pBase1_0,600+10,0,0);CASE 3:pPlace1:=Offs(pBase1_90,0,400+10,0);CASE 4:pPlace1:=Offs(pBase1_90,400+10,400+10,0);CASE 5:pPlace1:=Offs(pBase1_90,800+20,400+10,0);CASE 6:pPlace1:=Offs(pBase1_0,0,600+10,200);CASE 7:pPlace1:=Offs(pBase1_0,600+10,600+10,200);CASE 8:pPlace1:=Offs(pBase1_90,0,0,200);CASE 9:pPlace1:=Offs(pBase1_90,400+10,0,200);CASE 10:pPlace1:=Offs(pBase1_90,800+20,0,200);CASE 11:pPlace1:=Offs(pBase1_0,0,0,400);CASE 12:pPlace1:=Offs(pBase1_0,600+10,0,400);CASE 13:pPlace1:=Offs(pBase1_90,0,400+10,400);CASE 14:pPlace1:=Offs(pBase1_90,400+10,400+10,400);CASE 15:pPlace1:=Offs(pBase1_90,800+20,400+10,400);CASE 16:pPlace1:=Offs(pBase1_0,0,600+10,600);CASE 17:pPlace1:=Offs(pBase1_0,600+10,600+10,600);CASE 18:pPlace1:=Offs(pBase1_90,0,0,600);CASE 19:pPlace1:=Offs(pBase1_90,400+10,0,600);CASE 20:pPlace1:=Offs(pBase1_90,800+20,0,600);DEFAULT:TPErase;TPWrite "the Counter of line 1 is error,please check it!"; Stop;ENDPROCPROC rPosition2()TEST nCount2CASE 1:pPlace2:=Offs(pBase2_0,0,0,0);CASE 2:pPlace2:=Offs(pBase2_0,600+10,0,0);CASE 3:pPlace2:=Offs(pBase2_90,0,400+10,0);CASE 4:pPlace2:=Offs(pBase2_90,400+10,400+10,0); CASE 5:pPlace2:=Offs(pBase2_90,800+20,400+10,0); CASE 6:pPlace2:=Offs(pBase2_0,0,600+10,200);CASE 7:pPlace2:=Offs(pBase2_0,600+10,600+10,200); CASE 8:pPlace2:=Offs(pBase2_90,0,0,200);CASE 9:pPlace2:=Offs(pBase2_90,400+10,0,200);CASE 10:pPlace2:=Offs(pBase2_90,800+20,0,200);CASE 11:pPlace2:=Offs(pBase2_0,0,0,400);CASE 12:pPlace2:=Offs(pBase2_0,600+10,0,400);CASE 13:pPlace2:=Offs(pBase2_90,0,400+10,400);pPlace2:=Offs(pBase2_90,400+10,400+10,400);CASE 15:pPlace2:=Offs(pBase2_90,800+20,400+10,400);CASE 16:pPlace2:=Offs(pBase2_0,0,600+10,600);CASE 17:pPlace2:=Offs(pBase2_0,600+10,600+10,600);CASE 18:pPlace2:=Offs(pBase2_90,0,0,600);CASE 19:pPlace2:=Offs(pBase2_90,400+10,0,600);CASE 20:pPlace2:=Offs(pBase2_90,800+20,0,600);DEFAULT:TPErase;TPWrite "the Counter of line 1 is error,please check it!"; Stop;ENDTESTENDPROCPROC rModify()MoveJ pHome,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pPick1,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase1_0,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase1_90,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pPick2,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase2_0,MinSpeed,fine,tGrip\WObj:=wobj0;MoveJ pBase2_90,MinSpeed,fine,tGrip\WObj:=wobj0;ENDPROCENDMODULE。

项目一：焊接机器人1.打开Robot studio软件，单击创建新建空工作站，同时保存一下，如下图所示；2.选择ABB机器人模型IRB1600，单击添加，选择承重能力和到达距离，选择确定，如下图所示：3.导入设备-tools-Binzel air 22,并拖动安装在机器人法兰盘上：4.选择建模-固体-矩形体，设定长宽高，点击创建：5.选择基本-机器人系统-从布局创建系统-下一步-下一步-完成；6.控制器启动完成后，选择路径-创建一个空路径，7.创建成功后，修改下方参数：moveJ ，V1000，Z1008.激活当前路径，选择机器人起点，单击示教指令9.开启捕捉末端或角点，同时将机器人的移动模式设为手动线性，将机器人工具移到矩形体的一个角点上，单击示教指令，形成第一条路径，依次示教四个角点，形成路径，右击路径，选择查看机器人目标，可将机器人移动到当前位置10.路径制作完成后，选择基本-同步到VC，在弹出的对话框中全部勾选，并点击确定，同步完成后选择仿真-仿真设定-将路径添加到主队列，选择应用--确定；11.选择仿真录像，点击播放，开始仿真录像。

项目二：搬运机器人1.新建空工作站--导入机器人IRB4600--选择最大承重能力，选择建模-固体-圆柱体，添加两个圆柱体，半径为200mm，高度分别为60mm和500mm,把其中一个作为工具添加到法兰盘上，同时导入两个设备Euro pallet如下图所示：2.右击物体或在左侧布局窗口中右击物体名称，在下拉菜单中选择设定颜色来更改颜色：3.根据布局创建机器人系统，细节与项目一相同，系统完全启动后，选择控制器-配置编辑器，在下拉菜单中选择I/O，在弹出窗口中新建Unit，细节如下图所示；4.Unit新建完毕后，右击新建signal，新建do1和do2，细节如下图所示：5.新建完毕后，重启控制器6.重启完毕后，选择仿真-配置-事件管理器-添加事件，细节如下图所示：7.事件添加完成后，开始创建路径啊，依次示教，机器人到达指定位置时，右击插入逻辑指令，如图所示：8.路径创建完成后，同步到VC，仿真设定，然后进行仿真录像项目三：叉车搬运1.打开软件，新建空工作站，导入机器人模型IRB4600，选择最大承重能力，然后选择基本--导入几何体--浏览几何体--选择本地几何体--打开，如下图所示：2.利用平移和旋转指令，将不同几何体按下图位置摆放整齐：3.创建一个300*300*70的方体分别作为tool，将其创建为工具，具体操作如下图所示：4.设定tool的本地原点为它的中心点，如下图所示：5.选中tool，点击创建工具，将tool创建为工具，具体操作如下：6.创建完成后将其安装在机器人法兰盘上，右击机器人选择显示机器人工作范围，可看到机器人最大到达距离，再次选择取消显示：4.创建四个200*200*200的方体分别作为Box1~Box4，设定为不同颜色，将Box2~Box4设为不可见5.布局结束，如下图所示：，6.根据布局创建机器人系统，待系统启动完毕后，选择控制器--配置编辑器-新建Unit --新建signal，包括do1~do 15,如下图所示：7.设置完成后，重启控制器，打开事件管理器，添加所需事件，包括显示对象，附加对象，提取对象，移动对象四类事件，具体如下：显示对象具体设置如下：附加对象具体设置如下提取对象设置如下：移动对象设置如下：8.事件添加完成后，创建路径,分别将Box1,Box2，Box3,Box4移动到垛板上，并排列整齐，路径如下图所示9.路径创建完成后，同步到VC :10.同步完成后进行仿真设定，按下图顺序添加路径，之后进行仿真录像:。

Virtual Robot browsertargets can be modified. virtual robot.IO SimulatorRobotStudio Automatic generation of targets along a curveRobotStudioThe Program EditorWith RobotStudio, the Program editor Program-Maker is included. Some of the main features of ProgramMaker includes:•Ability to check for syntactic and semantic errors, as robot programs are created or edited • Program data is displayed in a familiar“spreadsheet” format that is Microsoft Excel compatible•TCP Adjust, FrameAdjust and Mirror wizard • Automatic declaration of referenced data • The Tree View allows the user to view and navigate robot program structure in a simple, logical manner • Syntax colorization• Multiple routines can be viewed and edited at the same timeSimulation AutoReachWith AutoReach you can optimise the locations of the work piece and the robot. If the positions are reachable or not are clearly indicated in the graphics area.Collision DetectionCollisions between any objects in the station can be detected and visualised during robot simulation.You can select between detecting collisions for the whole station, or for a selected list of objects.Events- and I/O-SimulationBy using the Event table in RobotStudio you can respond to signals set in your robot program (so called IO events). This can be used in simulation of search-sequences or simulation of material handling when parts are gripped/released. For advanced simulation you can also connect the IO events to Visual Basic macros. This enables simulation of a complete station including equipment.Simulation MonitoringYou can monitor the results of the robot motion in your simulation. Simulation data such as robot-joint values and speed can be logged and stored.Your can follow the movement of the robot TCP by using the trace function that draws a line in the graphics area where the TCP is moved.Visual Basic for ApplicationsMicrosoft’s ®Visual Basic for Applications (VBA 6.3) is distributed with RobotStudio. VBA is an object based programming environment designed to provide rich development capabilities.Implemented in RobotStudio, these capabilities shorten the development times of custom solutions for customers and applications. VBA has full Visual Basic language syntax, the new forms package, and support for ActiveX Controls.By using VBA customised macros and applications can easily be developed to suit the special needs for a particular customer or to automate repetitive daily tasks. Most functionality available in the RobotStudio user interface is also available from VBA. In addition user defined menus and dia-logues can be added.ProgramMaker, the Program EditorRobotStudioRobotStudio Plus+ PacThe Plus+ Pac for RobotStudio adds extra usefulfeatures to the base of RobotStudio. The features ofthe RobotStudio Plus+ Pac are the following:Kinematics ModelerThe kinematics modeler is an essential module forthose who need to create their own mechanismssuch as tools, external axes and other movingdevices in a station.New Station WizardCreate a new station fast and easy by using theNew Station Wizard. The user is guided troughthe necessary steps to include a robot, tool,external axes and other parts in station.Pack and GoThe Pack and Go module stores a station with all its libraries into one single folder. Ready to compress, e.g. by using WinZip.Path ConfigurationIn order to get an accurate robot motion along a path, the robot configuration must be stored in each target. The Path Configuration module defines automatically the robot configurations along a path in order to obtain a smooth motion.Quaternion ConverterConverts between quaternion angles (used in the RAPID programming) and Euler angles (used in RobotStudio).Show/Blank BrowserAdds a new browser to the browser window. From this browser you can easily display and hide objects in your station. This is especially useful for users who work with large stations with many objects.Texture SupportAllow you to add textures (i.e. bitmaps) on object surfaces in your station, all to make the visual model even more realistic.ArcWeld PowerPacArcWeld PowerPac is a dedicated programming tool for generating arc weld programs. ArcWeld and RobotStudio utilize the CAD geometry as the basis for all robotics programming.The programmer defines weld locations on the CAD geometry and creates robot positions in relation to the geometry. ArcWeld automatically generates the weld path based on the input, and creates approach and depart paths that will move the robot in and out of the weld location. The semi-automatic optimization tool defines arm configurations along the weld path, and avoids joint-limit and singularity errors. ArcWeld automatically checks for reachability and notifies the user if any reachability problems occur. The result is an arc weld program ready for download.Figure 9 Show and Blank BrowserRobotStudioBendWizard PowerPacBendWizard improves the interface for program-ming the robot and press brake operation.The cell is shown in the 3D format with all peripheral components defined and the operator can program the different phases of the operation which include:•Loading the sheet from the feeding system •Double-thickness control•Centering the Part•Bending sequence•Overturning and palletizingThe system automatically verifies every phase of the program cycle including reachability of robot targets, the robots working envelope, potential interference and collision problems:When a problem is detected the operator has several tools available to make the necessary modifications. Once it’s done the program is converted to the robots operating language and downloaded. A first part program check is recommended. All of BendWizard’s processed data can be converted into reports for documen-tation and used for setting up future production runs or successive batches.Software and hardware requirements •Microsoft Windows NT 4.0 with Service Pack 6 or higher and Internet Explorer 4.0 SP2 or higher •Microsoft Windows 2000 Professional with Service Pack 1 or higher•Microsoft Windows XP ProfessionalRecommended hardwareCPU:Pentium III or higherMemory:256 MB RAM or moreFree disc-space:50 MB on the system disk900+ MB on the installation diskGraphics card:A high performance graphics card with OpenGL supportExamples for stationary PCs: 3Dlabs Wildcat III 6110, NVIDIA Quadro4 900 XGL, ATI FireGL 8800Examples for laptops: NVIDIA GeForce4 Go (available e.g. in Toshiba Satellite 5005-S507), ATI Mobility Radeon 7500 (available e.g. in Dell Inspiron 8100), ATI Mobility FireGL 7800 (available e.g. in IBM A31p)Screen resolution:1280 x 1024 pixelsThree button mouse。
