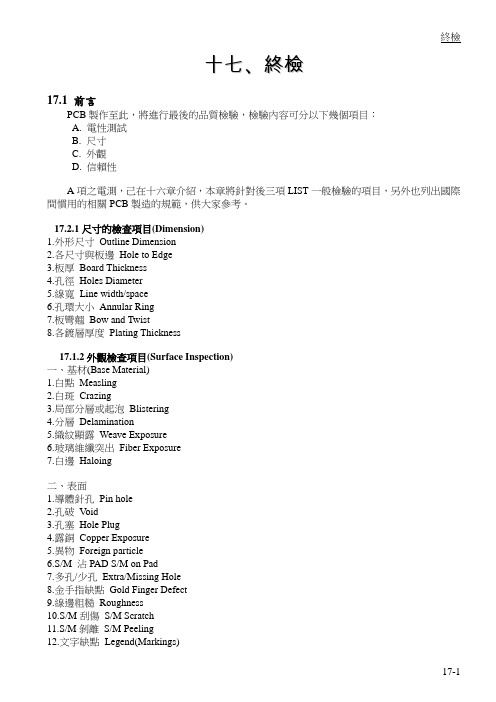

終檢十七、終檢17.1 前言PCB製作至此，將進行最後的品質檢驗，檢驗內容可分以下幾個項目：A. 電性測試B. 尺寸C. 外觀D. 信賴性A項之電測，己在十六章介紹，本章將針對後三項LIST一般檢驗的項目，另外也列出國際間慣用的相關PCB製造的規範，供大家參考。
17.2.1尺寸的檢查項目(Dimension)1.外形尺寸Outline Dimension2.各尺寸與板邊Hole to Edge3.板厚Board Thickness4.孔徑Holes Diameter5.線寬Line width/space6.孔環大小Annular Ring7.板彎翹Bow and Twist8.各鍍層厚度Plating Thickness17.1.2外觀檢查項目(Surface Inspection)一、基材(Base Material)1.白點Measling2.白斑Crazing3.局部分層或起泡Blistering4.分層Delamination5.織紋顯露Weave Exposure6.玻璃維纖突出Fiber Exposure7.白邊Haloing二、表面1.導體針孔Pin hole2.孔破V oid3.孔塞Hole Plug4.露銅Copper Exposure5.異物Foreign particle6.S/M 沾PAD S/M on Pad7.多孔/少孔Extra/Missing Hole8.金手指缺點Gold Finger Defect9.線邊粗糙Roughness10.S/M刮傷S/M Scratch11.S/M剝離S/M Peeling12.文字缺點Legend(Markings)17-1終檢17.2.3信賴性(Reliability)1.焊錫性Solderability2.線路抗撕強度Peel strength3.切片Micro Section4.S/M附著力S/M Adhesion5.Gold附著力Gold Adhesion6.熱衝擊Thermal Shock7.離子汙染度Ionic Contamination8.濕氣與絕緣Moisture and Insulation Resistance9.阻抗Impedance上述項目僅列舉重點，仍須視客戶的規格要求以及廠內之管制項目來逐項進行全檢或抽檢。
