徐工集团QAY 型全地面起重机

QAY75全地面起重机基本性能参数
额定起重量：75 吨
最大起重力矩：2915 ___
主臂全伸：44.5 米
主臂角度：70 度时：34.3 米
主臂全伸：40 米
主臂角度：30 度时：3.5 米
以上是QAY75全地面起重机的基本性能参数，这些参数可以帮助您了解起重机的能力和适用范围。

本文将详细介绍QAY75全地面起重机的性能参数。

以下是一些重要参数：
最大起重能力：75吨
最大起重高度：58米
最大起重半径：44米
该起重机具有可靠的性能和出色的承载能力，适用于各种工程项目的起重作业。

最小工作半径：QAY75全地面起重机的最小工作半径是XXX米。

这意味着该起重机能够在该半径范围内进行平稳的起重操作。

最大爬坡能力：QAY75全地面起重机具备优秀的爬坡能力。

它可以应对XXX度的坡度，并且在爬坡过程中保持稳定和安全。

最大行驶速度：QAY75全地面起重机的最大行驶速度是XXX 公里/小时。

这使得起重机能够快速高效地进行工地之间的移动，提高工作效率。

其他性能参数：除了上述提到的参数之外，还有一些其他重要的性能参数需要注意。

例如，XXX参数和XXX参数也对起重机的运行和性能起到关键作用。

其他性能参数：除了上述提到的参数之外，还有一些其他重要的性能参数需要注意。

例如，XXX参数和XXX参数也对起重机的运行和性能起到关键作用。

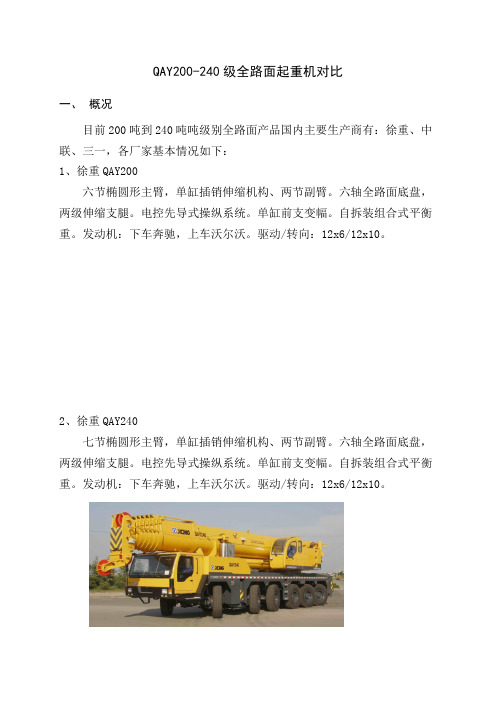

QAY200-240级全路面起重机对比一、概况目前200吨到240吨吨级别全路面产品国内主要生产商有：徐重、中联、三一，各厂家基本情况如下：1、徐重QAY200六节椭圆形主臂，单缸插销伸缩机构、两节副臂。

六轴全路面底盘，两级伸缩支腿。

电控先导式操纵系统。

单缸前支变幅。

自拆装组合式平衡重。

发动机：下车奔驰，上车沃尔沃。

驱动/转向：12x6/12x10。

2、徐重QAY240七节椭圆形主臂，单缸插销伸缩机构、两节副臂。

六轴全路面底盘，两级伸缩支腿。

电控先导式操纵系统。

单缸前支变幅。

自拆装组合式平衡重。

发动机：下车奔驰，上车沃尔沃。

驱动/转向：12x6/12x10。

3、中联浦沅QAY220六节椭圆形主臂，单缸插销伸缩机构、两节副臂。

六轴全路面底盘，两级伸缩支腿。

电控先导式操纵系统。

单缸前支变幅。

自拆装组合式平衡重。

发动机：下车奔驰，上车奔驰。

驱动/转向：12x8/12x10。

3、三一重工QAY220六节椭圆形主臂，单缸插销伸缩机构、两节副臂。

六轴全路面底盘，两级伸缩支腿。

电控先导式操纵系统。

单缸前支变幅。

自拆装组合式平衡重。

发动机：下车奔驰，上车奔驰。

驱动/转向：10x6/10x8。

二、产品主要配置部件对比三、产品基本参数对比1、起重作业主要参数2、行驶状态主要技术参数对比四、起重性能对比（A表示徐重QAY200主臂臂长；B表示中联QAY220主臂臂长；C表示三一QAY220主臂臂长；D表示徐重QAY240主臂臂长）一、徐重QAY200挂65t配重；中联QAY220挂75t配重；三一QAY220挂72t配重；徐重QAY240二、徐重QAY200挂42t配重；中联QAY220挂43t配重；三一QAY220挂44t配重；徐重QAY240挂42t配重；三、徐重QAY200挂22t配重；中联QAY220挂22t配重；三一QAY220挂24t配重；徐重QAY240挂22t配重；四、徐重QAY200挂0t配重；中联QAY220挂0t配重；三一QAY220挂0t配重；徐重QAY240挂0t配重；五、综合对比分析徐重的QAY200全路面起重机与蒲沅的QAY220全路面起重机相比，整体技术水平相当。

QAY300全地面起重机技术规格伸缩臂汽车式起重机型号QAY300最大额定起重量：300t最大起升力矩：9526kN.m整机长度：18510mm整机宽度：3000m整机高度：4000m整机总重：79650kg（行驶状态）一、起重机底盘部分徐工自行设计并专业化制造的带全宽驾驶室的7桥底盘，最高行驶速度为75km/h；驱动/转向：14×8×10；其中2、3、6、7桥驱动，1、2、3、6、7桥转向。

行驶车速：75km/h；爬坡度：40%。

1.1、车架徐工自行设计并专业化制造，优化重量比，防扭转箱型结构，进口高强度钢材制造。

支腿收缩在特制箱体中，箱体位于2桥和3桥之间以及车架后端。

并且具有前后牵引挂钩。

1.2、底盘发动机制造商：德国奔驰（型号OM502LA.Ⅲ/5）；型式：电控、V形八缸、水冷却、增压中冷、电喷、柴油发动机；输出功率：420kw/1800rpm；最大扭矩：2700Nm/1080rpm；环保性：排放符合欧洲III标准；燃料箱容量：约400L。

1.3、动力传动系统1.3.1 变速箱Allison 4800SP自动操纵变速箱。

具有10个前进档和2个倒档，速比范围大，即可满足低速场地和爬坡行驶又可满足高速行驶。

1.3.2 分动箱Kessler分动箱采取大输入扭矩。

额定扭矩高达30000N.m。

带差速锁气缸。

1.3.3 车桥采用Kessler(VG2600)进口车桥，1、5轴为转向从动轴，2、3、6、7轴为转向驱动轴，4轴非驱动转向轴。

1.3.4 传动轴优化的传动轴布置，传动轴传动平稳、可靠。

最优化力传输，采用端面齿联结传动轴，传递扭矩较大，最大可达27000Nm。

1.4、桥悬架油气悬挂，每根桥承担载荷相当，不高于12t。

液压系统调平，底盘可以升高或降低-100～+150mm。

通过能力强。

1.5、转向采用德国ZF公司的ZF7421 955转向油泵，液压助力系统，保障转向轻便灵活。

徐工QAY200型全地面起重机一、制造厂徐工集团二、主要技术参数项目数值备注工作性能参数最大额定总起重量 kg 200000 基本臂最大起重力矩kN.m6774 最长主臂最大起重力矩kN.m2752 主臂最大起升高度 m 61.5 主副臂最大起升高度 m 82.1工作速度主卷扬单绳最大速度 m/min120 第四层副卷扬单绳最大速度m/min110 第四层起重臂伸出时间s ≤550 起重臂起臂时间s ≤90 回转速度 r/min0-1.9行驶参数最高行驶速度km/h71 最大爬坡度% 48 最小转弯直径m 24 最小离地间隙 mm 278 制动距离（车速为30km/h）m ൑10 接近角° 23 离去角° 18 百公里油耗L 80质量参数行驶状态自重（总质量） kg 71000 轴荷一/二轴 kg 11750/11750三/四轴 kg 11850/11850五/六轴 kg 11900/11900尺寸参数外形尺寸(长×宽×高) mm 16130×3000×4000支腿纵向距离 m 9.625支腿横向距离 m 8.7基本臂长 m 13.8最长主臂m 61最长主臂+副臂m 81副臂安装角° 0、15、30动力参数下车发动机型号OM502LA. Ш/3发动机额定功率kw390 排放标准国Ш轮胎数（不包括备胎） 12三、外形尺寸徐工QAY200型全地面起重机四、主臂起重性能五、副臂起重性能65t平衡重—全伸支腿,副臂长11.55m65t平衡重—全伸支腿,臂长20m加长副臂起重量表(t) 配重65t跨距8.7m臂长28m主臂长度(m)44.248.552.957.261主臂仰角(°)0°15°30°0°15°30°0°15°30°0°15°30°0°15°30°82 4.8 3.3 2.4 4.8 3.3 2.4 4.8 3.3 2.4 4.8 3.3 2.4 4.8 3.3 2.480 4.5 3.1 2.2 4.5 3.1 2.2 4.5 3.1 2.2 4.5 3.1 2.2 4.5 3.1 2.278 4.3 2.9 2.1 4.3 2.9 2.1 4.3 2.9 2.1 4.3 2.9 2.1 4.3 2.9 2.176 4.1 2.72 4.1 2.72 4.1 2.72 4.1 2.72 4.1 2.7274 3.9 2.5 1.9 3.9 2.5 1.9 3.9 2.5 1.9 3.9 2.5 1.9 3.9 2.5 1.972 3.7 2.4 1.8 3.7 2.4 1.8 3.7 2.4 1.8 3.7 2.4 1.8 3.7 2.4 1.870 3.5 2.3 1.7 3.5 2.3 1.7 3.5 2.3 1.7 3.5 2.3 1.7 3.5 2.3 1.768 3.3 2.2 1.7 3.3 2.2 1.7 3.3 2.2 1.7 3.3 2.2 1.7 3.3 2.2 1.766 3.1 2.1 1.6 3.1 2.1 1.6 3.1 2.1 1.6 3.1 2.1 1.6 3.1 2.1 1.664 2.92 1.6 2.92 1.6 2.92 1.6 2.92 1.6 2.92 1.662 2.7 1.9 1.5 2.7 1.9 1.5 2.7 1.9 1.5 2.7 1.9 1.5 2.7 1.9 1.560 2.5 1.8 1.5 2.5 1.8 1.5 2.5 1.8 1.5 2.5 1.8 1.5 2.5 1.8 1.558 2.4 1.7 1.4 2.4 1.7 1.4 2.4 1.7 1.4 2.4 1.7 1.4 2.4 1.7 1.456 2.3 1.6 1.4 2.3 1.6 1.4 2.3 1.6 1.4 2.3 1.6 1.4 2.3 1.6 1.454 2.2 1.6 1.3 2.2 1.6 1.3 2.2 1.6 1.3 2.2 1.6 1.3 2.2 1.6 1.352 2.1 1.5 1.3 2.1 1.5 1.3 2.1 1.5 1.3 2.1 1.5 1.3 2.1 1.5 1.3502 1.5 1.32 1.5 1.32 1.5 1.32 1.5 1.32 1.5 1.348 1.9 1.4 1.3 1.9 1.4 1.3 1.9 1.4 1.3 1.9 1.4 1.3 1.9 1.4 1.346 1.9 1.4 1.2 1.9 1.4 1.2 1.9 1.4 1.2 1.9 1.4 1.2 1.9 1.4 1.244 1.8 1.4 1.2 1.8 1.4 1.2 1.8 1.4 1.2 1.8 1.4 1.2 1.8 1.4 1.242 1.7 1.3 1.2 1.7 1.3 1.2 1.7 1.3 1.2 1.7 1.3 1.2 1.7 1.3 1.240 1.6 1.3 1.2 1.6 1.3 1.2 1.6 1.3 1.2 1.6 1.3 1.2 1.6 1.3 1.238 1.6 1.3 1.2 1.6 1.3 1.2 1.6 1.3 1.2 1.6 1.3 1.2 1.6 1.3 1.236 1.5 1.3 1.2 1.5 1.3 1.2 1.5 1.3 1.2 1.5 1.3 1.2 1.5 1.3 1.234 1.5 1.3 1.2 1.5 1.3 1.2 1.5 1.3 1.2 1.5 1.3 1.2 1.5 1.3 1.232 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.330 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.328 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.326 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.224 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.222 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.220 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.218 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.216 1.3 1.3 1.3 1.3 1.3伸缩 方式 % 2 92/46/46 92/46/4692/46921003 92/92/46 92/92/4692/92921004 46/92/46 92/92/9292/92921005 46/46/92 46/92/9292/92921006 46/46/92 46/46/9246/9292100。

QAY130全地面起重机产品简介徐工集团徐州重型机械厂2004年12月QAY130全地面起重机产品简介概述QAY130全地面起重机是徐州重型机械厂在充分吸收国外先进技术的基础上，结合国际当代全地面起重机现状及发展趋势，运用先进的设计理念与设计手段全新开发的新一代高性能的全地面起重机。

该产品造型美观，整车布局精巧，结构紧凑，性能卓越，市场竞争力强，在设计制造过程中攻克了计算机集成控制技术、单缸插销式全自动伸缩臂技术、椭圆型吊臂技术以及油气悬挂、全轮转向多桥驱动技术等行业内最前沿的重大技术课题，整机性能达到国际先进水平。

该产品适用于工厂、矿山、油田、港口码头、建筑工地等场所的起重作业和安装工程等。

除满足国内外普通用户的使用要求外，同时能适应西部高原、油田、半沙漠等地区的使用，是真正适合中国国情的大吨位全地面起重机。

上车采用独立的动力系统，液压系统采用电比例侍服控制的泵控变量系统，起升回路采用开式回路，回转采用闭式回路。

伸缩臂为5节“U”形起重臂,单缸插销式全自动伸缩机构，单缸前支变幅；副臂为侧置折叠式，公路行驶时可附在主臂侧面，起重机最大起升高度可达70m。

内藏式双独立卷扬系统；回转采用行星减速机，回转机构与回转支承采用外啮合方式。

采用五桥越野底盘，全头驾驶室，全覆盖式走台板，，驱动型式为10x8,爬坡度达45%，最高车速76km/h,全轮转向,机动灵活，最小转弯直径仅18m；油气悬架，使车身高度在±150mm范围内调节，通过性能大大改善；无级变速，自动换档，越野性能好，同时显著减轻驾驶员的劳动强度。

本产品集中了十余项国家专利，是具有完全自主知识产权的高新技术产品，获得专利情况如下：1）内部互锁自动伸缩式“U”形起重臂，专利号：ZL02286205.62）单伸缩油缸自动控制多节臂伸缩装置，专利号：ZL02138606.43）起重机副臂的自动插销连接装置，专利号：ZL02258695.84）可移动式汽车起重机操纵室，专利号：ZL01218016.55）汽车起重机外观设计，专利号：ZL01 3 17793.16）活塞杆自动旋转的液压油缸，专利号：03219673.37）汽车起重机油气悬挂装置，专利号：03220121.48）恒功率控制变量泵液压控制装置，专利号：ZL 03 2 19321.19）起重机集成控制阀，专利号：ZL 01 2 44458.810）自由滑转液压控制装置，专利号：ZL 03 2 19267.311）一种装有插装平衡阀芯的液压油缸，专利号：ZL 01 2 37696.5主要技术特点：1. 在国内首次采用计算机集成控制的电比例操作系统，在系统中运用了先进的CAN-BUS数据总线技术，所有起重机的重要电子元件，如长度传感器、角度传感器、位置传感器及控制手柄等元件的电子信号通过CAN-BUS总线传输给计算机加以集中处理，通过显示屏提供起重作业的全部信息参数，显示起重机的工作状态和工作过程，实现起重机的自动控制，让起重机的所有操作变得更加简单方便，大大提高起重机的作业安全性、可靠性和作业效率，大大降低了操作人员的劳动强度，充分体现了以人为本的设计理念。

QAY130全地面起重机产品简介徐工集团徐州重型机械厂2004年12月QAY130全地面起重机产品简介概述QAY130全地面起重机是徐州重型机械厂在充分吸收国外先进技术的基础上，结合国际当代全地面起重机现状及发展趋势，运用先进的设计理念与设计手段全新开发的新一代高性能的全地面起重机。

该产品造型美观，整车布局精巧，结构紧凑，性能卓越，市场竞争力强，在设计制造过程中攻克了计算机集成控制技术、单缸插销式全自动伸缩臂技术、椭圆型吊臂技术以及油气悬挂、全轮转向多桥驱动技术等行业内最前沿的重大技术课题，整机性能达到国际先进水平。

该产品适用于工厂、矿山、油田、港口码头、建筑工地等场所的起重作业和安装工程等。

除满足国内外普通用户的使用要求外，同时能适应西部高原、油田、半沙漠等地区的使用，是真正适合中国国情的大吨位全地面起重机。

上车采用独立的动力系统，液压系统采用电比例侍服控制的泵控变量系统，起升回路采用开式回路，回转采用闭式回路。

伸缩臂为5节“U”形起重臂,单缸插销式全自动伸缩机构，单缸前支变幅；副臂为侧置折叠式，公路行驶时可附在主臂侧面，起重机最大起升高度可达70m。

内藏式双独立卷扬系统；回转采用行星减速机，回转机构与回转支承采用外啮合方式。

采用五桥越野底盘，全头驾驶室，全覆盖式走台板，，驱动型式为10x8,爬坡度达45%，最高车速76km/h,全轮转向,机动灵活，最小转弯直径仅18m；油气悬架，使车身高度在±150mm范围内调节，通过性能大大改善；无级变速，自动换档，越野性能好，同时显著减轻驾驶员的劳动强度。

本产品集中了十余项国家专利，是具有完全自主知识产权的高新技术产品，获得专利情况如下：1）内部互锁自动伸缩式“U”形起重臂，专利号：ZL02286205.62）单伸缩油缸自动控制多节臂伸缩装置，专利号：ZL02138606.43）起重机副臂的自动插销连接装置，专利号：ZL02258695.84）可移动式汽车起重机操纵室，专利号：ZL01218016.55）汽车起重机外观设计，专利号：ZL01 3 17793.16）活塞杆自动旋转的液压油缸，专利号：03219673.37）汽车起重机油气悬挂装置，专利号：03220121.48）恒功率控制变量泵液压控制装置，专利号：ZL 03 2 19321.19）起重机集成控制阀，专利号：ZL 01 2 44458.810）自由滑转液压控制装置，专利号：ZL 03 2 19267.311）一种装有插装平衡阀芯的液压油缸，专利号：ZL 01 2 37696.5主要技术特点：1. 在国内首次采用计算机集成控制的电比例操作系统，在系统中运用了先进的CAN-BUS数据总线技术，所有起重机的重要电子元件，如长度传感器、角度传感器、位置传感器及控制手柄等元件的电子信号通过CAN-BUS总线传输给计算机加以集中处理，通过显示屏提供起重作业的全部信息参数，显示起重机的工作状态和工作过程，实现起重机的自动控制，让起重机的所有操作变得更加简单方便，大大提高起重机的作业安全性、可靠性和作业效率，大大降低了操作人员的劳动强度，充分体现了以人为本的设计理念。

徐工QAY300型全地面起重机一、制造厂徐工集团二、主要技术参数项目数值备注工作性能参数最大额定总起重量kg 300000 基本臂最大起重力矩kN.m9526最长主臂最大起重力矩kN.m4675主臂最大起升高度m 60.8主副臂最大起升高度m 72.9工作速度主卷扬单绳最大速度m/min 150 副卷扬单绳最大速度m/min 150 起重臂伸出时间s ≤480起重臂起臂时间s ≤90回转速度r/min 0-1.7行驶参数最高行驶速度km/h 75最大爬坡度% 40最小转弯直径m 24 最小离地间隙mm 330 制动距离（车速为30km/h）m 10接近角° 19离去角° 19百公里油耗L 96质量参数行驶状态自重（总质量）kg 79679 轴荷一/二/三轴 kg 11625四/五轴kg 11201六/七轴kg 11201尺寸参数外形尺寸(长×宽×高) mm 18210×3000×4000支腿纵向距离m 9.2 支腿横向距离m 8.7（全伸）、6.5（半伸）基本臂长m 15.4 最长主臂m 61 最长主臂+副臂m 76 副臂安装角° 0、15、30动力参数下车发动机型号OM502LA. Ш/5发动机额定功率kw 420 排放标准国Ш轮胎数（不包括备胎）14二、外形尺寸徐工QAY300型全地面起重机三、主臂起重性能1、主臂额定起重量表支腿8.7m，配重98.2t臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 300 3003.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 149 135 133 100 125 87 72 104 86708786727 133 120 119 93 113 80 65 95 79648079666967578 120 105 105 87 103 73 60 88 72597473616462529 108 95 95 81 94 67 55 81 675468685759.5584952 48.7 42.410 96 87 87 76 87 63 51 75 625064645355.5544548.5 45.8 39.7 4339.812 73 70 75 67 75 55 45 66 544456564649484043 40.8 35.2 3835.63414 66 60 65 49 40 58.7 483949504144433638.1 36.7 31.5 3432.130.327.2 16 55.5 53 55 44 36 52 433544453739.5393234.3 33.3 28.4 30.829.227.524.8 18 48.5 40 32 47 393240413336352931.2 30.4 25.8 2826.725.122.7 20 38 36 29.1 42.3 362936383032.5322628.5 27.9 23.6 25.724.623.120.9 22 33.5 31.8 25.8 36 332633352830302426.1 25.8 21.7 23.622.821.319.3 24 32.1 31243131.52628272224.1 23.9 20 21.821.119.717.8 26 28.3 282227.827.82425.5252122.3 22.3 18.6 20.219.718.316.6 28 24.624.62224241920.7 20.8 17.3 18.818.41715.4 30 22222122221819.3 19.5 16.1 17.517.315.914.4 32 1919.71920.420.41718 18.3 15.1 16.316.214.913.4 34 18.518.51616.9 17.3 14.2 15.315.31412.6 36 16.516.51515.8 16.3 13.3 14.414.413.111.8 38 14.9 15.4 12.6 13.513.712.311.1 40 14 14.1 11.9 12.71311.610.4 42 11 11 11 1212.3119.8 44 11.411.810.49.3 46 10.8119.88.8 48 88.19.38.3 50 8.87.8 52 8.37.4 54 7 56 6.6 58 4.4Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 300 3003.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 149 135 133 100 125 87 72 104 86708786727 133 120 119 93 113 80 65 95 79648079666967578 120 105 105 87 103 73 60 88 72597473616462529 106.8 95 95 81 94 67 55 81 675468685759.5584952 48.7 42.410 95.6 87 87 76 87 63 51 75 625064645355.5544548.5 45.8 39.7 4339.812 73 70 75 67 75 55 45 66 544456564649484043 40.8 35.2 3835.63414 63 60 62.1 49 40 58.7 483949504144433638.1 36.7 31.5 3432.130.327.2 16 51 51 50.1 44 36 50.4 433544453739.5393234.3 33.3 28.4 30.829.227.524.8 18 41.5 40 32 41.9 393240413336352931.2 30.4 25.8 2826.725.122.7 20 35.1 35.1 29.1 35.6 35.62935353032.5322628.5 27.9 23.6 25.724.623.120.9 22 30 30 25.8 30.6 30.62630302830302426.1 25.8 21.7 23.622.821.319.3 24 26.6 26.62426.126.12626.726.72224.1 23.9 20 21.821.119.717.8 26 23.4 23.42222.822.822.823.523.52122.3 22.3 18.6 20.219.718.316.6 28 20.120.120.120.820.81920.7 20.8 17.3 18.818.41715.4 30 17.817.817.818.518.51818.6 18.6 16.1 17.517.315.914.4 32 15.815.815.816.616.616.6 16.7 16.7 15.1 16.316.214.913.4 34 14.914.914.9 15 15 14.2 15.215.21412.6 36 13.413.413.4 13.5 13.5 13.3 13.713.713.111.8 38 12.2 12.2 12.2 12.412.412.311.1 40 11.1 11.1 11.1 11.311.311.610.4 42 10 10 10 10.310.310.89.8 44 9.49.49.99.3 46 8.58.59.18.8 48 7.87.88.38.3 50 7.67.6 52 77 54 6.4 56 5.8 58 4.4Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 285.9 2863.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 148.7 135 133 100 125 87 72 104 86708786727 127.4 120 119 93 113 80 65 95 79648079666967578 111.1 105 105 87 103 73 60 88 72597473616462529 97.2 95 95 81 94 67 55 81 675468685759.5584952 48.7 42.410 85.7 85.7 84.7 76 83.6 63 51 75 625064645355.5544548.5 45.8 39.7 4339.812 62 62 61.4 61.4 60.5 55 45 60.7 544456564649484043 40.8 35.2 3835.63414 47.3 47.3 46.4 46.4 40 46.8 46.83946.146.14144433638.1 36.7 31.5 3432.130.327.2 16 37.9 37.9 37.1 37.1 36 37.6 37.63536.936.936.937.537.53234.3 33.3 28.4 30.829.227.524.8 18 30.3 30.3 30.3 30.9 30.930.930.330.330.330.930.92931 30.4 25.8 2826.725.122.7 20 25.3 25.3 25.3 25.9 25.925.925.325.325.326262626.1 26.1 23.6 25.724.623.120.9 22 21.3 21.3 21.3 22 222221.421.421.422.222.222.2 22.3 22.3 21.7 22.322.321.319.3 24 18.9 18.918.918.318.318.319.119.119.1 19.2 19.2 19.2 19.319.319.717.8 26 16.3 16.316.315.815.815.816.616.616.6 16.7 16.7 16.7 16.816.817.416.6 28 13.713.713.714.514.514.5 14.6 14.6 14.6 14.814.815.315.2 30 11.911.911.912.712.712.7 12.8 12.8 12.8 131313.613.4 32 10.310.310.311.211.211.2 11.3 11.3 11.3 11.511.512.111.9 34 9.89.89.810 10 10 10.210.210.810.7 36 8.78.78.78.8 8.8 8.8 9.19.19.69.5 38 7.8 7.8 7.8 888.68.5 40 6.9 6.9 6.9 7.17.17.77.6 42 6 6 6 6.3 6.3 6.9 6.9 44 5.6 5.6 6.2 6.1 46 55 5.5 5.5 48 4.4 4.4 4.9 4.9 50 4.4 4.4 52 3.9 3.9 54 3.4 56 3 58 2.6Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 273 2733.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 141.8 135 133 100 125 87 72 104 86708786727 121.4 120 119 93 113 80 65 95 79648079666967578 103.8 104 103 87 102 73 60 88 72597473616462529 87 87 86.1 81 84.9 67 55 81 675468685759.5584952 48.7 42.410 71.1 71.1 70.4 70.4 69.3 63 51 69.5 625064645355.5544548.5 45.8 39.7 4339.812 51 51 50.6 50.6 49.7 49.7 45 50.1 50.14449.349.34649484043 40.8 35.2 3835.63414 38.7 38.7 37.8 37.8 37.8 38.3 38.338.337.637.637.638.238.23638.1 36.7 31.5 3432.130.327.2 16 30.7 30.7 29.8 29.8 29.8 30.5 30.530.529.829.829.830.530.530.5 30.6 30.6 28.4 30.529.227.524.8 18 24.1 24.1 24.1 24.8 24.824.824.224.224.224.924.924.9 25 25 25 25.125.125.122.7 20 19.8 19.8 19.8 20.6 20.620.620202020.720.720.7 20.9 20.9 20.9 20.920.921.620.9 22 16.5 16.5 16.5 17.3 17.317.316.716.716.717.517.517.5 17.6 17.6 17.6 17.717.718.418.1 24 14.6 14.614.614.114.114.114.914.914.9 15 15 15 15.215.215.815.6 26 12.5 12.512.511.911.911.912.812.812.8 12.9 12.9 12.9 13.113.113.713.5 28 10.110.110.111111111.1 11.1 11.1 11.311.311.911.8 30 8.68.68.69.59.59.59.6 9.6 9.6 9.89.810.410.3 32 7.37.37.38.28.28.28.3 8.3 8.3 8.58.59.19 34 7777.2 7.2 7.2 7.47.487.9 36 6.1 6.1 6.1 6.2 6.2 6.2 6.5 6.577 38 5.3 5.3 5.3 5.6 5.6 6.2 6.1 40 4.5 4.5 4.5 4.8 4.8 5.4 5.4 42 3.8 3.8 3.8 4.2 4.2 4.7 4.7 44 3.6 3.6 4.1 4.1 46 33 3.6 3.6 48 2.5 2.5 3.1 3.1 50 2.6 2.6 52 2.2 2.2 54 1.8Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461（m）3 260 2603.5 210 186 175 1224 190 172 170 119 154 106 894.5 178.5 162 159 113 146 101 845 161.3 152 150 108 139 96 80 113 95786 134.6 135 133 100 125 87 72 104 86708786727 112.2 112 111 93 110 80 65 95 79648079666967578 88.6 88.6 87.7 87 86.4 73 60 86.6 72597473616462529 69.2 69.2 68.6 68.6 67.4 67 55 67.8 675466.966.95759.5584952 48.7 42.410 56.2 56.2 55.8 55.8 54.7 54.7 51 55.2 55.25054.454.45354.9544548.5 45.8 39.7 4339.812 39.8 39.8 39.6 39.6 38.7 38.7 38.7 39.3 39.339.338.538.538.539.239.239.2 39.3 39.3 35.2 3835.63414 29.9 29.9 29 29 29 29.7 29.729.729292929.729.729.7 29.8 29.8 29.8 29.829.830.327.216 23.3 23.3 22.5 22.5 22.5 23.2 23.223.222.622.622.623.423.423.4 23.5 23.5 23.5 23.623.624.223.918 17.8 17.8 17.8 18.6 18.618.618181818.818.818.8 18.9 18.9 18.9 19.119.119.719.520 14.3 14.3 14.3 15.2 15.215.214.614.614.615.415.415.4 15.5 15.5 15.5 15.715.716.316.122 11.6 11.6 11.6 12.5 12.512.511.911.911.912.712.712.7 12.9 12.9 12.9 13.113.113.713.524 10.3 10.310.39.79.79.710.610.610.6 10.7 10.7 10.7 111111.611.426 8.5 8.58.57.97.97.98.98.98.99 9 9 9.29.29.89.728 6.5 6.5 6.57.47.47.47.5 7.5 7.5 7.87.88.48.330 5.2 5.2 5.2 6.2 6.2 6.2 6.3 6.3 6.3 6.6 6.67.27.132 4.1 4.1 4.1 5.1 5.1 5.1 5.2 5.2 5.2 5.5 5.5 6.1 6.134 4.2 4.2 4.2 4.3 4.3 4.3 4.6 4.6 5.2 5.236 3.4 3.4 3.4 3.5 3.5 3.5 3.8 3.8 4.4 4.438 2.8 2.8 2.8 3.1 3.1 3.7 3.740 2.1 2.1 2.1 2.5 2.5 3.1 3.142 1.6 1.6 1.6 22 2.5 2.544 2246 1.6 1.6Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 244 2443.5 210 186 175 1224 187.2 172 170 119 154 106 894.5 167 162 159 113 146 101 845 150.7 151 149 108 139 96 80 113 95786 121.3 121 120 100 119 87 72 104 86708786727 84.9 84.9 84.1 84.1 82.6 80 65 83.1 79648079666967578 61.7 61.7 61.3 61.3 59.9 59.9 59.9 60.6 60.65959.659.659.660.360.3529 47.6 47.6 47.4 47.4 46.2 46.2 46.2 46.9 46.946.946464646.846.846.8 47 47 42.410 38.1 38.1 38 38 36.9 36.9 36.9 37.7 37.737.736.936.936.937.737.737.7 37.9 37.9 37.9 37.837.812 26.1 26.1 26.3 26.3 25.3 25.3 25.3 26.1 26.126.125.425.425.426.326.326.3 26.4 26.4 26.4 26.526.527.314 19.1 19.1 18.2 18.2 18.2 19.1 19.119.118.418.418.419.419.419.4 19.5 19.5 19.5 19.619.620.420.1 16 11.2 11.2 10.3 10.3 10.3 11.4 11.411.410.710.710.711.811.811.8 11.9 11.9 11.9 12.312.315.715.5 18 7 7 7 8.1 8.18.17.47.47.48.68.68.68.7 8.7 8.7 9.19.19.89.7 20 4.7 4.7 4.7 5.8 5.8 5.8 5.1 5.1 5.1 6.2 6.2 6.2 6.3 6.3 6.3 6.7 6.77.47.4 22 2.8 2.8 2.8 4 44 3.3 3.3 3.3 4.4 4.4 4.4 4.6 4.6 4.6 4.9 4.9 5.6 5.6 24 2.5 2.5 2.5 1.9 1.9 1.9333 3.1 3.1 3.1 3.6 3.6 4.2 4.2 26 1.9 1.9 1.9 2 2 2 2.4 2.4 3.1 3.1 28 1.5 1.5 2.1 2.2Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663副臂额定起重量表1、支腿8.7m，配重98.2t，臂长15m幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3014 25.1 26.316 23.2 16.2 24.416.621.518 21.6 15.5 13 22.315.919.716.317.420 20.1 14.8 12.620.415.212.818.115.613 16 14.822 18.9 14.2 12.318.814.612.516.715 12.7 14.7 13.712.8 24 17.8 13.6 11.917.314.112.2315.414.312.4 13.6 12.712 26 16.8 13.1 11.616 13.611.914.213.312.1 12.5 11.811.2 28 15.9 12.6 11.314.813.111.613.212.411.7 11.5 10.910.4 30 15.1 12.2 11.113.712.711.312.211.510.9 10.7 10.29.7 32 14.4 11.8 10.812.812 11.111.310.710.2 9.9 9.49 34 13.7 11.4 10.611.911.210.610.510 9.5 9.1 8.88.4 36 12.8 11.1 10.411 10.59.99.89.38.9 8.5 8.27.8 38 11.9 10.8 10.210.39.89.39.18.78.3 7.8 7.67.3 40 11.1 10.5 9.99.69.18.78.58.17.8 7.3 7 6.8 42 10.4 9.9 9.38.98.68.17.97.67.3 6.7 6.5 6.3 44 9.79.3 8.88.38 7.67.37.1 6.8 6.2 6.1 5.9 46 9.18.7 8.37.87.57.1 6.8 6.6 6.4 5.7 5.6 5.4 48 8.58.2 7.87.27 6.7 6.3 6.2 5.9 5.3 5.2 5 50 8 7.7 7.3 6.7 6.5 6.3 5.9 5.7 5.5 4.9 4.8 4.7 52 7.57.2 6.3 6.1 5.8 5.5 5.3 5.2 4.5 4.4 4.3 54 7 6.8 5.9 5.7 5.5 5.1 5 4.8 4.1 4.1 4 56 6.6 6.4 5.5 5.3 4.7 4.6 4.5 3.8 3.8 3.7 58 6.2 5.1 5 4.4 4.3 4.1 3.5 3.4 3.4 60 5.8 4.8 4.6 4.1 4 3.2 3.1 3.1 62 4.4 3.8 3.7 2.9 2.9 2.8 64 3.5 3.4 2.6 2.666 3.2 3.2 2.4 2.468 3 2.1 2.170 1.9 1.972 1.7Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 1 2 2 1 2 2 1 1 2 12、副臂额定起重量表支腿8.7m，配重98.2t，臂长23m幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 18.3 14.114 17.3 14.110.98.716 16.3 11.8 14.110.98.718 15.4 11.3 14.110.810.910.68.720 14.5 10.8 13.910.510.910.28.7 9.822 13.7 10.3 8.413.010.28.010.99.77.9 8.7 9.324 13.0 9.9 8.211.79.87.810.39.37.8 8.6 8.77.7 26 12.4 9.6 7.910.69.57.69.38.97.6 8.0 7.97.4 28 11.7 9.3 7.59.79.27.58.38.27.4 7.2 7.27.1 30 10.7 8.9 7.48.88.67.37.57.57.2 6.5 6.5 6.5 32 9.88.6 7.28.08.07.1 6.9 6.8 6.7 5.9 5.9 5.9 34 9.18.3 7.07.37.37.0 6.2 6.2 6.1 5.3 5.3 5.3 36 8.38.1 6.8 6.8 6.7 6.6 5.7 5.6 5.7 4.8 4.9 4.9 38 7.77.6 6.7 6.2 6.1 6.2 5.1 5.3 5.1 4.3 4.4 4.5 40 7.17.1 6.6 5.6 5.7 5.7 4.7 4.7 4.8 3.9 3.9 4.0 42 6.5 6.5 6.5 5.2 5.2 5.2 4.3 4.3 4.4 3.6 3.6 3.7 44 6.0 6.1 6.1 4.7 4.7 4.9 3.9 3.9 4.0 3.2 3.3 3.4 46 5.6 5.5 5.7 4.2 4.3 4.5 3.5 3.6 3.7 2.8 2.9 3.0 48 5.2 5.1 5.3 3.9 3.9 4.1 3.2 3.3 3.4 2.5 2.6 2.7 50 4.8 4.8 4.9 3.5 3.7 3.7 2.9 3.0 3.1 2.2 2.3 2.4 52 4.4 4.4 4.5 3.3 3.3 3.4 2.6 2.7 2.8 1.9 2.1 2.2 54 4.0 4.1 4.1 3.0 3.1 3.1 2.4 2.5 2.5 1.7 1.9 1.9 56 3.7 3.7 3.9 2.7 2.8 2.8 2.1 2.2 2.3 1.5 1.6 1.7 58 3.5 3.5 2.5 2.5 2.6 1.9 2.0 2.0 1.5 60 3.2 3.3 2.2 2.3 2.3 1.7 1.8 1.862 2.9 2.9 2.0 2.1 1.5 1.5 1.664 2.7 1.8 1.866 2.5 1.6 1.66870Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 2 1 1 2 1 1 1 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 30 0 15 3012 12.914 12.210.316 11.610.318 10.910.320 10.27.6 9.9 6.822 9.6 7.2 9.4 6.724 9.2 6.9 8.9 6.526 8.6 6.6 5.2 8.4 6.428 8.2 6.3 5.1 8.0 6.2 5.0 30 7.8 6.0 4.9 7.7 6.0 4.9 32 7.5 5.8 4.7 7.0 5.7 4.7 34 7.2 5.6 4.6 6.2 5.6 4.5 36 6.8 5.4 4.5 5.6 5.4 4.4 38 6.5 5.2 4.3 5.1 5.2 4.3 40 6.0 5.0 4.2 4.7 4.8 4.2 42 5.5 4.9 4.1 4.3 4.5 4.1 44 5.1 4.7 4.0 3.9 4.0 4.1 46 4.7 4.5 3.9 3.6 3.6 3.7 48 4.3 4.4 3.8 3.2 3.3 3.4 50 4.0 4.0 3.8 2.9 3.1 3.1 52 3.7 3.8 3.7 2.7 2.7 2.9 54 3.3 3.5 3.5 2.3 2.5 2.6 56 3.1 3.2 3.2 2.1 2.3 2.4 58 2.8 2.9 3.0 1.9 2.0 2.1 60 2.6 2.7 2.7 1.7 1.8 1.9 62 2.4 2.4 2.5 1.5 1.6 1.6 64 2.2 2.2 2.366 1.9 2.068 1.7 1.870 1.5 1.6Ⅱ％ 90 90Ⅲ％ 90 90Ⅳ％ 45 90Ⅴ％ 45 45倍率 2 1 1 1 1 1幅度 （m）主臂长度（m） 46.2 51.3安装角（°）0 150 1514 8.4 6.316 8.0 6.318 7.6 6.320 7.2 6.322 6.8 6.324 6.4 4.5 6.1 4.4 26 6.1 4.3 5.9 4.2 28 5.7 4.2 5.6 4.1 30 5.4 4.1 5.4 4.0 32 5.1 3.9 5.1 3.8 34 4.9 3.7 4.8 3.7 36 4.6 3.6 4.6 3.6 38 4.4 3.4 4.2 3.4 40 4.2 3.3 3.9 3.3 42 4.0 3.2 3.5 3.2 44 3.8 3.1 3.2 3.1 46 3.7 3.0 2.8 3.0 48 3.5 2.8 2.5 2.7 50 3.2 2.7 2.3 2.4 52 2.9 2.7 2.0 2.2 54 2.7 2.6 1.8 2.0 56 2.4 2.5 1.6 1.8 58 2.2 2.3 1.6 60 2.0 2.162 1.8 1.964 1.6 1.766 1.668Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45倍率 1 1 1 1幅度 （m） 主臂长度（m） 46.2 51.3 安装角（°）0 016 6.1 5.3 18 5.8 5.3 20 5.6 5.3 22 5.3 5.1 24 5.1 4.9 26 4.8 4.6 28 4.5 4.4 30 4.3 4.2 32 4.1 3.9 34 3.9 3.8 36 3.7 3.6 38 3.4 3.4 40 3.3 3.3 42 3.1 3.1 44 2.9 2.9 46 2.8 2.5 48 2.7 2.2 50 2.5 2.0 52 2.4 1.8 54 2.3 1.5 56 2.158 1.960 1.862 1.564Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45 倍率 1 1幅度 （m）主臂长度（m）46.2 51. 3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3014 25.1 26.316 23.2 16.2 24.416.621.518 21.6 15.5 13 22.315.919.716.317.420 20.1 14.8 12.620.415.212.818.115.613 16 14.822 18.9 14.2 12.318.814.612.516.715 12.7 14.7 13.712.8 24 17.8 13.6 11.917.314.112.2315.414.312.4 13.6 12.712 26 16.8 13.1 11.616 13.611.914.213.312.1 12.5 11.811.2 28 15.9 12.6 11.314.813.111.613.212.411.7 11.5 10.910.4 30 15.1 12.2 11.113.712.711.312.211.510.9 10.7 10.29.7 32 14.4 11.8 10.812.812 11.111.310.710.2 9.9 9.49 34 13.7 11.4 10.611.911.210.610.510 9.5 9.1 8.88.4 36 12.8 11.1 10.411 10.59.99.89.38.9 8.5 8.27.8 38 11.9 10.8 10.210.39.89.39.18.78.3 7.8 7.67.3 40 11.1 10.5 9.9 9.69.18.78.58.17.8 7.3 7 6.8 42 10.4 9.9 9.3 8.98.68.17.97.67.3 6.7 6.5 6.3 44 9.49.3 8.8 8.38 7.67.37.1 6.8 6.2 6.1 5.9 46 8.58.7 8.3 7.87.57.1 6.8 6.6 6.4 5.7 5.6 5.4 48 7.78 7.8 7.27 6.7 6.3 6.2 5.9 5.3 5.2 5 50 6.97.2 7.3 6.7 6.5 6.3 5.9 5.7 5.5 4.9 4.8 4.7 52 06.3 6.5 6.3 6.1 5.8 5.5 5.3 5.2 4.5 4.4 4.3 54 5.7 5.8 5.7 5.7 5.5 5.1 5 4.8 4.1 4.1 4 56 5.1 5.2 5.2 5.3 4.7 4.6 4.5 3.8 3.8 3.7 58 4.6 4.6 4.8 4.4 4.3 4.1 3.5 3.4 3.4 60 4.4 4.2 4.3 4.1 4 3.2 3.1 3.1 62 3.7 3.8 3.7 2.9 2.9 2.8 64 3.5 3.4 2.6 2.666 3.1 3.2 2.4 2.468 2.8 2.1 2.170 1.9 1.972 1.7Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 1 2 2 1 2 2 1 1 2 1幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 18.3 14.114 17.3 14.110.98.716 16.3 11.8 14.110.98.718 15.4 11.3 14.110.810.910.68.720 14.5 10.8 13.910.510.910.28.7 9.822 13.7 10.3 8.413.010.28.010.99.77.9 8.7 9.324 13.0 9.9 8.211.79.87.810.39.37.8 8.6 8.77.7 26 12.4 9.6 7.910.69.57.69.38.97.6 8.0 7.97.4 28 11.7 9.3 7.59.79.27.58.38.27.4 7.2 7.27.1 30 10.7 8.9 7.48.88.67.37.57.57.2 6.5 6.5 6.5 32 9.88.6 7.28.08.07.1 6.9 6.8 6.7 5.9 5.9 5.9 34 9.18.3 7.07.37.37.0 6.2 6.2 6.1 5.3 5.3 5.3 36 8.38.1 6.8 6.8 6.7 6.6 5.7 5.6 5.7 4.8 4.9 4.9 38 7.77.6 6.7 6.2 6.1 6.2 5.1 5.3 5.1 4.3 4.4 4.5 40 7.17.1 6.6 5.6 5.7 5.7 4.7 4.7 4.8 3.9 3.9 4.0 42 6.5 6.5 6.5 5.2 5.2 5.2 4.3 4.3 4.4 3.6 3.6 3.7 44 6.0 6.1 6.1 4.7 4.7 4.9 3.9 3.9 4.0 3.2 3.3 3.4 46 5.6 5.5 5.7 4.2 4.3 4.5 3.5 3.6 3.7 2.8 2.9 3.0 48 5.2 5.1 5.3 3.9 3.9 4.1 3.2 3.3 3.4 2.5 2.6 2.7 50 4.8 4.8 4.9 3.5 3.7 3.7 2.9 3.0 3.1 2.2 2.3 2.4 52 4.4 4.4 4.5 3.3 3.3 3.4 2.6 2.7 2.8 1.9 2.1 2.2 54 4.0 4.1 4.1 3.0 3.1 3.1 2.4 2.5 2.5 1.7 1.9 1.9 56 3.7 3.7 3.9 2.7 2.8 2.8 2.1 2.2 2.3 1.5 1.6 1.7 58 3.0 3.5 2.5 2.5 2.6 1.9 2.0 2.0 1.5 60 3.0 3.0 2.2 2.3 2.3 1.7 1.8 1.862 2.6 2.9 2.0 2.1 1.5 1.5 1.664 2.0 1.8 1.866 1.6 1.6Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 2 1 1 2 1 1 1 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 30 0 15 3012 12.914 12.210.316 11.610.318 10.910.320 10.27.69.9 6.822 9.67.29.4 6.724 9.2 6.98.9 6.526 8.6 6.6 5.28.4 6.428 8.2 6.3 5.18.0 6.2 5.0 30 7.8 6.0 4.97.7 6.0 4.9 32 7.5 5.8 4.77.0 5.7 4.7 34 7.2 5.6 4.6 6.2 5.6 4.5 36 6.8 5.4 4.5 5.6 5.4 4.4 38 6.5 5.2 4.3 5.1 5.2 4.3 40 6.0 5.0 4.2 4.7 4.8 4.2 42 5.5 4.9 4.1 4.3 4.5 4.1 44 5.1 4.7 4.0 3.9 4.0 4.1 46 4.7 4.5 3.9 3.6 3.6 3.7 48 4.3 4.4 3.8 3.2 3.3 3.4 50 4.0 4.0 3.8 2.9 3.1 3.1 52 3.7 3.8 3.7 2.7 2.7 2.9 54 3.3 3.5 3.5 2.3 2.5 2.6 56 3.1 3.2 3.2 2.1 2.3 2.4 58 2.8 2.9 3.0 1.9 2.0 2.1 60 2.6 2.7 2.7 1.7 1.8 1.9 62 2.4 2.4 2.5 1.5 1.6 1.6 64 2.0 2.2 2.366 1.9 2.068 1.8Ⅱ％ 90 90Ⅲ％ 90 90Ⅳ％ 45 90Ⅴ％ 45 45倍率 2 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 0 1514 8.4 6.316 8.0 6.318 7.6 6.320 7.2 6.322 6.8 6.324 6.4 4.5 6.1 4.4 26 6.1 4.3 5.9 4.2 28 5.7 4.2 5.6 4.1 30 5.4 4.1 5.4 4.0 32 5.1 3.9 5.1 3.8 34 4.9 3.7 4.8 3.7 36 4.6 3.6 4.6 3.6 38 4.4 3.4 4.2 3.4 40 4.2 3.3 3.9 3.3 42 4.0 3.2 3.5 3.2 44 3.8 3.1 3.2 3.1 46 3.7 3.0 2.8 3.0 48 3.5 2.8 2.5 2.7 50 3.2 2.7 2.3 2.4 52 2.9 2.7 2.0 2.2 54 2.7 2.6 1.8 2.0 56 2.4 2.5 1.6 1.8 58 2.2 2.3 1.6 60 2.0 2.162 1.8 1.964 1.6 1.766 1.668Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45倍率 1 1 1 1幅度 （m）主臂长度（m） 46.2 51.3安装角（°）0 016 6.1 5.3 18 5.8 5.3 20 5.6 5.3 22 5.3 5.1 24 5.1 4.9 26 4.8 4.6 28 4.5 4.4 30 4.3 4.2 32 4.1 3.9 34 3.9 3.8 36 3.7 3.6 38 3.4 3.4 40 3.3 3.3 42 3.1 3.1 44 2.9 2.9 46 2.8 2.5 48 2.7 2.2 50 2.5 2.0 52 2.4 1.8 54 2.3 1.5 56 2.158 1.960 1.862 1.564Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45 倍率 1 1幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3014 25.1 26.316 23.2 16.2 24.416.621.518 21.6 15.5 13 22.315.919.716.317.420 20.1 14.8 12.620.415.212.818.115.613 16 14.822 18.9 14.2 12.318.814.612.516.715 12.7 14.7 13.712.8 24 17.8 13.6 11.917.314.112.2315.414.312.4 13.6 12.712 26 16.8 13.1 11.616 13.611.914.213.312.1 12.5 11.811.2 28 14.7 12.6 11.314.813.111.613.212.411.7 11.5 10.910.4 30 12.9 12.2 11.112.912.711.312.211.510.9 10.7 10.29.7 32 11.3 11.8 10.811.312 11.111.310.710.2 9.9 9.49 34 9.9 10.6 10.610 10.710.610.210 9.5 9.1 8.88.4 36 8.7 9.3 9.88.89.49.99 9.38.9 8.5 8.27.8 38 7.6 8.2 8.67.78.38.78 8.68.3 7.8 7.67.3 40 6.7 7.2 7.5 6.87.37.77 7.67.8 6.9 7 6.8 42 5.8 6.3 6.6 5.9 6.4 6.7 6.2 6.77.1 6.1 6.5 6.3 44 5.1 5.5 5.7 5.2 5.6 5.9 5.4 5.9 6.2 5.3 5.8 5.9 46 4.4 4.7 5 4.5 4.9 5.1 4.7 5.2 5.5 4.6 5.1 5.4 48 3.8 4.1 4.3 3.9 4.2 4.4 4.1 4.5 4.8 4 4.4 4.7 50 3.2 3.5 3.6 3.3 3.6 3.8 3.6 3.9 4.1 3.5 3.8 4.1 52 2.7 2.9 2.8 3 3.2 3 3.3 3.5 2.9 3.3 3.5 54 2.2 2.4 2.3 2.5 2.7 2.6 2.8 3 2.5 2.8 3 56 1.8 1.9 1.9 2.1 2.1 2.4 2.5 2 2.3 2.5 58 1.5 1.6 1.7 1.9 2 1.6 1.9 2 60 1.5 1.5 1.6Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 1 2 2 1 2 2 1 1 2 1幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 18.3 14.114 17.3 14.110.98.716 16.3 11.8 14.110.98.718 15.4 11.3 14.110.810.910.68.720 14.5 10.8 13.910.510.910.28.7 9.822 13.7 10.3 8.413.010.28.010.99.77.9 8.7 9.324 13.0 9.9 8.211.79.87.810.39.37.8 8.6 8.77.7 26 12.4 9.6 7.910.69.57.69.38.97.6 8.0 7.97.4 28 11.7 9.3 7.59.79.27.58.38.27.4 7.2 7.27.1 30 10.7 8.9 7.48.88.67.37.57.57.2 6.5 6.5 6.5 32 9.0 8.6 7.28.08.07.1 6.9 6.8 6.7 5.9 5.9 5.9 34 8.0 8.3 7.07.37.37.0 6.2 6.2 6.1 5.3 5.3 5.3 36 7.0 8.0 6.8 6.8 6.7 6.6 5.7 5.6 5.7 4.8 4.9 4.9 38 6.0 7.0 6.7 6.0 6.1 6.2 5.1 5.3 5.1 4.3 4.4 4.5 40 5.0 6.0 6.6 5.0 5.7 5.7 4.7 4.7 4.8 3.9 3.9 4.0 42 5.0 5.0 6.0 4.0 5.0 5.2 4.3 4.3 4.4 3.6 3.6 3.7 44 4.0 5.0 5.0 4.0 4.7 4.9 3.9 3.9 4.0 3.2 3.3 3.4 46 3.0 4.0 4.9 3.0 4.0 4.5 3.0 3.6 3.7 2.8 2.9 3.0 48 2.8 3.0 4.0 2.7 3.0 4.0 2.9 3.3 3.4 2.5 2.6 2.7 50 2.0 2.8 3.0 2.0 2.8 3.0 2.0 3.0 3.1 2.0 2.3 2.4 52 1.6 2.0 2.7 1.5 2.0 2.7 1.7 2.0 2.8 1.5 2.0 2.2 54 1.6 2.0 1.6 2.0 1.8 2.0 1.7 1.9 56 1.5 1.8 1.7Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 2 1 1 2 1 1 1 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 30 0 15 3012 12.914 12.210.316 11.610.318 10.910.320 10.27.69.9 6.822 9.67.29.4 6.724 9.2 6.98.9 6.526 8.6 6.6 5.28.4 6.428 8.2 6.3 5.18.0 6.2 5.0 30 7.8 6.0 4.97.7 6.0 4.9 32 7.5 5.8 4.77.0 5.7 4.7 34 7.2 5.6 4.6 6.2 5.6 4.5 36 6.8 5.4 4.5 5.6 5.4 4.4 38 6.0 5.2 4.3 5.1 5.2 4.3 40 5.0 5.0 4.2 4.7 4.8 4.2 42 5.0 4.9 4.1 4.3 4.5 4.1 44 4.0 4.7 4.0 3.9 4.0 4.1 46 3.0 4.0 3.9 3.0 3.6 3.7 48 3.0 4.0 3.8 2.8 3.3 3.4 50 2.0 3.0 3.8 2.0 3.0 3.1 52 1.8 2.7 3.0 1.6 2.6 2.9 54 2.0 2.8 1.0 2.0 2.6 56 1.5 2.0 1.5 2.0 58 1.6 1.6 Ⅱ％ 90 90Ⅲ％ 90 90Ⅳ％ 45 90Ⅴ％ 45 45倍率 2 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 0 1514 8.4 6.316 8.0 6.318 7.6 6.320 7.2 6.322 6.8 6.324 6.4 4.5 6.1 4.4 26 6.1 4.3 5.9 4.2 28 5.7 4.2 5.6 4.1 30 5.4 4.1 5.4 4.0 32 5.1 3.9 5.1 3.8 34 4.9 3.7 4.8 3.7 36 4.6 3.6 4.6 3.6 38 4.4 3.4 4.2 3.4 40 4.2 3.3 3.9 3.3 42 4.0 3.2 3.5 3.2 44 3.8 3.1 3.2 3.1 46 3.0 3.0 2.8 3.0 48 3.0 2.8 2.5 2.7 50 2.0 2.7 2.0 2.4 52 1.9 2.7 1.7 2.2 54 2.5 2.0 56 2.0 1.8 58 1.5 1.3 60Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45倍率 1 1 1 1幅度 （m）主臂长度（m） 46.2 51.3 安装角（°）0 016 6.1 5.3 18 5.8 5.3 20 5.6 5.3 22 5.3 5.1 24 5.1 4.9 26 4.8 4.6 28 4.5 4.4 30 4.3 4.2 32 4.1 3.9 34 3.9 3.8 36 3.7 3.6 38 3.4 3.4 40 3.3 3.3 42 3.1 3.1 44 2.9 2.9 46 2.8 2.5 48 2.7 2.2 50 2.0 2.0 52 2.0 1.7 545658Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45 倍率 1 1主臂+超起工况额定起重量表1、主臂+超起工况额定起重量表支腿8.7m，配重98.2t幅度 （m）臂长（m）35.9 41.1 46.2 51.3 56.4 617 88.2 71.48 83.4 68.89 80.2 66.7 55.210 76 63.1 52.5 44.612 66.1 58.1 48.9 41.6 3714 56.8 54.9 45.9 38.5 33.9 28.8 16 49.3 48.5 43.4 36.3 32.7 27.5 18 44 42.7 40.7 34.4 29.8 25.9 20 38.8 37.8 36.3 33 28.1 24.7 22 35 34.3 32.8 31.6 26.8 23.3 24 32.8 31.5 29.6 28.8 25.3 22.4 26 28.7 28.4 26.9 26.7 23.1 21.6 28 25.2 26.2 24.6 24.4 21.1 20.7 30 22.2 23.3 22.7 22.4 19.5 19.9 32 19 20.8 20.8 20.5 18 18.1 34 18.3 18.7 18.9 16.6 16.7 36 16.3 16.9 17.2 15.4 15.3 38 15.2 15.6 14.2 14.2 40 13.7 14.1 13.2 13 42 12 12.8 12.4 12 44 11.6 11.5 11.3 46 10.5 10.6 10.5 48 9 9.7 9.7 50 9 8.9 52 8.3 8.2 54 7.7 56 7 Ⅱ% 90 90 90 90 90 100 Ⅲ% 45 45 90 90 90 100 Ⅳ% 45 45 45 90 90 100 Ⅴ% 0 45 45 45 90 100 倍率 8 6 6 4 4 3主臂+超起+副臂工况额定起重量表1、主臂+超起+副臂工况额定起重量表支腿8.7m，配重98.2t，臂长15m幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 27.8 22.5 16.9 13.714 27.7 19.6 22.5 18.9 16.9 13.716 26.7 18.9 13.2 22.3 18.5 16.7 16.2 13.7 13.618 25.4 18.1 12.8 21.9 18.1 12.8 16.4 15.7 12.4 13.7 13.6 12.0 20 24.3 17.4 12.4 21.4 17.5 12.5 16.1 15.1 12.0 13.7 13.6 11.6 22 23.3 16.6 12.0 20.9 16.7 12.1 15.8 14.5 11.6 13.7 13.2 11.2 24 22.3 16.0 11.6 20.3 16.1 11.7 15.4 13.8 11.4 13.7 12.9 10.9 26 21.2 15.5 11.3 19.8 15.7 11.3 15.0 13.2 11.0 13.5 12.3 10.8 28 20.3 15.1 11.1 19.1 15.1 11.1 14.6 12.6 10.8 12.9 11.9 10.6 30 19.4 14.3 10.7 18.6 14.6 10.8 14.1 12.0 10.6 12.5 11.3 10.4 32 18.0 13.7 10.5 17.9 13.5 10.6 13.7 11.5 10.4 12.0 11.0 10.2 34 16.5 13.0 10.4 16.3 12.4 10.4 13.2 11.1 10.2 11.6 10.6 9.8 36 15.0 12.2 10.2 15.0 11.6 10.2 12.8 10.5 9.9 10.8 10.2 9.4 38 14.0 11.3 10.0 14.0 10.8 10.0 12.5 10.2 9.6 10.0 9.8 9.2 40 12.0 10.0 9.8 12.0 10.0 9.8 12.1 9.8 9.2 9.3 9.4 8.9 42 11.0 9.2 9.2 11.0 9.2 9.6 11.4 9.2 8.7 8.5 8.8 8.6 44 10.0 8.5 8.5 10.0 8.5 8.5 10.6 8.5 8.3 7.7 8.2 8.3 46 9.0 7.7 7.7 9.0 7.7 7.7 9.8 7.7 7.9 6.9 7.6 7.8 48 8.0 6.9 6.9 8.0 6.9 6.9 9.0 6.9 7.3 6.9 6.9 7.2 50 8.0 6.2 8.0 6.2 6.2 8.0 6.2 6.9 6.2 6.2 6.8 52 7.0 5.4 7.0 5.4 6.2 7.0 6.2 6.2 5.4 6.2 6.2 54 6.0 4.6 6.0 5.4 7.0 5.4 5.4 4.6 5.4 5.4 56 6.0 6.0 4.6 6.0 4.6 4.6 4.6 4.6 4.6 58 5.0 5.0 3.8 5.0 4.6 3.8 4.6 4.6 60 4.9 5.0 3.8 3.8 3.862 4.0 4.0 3.8 3.1 3.864 4.0 3.1 3.1 3.166 3.0 2.3 2.968 3.0 2.3 2.370 1.972 1.5Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 2 2 2 2 2 2 1 2 2 1主臂+变幅副臂工况起重性能表1、主臂+变幅副臂工况起重性能表支腿8.7m，配重98.2t，臂长22m幅度 （m）主臂长（m）15.4 25.7 35.9 46.2 56.4主臂仰角（°）82° 74° 82° 74° 82°74°82°74°82° 74°9 50.310 49.3 44.212 48.2 43.7 38.514 48.0 44.2 43.5 38.524.016 48.0 43.2 43.5 41.2 38.523.313.418 46.5 43.0 43.5 40.7 36.322.613.220 45.1 43.0 43.5 40.5 34.130.721.912.922 41.0 38.0 32.529.221.218.312.724 34.0 27.720.717.311.926 26.116.310.8 8.6 28 24.515.18.1 30 13.97.6 32 7.1 34 6.5 36组合方式0 0 1100 1100 21102110221122112222 2222 倍率 5 4 4 4 4 3 2 2 2 1主臂+超起+变幅副臂工况起重性能表1、主臂+超起+变幅副臂工况起重性能表支腿8.7m,配重98.2t,臂长22m幅度主臂长(m)35.9 41.1 46.2 51.3 56.4主臂仰角（°）82° 74° 82°74°82°74°82°74°82° 74°12 37.814 36.5 35.526.419.216 34.6 35.526.419.013.518 33.0 34.026.418.813.520 32.0 29.9 32.826.418.813.522 31.7 28.4 32.530.126.426.518.813.524 26.8 28.626.426.518.818.813.526 25.8 27.225.818.813.5 13.728 25.7 26.424.318.813.530 25.322.818.813.432 18.813.434 13.436384042组合方式 1111 1111 2111211122112211222122212222 2222 倍率 4 4 3 3 3 3 2 2 2 2。

徐工QAY300型全地面起重机一、制造厂徐工集团二、主要技术参数项目数值备注工作性能参数最大额定总起重量kg 300000 基本臂最大起重力矩kN.m9526最长主臂最大起重力矩kN.m4675主臂最大起升高度m 60.8主副臂最大起升高度m 72.9工作速度主卷扬单绳最大速度m/min 150 副卷扬单绳最大速度m/min 150 起重臂伸出时间s ≤480起重臂起臂时间s ≤90回转速度r/min 0-1.7行驶参数最高行驶速度km/h 75最大爬坡度% 40最小转弯直径m 24 最小离地间隙mm 330 制动距离（车速为30km/h）m 10接近角° 19离去角° 19百公里油耗L 96质量参数行驶状态自重（总质量）kg 79679 轴荷一/二/三轴 kg 11625四/五轴kg 11201六/七轴kg 11201尺寸参数外形尺寸(长×宽×高) mm 18210×3000×4000支腿纵向距离m 9.2 支腿横向距离m 8.7（全伸）、6.5（半伸）基本臂长m 15.4 最长主臂m 61 最长主臂+副臂m 76 副臂安装角° 0、15、30动力参数下车发动机型号OM502LA. Ш/5发动机额定功率kw 420 排放标准国Ш轮胎数（不包括备胎）14二、外形尺寸徐工QAY300型全地面起重机三、主臂起重性能1、主臂额定起重量表支腿8.7m，配重98.2t臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 300 3003.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 149 135 133 100 125 87 72 104 86708786727 133 120 119 93 113 80 65 95 79648079666967578 120 105 105 87 103 73 60 88 72597473616462529 108 95 95 81 94 67 55 81 675468685759.5584952 48.7 42.410 96 87 87 76 87 63 51 75 625064645355.5544548.5 45.8 39.7 4339.812 73 70 75 67 75 55 45 66 544456564649484043 40.8 35.2 3835.63414 66 60 65 49 40 58.7 483949504144433638.1 36.7 31.5 3432.130.327.2 16 55.5 53 55 44 36 52 433544453739.5393234.3 33.3 28.4 30.829.227.524.8 18 48.5 40 32 47 393240413336352931.2 30.4 25.8 2826.725.122.7 20 38 36 29.1 42.3 362936383032.5322628.5 27.9 23.6 25.724.623.120.9 22 33.5 31.8 25.8 36 332633352830302426.1 25.8 21.7 23.622.821.319.3 24 32.1 31243131.52628272224.1 23.9 20 21.821.119.717.8 26 28.3 282227.827.82425.5252122.3 22.3 18.6 20.219.718.316.6 28 24.624.62224241920.7 20.8 17.3 18.818.41715.4 30 22222122221819.3 19.5 16.1 17.517.315.914.4 32 1919.71920.420.41718 18.3 15.1 16.316.214.913.4 34 18.518.51616.9 17.3 14.2 15.315.31412.6 36 16.516.51515.8 16.3 13.3 14.414.413.111.8 38 14.9 15.4 12.6 13.513.712.311.1 40 14 14.1 11.9 12.71311.610.4 42 11 11 11 1212.3119.8 44 11.411.810.49.3 46 10.8119.88.8 48 88.19.38.3 50 8.87.8 52 8.37.4 54 7 56 6.6 58 4.4Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 300 3003.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 149 135 133 100 125 87 72 104 86708786727 133 120 119 93 113 80 65 95 79648079666967578 120 105 105 87 103 73 60 88 72597473616462529 106.8 95 95 81 94 67 55 81 675468685759.5584952 48.7 42.410 95.6 87 87 76 87 63 51 75 625064645355.5544548.5 45.8 39.7 4339.812 73 70 75 67 75 55 45 66 544456564649484043 40.8 35.2 3835.63414 63 60 62.1 49 40 58.7 483949504144433638.1 36.7 31.5 3432.130.327.2 16 51 51 50.1 44 36 50.4 433544453739.5393234.3 33.3 28.4 30.829.227.524.8 18 41.5 40 32 41.9 393240413336352931.2 30.4 25.8 2826.725.122.7 20 35.1 35.1 29.1 35.6 35.62935353032.5322628.5 27.9 23.6 25.724.623.120.9 22 30 30 25.8 30.6 30.62630302830302426.1 25.8 21.7 23.622.821.319.3 24 26.6 26.62426.126.12626.726.72224.1 23.9 20 21.821.119.717.8 26 23.4 23.42222.822.822.823.523.52122.3 22.3 18.6 20.219.718.316.6 28 20.120.120.120.820.81920.7 20.8 17.3 18.818.41715.4 30 17.817.817.818.518.51818.6 18.6 16.1 17.517.315.914.4 32 15.815.815.816.616.616.6 16.7 16.7 15.1 16.316.214.913.4 34 14.914.914.9 15 15 14.2 15.215.21412.6 36 13.413.413.4 13.5 13.5 13.3 13.713.713.111.8 38 12.2 12.2 12.2 12.412.412.311.1 40 11.1 11.1 11.1 11.311.311.610.4 42 10 10 10 10.310.310.89.8 44 9.49.49.99.3 46 8.58.59.18.8 48 7.87.88.38.3 50 7.67.6 52 77 54 6.4 56 5.8 58 4.4Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 285.9 2863.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 148.7 135 133 100 125 87 72 104 86708786727 127.4 120 119 93 113 80 65 95 79648079666967578 111.1 105 105 87 103 73 60 88 72597473616462529 97.2 95 95 81 94 67 55 81 675468685759.5584952 48.7 42.410 85.7 85.7 84.7 76 83.6 63 51 75 625064645355.5544548.5 45.8 39.7 4339.812 62 62 61.4 61.4 60.5 55 45 60.7 544456564649484043 40.8 35.2 3835.63414 47.3 47.3 46.4 46.4 40 46.8 46.83946.146.14144433638.1 36.7 31.5 3432.130.327.2 16 37.9 37.9 37.1 37.1 36 37.6 37.63536.936.936.937.537.53234.3 33.3 28.4 30.829.227.524.8 18 30.3 30.3 30.3 30.9 30.930.930.330.330.330.930.92931 30.4 25.8 2826.725.122.7 20 25.3 25.3 25.3 25.9 25.925.925.325.325.326262626.1 26.1 23.6 25.724.623.120.9 22 21.3 21.3 21.3 22 222221.421.421.422.222.222.2 22.3 22.3 21.7 22.322.321.319.3 24 18.9 18.918.918.318.318.319.119.119.1 19.2 19.2 19.2 19.319.319.717.8 26 16.3 16.316.315.815.815.816.616.616.6 16.7 16.7 16.7 16.816.817.416.6 28 13.713.713.714.514.514.5 14.6 14.6 14.6 14.814.815.315.2 30 11.911.911.912.712.712.7 12.8 12.8 12.8 131313.613.4 32 10.310.310.311.211.211.2 11.3 11.3 11.3 11.511.512.111.9 34 9.89.89.810 10 10 10.210.210.810.7 36 8.78.78.78.8 8.8 8.8 9.19.19.69.5 38 7.8 7.8 7.8 888.68.5 40 6.9 6.9 6.9 7.17.17.77.6 42 6 6 6 6.3 6.3 6.9 6.9 44 5.6 5.6 6.2 6.1 46 55 5.5 5.5 48 4.4 4.4 4.9 4.9 50 4.4 4.4 52 3.9 3.9 54 3.4 56 3 58 2.6Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 273 2733.5 210 186 175 1224 190 172 170 119 154 106 894.5 180 162 159 113 146 101 845 169 152 150 108 139 96 80 113 95786 141.8 135 133 100 125 87 72 104 86708786727 121.4 120 119 93 113 80 65 95 79648079666967578 103.8 104 103 87 102 73 60 88 72597473616462529 87 87 86.1 81 84.9 67 55 81 675468685759.5584952 48.7 42.410 71.1 71.1 70.4 70.4 69.3 63 51 69.5 625064645355.5544548.5 45.8 39.7 4339.812 51 51 50.6 50.6 49.7 49.7 45 50.1 50.14449.349.34649484043 40.8 35.2 3835.63414 38.7 38.7 37.8 37.8 37.8 38.3 38.338.337.637.637.638.238.23638.1 36.7 31.5 3432.130.327.2 16 30.7 30.7 29.8 29.8 29.8 30.5 30.530.529.829.829.830.530.530.5 30.6 30.6 28.4 30.529.227.524.8 18 24.1 24.1 24.1 24.8 24.824.824.224.224.224.924.924.9 25 25 25 25.125.125.122.7 20 19.8 19.8 19.8 20.6 20.620.620202020.720.720.7 20.9 20.9 20.9 20.920.921.620.9 22 16.5 16.5 16.5 17.3 17.317.316.716.716.717.517.517.5 17.6 17.6 17.6 17.717.718.418.1 24 14.6 14.614.614.114.114.114.914.914.9 15 15 15 15.215.215.815.6 26 12.5 12.512.511.911.911.912.812.812.8 12.9 12.9 12.9 13.113.113.713.5 28 10.110.110.111111111.1 11.1 11.1 11.311.311.911.8 30 8.68.68.69.59.59.59.6 9.6 9.6 9.89.810.410.3 32 7.37.37.38.28.28.28.3 8.3 8.3 8.58.59.19 34 7777.2 7.2 7.2 7.47.487.9 36 6.1 6.1 6.1 6.2 6.2 6.2 6.5 6.577 38 5.3 5.3 5.3 5.6 5.6 6.2 6.1 40 4.5 4.5 4.5 4.8 4.8 5.4 5.4 42 3.8 3.8 3.8 4.2 4.2 4.7 4.7 44 3.6 3.6 4.1 4.1 46 33 3.6 3.6 48 2.5 2.5 3.1 3.1 50 2.6 2.6 52 2.2 2.2 54 1.8Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461（m）3 260 2603.5 210 186 175 1224 190 172 170 119 154 106 894.5 178.5 162 159 113 146 101 845 161.3 152 150 108 139 96 80 113 95786 134.6 135 133 100 125 87 72 104 86708786727 112.2 112 111 93 110 80 65 95 79648079666967578 88.6 88.6 87.7 87 86.4 73 60 86.6 72597473616462529 69.2 69.2 68.6 68.6 67.4 67 55 67.8 675466.966.95759.5584952 48.7 42.410 56.2 56.2 55.8 55.8 54.7 54.7 51 55.2 55.25054.454.45354.9544548.5 45.8 39.7 4339.812 39.8 39.8 39.6 39.6 38.7 38.7 38.7 39.3 39.339.338.538.538.539.239.239.2 39.3 39.3 35.2 3835.63414 29.9 29.9 29 29 29 29.7 29.729.729292929.729.729.7 29.8 29.8 29.8 29.829.830.327.216 23.3 23.3 22.5 22.5 22.5 23.2 23.223.222.622.622.623.423.423.4 23.5 23.5 23.5 23.623.624.223.918 17.8 17.8 17.8 18.6 18.618.618181818.818.818.8 18.9 18.9 18.9 19.119.119.719.520 14.3 14.3 14.3 15.2 15.215.214.614.614.615.415.415.4 15.5 15.5 15.5 15.715.716.316.122 11.6 11.6 11.6 12.5 12.512.511.911.911.912.712.712.7 12.9 12.9 12.9 13.113.113.713.524 10.3 10.310.39.79.79.710.610.610.6 10.7 10.7 10.7 111111.611.426 8.5 8.58.57.97.97.98.98.98.99 9 9 9.29.29.89.728 6.5 6.5 6.57.47.47.47.5 7.5 7.5 7.87.88.48.330 5.2 5.2 5.2 6.2 6.2 6.2 6.3 6.3 6.3 6.6 6.67.27.132 4.1 4.1 4.1 5.1 5.1 5.1 5.2 5.2 5.2 5.5 5.5 6.1 6.134 4.2 4.2 4.2 4.3 4.3 4.3 4.6 4.6 5.2 5.236 3.4 3.4 3.4 3.5 3.5 3.5 3.8 3.8 4.4 4.438 2.8 2.8 2.8 3.1 3.1 3.7 3.740 2.1 2.1 2.1 2.5 2.5 3.1 3.142 1.6 1.6 1.6 22 2.5 2.544 2246 1.6 1.6Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663臂长（m）幅度 15.4* 15.4 20.5 20.5 25.7 25.7 25.7 30.8 30.830.835.935.935.941.141.141.1 46.2 46.2 46.2 51.351.356.461 3 244 2443.5 210 186 175 1224 187.2 172 170 119 154 106 894.5 167 162 159 113 146 101 845 150.7 151 149 108 139 96 80 113 95786 121.3 121 120 100 119 87 72 104 86708786727 84.9 84.9 84.1 84.1 82.6 80 65 83.1 79648079666967578 61.7 61.7 61.3 61.3 59.9 59.9 59.9 60.6 60.65959.659.659.660.360.3529 47.6 47.6 47.4 47.4 46.2 46.2 46.2 46.9 46.946.946464646.846.846.8 47 47 42.410 38.1 38.1 38 38 36.9 36.9 36.9 37.7 37.737.736.936.936.937.737.737.7 37.9 37.9 37.9 37.837.812 26.1 26.1 26.3 26.3 25.3 25.3 25.3 26.1 26.126.125.425.425.426.326.326.3 26.4 26.4 26.4 26.526.527.314 19.1 19.1 18.2 18.2 18.2 19.1 19.119.118.418.418.419.419.419.4 19.5 19.5 19.5 19.619.620.420.1 16 11.2 11.2 10.3 10.3 10.3 11.4 11.411.410.710.710.711.811.811.8 11.9 11.9 11.9 12.312.315.715.5 18 7 7 7 8.1 8.18.17.47.47.48.68.68.68.7 8.7 8.7 9.19.19.89.7 20 4.7 4.7 4.7 5.8 5.8 5.8 5.1 5.1 5.1 6.2 6.2 6.2 6.3 6.3 6.3 6.7 6.77.47.4 22 2.8 2.8 2.8 4 44 3.3 3.3 3.3 4.4 4.4 4.4 4.6 4.6 4.6 4.9 4.9 5.6 5.6 24 2.5 2.5 2.5 1.9 1.9 1.9333 3.1 3.1 3.1 3.6 3.6 4.2 4.2 26 1.9 1.9 1.9 2 2 2 2.4 2.4 3.1 3.1 28 1.5 1.5 2.1 2.2Ⅱ% 0 0 0 0 45 0 0 45 00904509045090 45 0 904590100Ⅲ% 0 0 45 0 45 0 0 45 45045459045909090 90 90 909090100Ⅳ% 0 0 0 0 0 45 0 45 459045454545459045 90 90 909090100Ⅴ% 0 0 0 45 0 45 90 0 45450454545454545 45 90 459090100倍率 20 20 17 17 14 14 14 11 1111888888 6 6 6 6663副臂额定起重量表1、支腿8.7m，配重98.2t，臂长15m幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3014 25.1 26.316 23.2 16.2 24.416.621.518 21.6 15.5 13 22.315.919.716.317.420 20.1 14.8 12.620.415.212.818.115.613 16 14.822 18.9 14.2 12.318.814.612.516.715 12.7 14.7 13.712.8 24 17.8 13.6 11.917.314.112.2315.414.312.4 13.6 12.712 26 16.8 13.1 11.616 13.611.914.213.312.1 12.5 11.811.2 28 15.9 12.6 11.314.813.111.613.212.411.7 11.5 10.910.4 30 15.1 12.2 11.113.712.711.312.211.510.9 10.7 10.29.7 32 14.4 11.8 10.812.812 11.111.310.710.2 9.9 9.49 34 13.7 11.4 10.611.911.210.610.510 9.5 9.1 8.88.4 36 12.8 11.1 10.411 10.59.99.89.38.9 8.5 8.27.8 38 11.9 10.8 10.210.39.89.39.18.78.3 7.8 7.67.3 40 11.1 10.5 9.99.69.18.78.58.17.8 7.3 7 6.8 42 10.4 9.9 9.38.98.68.17.97.67.3 6.7 6.5 6.3 44 9.79.3 8.88.38 7.67.37.1 6.8 6.2 6.1 5.9 46 9.18.7 8.37.87.57.1 6.8 6.6 6.4 5.7 5.6 5.4 48 8.58.2 7.87.27 6.7 6.3 6.2 5.9 5.3 5.2 5 50 8 7.7 7.3 6.7 6.5 6.3 5.9 5.7 5.5 4.9 4.8 4.7 52 7.57.2 6.3 6.1 5.8 5.5 5.3 5.2 4.5 4.4 4.3 54 7 6.8 5.9 5.7 5.5 5.1 5 4.8 4.1 4.1 4 56 6.6 6.4 5.5 5.3 4.7 4.6 4.5 3.8 3.8 3.7 58 6.2 5.1 5 4.4 4.3 4.1 3.5 3.4 3.4 60 5.8 4.8 4.6 4.1 4 3.2 3.1 3.1 62 4.4 3.8 3.7 2.9 2.9 2.8 64 3.5 3.4 2.6 2.666 3.2 3.2 2.4 2.468 3 2.1 2.170 1.9 1.972 1.7Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 1 2 2 1 2 2 1 1 2 12、副臂额定起重量表支腿8.7m，配重98.2t，臂长23m幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 18.3 14.114 17.3 14.110.98.716 16.3 11.8 14.110.98.718 15.4 11.3 14.110.810.910.68.720 14.5 10.8 13.910.510.910.28.7 9.822 13.7 10.3 8.413.010.28.010.99.77.9 8.7 9.324 13.0 9.9 8.211.79.87.810.39.37.8 8.6 8.77.7 26 12.4 9.6 7.910.69.57.69.38.97.6 8.0 7.97.4 28 11.7 9.3 7.59.79.27.58.38.27.4 7.2 7.27.1 30 10.7 8.9 7.48.88.67.37.57.57.2 6.5 6.5 6.5 32 9.88.6 7.28.08.07.1 6.9 6.8 6.7 5.9 5.9 5.9 34 9.18.3 7.07.37.37.0 6.2 6.2 6.1 5.3 5.3 5.3 36 8.38.1 6.8 6.8 6.7 6.6 5.7 5.6 5.7 4.8 4.9 4.9 38 7.77.6 6.7 6.2 6.1 6.2 5.1 5.3 5.1 4.3 4.4 4.5 40 7.17.1 6.6 5.6 5.7 5.7 4.7 4.7 4.8 3.9 3.9 4.0 42 6.5 6.5 6.5 5.2 5.2 5.2 4.3 4.3 4.4 3.6 3.6 3.7 44 6.0 6.1 6.1 4.7 4.7 4.9 3.9 3.9 4.0 3.2 3.3 3.4 46 5.6 5.5 5.7 4.2 4.3 4.5 3.5 3.6 3.7 2.8 2.9 3.0 48 5.2 5.1 5.3 3.9 3.9 4.1 3.2 3.3 3.4 2.5 2.6 2.7 50 4.8 4.8 4.9 3.5 3.7 3.7 2.9 3.0 3.1 2.2 2.3 2.4 52 4.4 4.4 4.5 3.3 3.3 3.4 2.6 2.7 2.8 1.9 2.1 2.2 54 4.0 4.1 4.1 3.0 3.1 3.1 2.4 2.5 2.5 1.7 1.9 1.9 56 3.7 3.7 3.9 2.7 2.8 2.8 2.1 2.2 2.3 1.5 1.6 1.7 58 3.5 3.5 2.5 2.5 2.6 1.9 2.0 2.0 1.5 60 3.2 3.3 2.2 2.3 2.3 1.7 1.8 1.862 2.9 2.9 2.0 2.1 1.5 1.5 1.664 2.7 1.8 1.866 2.5 1.6 1.66870Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 2 1 1 2 1 1 1 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 30 0 15 3012 12.914 12.210.316 11.610.318 10.910.320 10.27.6 9.9 6.822 9.6 7.2 9.4 6.724 9.2 6.9 8.9 6.526 8.6 6.6 5.2 8.4 6.428 8.2 6.3 5.1 8.0 6.2 5.0 30 7.8 6.0 4.9 7.7 6.0 4.9 32 7.5 5.8 4.7 7.0 5.7 4.7 34 7.2 5.6 4.6 6.2 5.6 4.5 36 6.8 5.4 4.5 5.6 5.4 4.4 38 6.5 5.2 4.3 5.1 5.2 4.3 40 6.0 5.0 4.2 4.7 4.8 4.2 42 5.5 4.9 4.1 4.3 4.5 4.1 44 5.1 4.7 4.0 3.9 4.0 4.1 46 4.7 4.5 3.9 3.6 3.6 3.7 48 4.3 4.4 3.8 3.2 3.3 3.4 50 4.0 4.0 3.8 2.9 3.1 3.1 52 3.7 3.8 3.7 2.7 2.7 2.9 54 3.3 3.5 3.5 2.3 2.5 2.6 56 3.1 3.2 3.2 2.1 2.3 2.4 58 2.8 2.9 3.0 1.9 2.0 2.1 60 2.6 2.7 2.7 1.7 1.8 1.9 62 2.4 2.4 2.5 1.5 1.6 1.6 64 2.2 2.2 2.366 1.9 2.068 1.7 1.870 1.5 1.6Ⅱ％ 90 90Ⅲ％ 90 90Ⅳ％ 45 90Ⅴ％ 45 45倍率 2 1 1 1 1 1幅度 （m）主臂长度（m） 46.2 51.3安装角（°）0 150 1514 8.4 6.316 8.0 6.318 7.6 6.320 7.2 6.322 6.8 6.324 6.4 4.5 6.1 4.4 26 6.1 4.3 5.9 4.2 28 5.7 4.2 5.6 4.1 30 5.4 4.1 5.4 4.0 32 5.1 3.9 5.1 3.8 34 4.9 3.7 4.8 3.7 36 4.6 3.6 4.6 3.6 38 4.4 3.4 4.2 3.4 40 4.2 3.3 3.9 3.3 42 4.0 3.2 3.5 3.2 44 3.8 3.1 3.2 3.1 46 3.7 3.0 2.8 3.0 48 3.5 2.8 2.5 2.7 50 3.2 2.7 2.3 2.4 52 2.9 2.7 2.0 2.2 54 2.7 2.6 1.8 2.0 56 2.4 2.5 1.6 1.8 58 2.2 2.3 1.6 60 2.0 2.162 1.8 1.964 1.6 1.766 1.668Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45倍率 1 1 1 1幅度 （m） 主臂长度（m） 46.2 51.3 安装角（°）0 016 6.1 5.3 18 5.8 5.3 20 5.6 5.3 22 5.3 5.1 24 5.1 4.9 26 4.8 4.6 28 4.5 4.4 30 4.3 4.2 32 4.1 3.9 34 3.9 3.8 36 3.7 3.6 38 3.4 3.4 40 3.3 3.3 42 3.1 3.1 44 2.9 2.9 46 2.8 2.5 48 2.7 2.2 50 2.5 2.0 52 2.4 1.8 54 2.3 1.5 56 2.158 1.960 1.862 1.564Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45 倍率 1 1幅度 （m）主臂长度（m）46.2 51. 3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3014 25.1 26.316 23.2 16.2 24.416.621.518 21.6 15.5 13 22.315.919.716.317.420 20.1 14.8 12.620.415.212.818.115.613 16 14.822 18.9 14.2 12.318.814.612.516.715 12.7 14.7 13.712.8 24 17.8 13.6 11.917.314.112.2315.414.312.4 13.6 12.712 26 16.8 13.1 11.616 13.611.914.213.312.1 12.5 11.811.2 28 15.9 12.6 11.314.813.111.613.212.411.7 11.5 10.910.4 30 15.1 12.2 11.113.712.711.312.211.510.9 10.7 10.29.7 32 14.4 11.8 10.812.812 11.111.310.710.2 9.9 9.49 34 13.7 11.4 10.611.911.210.610.510 9.5 9.1 8.88.4 36 12.8 11.1 10.411 10.59.99.89.38.9 8.5 8.27.8 38 11.9 10.8 10.210.39.89.39.18.78.3 7.8 7.67.3 40 11.1 10.5 9.9 9.69.18.78.58.17.8 7.3 7 6.8 42 10.4 9.9 9.3 8.98.68.17.97.67.3 6.7 6.5 6.3 44 9.49.3 8.8 8.38 7.67.37.1 6.8 6.2 6.1 5.9 46 8.58.7 8.3 7.87.57.1 6.8 6.6 6.4 5.7 5.6 5.4 48 7.78 7.8 7.27 6.7 6.3 6.2 5.9 5.3 5.2 5 50 6.97.2 7.3 6.7 6.5 6.3 5.9 5.7 5.5 4.9 4.8 4.7 52 06.3 6.5 6.3 6.1 5.8 5.5 5.3 5.2 4.5 4.4 4.3 54 5.7 5.8 5.7 5.7 5.5 5.1 5 4.8 4.1 4.1 4 56 5.1 5.2 5.2 5.3 4.7 4.6 4.5 3.8 3.8 3.7 58 4.6 4.6 4.8 4.4 4.3 4.1 3.5 3.4 3.4 60 4.4 4.2 4.3 4.1 4 3.2 3.1 3.1 62 3.7 3.8 3.7 2.9 2.9 2.8 64 3.5 3.4 2.6 2.666 3.1 3.2 2.4 2.468 2.8 2.1 2.170 1.9 1.972 1.7Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 1 2 2 1 2 2 1 1 2 1幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 18.3 14.114 17.3 14.110.98.716 16.3 11.8 14.110.98.718 15.4 11.3 14.110.810.910.68.720 14.5 10.8 13.910.510.910.28.7 9.822 13.7 10.3 8.413.010.28.010.99.77.9 8.7 9.324 13.0 9.9 8.211.79.87.810.39.37.8 8.6 8.77.7 26 12.4 9.6 7.910.69.57.69.38.97.6 8.0 7.97.4 28 11.7 9.3 7.59.79.27.58.38.27.4 7.2 7.27.1 30 10.7 8.9 7.48.88.67.37.57.57.2 6.5 6.5 6.5 32 9.88.6 7.28.08.07.1 6.9 6.8 6.7 5.9 5.9 5.9 34 9.18.3 7.07.37.37.0 6.2 6.2 6.1 5.3 5.3 5.3 36 8.38.1 6.8 6.8 6.7 6.6 5.7 5.6 5.7 4.8 4.9 4.9 38 7.77.6 6.7 6.2 6.1 6.2 5.1 5.3 5.1 4.3 4.4 4.5 40 7.17.1 6.6 5.6 5.7 5.7 4.7 4.7 4.8 3.9 3.9 4.0 42 6.5 6.5 6.5 5.2 5.2 5.2 4.3 4.3 4.4 3.6 3.6 3.7 44 6.0 6.1 6.1 4.7 4.7 4.9 3.9 3.9 4.0 3.2 3.3 3.4 46 5.6 5.5 5.7 4.2 4.3 4.5 3.5 3.6 3.7 2.8 2.9 3.0 48 5.2 5.1 5.3 3.9 3.9 4.1 3.2 3.3 3.4 2.5 2.6 2.7 50 4.8 4.8 4.9 3.5 3.7 3.7 2.9 3.0 3.1 2.2 2.3 2.4 52 4.4 4.4 4.5 3.3 3.3 3.4 2.6 2.7 2.8 1.9 2.1 2.2 54 4.0 4.1 4.1 3.0 3.1 3.1 2.4 2.5 2.5 1.7 1.9 1.9 56 3.7 3.7 3.9 2.7 2.8 2.8 2.1 2.2 2.3 1.5 1.6 1.7 58 3.0 3.5 2.5 2.5 2.6 1.9 2.0 2.0 1.5 60 3.0 3.0 2.2 2.3 2.3 1.7 1.8 1.862 2.6 2.9 2.0 2.1 1.5 1.5 1.664 2.0 1.8 1.866 1.6 1.6Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 2 1 1 2 1 1 1 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 30 0 15 3012 12.914 12.210.316 11.610.318 10.910.320 10.27.69.9 6.822 9.67.29.4 6.724 9.2 6.98.9 6.526 8.6 6.6 5.28.4 6.428 8.2 6.3 5.18.0 6.2 5.0 30 7.8 6.0 4.97.7 6.0 4.9 32 7.5 5.8 4.77.0 5.7 4.7 34 7.2 5.6 4.6 6.2 5.6 4.5 36 6.8 5.4 4.5 5.6 5.4 4.4 38 6.5 5.2 4.3 5.1 5.2 4.3 40 6.0 5.0 4.2 4.7 4.8 4.2 42 5.5 4.9 4.1 4.3 4.5 4.1 44 5.1 4.7 4.0 3.9 4.0 4.1 46 4.7 4.5 3.9 3.6 3.6 3.7 48 4.3 4.4 3.8 3.2 3.3 3.4 50 4.0 4.0 3.8 2.9 3.1 3.1 52 3.7 3.8 3.7 2.7 2.7 2.9 54 3.3 3.5 3.5 2.3 2.5 2.6 56 3.1 3.2 3.2 2.1 2.3 2.4 58 2.8 2.9 3.0 1.9 2.0 2.1 60 2.6 2.7 2.7 1.7 1.8 1.9 62 2.4 2.4 2.5 1.5 1.6 1.6 64 2.0 2.2 2.366 1.9 2.068 1.8Ⅱ％ 90 90Ⅲ％ 90 90Ⅳ％ 45 90Ⅴ％ 45 45倍率 2 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 0 1514 8.4 6.316 8.0 6.318 7.6 6.320 7.2 6.322 6.8 6.324 6.4 4.5 6.1 4.4 26 6.1 4.3 5.9 4.2 28 5.7 4.2 5.6 4.1 30 5.4 4.1 5.4 4.0 32 5.1 3.9 5.1 3.8 34 4.9 3.7 4.8 3.7 36 4.6 3.6 4.6 3.6 38 4.4 3.4 4.2 3.4 40 4.2 3.3 3.9 3.3 42 4.0 3.2 3.5 3.2 44 3.8 3.1 3.2 3.1 46 3.7 3.0 2.8 3.0 48 3.5 2.8 2.5 2.7 50 3.2 2.7 2.3 2.4 52 2.9 2.7 2.0 2.2 54 2.7 2.6 1.8 2.0 56 2.4 2.5 1.6 1.8 58 2.2 2.3 1.6 60 2.0 2.162 1.8 1.964 1.6 1.766 1.668Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45倍率 1 1 1 1幅度 （m）主臂长度（m） 46.2 51.3安装角（°）0 016 6.1 5.3 18 5.8 5.3 20 5.6 5.3 22 5.3 5.1 24 5.1 4.9 26 4.8 4.6 28 4.5 4.4 30 4.3 4.2 32 4.1 3.9 34 3.9 3.8 36 3.7 3.6 38 3.4 3.4 40 3.3 3.3 42 3.1 3.1 44 2.9 2.9 46 2.8 2.5 48 2.7 2.2 50 2.5 2.0 52 2.4 1.8 54 2.3 1.5 56 2.158 1.960 1.862 1.564Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45 倍率 1 1幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3014 25.1 26.316 23.2 16.2 24.416.621.518 21.6 15.5 13 22.315.919.716.317.420 20.1 14.8 12.620.415.212.818.115.613 16 14.822 18.9 14.2 12.318.814.612.516.715 12.7 14.7 13.712.8 24 17.8 13.6 11.917.314.112.2315.414.312.4 13.6 12.712 26 16.8 13.1 11.616 13.611.914.213.312.1 12.5 11.811.2 28 14.7 12.6 11.314.813.111.613.212.411.7 11.5 10.910.4 30 12.9 12.2 11.112.912.711.312.211.510.9 10.7 10.29.7 32 11.3 11.8 10.811.312 11.111.310.710.2 9.9 9.49 34 9.9 10.6 10.610 10.710.610.210 9.5 9.1 8.88.4 36 8.7 9.3 9.88.89.49.99 9.38.9 8.5 8.27.8 38 7.6 8.2 8.67.78.38.78 8.68.3 7.8 7.67.3 40 6.7 7.2 7.5 6.87.37.77 7.67.8 6.9 7 6.8 42 5.8 6.3 6.6 5.9 6.4 6.7 6.2 6.77.1 6.1 6.5 6.3 44 5.1 5.5 5.7 5.2 5.6 5.9 5.4 5.9 6.2 5.3 5.8 5.9 46 4.4 4.7 5 4.5 4.9 5.1 4.7 5.2 5.5 4.6 5.1 5.4 48 3.8 4.1 4.3 3.9 4.2 4.4 4.1 4.5 4.8 4 4.4 4.7 50 3.2 3.5 3.6 3.3 3.6 3.8 3.6 3.9 4.1 3.5 3.8 4.1 52 2.7 2.9 2.8 3 3.2 3 3.3 3.5 2.9 3.3 3.5 54 2.2 2.4 2.3 2.5 2.7 2.6 2.8 3 2.5 2.8 3 56 1.8 1.9 1.9 2.1 2.1 2.4 2.5 2 2.3 2.5 58 1.5 1.6 1.7 1.9 2 1.6 1.9 2 60 1.5 1.5 1.6Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 1 2 2 1 2 2 1 1 2 1幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 18.3 14.114 17.3 14.110.98.716 16.3 11.8 14.110.98.718 15.4 11.3 14.110.810.910.68.720 14.5 10.8 13.910.510.910.28.7 9.822 13.7 10.3 8.413.010.28.010.99.77.9 8.7 9.324 13.0 9.9 8.211.79.87.810.39.37.8 8.6 8.77.7 26 12.4 9.6 7.910.69.57.69.38.97.6 8.0 7.97.4 28 11.7 9.3 7.59.79.27.58.38.27.4 7.2 7.27.1 30 10.7 8.9 7.48.88.67.37.57.57.2 6.5 6.5 6.5 32 9.0 8.6 7.28.08.07.1 6.9 6.8 6.7 5.9 5.9 5.9 34 8.0 8.3 7.07.37.37.0 6.2 6.2 6.1 5.3 5.3 5.3 36 7.0 8.0 6.8 6.8 6.7 6.6 5.7 5.6 5.7 4.8 4.9 4.9 38 6.0 7.0 6.7 6.0 6.1 6.2 5.1 5.3 5.1 4.3 4.4 4.5 40 5.0 6.0 6.6 5.0 5.7 5.7 4.7 4.7 4.8 3.9 3.9 4.0 42 5.0 5.0 6.0 4.0 5.0 5.2 4.3 4.3 4.4 3.6 3.6 3.7 44 4.0 5.0 5.0 4.0 4.7 4.9 3.9 3.9 4.0 3.2 3.3 3.4 46 3.0 4.0 4.9 3.0 4.0 4.5 3.0 3.6 3.7 2.8 2.9 3.0 48 2.8 3.0 4.0 2.7 3.0 4.0 2.9 3.3 3.4 2.5 2.6 2.7 50 2.0 2.8 3.0 2.0 2.8 3.0 2.0 3.0 3.1 2.0 2.3 2.4 52 1.6 2.0 2.7 1.5 2.0 2.7 1.7 2.0 2.8 1.5 2.0 2.2 54 1.6 2.0 1.6 2.0 1.8 2.0 1.7 1.9 56 1.5 1.8 1.7Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 2 1 1 2 1 1 1 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 30 0 15 3012 12.914 12.210.316 11.610.318 10.910.320 10.27.69.9 6.822 9.67.29.4 6.724 9.2 6.98.9 6.526 8.6 6.6 5.28.4 6.428 8.2 6.3 5.18.0 6.2 5.0 30 7.8 6.0 4.97.7 6.0 4.9 32 7.5 5.8 4.77.0 5.7 4.7 34 7.2 5.6 4.6 6.2 5.6 4.5 36 6.8 5.4 4.5 5.6 5.4 4.4 38 6.0 5.2 4.3 5.1 5.2 4.3 40 5.0 5.0 4.2 4.7 4.8 4.2 42 5.0 4.9 4.1 4.3 4.5 4.1 44 4.0 4.7 4.0 3.9 4.0 4.1 46 3.0 4.0 3.9 3.0 3.6 3.7 48 3.0 4.0 3.8 2.8 3.3 3.4 50 2.0 3.0 3.8 2.0 3.0 3.1 52 1.8 2.7 3.0 1.6 2.6 2.9 54 2.0 2.8 1.0 2.0 2.6 56 1.5 2.0 1.5 2.0 58 1.6 1.6 Ⅱ％ 90 90Ⅲ％ 90 90Ⅳ％ 45 90Ⅴ％ 45 45倍率 2 1 1 1 1 1幅度 （m）主臂长度（m）46.2 51.3安装角（°）0 15 0 1514 8.4 6.316 8.0 6.318 7.6 6.320 7.2 6.322 6.8 6.324 6.4 4.5 6.1 4.4 26 6.1 4.3 5.9 4.2 28 5.7 4.2 5.6 4.1 30 5.4 4.1 5.4 4.0 32 5.1 3.9 5.1 3.8 34 4.9 3.7 4.8 3.7 36 4.6 3.6 4.6 3.6 38 4.4 3.4 4.2 3.4 40 4.2 3.3 3.9 3.3 42 4.0 3.2 3.5 3.2 44 3.8 3.1 3.2 3.1 46 3.0 3.0 2.8 3.0 48 3.0 2.8 2.5 2.7 50 2.0 2.7 2.0 2.4 52 1.9 2.7 1.7 2.2 54 2.5 2.0 56 2.0 1.8 58 1.5 1.3 60Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45倍率 1 1 1 1幅度 （m）主臂长度（m） 46.2 51.3 安装角（°）0 016 6.1 5.3 18 5.8 5.3 20 5.6 5.3 22 5.3 5.1 24 5.1 4.9 26 4.8 4.6 28 4.5 4.4 30 4.3 4.2 32 4.1 3.9 34 3.9 3.8 36 3.7 3.6 38 3.4 3.4 40 3.3 3.3 42 3.1 3.1 44 2.9 2.9 46 2.8 2.5 48 2.7 2.2 50 2.0 2.0 52 2.0 1.7 545658Ⅱ％ 90 90 Ⅲ％ 90 90 Ⅳ％ 45 90 Ⅴ％ 45 45 倍率 1 1主臂+超起工况额定起重量表1、主臂+超起工况额定起重量表支腿8.7m，配重98.2t幅度 （m）臂长（m）35.9 41.1 46.2 51.3 56.4 617 88.2 71.48 83.4 68.89 80.2 66.7 55.210 76 63.1 52.5 44.612 66.1 58.1 48.9 41.6 3714 56.8 54.9 45.9 38.5 33.9 28.8 16 49.3 48.5 43.4 36.3 32.7 27.5 18 44 42.7 40.7 34.4 29.8 25.9 20 38.8 37.8 36.3 33 28.1 24.7 22 35 34.3 32.8 31.6 26.8 23.3 24 32.8 31.5 29.6 28.8 25.3 22.4 26 28.7 28.4 26.9 26.7 23.1 21.6 28 25.2 26.2 24.6 24.4 21.1 20.7 30 22.2 23.3 22.7 22.4 19.5 19.9 32 19 20.8 20.8 20.5 18 18.1 34 18.3 18.7 18.9 16.6 16.7 36 16.3 16.9 17.2 15.4 15.3 38 15.2 15.6 14.2 14.2 40 13.7 14.1 13.2 13 42 12 12.8 12.4 12 44 11.6 11.5 11.3 46 10.5 10.6 10.5 48 9 9.7 9.7 50 9 8.9 52 8.3 8.2 54 7.7 56 7 Ⅱ% 90 90 90 90 90 100 Ⅲ% 45 45 90 90 90 100 Ⅳ% 45 45 45 90 90 100 Ⅴ% 0 45 45 45 90 100 倍率 8 6 6 4 4 3主臂+超起+副臂工况额定起重量表1、主臂+超起+副臂工况额定起重量表支腿8.7m，配重98.2t，臂长15m幅度 （m）主臂长度（m）46.2 51.3 56.4 61安装角（°）0 15 30 0 15 30 0 15 30 0 15 3012 27.8 22.5 16.9 13.714 27.7 19.6 22.5 18.9 16.9 13.716 26.7 18.9 13.2 22.3 18.5 16.7 16.2 13.7 13.618 25.4 18.1 12.8 21.9 18.1 12.8 16.4 15.7 12.4 13.7 13.6 12.0 20 24.3 17.4 12.4 21.4 17.5 12.5 16.1 15.1 12.0 13.7 13.6 11.6 22 23.3 16.6 12.0 20.9 16.7 12.1 15.8 14.5 11.6 13.7 13.2 11.2 24 22.3 16.0 11.6 20.3 16.1 11.7 15.4 13.8 11.4 13.7 12.9 10.9 26 21.2 15.5 11.3 19.8 15.7 11.3 15.0 13.2 11.0 13.5 12.3 10.8 28 20.3 15.1 11.1 19.1 15.1 11.1 14.6 12.6 10.8 12.9 11.9 10.6 30 19.4 14.3 10.7 18.6 14.6 10.8 14.1 12.0 10.6 12.5 11.3 10.4 32 18.0 13.7 10.5 17.9 13.5 10.6 13.7 11.5 10.4 12.0 11.0 10.2 34 16.5 13.0 10.4 16.3 12.4 10.4 13.2 11.1 10.2 11.6 10.6 9.8 36 15.0 12.2 10.2 15.0 11.6 10.2 12.8 10.5 9.9 10.8 10.2 9.4 38 14.0 11.3 10.0 14.0 10.8 10.0 12.5 10.2 9.6 10.0 9.8 9.2 40 12.0 10.0 9.8 12.0 10.0 9.8 12.1 9.8 9.2 9.3 9.4 8.9 42 11.0 9.2 9.2 11.0 9.2 9.6 11.4 9.2 8.7 8.5 8.8 8.6 44 10.0 8.5 8.5 10.0 8.5 8.5 10.6 8.5 8.3 7.7 8.2 8.3 46 9.0 7.7 7.7 9.0 7.7 7.7 9.8 7.7 7.9 6.9 7.6 7.8 48 8.0 6.9 6.9 8.0 6.9 6.9 9.0 6.9 7.3 6.9 6.9 7.2 50 8.0 6.2 8.0 6.2 6.2 8.0 6.2 6.9 6.2 6.2 6.8 52 7.0 5.4 7.0 5.4 6.2 7.0 6.2 6.2 5.4 6.2 6.2 54 6.0 4.6 6.0 5.4 7.0 5.4 5.4 4.6 5.4 5.4 56 6.0 6.0 4.6 6.0 4.6 4.6 4.6 4.6 4.6 58 5.0 5.0 3.8 5.0 4.6 3.8 4.6 4.6 60 4.9 5.0 3.8 3.8 3.862 4.0 4.0 3.8 3.1 3.864 4.0 3.1 3.1 3.166 3.0 2.3 2.968 3.0 2.3 2.370 1.972 1.5Ⅱ％ 90 90 90 100Ⅲ％ 90 90 90 100Ⅳ％ 45 90 90 100Ⅴ％ 45 45 90 100倍率 3 2 2 2 2 2 2 2 1 2 2 1主臂+变幅副臂工况起重性能表1、主臂+变幅副臂工况起重性能表支腿8.7m，配重98.2t，臂长22m幅度 （m）主臂长（m）15.4 25.7 35.9 46.2 56.4主臂仰角（°）82° 74° 82° 74° 82°74°82°74°82° 74°9 50.310 49.3 44.212 48.2 43.7 38.514 48.0 44.2 43.5 38.524.016 48.0 43.2 43.5 41.2 38.523.313.418 46.5 43.0 43.5 40.7 36.322.613.220 45.1 43.0 43.5 40.5 34.130.721.912.922 41.0 38.0 32.529.221.218.312.724 34.0 27.720.717.311.926 26.116.310.8 8.6 28 24.515.18.1 30 13.97.6 32 7.1 34 6.5 36组合方式0 0 1100 1100 21102110221122112222 2222 倍率 5 4 4 4 4 3 2 2 2 1主臂+超起+变幅副臂工况起重性能表1、主臂+超起+变幅副臂工况起重性能表支腿8.7m,配重98.2t,臂长22m幅度主臂长(m)35.9 41.1 46.2 51.3 56.4主臂仰角（°）82° 74° 82°74°82°74°82°74°82° 74°12 37.814 36.5 35.526.419.216 34.6 35.526.419.013.518 33.0 34.026.418.813.520 32.0 29.9 32.826.418.813.522 31.7 28.4 32.530.126.426.518.813.524 26.8 28.626.426.518.818.813.526 25.8 27.225.818.813.5 13.728 25.7 26.424.318.813.530 25.322.818.813.432 18.813.434 13.436384042组合方式 1111 1111 2111211122112211222122212222 2222 倍率 4 4 3 3 3 3 2 2 2 2。

QAY400全地面起重机主要技术参数
以下是QAY400全地面起重机的主要技术参数：
1.起重能力：
2.工作半径：
3.塔臂长度：
4.最大起升高度：
5.起升速度：
6.起升力矩：
7.整机重量：
8.载重球固定装置：
9.起重机起升机构：
10.操作系统：
QAY400全地面起重机以其强大的起重能力、稳定性和灵活性在市场上备受青睐。

它广泛应用于各种工地和建筑项目，包括桥梁建设、矿山开发、钢结构制造、风电场建设等。

无论是在城市或乡村，QAY400全地面起重机都能够胜任各种起重任务，并为用户提供高质量的服务和效果。

QAY240全地面起重机技术规格伸缩臂汽车式起重机型号QAY240最大额定起重量：240t最大起升力矩：7797kN.m整机长度：15918mm整机宽度：3080m整机高度：4000m整机总重：71870kg（行驶状态）一、起重机底盘部分徐工自行设计并专业化制造的带全宽驾驶室的6桥底盘，最高行驶速度为70km/h；驱动/转向：12×6×10；行驶车速：71km/h；爬坡度：48%。

1.1、车架徐工自行设计并专业化制造，优化重量比，防扭转箱型结构，进口高强度钢材制造。

支腿收缩在特制箱体中，箱体位于1桥和2桥之间以及车架后端。

并且具有前后牵引挂钩。

1.2、底盘发动机制造商：德国奔驰（型号OM502LA.Ⅲ/5）；型式：电控、V形八缸、水冷却、增压中冷、电喷、柴油发动机；输出功率：420kw/1800rpm；最大扭矩：2400Nm/1080rpm；环保性：排放符合欧洲III标准；燃料箱容量：约400L。

1.3、动力传动系统1.3.1 变速箱德国ZF公司的16AS2602变速箱。

具有16个前进档和2个倒档，速比范围大，即可满足低速场地和爬坡行驶又可满足高速行驶。

机械变速箱自动控制，操纵可自动和手动选择，自动显示当前档位和手动操纵需要更换的档位。

1.3.2 分动箱分动箱采取大输入扭矩。

额定扭矩高达30000N.m。

带差速锁气缸。

1.3.3 车桥1、3轴为转向从动轴，2、6轴为转向驱动轴，4轴非驱动转向轴，5轴为转向贯通驱动轴，2、6轴带轮间差速器及差速锁，5轴带轴间差速器及差速锁。

1.3.4 传动轴优化的传动轴布置，传动轴传动平稳、可靠。

最优化力传输，采用端面齿联结传动轴，传递扭矩较大，最大可达43500Nm。

1.4、桥悬架油气悬挂，每根桥承担载荷相当，不高于12t。

液压系统调平，底盘可以升高或降低150mm。

通过能力强。

1.5、转向采用德国ZF公司的ZF7421转向器，液压助力系统，保障转向轻便灵活。

徐工QAY1000型全地面起重机一、制造厂徐工集团二、主要技术参数项目数值备注工作性能参数最大额定总起重量 kg 1000000 基本臂最大起重力矩kN.m 30000 最长主臂最大起重力矩kN.m 2568 主臂最大起升高度 m 100 基本臂最大起升高度 m 18.3工作速度主卷扬单绳最大速度 m/min126副卷扬单绳最大速度 m/min126变幅副臂变幅 m/min126 起重臂伸出时间s ≤1500 起重臂起臂时间s ≤150 回转速度r/min0-1行驶参数最高行驶速度km/h75 最大爬坡度% 40 最小转弯直径m 30 最小离地间隙 mm 278 制动距离（车速为30km/h）m ൑10 接近角° 12 离去角° 28 百公里油耗L 110质量参数行驶状态自重（总质量） kg 96000 轴荷一/二/三轴 kg 11500/11500/11400四/五/六轴 kg 11400/11400/9900七/八/九轴 kg 9900/9500/9500尺寸参数外形尺寸(长×宽×高) mm 19865×3000×4000 支腿纵向距离m 13支腿横向距离m 13基本臂长 m 18.3最长主臂 m 100副臂安装角 °0、20、40动力参数下车发动机型号OM502LA.E3A/1(国III)发动机额定功率kw481.48/1800排放标准国III 轮胎数（不包括备胎）18三、外形尺寸徐工QAY1000型全地面起重机四、主臂起重性能表1、四节臂主臂超起工况起重性能表_支腿全伸_平衡重130tR/L 36.136.141.541.546.946.952.255.03 1000*3.5 850*4 730*4.5 600*5 455*6320.07290.7287.1280.0276.5264.5266.9253.4240.68264.3260.5255.3252.1241.0243.7232.2227.99242.1238.1233.5231.4221.5223.3213.0209.910223.0220.4215.6213.7204.9206.6197.4195.712192.8190.3186.7185.5177.4179.7171.9168.614168.5166.2163.8162.5156.2158.0151.7148.916149.7147.0145.9144.2138.9141.1135.3133.118133.9130.9130.8129.2124.8126.8121.6120.120120.1117.8117.8116.8113.3114.5109.9108.222108.3106.3106.8106.2102.4104.2100.099.22497.195.197.296.793.295.591.490.22687.384.688.787.584.987.484.383.32877.375.180.579.677.880.277.477.13065.865.072.971.771.173.571.371.03255.653.765.064.164.966.865.865.23457.456.958.761.260.960.9R/L 36.136.141.541.546.946.952.255.03649.348.751.954.955.155.93838.237.745.948.949.250.04040.242.844.044.84232.734.939.340.14435.035.94630.832.14823.928.55023.7主臂组合 012 111 022 112 221 122 222 333 倍率 22 20 19 19 18 18 17 16 主臂最大仰角 80.378.780.280.281.381.382.282.6主臂最小仰角 24.424.419.919.923.723.720.222.22. 四节臂主臂工况起重性能表_支腿全伸_平衡重160t20.025.425.430.730.736.136.141.541.546.946.952.255.03320.0 202.3 305.43.5320.0 197.4 297.7 216.7 300.54320.0 197.7 290.0 217.9 293.6 262.4 244.24.5320.0 198.9 283.1 219.1 287.5 254.4 242.3 196.6 165.45320.0 197.4 277.0 219.7 281.6 247.1 241.3 194.2 165.0 149.6 132.16315193.6 262.2 219.0 270.0 224.9 232.8 181.9 156.2 145.3 127.6 118.37305187.2 247.6 216.4 257.7 202.8 219.6 170.6 150.2 136.2 118.8 114.2 104.6 8293180.9 234.0 212.3 244.9 182.6 207.5 160.5 145.0 127.3 110.3 107.0 98.69282 175.9 222.1 208.9 233.7 166.0 196.4 150.6 138.7 119.5 104.7 101.1 93.520.025.425.430.730.736.136.141.541.546.946.952.255.010272170.8 211.8 199.1 216.9 151.3 185.8 141.8 133.6 112.1 99.7 95.7 89.3 12250161.3 194.0 178.8 189.0 131.1 166.0 125.7 120.5 99.1 90.4 85.5 79.9 14200 149.2 172.9 163.4 165.2 119.6 150.3 113.3 112.1 88.7 82.2 77.1 72.3 16160136.6 151.9 146.2 139.1 108.3 135.7 100.2 101.7 79.7 76.0 69.9 65.5 18126.0 133.8 130.8 122.0 97.1 120.4 88.4 91.9 72.3 69.5 64.0 60.4 20118.3 116.3 116.1 107.2 87.4 107.4 79.2 84.4 65.8 65.0 58.1 55.3 2299.2 95.8 105.4 97.1 79.2 96.6 70.8 77.1 60.1 60.4 53.0 50.2 2492.8 85.6 72.0 87.4 63.9 71.3 54.9 56.1 49.2 46.8 2684.9 82.1 65.3 79.0 58.6 65.7 50.3 51.6 45.4 43.4 2859.7 71.3 53.6 61.2 46.0 48.2 42.0 40.0 3055.1 64.7 48.9 57.3 42.0 44.5 38.6 37.0 3244.6 54.0 37.8 41.7 35.8 34.4 3441.7 50.6 35.4 39.4 33.5 31.9 3634.5 42.2 32.6 36.8 31.2 29.8 3832.1 38.8 28.2 32.7 29.3 28.1 4027.3 32.0 27.3 25.9 4225.7 24.4 4424.1 22.9 4622.8 21.6 4820.3 5019.1 主臂组合 000 001 100 011 110 210 111 211 112 221 122 222 333 倍率 21 21 21 21 21 18 18 14 14 10 10 8 6 主臂最大仰角81.283.183.183.483.483.683.683.783.783.883.883.482.620.025.425.430.730.736.136.141.541.546.946.952.255.0主臂最小仰角33.425.725.729.429.431.731.719.919.929.529.526.222.23、八节主臂 130t配重18.323.729.034.439.845.150.555.961.366.672.077.482.788.193.5100.03181.1181.1181.14181.1181.1181.1181.1181.15181.1164.1181.1181.1181.1181.16181.1142.6181.1181.1181.1181.1151.0119.87181.1137.8181.1181.1168.3172.2144.6113.3101.28181.1136.1181.1181.1166.9166.2135.7106.995.976.29181.1134.8181.1181.1166.8159.7128.2101.791.672.259.010181.1133.5181.1181.1164.0155.1121.496.687.169.156.647.540.012181.1132.9181.1179.8149.2136.8109.788.579.562.151.743.437.131.224.721.4 14163.9122.5163.5157.5131.0120.498.780.873.357.347.740.534.629.523.420.6 16122.2108.6145.9139.3115.1107.490.374.367.452.044.337.232.127.822.319.7 1896.3128.8122.7102.994.282.369.262.347.340.734.730.025.721.218.9 2086.7114.4110.492.683.175.663.757.843.937.532.227.924.220.218.1 22100.298.383.973.668.359.453.840.734.929.726.222.719.317.3 2486.489.277.666.960.355.249.737.232.527.624.121.318.316.6 2668.181.272.060.655.351.746.934.130.126.022.819.817.415.7 2869.966.854.551.048.343.931.827.724.221.618.516.414.9 3062.263.649.745.645.340.929.525.922.420.417.415.614.1 3245.658.646.142.542.838.327.124.020.719.316.314.913.3 3452.242.638.540.434.925.022.119.518.115.214.212.618.323.729.034.439.845.150.555.961.366.672.077.482.788.193.5100.03646.739.635.338.332.223.320.418.217.114.213.411.8 3827.535.932.936.229.121.618.916.916.213.512.711.1 4031.029.334.226.520.117.615.615.312.712.010.4 4227.727.032.524.018.516.714.514.111.911.49.7 4425.030.521.916.715.913.713.111.410.99.0 4624.427.419.615.014.912.912.510.810.48.4 4818.824.618.313.413.812.211.510.09.97.9 5022.116.211.913.011.310.89.69.37.3 5219.715.110.611.910.510.29.28.8 6.8 5414.09.710.89.69.28.58.4 6.2 5612.38.410.08.78.68.08.0 5.7 587.69.37.87.97.67.5 5.360 6.88.37.4 6.9 6.87.0 4.862 6.47.4 6.6 6.4 6.4 6.6 4.464 6.4 5.8 5.8 5.8 6.1 4.066 5.5 5.3 4.9 5.4 5.7 3.668 4.2 4.6 4.4 4.7 5.0 3.170 3.9 3.9 4.1 4.472 3.4 3.6 3.974 3.0 3.476 3.0主臂组合 0000000 0000010 0011000001110000111101111100111111011111112111111 2211111222111122221112222211222222122222223333333 倍率 12 12 12 12 12 12 10 8 7 5 4 3 3 2 2 2 主臂最大仰角80.482.68483.284.283.683.183.883.483.182.882.58382.182.683.118.323.729.034.439.845.150.555.961.366.672.077.482.788.193.5100.0主臂最小仰角22.228.521.815.89.217.513.318.421.618.916.323.628.43234.946.84、八节主臂2 130t配重R/L18.323.729.034.439.845.150.555.961.366.672.077.482.788.193.5100.0 3181.1181.1181.14181.1181.1181.1181.1181.15181.1181.1181.1181.1181.1181.16181.1181.1181.1181.1181.1181.197.7114.07181.1181.1181.1181.1181.1178.096.2105.871.48181.1181.1181.1181.1181.1171.393.397.866.249.79181.1181.1181.1181.1181.1165.791.291.061.747.040.610181.1181.1181.1181.1179.3159.688.984.857.844.839.334.833.512181.1181.1181.1178.6163.6141.684.574.852.840.736.731.931.023.824.721.4 14163.9167.3161.7156.8144.2126.679.566.050.938.634.729.928.623.023.420.6 16122.2145.5142.6139.3127.5114.175.958.649.035.333.227.726.322.222.319.7 18124.9126.6122.7114.3102.774.553.347.233.231.026.124.321.221.218.9 20102.5112.1110.4102.493.373.148.545.331.328.623.722.420.720.218.1 2297.798.392.885.369.745.944.329.326.822.121.020.319.317.3 2483.189.284.977.763.843.942.227.325.220.819.619.118.316.6 2665.777.377.371.659.142.241.325.323.820.119.317.917.415.7 2866.870.366.154.940.840.524.421.919.118.617.416.414.9 3058.161.661.051.139.838.823.720.917.818.316.815.614.1 3243.054.256.948.238.337.722.519.416.817.516.014.913.3 3447.951.245.037.436.021.418.216.117.015.114.212.6R/L18.323.729.034.439.845.150.555.961.366.672.077.482.788.193.5100.0 3642.445.742.536.434.221.117.315.316.514.413.411.8 3825.040.939.735.232.219.916.614.815.513.712.711.1 4035.937.434.330.519.315.713.915.313.112.010.4 4231.935.331.728.918.715.513.114.412.511.49.7 4431.830.027.417.615.412.713.612.010.99.0 4629.426.925.816.515.012.313.111.410.48.4 4823.324.124.615.414.412.212.510.99.97.9 5021.623.414.413.811.612.010.49.37.3 5219.322.213.513.211.111.510.08.8 6.8 5420.012.712.610.610.99.68.4 6.2 5618.112.012.110.110.49.18.0 5.7 5811.611.79.69.88.77.5 5.3 6011.111.29.09.28.27.0 4.8 6210.910.88.78.77.8 6.6 4.4 6410.58.38.17.3 6.1 4.0 6610.17.97.6 6.8 5.7 3.6 6810.07.57.1 6.3 5.0 3.1 707.2 6.6 5.9 4.472 6.9 6.2 5.4 3.974 5.2 5.7 4.8 3.476 5.2 4.2 3.078 4.8 3.980 3.4主臂组合 0000000 0010000 0110000011100001111000111110011111111111201111112 1111122111122211122221122222122222222222223333333R/L18.323.729.034.439.845.150.555.961.366.672.077.482.788.193.5100.0倍率 12 12 12 12 12 12 10 8 7 5 4 3 3 2 2 2 主臂最大仰角80.482.68483.284.283.683.183.883.483.182.882.58382.182.683.1主臂最小仰角22.228.521.815.89.217.513.318.421.618.916.313.717.123.334.946.85、八节臂主臂超起工况起重性能表_支腿全伸_平衡重160t、R/L 34.439.845.150.555.961.366.672.077.482.788.193.5100.0 5181.16181.1181.17181.1181.1181.1181.18181.1181.1181.1179.3179.29181.1181.1180.0175.8174.4174.610181.1181.1177.5171.1169.3169.8143.412182.9175.8169.3162.6160.8161.3138.6136.314169.5166.8162.0155.0152.8149.6133.8131.5114.216150.2148.3146.0141.6137.8134.4129.1123.6109.695.485.018134.1132.9131.2127.1124.6121.5118.2114.2103.890.385.062.352.7 20120.3119.9119.0115.5113.5110.7107.7104.297.985.372.759.651.0 22107.9108.3108.3105.9104.4101.298.995.492.181.169.357.748.5 2496.498.499.197.795.393.491.188.384.976.965.955.046.8 2685.989.890.989.988.286.384.381.477.672.762.453.145.9 2874.780.983.382.782.179.978.575.571.269.359.950.644.2 3073.176.776.276.074.573.070.466.964.357.248.842.5 3265.169.970.770.969.367.765.563.359.354.647.041.2 3455.963.965.365.764.163.661.460.155.951.845.240.0R/L 34.439.845.150.555.961.366.672.077.482.788.193.5100.0 3657.360.360.760.759.457.656.053.448.743.338.3 3850.755.056.656.755.854.152.950.845.642.037.0 4041.750.252.452.552.150.449.547.742.540.635.7 4244.948.249.348.547.346.444.538.937.734.9 4438.344.045.145.444.643.441.435.435.533.6 4639.241.842.242.040.937.233.133.432.5 4834.437.738.238.237.135.131.031.330.4 5029.434.535.735.335.033.028.929.228.6 5231.032.633.232.931.026.827.327.2 5430.430.830.729.825.426.025.5 5627.228.028.227.323.624.224.0 5825.725.825.021.322.822.3 6023.623.622.819.121.020.2 6221.620.817.119.017.9 6419.718.915.317.115.7 6617.817.213.515.414.5 6816.115.511.913.713.5 7013.910.312.212.6 7212.48.910.711.4 7411.07.59.410.076 6.28.18.778 4.9 6.87.580 6.4主臂组合 0000012 0000022 00001220000222000122200022220012222 002222201222220222222222222122222223333333R/L 34.439.845.150.555.961.366.672.077.482.788.193.5100.0倍率 12 12 12 11 11 11 10 8 7 6 5 4 3 主臂最大仰角81.681.2818281.781.581.380.479.578.879.578.979.6主臂最小仰角33.52925.127.524.430.531.632.527.225.226.527.634.26、八节臂主臂超起工况起重性能表_支腿全伸_平衡重160tR/L 34.439.845.150.555.961.366.672.077.482.788.193.5100.05181.16181.1181.1181.17181.1181.1181.1181.18181.1181.1181.1179.3179.29181.1181.1180.0175.8174.4174.610181.1181.1177.5171.1169.3169.8160.712182.9175.8169.3162.6160.8161.3154.5135.514168.4164.5160.8155.0150.6145.7143.3130.8116.216148.3146.1142.9141.8133.8130.4128.0123.6109.695.479.618131.9130.7128.1127.5120.9117.8115.7114.0103.890.376.262.352.720118.2117.7115.8116.0109.0107.2105.9104.297.985.372.759.651.022105.7106.7105.6106.199.997.897.195.691.381.169.357.748.52494.296.596.497.391.189.589.288.684.276.965.955.046.82683.787.688.389.583.982.182.481.777.172.762.453.145.92872.678.781.182.777.076.776.376.071.269.359.950.644.23070.873.976.671.070.770.570.966.964.357.248.842.53262.167.370.466.165.465.866.162.859.354.647.041.23453.561.165.161.861.261.762.058.755.952.045.240.0R/L 34.439.845.150.555.961.366.672.077.482.788.193.5100.0 3654.860.056.656.157.557.954.752.749.443.338.3 3847.854.851.751.953.453.751.549.547.742.037.0 4039.650.147.648.850.350.147.746.444.940.635.7 4244.843.444.647.047.545.444.242.237.734.9 4438.138.741.343.544.942.341.239.035.533.6 4634.036.839.541.738.836.735.833.432.5 4829.733.636.138.235.334.733.731.330.4 5024.730.433.834.833.232.631.629.228.6 5226.830.732.531.130.529.527.327.2 5428.430.429.028.627.426.025.5 5625.228.026.927.126.124.224.0 5825.724.624.724.122.822.3 6022.922.422.622.221.020.2 6220.320.520.219.017.9 6418.418.718.317.115.7 6616.616.916.615.414.5 6814.915.214.913.713.5 7013.613.412.212.6 7212.111.910.711.4 7410.210.59.410.0 769.28.18.7 787.9 6.87.580 6.4主臂组合 120220122011221112201122202222111222211122221122222122222222222223333333R/L 34.439.845.150.555.961.366.672.077.482.788.193.5100.0倍率 12 12 12 11 11 11 10 8 7 6 5 4 3 主臂最大仰角 81.681.282.38281.781.581.380.479.578.879.578.979.6主臂最小仰角 33.52925.127.524.430.531.632.527.225.226.527.634.2五、固定副臂起重性能表1、固定副臂支腿全伸_平衡重130t_副臂安装角0度_副臂长度36.5mR/L 18.3+3.645.1+3.650.5+3.655.9+3.661.3+3.666.6+3.672+3.677.4+3.682.7+3.6 831.9930.21028.11225.016.816.215.21422.415.615.114.614.113.11620.114.414.113.713.412.811.11818.313.413.112.812.512.210.98.82016.712.412.212.011.811.510.58.8 6.2 2215.111.511.411.211.110.910.08.7 6.0 2413.710.710.710.510.510.39.68.5 5.6 2612.69.99.99.99.99.79.18.1 5.3 2811.59.49.49.39.39.38.77.6 4.9 3010.38.88.88.88.88.88.27.2 4.4 329.58.28.38.38.38.37.8 6.6 3.7 348.87.67.77.87.97.97.3 5.9 3.2 368.07.17.27.37.57.5 6.9 5.2387.3 6.6 6.7 6.97.17.1 6.4 4.540 6.7 6.3 6.3 6.5 6.7 6.7 5.8 3.742 6.2 5.8 6.0 6.1 6.3 6.3 5.4 3.244 5.7 5.5 5.6 5.7 5.9 5.9 4.846 5.2 5.0 5.2 5.4 5.6 5.5 4.348 4.8 4.7 4.9 5.1 5.3 5.2 3.8R/L 18.3+3.645.1+3.650.5+3.655.9+3.661.3+3.666.6+3.672+3.677.4+3.682.7+3.650 4.4 4.3 4.6 4.8 5.0 4.7 3.152 4.0 4.0 4.2 4.4 4.7 4.454 3.7 3.6 3.9 4.2 4.4 3.956 3.3 3.6 3.9 4.1 3.658 3.3 3.6 3.9 3.360 3.3 3.562 3.0 3.0主臂组合 0000000 2210000 2220000 2221000 2222000 2222100 2222200 2222210 2222220 倍率 10 6 6 5 5 5 4 4 3主臂最大仰角 82.181.982.482.882.182.581.881.280.7主臂最小仰角 24.849.750.950.452.857.563.869.374.12、固定副臂支腿全伸_平衡重130t_副臂安装角30度_副臂长度36.5mR/L 18.3+3.645.1+3.650.5+3.655.9+3.661.3+3.666.6+3.6 269.8289.0308.3 5.8 5.3327.7 5.2 5.1 5.1 4.8347.2 4.8 4.8 4.8 4.7 4.436 6.7 4.5 4.5 4.5 4.4 4.238 6.3 4.1 4.2 4.3 4.2 4.040 3.8 3.9 4.0 3.9 3.842 3.5 3.7 3.7 3.7 3.644 3.2 3.4 3.5 3.5 3.4R/L 18.3+3.645.1+3.650.5+3.655.9+3.661.3+3.666.6+3.646 3.0 3.2 3.3 3.3 3.248 3.1 3.1 3.0主臂组合 00000002210000 2220000 2221000 2222000 22221001.0 1.0 1.0 1.0 1.0倍率 1.0主臂最大仰角 81.381.481.981.181.680.9主臂最小仰角 67.169.170.670.471.672.63、固定副臂支腿半伸_平衡重130t_副臂安装角60度_副臂长度30.5mR/L 45.1+3.650.5+3.655.9+3.661.3+3.666.6+3.672+3.677.4+3.634 4.536 4.5 4.6 4.538 4.3 4.3 4.4 4.4 4.440 4.2 4.2 4.2 4.3 4.3 4.242 4.0 4.0 4.1 4.2 4.1 4.1 4.044 3.8 3.9 3.9 4.0 4.1 4.0 3.946 3.6 3.7 3.8 3.9 3.9 3.9 3.848 3.6 3.7 3.8 3.8 3.8 3.750 3.6 3.7 3.7 3.7 3.652 3.6 3.7 3.6 3.554 3.6 3.456 3.1主臂组合 2210000 2220000 2221000 2222000 2222100 2222200 2222210倍率 1111111主臂最大仰角 82.8 81.7 82.3 81.4 81.9 81.1 80.4R/L 45.1+3.650.5+3.655.9+3.661.3+3.666.6+3.672+3.677.4+3.6主臂最小仰角 71.1 70.9 70.6 70.5 71.8 71.6 71.44、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角0度_副臂长度36.5mR/L 45.2+9.5 50.6+9.5 55.9+9.5 61.3+9.5 66.7+9.5 72+9.5 77.4+9.5 82.8+9.510 37.8 35.512 35.0 34.6 33.314 33.3 32.9 32.5 31.416 31.5 31.5 31.0 30.4 29.618 30.3 29.9 29.5 29.1 28.7 28.220 28.5 28.5 28.3 28.1 27.9 27.622 27.2 27.2 27.2 27.0 26.8 26.8 26.424 26.4 26.4 26.1 25.9 25.9 25.9 25.7 12.426 24.9 25.1 25.2 25.0 24.9 24.9 25.0 12.428 24.1 24.2 24.2 24.1 24.1 24.1 24.2 12.430 23.1 23.3 23.3 23.3 23.3 23.4 23.5 12.432 22.2 22.5 22.6 22.5 22.5 22.6 20.3 12.434 21.3 21.6 21.8 21.8 21.8 22.0 18.6 11.736 20.3 20.8 21.0 21.1 21.2 21.3 17.2 9.938 19.7 20.0 20.3 20.5 20.6 20.7 16.0 9.040 19.1 19.4 19.6 19.8 20.0 20.2 16.0 8.142 18.4 18.7 18.9 19.1 19.4 19.6 15.6 7.244 17.8 18.2 18.4 18.6 18.8 19.1 15.0 6.246 17.1 17.6 17.9 18.0 18.2 18.5 14.6 5.248 16.6 17.0 17.3 17.5 17.7 18.0 14.0 4.5R/L 45.2+9.5 50.6+9.5 55.9+9.5 61.3+9.5 66.7+9.5 72+9.5 77.4+9.5 82.8+9.550 16.1 16.4 16.8 17.0 17.2 17.5 14.0 4.052 15.7 16.0 16.3 16.6 16.8 16.9 13.5 3.354 15.2 15.6 15.8 16.1 16.3 15.4 13.056 14.7 15.1 15.4 15.2 14.7 13.8 13.058 14.2 14.7 14.2 13.8 13.6 12.1 12.460 13.8 13.7 12.8 11.9 11.6 10.7 11.262 12.7 11.6 11.1 10.6 10.5 9.6 9.664 10.9 10.5 10.0 9.6 9.3 8.6 8.566 9.3 8.4 8.6 8.5 7.9 7.1 7.468 7.8 7.3 7.2 6.9 6.8 5.9 6.3主臂组合 2210000 2220000 2221000 2222000 2222100 2222200 2222210 2222220 倍率 4 4 4 4 3 3 3 1 主臂最大仰角 83.7 84.1 83.3 82.5 81.9 81.3 79.8 79.3主臂最小仰角 42.9 46.2 49 51.4 53.5 55.4 57.1 66.55、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角30度_副臂长度36.5mR/L 45.2+9.5 50.6+9.5 55.9+9.5 61.3+9.5 66.7+9.5 72+9.5 77.4+9.5 82.8+9.534 15.0 14.936 14.6 14.5 14.338 14.3 14.3 14.3 13.440 13.8 14.0 14.0 13.0 13.142 13.6 13.7 13.7 13.3 12.6 10.444 13.2 13.3 13.4 13.4 12.6 10.0 7.246 13.0 13.1 13.1 13.2 13.1 9.5 6.4 5.1R/L 45.2+9.5 50.6+9.5 55.9+9.5 61.3+9.5 66.7+9.5 72+9.5 77.4+9.5 82.8+9.548 12.6 12.8 12.9 13.0 13.1 9.0 5.8 4.550 12.4 12.5 12.6 12.8 13.0 8.5 5.2 4.052 12.1 12.3 12.4 12.6 12.8 8.0 4.5 3.554 11.8 12.0 12.1 12.3 12.6 7.5 4.156 11.7 11.8 11.9 12.1 12.4 7.5 3.658 11.4 11.6 11.7 11.9 12.1 7.5 3.160 11.2 11.4 11.5 11.7 12.0 7.562 11.0 11.2 11.3 11.5 11.7 7.564 10.8 11.0 11.1 11.3 11.6 7.566 10.7 10.8 11.0 11.2 11.4 7.568 10.5 10.6 10.8 11.0 11.370 10.3 10.5 10.7 10.8 11.172 10.2 10.4 10.5 10.7 10.974 9.7 9.8 9.8 9.6 9.876 7.6 7.9 8.2 8.5 8.478 6.9 7.0主臂组合 2210000 2220000 2221000 2222000 2222100 2222200 2222210 2222220 倍率 2 2 2 2 2 2 2 2主臂最大仰角 79.3 79.9 79.3 78.7 78.2 77.7 77.3 76.9 主臂最小仰角 44 48.1 51.3 52.4 54.8 64.4 70.1 746、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角60度_副臂长度36.5mR/L 45.2+9.550.6+9.555.9+9.561.3+9.566.7+9.572+9.544 6.8R/L 45.2+9.550.6+9.555.9+9.561.3+9.566.7+9.572+9.546 6.7 6.8 6.848 6.6 6.7 6.7 6.6 6.650 6.5 6.6 6.6 6.5 6.552 6.4 6.5 6.5 6.5 6.5 5.754 6.5 6.5 6.5 6.5 6.5 5.256 6.4 6.4 6.4 6.4 6.4 4.758 6.4 6.4 6.4 6.4 6.4 4.260 6.3 6.3 6.3 6.4 6.4 4.062 6.3 6.3 6.3 3.764 6.3 6.3 3.566 6.3 6.3 3.168 6.3 3.070 6.3主臂组合 221000022200002221000222200022221002222200倍率 222222主臂最大仰角 79.87979.879.179.777.9主臂最小仰角 65.267.367.465.864.467.57、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角0度_副臂长度18.5mR/L 45.2+19.550.6+19.555.9+19.561.3+19.566.7+19.572+19.577.4+19.582.8+19.5 1261.21456.755.11653.052.251.41850.449.648.948.5R/L 45.2+19.550.6+19.555.9+19.561.3+19.566.7+19.572+19.577.4+19.582.8+19.5 2047.947.146.846.846.82245.344.544.244.645.144.82442.542.542.542.943.443.132.62640.840.840.841.241.841.831.620.9 2839.139.139.339.740.140.330.718.1 3037.437.437.638.038.639.029.715.8 3235.636.036.336.737.337.728.713.9 3433.734.535.135.536.036.627.712.6 3632.633.033.634.435.235.526.711.5 3831.331.732.333.133.933.126.110.1 4030.530.931.231.731.230.325.88.7 4229.229.629.729.028.027.824.87.8 4427.828.527.626.425.625.123.84626.925.725.323.823.523.022.24825.023.322.421.721.420.819.55022.121.220.319.619.319.017.25220.019.118.317.917.617.45418.117.417.016.716.516.25616.215.315.414.814.414.35814.113.213.312.612.811.36012.012.111.811.511.310.26210.59.910.09.410.08.9648.78.08.68.38.2 6.866 6.5 6.6 6.7 6.87.1R/L 45.2+19.550.6+19.555.9+19.561.3+19.566.7+19.572+19.577.4+19.582.8+19.568 4.3 4.9 5.1 5.270 3.1 3.3 3.4主臂组合 22100002220000222100022220002222100222220022222102222220倍率 4 4.0 4.0 4.0 4.0 4.0 3.0 3.0 主臂最大仰角 81.88180.379.779.178.678.177.7主臂最小仰角 36.739.142.946.151.755.164.769.98、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角30度_副臂长度18.5mR/L 45.2+19.550.6+19.555.9+19.561.3+19.566.7+19.572+19.577.4+19.582.8+19.5 2234.02432.432.031.72631.230.830.630.62830.329.929.829.83029.529.128.928.928.93228.628.228.128.128.125.53427.827.427.427.627.625.514.410.7 3626.226.626.826.826.925.013.49.5 3825.925.925.926.126.424.512.58.6 4024.925.125.325.525.724.511.57.6 4224.224.524.724.925.224.010.5 6.7 4423.423.724.124.324.623.59.5 5.6 4622.823.223.523.824.123.59.1 4.9 4822.222.623.023.323.623.09.15021.622.022.422.823.122.58.5R/L 45.2+19.550.6+19.555.9+19.561.3+19.566.7+19.572+19.577.4+19.582.8+19.55221.021.521.921.621.321.88.15420.621.020.420.320.119.65620.019.018.318.418.017.85817.917.316.717.216.816.66015.715.115.015.114.814.56213.513.213.513.013.513.46411.411.811.611.711.611.3669.29.69.99.810.110.2687.58.08.38.48.570 5.3 6.0 6.6 6.67.472 3.1 4.0 4.6 5.1 5.774 3.3主臂组合 22100002220000222100022220002222100222220022222102222220倍率 3.0 3.0 3.0 3.0 3.0 2.0 2.0 2.0 主臂最大仰角 80.88080.68078.277.777.377.9主臂最小仰角 36.241.445.44751.457.867.771.99、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角60度_副臂长度18.5mR/L 45.2+19.550.6+19.555.9+19.561.3+19.566.7+19.572+19.577.4+19.52819.619.53019.419.519.519.63219.219.419.519.13419.119.019.119.119.23618.819.019.019.119.218.6R/L 45.2+19.550.6+19.555.9+19.561.3+19.566.7+19.572+19.577.4+19.5 3818.619.019.019.119.018.611.1 4018.618.919.018.919.018.610.1 4218.618.518.818.918.918.69.4 4418.618.518.718.818.518.68.7 4618.318.518.518.418.518.67.9 4818.518.418.518.67.4 5018.318.418.518.5 6.7 5218.418.518.4 6.2 5418.418.418.4 6.2 5618.218.45817.46016.0主臂组合 2210000222000022210002222000222210022222002222210倍率 2.0 2.0 2.0 2.0 2.0 2.0 2.0主臂最大仰角 80.581.180.380.97978.477.9主臂最小仰角 65.467.365.864.564.763.668.710、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角0度_副臂长度12.5mR/L 45.2+25.550.6+25.555.9+25.561.3+25.566.7+25.572+25.5 1267.41462.91659.559.559.51856.156.156.557.02053.653.654.054.454.4R/L 45.2+25.550.6+25.555.9+25.561.3+25.566.7+25.572+25.5 2251.051.051.451.951.942.7 2448.548.548.949.750.240.0 2645.646.447.247.647.640.0 2843.143.944.645.445.939.0 3041.442.242.943.743.938.1 3239.740.541.542.342.036.1 3438.538.939.840.740.535.1 3636.737.538.037.035.734.1 3835.436.234.833.932.84034.133.031.730.730.44232.129.929.627.927.64428.927.326.425.825.14625.825.224.323.322.44823.722.421.220.620.35021.620.019.318.518.25219.517.918.016.95417.416.615.915.25615.314.614.113.85813.112.512.712.06011.010.410.510.2628.89.28.98.6647.47.17.266 5.5 5.3 5.568 3.3 3.5 3.6R/L 45.2+25.550.6+25.555.9+25.561.3+25.566.7+25.572+25.5主臂组合 221000022200002221000222200022221002222200倍率 6 6 6 5 5 4 主臂最大仰角 81.879.780.379.779.178.6主臂最小仰角 36.741.144.752.16271.211、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角30度_副臂长度12.5mR/L 45.2+25.550.6+25.555.9+25.561.3+25.566.7+25.572+25.51836.12034.72234.034.034.22433.233.233.433.62632.232.632.732.732.72831.331.732.132.332.33030.530.931.231.331.323.63230.230.230.430.831.222.83429.229.630.030.430.622.83628.928.929.329.930.222.63827.928.328.729.129.521.84027.527.928.328.729.121.84227.127.527.828.228.621.64426.627.027.427.828.120.84626.226.627.026.325.720.84825.825.624.724.223.620.85024.523.122.522.121.520.6R/L 45.2+25.550.6+25.555.9+25.561.3+25.566.7+25.572+25.5 5221.520.920.420.019.319.6 5419.418.818.518.117.717.7 5617.616.616.616.116.116.2 5816.115.514.514.814.16013.913.412.912.812.96211.811.211.210.710.8649.69.39.49.59.6667.47.67.87.48.168 5.2 5.5 5.9 6.370 3.0 3.6 4.0 4.3主臂组合 221000022200002221000222200022221002222200倍率 3.0 3.0 3.0 3.0 3.0 3.0主臂最大仰角 81.679.580.179.578.977.3主臂最小仰角 37.342.145.848.954.462.712、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角60度_副臂长度12.5mR/L 45.2+25.550.6+25.555.9+25.561.3+25.566.7+25.572+25.5 2224.52424.42624.124.124.22824.024.024.024.13023.823.823.823.923.93223.623.723.723.823.83423.523.523.523.623.620.6R/L 45.2+25.550.6+25.555.9+25.561.3+25.566.7+25.572+25.5 3623.323.423.523.523.520.6 3823.423.423.423.423.420.6 4023.423.423.323.323.320.6 4223.323.323.323.323.219.8 4423.323.323.323.323.219.6 4623.223.223.119.6 4823.223.119.6 5023.023.019.6 5221.019.6 5418.2 5617.0主臂组合 221000022200002221000222200022221002222200倍率 2.0 2.0 2.0 2.0 2.0 2.0主臂最大仰角 81.579.379.979.378.777主臂最小仰角 64.26666.264.965.16413、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角0度_副臂长度6.5mR/L 72+19.577.4+19.582.8+19.588.1+19.51678.71872.254.534.12066.746.529.517.42261.840.024.613.72457.333.320.010.42652.627.615.87.2R/L 72+19.577.4+19.582.8+19.588.1+19.52846.922.912.1 3.43041.818.19.03235.613.8 6.03429.39.93624.2 6.63820.44017.04213.54410.046 6.548 2.7主臂组合 2222200222221022222202222221倍率 6 4 4 4 主臂最大仰角 80.780.180.680主臂最小仰角 61.269.973.17614、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角19度_副臂长度6.5mR/L 72+19.577.4+19.582.8+19.588.1+19.51870.22067.947.32266.646.328.52464.345.327.518.52662.042.926.514.02857.141.722.29.9R/L 72+19.577.4+19.582.8+19.588.1+19.53051.934.116.9 6.13247.427.012.5 3.03443.320.33637.914.93834.14030.94228.74425.74620.34813.8主臂组合 2222200222221022222202222221倍率 6 4 3 3 主臂最大仰角 80.68079.578.9主臂最小仰角 62.37174.174.915、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角30度_副臂长度6.5mR/L 72+19.577.4+19.582.8+19.588.1+19.52460.02658.744.223.816.12857.342.421.313.83052.741.319.49.53248.035.917.5 5.73443.928.012.33638.521.2R/L 72+19.577.4+19.582.8+19.588.1+19.53834.514.64032.14229.24427.04623.84817.65011.5主臂组合 2222200222221022222202222221倍率 6 4 3 3 主臂最大仰角 77.777.277.878.4主臂最小仰角 61.570.373.575.416、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角0度_副臂长度8mR/L 82.8+25.52421.32613.5287.7主臂组合 2222220倍率 4主臂最大仰角 78.3主臂最小仰角 76.317、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角13度_副臂长度8mR/L 82.8+25.52420.82617.52815.03013.4328.5主臂组合 2222220倍率 4主臂最大仰角 79.1主臂最小仰角 75.118、固定副臂超起起重性能表_支腿全伸_平衡重160t_副臂安装角30度_副臂长度8mR/L 82.8+25.52616.12814.23012.63211.3349.9主臂组合 2222220倍率 3主臂最大仰角 79.1主臂最小仰角 75.1六、变幅副臂起重性能表1、变幅副臂起重性能表_支腿全伸_平衡重130t_主臂仰角85度_副臂长度60mR/L 17.3+4.222.7+4.228+4.233.4+4.238.8+4.244.1+4.249.5+4.21863.22059.061.154.150.441.334.12255.558.051.748.639.933.227.12452.555.249.547.138.532.426.82650.052.847.545.637.231.626.32847.750.545.644.235.830.725.73045.748.543.942.934.529.725.03244.046.542.441.633.128.724.23442.544.941.140.431.827.823.43641.243.440.039.230.626.922.63840.142.239.038.129.426.021.84039.241.138.337.128.425.221.04238.339.637.736.227.424.520.34435.836.437.335.326.623.919.74633.233.534.334.525.823.319.14830.831.231.632.625.222.818.65028.729.129.730.524.722.418.15227.027.427.928.524.422.117.75425.426.126.426.924.121.917.55624.324.725.025.523.821.817.45823.223.523.824.423.121.617.36022.622.923.023.322.021.217.26222.922.820.420.216.8主臂组合 000 100 110 210 220 221 222 倍率 6 6 6 6 4 4 4 塔臂最大仰角 75.974.374.875.375.776.274.7塔臂最小仰角 16.418.111.914.11617.619.12、变幅副臂起重性能表_支腿全伸_平衡重130t_主臂仰角76度_副臂长度60mR/L 17.3+4.222.7+4.228+4.233.4+4.238.8+4.244.1+4.249.5+4.23048.23244.347.73441.244.442.740.631.73638.841.740.337.929.43837.039.738.535.827.523.919.34035.538.137.034.026.022.618.04234.336.835.932.524.721.616.94433.435.935.131.323.720.716.14632.735.234.430.322.720.015.44832.134.733.929.421.919.514.8R/L 17.3+4.222.7+4.228+4.233.4+4.238.8+4.244.1+4.249.5+4.25031.834.033.428.621.219.014.35229.831.333.127.920.518.513.85428.129.330.927.319.818.013.35626.527.528.826.819.217.512.85825.326.227.126.218.616.912.26023.924.825.925.518.116.211.66223.123.624.524.817.715.711.06422.622.923.523.917.215.210.56622.723.116.514.610.36822.315.813.810.07012.99.6729.0主臂组合 000 100 110 210 220 221 222 倍率 4 4 4 2 2 2 2 塔臂最大仰角 6766.365.566.968.265.466.8塔臂最小仰角 13.618.41613.118.115.612.63、变幅副臂起重性能表_支腿全伸_平衡重130t_主臂仰角66度_副臂长度66mR/L 17.3+4.222.7+4.228+4.233.4+4.238.8+4.244.1+4.249.5+4.24435.14633.535.14832.033.731.95030.732.331.026.85229.431.130.225.818.25428.229.929.424.817.514.15627.228.728.623.716.713.69.75826.527.627.422.515.913.09.26026.126.726.621.214.912.28.46224.726.225.919.913.811.27.56423.525.225.618.812.710.1 6.36622.924.224.318.112.09.1 5.06823.123.117.711.78.4 4.07022.822.017.411.78.3 3.57220.917.211.88.5 3.77416.911.98.7 4.47611.98.7 4.9788.6 5.180 5.0主臂组合 000 100 110 210 220 221 222 倍率 2 2 2 2 2 2 2 塔臂最大仰角 55.355.655.85656.256.456.6塔臂最小仰角 18.911.812.713.514.315.115.8。

徐工QAY500型全地面起重机一、制造厂徐工集团二、主要技术参数项目数值备注工作性能参数最大额定总起重量 kg 500000 基本臂最大起重力矩kN.m15190 最长主臂最大起重力矩kN.m3677 主臂最大起升高度 m 84.2 主副臂最大起升高度 m 145工作速度主卷扬单绳最大速度 m/min170副卷扬单绳最大速度 m/min170起重臂伸出时间s ≤960 起重臂起臂时间s ≤125 回转速度 r/min0-0.8行驶参数最高行驶速度km/h75 最大爬坡度% 50 最小转弯直径m 30 最小离地间隙 mm 330 制动距离（车速为30km/h）m ൑10 接近角° 13 离去角° 15 百公里油耗 L 105质量参数行驶状态自重（总质量） kg 96000 轴荷一/二/三轴 kg 12000/12000/12000四/五轴 kg 12000/12000六/七轴 kg 12000/12000尺寸参数外形尺寸(长×宽×高) mm 20263×3000×4000 支腿纵向距离 m 10.125支腿横向距离 m 9.6基本臂长 m 16.1最长主臂m 84最长主臂+副臂m95副臂安装角° 0、20、40动力参数下车发动机型号 OM502LA.E3A/1发动机额定功率kw480 排放标准国Ш轮胎数（不包括备胎）16三、外形尺寸徐工QAY500型全地面起重机四、主臂起重性能支腿9.6m,平衡重180tR/L 16.1 21.3 26.5 31.7 36.9 42.1 47.3 52.5 57.7 63 68.2 73.4 78.6 843 500*3.5 400*4 320*4.5 262.25 246.6 232.76 217.9 212.1 189.57 190.5 190.3 1748 171 170.7 160.8145.29 165 154.2 149.5134.2115.110 145.5 139.5 138.2124.3107.195.1 72.6 70.412 120 115.9 114.9107.593.2 83.5 72.6 63.9 55.1 47.3 41.914 101.5 99 98.2 93.5 81 73.3 63.4 57.4 50.3 43.7 38.7 3416 84 83.5 83.3 71.8 63.3 57.1 52.2 45.5 39.5 35.6 31.4 27.9 21.618 72.6 72.6 71.5 65.4 55.3 50.1 46.1 41.8 36.3 32.9 29.1 26.2 20.120 56 62.5 62.5 58.4 49.7 45 41.5 38.1 33.2 30.3 27 24.5 18.822 54 54.6 53.3 45.1 40.1 37.5 35 30.6 27.9 25.1 22.7 17.324 47.6 48.1 46.4 40.6 36.5 34 32 28.2 26 23.3 21.1 16.126 42.8 41 36.6 33.1 30.5 28.9 25.9 24.1 21.6 19.8 14.828 37.6 36.5 33.5 30 27.8 26.4 23.5 22.2 20.1 18.5 13.830 32.6 32.4 31 27.2 25.3 24 21.3 20.2 18.5 16.9 12.732 28.6 28.4 24.7 23 21.8 19.5 18.7 17 15.6 11.734 25.4 25.7 22.5 21 20.1 17.8 17.1 15.6 14.4 10.5R/L 16.1 21.3 26.5 31.7 36.9 42.1 47.3 52.5 57.7 63 68.2 73.4 78.6 8436 22.8 20.5 19.2 18.4 16.3 15.9 14.4 13.4 9.438 20.3 18.7 17.5 16.8 15.1 14.6 13.3 12.2 8.640 17.9 17.1 16.1 15.6 13.9 13.5 12.3 11 7.842 15.6 14.7 14.3 12.8 12.4 11 10.3 7.144 14 13.4 13.2 11.6 11.3 10.2 9.6 6.446 9.2 12.2 12.1 10.6 10.4 9.5 8.9 5.748 11 11 9.7 9.7 8.8 8.3 5.150 8.9 10.1 8.9 8.9 8.2 7.7 4.552 9.3 8.2 8.2 7.5 7.2 4.154 8.3 7.5 7.6 7 6.7 3.756 5.4 6.9 7 6.5 6.2 3.458 6.2 6.4 6 5.7 360 5.4 5.8 5.5 5.3 2.762 5.3 5.1 5 2.464 4.7 4.7 4.5 2.166 3.3 4.2 4.268 3.8 3.970 3.4 3.572 3.274 2.9主臂组合 000000 100000 110000210000211000221000222000222100222110222210222211222221222222333333 倍率 26 26 22 17 13 11 8 7 6 4 4 3 3 2主臂最大仰角80.4 81.4 82 81.5 81.1 80.9 80.6 80.5 80.3 79.3 80.1 79.2 78.5 79.2 主臂最小仰角25.1 10 21.4 12.9 19.8 13.9 5.2 14.4 8.9 15.1 11 15.2 18 40.1五、变幅副臂性能表91米臂长性能表_平衡重180t,支腿9.6m,主臂仰角83° R/L 16.1 26.5 36.936 8.5 7.638 8.5 7.6 640 8.3 7.5 642 8.3 7.4 644 8.2 7.4 5.946 8.2 7.3 5.948 8 7.2 5.850 8 7.2 5.752 8 7.1 5.654 7.8 7.1 5.656 7.8 7 5.458 7.8 6.9 5.460 7.5 6.9 5.262 7.5 6.8 4.964 7.5 6.7 4.966 7.2 6.7 4.768 6.9 6.6 4.770 6.5 6.5 4.472 6.2 6.3 4.474 5.9 6.1 4.276 5.4 5.6 4.278 5.1 5.2 4.280 4.9 5 482 4.6 4.7 484 4.3 4.4 486 4.2 4.2 488 3.8 4.1 490 3.2 3.5 492 2.7 3 3.594 2.3 2.4 2.996 2.6主臂组合 000000 110000 211000 倍率 1 1 1 最小仰角 5.2 11.1 8.3 最大仰角 70.7 71.5 7191米臂长性能表_平衡重180t,支腿9.6m,主臂仰角83° R/L 16.1 26.5 36.936 8.5 7.638 8.5 7.6 640 8.3 7.5 642 8.3 7.4 644 8.2 7.4 5.946 8.2 7.3 5.948 8 7.2 5.850 8 7.2 5.752 8 7.1 5.654 7.8 7.1 5.656 7.8 7 5.458 7.8 6.9 5.460 7.5 6.9 5.262 7.5 6.8 4.964 7.5 6.7 4.966 7.2 6.7 4.768 6.9 6.6 4.770 6.5 6.5 4.472 6.2 6.3 4.474 5.9 6.1 4.276 5.4 5.6 4.278 5.1 5.2 4.280 4.9 5 482 4.6 4.7 484 4.3 4.4 486 4.2 4.2 488 3.8 4.1 490 3.2 3.5 492 2.7 3 3.594 2.3 2.4 2.996 2.6 主臂组合 000000 110000 211000 倍率 1 1 1最小仰角 5.2 11.1 8.3 最大仰角 70.7 71.5 7191米变幅副臂性能表_平衡重180t,支腿9.6m,主臂仰角67° R/L 16.1 26.5 36.962 6.864 6.566 6.3 7.168 6.1 6.870 6.1 6.572 5.8 6.5 4.374 5.6 6.3 476 5.4 6.3 3.778 5.3 6.1 3.380 5.1 6 3.182 5 5.8 2.884 4.8 5.8 2.686 4.6 5 2.388 4.6 5 2.190 4.6 4.6 1.992 4.2 4 1.894 3.7 3.7 1.696 3.1 398 2.5 2.9100 2.5主臂组合 000000 110000 211000 倍率 1 1 1最小仰角 11.1 16.6 29.8 最大仰角 54.4 54.5 53六、主臂+超起性能表平衡重180t 支腿全伸9.6m 超起安装角15°R/L 31.736.942.147.352.557.76368.273.478.684 7190.0 162.9 129.18170.1 157.3 124.6 122.29154.2 147.1 120.2 117.9 111.710140.2 135.2 115.8 113.6 107.5 96.612120.3 114.3 108.3 105.2 101.1 91.4 81.514103.3 104.0 96.2 96.0 91.0 86.1 77.3 70.4 62.41693.1 93.0 86.1 86.0 82.2 79.0 74.1 66.3 59.4 52.6 44.6 1883.1 83.0 79.8 77.4 74.3 71.9 68.9 63.2 57.3 50.0 42.5 2073.1 74.0 71.7 69.6 67.2 64.8 62.7 59.1 54.2 47.9 41.0 2265.1 67.0 64.7 62.8 61.1 59.6 57.2 55.0 52.1 45.8 38.9 2459.0 60.0 59.2 57.0 55.2 54.4 52.7 51.8 49.0 44.2 36.9 2651.9 54.6 54.0 52.4 51.3 50.3 48.7 48.0 45.6 42.1 35.3 2842.7 48.4 49.0 48.4 47.3 46.1 45.2 44.6 42.1 40.0 33.6 3026.2 42.9 44.5 44.2 43.4 43.1 42.2 40.0 39.1 35.7 32.1 3235.0 39.0 39.2 39.9 37.6 37.7 36.0 35.2 33.7 30.6 3427.3 34.1 34.6 35.1 34.5 33.8 34.0 32.6 31.7 29.4 3629.0 31.4 32.3 32.5 31.5 32.0 30.5 30.0 28.1 3823.6 28.3 29.9 30.5 29.4 29.9 28.3 28.5 26.5 4016.3 25.1 27.1 28.4 27.4 27.9 26.1 26.5 25.5 4221.1 24.5 26.3 25.6 26.1 24.1 24.7 24.2 4416.3 21.6 23.9 23.5 24.2 22.1 22.9 22.446 5.2 19.0 21.3 21.7 22.6 20.2 21.2 20.84815.6 19.0 20.0 20.9 18.6 19.5 19.3 5010.5 16.8 18.4 19.4 17.0 17.9 18.0 5214.4 16.4 17.9 15.6 16.5 16.7 5411.0 14.6 16.6 14.3 15.2 15.356 5.4 12.9 14.9 13.0 14.0 14.15810.7 13.4 11.9 12.9 12.9 607.4 11.9 10.7 11.8 11.9 6210.2 9.7 10.7 10.9 647.9 8.8 9.7 9.9 667.9 8.8 9.068 6.0 8.0 8.2707.1 7.472 6.0 6.774 4.2 5.976 5.178 3.9 主臂组合210000211000221000222000222100222110222210222211222221222222333333倍率 1916121110976654最小仰角14.220.814.7 6.2159.515.618.72118.427.8最大仰角82.581.981.681.38180.879.878.879.678.879.6七、固定副臂起重性能表56m固定副臂性能表_平衡重180t，跨距9.6m,安装角0°R/L 16.1 47.312 12.814 11.316 10.118 9.0 8.520 7.9 7.822 7.0 7.224 6.2 6.726 5.7 6.228 5.0 5.730 4.6 5.332 4.1 4.934 3.7 4.636 4.238 3.940 3.642 3.344 3.146 2.9主臂组合 0 222000 倍率 2 142m固定副臂性能表_平衡重180t，跨距9.6m，安装角20° R/L 16.1 47.3 57.7 68.224 7.126 6.528 5.930 5.3 6.132 4.9 5.7 5.634 4.5 5.4 5.336 4.2 5.1 5.1 4.538 3.9 4.9 4.9 4.340 3.6 4.6 4.6 4.142 3.3 4.4 4.4 3.944 3.0 4.1 4.2 3.846 2.8 4.0 4.0 3.648 3.8 3.9 3.550 3.6 3.7 3.452 3.4 3.6 3.254 3.3 3.4 3.156 3.1 3.2 3.058 3.0 3.1 2.860 2.9 3.0 2.562 2.7 2.9 2.264 2.6 2.7 1.966 2.5 2.668 2.4 2.570 2.2 2.472 2.1 2.174 2.0 1.876 2.078 1.880 1.782 1.6主臂组合 0 222000 222110 222211 倍率 1 1 1 1 35m固定副臂性能表_平衡重180t，跨距9.6m，安装角40° R/L 16.1 47.3 57.7 68.230 5.232 4.834 4.536 4.3 4.838 4.0 4.9 4.540 3.8 4.4 4.442 3.6 4.3 4.3 4.044 3.4 4.1 4.2 3.946 3.3 4.0 4.1 3.848 3.2 3.9 3.9 3.750 3.8 3.8 3.652 3.7 3.7 3.554 3.6 3.7 3.456 3.5 3.6 3.458 3.4 3.4 3.360 3.3 3.3 3.262 3.2 3.3 3.164 3.1 3.1 2.866 3.1 3.1 2.468 3.0 3.0 2.170 3.0 3.072 2.9 2.774 2.8 2.376 2.8 1.9主臂组合 0 222000 222110 222211 倍率 1 1 1 1八、固定副臂+超起56m固定副臂 平衡重180t，跨距9.6m，安装角0°，超起安装角10° R/L 47.318 10.120 9.322 8.724 8.126 7.628 7.130 6.732 6.334 5.936 5.538 5.140 4.742 4.444 4.146 3.948 3.750 3.552 3.254 3.056 2.958 2.760 2.562 2.464 2.266 2.068 1.9主臂组合 222000倍率 142m固定副臂 平衡重180t，跨距9.6m，安装角20° R/L 16.1 47.3 57.7 68.224 7.126 6.528 5.930 5.3 6.132 4.9 5.7 5.634 4.5 5.4 5.336 4.2 5.1 5.1 4.538 3.9 4.9 4.9 4.342 3.3 4.4 4.4 3.944 3.0 4.1 4.2 3.846 2.8 4.0 4.0 3.648 3.8 3.9 3.550 3.6 3.7 3.452 3.4 3.6 3.254 3.3 3.4 3.156 3.1 3.2 3.058 3.0 3.1 2.860 2.9 3.0 2.562 2.7 2.9 2.264 2.6 2.7 1.966 2.5 2.668 2.4 2.570 2.2 2.472 2.1 2.174 2.0 1.876 2.078 1.880 1.782 1.6主臂组合 0 222000 222110 222211 倍率 1 1 1 135m固定副臂 平衡重180t，跨距9.6m，安装角40° R/L 16.1 47.3 57.7 68.230 5.232 4.834 4.536 4.3 4.838 4.0 4.9 4.540 3.8 4.4 4.442 3.6 4.3 4.3 4.044 3.4 4.1 4.2 3.946 3.3 4.0 4.1 3.848 3.2 3.9 3.9 3.750 3.8 3.8 3.652 3.7 3.7 3.554 3.6 3.7 3.456 3.5 3.6 3.458 3.4 3.4 3.360 3.3 3.3 3.264 3.1 3.1 2.866 3.1 3.1 2.468 3.0 3.0 2.170 3.0 3.072 2.9 2.774 2.8 2.376 2.8 1.9主臂组合 0 222000 222110 222211 倍率 1 1 1 1九、变幅副臂+超起起重性能表91m变幅副臂+超起性能表_平衡重180t，跨距9.6m，仰角83°，超起安装角42°R/L 36.938 13.540 13.442 13.044 12.546 12.248 11.950 11.652 11.354 11.056 10.858 10.460 10.162 9.964 9.766 9.568 9.270 8.772 8.474 8.176 7.978 7.580 7.282 6.984 6.686 6.488 6.190 5.992 5.794 5.596 5.398主臂组合 211000倍率 2塔臂最大仰角 68.9塔臂最小仰角 7.491m变幅副臂+超起性能表_平衡重180t，跨距9.6m，仰角75°，超起安装角42°R/L 36.956 11.258 11.060 10.862 10.564 10.266 10.068 9.870 9.672 9.174 8.676 8.278 7.780 7.382 6.984 6.686 6.388 6.090 5.692 5.394 5.196 4.998 4.7100 4.5102主臂组合 211000倍率 1塔臂最大仰角 60.2塔臂最小仰角 12.791m变幅副臂+超起性能表_平衡重180t,跨距9.6m,仰角67°,超起安装角42°R/L 36.972 6.674 6.276 5.878 5.480 5.182 4.984 4.686 4.488 4.290 4.092 3.794 3.696 3.498 3.1100 2.9102 2.6 主臂组合 211000 倍率 1塔臂最大仰角 52.1 塔臂最小仰角 19.9。
