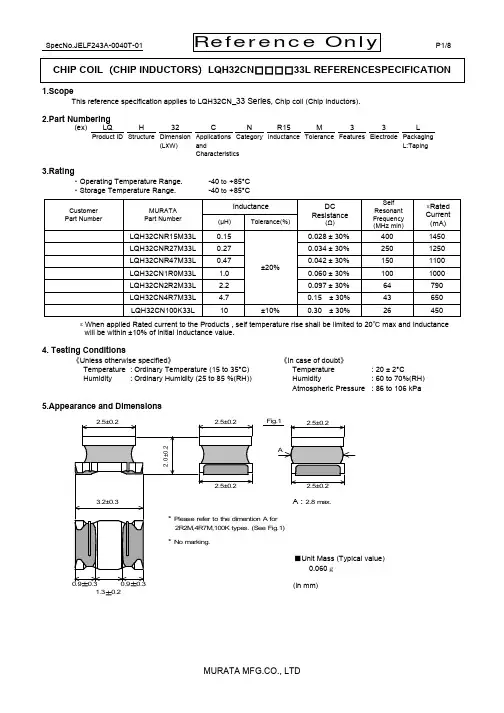

CHIP COIL（CHIP INDUCTORS）LQH32CN□□□□33L REFERENCESPECIFICATION 1.ScopeThis reference specification applies to LQH32CN_33 Series, Chip coil (Chip Inductors).2.Part Numbering(ex)LQ H 32 C N R15 M 3 3 LProduct ID Structure Dimension Applications Category Inductance Tolerance Features Electrode Packaging(L×W)and L:TapingCharacteristics3.Rating・Operating Temperature Range.-40 to+85°C・Storage Temperature Range.-40 to+85°CCustomer Part NumberMURATAPart NumberInductance DCResistance(Ω)SelfResonantFrequency(MHz min)∗RatedCurrent(mA)(µH) Tolerance(%)LQH32CNR15M33L0.15±20% 0.028 ± 30% 400 1450LQH32CNR27M33L 0.27 0.034 ± 30% 250 1250LQH32CNR47M33L 0.47 0.042 ± 30% 150 1100LQH32CN1R0M33L 1.0 0.060 ± 30% 100 1000LQH32CN2R2M33L 2.2 0.097 ± 30% 64 790LQH32CN4R7M33L 4.7 0.15 ± 30% 43 650LQH32CN100K33L 10 ±10% 0.30 ± 30% 26 450 ∗ When applied Rated current to the Products , self temperature rise shall be limited to 20 max and Inductance℃will be within ±10% of initial Inductance value.4. Testing Conditions《Unless otherwise specified》 《In case of doubt》Temperature : Ordinary Temperature (15 to 35°C)Temperature : 20 ± 2°CHumidity : Ordinary Humidity (25 to 85 %(RH))Humidity : 60 to 70%(RH)Atmospheric Pressure : 86 to 106 kPa5.Appearance and Dimensions■Unit Mass (Typical value)0.060ｇ(in mm)A forFig.1)A:2.8m ax.1.3±0.26.Electrical PerformanceNo. Item Specification TestMethod6.1 Inductance Inductance shall meet item 3. Measuring Equipment:KEYSIGHT 4192A or equivalentMeasuring Frequency:1MHz6.2 DC Resistance DC Resistance shall meet item 3. Measuring Equipment:Digital multi meter6.3 Self ResonantFrequency(S.R.F)S.R.F shall meet item 3. Measuring Equipment:KEYSIGHT E4991A or equivalent8.Environmental Performance (It shall be soldered on the substrate.)No. Item Specification TestMethod8.1 Heat Resistance Appearance:No damageInductance Change: within ± 5%DC Resistance Change:within ± 5% Temperature: 85±2°CTime: 1000h (+48h , -0h)Then measured after exposure in the room condition for 24±2 hours.8.2 Cold Resistance Temperature: -40±2°CTime: 1000h (+48h , -0h)Then measured after exposure in the room condition for24±2 hours.8.3 Humidity Temperature: 40±2°CHumidity: 90~95%(RH)Time: 1000h (+48h , -0h)Then measured after exposure in the room condition for24±2 hours.8.4 TemperatureCycle 1 cycle:1 step: -40±2°C / 30±3 minutes2 step: Ordinary temp. / 10 to 15 minutes3 step: +85±2°C / 30±3 min4 step: Ordinary temp. / 10 to 15 minutesTotal of 10 cyclesThen measured after exposure in the room condition for 24±2 hours.9. Specification of Packaging9.1 Appearance and Dimensions of plastic tape(in mm)9.2 Specification of Taping(1) Packing quantity (standard quantity)2,000 pcs / reel(2) Packing MethodProducts shall be packed in the each embossed cavity of plastic tape and sealed by cover tape.(3) Sprocket holeThe sprocket holes are to the right as the tape is pulled toward the user.(4) Spliced pointPlastic tape and Cover tape has no spliced point.(5) Missing components numberMissing components number within 0.1 % of the number per reel or 1 pc., whichever is greater, and arenot continuous. The specified quantity per reel is kept.9.3 Pull StrengthEmbossed carrier tape 10N min.Cover tape 5N min.9.4 Peeling off force of cover tapeSpeed of Peeling off 300mm/minPeeling off force0.2 to 0.7N(minimum value is typical)165to180degreeF Cover tapePlastic tape2.1±0.1※The packing directions of the chip coil in taping are unified with the in/out positions of the lead wire.Dimension of the Cavity is measuredat the bottom side.9.5 Dimensions of Leader-tape, Trailer and ReelThere shall be leader-tape (cover tape) and trailer-tape (empty tape) as follows.9.6 Marking for reelCustomer part number, MURATA part number, Inspection number(∗1), RoHS marking(∗2), Quantity etc ･･･∗1) <Expression of Inspection No.> □□ OOOO ×××(1) (2) (3)(1) Factory Code (2) Date First digit : Year / Last digit of year Second digit : Month / Jan. to Sep. → 1 to 9, Oct. to Dec. → O, N, D Third, Fourth digit : Day (3) Serial No.∗2) « Expression of RoHS marking » ROHS – Y (△)(1) (2)(1) RoHS regulation conformity(2) MURATA classification number9.7 Marking for Outside package (corrugated paper box)Customer name, Purchasing order number, Customer part number, MURATA part number, RoHS marking (∗2) ,Quantity, etc ･･･9.8. Specification of Outer CaseOuter Case Dimensions (mm)Standard Reel Quantityin Outer Case (Reel)W D H 186 186 935∗ Above Outer Case size is typical. It depends on a quantity of an order.Limitation of ApplicationsPlease contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects which might directly cause damage to the third party's life, body or property.(1) Aircraft equipment (6) Transportation equipment (vehicles, trains, ships, etc.) (2) Aerospace equipment (7) Traffic signal equipment(3) Undersea equipment(8) Disaster prevention / crime prevention equipment (4) Power plant control equipment (9) Data-processing equipment(5) Medical equipment (10) Applications of similar complexity and /or reliability requirementsto the applications listed in the aboveWDLabelH11. NoticeThis product is designed for solder mounting.Please consult us in advance for applying other mounting method such as conductive adhesive.11.1 Land pattern designingRecommended land patterns for flow and reflow soldering are as follows: These have been designed for Electric characteristics and solderability.Please follow the recommended patterns. Otherwise, their performance which includes electrical performance or solderability may be affected, or result to "position shift" in soldering process.Flow Soldering Reflow Soldering ∗ (in mm)∗ Applicable to flow soldering.11.2 Flux, SolderFlux ・Use rosin-based flux.・Don’t use highly acidic flux with halide content exceeding 0.2(wt)% (chlorine conversion value).・Don’t use water-soluble flux. Solder・Use Sn-3.0Ag-0.5Cu solder・Standard thickness of solder paste : 200μm to 300μm11.3 Flow soldering conditions / Reflow soldering conditions・Pre-heating should be in such a way that the temperature difference between solder and product surface is limited to 150°C max. Cooling into solvent after soldering also should be in such a way that the temperature difference is limited to 100°C max.Insufficient pre-heating may cause cracks on the product, resulting in the deterioration of product quality. ・Standard soldering profile and the limit soldering profile is as follows.The excessive limit soldering conditions may cause leaching of the electrode and / or resulting in the deterioration of product quality.Soldering profile(1)Flow soldering profileStandard Profile Limit Profile Pre-heating 150℃、60s min.Heating 250℃、4s ～6s 265±3℃℃、5s Cycle of flow2 times1 timeResist265℃±3℃Heating Time150Limit ProfileStandard Profile(s)Time.Temp.(℃)60s min.250℃(2)Reflow soldering profileStandard Profile Limit Profile Pre-heating 150～180°C 、90s±30s Heating above 220°C 、30s ～60s above 230°C 、60s max.Peak temperature 245±3°C 260°C,10s Cycle of reflow2 times1 time11.4 Reworking with soldering iron.The following conditions must be strictly followed when using a soldering iron.Pre-heating 150°C,1 min Tip temperature 350°C max. Soldering iron output 80W max. Tip diameter φ3mm max. Soldering time3(+1,-0)sTimes 2 timesNote : Do not directly touch the products with the tip of the soldering iron in order to prevent the crack on the products due to the thermal shock.11.5 Solder Volume・Solder shall be used not to be exceed the upper limits as shown below.・Accordingly increasing the solder volume, the mechanical stress to Chip is also increased. Exceeding solder volume may cause the failure of mechanical or electrical performance.1/3T ≦ t ≦T(T: Lower flange thickness)11.6 Product's locationThe following shall be considered when designing and laying out P.C.B.’s.(1) P.C.B. shall be designed so that products are not subject to the mechanical stress due to warping the board.［Products direction ］Products shall be located in the sideways direction (Length:a<b) to the mechanical stress.〈Poor example 〉〈Good example 〉baLimit ProfileStandard Profile 90s±30s230℃260℃245℃±3℃220℃30s～60s60s max.180150Temp.(s)(℃)Time.(2) Components location on P.C.B. separation.It is effective to implement the following measures, to reduce stress in separating the board.It is best to implement all of the following three measures; however, implement as many measures as possible to reduce stress.Contents of Measures Stress Level(1) Turn the mounting direction of the component parallel tothe board separation surface.A> D *1(2) Add slits in the board separation part. A> B(3) Keep the mounting position of the component away fromthe board separation surface.A> C*1 A > D is valid when stress is added vertically tothe perforation as with Hand Separation.If a Cutting Disc is used, stress will be diagonal to(3) Mounting Components Near Screw HolesWhen a component is mounted near a screw hole,it may be affected by the board deflection that occursduring the tightening of the screw. Mount the componentin a position as far away from the screw holes as possible.11.7 Cleaning ConditionsProducts shall be cleaned on the following conditions.(1) Cleaning temperature shall be limited to 60°C max.(40°C max for IPA.)(2) Ultrasonic cleaning shall comply with the following conditions with avoiding the resonance phenomenon atthe mounted products and P.C.B.Power : 20 W / l max. Frequency : 28kHz to 40kHz Time : 5 minutes max.(3) Cleaner1. Alternative cleaner・Isopropyl alcohol (IPA)2. Aqueous agent・PINE ALPHA ST-100S(4) There shall be no residual flux and residual cleaner after cleaning.In the case of using aqueous agent, products shall be dried completely after rinse with de-ionized water inorder to remove the cleaner.(5) Other cleaningPlease contact us.11.8 Resin coatingThe inductance value may change due to high cure-stress of resin to be used for coating/molding products. An open circuit issue may occur by mechanical stress caused by the resin, amount/cured shape of resin, or operating condition etc. Some resin contains some impurities or chloride possible to generate chlorine by hydrolysis under some operating condition may cause corrosion of wire of coil, leading to open circuit. So, please pay your careful attention when you select resin in case of coating/molding the products with the resin.Prior to use the coating resin, please make sure no reliability issue is observed by evaluating products mounted on your board.11.9 Caution for use・Sharp material such as a pair of tweezers or other material such as bristles of cleaning brush, shall not be touched to the winding portion to prevent the breaking of wire.・Mechanical shock should not be applied to the products mounted on the board to prevent the breaking of the core11.10 Handling of a substrateAfter mounting products on a substrate, do not apply any stress to the product caused by bending or twisting to the substrate when cropping the substrate, inserting and removing a connector from the substrate or tightening screw to the substrate.Excessive mechanical stress may cause cracking in the product.Bending TwistingSeamSlitADBCbaLength:a<b11.11 Storage and Handling Requirements(1) Storage periodUse the products within 12 months after delivered.Solderability should be checked if this period is exceeded.(2) Storage conditions・Products should be stored in the warehouse on the following conditions.Temperature : -10 ~ 40°CHumidity : 15 to 85% relative humidity No rapid change on temperature and humidityThe electrode of the products is coated with solder. Don't keep products in corrosive gases such as sulfur,chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderability.・Products should not be stored on bulk packaging condition to prevent the chipping of the core and the breakingof winding wire caused by the collision between the products.・Products should be stored on the palette for the prevention of the influence from humidity, dust and so on.・Products should be stored in the warehouse without heat shock, vibration, direct sunlight and so on.(3) Handling ConditionCare should be taken when transporting or handling product to avoid excessive vibration or mechanical shock.12. Note(1) Please make sure that your product has been evaluated in view of your specifications with our product being mountedto your product.(2) You are requested not to use our product deviating from the reference specifications.(3) The contents of this reference specification are subject to change without advance notice. Please approve ourproduct specifications or transact the approval sheet for product specifications before ordering。

电解电容常用参数及选型方法电解电容是一种常见的电子元件，广泛应用于电子产品、电路板、通信设备等领域。

电解电容的选型与参数选择是设计工程师需要考虑的重要问题，本文将从常用参数和选型方法两个方面进行详细介绍。

一、电解电容的常用参数电解电容的常用参数可以分为以下几个方面：1. 额定电压（Rated Voltage）：电解电容的额定电压是指在标准工作温度下，电容器可连续承受的最高电压。

根据电解电容的额定电压选择，应该保证选用的电解电容额定电压大于或等于设计电路中最大工作电压。

2. 容量（Capacitance）：电解电容的容量是指它存储电荷的能力，单位为法拉（F）。

一般来说，电解电容容量越大，存储的电荷能力越强。

3. 耐久时间（Endurance）：电解电容的耐久时间是指它在额定温度和额定电压下，能够正常工作的时间。

耐久时间越长，表示电解电容的寿命和可靠性越高。

4. 串联电阻（Equivalent Series Resistance，ESR）：电解电容的串联电阻是指电容器模型等效电路中的电阻部分。

串联电阻越小，电解电容的效果和性能越好。

5. 百分比容差（Percentage of Capacitance Tolerance）：百分比容差表示电解电容的实际容量与额定容量之间的允许误差范围。

容差越小，表示电解电容的稳定性和精度越高。

6. 工作温度范围（Operating Temperature Range）：工作温度范围是指电解电容能够正常工作的温度范围。

根据实际应用环境选择工作温度范围合适的电解电容。

二、电解电容的选型方法1.根据使用场景选择电解电容的额定电压。

根据设计电路中最大工作电压，选择额定电压大于或等于该电压的电解电容。

2.根据需要的容量选择电解电容。

根据设计电路中对电容容量的需求，选择符合该要求的电解电容。

同时要考虑到电解电容的可靠性和寿命。

3.根据系统的功耗和工作温度选择电解电容的耐久时间。

根据系统的功耗和工作温度，选择耐久时间符合要求的电解电容。

电容选型作业规范目录1. 目的 (1)2. 范围 (1)3. 定义 (1)4.电容的介绍: (1)4.1单位、符号、功能 (1)4.2公司内部电容的分类 (1)4.3电容的应用分类 (2)5. 电容选型的一般要求 (2)5.1不选用极限和边缘规格 (2)5.2.降额使用 (2)6. 各类电容器的选型原则. (2)6.1MLCC电容 (2)6.2贴片钽电容 (3)6.3电解电容 (4)6.4安规电容 (5)7. 参考文件 (6)8. 附件 (6)1.目的1.1.配合《器件选型作业规范》文件，制定电容器件的选型规范；1.2.作为研发人员对电容的选型和使用的依据；1.3.使公司电容的选型向优选型号集中,提高质量、降低风险和成本.2.范围2.1.此选型规范适用于公司内部电容的选型、应用、认证等过程.3.定义3.1电容:以两金属为电极,于两电极间施加电压,而该结构可以储存电荷,即称为电容.4.电容的介绍:4.1 单位、符号、功能电容的单位是法拉,标记为F. 常用的电容单位有毫法(mF)、微法(μF)、纳法(nF)和皮法(pF)等，换算关系是:1法拉(F)= 1000毫法(mF)= 1000000微法(μF) ，1微法(μF)= 1000纳法(nF)= 1000000皮法(pF).电容的功能可以简单的总结为“通交流、隔直流”.在电路中用于调谐、滤波、耦合、旁路、能量转换和延时等.4.2 公司内部电容的分类4.3电容的应用分类根据容量/电压的划分应用:图(1)5. 电容选型的一般要求5.1不选用极限和边缘规格不选用各分类电容器的极限规格,如电容器具体系列中的最大最小值的边缘规格. 5.2. 降额使用降额使用是提高电容器工作可靠性和寿命的重要手段。

参考《可靠性降额设计规范》,对最高额定环境工作温度，一般都在TAM-10以下. 直流工作电压在0.7倍的额定电压.6. 各类电容器的选型原则.6.1 MLCC电容6.1.1 MLCC介绍MLCC是多层陶瓷电容器的缩写（Multi-layer ceramic capacitors），它是由陶瓷和金属层堆叠而成.依JIS分类CLASS I：NPO 温度补偿型NPO是一种最常用的具有温度补偿特性的MLCC,温度从-55℃到+125℃时容量变化为0±30ppm/℃,主要成分TiO2组成的。

1、铝电解电容作为储能元件。

因此，电解电容的选型要关注以下特性：容量，耐压，温度范围，元件封装形式与尺寸；纹波电流、纹波电压；漏电流、ESR、散逸因数、阻抗/频率特性；电容寿命；实际需要、性能和成本等综合考量。

2、电解电容选型参数选型规则：电压参数选型规则：实际电路工作电压乘以1.5倍，在此基础上向上选取最近一个通用电压。

例如：电路为5V，则降额后需要耐压7.5V，最终选择额定电压10V。

温度参数选型规则：温度范围选型需要依据产品热设计及使用环境确定；对于室内产品，温度范围可以在-25℃~105℃，对于室外产品，推荐-40℃~105℃必要时选用125℃。

3、铝电解电容的特点3.1铝电解电容器的卷绕结构及简图电解电容包含两个导电电极，中间有绝缘层隔开。

一个电极（阳极）由扩大了表面积的铝箔形成。

铝氧化层（AL2O3）在其表面形成绝缘层。

与其它电容相比，铝电解电容的负极（阴极）是导电液体，称作电解液。

另外一个铝箔，是所谓的阴极箔，其有更大的表面积，以传递电流到电解液。

电容的阳极是极纯的铝箔，其有效表面被极大地增大（比例可以到200倍），增大方式是一个电化学腐蚀过程，这样可以使电容到最大容量。

化学腐蚀的方式以及程度过程不同，决定于其不同要求。

铝电解电容器的主要生产原材料为：阳极箔、阴极箔、电解纸、电解液、导箔、胶带、盖板、铝壳、套管、垫片等，其生产工序主要有：切割、卷绕、含浸、装配、老化、封口、印刷、套管、测量、包装、检验等，以下为其主要生产工艺图：电解电容的结构和原理决定了其有一下特点：优点：容量大、耐压高、价格便宜；缺点：漏电流大、误差大、稳定性差、寿命随温度的升高下降很快。

数字电路中使用的铝质电解电容一般用于电源平滑滤波，除容量、耐压、容量误差、工作温度、封装尺寸等熟知的参数外，还有几个有关电容器品质的重要参数，包括损耗角正切、漏电流、等效串联电阻ESR、允许的纹波电流、使用寿命等。

这些参数不标在成品封装外皮上，只在产品规格书中体现的，但这些参数有可能是关系电路性能的关键。

电容的基础知识及检测方法一、基础知识电容器是一种储能元件，在电路中用于调谐、滤波、耦合、旁路、能量转换和延时。
