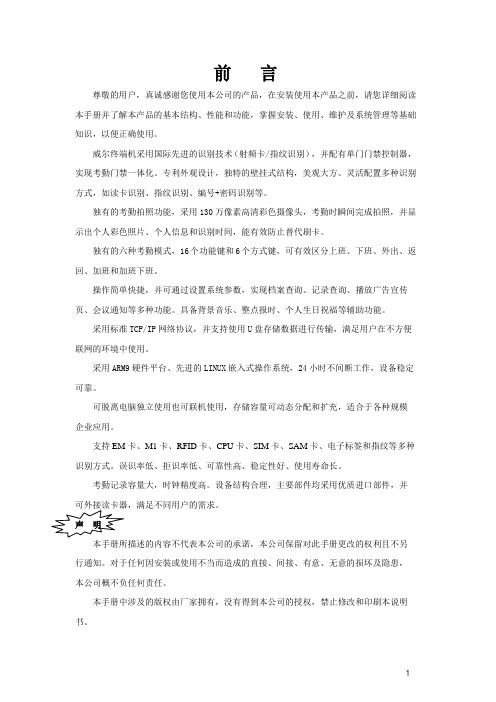

前言尊敬的用户，真诚感谢您使用本公司的产品，在安装使用本产品之前，请您详细阅读本手册并了解本产品的基本结构、性能和功能，掌握安装、使用、维护及系统管理等基础知识，以便正确使用。
威尔终端机采用国际先进的识别技术（射频卡/指纹识别），并配有单门门禁控制器，实现考勤门禁一体化。
专利外观设计，独特的壁挂式结构，美观大方。
灵活配置多种识别方式，如读卡识别、指纹识别、编号+密码识别等。
独有的考勤拍照功能，采用130万像素高清彩色摄像头，考勤时瞬间完成拍照，并显示出个人彩色照片、个人信息和识别时间，能有效防止替代刷卡。
独有的六种考勤模式，16个功能键和6个方式键，可有效区分上班、下班、外出、返回、加班和加班下班。
操作简单快捷，并可通过设置系统参数，实现档案查询、记录查询、播放广告宣传页、会议通知等多种功能。
具备背景音乐、整点报时、个人生日祝福等辅助功能。
采用标准TCP/IP网络协议，并支持使用U盘存储数据进行传输，满足用户在不方便联网的环境中使用。
采用ARM9硬件平台、先进的LINUX嵌入式操作系统，24小时不间断工作，设备稳定可靠。
可脱离电脑独立使用也可联机使用，存储容量可动态分配和扩充，适合于各种规模企业应用。
支持EM卡、M1卡、RFID卡、CPU卡、SIM卡、SAM卡、电子标签和指纹等多种识别方式。
误识率低、拒识率低、可靠性高、稳定性好、使用寿命长。
考勤记录容量大，时钟精度高。
设备结构合理，主要部件均采用优质进口部件，并可外接读卡器，满足不同用户的需求。
声明本手册所描述的内容不代表本公司的承诺，本公司保留对此手册更改的权利且不另行通知。
对于任何因安装或使用不当而造成的直接、间接、有意、无意的损坏及隐患，本公司概不负任何责任。
本手册中涉及的版权由厂家拥有，没有得到本公司的授权，禁止修改和印刷本说明书。
目录第一章使用须知 (5)1.1 注意事项 (5)1.2 技术指标 (6)1.3 基本概念 (7)1.4 指纹的按压方式 (8)1.5 设备维护 (8)第二章设备外观及安装说明 (9)2.1 整机结构说明 (9)2.1.1 外观标识 (9)2.1.2 功能键盘说明 (10)2.2 设备安装 (11)2.2.1 安装 (11)2.3 网络连接 (14)2.3.1 网线制作 (14)2.3.2 设备连接拓朴图 (15)第三章基本功能介绍 (16)3.1 终端机主界面说明 (16)3.2 登陆终端机设备管理 (18)第四章菜单功能详细介绍 (19)4.1 常用设置 (19)4.1.1 音量设置 (19)4.1.2 生日提示 (19)4.1.3 继电器输出 (19)4.1.4 本机IP地址 (19)4.1.5 联机设置 (20)4.1.6 界面设置 (20)4.1.7 打铃时间设置 (21)4.1.8 手工对时 (21)4.2 档案管理 (21)4.2.2 新增编号 (21)4.2.3 详细信息 (22)4.2.4 设为管理员 (22)4.2.5 本机拍照 (22)4.2.6 发卡 (22)4.2.7 设定密码 (22)4.2.8 采集指纹 (22)4.3 信息查询 (23)4.3.2 门禁规则查询 (23)4.3.3 操作日志查询 (23)4.3.4 存储空间查询 (23)4.4 识别管理 (23)4.4.1 识别方向设置 (23)4.4.2 识别方式设置 (24)4.4.3 重复识别间隔 (25)4.5 U盘操作 (25)4.5.1 导入档案 (25)4.5.2 导出记录和日志 (25)4.5.3 只导出记录 (25)4.5.4 导出拍照 (25)4.5.5 导入资源 (26)4.5.6 系统升级 (27)4.5.7 备份数据 (27)4.6 高级设置 (27)4.6.1 网络参数设置 (27)4.6.2 拍照管理 (28)4.6.3 设备管理 (28)4.6.4 管理员验证设置 (29)4.6.5 兼容设置 (29)4.6.7 卡头设置 (30)4.7 电源管理 (31)4.7.1 待机休眠时间 (31)4.4.2 定时唤醒 (31)4.4.3 定时休眠 (31)4.4.4 GPRS定时复位 (31)4.4.5 GPRS复位时长 (31)4.4.6 后备电源 (31)4.8 系统维护 (32)4.8.1 系统信息 (32)4.8.2 系统重启 (32)4.8.3 恢复出厂 (32)4.8.4 删除记录 (32)4.8.5 删除拍照 (32)4.8.6 删除多媒体 (32)4.8.7内核升级 (32)4.8.8 时钟调整 (33)第五章管理员常用操作说明 (33)5.1 快速通讯 (33)5.1.1 TCP/IP网络连接 (33)5.1.2 IP地址唯一性测试 (33)5.2 员工身份登记 (34)5.2.1 登记指纹档案 (34)5.2.2 登记卡片档案 (35)5.2.3 登记考勤密码 (35)第六章常见问题 (36)第一章使用须知1.1 注意事项不要将设备安装在温差很大的地方请尽量安装在室内，或者是可以调节温度的地方。
