Cisco Nexus 7000 系列直流电源模块

Cisco Nexus 7000 交换矩阵模块产品概述Cisco Nexus TM7000系列交换机构成一个模块化数据中心级产品系列，适用于高度可扩展的万兆以太网网络，其交换矩阵架构的速度可扩展至15Tbps。

它的设计宗旨是为满足大多数关键任务数据中心的要求，提供持续的系统运营和虚拟化、无所不在的服务。

Cisco Nexus 7000系列建立在一个成熟的操作系统上，其增强特性提供不中断服务情况下的实时系统升级，同时还提供出色的可管理性和可维护性。

它的创新设计专门用于支持端到端数据中心连接，它将IP、存储和IPC（进程间通讯）网络整合到单一以太网交换矩阵上。

适用于Cisco Nexus 7000系列机箱的Cisco Nexus 7000交换矩阵模块（参见图1和图2）是独立的交换矩阵模块，为每个I/O和控制引擎模块插槽提供并行交换矩阵信道。

最多能够同时共用5个激活的交换矩阵模块，提供每插槽高达230 Gbps的带宽。

通过并行转发架构，这五个交换矩阵模块能实现超过8 Tbps的系统容量。

此交换矩阵模块为I/O模块上的完全分布式转发提供中央交换组件。

图1Cisco Nexus 7000 10插槽交换矩阵模块图2Cisco Nexus 7000 18插槽交换矩阵模块特性和优势通过支持1到5个并行激活交换矩阵模块，随需求增长而提高性能，能够实现交换交换矩阵可扩展性。

所有交换矩阵模块都与模块插槽相连。

每添加一个交换矩阵模块，即增加所有模块插槽的带宽，系统支持的上限为5个模块。

该架构支持无丢包交换矩阵故障切换，其余交换矩阵模块会将带宽负载均衡至所有I/O模块插槽，有助于确保平稳降级。

Cisco Nexus 7000 交换矩阵模块与控制引擎和I/O模块的结合，支持虚拟输出队列（VoQ），并为交叉矩阵交换机提供基于信用点的仲裁，以提高分布式转发系统的性能。

当速度不匹配或争用某一上行链路接口时，VoQ和基于信用点的仲裁支持资源的公平共享。

产品资料1 核心交换机Cisco Nexus 7000系列机箱产品概述Cisco Nexus™ 7000系列交换机最大限度地集成可扩展性和运营灵活性。

Cisco Nexus 7000系列交换机是一个模块化数据中心级产品系列，适用于高度可扩展的万兆以太网网络，其交换矩阵架构的速度能扩展至15Tbps以上。

它的设计旨在满足大多数关键任务数据中心的要求，提供永续的系统运营和无所不在的虚拟化服务。

Cisco Nexus 7000系列建立在一个成熟的操作系统上，借助增强特性提供实时系统升级，以及出色的可管理性和可维护性。

它的创新设计专门用于支持端到端数据中心连接，将IP、存储和IPC（进程间通讯）网络整合到单一以太网交换架构之上。

作为第一款数据中心级交换平台，Cisco Nexus 7000系列(图1)提供集成永续性，以及专为数据中心可用性、可靠性、可扩展性和易管理性而优化的特性。

图1. Cisco Nexus 7000系列特性和优势在Cisco® NX-OS软件的支持下，Cisco Nexus 7000系列提供一系列丰富的特性，保证系统的永续运营。

有两种机箱外型可用。

∙前后通风，带10个前面板接入的垂直模块插槽和一个集成电缆管理系统，能够支持新老设施中的安装、运营和冷却。

∙18个前操作模块插槽，具有端到端通风能力，紧凑水平的外型，以及特别设计的集成线缆系统，方便操作并降低复杂性。

∙面向数据中心的高可靠性和最高可用性设计，所有接口和控制引擎模块都采取前面板接入，冗余电源、风扇和交换矩阵模块则完全采用后端接入，以确保维护过程中布线不受影响。

∙系统采用两个专用控制引擎模块；可扩展、完全分布式的交换矩阵架构最多能容纳5个后端安装的交换矩阵模块，配合机箱背板设计，整个系统能提供每插槽最高230 Gbps带宽，使10插槽外型机箱可提供7 Tbps转发能力，18插槽外型机箱可提供15 Tbps转发能力。

∙中板平面设计支持随您的需求变化进行灵活的技术升级，以及提供持续的投资保护。

Nexus Configuration Simple Guide目录Nexu7000缺省端口配置 (2)CMP连接管理处理器配置 (3)带外管理VRF (4)划分Nexus 7010 VDC (5)基于EthernetChannel的vPC (7)割裂的vPC：HSRP和STP (11)vPC的细部配置 (12)Nexus的SPAN (13)VDC的MGMT接口 (13)DOWN的VLAN端口 (13)Nexus的路由 (14)Nexus上的NLB (15)标识一个部件 (15)Nexus7000基本配置汇总 (16)Cisco NX-OS/IOS Configuration Fundamentals Comparison (16)Cisco NX-OS/IOS Interface Comparison (24)Cisco NX-OS/IOS Port-Channel Comparison (30)Cisco NX-OS/IOS HSRP Comparison (35)Cisco NX-OS/IOS STP Comparison (40)Cisco NX-OS/IOS SPAN Comparison (44)Cisco NX-OS/IOS OSPF Comparison (49)Cisco NX-OS/IOS Layer-3 Virtualization Comparison (54)vPC Role and Priority (61)vPC Domain ID (62)vPC Peer Link (62)Configuration for single 10 GigE Card (62)CFSoE (64)vPC Peer Keepalive or FT Link (64)vPC Ports (64)Orphan Ports with non-vPC VLANs (65)HSRP (66)HSRP Configuration and Best Practices for vPC (66)Advertising the Subnet (67)L3 Link Between vPC Peers (67)Cisco NX-OS/IOS TACACS+, RADIUS, and AAA Comparison (68)Nexus5000的配置同步 (73)初始化Nexus 2000 Fabric Module (75)Nexu7000缺省端口配置缺省时所有端口是关闭的no system default switchport shutdowncopy running-config startup-config vdc-all 存配置dir bootflash:dir bootflash://sup-standby/dir bootflash://sup-remoteshow roleshow inventory显示系统详细目录，或称为存货清单，可以看到各组件产品编号以及序列号show hardware 显示系统硬件详细信息show sprom backplane 1 显示交换机序列号show environment power 显示电源信息power redundancy-mode ps-redundant 如果没有双电网供电则使用此模式power redundancy-mode insrc-redundant 如果有双电网供电则使用此模式show module 检验各模块状态attach module slot_numberdir bootflash dir slot0:查看ACTIVE引擎的FLASH空间如果查看备份引擎的FLASH空间呢？首先attach module command to attach to the module number, and then use the dir bootflash: or dir slot0:out-of-service module slot Shutting Down a Supervisor or I/O Moduleout-of-service xbar slot Shutting Down a Fabric Moduleshow environmentshow environment temperatureshow environment fanbanner motd #Welcome to the switch#clock timezoneclock setreload 重启交换机reload module numberswitchto VDC切换至某VDC管理界面switchbackpoweroff module slot_numberno poweroff module slot_numberpoweroff xbar slot_numberCMP连接管理处理器配置CMP配置：You should also configure three IP addresses—one for each cmp-mgmt interface and one that is shared between the active and standby supervisor mgmt 0 interfaces.attach cmp 进入CMP命令输入后自动存盘，不需要copy run start通过NX-OS CLI来配置CMP1. configure terminal2. interface cmp-mgmt module slot 通过module 槽号分别为5/6来实现主备引擎上的CMP配置3. ip address ipv4-address/length4. ip default-gateway i pv4-address5. show running-config cmp通过CMP CLI来配置CMP1. attach cmp2. configure terminal3. ip default-gateway i pv4-address4. interface cmp-mgmt5. ip address ipv4-address/length6. show running-config在CMP上可执行的动作：show cp statereload cpattach cpmonitor cpping or traceroute 192.0.2.15reload system To reload the complete system, including the CMPs带外管理VRFManagement VRF and Basic ConnectivityThe management interface is, by default, part of the management VRF. The management interface “mgmt0” is the only interface allowed to be part of this VRF.The philosophy beyond Management VRF is to provide total isolation for the management trafficfrom the rest of the traffic flowing through the box by confining the former to its own forwarding table.In this step we will:- Verify that only the mgmt0 interface is part of the management VRF- Verify that no other interface can be part of the management VRF- Verify that the default gateway is reachable only using the management VRF如果想Ping 带外网管的网关等地址必须在Ping命令后面加上vrf managementping 10.2.8.1 vrf management划分Nexus 7010 VDCVDC是Nexus7000系列的特色功能。

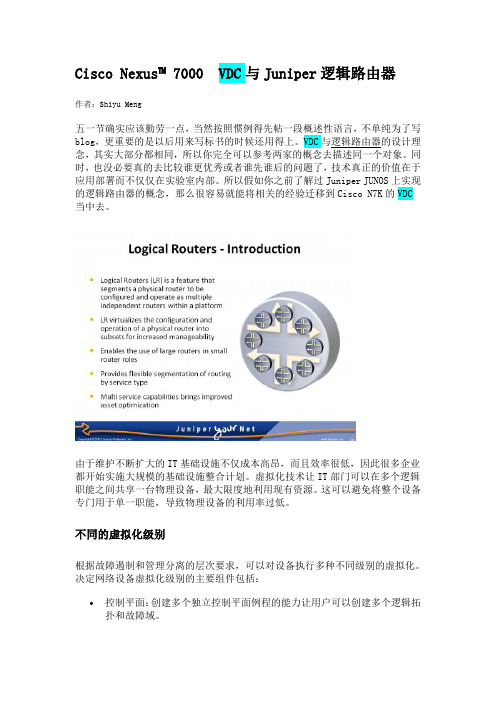

Cisco Nexus™ 7000 VDC与Juniper逻辑路由器作者：Shiyu Meng五一节确实应该勤劳一点，当然按照惯例得先帖一段概述性语言，不单纯为了写blog，更重要的是以后用来写标书的时候还用得上。

VDC与逻辑路由器的设计理念，其实大部分都相同，所以你完全可以参考两家的概念去描述同一个对象。

同时，也没必要真的去比较谁更优秀或者谁先谁后的问题了，技术真正的价值在于应用部署而不仅仅在实验室内部。

所以假如你之前了解过Juniper JUNOS上实现的逻辑路由器的概念，那么很容易就能将相关的经验迁移到Cisco N7K的VDC当中去。

由于维护不断扩大的IT基础设施不仅成本高昂，而且效率很低，因此很多企业都开始实施大规模的基础设施整合计划。

虚拟化技术让IT部门可以在多个逻辑职能之间共享一台物理设备，最大限度地利用现有资源。

这可以避免将整个设备专门用于单一职能，导致物理设备的利用率过低。

不同的虚拟化级别根据故障遏制和管理分离的层次要求，可以对设备执行多种不同级别的虚拟化。

决定网络设备虚拟化级别的主要组件包括：控制平面：创建多个独立控制平面例程的能力让用户可以创建多个逻辑拓扑和故障域。

∙数据（或者转发）平面：用户可以通过对转发表和其他数据库进行分区，实现数据隔离。

∙管理平面：可以为每个虚拟设备独立提供精简的管理环境。

∙软件分区：可以将模块化软件进程合并到专门用于特定虚拟设备的分区之中，从而创建明确定义的故障域。

∙硬件组件：用户可以对硬件组件进行分区，将某个分区专门用于特定的虚拟设备，从而以可预测的方式，将硬件资源分配给不同的虚拟设备。

系列可以通过虚拟交换机技术（VDC），支持所有这些不同对于虚拟化的需求计算、存储和网络基础设施资源的容量和功耗在最近几年中大幅增加。

与此同时，对于这些资源的需求也在不断增长。

这两个因素导致分布式基础设施资源的迅速扩散，但同时也使得一些过剩的、没有得到充分利用的基础设施容量散布于整个网络之中。

产品手册Cisco Nexus 7000 系列交换机产品概述Cisco Nexus® 7000 系列交换机兼具高水平的可扩展性和操作灵活性。

Cisco Nexus 7000 系列交换机为思科®统一交换矩阵奠定了坚实的基础。

该系列是一个模块化数据中心级产品系列，其交换矩阵架构的速度能扩展至 17 Tbps 以上，专为高度可扩展的 1/10/40/100 Gb 以太网网络而设计打造。

为了满足大多数关键任务数据中心的需求，这些交换机可持续为客户提供各种系统运行、虚拟化及综合性服务。

Cisco Nexus 7000 系列以业界认可的 Cisco NX-OS 软件操作系统为基础，具有多种强化功能，可凭借出众的可管理性和适用性，完成实时系统升级任务。

作为下一代交换平台的佼佼者，Cisco Nexus 7000 系列（图 1）具有集成的恢复力和若干专门针对数据中心优化的功能，实现可用性、可靠性、可扩展性和管理简便性。

图 1. Cisco Nexus 7000 系列特性和优势Cisco Nexus 7000 系列融合了 Cisco NX-OS，可提供全套功能，并且可在以下四种外形的机箱内实现不间断运行：●18 插槽机箱，机箱具有紧凑的卧式外形，内置 18 个前插式模块插槽和侧端气流通道，且设有专用的集成电缆管理系统。

●10 插槽机箱，内置 10 个前插式立式模块插槽与自前而后的气流通道，且设有集成电缆管理系统。

●9 插槽机箱，机箱具有紧凑的卧式外形，内置 9 个前插式模块插槽和侧端气流通道，且设有专用的集成电缆管理系统。

● 4 插槽机箱，机箱具有小巧的外形，均为前插式模块插槽及侧端到后端的气流通道，且设有专用的集成电缆管理系统。

4插槽机箱、9 插槽机箱、10 插槽机箱和 18 插槽机箱内管理引擎占两个插槽，Cisco Nexus 7000 管理引擎模块旨在使 Cisco Nexus 7000 系列机箱具有可扩展的控制平面和管理功能。

Data SheetCisco Nexus 7700 Platform Power SuppliesThe Cisco Nexus® 7700 platform switches are the latest extension to the modular Cisco Nexus 7000 Series Switches. The Cisco Nexus 7700 switches have operational and feature consistency with the existing Cisco Nexus 7000 Series Switches, using a common system architecture, the same application-specific integrated circuit (ASIC) technology, and the same proven Cisco® NX-OS Software releases.The Cisco Nexus 7700 AC and DC power supply modules (Figures 1 and 2) deliver fault tolerance, high efficiency, load sharing, and hot-swappable power features to the Cisco Nexus 7700 switches. The Cisco Nexus 7700 switches use 3.0-kilowatt (kW) power supplies that are 90 percent efficient or greater, so less power is dissipated as heat, and more power is available to the system to use than with typical power supplies. The high-efficiency 3.0-kW power supplies allow a smaller power configuration and provide flexible power provisioning.The maximum output for the 3.0-kW AC power supplies is 1400 or 3000 watts (W) if input power is 110 or 220 VAC respectively, and the dual input 3.0-kW DC power scale is 1500 or 3000W if one or two inputs respectively are active. Both the AC and DC versions support multiple system-level redundancy options for greater availability. Designed to address high-availability requirements, the power supplies incorporate internal component-level monitoring, temperature sensors, and intelligent remote-management capabilities.The power supplies are fully hot swappable, helping ensure no system interruption during installation or upgrades. They are fitted at the bottom front of the Cisco Nexus 7700 chassis, allowing installation and removal without disturbing the network cabling of the I/O modules.Figure 1. Cisco Nexus 7700 3.0-kW AC Power Supply ModuleFigure 2. Cisco Nexus 7700 3.0-kW DC Power Supply ModuleCisco Nexus 7700 3.0-kW AC Power SupplyThe 3.0-kW AC power supply module for the Cisco Nexus 7700 switch is a single 20-ampere (A) AC input power supply. Connection to high line nominal voltage (220 VAC) will produce a power output of 3000W. Connection to low line nominal voltage (110 VAC) will produce a power output of 1400W. Table 1 shows the available power output for the input options.Table 1. Available Output Based on Input PowerCisco Nexus 7700 3.0-kW DC Power SupplyThe 3.0-kW DC power supply has two isolated input stages, each delivering up to 1500W of output power. Each stage uses a -48V DC connection. The power supply will deliver 1500W when only one input is active and 3000W when two inputs are active.Table 2 shows the available power output for the input options.Table 2. Available Output Based on Input PowerFigure 3 shows the connections to the power supply inputs.Figure 3. Cisco Nexus 7700 3.0-kW DC Power Supply Module Connections and Power RatingsCisco Nexus 7700 Platform Power Supply RedundancyThe power supplies on the Cisco Nexus 7700 chassis provide multiple load sharing and fault tolerance and are hot swappable. A maximum of 2 power supplies are supported on the Cisco Nexus 7700 2-Slot Switch, a maximum of 4 power supplies are supported on the Cisco Nexus 7700 6-Slot Switch, a maximum of 8 power supplies are supported on the Cisco Nexus 7700 10-Slot Switch, and a maximum of 16 power supplies are supported on the Cisco Nexus 7700 18-Slot Switch. The 2, 4, 8, and 16 power supply bays for the 6-slot, 10-slot, and 18-slot Cisco Nexus 7700 platform chassis, respectively, are designed for redundancy and future growth.Use of multiple smaller power supplies provides flexible power provisioning and redundancy in the event of power supply failure. These power supplies also support grid redundancy to allow for grid failure or failure of facility components such as an uninterruptible power supply (UPS) or a circuit breaker.Cisco Nexus 7700 systems can operate in four user-configurable power-redundancy modes, summarized in Table 3, to meet the redundancy needs of the environment.Table 3. Power-Redundancy ModesThe total amount of power available to the Cisco Nexus 7700 switch depends on the type of power supplies installed and the configured power supply redundancy mode. The 3.0-kW AC power supply supports operation with 110 and 220V, which results in different levels of output power for the different redundancy modes. The 3.0-kW DC power supply supports single or dual input, which results in different levels of output power for the different redundancy modes.Features and BenefitsTable 4 summarizes the features and benefits of the Cisco Nexus 7700 3.0-kW AC power supply modules.Table 4. Features and Benefits of Cisco Nexus 7700 3.0-kW AC Power Supply ModulesTable 5 summarizes the features and benefits of the Cisco Nexus 7700 3.0-kW DC power supply modules.Table 5. Features and Benefits of Cisco Nexus 7700 3.0-kW DC Power Supply ModulesProduct SpecificationsTable 6 lists product specifications for the Cisco Nexus 7700 3.0-kW AC and DC power supply modules. Table 7 lists the cable specifications for the AC unit only.Table 6. Product SpecificationsTable 7. 3.0-kW AC Power Supply Cable Specifications* The 3000W power supply operating with single 110 VAC delivers 1400W.Ordering InformationTo place an order, visit the Cisco Ordering homepage. To download software, visit the Cisco Software Center.Table 8 provides ordering information.Table 8. Ordering InformationService and SupportCisco offers a wide range of services to help accelerate your success in deploying and optimizing the Cisco Nexus7700 switches in your data center. Cisco’s innovative services are delivered through a unique combination ofpeople, processes, tools, and partners and are focused on helping you increase operating efficiency and improveyour data center network. Cisco Advanced Services uses an architecture-led approach to help you align your datacenter infrastructure with your business goals and achieve long-term value. Cisco SMARTnet® Service helps youresolve mission-critical problems with direct access at any time to Cisco network experts and award-winningresources. With this service, you can take advantage of the Cisco Smart Call Home service capability, which offersproactive diagnostics and real-time alerts on your Cisco Nexus 7700 switches. Spanning the entire networklifecycle, Cisco services help increase investment protection, optimize network operations, provide migrationsupport, and strengthen your IT expertise. For more information about Cisco Data Center Services, visit/go/dcservices.For More InformationFor more information about the Cisco Nexus 7700 switches, visit the product homepage at/go/nexus7000 or contact your local account representative.Printed in USA C78-729141-05 01/15。

Data SheetCisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet ModuleProduct OverviewThe Cisco Nexus® 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module offers outstanding flexibility and performance, with extensive virtualization and multipath capabilities. The module enables the deployment of high-density, low-latency, scalable data center architectures.The Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module (Figure 1) is the first of the Cisco Nexus 7000 F-Series Ethernet Modules, extending the capabilities of the Cisco Nexus 7000 Series in the data center. Powered by the F1 Forwarding Engine, the module delivers 480 million packets per second (mpps) of distributed Layer 2 forwarding and up to 320 Gbps of data throughput through a custom dedicated forwarding application-specific integrated circuit (ASIC), enabling the creation of extensible data centers. A Cisco Nexus 7000 18-Slot Switch fully populated with Cisco Nexus 32-Port 1 and 10 Gigabit Ethernet Modules has the capability to deliver upto 10.2 terabits per second (Tbps) of switching performance, with a typical power consumption of less than 10 watts (W) per port.Figure 1. Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Fabric ModulePowerful access control list (ACL) processing supports 32,000 per module, ingress and egress, with the ACL entries addressing Layer 2, 3, and 4 fields. The F1 forwarding engine also supports applications requiring port mirroring with integrated hardware support for 16 simultaneous unidirectional switched-port analyzer (SPAN) sessions per module.Additionally, the F1 series delivers integrated hardware support for Fibre Channel over Ethernet (FCoE) and IEEE Data Center Bridging (DCB) features, greatly simplifying the network infrastructure and reducing costs by enabling the deployment of unified data center fabrics to consolidate data center traffic onto a single, general-purpose, high-performance, highly available network.The Cisco Nexus 7000 F-Series modules, when combined with the powerful Cisco® NX-OS Software, deliver Cisco FabricPath multipath Ethernet technologies based on IETF Transparent Interconnection of Lots of Links (TRILL). Cisco FabricPath comprises a set of multipath Ethernet technologies combines the reliability and scalability benefits of Layer 3 routing with the flexibility of Layer 2 Ethernet networks. With Cisco FabricPath, organizations can now build massively scalable, flexible networks that efficiently use available bandwidth between nodes, offering improved network resiliencyCisco FabricPath offers a topology-based Layer 2 routing mechanism that provides an equal-cost multipath (ECMP) forwarding model. Cisco FabricPath implements an enhancement that resolves the MAC address table scalability challenge characteristic of switched Layer 2 networks. Enhanced virtual PortChannel (vPC+) is another technology offered by Cisco FabricPath. Similar to vPC, vPC+ allows the redundant interconnection of the existing Ethernet infrastructure to a Cisco FabricPath fabric without relying on Spanning Tree Protocol.The benefits of Cisco FabricPath include:●Operational simplicity: Cisco FabricPath embeds an autodiscovery mechanism that does not require anyadditional platform configuration. By offering Layer 2 connectivity, this “VLAN anywhere” characteristicsimplifies provisioning and offers workload flexibility across the network.●High resiliency and performance: Since Cisco FabricPath is a Layer 2 routed protocol, it offers stability,scalability, and optimized resiliency along with network failure containment.●Massively scalable fabric: By building a forwarding model on 16-way ECMP, Cisco FabricPath helps preventbandwidth bottlenecks and allows capacity to be added dynamically, without network disruption.The Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module delivers up to 512 ports per chassis, capable of flexibly supporting both Gigabit and 10 Gigabit Ethernet on a per-port basis. Both Small Form-Factor Pluggable (SFP) and SFP+ optics are available for long- and short-haul applications, including Twinax support, for rack-to-rack data center applications, enabling migration and support for numerous deployment scenarios requiring different media types. Table 1 summarizes the features and benefits of the Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module.Table 1. Features and BenefitsFeature BenefitHigh-density 10 Gigabit Ethernet module Offers up to 256 10 Gigabit Ethernet ports in the Cisco Nexus 7000 10-Slot Switch and 512 ports in the Cisco Nexus 7000 18-Slot Switch for efficient and scalable network designsCisco FabricPath technologies based on IETF TRILL With Cisco FabricPath, uses routing principles in the data plane and control plane to bring reliability and scalability to transparent bridging while maintaining flexibility and ease of useUnified fabric support through hardware integration of IEEE DCB capabilities FCoE and support for the IEEE DCB:●Priority-Based Flow Control: IEEE P802.1Qbb●Enhanced Transmission Selection: IEEE P802.1Qaz ●Data Center Bridging Exchange*Ideally suited for deployment inlatency-sensitive applicationsPort-to-port latency as low as 5 microseconds enabling support for critical applicationsInterface flexibility with SFP and SFP+ support Interface flexibility to fulfill any Gigabit Ethernet and 10 Gigabit Ethernet deployment needs, per port, with a variety of media typesEfficient power use combined withhigh performanceExceptionally low power consumption, typically 10W per portVirtual output queuing withcentralized arbitrationEnables fairness when one or more destinations is congested and support for lossless unified fabricLoad sharing across all fabric modules Through its high-availability design, shares bandwidth across all fabric modules simultaneously for optimal performanceDistributed forwarding Through its fully distributed data plane, offers high-performance parallel forwarding at 480 mpps per module Online insertion and removal (OIR) Supports hot insertion and removal for continuous system operationIdentification (ID) LED Through the beacon feature, allows administrators to clearly identify the module for a service condition; portson the I/O module can send beacons as well* Not all Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module features are enabled in the first software release. Refer to the release notes for up-to-date software version information to see what features are supported.Product SpecificationsTable 2 lists the product specifications for the Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module, and Tables 3 and 4 list specifications for pluggable optics.Table 2. Product SpecificationsItem SpecificationsSystemProduct compatibility Supported in all Cisco Nexus 7000 Series chassisSoftware compatibility Cisco NX-OS Software Release 5.1.(1) or later (minimum requirement)Memory 1 GB DRAMFront-panel LEDs ●Status: Green (operational), red (faulty), or orange (module booting)●Link: Green (port enabled and connected), orange (port disabled), off (port enabled and not connected),or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon)●ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged) Programming interfaces ●XML●Scriptable command-line interface (CLI)●Cisco Data Center Network Manager (DCNM) GUINetwork management ●Cisco DCNM 5.1Physical InterfacesConnectivity 32 ports of Gigabit Ethernet and 10 Gigabit Ethernet (SFP or SFP+ pluggable optic modules)Maximum port density 256 ports of Gigabit Ethernet and 10 Gigabit Ethernet for 10-slot chassis512 ports of Gigabit Ethernet and 10 Gigabit Ethernet for 18-slot chassisQueues per port Configurable template-based queuing modes:●Ingress (4q4t and 2q4t)●Egress (1p3q1t, 2p2q1t, 3p1q1t, 2p6q1t, 3p5q1t, and 1p7q1t)Scheduler Deficit-Weighted Round-Robin (DWRR)Up to 9216 bytesJumbo frame support for bridgedand routed packetsForwarding Engine: F1Performance 480-mpps Layer 2 forwarding capacityMAC entries 16,000 per forwarding engine, and up to 256,000 per moduleVLANs 4,000 per forwarding engine, and up to 16,000 per moduleACLs 32,000 per module: 1000 ingress and 1000 egress per sequential port group pairFCoE entries 10,000 per moduleFabric InterfaceSwitch fabric interface 230 Gbps in each direction (460 Gbps full duplex) distributed across five Cisco Nexus 7000 46Gbps/SlotFabric Modules fabric modules320-Gbps switching capacity, per module, in meshed architecturesOIR Online insertion and removalEnvironmentalPhysical dimensions ●Occupies one I/O module slot in a Cisco Nexus 7000 Series chassis●Dimensions (H x W x D): 1.733 x 15.3 x 22.68 in (4.4 x 38.9 x 57.6 cm)●Weight: 15.5 lb with SFP+ and 14 lb without SFP+ moduleMaximum power consumption 385W per moduleMean time between failure (MTBF) ●90,994 hoursEnvironmental conditions ●Operating temperature: 32 to 130°F (0 to 50°C)●Operational relative humidity: 5 to 90%, noncondensing●Storage temperature: -40F to 158°F (-40 to 70°C)●Storage relative humidity: 5 to 95%, noncondensingRegulatory compliance ●EMC compliance●FCC Part 15 (CFR 47) (USA) Class A●ICES-003 (Canada) Class A●EN55022 (Europe) Class A●CISPR22 (International) Class A●AS/NZS CISPR22 (Australia and New Zealand) Class A●VCCI (Japan) Class A●KN22 (Korea) Class A●CNS13438 (Taiwan) Class A●CISPR24●EN55024●EN50082-1●EN61000-3-2●EN61000-3-3●EN61000-6-1●EN300 386Environmental standards ●NEBS criteria levels●SR-3580 NEBS Level 3 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)●Verizon NEBS compliance●Telecommunications Carrier Group (TCG) Checklist●Qwest NEBS requirements●Telecommunications Carrier Group (TCG) Checklist●ATT NEBS requirements●ATT TP76200 level 3 and TCG Checklist●ETSI●ETSI 300 019-1-1, Class 1.2 Storage●ETSI 300 019-1-2, Class 2.3 Transportation●ETSI 300 019-1-3, Class 3.2 Stationary UseSafety ●UL/CSA/IEC/EN 60950-1●AS/NZS 60950Warranty Cisco Nexus 7000 Series Switches come with the standard Cisco one-year limited hardware warranty Table 3. 10 Gigabit Ethernet Interface Distances and Options10 Gigabit Ethernet SFP+ Part Number Wavelength(nanometers [nm])Fiber and CableTypeCore Size (microns) Model Bandwidth(MHz per km)***Cable Distance**SFP-10G-SR 850 Multimode fiber (MMF) ●50.0●50.0●50.0●62.5●62.5 ●400●500●2000●160●200●66m●82m●300m●26m●33mSFP-10G-LRM 1310 MMFSingle-mode fiber(SMF) ●G.652●50●50●62.5●-●400●500●500●300m●100m●220m●220mSFP-10G-LR 1310 SMF ●G.652 - ●10 km SFP-H10GB-CU1M - Twinax cable, 30AWGcable assembly- - ●1mSFP-H10GB-CU3M - Twinax cable, 30AWGcable assembly- - ●3mSFP-H10GB-CU5M - Twinax cable, 24AWGcable assembly- - ●5mSFP-H10GB-ACU7M - Twinax cable, 24AWGcable assembly- - ●7mSFP-H10GB-ACU10M - Twinax cable, 24AWGcable assembly- - ●10m* Minimum cabling distance for –SR, -LRM, -LR, and -ER modules is 2m, according to IEEE 802.3ae.** Links longer than 30 km are considered engineered links according to IEEE 802.3ae.*** Specified at transmission wavelength.Note: See the SFP+ optics data sheet for additional information:/en/US/prod/collateral/modules/ps5455/data_sheet_c78-455693.html.Table 4. Gigabit Ethernet Interface Distances and Options*Gigabit Ethernet SFP Part Number Wavelength (nm) Fiber and CableTypeCore Size (microns) Model Bandwidth(MHz per km)Cable DistanceSFP-GE-S 850 MMF ●50●50●50●62.5●62.5 ●400●500●2000●160●200●500m●550m●1000m●220m●275mMMF**** ●50●50●62.5 ●400●500●500●550m●550m●550mSFP-GE-L 1310SMF G.652 10 kmSFP-GE-Z 1550 SMF G.652 70 to 100 km***** SFP-GE-T Category 5 100mGLC-SX-MM 850 MMF ●50●50●50●62.5●62.5 ●400●500●2000●160●200●500m●550m●1000m●220m●275mMMF**** ●50●50●62.5 ●400●500●500●550m●550m●550mGLC-LH-SM 1310SMF G.652 - 10 kmGLC-ZX-SM 1550 SMF G.652 - 70 to 100 km***** GLC-T - Category 5 - - 100mCWDM-SFP-1470= ** SMF - - -DWDM-SFP-3033= *** SMF - - -* Not all optics are supported in the first software release. Refer to the release notes for up-to-date software version information to see what optics are supported.** Also offered in other wavelengths. See the coarse wavelength-division mulitplexing (CWDM) SFP optics data sheet for additional product numbers and information:/en/US/prod/collateral/modules/ps5455/ps6575/product_data_sheet09186a00801a557c.html.*** Also offered in other wavelengths. See the dense wavelength-division mulitplexing (DWDM) SFP optics data sheet for additional product numbers and information:/en/US/prod/collateral/modules/ps5455/ps6576/product_data_sheet0900aecd80582763.html.**** A mode-conditioning patch is required. Use of an ordinary patch cord with MMF, 1000BASE-LX/LH SFPs, and a short link distance (tens of meters) can cause transceiver saturation, resulting in an elevated bit error rate. In addition, when using the LX/LH SFP with 62.5-micron-diameter MMF, you must install a mode-conditioning patch cord between the SFP and the MMF cable on both the transmit and receive ends of the link. The mode-conditioning patch cord is required for link distances greater than 300m. ***** 1000BASE-ZX SFP can reach up to 100 km by using dispersion-shifted SMF or low attenuation SMF; the distance depends on fiber quality, number of splices, and connectors.Note: See the SFP optics data sheet for additional information:/en/US/prod/collateral/modules/ps5455/ps6577/product_data_sheet0900aecd8033f885.html. Ordering InformationTo place an order, visit the Cisco Ordering homepage. To download software, visit the Cisco Software Center. Table 5 provides ordering informationTable 5. Ordering InformationProduct Name Part NumberNexus 7000 - 32 Port 1G/10G Ethernet Module, SFP/SFP+ (and spare) N7K-F132XP-15N7K-F132XP-15=Service and SupportCisco offers a wide range of services to help accelerate your success in deploying and optimizing Cisco Nexus 7000 Series Switches in your data center. Our innovative services are delivered through a unique combination of people, processes, tools, and partners and are focused on helping you increase operating efficiency and improve your data center network. Cisco Advanced Services uses an architecture-led approach to help you align your data center infrastructure with your business goals and provide long-term value. Cisco SMARTnet® Service helps you resolve mission-critical problems with direct access at any time to Cisco network experts and award-winning resources. With this service, you can take advantage of the Smart Call Home service capability, which offers proactive diagnostics and real-time alerts on your Cisco Nexus 7000 Series Switches. Spanning the entire network lifecycle, Cisco Services helps increase investment protection, optimize network operations, support migration, and strengthen your IT expertise. For more information about Cisco Data Center Services, visit /go/dcservices.For More InformationFor more information about the Cisco Nexus 7000 Series, visit the product homepage at/go/nexus or contact your local account representative.。
