博世CMS7000报警系统用户手册

CMS7000用户手册一 CMS7000安保系统简介-------------------2二 CMS7000安全系统的基本概念及术语-------7三连接报警主机-------------------------16四 CMS7000安装--------------------------18五 CMS7000启动与操作员登录--------------20六 CMS7000参数设置----------------------23七 CMS7000报警主机管理------------------34八 CMS7000用户与防区管理----------------37九 CMS7000报警监控与处理----------------45十 CMS7000巡更管理----------------------55十一 CMS7000数据库安全与备份管理----------63附录： CMS7000快速操作指南------------------------------67___________________CMS7000 User Manual__________________ P/N 48426B Page 11. CMS7000安全防范系统概要1.1 CMS7000安全防范系统组成CMS7000安全防范系统一般由报警传感器，报警主机，通讯模块，输入/输出控制设备以及运行于PC上的CMS7000组成。

目前CMS7000支持DS7400报警主机和DS可视对讲系统。

1.2 CMS7000安全防范系统工作原理CMS7000安全防范系统通过设置在受保护区间的传感器装置接收，诸如：烟雾，红外，开关等报警信号，传送到报警主机；报警主机根据预先设定的报警主机参数判断火警，盗警，紧急状态等报警类型并作出相应报警和控制动作，同时将报警事件通过串行通讯接口传送到运行CMS7000的PC，CMS7000根据用户对逻辑防区的定义对报警主机的报警事件作出相应处理。

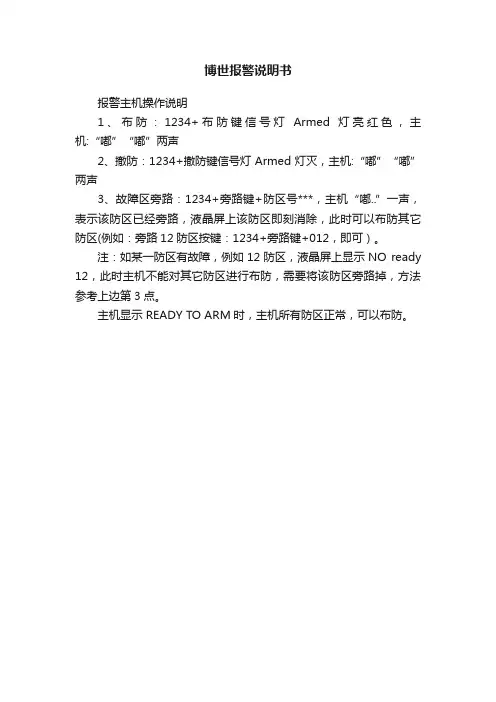

博世报警主机系统的主要一些操作指令博世报警主机系统的主要一些操作指令：1、设防：1234+ON2、撤防：1234+OFF3、进入编程：9876+#+04、退出编程：*按4秒5、恢复出厂值：4058+01编程主要内容：1、综合地址：0000+152、防区编程：0001+21（即时）、0002+22（24小时防区）3、防区表：9号防区：0039（01-为即时防区）、010防区：0040（02-为24小时防区）对应的表格是：009（0039）、010（0040）、011（0041）、012（0042）、0013（0043）等4、防区特性：0419：11（代表是第009和010防区对应的是八防区模块还是单路模块，如添入1则对应是八防区模块，填人0则对应是主板自带防区或单路模块）对应的表格是：009-010（0419）、011-012（0420）、013-014（0421）、015-016（0422）5、取消接地检测：2732+00-------------------------------------------------------------进入编程：9876#0 再输入4058, 再输入01#，听到一声响后，再按住* 键4秒，退出编程。

然后再对应下面的情况，对号入座。

第一种情况：用户只使用本机的八个防区。

（设备：DS7400+DS7447）恢复出厂值后，每个防区的都有一个自身的属性，如果你想全部使用立即防区报警，请将地址：0031—0038（对应1—8防区）地址的内容全部改为03 ，延时就改为01, 24小时防区改为07, 也可以单独的改某一个防区的值。

例：1防区为延时，2、3、4、5、6为立即报警防区，7、8为24小时防区。

9876#0à 0031(01# 1防区) 03#03#03#03#03# (2—6防区) 07#07# （7、8防区）退出编程。

<二> : 简单周界报警，只使用了以下设备：DS7400 + DS7447 + DS7436（DS7430）+ DS7457I由于前八个防区被主机占用，所有外扩展的防区都将从9开始。

德国Bosch博世周界报警系统目录第一节客户需求 (3)第二节防盗报警系统设计依据 (3)第三节：系统概述 (4)3.1设备布置 (5)3.2设备连接 (5)3.3系统供电 (5)第四节：系统功能 (6)4.1报警功能： (6)4.2主要设备性能指标 (6)第一节客户需求周界安全防范报警系统要求做到：1.周界全面设防，无盲区和死角；2.探测设备抗不良天气环境干扰能力强；3.防区划分适于报警时准确定位；4.报警中心具备语音/警笛/警灯提示；5.翻越区域现场报警，可实现同时发出警笛/警灯、警告；6.报警中心可控制前端设备状态的恢复；7.进行报警中心报警状态、报警时间记录；8.可对事件记录进行打印。

第二节防盗报警系统设计依据我公司设计的周界报警系统设计完全符合所有中华人民共和国之条例和规范，包括：1、民用建筑电气设计规范 JGJ/T16-922、中国电气装置安装工程施工及验收规范 GBJ232-823、建筑与建筑群综合布线系统工程设计规范 CECS 72.954、系统接地分型式及安全技术要求 GB14050-935、 IEEE 电气及电子工程师学会－民用建筑闭路技术电视系统工程技术规范6、安全防范工程程序与要求 GA/T75-947、安全防范工程费用概预算编制办法 GA/T70-94第三节：系统概述报警子系统主要由主动红外对射探测器、对射安装支架、报警控制主机、控制键盘、地址编码器、警号、报警电子地图管理软件、电脑以及管线组成。

各报警点可以任意分区，控制其集体或单独布撤防，在电脑上对各报警进行实时监控，该子系统采用先进、成熟的传感技术和信号分析技术，对企图翻越围墙的行为实施打击控制，以确保小区住户的安全。

3.1设备布置目前根据实地情况，在周界安装室外红外对射探测器，共计计16组。

当布防时如果有人侵入则发生报警，实时的将本防范区域的报警信号、警情类型显示到报警主机键盘上，并触发报警信号，使操作人员能及时、准确地掌握警情，及时调动保安人员进行处理。

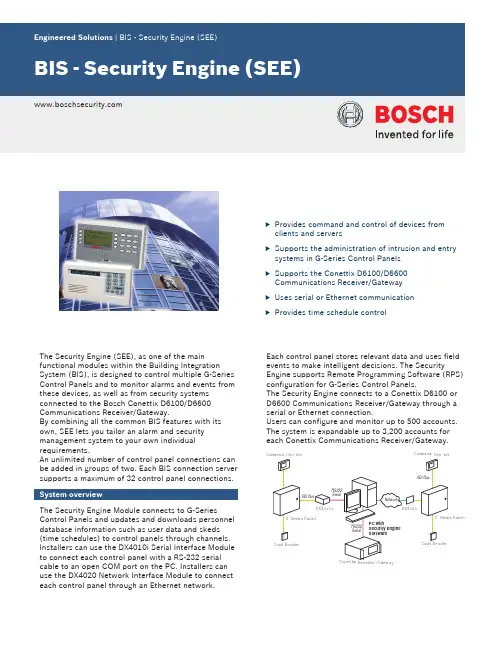

uProvides command and control of devices from clients and serversuSupports the administration of intrusion and entry systems in G-Series Control Panels uSupports the Conettix D6100/D6600Communications Receiver/Gateway u Uses serial or Ethernet communication uProvides time schedule controlThe Security Engine (SEE), as one of the mainfunctional modules within the Building Integration System (BIS), is designed to control multiple G-Series Control Panels and to monitor alarms and events from these devices, as well as from security systems connected to the Bosch Conettix D6100/D6600Communications Receiver/Gateway.By combining all the common BIS features with its own, SEE lets you tailor an alarm and security management system to your own individual requirements.An unlimited number of control panel connections can be added in groups of two. Each BIS connection server supports a maximum of 32 control panel connections.System overviewThe Security Engine Module connects to G-SeriesControl Panels and updates and downloads personnel database information such as user data and skeds (time schedules) to control panels through channels.Installers can use the DX4010i Serial Interface Module to connect each control panel with a RS-232 serial cable to an open COM port on the PC. Installers can use the DX4020 Network Interface Module to connect each control panel through an Ethernet network.Each control panel stores relevant data and uses field events to make intelligent decisions. The SecurityEngine supports Remote Programming Software (RPS)configuration for G-Series Control Panels.The Security Engine connects to a Conettix D6100 or D6600 Communications Receiver/Gateway through a serial or Ethernet connection.Users can configure and monitor up to 500 accounts.The system is expandable up to 3,200 accounts for each Conettix Communications Receiver/Gateway.PC withSecurity Engine SoftwareD X4010iD X4020NetworkRS232SerialRS232SerialSDI BusSDI BusCommand Cen t erConett i x Rece i ver/Ga t ew ayG Ser i es PanelCar d ReaderG Ser i es PanelCar d ReaderCommand Cen t erG Series Control PanelsThe Security Engine supports the following control panels:•D9412GV2 and GV3•D9412G •D7412GV2 and GV3•D7412G •D7212GV2 and GV3•D7212G •D91121•D721211The D9112 and D7212 do not support access controlreaders.NoticeVersion 6.60 or higherThe G-Series Control Panels offer the following features and functions:•Built-in digital communicator with phone line.•Multiple telephone numbers, primary and duplicate paths with main and alternate destinations.•Programmable reports within each of four route groups.•Optional DX4020 network interface module for two-way communication over Ethernet networks.•Automatic test and status reports.Admin9000With Admin9000 the SEE offers additionaladministrative tools integrated into the BIS user interface. This central part of the Security Engine allows administrators to:•Manage a database of human resource information for up to 996 authorized users for each control panel •Change user authorization •Add or delete users•Manage skeds and define scheduled events •Design and print Photo ID badges •Print database reportsAlarm and Event ManagementSupported by the BIS user interface and the common BIS features you have a sophisticated alarm and event management showing the following information during an alarm:•Alarm description (event state)•Alarm date •Alarm time •Alarm location•Panel/detector address (if supported by device)•Operator working on alarm event •Other configurable itemsAlarm information from devices experiencing real-time events (such as door access) and alarm information from internal system events are logged in anintegrated MSDE database that supports Microsoft ®SQL Server ™ software.ReportsSecurity reports from the event log are stored in an HTML table that users can view using InternetExplorer. Other reports are in Crystal Reports ® format that users can view using the Crystal Reports Viewer included in Admin 9000.SEE optional accessoriesThe features listed below can be added optionally to the Security Engine installation.OPC9000 2 panel upgradeExtends the number of controllable G-series panels connected to a BIS Security Engine in steps of two.OPC6600 500 panel upgradeExtends the number of controllable accounts at aConettix D6100/6600 in steps of 500. The maximum is 3,200 accounts.Video-Badging for SEE/Photo ID badge printing optionActivates a component for designing and printing badges and the assignment to cardholders within the Security Engine.Video Verification option for SEEVideo verification extends the security level of your G-series access control system by using additional video equipment. When a reader is in video verificationmode the cardholder is not admitted directly. Instead the reader performs a request for entrance which appears as a message on the operator's screen.An action plan shows the operator the cardholder’s image as stored in the SEE user database inconjunction with a live image from a camera near the entrance/reader that sent the request. The operator compares both images and decides whether or not to open the door manually.Parts includedOrdering InformationSecurity Engine can be ordered in one of two ways:•as an integral part of an initial BIS configuration, inwhich case it is ordered along with a BIS basiclicense.•as an enhancement to an existing BIS configurationSEE 4.1 Basic PackageBasic license for the BIS module specifiedOrder number BIS-FSEE-BPA41SEE 4.1 additional 2 Panels (G Series)License for the addition to BIS of the feature specifiedOrder number BIS-XSEE-2PNL41SEE 4.1 additional 500 Accounts (D6x00)License for the addition to BIS of the feature specifiedOrder number BIS-XSEE-500P41Represented by:Americas:Europe, Middle East, Africa:Asia-Pacific:China:America Latina:Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180***********************.com Bosch Security Systems B.V.P.O. Box 800025617 BA Eindhoven, The NetherlandsPhone: + 31 40 2577 284Fax: +31 40 2577 330******************************Robert Bosch (SEA) Pte Ltd, SecuritySystems11 Bishan Street 21Singapore 573943Phone: +65 6571 2808Fax: +65 6571 2699*****************************Bosch (Shanghai) Security Systems Ltd.203 Building, No. 333 Fuquan RoadNorth IBPChangning District, Shanghai200335 ChinaPhone +86 21 22181111Fax: +86 21 22182398Robert Bosch Ltda Security Systems DivisionVia Anhanguera, Km 98CEP 13065-900Campinas, Sao Paulo, BrazilPhone: +55 19 2103 2860Fax: +55 19 2103 2862*****************************© Bosch Security Systems 2015 | Data subject to change without notice 8776554123 | en, V7, 29. Jun 2015。

1 Safety-related information–Before using this product, carefully read these instructions for use and those of the associated products.–Strictly follow the instructions for use. The user must fully understand and strictly observe the instructions. Use the product only for the purposes specified in the intended use section (see section 3.4).–Do not dispose of the instructions for use. Ensure that they are retained and appropriately used by the product user.–Only trained and competent users are permitted to use this product.–Comply with all local and national rules and regulations associated with this product.–Only specialist, trained personnel are permitted to check, repair and maintain the product as described in these instructions for use and the technical manual. Further maintenance work that is not detailed in these instructions for use or in the technical manual must only be carried out by Dräger or personnel qualified by Dräger. Drägerrecommend a Dräger service contract for all maintenance activities.–Only use genuine Dräger spare parts and accessories when performing maintenance work, or the proper functioning of the product may be impaired.–Do not use a faulty or incomplete product. Do not modify the product.–Notify Dräger in the event of any component fault or failure.2 Conventions in this document2.1 Meaning of the warning notesThe following warning notes are used in this document to notify users of possible dangers. The meanings of the warning notes are defined as follows:2.2 Typographical conventions2.3 Registered trademarksThe trademarks listed are only registered in certain countries and not necessarily in the country in which this material is sold.2.4 Abbreviations3 Description3.1 Product overviewThe Dräger Bodyguard ® 7000 (Fig. 1) is an electronic monitoring system with an integral DSU. The system provides visual and audible information about the status of the breathing apparatus. Visible signals are provided by LEDs in the LED panel and on the LCD screen of the user interface (Fig. 2). Audible signals are emitted from an electronic sounder in the user interface. The audible signals are easily recognized with varying sound patterns to distinguish between different alarm types.The product is configured as a button version (Bodyguard ® 7000) or a tally version (Bodyguard ® 7000T). The main difference between the version types is the functionality of the distress signal unit. The button version can be used with the motion sensor of the automatic distress alarm deactivated. The tally version can only be used with the motion sensor activated.® 7000Fig. 2User interface 3.2 Feature description3.2.1 Power packThe power pack connects to the pressure module to supply power to the electronic monitoring system. The power pack types available forBodyguard ® 7000 have 5 replaceable 1.5 V batteries or a single 6.5 V rechargeable battery.Further details about the power pack and how each type is used is in the maintenance information (see section 6.5).3.2.2 User interfaceThe user interface has an LCD screen which shows the cylinder pressure, the time until the whistle activates, and other operational information. The screen has a backlight which illuminates when a user interface button is pressed, when an alarm activates, and when a status message appears on screen. The LED panel has one green, two blue, and two red LEDs which illuminate or flash to provide operational information.The left-hand and right-hand press buttons are used to control operating features of the electronic system. The button functions are described where applicable in these instructions for use.An internal sounder emits audible signals to notify the user aboutbreathing apparatus alarms and status messages. The sound patterns include continuous alarms and single or multiple tones. The sounder uses the tally slots as amplification chambers to provide clear and loud alarms.3.2.3 Cylinder pressure monitoringThe pressure module is connected to the breathing apparatus pneumatic system through the high-pressure hose. The electronic monitoringsystem displays cylinder pressure and TTW, and provides alarm signals at preset pressure levels.Time to whistleThe TTW is the calculated time in minutes until the EOST alarmactivates. The system uses the breathing apparatus air cylinder pressureand the current consumption rate of the wearer to calculate and display TTW. An initial calculation is made using a default consumption rate of 40 L/min. The calculation is then updated once per second based on the actual consumption rate of the wearer (a minimum consumption rate of 40 L/min is applied to the calculation).At the preset pressure, the EOST alarm commences (see section 4.2.3). The mechanical whistle on the breathing apparatus also commences at approximately the same time.Retreat alertRetreat alert is an alternative warning protocol that is available if it is applicable in the country of use (see section 4.5.5).3.2.4 Distress signal unitThe DSU provides automatic and manual distress alarms. The automatic distress alarm uses an internal motion sensor and timer to measure the time that the wearer has been motionless, in order to indicate that the wearer may be unconscious or trapped. The motion sensor activates a pre-alarm and a full alarm at predetermined intervals when the wearer does not move in excess of normal breathing movement. The manual distress alarm is activated by pressing the manual alarm button to call for help or attention. The alarm activation times are in section 9, and the alarm patterns are in section 4.2.3.A limitation of the automatic distress alarm is that the motion sensor detects movement or vibration to which the wearer is subjected. If the wearer is motionless but on a moving platform (on moving or vibrating machinery for example) the automatic distress alarm might not activate.3.3 Optional features and equipment3.3.1 Dräger PC LinkDräger PC Link is an RF communication device and software application which can read and configure Dräger electronic monitoring systems. Configurable settings and parameters include alarm patterns, warning levels, timings, and the start-up options (see section 4.4.3). Readable information includes the product identification details, the firmware versions, and a datalog (see section 3.3.2).PC Link can also read and write information on user ID cards which are available from Dräger for use with Bodyguard ® 7000 (see section 4.5.2). See the PC Link instructions for use or contact Dräger for more information.®3.3.2 DatalogThe datalog is a record of the event history which is automatically recorded in the system memory. The datalog stores approximately20 hours of the most recent system events (based on typical operational use of the system and the default datalog recording interval of20 seconds). The datalog can be downloaded and viewed using Dräger PC Link.3.3.3 Telemetry (Dräger PSS ® Merlin ®)Dräger PSS ® Merlin ® is a telemetry system which can be used withDräger electronic monitoring systems. When fitted, the telemetry system is used to monitor and control breathing apparatus wearers that aredeployed at an incident. The telemetry system uses radio communication to transmit status and information signals between deployed breathing apparatus wearers and an external entry control board or softwaresystem. See the PSS ® Merlin ® instructions for use or contact Dräger for more information.3.3.4 Head-up displayThe Dräger FPS ® 7000 HUD is a wireless head-up display which can be used with Dräger electronic monitoring systems. The HUD is a battery powered device that fits inside the mask, and has LEDs which display breathing apparatus cylinder pressure and battery status information. See the FPS ® 7000 HUD instructions for use or contact Dräger for more information.3.4 Intended useBodyguard ® 7000 is intended for use as an electronic monitoring system on compatible Dräger breathing apparatus. The monitoring systemprovides accurate cylinder pressure and remaining time information, and activates alarm signals at critical pressures. The integrated DSU provides clear, distinct, and easily recognized alarm signals that indicate wearer immobilization or a call for help or attention.3.5 Use in potentially explosive atmospheresBodyguard ® 7000 is type tested as suitable for use in potentiallyexplosive atmospheres. Electronic sub-assemblies are ATEX certified. All combinations are suitable for use in hazardous areas up to and including zone 0 and zone 20.3.6 Approval informationThe European standards, guidelines, and directives according to which this product is approved are specified in the declaration of conformity (see the declaration of conformity or /product-certificates).In addition, the product conforms with the following regulations.–DSU approval: BS 10999:2010 (specification for distress signal unitsfor the fire and rescue service). The product only conforms with this standard when configured as a tally version.–RF compliance: EN 61000-4-3 CE; and 30 V/m to ISO 11452 Part 2.Alert iconSignal word Consequences in case of non-obervance WARNINGIndicates a potentially hazardous situation. If not avoided, it could result in death or serious may also be used to alert against unsafe prac-tices.NOTICEIndicates a potentially hazardous situation. If not avoided, it could result in damage to the product or environment.►A triangle is used in safety statements to indicate possible ways ofavoiding the hazard.An information symbol is used for notes and additional useful information.1.Numbered paragraphs indicate that the information is sequential.–Dashed paragraphs indicate that the information is non-sequen-tial.Trademark Trademark ownerBodyguard ®DrägerDuracell ®Duracell U.S. Operations, Inc.FPS ®Dräger Merlin ®Dräger PSS ®DrägerAbbreviation ExplanationDSU Distress signal unit EOST End of service time HUD Head-up display ID IdentityLCD Liquid crystal display LED Light-emitting diode RF Radio frequency TTR Time to retreat TTWTime to whistle1User interface 2Connecting cable3Backup battery holder (not used on Bodyguard ® 7000)4Pressure module 5Power pack6High-pressure hose7Cylinder pressure 8Right-hand button 9TTW in minutes 10Tally11LED panel12Manual alarm button 13LCD screen14Left-hand button 15Radial segments123451110987D U。

博世报警主机系统的主要一些操作指令博世报警主机系统的主要一些操作指令：1、设防：1234+ON2、撤防：1234+OFF3、进入编程：9876+#+04、退出编程：*按4秒5、恢复出厂值：4058+01编程主要内容：1、综合地址：0000+152、防区编程：0001+21（即时）、0002+22（24小时防区）3、防区表：9号防区：0039（01-为即时防区）、010防区：0040（02-为24小时防区）对应的表格是：009（0039）、010（0040）、011（0041）、012（0042）、0013（0043）等4、防区特性：0419：11（代表是第009和010防区对应的是八防区模块还是单路模块，如添入1则对应是八防区模块，填人0则对应是主板自带防区或单路模块）对应的表格是：009-010（0419）、011-012（0420）、013-014（0421）、015-016（0422）5、取消接地检测：2732+00-------------------------------------------------------------进入编程：9876#0 再输入4058, 再输入01#，听到一声响后，再按住* 键4秒，退出编程。

然后再对应下面的情况，对号入座。

第一种情况：用户只使用本机的八个防区。

（设备：DS7400+DS7447）恢复出厂值后，每个防区的都有一个自身的属性，如果你想全部使用立即防区报警，请将地址：0031—0038（对应1—8防区）地址的内容全部改为03 ，延时就改为01, 24小时防区改为07, 也可以单独的改某一个防区的值。

例：1防区为延时，2、3、4、5、6为立即报警防区，7、8为24小时防区。

9876#0à 0031(01# 1防区) 03#03#03#03#03# (2—6防区) 07#07# （7、8防区）退出编程。

<二> : 简单周界报警，只使用了以下设备：DS7400 + DS7447 + DS7436（DS7430）+ DS7457I由于前八个防区被主机占用，所有外扩展的防区都将从9开始。

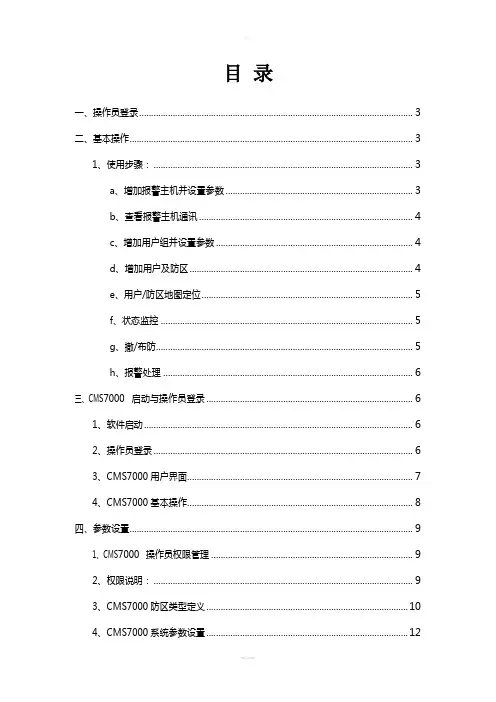

目录一、操作员登录 (3)二、基本操作 (3)1、使用步骤： (3)a、增加报警主机并设置参数 (3)b、查看报警主机通讯 (4)c、增加用户组并设置参数 (4)d、增加用户及防区 (4)e、用户/防区地图定位 (5)f、状态监控 (5)g、撤/布防 (5)h、报警处理 (6)三、C M S7000启动与操作员登录 (6)1、软件启动 (6)2、操作员登录 (6)3、CMS7000用户界面 (7)4、CMS7000基本操作 (8)四、参数设置 (9)1、C M S7000操作员权限管理 (9)2、权限说明： (9)3、CMS7000防区类型定义 (10)4、CMS7000系统参数设置 (12)五、报警主机管理 (13)1、报警主机参数设置 (13)2、主机参数说明 (14)六、用户及防区管理 (16)1、用户组管理 (16)2、用户管理 (16)3、用户属性设置 (17)4、防区管理 (17)七、报警监控管理 (19)1、报警监控 (19)2、报警处理 (20)3、报警历史记录管理 (21)一、操作员登录操作员名称：系统管理员口令：(无初始口令)●系统正式工作时务必将口令设置正确。

●可以在操作员权限管理中修改所以口令,也可以在登录管理中修改当前操作员的口令●如果需要关闭每次操作的口令检查，可以在菜单“参数设置”中“系统参数设置”下选择“登录后不再检查口令”项有效并保存。

●软件运行时不允许插拔软件加密锁，软件锁的安装与卸除必须关闭计算机电源。

二、基本操作所有功能可在系统菜单中选择，也可使用窗口下方的工具栏。

单击鼠标右键可弹出操作菜单，双击某些表格将显示详细资料。

参数设置时可单击参数设置向导工具栏按钮。

1、使用步骤：a、增加报警主机并设置参数激活报警主机窗口，增加报警主机并输入报警主机名称，选择串行口编号及设置连接参数(与报警主机实际设置对应)，输入报警主机最大防区范围，输入报警主机最大分区范围，输入其它参数，确定保存。
