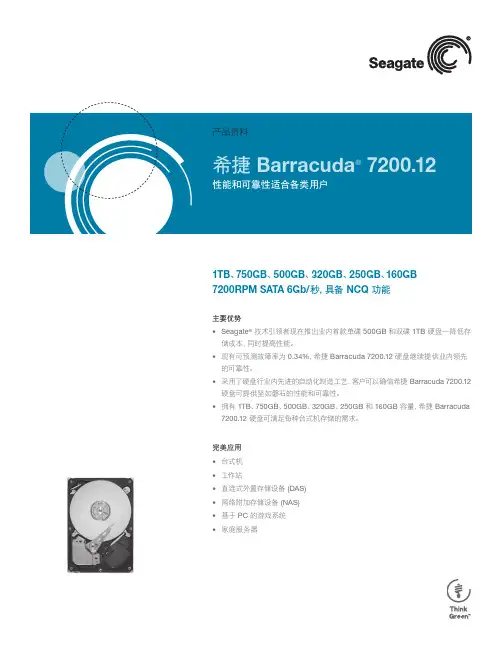

1TB、750GB、500GB、320GB、250GB、160GB7200RPM SATA 6Gb/秒，具备 NCQ 功能主要优势•Seagate®技术引领者现在推出业内首款单碟 500GB 和双碟 1TB 硬盘—降低存储成本，同时提高性能。
•现有可预测故障率为 0.34%，希捷 Barracuda 7200.12 硬盘继续提供业内领先的可靠性。
•采用了硬盘行业内先进的自动化制造工艺，客户可以确信希捷 Barracuda 7200.12 硬盘可提供坚如磐石的性能和可靠性。
•拥有 1TB、750GB、500GB、320GB、250GB 和 160GB 容量，希捷 Barracuda 7200.12 硬盘可满足每种台式机存储的需求。
完美应用•台式机•工作站Array•直连式外置存储设备 (DAS)•网络附加存储设备 (NAS)•基于 PC 的游戏系统•家庭服务器希捷 Barracuda ®7200.12性能和可靠性适合各类用户美洲地区 Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066, United States, +1 831-438-6550亚太地区Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, +65-6485-3888欧洲、中东和非洲地区Seagate Technology SAS 16–18 rue du Dôme, 92100 Boulogne-Billancourt, France, +33 1-4186-10-00© 2011 希捷公司版权所有。
保留所有权利。
Seagate 、Seagate Technology 和 Wave 标识是希捷公司的注册商标。
1.希捷（Seagate）1999年1月1号后生产的IDE系列其编号都为以下格式：ST <1> <2、3、4、5> <6、7> <8、9、10>ST代表“Seagate”，代表希捷公司产品，这在任何一款希捷硬盘产品编号的开头都有。
<1>代表硬盘外形。
“1”代表3.5英寸全高硬盘，“3”代表3.5英寸半高硬盘，“4”代表现在已被淘汰的5.25英寸硬盘。
<2、3、4、5>由3到4位数字组成，代表硬盘容量，单位为100MB。
例如“1200”代表这块硬盘的容量为100MB×1200=120GB，“800”则代表容量为80GB。
<6、7>代表硬盘标志，它由主标志和副标志组成：第一个数字为主标志，在普通IDE硬盘中代表盘片数。
例如“2”即代表该硬盘内采用了2张盘片。
第二个数字为副标志，即硬盘的辅助标志。
只有当主标志相同或无效时，副标志才有效。
一般用它来表示硬盘的代数，数字越大表示代数越高，也就是说此款硬盘越新。
<8、9、10>由1到3个字母组成，代表硬盘接口类型。
普通桌面硬盘的较为简单，但如果包括现在和早期的SCSI硬盘，其含义就较为复杂了，这里只介绍目前主流的桌面硬盘：“A”代表Ultra ATA，即普通IDE/EIDE接口，这是大多数桌面硬盘所采用的接口类型；“AS”代表Serial ATA150，即串行ATA 1.0硬盘接口。
如图所示，ST3120023AS表示希捷公司的3.5英寸，采用2张硬盘盘片、容量为120GB，末尾的AS说明这是最新的采用串行ATA接口并带有8MB缓存的酷鱼5。
此外，硬盘上印刷的其它字符也可以带给我们一些有用的信息，例如“7200.7”即说明这是希捷新推出的单碟80GB的硬盘产品。
另外，还有最新的“Barracuda 7200.7 Plus”系列产品，该系列产品全部采用8MB大容量缓存，采用Serial ATA 150接口或者Ultra ATA 100接口，目前只有120GB和160GB这两种。
FEBRUARY 2012Quick-Refere nce Guide LAPTOP, DESKTO P AND CE DRIVESSeagate Partner Program MembersVisit the Sales Tools section to access the latestproduct roadmap, end-of-life schedule and product information. DistributorsEMEA SPP Support00-800-6890-8282US Sales Support1-800-SEAGATE or 1-405-324-4700Visit for more information or call 1-800-SEAGATE (1-800-732-4283) © 2012 Seagate Technology LLC. All rights reserved. Printed in USA. Seagate, Seagate Technology and the Wave logo are registered trademarks ofSeagate Technology LLC in the United States and/or other countries. Barracuda, FAST Factor, G-Force Protection, Pipeline, SmartAlign, SV35 Series and Momentus are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated com-panies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their respective owners. When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryp-tion may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit ). Seagate reserves the right to change, without notice, product offerings or specifications. QR502.9-1202US, February 2012CONTINUEDFEBRUARY 2012Quick-Reference GuideLAPTOP, DESKTOP AND CE DRIVESNew Seagate Model Number KeyDesktop, laptop and CEST 500 DX 001BRANDCAPACITYSEGMENTATTRIBUTES2 letters ST= Seagate MX= Maxtor2 to 4 digits 80 = 80GB 500 = 500GB 1500 = 1500GB Capacities >9999GB: 10 = 10TB 15 = 15TB2 lettersDX = Desktop Premium DM = Mainstream DL = Entry LevelLX = Laptop Premium LM = Laptop Mainstream LT = Laptop Thin VX = Surveillance VM = DVR VT = DVR Thin3 digits, non-intelligent Varies for:Z-heights Form Factor RPM Cache Interface SED, FIPS Drop Sensor Interface SpeedView a brief training presentation on how our model number format has changed at /seagate/ModelNumber2 See FIPS 140-2 Level 2 Certificate at /groups/STM/cmvp/documents/140-1/1401vend.htm.3 7mm z-height expanded to 9.5mm enables compatibility with standard laptop chassis.4 Seagate ships this drive in both 4K- and 512-byte sectors. SmartAlign technology is included on 4K sector drives. Both drives are functionally and physically equivalent.。

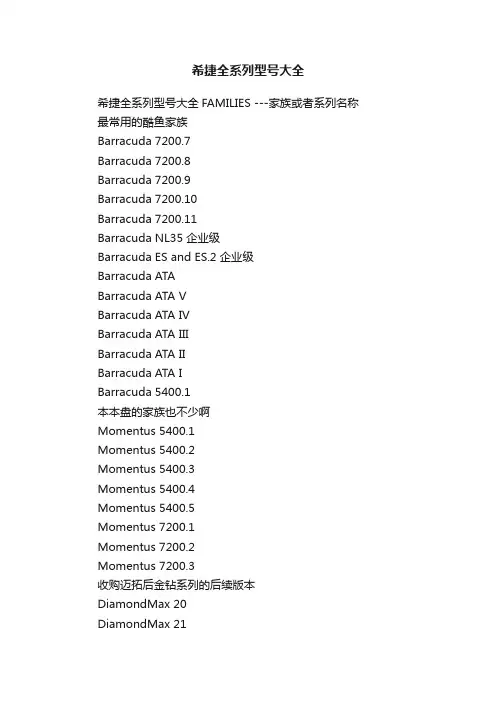

希捷全系列型号大全希捷全系列型号大全FAMILIES ---家族或者系列名称最常用的酷鱼家族Barracuda 7200.7Barracuda 7200.8Barracuda 7200.9Barracuda 7200.10Barracuda 7200.11Barracuda NL35 企业级Barracuda ES and ES.2 企业级Barracuda ATABarracuda ATA VBarracuda ATA IVBarracuda ATA IIIBarracuda ATA IIBarracuda ATA IBarracuda 5400.1本本盘的家族也不少啊Momentus 5400.1Momentus 5400.2Momentus 5400.3Momentus 5400.4Momentus 5400.5Momentus 7200.1Momentus 7200.2Momentus 7200.3收购迈拓后金钻系列的后续版本DiamondMax 20DiamondMax 21DiamondMax 22CheetahMedalistMomentus所有的U系列，以前用得多，估计以后可能会淘汰了吧U series 5U series XU Series 9U4U6U8U Series X 10U10服务器用的10000和15000转的Cheetah 10K.7 Fibre ChannelCheetah 10K.7 Ultra320 SCSICheetah 10K.6Cheetah 15K.4NL35 SeriesCheetah 15K.32.5寸的10000和15000转的，这个比较猛，好像也就富士通和日立有相当的产品吧！Savvio 10K.2Savvio 15K酷鱼系列，好庞大的一个家族啊，其中有企业级的，大家注意了Barracuda 7200.7 PATA/SATA出货量最大的一个系列了吧，目前为止ST3200822AST3200021AST3160023AST3120026AST3120022AST380013AST380011AST340014AST3200822ASST3160827ASST3160023ASST3160021ASST3120827ASST3120026ASST3120022ASST380817ASST380013ASST380011ASST340111ASST340014ASBarracuda 7200.8 PATA/SATA ST3400832A ST3400632AST3300831AST3300631AST3250823AST3250623AST3200826AST3400832ASST3400632ASST3300831ASST3300631ASST3250823ASST3200826ASBarracuda 7200.9 PATA/SATA ST3500841AS ST3200827ASST3500641ASST3160812ASST3400833ASST3160212ASST3400633ASST3120813ASST3300822ASST3120213ASST3300622ASST3808110ASST3250824ASST3802110ASST3250624ASST3160210ASST3160211ASST3120810ASST3120811ASST3120210ASST3120211ASST3160810ASST3160811ASST3320633ASST3320833ASST340211ASST380211ASST3402111ASST3200827AST3500641AST3160812AST3400833AST3160212AST3400633AST3120814AST3300822AST3120213AST3300622AST3802110AST3250824AST3402111AST3320833AST3160210AST3250624ABarracuda 7200.10 PATA/SATA ST3750640AS ST3300620ASST3750840ASST3300820ASST3500630ASST3250620ASST3500830ASST3250820ASST3400620ASST3200820ASST3400820ASST3320620ASST3250310ASST3160215ASST3160310ASST3160815ASST380815ASST380215ASST3320820ASST3750840AST3750640AST3500630AST3400820AST3400620AST3320820AST3320620AST3300820AST3300620AST3250820AST3250620AST3200820AST3160815AST3160215AST3120815AST3120215AST380815AST380215AST340815AST340215ABarracuda 7200.11 SATA 饱受固件门困扰的一个系列，注定要在酷鱼系列的历史上留下深深的烙印！ST31000340ASST3750330ASST3750630ASST3500320ASST3500620ASST3500820ASST31500341ASST31000333ASST3640323ASST3320613ASST3160813ASBarracuda 7200.12 SATA 不好意思还未统计，请各位帮忙添加，哈哈！Barracuda ES 企业级的，目前活跃在一些比较严酷的环境下使用，比如监控影视编辑等，服务器用得不多吧！ST3750640NSST3750840NSST3500630NSST3500830NSST3400620NSST3320620NSST3320820NSST3250620NSST3250820NSBarracuda ES.2 同上二代di！！ST31000340NSST3750330NSST3500320NSST3250310NSNL35.2ST3500841NSSV35.1ST3250824SVST3500641SVST3500641A VST3250824A VST3160812A VSV35.2ST3250820SVST3320620SVST3500630SVST3750640SVST3250310SVST3750640A VST3500630A VST3320620A VST3250820A VST3160815A VSV35.3ST3500320SVST3750330SVST31000340SVBarracuda ATAST328040AST327240AST320430AST310220AST36810A Barracuda ATA II ST330631A ST320424AST315324AST330630AST310216A Barracuda ATA III ST340824A ST330620AST320414AST315310AST310215A Barracuda ATA IV ST380021A ST360021AST340016AST320011A Barracuda ATA V ST3120023A ST360015AST340017AST380023AST330013AST3120023ASST380023ASST360015AS本本盘亮相了Momentus 42.2 ST9100822A ST9808210AST960821AST9402113AST930219A Momentus 54ST94011AST94811AST92811AMomentus 4200.3ST980811AST960813AST9408116AMomentus 5400.2 PATA/SATA ST9100823A ST9808211AST960822AST9408114AST9308110AST9120821ASST9100824ASST98823ASST96812ASST94813ASST93811ASMomentus 5400.3 PATA/SATA ST9160821A ST9120822AST9100828AST980815AST960815AST940815AST9160821ASST9120822ASST9100828ASST980811ASST960813ASST940814ASMomentus 5400.3 Blade Serve ST9160821SB ST9120822SBST9100828SBST980815SBST960815SBST9402116SBMomentus 5400.2 Blade Serve ST9120821AB ST9100824ABST98823ABST94813ABMomentus 5400.4 SATAST9250827ASST9200827ASST9160827ASST9120817ASMomentus 5400.5 SATAST9320320ASST9250320ASST9200321ASST9160310ASST9120310ASST980310ASMomentus 7200.1 PATA/SATA ST910021A ST980825AST96023AST94015AST910021ASST980825ASST96023ASST94015ASMomentus 7200.2 SATAST9200420ASGST9200420ASST9160823ASGST9160823ASST9120823ASST9100821ASST980813ASGMomentus 7200.3 SATAST9320421ASST9320421ASGST9250421ASST9250421ASGST9160411ASST9160411ASGST9120411ASST9120411ASGST980411ASST980411ASG还有一些不知是哪个系列的3.5寸的盘，请各位帮忙甄别一下吧ST310014ST310014AST310210ST310210AST310211ST310211AST310212ST310212AST310215ST310216ST310220ST310221ST310221AST310230ST310231ST310232ST310240ST3107ST312002ST3120020AST3120022ST3120023ST3120023AST3120024AST3120024ST3120025AST3120026ST3120210AST3120213ST3120813ST3120814ST3120827ST3120AST3123A ST31277ST313021 ST313021A ST313030 ST313032 ST313620 ST313623A ST313640 ST3144A ST3145A ST315310 ST315311 ST315311A ST315313 ST315313A ST315320 ST315320A ST315323 ST315323A ST315324 ST315330 ST315330A ST316002 ST3160021 ST3160022A ST3160023 ST3160212 ST3160812 ST3160827 ST317221 ST317221A ST317240 ST317242 ST3195A ST320011 ST320014 ST320015 ST320015A ST3200822 ST3200826 ST3200827 ST320410ST320413 ST320413A ST320414 ST320420 ST320423 ST320423A ST320424 ST320430 ST320440 ST320440A ST3211A ST32167A ST3240A ST3243A ST3250823 ST3250824 ST32530A ST3271A ST327240 ST328040 ST3283A ST3285A ST3290A ST330011 ST330011A ST330012 ST330012A ST330013ST3300622 ST3300831 ST330610 ST330610A ST330620 ST330621 ST330630 ST33440A ST3385A ST340012 ST340012A ST340014 ST340015 ST340015A ST340016ST3400633 ST3400832 ST340111 ST340610A ST340810 ST340810A ST340823 ST340823A ST340824 ST3413A ST3420A ST34250A ST34313A ST34314A ST34348A ST3500641 ST3500A ST351A ST351AX ST351X ST352AX ST360012 ST360012A ST360014 ST360014A ST360015 ST360019 ST360019A ST360020 ST360020A ST360021 ST3600A ST36424A ST36561A ST36811A ST380011 ST380012 ST380012A ST380013 ST380020 ST380020A ST380021 ST380022ST380023 ST380024 ST380024A ST3802110 ST3808110。
Brand Series Market Model SMR/PMR CapacityRPMDisk/HeadSeagate Barracuda Desktop ST500DM009PMR500 GB72001/1 Seagate Barracuda Desktop ST1000DM010PMR 1 TB72001/2 Seagate Barracuda Desktop ST2000DM005SMR 2 TB54001/2 Seagate Barracuda Desktop ST2000DM006PMR 2 TB72003/6 Seagate Barracuda Desktop ST2000DM007PMR 2 TB72002/4 Seagate Barracuda Desktop ST2000DM008SMR 2 TB72001/2 Seagate Barracuda Desktop ST3000DM007SMR 3 TB54002/3 Seagate Barracuda Desktop ST4000DM004SMR 4 TB54002/4 Seagate Barracuda Desktop ST6000DM003SMR 6 TB54003/6 Seagate Barracuda Desktop ST8000DM004SMR8 TB54004/8 Seagate Barracuda Pro Enthusiast ST2000DM009PMR 2 TB72002/4 Seagate Barracuda Pro Enthusiast ST4000DM006PMR 4 TB72004/7 Seagate Barracuda Pro Enthusiast ST6000DM004PMR 6 TB72006/12 Seagate Barracuda Pro Enthusiast ST8000DM005PMR8 TB72006/12 Seagate Barracuda Pro Enthusiast ST8000DM0004PMR8 TB72007/14 Seagate Barracuda Pro Enthusiast ST10000DM001PMR+TDMR10 TB72008/13 Seagate Barracuda Pro Enthusiast ST10000DM0004PMR10 TB72007/14 Seagate Barracuda Pro Enthusiast ST12000DM001PMR+TDMR12 TB72008/15 Seagate Barracuda Pro Enthusiast ST12000DM0007PMR12 TB72008/16 Seagate Barracuda Pro Enthusiast ST14000DM001PMR+TDMR14 TB72008/16 Seagate IronWolf NAS ST1000VN002PMR 1 TB59001/2 Seagate IronWolf NAS ST2000VN004PMR 2 TB59002/4 Seagate IronWolf NAS ST3000VN007PMR 3 TB59003/6 Seagate IronWolf NAS ST4000VN008PMR 4 TB59003/6 Seagate IronWolf NAS ST6000VN001PMR 6 TB54004/8 Seagate IronWolf NAS ST6000VN0033PMR 6 TB72005/10Seagate IronWolf NAS ST8000VN004PMR8 TB72005/10 Seagate IronWolf NAS ST8000VN0022PMR8 TB72006/12 Seagate IronWolf NAS ST10000VN0004PMR10 TB72008/16 Seagate IronWolf NAS ST10000VN0008PMR+TDMR10 TB72008/13 Seagate IronWolf NAS ST12000VN0007PMR12 TB72008/16 Seagate IronWolf NAS ST12000VN0008PMR+TDMR12 TB72008/15 Seagate IronWolf NAS ST14000VN0008PMR+TDMR14 TB72008/16 Seagate IronWolf NAS ST14000VN0008PMR+TDMR14 TB72009/18 Seagate IronWolf NAS ST16000VN001PMR+TDMR16 TB72009/18Seagate IronWolf Pro EnterpriseNASST2000NE0025PMR 2 TB72002/4Seagate IronWolf Pro EnterpriseNASST4000NE0025PMR 4 TB72004/7Seagate IronWolf Pro EnterpriseNASST4000NE001PMR 4 TB72003/6Seagate IronWolf Pro EnterpriseNASST6000NE0021PMR 6 TB72006/12Seagate IronWolf Pro EnterpriseNASST6000NE0023PMR 6 TB72006/12Seagate IronWolf Pro EnterpriseNASST6000NE000PMR 6 TB72004/8Seagate IronWolf Pro EnterpriseNASST8000NE0021PMR8 TB72006/12Seagate IronWolf Pro EnterpriseNASST8000NE001PMR8 TB72005/10Seagate IronWolf Pro EnterpriseNASST8000NE0004PMR8 TB72007/14Seagate IronWolf Pro EnterpriseNASST10000NE0004PMR10 TB72007/14Seagate IronWolf Pro EnterpriseNASST10000NE0004PMR10 TB72008/16Seagate IronWolf Pro EnterpriseNASST10000NE0008PMR+TDMR10 TB72008/13Seagate IronWolf Pro EnterpriseNASST12000NE0007PMR12 TB72008/16Seagate IronWolf Pro EnterpriseNASST12000NE0008PMR+TDMR12 TB72008/15Seagate IronWolf Pro EnterpriseNASST14000NE0008PMR+TDMR14 TB72008/16Seagate IronWolf Pro EnterpriseNASST14000NE0008PMR+TDMR14 TB72009/18Seagate IronWolf Pro EnterpriseNASST16000NE000PMR+TDMR16 TB72009/18Seagate SkyHawk Surveillance ST1000VX005PMR 1 TB59001/2Seagate SkyHawk Surveillance ST2000VX008PMR 2 TB59002/4 Seagate SkyHawk Surveillance ST2000VX012SMR 2 TB54001/2 Seagate SkyHawk Surveillance ST2000VX015SMR 2 TB54001/2 Seagate SkyHawk Surveillance ST2000VP001SMR 2 TB54001/2 Seagate SkyHawk Surveillance ST3000VX009SMR 3 TB54002/4 Seagate SkyHawk Surveillance ST3000VX010PMR 3 TB59003/6 Seagate SkyHawk Surveillance ST4000VX005SMR 4 TB54002/4 Seagate SkyHawk Surveillance ST4000VX013SMR 4 TB54002/4 Seagate SkyHawk Surveillance ST4000VX007PMR 4 TB59003/6 Seagate SkyHawk Surveillance ST4000VP001SMR 4 TB54002/4 Seagate SkyHawk Surveillance ST6000VX001SMR 6 TB54004/8 Seagate SkyHawk Surveillance ST6000VP001SMR 6 TB54004/8 Seagate SkyHawk Surveillance ST6000VP000SMR 6 TB54004/8 Seagate SkyHawk Surveillance ST6000VX0023PMR 6 TB72005/10 Seagate SkyHawk Surveillance ST8000VX002SMR8 TB54004/8 Seagate SkyHawk Surveillance ST8000VX008SMR8 TB54004/8 Seagate SkyHawk Surveillance ST8000VP001SMR8 TB54004/8 Seagate SkyHawk Surveillance ST8000VX0022PMR8 TB72006/12 Seagate SkyHawk Surveillance ST8000VX004PMR8 TB72005/10 Seagate SkyHawk AI AI Surveillance ST6000VE000PMR 6 TB72004/8 Seagate SkyHawk AI AI Surveillance ST8000VE000PMR8 TB72005/10 Seagate SkyHawk AI AI Surveillance ST8000VE0004PMR8 TB72007/14 Seagate SkyHawk AI AI Surveillance ST10000VE0004PMR10 TB72007/14 Seagate SkyHawk AI AI Surveillance ST10000VE0008PMR+TDMR10 TB72008/13 Seagate SkyHawk AI AI Surveillance ST12000VE0008PMR+TDMR12 TB72008/15 Seagate SkyHawk AI AI Surveillance ST12000VE0008PMR+TDMR12 TB72009/16 Seagate SkyHawk AI AI Surveillance ST14000VE0008PMR+TDMR14 TB72008/16Seagate SkyHawk AI AI Surveillance ST14000VE0008PMR+TDMR14 TB72009/18 Seagate SkyHawk AI AI Surveillance ST16000VE000PMR+TDMR16 TB72009/18 Seagate Exos 5E8Enterprise ST8000AS0003SMR8 TB59804/8 Seagate Exos 7E2Enterprise ST1000NM0008PMR 1 TB72002/2 Seagate Exos 7E2Enterprise ST2000NM0008PMR 2 TB72002/4 Seagate Exos 7E8 512n Enterprise ST1000NM000A PMR 1 TB72002/2 Seagate Exos 7E8 512n Enterprise ST2000NM000A PMR 2 TB72002/3 Seagate Exos 7E8 512n Enterprise ST3000NM000A PMR 3 TB72003/6 Seagate Exos 7E8 512n Enterprise ST4000NM000A PMR 4 TB72003/6 Seagate Exos 7E8 512n Enterprise ST6000NM002A PMR 6 TB72005/10 Seagate Exos 7E8 512e Enterprise ST2000NM001A PMR 2 TB72002/3 Seagate Exos 7E8 512e Enterprise ST4000NM002A PMR 4 TB72003/6 Seagate Exos 7E8 512e Enterprise ST6000NM021A PMR 6 TB72004/8 Seagate Exos 7E8 512e Enterprise ST8000NM000A PMR8 TB72005/10 Seagate Exos 7E8 4Kn Enterprise ST2000NM002A PMR 2 TB72002/3 Seagate Exos 7E8 4Kn Enterprise ST4000NM001A PMR 4 TB72003/6 Seagate Exos 7E8 4Kn Enterprise ST6000NM022A PMR 6 TB72004/8 Seagate Exos 7E8 4Kn Enterprise ST8000NM002A PMR8 TB72005/10 Seagate Exos X10 512e Enterprise ST8000NM0206PMR8 TB72007/14 Seagate Exos X10 4Kn Enterprise ST8000NM0136PMR8 TB72007/14 Seagate Exos X10 512e Hyperscale ST8000NM0016PMR8 TB72007/14 Seagate Exos X10 4Kn Hyperscale ST8000NM0006PMR8 TB72007/14 Seagate Exos X10 512e Enterprise ST10000NM0086PMR10 TB72007/14 Seagate Exos X10 4Kn Enterprise ST10000NM0146PMR10 TB72007/14 Seagate Exos X10 512e Hyperscale ST10000NM0016PMR10 TB72007/14 Seagate Exos X10 4Kn Hyperscale ST10000NM0006PMR10 TB72007/14 Seagate Exos X12Enterprise ST12000NM0007PMR12 TB72008/16Seagate Exos X14Enterprise ST10000NM0478PMR+TDMR10 TB72008/13 Seagate Exos X14Enterprise ST12000NM0008PMR+TDMR12 TB72008/15 Seagate Exos X14Enterprise ST14000NM0008PMR+TDMR14 TB72008/16 Seagate Exos X16 512e Hyperscale ST10000NM001G PMR+TDMR10 TB72009/14 Seagate Exos X16 512e Hyperscale ST12000NM001G PMR+TDMR12 TB72009/16 Seagate Exos X16 512e Hyperscale ST14000NM001G PMR+TDMR14 TB72009/16 Seagate Exos X16 512e Hyperscale ST16000NM001G PMR+TDMR16 TB72009/18 Seagate Exos X16 4Kn Hyperscale ST10000NM009G PMR+TDMR10 TB72009/14 Seagate Exos X16 4Kn Hyperscale ST12000NM007G PMR+TDMR12 TB72009/16 Seagate Exos X16 4Kn Hyperscale ST14000NM010G PMR+TDMR14 TB72009/16 Seagate Exos X16 4Kn Hyperscale ST16000NM008G PMR+TDMR16 TB72009/18 WD Blue Desktop WD5000AZLX PMR500 GB72001/2 WD Blue Desktop WD5000AZRZ PMR500 GB54001/2 WD Blue Desktop WD10EZEX PMR 1 TB72001/2 WD Blue Desktop WD10EZRZ PMR 1 TB54001/2 WD Blue Desktop WD20EZRZ PMR 2 TB54002/4 WD Blue Desktop WD20EZAZ SMR 2 TB54001/2 WD Blue Desktop WD30EZRZ PMR 3 TB54003/6 WD Blue Desktop WD40EZRZ PMR 4 TB54003/6 WD Blue Desktop WD60EZRZ PMR 6 TB54005/6 WD Blue Desktop WD60EZAZ SMR 6 TB54003/6 WD Black Enthusiast WD5003AZEX PMR500 GB72001/1 WD Black Enthusiast WD1003FZEX PMR 1 TB72001/2 WD Black Enthusiast WD2003FZEX PMR 2 TB72003/6 WD Black Enthusiast WD4004FZWZ PMR 4 TB72005/10 WD Black Enthusiast WD4005FZBX PMR 4 TB72005/10 WD Black Enthusiast WD6002FZWZ PMR 6 TB72005/10 WD Black Enthusiast WD6003FZBZ PMR 6 TB72005/10 WD Red NAS WD10EFRX PMR 1 TB54001/2 WD Red NAS WD20EFRX PMR 2 TB54002/4 WD Red NAS WD20EFAX SMR 2 TB54001/2 WD Red NAS WD30EFRX PMR 3 TB54003/6 WD Red NAS WD30EFAX SMR 3 TB54002/3 WD Red NAS WD40EFRX PMR 4 TB54004/8 WD Red NAS WD40EFAX SMR 4 TB54002/4 WD Red NAS WD60EFRX PMR 6 TB54005/10 WD Red NAS WD60EFAX SMR 6 TB54003/6 WD Red NAS WD80EFAX PMR8 TB54005/10 WD Red NAS WD100EFAX PMR10 TB54007/14 WD Red NAS WD101EFAX PMR10 TB54006/12 WD Red NAS WD120EFAX PMR12 TB54008/16 WD Red NAS WD140EFFX PMR+TDMR14 TB54009/18 WD Red Pro Enterprise WD2002FFSX PMR 2 TB72002/4WD Red Pro Enterprise WD4003FFBX PMR 4 TB72003/6 WD Red Pro Enterprise WD6003FFBX PMR 6 TB72004/8 WD Red Pro Enterprise WD8003FFBX PMR8 TB72005/10 WD Red Pro Enterprise WD101KFBX PMR10 TB72007/14 WD Red Pro Enterprise WD102KFBX PMR10 TB72006/12 WD Red Pro Enterprise WD121KFBX PMR12 TB72008/16 WD Red Pro Enterprise WD141KFGX PMR+TDMR14 TB72009/18 WD Purple Surveillance WD10PURZ PMR 1 TB54001/2 WD Purple Surveillance WD20PURZ PMR 2 TB54002/4 WD Purple Surveillance WD30PURZ PMR 3 TB54003/6 WD Purple Surveillance WD40PURZ PMR 4 TB54004/8 WD Purple Surveillance WD60PURZ PMR 6 TB54005/10 WD Purple AI Surveillance WD82PURZ PMR8 TB72005/10 WD Purple AI Surveillance WD101PURZ PMR10 TB72007/14 WD Purple AI Surveillance WD102PURZ PMR10 TB72006/12 WD Purple AI Surveillance WD121PURZ PMR12 TB72008/16 WD Purple AI Surveillance WD140PURZ PMR+TDMR14 TB72009/18 WD Gold Enterprise WD1005FBYZ PMR 1 TB72001/2 WD Gold Enterprise WD2005FBYZ PMR 2 TB72002/4 WD Gold Enterprise WD4003FRYZ PMR 4 TB72003/6 WD Gold Enterprise WD6003FRYZ PMR 6 TB72004/8 WD Gold Enterprise WD8004FRYZ PMR8 TB72005/10 WD Gold Enterprise WD102KRYZ PMR10 TB72006/12 WD Gold Enterprise WD121KRYZ PMR12 TB72008/16 WD Gold Enterprise WD141KRYZ PMR+TDMR14 TB72009/18 Ultrastar DC HA210Enterprise HUS722T1TALE604PMR 1 TB72001/2 Ultrastar DC HA210Enterprise HUS722T2TALE604PMR 2 TB72002/4 Ultrastar DC HC310 512n Enterprise HUS726T4TALA6L4PMR 4 TB72003/6 Ultrastar DC HC310 4Kn Enterprise HUS726T4TALE6L4PMR 4 TB72003/6 Ultrastar DC HC310 512n Enterprise HUS726T6TALA6L4PMR 6 TB72004/8 Ultrastar DC HC310 4Kn Enterprise HUS726T6TALE6L4PMR 6 TB72004/8 Ultrastar DC HC320Enterprise HUS728T8TALE6L4PMR8 TB72005/10 Ultrastar DC HC330Enterprise WUS721010ALE6L4PMR10 TB72006/12 Ultrastar DC HC510 512e Enterprise HUH721008ALE604PMR8 TB72007/14 Ultrastar DC HC510 4Kn Enterprise HUH721008ALN604PMR8 TB72007/14 Ultrastar DC HC510 512e Enterprise HUH721010ALE604PMR10 TB72007/14 Ultrastar DC HC510 4Kn Enterprise HUH721010ALN604PMR10 TB72007/14 Ultrastar DC HC520 512e Enterprise HUH721212ALE604PMR12 TB72008/16 Ultrastar DC HC520 4Kn Enterprise HUH721212ALN604PMR12 TB72008/16 Ultrastar DC HC530Enterprise WUH721414ALE604PMR+TDMR14 TB72009/18 Ultrastar DC HC620 512e Enterprise HSH721414ALE6M4SMR14 TB72008/16 Ultrastar DC HC620 4Kn Enterprise HSH721414ALN6M SMR14 TB72008/16 Ultrastar DC HC620 512e Enterprise HSH721415ALE6M4SMR15 TB72008/16 Ultrastar DC HC620 4Kn Enterprise HSH721415ALN6M SMR15 TB72008/16 Toshiba P300Desktop HDWD105PMR500 GB72001/1 Toshiba P300Desktop HDWD110PMR 1 TB72001/2 Toshiba P300Desktop HDWD120PMR 2 TB72002/4 Toshiba P300Desktop HDWD130PMR 3 TB72003/6 Toshiba P300Desktop HDWD240SMR 4 TB54002/4 Toshiba P300Desktop HDWD260SMR 6 TB54003/6 Toshiba X300Enthusiast HDWE140PMR 4 TB72004/8 Toshiba X300Enthusiast HDWE150PMR 5 TB72005/10Toshiba X300Enthusiast HDWE160PMR 6 TB72006/12 Toshiba X300Enthusiast HDWE180PMR8 TB72006/12 Toshiba X300Enthusiast HDWR11A PMR10 TB72007/14 Toshiba X300Enthusiast HDWR21C PMR12 TB72008/16 Toshiba X300Enthusiast HDWR21E PMR14 TB72009/18 Toshiba N300NAS HDWQ140PMR 4 TB72004/8 Toshiba N300NAS HDWN160PMR 6 TB72006/12 Toshiba N300NAS HDWN180PMR8 TB72006/12 Toshiba N300NAS HDWG11A PMR10 TB72007/14 Toshiba N300NAS HDWG21C PMR12 TB72008/16 Toshiba N300NAS HDWG21E PMR14 TB72009/18 Toshiba V300Video Stream HDWU105PMR500 GB57001/1 Toshiba V300Video Stream HDWU110PMR 1 TB57001/2 Toshiba V300Video Stream HDWU120PMR 2 TB57002/4 Toshiba V300Video Stream HDWU130PMR 3 TB59403/6 Toshiba S300Surveillance HDWT140PMR 4 TB54004/8 Toshiba S300Surveillance HDWT240SMR 4 TB54002/4 Toshiba S300Surveillance HDWT150PMR 5 TB54005/10 Toshiba S300Surveillance HDWT360PMR 6 TB72006/12 Toshiba S300Surveillance HDWT380PMR8 TB72006/12 Toshiba S300Surveillance HDWT31A PMR10 TB72007/14 Toshiba MG04ACA-N Enterprise MG04ACA100N PMR 1 TB72001/2 Toshiba MG04ACA-N Enterprise MG04ACA200N PMR 2 TB72002/4 Toshiba MG04ACA-N Enterprise MG04ACA400N PMR 4 TB72004/8 Toshiba MG04ACA 4Kn Enterprise MG04ACA200A PMR 2 TB72002/4 Toshiba MG04ACA 512e Enterprise MG04ACA200E PMR 2 TB72002/4 Toshiba MG04ACA 4Kn Enterprise MG04ACA300A PMR 3 TB72003/6 Toshiba MG04ACA 512e Enterprise MG04ACA300E PMR 3 TB72003/6 Toshiba MG04ACA 4Kn Enterprise MG04ACA400A PMR 4 TB72004/8 Toshiba MG04ACA 512e Enterprise MG04ACA400E PMR 4 TB72004/8 Toshiba MG04ACA 4Kn Enterprise MG04ACA500A PMR 5 TB72005/10 Toshiba MG04ACA 512e Enterprise MG04ACA500E PMR 5 TB72005/10 Toshiba MG04ACA 4Kn Enterprise MG04ACA50DA PMR 5 TB72006/10 Toshiba MG04ACA 512e Enterprise MG04ACA50DE PMR 5 TB72006/10 Toshiba MG04ACA 4Kn Enterprise MG04ACA600A PMR 6 TB72006/12 Toshiba MG04ACA 512e Enterprise MG04ACA600E PMR 6 TB72006/12 Toshiba MG05ACA 4Kn Enterprise MG05ACA800A PMR8 TB72006/12 Toshiba MG05ACA 512e Enterprise MG05ACA800E PMR8 TB72006/12 Toshiba MG06ACA 4Kn Enterprise MG06ACA600A PMR 6 TB72005/10 Toshiba MG06ACA 512e Enterprise MG06ACA600E PMR 6 TB72005/10 Toshiba MG06ACA 4Kn Enterprise MG06ACA800A PMR8 TB72006/12 Toshiba MG06ACA 512e Enterprise MG06ACA800E PMR8 TB72006/12 Toshiba MG06ACA 4Kn Enterprise MG06ACA10TA PMR10 TB72007/14 Toshiba MG06ACA 512e Enterprise MG06ACA10TE PMR10 TB72007/14 Toshiba MG07ACA 4Kn Enterprise MG07ACA12TA PMR12 TB72008/16 Toshiba MG07ACA 512n Enterprise MG07ACA12TE PMR12 TB72008/16 Toshiba MG07ACA 4Kn Enterprise MG07ACA14TA PMR14 TB72009/18 Toshiba MG07ACA 512n Enterprise MG07ACA14TE PMR14 TB72009/18 Toshiba MG08ACA 4Kn Enterprise MG08ACA16TA PMR+TDMR16 TB72009/18 Toshiba MG08ACA 512n Enterprise MG08ACA16TE PMR+TDMR16 TB72009/18Cap./Disk Density Cache Speed Helium/AirL/ULCycleWorkloadPower-OnPower Op1 TB625 Gb/in²32 MB210 MB/s Air30000055 TB/Y 2400hrs/Y5.3 W1 TB625 Gb/in²64 MB210 MB/s Air30000055 TB/Y 2400hrs/Y5.3 W2 TB1203 Gb/in²256MB190 MB/s Air30000055 TB/Y2400hrs/Y3.7 W1 TB625 Gb/in²64 MB210 MB/s Air30000055 TB/Y 2400hrs/Y8 W1 TB625 Gb/in²64 MB210 MB/s Air30000055 TB/Y 2400hrs/Y8 W2 TB1188 Gb/in²256MB220 MB/s Air30000055 TB/Y2400hrs/Y5.1 W2 TB1203 Gb/in²256MB185 MB/s Air30000055 TB/Y2400hrs/Y3.7 W2 TB1203 Gb/in²256MB190 MB/s Air30000055 TB/Y2400hrs/Y3.7 W2 TB1203 Gb/in²256MB185 MB/s Air30000055 TB/Y2400hrs/Y5.3 W2 TB1203 Gb/in²256MB190 MB/s Air30000055 TB/Y2400hrs/Y5.3 W1 TB651 Gb/in²128MB195 MB/s Air600000180 TB/Y8760hrs/Y6.7 W1.33 TB732 Gb/in²128MB214 MB/s Air600000180 TB/Y8760hrs/Y6.7 W1.33 TB732 Gb/in²256MB214 MB/s Air600000180 TB/Y8760hrs/Y9.0 W1.33 TB732 Gb/in²256MB214 MB/s Air600000180 TB/Y8760hrs/Y9.0 W1.43 TB867 Gb/in²256MB220 MB/s Helium300000300 TB/Y8760hrs/Y6.8 W1.75 TB1058 Gb/in²256MB250 MB/s Helium300000300 TB/Y8760hrs/Y6.9 W1.43 TB867 Gb/in²256MB220 MB/s Helium300000300 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB250 MB/s Helium300000300 TB/Y8760hrs/Y6.9 W1.5 TB923 Gb/in²256MB250 MB/s Helium300000300 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB250 MB/s Helium300000300 TB/Y8760hrs/Y6.9 W1 TB625 Gb/in²64 MB180 MB/s Air600000180 TB/Y 8760hrs/Y3.76 W1 TB613 Gb/in²64 MB180 MB/s Air600000180 TB/Y 8760hrs/Y4.3 W1 TB613 Gb/in²64 MB180 MB/s Air600000180 TB/Y 8760hrs/Y4.8 W1.33 TB810 Gb/in²64 MB180 MB/s Air600000180 TB/Y 8760hrs/Y4.8 W1.5 TB900 Gb/in²256MB190 MB/s Air600000180 TB/Y8760hrs/Y5.3 W1.33 TB732 Gb/in²256MB210 MB/s Air600000180 TB/Y8760hrs/Y8.1 W1.6 TB930 Gb/in²256MB210 MB/s Air600000180 TB/Y8760hrs/Y8.8 W1.33 TB732 Gb/in²256MB210 MB/s Air600000180 TB/Y8760hrs/Y8.8 W1.5 TB923 Gb/in²256MB210 MB/s Helium600000180 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB220 MB/s Helium600000180 TB/Y8760hrs/Y7.8 W1.5 TB923 Gb/in²256MB210 MB/s Helium600000180 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB220 MB/s Helium600000180 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB220 MB/s Helium600000180 TB/Y8760hrs/Y7.8 W1.78 TB1028 Gb/in²256MB210 MB/s Helium600000180 TB/Y8760hrs/Y7.3 W1.78 TB1028 Gb/in²256MB210 MB/s Helium600000180 TB/Y8760hrs/Y7.3 W1 TB651 Gb/in²128MB195 MB/s Air600000300 TB/Y8760hrs/Y6.5 W1.33 TB732 Gb/in²128MB214 MB/s Air600000300 TB/Y8760hrs/Y8.5 W1.6 TB930 Gb/in²256MB214 MB/s Air600000300 TB/Y8760hrs/Y9.0 W1.33 TB732 Gb/in²256MB214 MB/s Air600000300 TB/Y8760hrs/Y8.1 W1.33 TB732 Gb/in²256MB214 MB/s Air600000300 TB/Y8760hrs/Y8.1 W1.6 TB930 Gb/in²256MB214 MB/s Air600000300 TB/Y8760hrs/Y8.1 W1.33 TB732 Gb/in²256MB214 MB/s Air600000300 TB/Y8760hrs/Y8.78 W1.6 TB930 Gb/in²256MB214 MB/s Air600000300 TB/Y8760hrs/Y9.2 W1.43 TB867 Gb/in²256MB214 MB/s Helium600000300 TB/Y8760hrs/Y7.4 W1.43 TB867 Gb/in²256MB214 MB/s Helium600000300 TB/Y8760hrs/Y7.8 W1.5 TB923 Gb/in²256MB250 MB/s Helium600000300 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB250 MB/s Helium600000300 TB/Y8760hrs/Y7.8 W1.5 TB923 Gb/in²256MB250 MB/s Helium600000300 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB250 MB/s Helium600000300 TB/Y8760hrs/Y7.6 W1.75 TB1058 Gb/in²256MB250 MB/s Helium600000300 TB/Y8760hrs/Y7.9 W1.78 TB1028 Gb/in²256MB255 MB/s Helium600000300 TB/Y8760hrs/Y7.6 W1.78 TB1028 Gb/in²256MB255 MB/s Helium600000300 TB/Y8760hrs/Y7.6 W1 TB625 Gb/in²64 MB180 MB/s Air300000180 TB/Y 8760hrs/Y5.6 W1 TB613 Gb/in²64 MB180 MB/s Air300000180 TB/Y 8760hrs/Y5.6 W2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y1.5 TB900 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y3.5 W1 TB613 Gb/in²64 MB180 MB/s Air300000180 TB/Y 8760hrs/Y5.6 W2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y1.33 TB810 Gb/in²64 MB180 MB/s Air300000180 TB/Y 8760hrs/Y5.5 W2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y1.5 TB900 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y5.0 W1.5 TB900 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y5.0 W1.5 TB900 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y5.0 W1.33 TB732 Gb/in²256MB210 MB/s Air300000180 TB/Y8760hrs/Y9.0 W2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y2 TB1186 Gb/in²256MB180 MB/s Air600000180 TB/Y8760hrs/Y1.33 TB732 Gb/in²256MB210 MB/s Air300000180 TB/Y8760hrs/Y9.0 W1.6 TB930 Gb/in²256MB210 MB/s Air300000180 TB/Y8760hrs/Y8.73 W1.6 TB930 Gb/in²256MB235 MB/s Air300000550 TB/Y8760hrs/Y1.6 TB930 Gb/in²256MB235 MB/s Air300000550 TB/Y8760hrs/Y8.73 W1.43 TB867 Gb/in²256MB235 MB/s Helium300000550 TB/Y8760hrs/Y7.2 W1.43 TB867 Gb/in²256MB235 MB/s Helium300000550 TB/Y8760hrs/Y7.2 W1.75 TB1058 Gb/in²256MB250 MB/s Helium300000550 TB/Y8760hrs/Y6.9 W1.75 TB1058 Gb/in²256MB250 MB/s Helium300000550 TB/Y8760hrs/Y6.9 W1.78 TB1028 Gb/in²256MB250 MB/s Helium300000550 TB/Y8760hrs/Y6.71 W1.75 TB1058 Gb/in²256MB250 MB/s Helium300000550 TB/Y8760hrs/Y6.9 W1.78 TB1028 Gb/in²256MB250 MB/s Helium300000550 TB/Y8760hrs/Y6.71 W1.78 TB1028 Gb/in²256MB250 MB/s Helium300000550 TB/Y8760hrs/Y6.71 W2 TB1203 Gb/in²256MB190 MB/s Air300000180 TB/Y8760hrs/Y5.3 W1 TB651 Gb/in²128MB185 MB/s Air600000550 TB/Y8760hrs/Y7.0 W1 TB651 Gb/in²128MB185 MB/s Air600000550 TB/Y8760hrs/Y7.0 W1.33 TB732 Gb/in²256MB225 MB/s Air600000550 TB/Y8760hrs/Y9.91 W1.33 TB732 Gb/in²256MB225 MB/s Air600000550 TB/Y8760hrs/Y9.91 W1.33 TB732 Gb/in²256MB225 MB/s Air600000550 TB/Y8760hrs/Y10.77 W1.33 TB732 Gb/in²256MB225 MB/s Air600000550 TB/Y8760hrs/Y10.77 W1.33 TB732 Gb/in²256MB225 MB/s Air600000550 TB/Y8760hrs/Y12.91 W1.6 TB930 Gb/in²256MB226 MB/s Air600000550 TB/Y8760hrs/Y9.83 W1.6 TB930 Gb/in²256MB226 MB/s Air600000550 TB/Y8760hrs/Y10.89 W1.6 TB930 Gb/in²256MB226 MB/s Air600000550 TB/Y8760hrs/Y11.67 W1.6 TB930 Gb/in²256MB249 MB/s Air600000550 TB/Y8760hrs/Y12.81 W1.6 TB930 Gb/in²256MB226 MB/s Air600000550 TB/Y8760hrs/Y9.83 W1.6 TB930 Gb/in²256MB226 MB/s Air600000550 TB/Y8760hrs/Y10.89 W1.6 TB930 Gb/in²256MB226 MB/s Air600000550 TB/Y8760hrs/Y11.67 W1.6 TB930 Gb/in²256MB249 MB/s Air600000550 TB/Y8760hrs/Y12.81 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.43 TB867 Gb/in²256MB249 MB/s Helium600000550 TB/Y8760hrs/Y8.4 W1.5 TB923 Gb/in²256MB261 MB/s Helium600000550 TB/Y8760hrs/Y7.8 W1.75 TB1058 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y9.8 W1.75 TB1058 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y10 W1.75 TB1058 Gb/in²256MB261 MB/s Helium600000550 TB/Y8760hrs/Y10 W1.78 TB1028 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y9.5 W1.78 TB1028 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y9.5 W1.78 TB1028 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y10 W1.78 TB1028 Gb/in²256MB261 MB/s Helium600000550 TB/Y8760hrs/Y10 W1.78 TB1028 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y9.5 W1.78 TB1028 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y9.5 W1.78 TB1028 Gb/in²256MB245 MB/s Helium600000550 TB/Y8760hrs/Y10 W1.78 TB1028 Gb/in²256MB261 MB/s Helium600000550 TB/Y8760hrs/Y10 W500 GB32 MB150 MB/s Air300000 3.3 W 500 GB64 MB150 MB/s Air300000 3.3 W 1 TB64 MB150 MB/s Air300000 6.8 W 1 TB64 MB150 MB/s Air300000 3.3 W1 TB64 MB147 MB/s Air300000 4.1 W2 TB256180 MB/s Air300000 4.1 W 1 TB64 MB147 MB/s Air300000 4.1 W 1.33 TB64 MB175 MB/s Air300000 4.5 W1.2 TB64 MB170 MB/s Air300000 5.3 W2 TB256180 MB/s Air300000 4.8 W 1 TB64 MB150 MB/s Air300000 6.8 W 1 TB64 MB150 MB/s Air300000 6.8 W 667 GB64 MB164 MB/s Air3000009.5 W 800 GB128128 MB/s Air3000009.1 W 800 GB256256 MB/s Air3000009.1 W 1.2 TB128227 MB/s Air3000009.1 W 1.2 TB256227 MB/s Air3000009.1 W 1 TB64 MB144 MB/s Air600000180 TB/Y 3.3 W1 TB64 MB147 MB/s Air600000180 TB/Y 4.1 W2 TB256180 MB/s Air600000180 TB/Y 4.1 W1 TB64 MB147 MB/s Air600000180 TB/Y 4.1 W2 TB256180 MB/s Air600000180 TB/Y 4.8 W1 TB64 MB150 MB/s Air600000180 TB/Y 4.5 W2 TB256180 MB/s Air600000180 TB/Y 4.8 W1.2 TB64 MB175 MB/s Air600000180 TB/Y 5.3 W2 TB256180 MB/s Air600000180 TB/Y 4.8 W 1.6 TB256198 MB/s Air600000180 TB/Y8.8 W 1.43 TB256210 MB/s Helium600000180 TB/Y 5.7 W 1.67 TB256215 MB/s Air600000180 TB/Y8.4 W 1.5 TB256196 MB/s Helium600000180 TB/Y 6.3 W 1.56 TB512210 MB/s Helium600000180 TB/Y 6.5 W 1 TB64 MB164 MB/s Air600000300 TB/Y7.8 W1.33 TB256217 MB/s Air600000300 TB/Y7.2 W 1.5 TB256238 MB/s Air600000300 TB/Y7.2 W 1.6 TB256235 MB/s Air600000300 TB/Y8.8 W 1.43 TB256240 MB/s Helium600000300 TB/Y 5.7 W 1.67 TB256265 MB/s Air600000300 TB/Y8.4 W 1.5 TB256240 MB/s Helium600000300 TB/Y 6.0 W 1.56 TB512255 MB/s Helium600000300 TB/Y 6.2 W 1 TB64 MB110 MB/s Air300000180 TB/Y 3.3 W 1 TB64 MB145 MB/s Air300000180 TB/Y 4.4 W 1 TB64 MB145 MB/s Air300000180 TB/Y 4.4 W 1 TB64 MB150 MB/s Air300000180 TB/Y 5.1 W 1.2 TB64 MB175 MB/s Air300000180 TB/Y 5.3 W 1.6 TB256245 MB/s Air300000360 TB/Y8.6 W 1.43 TB256245 MB/s Helium300000360 TB/Y 6.3 W 1.67 TB256265 MB/s Air300000360 TB/Y9.0 W 1.5 TB256245 MB/s Helium300000360 TB/Y 6.6 W 1.56 TB512255 MB/s Helium300000360 TB/Y 6.0 W 1 TB128184 MB/s Air6000008.1 W 1 TB128200 MB/s Air6000008.1 W 1.33 TB256255 MB/s Air6000007.0 W 1.5 TB256255 MB/s Air6000007.0 W 1.6 TB256255 MB/s Air6000008.8 W 1.67 TB256262 MB/s Air6000009.2 W 1.5 TB256255 MB/s Helium600000 6.9 W 1.56 TB512267 MB/s Helium600000 6.0 W 1 TB128184 MB/s Air6000008.1 W 1 TB128200 MB/s Air6000008.1 W 1.33 TB256255 MB/s Air6000007.0 W 1.33 TB256255 MB/s Air6000007.0 W 1.5 TB256255 MB/s Air6000007.0 W 1.5 TB256255 MB/s Air6000007.0 W 1.6 TB256255 MB/s Air6000008.8 W 1.67 TB256262 MB/s Air6000009.2 W 1.13 TB256249 MB/s Helium600000 6.8 W 1.13 TB256249 MB/s Helium600000 6.8 W 1.43 TB256249 MB/s Helium600000 6.8 W 1.43 TB256249 MB/s Helium600000 6.8 W 1.5 TB256255 MB/s Helium600000 6.9 W 1.5 TB256255 MB/s Helium600000 6.9 W 1.56 TB512267 MB/s Helium600000 6.0 W 1.75 TB512255 MB/s Helium600000 6.4 W 1.75 TB512255 MB/s Helium600000 6.4 W 1.86 TB512255 MB/s Helium600000 6.4 W 1.86 TB512255 MB/s Helium600000 6.4 W 1 TB64 MB Air300000 6.4 W 1 TB64 MB Air300000 6.4 W 1 TB64 MB Air300000 5.8 W 1 TB64 MB Air300000 6.4 W2 TB 128MB185 MB/s Air60000055 TB/Y2400hrs/Y4.11 W2 TB 128MB185 MB/s Air60000055 TB/Y2400hrs/Y4.46 W1 TB128Air30000011.3 W 1 TB128Air30000011.3 W。
根据硬盘托架可分为热插拔及易插拔两种热插拔硬盘通常用于SAS接口硬盘，由于RAID的冗余性，在运行时单独拔出一块坏的硬盘进行更换不影响整个系统运行的稳定性。
但整个功能必须得到阵列卡及硬盘背板支持。
通常这类架子为有外部扳手。
易插拔硬盘通常就是普通盘体硬盘，不能支持在磁盘阵列系统工作时候的热插拔，通常这类的硬盘架子为蓝色。
速度快服务器使用的硬盘转速快，可以达到每分钟7200或10000转，甚至更高；它还配置了较大(一般为2MB或4MB)的回写式缓存（已经过时，目前台式机硬盘缓存可达64MB！）；平均访问时间比较短；外部传输率和内部传输率更高，采用Ultra Wide SCSI、Ultra2 Wide SCSI、Ultra160 SCSI、Ultra320 SCSI等标准的SCSI硬盘，每秒的数据传输率分别可以达到40MB、80MB、160MB、320MB。
可靠性高因为服务器硬盘几乎是24小时不停地运转，承受着巨大的工作量。
可以说，各硬盘厂商均采用了各自独有的先进技术来保证数据的安全。
为了避免意外的损失，服务器硬盘一般都能承受300G到1000G的冲击力。
使用SCSI接口多数服务器采用数据吞吐量大CPU占有率低的SCSI/SAS硬盘。
SCSI硬盘必须通过SCSI接口才能使用，有的服务器主板集成了SCSI接口，有的安有专用的SCSI接口卡，一块SCSI接口卡可以接7个SCSI设备，这是IDE接口所不能比拟的。
可支持热插拔热插拔（Hot Swap）是一些服务器支持的硬盘安装方式，可以在服务器不停机的情况下，拔出或插入一块硬盘，操作系统自动识别硬盘的改动。
这种技术对于24小时不间断运行的服务器来说，是非常必要的。
当然，目前SATA硬盘也具有了这个功能，对于非关键业务来说，让服务器重启明显比热插拔划算得多（热插拔有损失数据的危险）。
关于4kn硬盘传统硬盘的分区模式是以512byte为一个扇区单位，每个单位之间加入了40byte的ECC效验区,为了提高硬盘使用率现在重新对硬盘格式划分，改为4k一个分区单位单位间ECC效验区增加为100byte，节约了硬盘的容量空间提高了性能。
希捷笔记本硬盘、台式机硬盘和高清存储硬盘希捷合作伙伴项目成员请访问“销售工具”部分以获取最新产品路线图、生命周期终止计划和产品信息。
分销商欧洲、中东和非洲地区希捷合作伙伴项目支持00-800-6890-8282美国销售支持1-800-SEAGATE 或 1-405-324-4700请访问 以获得更多信息或致电 1-800-SEAGATE (1-800-732-4283) © 2013 年希捷科技有限公司版权所有。
保留所有权利。
在美国印刷。
Seagate 、Seagate Technology 和 Wave 标识是希捷科技有限公司在美国和/或其他国家或地区所拥有的商标或注册商标。
Barracuda 、G-Force Protection 、Momentus 、Pipeline HD 、SmartAlign 和 SV35 Series 是希捷科技有限公司或其关联公司在美国和/或其他国家或地区所拥有的商标或注册商标。
FIPS 标识是 NIST 的认证标记，但并不暗示产品经 NIST 、美国或加拿大政府的认可。
所有其他商标或注册商标均是其各自所有者的财产。
在用于衡量硬盘容量时，一千兆字节（或 GB ）等于十亿字节，一兆兆字节（或 TB ）等于一万亿字节。
您的计算机操作系统可能使用不同的衡量标准，因此会报告较低的容量。
此外，一些列出的容量用于格式化和其他功能，因此无法用于数据存储。
实际传输速率可能受操作环境和其他因素影响。
包含加密技术的硬件或软件的出口或复出口会受到美国商务部工业安全局的管控（要了解更多信息，请访问 ）。
希捷保留更改产品类别或规格的权利，届时不再另行通知。
QR502.15-1304CN ，2013 年 4 月希捷笔记本硬盘、台式机硬盘和高清存储硬盘全新希捷型号数字含义台式机硬盘、笔记本硬盘和高清存储硬盘ST 500 DX 001品牌容量用途属性2 个字母ST = 希捷 MX = 迈拓2 到 4 位数80 = 80GB 500 = 500GB 1500 = 1500GB 容量 > 9999GB ： 10 = 10TB 15 = 15TB2 个字母DX = 高端台式机 DM = 主流 DL = 入门级LX = 高端笔记本电脑 LM = 主流笔记本电脑 LT = 薄型笔记本电脑 VX = 监控级 VM = DVR VT = 超薄 DVR3 个数字，非智能反映的属性包括：超薄款外形转速缓存接口SED, FIPS 坠落感应器接口速度如需了解型号格式的变更方式，请参阅列于以下网址的简短培训演示：/seagate/ModelNumber2可在以下网址查看 FIPS 140-2 2 级证书：/groups/STM/cmvp/documents/140-1/1401vend.htm 。
© 2010 年希捷公司版权所有。
保留所有权利。
Seagate、Seagate Technology、Wave 标识、Barracuda、Global Access 以及 BlackArmor 是希捷公司的商标或注册商标。
其他产品名称是各自所有者的注册商标或商标。
在用于衡量硬盘容量时，一兆兆字节（或 TB）等于一万亿字节。
您的计算机操作系统可以使用不同的衡量标准和更低的容量。
此外，一些列出的容量用于格式化和其他功能，因此无法用于数据存储。
包含加密技术的硬件或软件的出口或复出口以及美国以外的进口和使用会受到美国商务部工业安全局的管控（要了解更多信息，请访问 ）。
实际数据传输率与操作环境和其他因素有关。
希捷保留更改产品类别或规格的权利，届时不再另行通知。

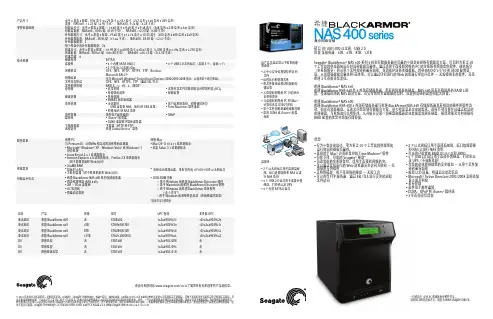

Seagate Technology LLC, 920 Disc Drive, Scotts Valley CA 95066 U.S.A. /cn DS1676.3-1011 CN请访问希捷网站 /cn 以了解更多有关希捷零售产品的信息。
* 包括用于 10 台 PC 的数据备份软件许可。
请到网上购买更多许可，网址为 。
产品尺寸水平 x 垂直 x 厚度 - 9.94 英寸 x 6.29 英寸 x 7.87 英寸（252 毫米 x 160 毫米 x 200 毫米）重量：NAS440 - 15.23 磅（6.90 千克）、NAS400 - 9.26 磅（4.28 千克）零售包装规格包装盒尺寸：水平 x 垂直 x 厚度 － 14.48 英寸 x 9.40 英寸 x 9.48 英寸（368 毫米 x 239 毫米 x 241 毫米）包装盒重量：NAS440 - 18.05 磅（8.19 千克）、NAS400 - 12.70 磅（5.80 千克）外包装箱尺寸：水平 x 垂直 x 厚度 - 19.68 英寸 x 15.74 英寸 x 10.23 英寸（500 毫米 x 400 毫米 x 260 毫米）外包装箱重量：NAS440 - 38.95 磅（17.66 千克）、NAS400 - 28.30 磅（12.57 千克）外包装箱数量：2每个托盘中的外包装箱数量：24托盘尺寸：水平 x 垂直 x 厚度 － 47.99 英寸 x 40.00 英寸 x 48.43 英寸（1,000 毫米 x 1,196 毫米 x 1,230 毫米）托盘重量：NAS440 - 980.61 磅（444.80 千克）、NAS400 - 695.12 磅（315.30 千克）托盘层数：4技术规格硬盘性能连接性网络协议网络验证文件共享协议文件系统管理卷管理硬盘管理备份管理事件管理媒体流下载服务器远程访问SATA II • 4 个内置 SATA II 端口• 2 个 RJ45 以太网 (Gb)CIFS、NFS、HTTP、HTTPS、FTP、Bonjour、Microsoft RALLY ®CIFS、NFS、HTTPS、FTP（通过 SSL/TLS）RAID 0、1、10、5、JBOD*• 共享管理• 卷级别的加密• 多卷管理• SMART 状态监视器• 本地备份 （USB 设备到 NAS，NAS 到 USB 设备）• 网络 NAS 到 NAS 备份事件电子邮件通知• iTunes ® 服务器• DLNA 兼容数字媒体服务器下载器（HTTP 和 FTP）希捷 Global Access ™ 服务• 4 个 USB 2.0 主机端口（后面 3 个，前面 1 个）• 支持共享文件夹级别的访问控制列表 (ACL)• 配额设置• 客户端系统备份、网络裸机恢复• Time Machine ® 软件兼容• UPnP 软件要求网络 PC与 Pentium III、500MHz 相当或更高性能的处理器• M icrosoft ® Windows ® XP、Windows Vista ® 或 Windows ® 7 操作系统• Linux Kernel 2.6.7 或更新版本•I nternet Explorer 6.0 或更新版本、Firefox 2.X 或更新版本 （用于管理界面和 Web 访问）• 256MB RAM 网络 Mac• Mac OS ® X 10.4.11 或更新版本• 苹果 Safari 3.1 或更新版本系统要求• 局域网 (LAN)• 互联网连接（用于系统更新和 Web 访问）• 有线或无线路由器，带有可用的 10/100/1000 以太网端口包装盒中包含• 希捷 BlackArmor NAS 400 系列存储服务器• 四块希捷硬盘 (NAS 440)• 2M － RJ45 连接线• AC 电源线• 快速启动指南• DVD-ROM 带有－ 用于 Windows 的希捷 BlackArmor Discovery 软件 － 用于 Macintosh 的希捷 BlackArmor Discovery 软件 － 用于 Windows 的希捷 BlackArmor 备份软件（10 个许可*）－ 用于 Windows 的系统恢复启动（更换硬盘时需要）*更多许可可供购买可与 Microsoft Windows ® Server Active Directory 2000/2003/2008 集成，以填充多个用户和组。
