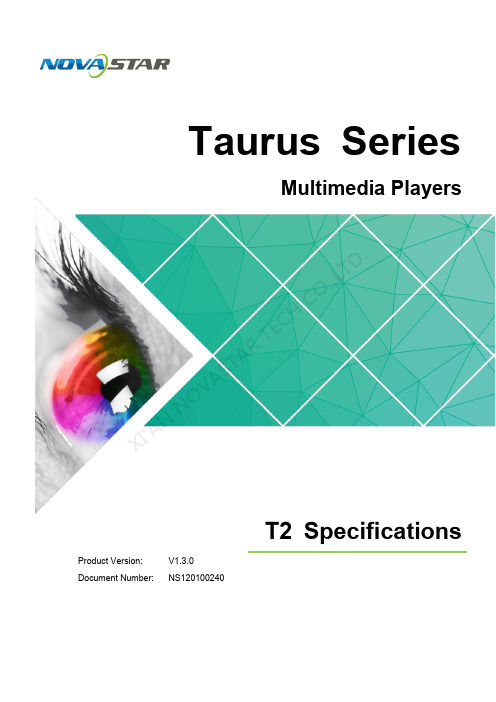

Taurus SeriesMultimedia PlayersT2 SpecificationsProduct Version: V1.3.0 Document Number:NS120100240XI 'AN NOVA ST A R TEC H C O .,L T D .Copyright © 2018 Xi’an NovaStar Tech Co., Ltd. All Rights Reserved.No part of this document may be copied, reproduced, extracted or transmitted in any form or by any means without the prior written consent of Xi’an NovaStar Tech Co., Ltd.Trademarkis a trademark of Xi’an NovaStar Tech Co., Ltd.StatementYou are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice. If you experience any problems in use or have any suggestions, please contact us via contact info given in document. We will do our best to solve any issues, as well as evaluate and implement any suggestions.X I'A NN OV AS TA RT EC HC O.,L TD.Table of ContentsTable of Contents ............................................................................................................................ ii 1 Safety .. (1)1.1 Storage and Transport Safety ..................................................................................................................... 1 1.2 Installation and Use Safety .. (1)2 Overview ......................................................................................................................................... 3 2.1 Introduction .................................................................................................................................................. 3 2.2 Application ................................................................................................................................................... 3 3 Features ........................................................................................................................................... 5 3.1 Powerful Processing Capability ................................................................................................................... 5 3.2 Omnidirectional Control Plan ....................................................................................................................... 5 3.3 Synchronous and Asynchronous Dual-Mode . (6)3.4 Wi-Fi AP Connection ................................................................................................................................... 6 4 Hardware Structure....................................................................................................................... 7 4.1 Appearance ................................................................................................................................................. 7 4.2 Dimensions .................................................................................................................................................. 8 5 Software Structure ...................................................................................................................... 10 5.1 System Software ........................................................................................................................................ 10 5.2 Related Configuration Software .. (10)6 Product Specifications ................................................................................................................ 11 7 Audio and Video Decoder Specifications (13)7.1 Image ......................................................................................................................................................... 13 7.1.1 Decoder .................................................................................................................................................. 13 7.1.2 Encoder .................................................................................................................................................. 13 7.2 Audio .......................................................................................................................................................... 14 7.2.1 Decoder .................................................................................................................................................. 14 7.2.2 Encoder .................................................................................................................................................. 14 7.3 Video .......................................................................................................................................................... 15 7.3.1 Decoder .................................................................................................................................................. 15 7.3.2 Encoder .. (16)X I 'A N NOV A S T A R T E C H C O .,L T D.N O V AS TA RT EC HC O.,L TD.X I' A N1SafetyThis chapter illustrates Taurus series products safety to ensure storage, transportation, installation and usage safety of the products.Safety description is applicable to all personnel that contact or use the products. First, pay attention to following points:● Read throughout the description. ● Save the whole description.●Be complied with the whole description.1.1 Storage and Transport Safety ● Pay attention to dust and water prevention.● Avoid long-term direct sunlight. ● Do not place the products in the position near fire and heat.● Do not place the products in an area containing explosive materials. ● Do not place the products in strong electromagnetic environment. ● Place the products in a stable position to prevent damage or personal injury caused by dropping.●Save the packing box and materials which will come in handy if you ever have to ship your products. For maximum protection, repack your product as it wasoriginally packed at the factory.1.2 Installation and Use Safety● Only trained professionals may install the products.● Do not insert and unplug (power cord plug) when the power is on. ● Ensure the safe grounding of the device. ● Be careful about electric shock risk.● Always wear a wrist band and insulating gloves.● Do not place the products in an area having more or strong shake. ● Perform dust removing regularly.●Rather than having the product disassembled and maintained by non-certified professionals, please contact NovaStar for maintenance at any time.X I 'A N N O V A S T A R T E CHCO .,L T D.Replace faulty parts only with the spare parts supplied by NovaStar.X I'A NN OV AS TA RT EC HC O.,L TD.2Overview2.1 IntroductionTaurus series products are NovaStar's second generation of multimedia players dedicated to small and medium-sized full-color LED displays.T2 of the Taurus series products (herein after referred to as “T2”) feature following advantages, better satisfying users’ requir ements:● Loading capacity up to 650,000 pixels ● Powerful processing capability ● Omnidirectional control plan ● Synchronous and asynchronous dual-mode●Wi-Fi AP connectionIn addition to solution publishing and screen control via PC, mobile phones and LAN, the omnidirectional control plan also supports remote centralized publishing and monitoring.2.2 Application Taurus series products can be widely used in LED commercial display field, such asbar screen, chain store screen, advertising machine, mirror screen, retail store screen, door head screen, on board screen and the screen requiring no PC. Classification of Taurus’ application cases is shown in Table 2-1. Table 2-1 ApplicationXI 'A N N O V A S T A R T E C HCO .,L T D.X I'A NN OV AS TA RT EC HC O.,L TD.3Features3.1 Powerful Processing Capability● 1.2 GHz four-core processor● Support for 1080P video hardware decoding ● 1 GB operating memory●8 GB on-board internal storage space with 4 GB available for users3.2 Omnidirectional Control PlanTable 3-1 Control PlanCluster control plan is a new internet control plan featuring following advantages:E C HCO .,L T D.●More efficient: Use the cloud service mode to process services through a uniform platform. For example, VNNOX is used to edit and publish solutions, and NovaiCare is used to centrally monitor display status.● More reliable: Ensure the reliability based on active and standby disaster recovery mechanism and data backup mechanism of the server.● More safe: Ensure the system safety through channel encryption, data fingerprint and permission management.● Easier to use: VNNOX and NovaiCare can be accessed through Web. As long as there is internet, operation can be performed anytime and anywhere. ●More effective: This mode is more suitable for the commercial mode of advertising industry and digital signage industry, and makes information spreading more effective.3.3 Synchronous and Asynchronous Dual-ModeThe T2 supports synchronous and asynchronous dual-mode, allowing more application cases and being user-friendly.When internal video source is applied, the T2 is in asynchronous mode; when HDMI-input video source is used, the T2 is in synchronous mode. Content can be scaled and displayed to fit the screen size automatically in synchronous mode. Users can manually and timely switch between synchronous and asynchronous modes, as well as set HDMI priority.3.4 Wi-Fi AP Connection The T2 has permanent Wi-Fi AP. The SSID is "AP + the last 8 digits of the SN ", for example, "AP10000033", and the default password is "12345678". The T2 requires no wiring and users can manage the displays at any time by connecting to the T2 via mobile phone, Pad or PC.T2’s Wi -Fi AP signal strength is related to the transmit distance and environment.Users can change the Wi-Fi antenna as required.XI 'AN NOVAS TAR T E C HCO .,L T D.4Hardware Structure4.1 AppearanceFigure 4-1 Appearance of T2Note: Product images provided in this file are for reference only, and the actual products shall prevail.Table 4-1 Connectors and buttons of the T2XI 'AN NOVA S TAR T E C HCO .,L T D.Note: Product images provided in this file are for reference only, and the actual products shall prevail. Table 4-2 Indicators of the T2 4.2 DimensionsThe total thickness (board thickness + thickness of the components on the front and back side) is no greater than 15.5 mm.Unit of the dimension chart is “mm”. Ground connection is enabled for location hole (GND).D.N O V AS TA RT EC HC O.,L TD.X I' A N5Software Structure5.1 System Software● Android operating system software ● Android terminal application software ●FPGA programNote: The third-party applications are not supported.5.2 Related Configuration SoftwareTable 5-1 Related configuration softwareE C HCO .,L T D.6 Product Specifications SpecificationsAntennaAntenna extension mastX I'A NN OV AS TA RT EC HC O.,L TD.7Audio and Video DecoderSpecifications7.1 Image7.1.1 Decoder7.1.2 EncoderO .,L T D.7.2 Audio 7.2.1 Decoder7.2.2 Encoder7.3 Video 7.3.1 DecoderNote:Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264.7.3.2 EncoderXI 'AN NOVA S。
VX6sAll-in-One Video ControllerDocument Version: V1.0.0Document Number: NS160100264SpecificationsXI'A NN O VAS TA RT E CH CO.,L T D .Copyright © 2018 Xi’an NovaStar Tech Co., Ltd. All Rights Reserved.No part of this document may be copied, reproduced, extracted or transmitted in any form or by any means without the prior written consent of Xi’an NovaStar Tech Co., Ltd.Trademarkis a trademark of X i’an NovaStar Tech Co., Ltd.StatementYou are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice. Any problem in use or any good suggestion, please contact us through ways provided in the document. We will do our utmost to solve the problems and adopt the suggestions after evaluation as soon as possible. Website: www.novastar.techX I 'A NN OV AS TA RT EC HC O.,LT D.1 Overview The VX6s is an all-in-one video controller that integrates sending card functions with video processing. Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ethernet outputs.Based on the powerful FPGA processing platform, the VX6s supports multiple switching effects, such as quick seamless switching and fade, providing flexible screen control experience and outstanding video presentations.X I 'A NN OV AS TA RT EC HC O.,LT D.2 Features●Features 7 input connectors: 2 × 3G-SDI, 2 × HDMI1.3, 2 × DVI, 1 × USB.●Supports 3 × layers and 1 × OSD.●Supports quick and advanced screen configurations.●Switches the PVW to PGM by pressing only the TAKE button in the switchermode.●Supports PGM preview in the switcher mode.●Supports adjustment of input resolutions and backup of input source.●Supports brightness adjustment of the screen loaded by the VX6s.●Multiple VX6s units can be cascaded.●Automatically scales the image to fit the whole screen.●The maximum video output width is 4096 pixels.● A total of 16 user presets can be created and saved as templates. The templatescan be used directly and conveniently.●Any HDMI or DVI input source can be used as the synchronization signal toachieve vertical synchronization of output.●Features an intuitive OLED screen and clear button indicator lights in the frontpanel, simplifying system control and operation.X I 'A NN OV AS TA RT EC HC O.,LT D.3 Appearance Front PanelX I 'AC HC O.,LT D.Rear PanelXI'A .,LX I 'A NN OV AS TA RT ECSpecifications 4 Dimensions4 DimensionsUnit: mmX I 'A NN OV AS TA RT EC HC O.,LT D.Specifications 5 Applications5 ApplicationsX I 'A NN OV AS TA RT EC HC O.,LT D.。
Taurus 系列 多媒体播放器TB60规格书诺瓦联网媒体播放器软件V8.0西安诺瓦星云科技股份有限公司更新记录简介TB60是诺瓦针对LED 全彩显示屏推出的新一代多媒体播放器，集播放和发送功能为一体，可通过PC 、手机、Pad 等多种用户终端进行节目发布和显示屏控制，并且支持接入云发布和云监控平台，轻松实现显示屏的跨地域集群管理。
TB60支持多屏播放同步机制，同步异步双模式，满足各类播放需求。
凭借安全稳定、简单易用、智能掌控等特点，TB60可广泛应用于LED 商业显示和智慧城市领域，例如固装屏、灯杆屏、连锁店屏、广告机、镜子屏、零售店屏、门头屏、货架屏等。
认证NBTC 、IMDA 、PSB 、FAC DoC 、ENACOM 、ICASA 、SRRC 、EAC DoC 、EAC RoHS 、RCM 、UL Smark 、CCC 、FCC 、UL 、IC 、KC 、CE 、UKCA 、CB 、MIC 、PSE 、NOM 。
若该产品无所销往国家或地区的相关认证，请第一时间联系诺瓦星云确认或处理，否则，如造成相关法律风险，客户需自行承担或诺瓦星云有权进行追偿。
特性输出●最大带载230万像素极限宽度4096，极限高度4096。
●4路LED 千兆输出网口 默认4主，可配置成2主2备。
●1路立体音频输出接口内源音频采样率固定为48kHz ，外源音频可支持32kHz 、44.1kHz 和48kHz 。
使用诺瓦多功能卡输出音频时，必须使用48kHz 采样率的音频。
●1路HDMI 1.4输出接口最大输出1080p@60Hz ，支持HDMI Loop 。
西安诺瓦星云科技输入●1路HDMI 1.4输入接口同步模式时，使用此接口输入的视频源，支持全屏自适应播放。
●2路传感器接口连接亮度传感器或温湿度传感器。
控制●1路USB 3.0（Type A ）接口支持U 盘节目播放和U 盘固件升级。
●1路USB （Type B ）接口将上位机与设备直连，进行节目发布和显示屏控制。

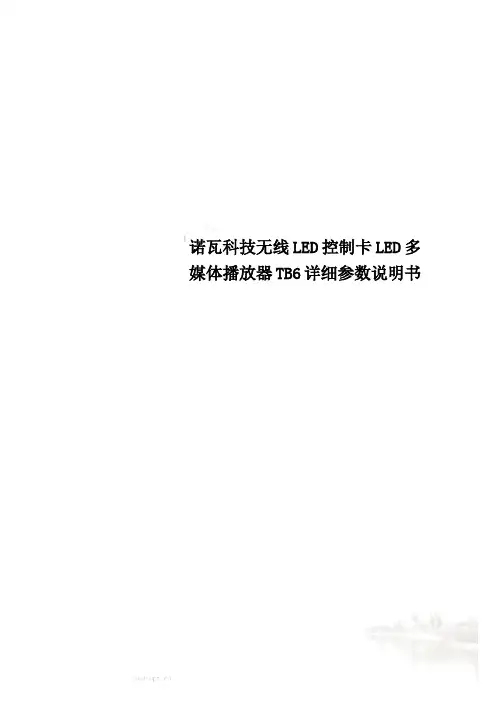

诺瓦科技无线LED控制卡LED多媒体播放器TB6详细参数说明书Taurus SeriesMultimedia PlayersTB6Specifications Doc u ment Version:V1.3.2Doc u ment Number:NS120100361Copyright © 2018 Xi'an NovaStar Tech Co., Ltd. All Rights Reserved.No part of this document may be copied,reproduced, extracted or transmitted in any form or by any means without the prior written consent of Xi’an NovaStar Tech Co., Ltd.Trademarkis a trademark of Xi’an NovaStar TechCo., Ltd.Statementwww.novastar.tech i Table of ContentsYou are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice. If you experience any problems in use or have any suggestions, please contact us via contact info given in document. We will do our best to solve any issues, as well as evaluate and implement anysuggestions.Table of Contents Table of Contents (ii)1 Overview (1)1.1 Introduction ..................................................................................................................................................1 1.2Application (1)2 Features (3)2.1 Synchronization mechanism for multi-screenplaying (3)2.2 Powerful Processing Capability (3)2.3 Omnidirectional Control Plan (3)2.4 Synchronous and AsynchronousDual-Mode (4)2.5 Dual-Wi-Fi Mode ..........................................................................................................................................4 2.5.1 Wi-Fi APMode (5)2.5.2 Wi-Fi Sta Mode (5)2.5.3 Wi-Fi AP+Sta Mode (5)2.6 Redundant Backup (6)3 Hardware Structure (7)3.1 Appearance (7)3.1.1 Front Panel ...............................................................................................................................................7 3.1.2 RearPanel (8)3.2 Dimensions (9)4 Software Structure (10)4.1 System Software (10)4.2 Related Configuration Software (10)5 Product Specifications (11)6 Audio and Video Decoder Specifications (13)6.1 Image .........................................................................................................................................................136.1.1 Decoder (13)6.1.2 Encoder (13)6.2 Audio (14)6.2.1 Decoder (14)6.2.2 Encoder (14)www.novastar.tech ii Table of Contents6.3 Video (15)6.3.1 Decoder (15)6.3.2 Encoder ..................................................................................................................................................16iii1 Overview1 Overview 1.1 IntroductionTaurus series products are NovaStar'ssecond generation of multimedia playersdedicated to small and medium-sizedfull-color LED displays.TB6 of the Taurus series products(hereinafter refe rred to as “TB6”) featurefollowing advantages, better satisfyingusers’ requirements:●Loading capacity up to 1,300,000 pixels●Synchronization mechanism formulti-screen playing●Powerful processing capability●Omnidirectional control plan●Synchronous and asynchronousdual-mode●Dual-Wi-Fi mode ●Redundant backupNote:If the user has a high demand onmodule is recommended. For details,please consult our technical staff.In addition to solution publishing andscreen control via PC, mobile phones andLAN, the omnidirectional control plan alsosupports remote centralized publishingand monitoring.1.2 ApplicationTaurus series products can be widelyused in LED commercial display field,such as bar screen, chain store screen,advertising machine, mirror screen, retailstore screen, door head screen, on boardscreen and the screen requiring no PC.Classification of Taurus’application cases is shown in1 OverviewTaurus Series Multimedia Players2 Features 2.1 Synchronization mechanism for multi-screen playingThe TB6 support switching on/off functionof synchronous display.When synchronous display is enabled, thesame content can be played on differentdisplays synchronously if the time ofdifferent TB6 units are synchronous withone another and the same solution isbeing played.2.2 Powerful Processing CapabilityThe TB6 features powerful hardwareprocessing capability:● 1.5 GHz eight-core processor●Support for H.265 4K high-definitionvideo hardware decoding playback●Support for 1080P video hardwaredecoding● 2 GB operating memory●8 GB on-board internal storage spacewith 4 GB available for users 2.3 Omnidirectional Control PlanCO.,LTD. Cluster control plan is a new internetcontrol plan featuring followingadvantages:●More efficient: Use the cloud servicemode to process services through auniform platform. For example, VNNOXis used to edit and publish solutions,and NovaiCare is used to centrallymonitor display status.● More reliable: Ensure the reliabilitybased on active and standby disasterrecovery mechanism and data backupmechanism of the server.● More safe: Ensure the system safetythrough channel encryption, datafingerprint and permission management.● Easier to use: VNNOX and NovaiCarecan be accessed through Web. As longas there is internet, operation can beperformed anytime and anywhere.● More effective: This mode is moresuitable for the commercial mode ofadvertising industry and digital signageindustry, and makes informationspreading more effective.2.4 Synchronous and Asynchronous Dual-ModeThe TB6 supports synchronous andasynchronous dual-mode, allowing moreapplication cases and being user-friendly.When internal video source is applied, theTB6 is in asynchronous mode; whenHDMI-input video source is used, the TB6is in synchronous mode. Content can bescaled and displayed to fit the screen sizeautomatically in synchronous mode.Users can manually and timely switchbetween synchronous and asynchronousmodes, as well as set HDMI priority.2.5 Dual-Wi-Fi ModeThe TB6 have permanent Wi-Fi AP andsupport the Wi-Fi Sta mode, carryingadvantages as shown below:●Completely cover Wi-Fi connectionscene. The TB6 can be connected tothrough self-carried Wi-Fi AP or theexternal router.●Completely cover client terminals.Mobile phone, Pad and PC can be usedto log in TB6 through wireless network.Require no wiring. Display managementcan be managed at any time, havingimprovements in efficiency.TB6’s Wi-Fi AP signal strength is relatedto the transmit distance and environment.Users can change the Wi-Fi antenna asrequired.2.5.1 Wi-Fi AP ModeUsers connect the Wi-Fi AP of a TB6 to“12345678”.Configure an external router for a TB6 and users can access the TB6 by connectingthe external router. If an external router is configured for multiple TB6 units, a LAN canbe created. Users can access any of the TB6 via the LAN.www.novastar.techdirectly access the TB6. The SSID is “AP+ the last 8 digits of the SN”, for example,“AP10000033”, and the default passwordis2.5.2 Wi-Fi Sta Mode2.5.3 Wi-Fi AP+Sta ModeIn Wi-Fi AP+ Sta connection mode, userscan either directly access the TB6 oraccess internet through bridgingconnection. Upon the cluster solution,VNNOX and NovaiCare can realize remotesolution publishing and remotemonitoring respectively through theInternet.2.6Redundant BackupTB6 support network redundant backup and Ethernet port redundant backup.●Network redundant backup: The TB6 automatically selects internet connectionmode among wired network or Wi-Fi Sta network according to the priority.●Ethernet port redundant backup: The TB6 enhances connection reliabilitythrough active and standby redundant mechanism for the Ethernet port used toconnect with the receiving card.Hardware Structure3 Hardware Structure 3.1 AppearanceHardware StructureFigure 3-1 Front panel of the TB6Note: All product pictures shown in this document are for illustration purpose only. Actual product may vary. Table 3-1 Description of TB6 front panelFigure 3-2 Rear panel of the TB6connected to 100MEthernet cable and thestatus is normal. ● Green and yellow indicators always on at the same time: The unitNote: All product pictures shown in this document are for illustration purpose only. Actual product may vary.Table 3-2 Description of TB6 rear panelHardware StructureUnit: mm4 Software Structure4 Software Structure 4.1 System Softwareating system software●Android terminal application software●FPGA programNote: The third-party applications are notsupported.4.2 Related Configuration SoftwareTable 4-1 Related configuration software5 Product Specifications 5 Product SpecificationsTaurus Series Multimedia PlayersTB6 SpecificationsTECHNOVASTARXI'AN6Audio and Video DecoderSpecifications6.1 Image6.1.1 DecoderCO.,LTD.6.2 AudioTaurus Series Multimedia PlayersTB6 Specifications 6 Audio and Video Decoder Specificationsand YUV400(monochrome) is also supported for H.264. 36。
Taurus 系列多媒体播放器T1-4G 规格书文档版本：V1.3.2文档编号：NS120000336版权所有 © 西安诺瓦电子科技有限公司2018。
保留一切权利。
非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部，并不得以任何形式传播。
商标声明是诺瓦科技的注册商标。
声明欢迎您选用西安诺瓦电子科技有限公司（以下简称诺瓦科技）的产品，如果本文档为您了解和使用产品带来帮助和便利，我们深感欣慰。
我们在编写文档时力求精确可靠，随时可能对内容进行修改或变更，恕不另行通知。
如果您在使用中遇到任何问题，或者有好的建议，请按照文档提供的联系方式联系我们。
对您在使用中遇到的问题，我们会尽力给予支持，对您提出的建议，我们衷心感谢并会尽快评估采纳。
i目录目录目录 ..................................................................................................................................................... ii1 概述 (1)1.1产品简介 (1)1.2应用场景 (1)2产品特点 (3)2.1处理性能强大 (3)2.2全方位控制方案 (3)2.3支持WiFi AP 连接 (4)2.4支持4G 模块 (4)2.5支持远程开关屏 (4)2.6支持USB 直连PC (5)3硬件结构 (6)3.1外观图 ..................................................................................................................................................... (6)3.2尺寸图 ..................................................................................................................................................... (7)4软件结构 (9)4.1系统软件 ...................................................................................................................................................... 94.2相关配置软件 (9)5产品规格 ........................................................................................................................................ 106 音视频解码规格 (11)6.1图片 (11)6.1.1解码器 ..................................................................................................................................................... 116.1.2编码器 ..................................................................................................................................................... 116.2音频 (12)6.2.1解码器 ..................................................................................................................................................... 126.2.2编码器 ..................................................................................................................................................... 126.3视频 (13)6.3.1解码器 ..................................................................................................................................................... 136.3.2编码器 ..................................................................................................................................................... 14ii1 概述1概述1.1产品简介Taurus 系列产品为诺瓦科技针对中小型LED 全彩显示屏推出的第二代多媒体播放器。
诺瓦科技无线LED控制卡LED多媒体播放器TB6详细参数说明书Taurus SeriesMultimedia PlayersTB6Specifications Doc u ment Version:V1.3.2Doc u ment Number:NS120100361Table of Contents Table of Contents (ii)1 Overview (1)1.1 Introduction ..................................................................................................................................................1 1.2Application (1)2 Features (3)2.1 Synchronization mechanism for multi-screenplaying (3)2.2 Powerful Processing Capability (3)2.3 Omnidirectional Control Plan (3)2.4 Synchronous and AsynchronousDual-Mode (4)2.5 Dual-Wi-Fi Mode ..........................................................................................................................................4 2.5.1 Wi-Fi APMode (5)2.5.2 Wi-Fi Sta Mode (5)2.5.3 Wi-Fi AP+Sta Mode (5)2.6 Redundant Backup (6)3 Hardware Structure (7)3.1 Appearance (7)3.1.1 Front Panel ...............................................................................................................................................7 3.1.2 RearPanel (8)3.2 Dimensions (9)4 Software Structure (10)4.1 System Software (10)4.2 Related Configuration Software (10)5 Product Specifications (11)6 Audio and Video Decoder Specifications (13)6.1 Image .........................................................................................................................................................136.1.1 Decoder ..................................................................................................................................................13Taurus Series Multimedia PlayersTB6 Specifications6.1.2 Encoder (13)6.2 Audio (14)6.2.1 Decoder (14)6.2.2 Encoder (14)www.novastar.tech ii Table of Contents6.3 Video (15)6.3.1 Decoder (15)6.3.2 Encoder ..................................................................................................................................................16iii1 Overview1 Overview 1.1 IntroductionTaurus series products are NovaStar'ssecond generation of multimedia playersdedicated to small and medium-sizedfull-color LED displays.TB6 of the Taurus series products(hereinafter referred to as “TB6”) featurefollowing advantages, better satisfyingusers’ requirements:●Loading capacity up to 1,300,000 pixels●Synchronization mechanism formulti-screen playing●Powerful processing capability●Omnidirectional control plan●Synchronous and asynchronousdual-mode●Dual-Wi-Fi mode ●Redundant backupNote:If the user has a high demand onmodule is recommended. For details,please consult our technical staff.In addition to solution publishing andscreen control via PC, mobile phones andLAN, the omnidirectional control plan alsosupports remote centralized publishingand monitoring.1.2 ApplicationTaurus series products can be widelyused in LED commercial display field,such as bar screen, chain store screen,advertising machine, mirror screen, retailstore screen, door head screen, on boardscreen and the screen requiring no PC.Classification of Taurus’application cases is shown in1 Overview2 Features 2.1 Synchronization mechanism for multi-screen playingThe TB6 support switching on/off functionof synchronous display.When synchronous display is enabled, thesame content can be played on differentdisplays synchronously if the time ofdifferent TB6 units are synchronous withone another and the same solution isbeing played.2.2 Powerful Processing CapabilityThe TB6 features powerful hardwareprocessing capability:● 1.5 GHz eight-core processor●Support for H.265 4K high-definitionvideo hardware decoding playback●Support for 1080P video hardwaredecoding● 2 GB operating memory●8 GB on-board internal storage spacewith 4 GB available for users 2.3 Omnidirectional Control PlanCluster control plan is a new internetcontrol plan featuring followingadvantages:●More efficient: Use the cloud servicemode to process services through auniform platform. For example, VNNOXis used to edit and publish solutions,and NovaiCare is used to centrallymonitor display status.●More reliable: Ensure the reliabilitybased on active and standby disasterrecovery mechanism and data backupmechanism of the server.●More safe: Ensure the system safetythrough channel encryption, datafingerprint and permissionmanagement.●Easier to use: VNNOX and NovaiCarecan be accessed through Web. As longas there is internet, operation can beperformed anytime and anywhere.●More effective: This mode is moresuitable for the commercial mode ofadvertising industry and digital signageindustry, and makes informationspreading more effective.www.novastar.tech 92.4 Synchronous and Asynchronous Dual-ModeThe TB6 supports synchronous andasynchronous dual-mode, allowing moreapplication cases and being user-friendly.When internal video source is applied, theTB6 is in asynchronous mode; whenHDMI-input video source is used, the TB6is in synchronous mode. Content can bescaled and displayed to fit the screen sizeautomatically in synchronous mode.Users can manually and timely switchbetween synchronous and asynchronousmodes, as well as set HDMI priority.2.5 Dual-Wi-Fi ModeThe TB6 have permanent Wi-Fi AP andsupport the Wi-Fi Sta mode, carryingadvantages as shown below:●Completely cover Wi-Fi connectionscene. The TB6 can be connected tothrough self-carried Wi-Fi AP or theexternal router.●Completely cover client terminals.Mobile phone, Pad and PC can be usedto log in TB6 through wireless network.Require no wiring. Display management can be managed at any time, having improvements in efficiency.TB6’s Wi -Fi AP signal strength is relatedto the transmit distance and environment.Users can change the Wi-Fi antenna asrequired.2.5.1 Wi-Fi AP ModeUsers connect the Wi-Fi AP of a TB6 to “12345678”.Configure an external router for a TB6 and users can access the TB6 by connectingthe external router. If an external router is configured for multiple TB6 units, a LAN canbe created. Users can access any of the TB6 via the LAN.www.novastar.tech 11directly access the TB6. The SSID is “AP+ the last 8 digits of the SN”, for example,“AP10000033”, and the default passwordis2.5.2 Wi-Fi Sta Mode2.5.3 Wi-Fi AP+Sta ModeIn Wi-Fi AP+ Sta connection mode, userscan either directly access the TB6 oraccess internet through bridging connection. Upon the cluster solution, VNNOX and NovaiCare can realize remote solution publishing and remotemonitoring respectively through theInternet.2.6Redundant BackupTB6 support network redundant backup and Ethernet port redundant backup.●Network redundant backup: The TB6 automatically selects internet connectionmode among wired network or Wi-Fi Sta network according to the priority.●Ethernet port redundant backup: The TB6 enhances connection reliabilitythrough active and standby redundant mechanism for the Ethernet port used toconnect with the receiving card.www.novastar.tech 13Taurus Series Multimedia PlayersTB6 Specifications 3Hardware Structure3 Hardware Structure 3.1 AppearanceSYSSystem status indicator●Flashing once every other 2seconds: The system isoperating normally.●Flashing once every othersecond: The system isinstalling the upgradepackage.●Flashing once every other0.5 second: The system isdownloading data from theInternet or copying theupgrade package.●Always on/off: The system isoperating abnormally. CLOUD Internet connection statusindicator●Always on: The unit isconnected to the Internetand the connection status isnormal.●Flashing once every other 2seconds: The unit isconnected to VNNOX andthe connection status isnormal.RUN FPGA status indicatorSame as the signal indicator3.1.1FrontPanelHardware Structure Name Descriptionstatus of the sending card:FPGA is operating normally.Figure 3-1 Front panel of the TB6Note: All product pictures shown in this document are for illustration purpose only.Actual product may vary.Table 3-1 Description of TB6 front panelSWITCH Button for switching betweensynchronous andasynchronous modes●Always on: Synchronousmode●Off: Asynchronous mode Figure 3-2 Rear panel of the TB6Name DescriptionTEMP Temperature sensor port LIGHT Light sensor portWiFi-AP Wi-Fi AP antenna port WiFi-STA Wi-Fi Sta antenna port COM1 ReservedCOM2 ReservedETHERNETGigabitEthernet portIndicatorstatus:●Yellow indicator alwayson: The unit isconnected to 100MEthernet cable and thestatus is normal.● Green and yellow indicators always on at the same time: The unitis connected to GigabitEthernet cable and thestatus is normal.USB USB 2.0 portHDMI ● IN: HDMI 1.4 input●OUT: HDMI 1.4 outputAUDIO OUT Audio outputRESET Factory reset buttonPress and hold the buttonfor 5 seconds to reset theunit to factory settings. Note: All product pictures shown in this document are for illustration purpose only. Actual product may vary.Table 3-2 Description of TB6 rear panelHardware StructureName DescriptionLED OUT Output Ethernet port ON/OFF Power switch100-240V~,50/60Hz Power inputUnit: mm4 Software Structure4 Software Structure 4.1 System Software● And r o i d o pe rating system software● Android terminal application software ●FPGA program Note: The third-party applications are not supported.4.2 Related Configuration SoftwareTable 4-1 Related configuration softwareViPlex Express PC client software of the TB6 only includes Windows which is mainly used for screen management, editing, and solution publishing.Display screen configuration software works in Windows only, and is used to adjust screens to the best display status. NovaLCT5 Product Specifications 5 Product Specificationspower consumptio nStorage Space Operatingmemory2 GBInternalstoragespace8 GBon-board with 4GB availableStorage Environmen tTemperature 0°C–50°C Humidity 0% RH–80%RHOperating Environmen t Temperature -40°C–80°C Humidity 0% RH–80%RH375 mm × 280mm × 108 mmfor usersPackinginformationDimensions (H×W×D)5 Product Specifications●2 USB ports allows forplayback of media importedfrom USB drives.●1 Onboard brightness sensorport supports automatic andscheduled smart brightnessadjustment.Antenna6Image Size48×48pixels~8176×8176pixel sNoAudio and Video Decoder 6.1.2 EncoderTyp e CodecSupportedImage SizeMaximumData RateFileFormatRemarksJP EG JPEGBasel96×32pixels~817690Mpixels/SecondJFIFfileN/A nGIF GIF NoRestrictionGIF N/APNG PNG NoRestrictionPNG N/AWEB P WEBP NoRestrictionWEBP N/ASpecifications6.1Image6.1.1Decoder 28ine ×8176 pixels format1.02 6.2 AudioType Codec Channel Bit rate SamplingrateFileFormatRemarksMPE G MPEG1/2/2.5AudioLayer1/2/32 8kbps~320Kbps, CBRand VBR8KHZ~48KHzMP1,MP2,MP3N/AWind ows Medi a Audi o WMAVersion4,4.1, 7, 8,9,wmapro2 8kbps~320Kb ps8KHZ~48KHzWMANon-supportWMAPro,lossless andMBRWAV MS-ADPCM,IMA-ADPCM,PCM 2 N/A 8KHZ~48KHzSupport4bitMS-ADPCM,IMA-ADWAV 29PCMOGG Q1~Q10 2 N/A 8KHZ~48KHz OGG,OGAN/AFLAC Compress Level0~8 2 N/A FLACN/AAAC ADIF,ATDSHeaderAAC-LCandAAC-HE,AAC-ELD 5.1 8KHZ~48KHzAAC,M4AN/AAMR AMR-NB,AMR-WBAMR-NB4.75~12.2kbps@8kHzAMR-WB6.60~23.8KHZ,16KHz3GP N/A8K HZ~48KHzN/A1 30 35Gand YUV400(monochrome) is also supported for H.264.Type Codec SupportedImage SizeMaximumFrameRateMaximumBitRate(IdealCase)RemarksH.264/ AVC H.264144×96pixels~1920×1088 pixels30fps 20MbpsMOV,3GPNotsupportMBAFFGoogl e VP8 VP8 96×96pixels~1920×1088 pixels30fps WEBMN/AFile Format10M bps 36。

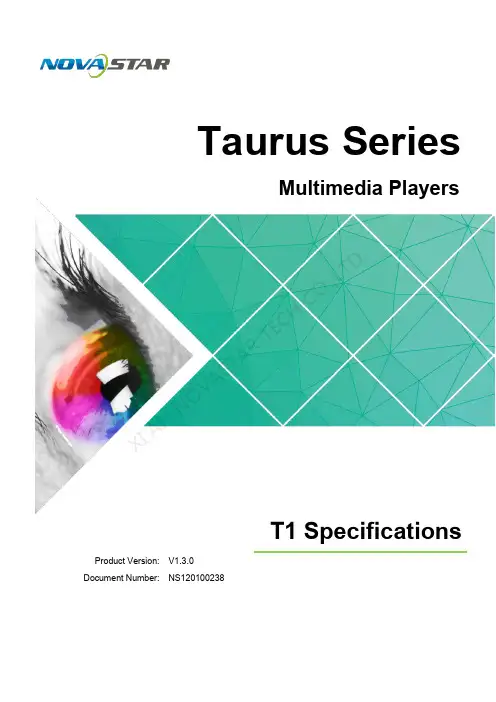

Taurus SeriesMultimedia PlayersT1 SpecificationsProduct Version: V1.3.0 Document Number:NS120100238XI 'AN NOVA ST A R TEC H C O .,L T D .Copyright © 2018 Xi’an NovaStar Tech Co., Ltd. All Rights Reserved.No part of this document may be copied, reproduced, extracted or transmitted in any form or by any means without the prior written consent of Xi’an Nova Star Tech Co., Ltd.Trademarkis a trademark of Xi’an NovaStar Tech Co., Ltd.StatementYou are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice. If you experience any problems in use or have any suggestions, please contact us via contact info given in document. We will do our best to solve any issues, as well as evaluate and implement any suggestions.X I'A NN OV AS TA RT EC HC O.,L TD.T1 SpecificationsTable of ContentsTable of ContentsTable of Contents ............................................................................................................................ ii 1 Safety .. (1)1.1 Storage and Transport Safety ..................................................................................................................... 1 1.2 Installation and Use Safety .. (1)2 Overview ......................................................................................................................................... 3 2.1 Introduction .................................................................................................................................................. 3 2.2 Application ................................................................................................................................................... 3 3 Features ........................................................................................................................................... 5 3.1 Powerful Processing Capability ................................................................................................................... 5 3.2 Omnidirectional Control Plan ....................................................................................................................... 5 3.3 Wi-Fi AP Connection .. (6)4 Hardware Structure....................................................................................................................... 7 4.1 Appearance . (7)4.2 Dimensions .................................................................................................................................................. 8 5 Software Structure ...................................................................................................................... 10 5.1 System Software ........................................................................................................................................ 10 5.2 Related Configuration Software ................................................................................................................. 10 6 Product Specifications ................................................................................................................ 11 7 Audio and Video Decoder Specifications (13)7.1 Image ......................................................................................................................................................... 13 7.1.1 Decoder .................................................................................................................................................. 13 7.1.2 Encoder .................................................................................................................................................. 13 7.2 Audio .......................................................................................................................................................... 14 7.2.1 Decoder .................................................................................................................................................. 14 7.2.2 Encoder .................................................................................................................................................. 14 7.3 Video .......................................................................................................................................................... 15 7.3.1 Decoder .................................................................................................................................................. 15 7.3.2 Encoder .. (16)XI 'A N N O V A S T A R T E C H C O .,L T D.1SafetyThis chapter illustrates Taurus series products safety to ensure storage, transportation, installation and usage safety of the products.Safety description is applicable to all personnel that contact or use the products. First, pay attention to following points:● Read throughout the description. ● Save the whole description.●Be complied with the whole description.1.1 Storage and Transport Safety ● Pay attention to dust and water prevention.● Avoid long-term direct sunlight. ● Do not place the products in the position near fire and heat.● Do not place the products in an area containing explosive materials. ● Do not place the products in strong electromagnetic environment. ● Place the products in a stable position to prevent damage or personal injury caused by dropping.●Save the packing box and materials which will come in handy if you ever have to ship your products. For maximum protection, repack your product as it wasoriginally packed at the factory.1.2 Installation and Use Safety● Only trained professionals may install the products.● Do not insert and unplug (power cord plug) when the power is on. ● Ensure the safe grounding of the device. ● Be careful about electric shock risk.● Always wear a wrist band and insulating gloves.● Do not place the products in an area having more or strong shake. ● Perform dust removing regularly.●Rather than having the product disassembled and maintained by non-certified professionals, please contact NovaStar for maintenance at any time.X I 'A N N O V A S T A R T E CHCO .,L T D.Replace faulty parts only with the spare parts supplied by NovaStar.X I'A NN OV AS TA RT EC HC O.,L TD.2Overview2.1 IntroductionTaurus series products are NovaStar's second generation of multimedia players dedicated to small and medium-sized full-color LED displays.T1 of the Taurus series products (herein after referred to as “T1”) feature following advantages, better satisfying users’ requir ements:● Loading capacity up to 650,000 pixels ● Powerful processing capability ● Omnidirectional control plan ●Wi-Fi AP connectionIn addition to solution publishing and screen control via PC, mobile phones and LAN, the omnidirectional control plan also supports remote centralized publishing and monitoring.2.2 ApplicationTaurus series products can be widely used in LED commercial display field, such as bar screen, chain store screen, advertising machine, mirror screen, retail store screen,door head screen, on board screen and the screen requiring no PC. Classification of Taurus’ applicati on cases is shown in Table 2-1. Table 2-1 ApplicationXI 'A N N O VA S TAR T E C HCO .,L T D.X I'A NN OV AS TA RT EC HC O.,L TD.3Features3.1 Powerful Processing Capability● 1.2 GHz four-core processor● Support for 1080P video hardware decoding ● 1 GB operating memory●8 GB on-board internal storage space with 4 GB available for users3.2 Omnidirectional Control PlanTable 3-1 Control PlanCluster control plan is a new internet control plan featuring following advantages:E C HCO .,L T D.●More efficient: Use the cloud service mode to process services through a uniform platform. For example, VNNOX is used to edit and publish solutions, and NovaiCare is used to centrally monitor display status.● More reliable: Ensure the reliability based on active and standby disaster recovery mechanism and data backup mechanism of the server.● More safe: Ensure the system safety through channel encryption, data fingerprint and permission management.● Easier to use: VNNOX and NovaiCare can be accessed through Web. As long as there is internet, operation can be performed anytime and anywhere. ●More effective: This mode is more suitable for the commercial mode of advertising industry and digital signage industry, and makes information spreading more effective.3.3 Wi-Fi AP ConnectionThe T1 has permanent Wi-Fi AP. The SSID is "AP + the last 8 digits of the SN ", for example, "AP10000033", and the default password is "12345678". The T1 requires no wiring and users can manage the displays at any time by connecting to the T1 via mobile phone, Pad or PC.T1’s Wi -Fi AP signal strength is related to the transmit distance and environment.Users can change the Wi-Fi antenna as required.XI 'AN NOVA S TAR T E C HCO .,L T D.T1 Specifications4 Hardware Structure4Hardware Structure4.1 AppearanceFigure 4-1 Appearance of T1Note: Product images provided in this file are for reference only, and the actual products shall prevail.Table 4-1 Connectors and buttons of the T1XI 'A N N OVA S TA R T E C HCO .,L T D.Note: Product images provided in this file are for reference only, and the actualproducts shall prevail.Table 4-2 Indicators of the T1X4.2 DimensionsThe total thickness (board thickness + thickness of the components on the front andback side) is no greater than 15.5 mm.Unit of the dimension chart is “mm”. Ground connection is enabled for location hole(GND).N O V AS TA RT EC HC O.,L TD.X I' A N5Software Structure5.1 System Software● Android operating system software ● Android terminal application software ●FPGA programNote: The third-party applications are not supported.5.2 Related Configuration SoftwareTable 5-1 Related configuration softwareE C HCO .,L T D.6 Product Specifications SpecificationsAntennaAntenna extension mastX I'A NN OV AS TA RT EC HC O.,L TD.7Audio and Video DecoderSpecifications7.1 Image7.1.1 Decoder7.1.2 EncoderO .,L T D.7.2 Audio 7.2.1 Decoder7.2.2 Encoder7.3 Video 7.3.1 DecoderNote: Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264.7.3.2 EncoderXI 'AN NOVA S。
