印尼棕榈壳粉碎机简介

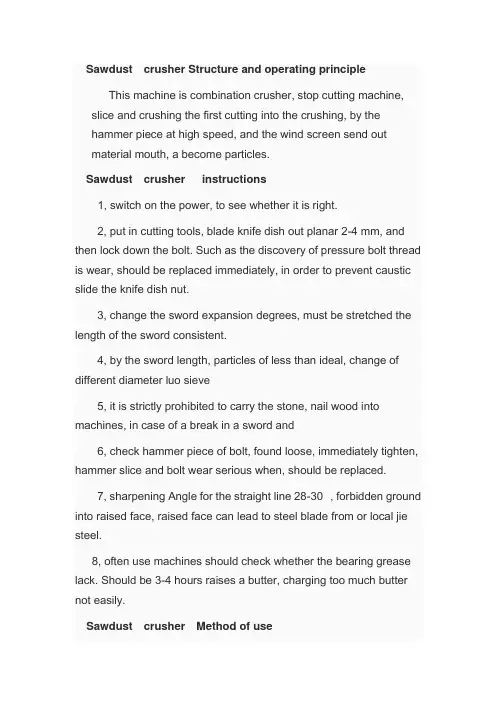

印尼棕榈壳粉碎机简介Sawdust crusher Structure and operating principleThis machine is combination crusher, stop cutting machine, slice and crushing the first cutting into the crushing, by the hammer piece at high speed, and the wind screen send out material mouth, a become particles.Sawdust crusher instructions1, switch on the power, to see whether it is right.2, put in cutting tools, blade knife dish out planar 2-4 mm, and then lock down the bolt. Such as the discovery of pressure bolt thread is wear, should be replaced immediately, in order to prevent caustic slide the knife dish nut.3, change the sword expansion degrees, must be stretched the length of the sword consistent.4, by the sword length, particles of less than ideal, change of different diameter luo sieve5, it is strictly prohibited to carry the stone, nail wood into machines, in case of a break in a sword and6, check hammer piece of bolt, found loose, immediately tighten, hammer slice and bolt wear serious when, should be replaced.7, sharpening Angle for the straight line 28-30 °, forbidden ground into raised face, raised face can lead to steel blade from or local jie steel.8, often use machines should check whether the bearing grease lack. Should be 3-4 hours raises a butter, charging too much butter not easily.Sawdust crusher Method of use1, this machine use, do not change the power and speed, Angle grinder, straight line kept the original 28-30 °.2, change, grain, needs a new ROM, blade adjustment simultaneously, LuoKong minimum not less than 14 mm (diameter), the biggest not more than 20 mm (diameter), and the sword length 3-6 mm, the bottom of the knife knife plate and the gap is not more than 1 mm.3, the machine can powder 3 cm in diameter-20 cm of the wood into granular.4 The quality of incoming material feeding port the biggest diameter is 300 mm. If wood diameter feeding port more than the biggest diameter, can use the form a complete set of firewood machine to split wood, in the smash.Sawdust crusher troubleshootingFault phenomena Fault reason Elimination methodLow yield (1) the bladeis not sharp;(2) the bladedid not adjustgood, cut outof wood agranular The grinding bladeFeeding difficult 1) the bladewear notsharp; (2) thefixed knifegap is toosmall or toolarge(1) thegrindingblade; (2)adjust thefixed knifeclearance 2-3mm; (3) theblade Angleis not greaterthan 30degreesLoad super jose (1) feedinguneven toofast; (2) theblade is notsharp(1) reducefeedingspeed; (2) thegrindingbladeBearing (1) in the 1) bearingsheating bearing nobutter; (2)with thebearing notflat; (3)bearingdamage; (4)belts tight inside and butter; (2) the housing balance; (3) change new bearing; (4) reasonable adjustment belt.Sawdust crushe parametersKnife roller diameter (mm 800 Number of round ( 2The feeding port size (mm) 310*680Knife roller speed (turn/points)650 Feeding speed (m/min 35/37.38Raw material processing the300biggest diameter (mm)Wood length (mm15-35Production capacity (m3 / h) 15-35The main motor power (kw)110Feed roller motor power (kw) 2*4Weight (t) 7Size (long * high * wide) (mm) 4670*2150*1500木屑粉碎机(木材粉碎机)结构及操作原理该机系组合型粉碎机，止切削机、切片及粉碎先经切削进入粉碎，由锤片高速运转，风力经筛网送出料口，一次成为颗粒。

木屑粉碎机(木材粉碎机)使用说明1 、接通电源，看转向是否正确。

2 、装换刀具时，刀口伸出刀盘平面2—4mm，然后拧紧螺栓。

如发现压力螺栓丝扣磨损，应立即更换，以防损滑刀盘螺母。

3 、改变刀的伸缩度，必须是伸刀长短一致。

4 、靠调刀长度，颗粒达不到理想时，改换不同孔径的罗筛。

5 、严禁夹带石头、钉子的木柴投入机内，以防打坏刀个和内件。

6 、注意检查锤片螺栓，发现松动，立即紧固，锤片和螺栓磨损严重时，应更换。

7 、磨刀角度为直线28—30°，严禁磨成凸面，凸面会导致钢刃脱离或局部揭钢。

8 、经常使用的机子应检查轴承黄油是否缺少。

应3—4小时加注黄油一次，加注黄油不易过多。

木屑粉碎机(木材粉碎机)使用方法1 、本机使用，不改变动力和速度，磨刀角度，保持原来直线 28—30°。

2 、改变颗粒，需换罗、调刀同时进行，罗孔最小不小于14mm（直径），最大不大于20mm（直径），调刀长度3—6mm之间，底刀板和刀的间隙不大于1mm 。

3 、该机能粉直径3cm—20cm以下的木料成颗粒状。

木屑粉碎机(木材粉碎机)故障排除故障现象故障原因排除方法产量较低①刀片不锋利；②刀片未调整好，切出木屑不成颗粒状修磨刀刃进料困难①刀刃磨损不锋利；②定刀的间隙太小或太大①修磨刀刃；②调整定刀间隙2–3mm ；③刀片角度不能大于负荷超荷①进料太快不均；②刀片不锋利①降低进料速度；②修磨刀轴承发热①轴承座内无黄油；②轴承座未装平；③轴承损坏；④皮带过紧①轴承内加黄油；②轴承座校平衡；③换新轴承；④调整皮带松紧。

技术参数刀辊直径（毫米）800飞刀数（片） 2进料口尺寸（毫米）310*680 刀辊转速（转/分）650进料速度（米/分）35/37.38 加工原料最大直径（毫米）300木片长度（毫米）15--35 生产能力（立方米/小时15--35主电机功率（千瓦）110喂料辊电机功率（千瓦）2*4重量（吨）7尺寸（长*高*宽）（毫米4670*2150*1500棕榈树粉碎生产线。
